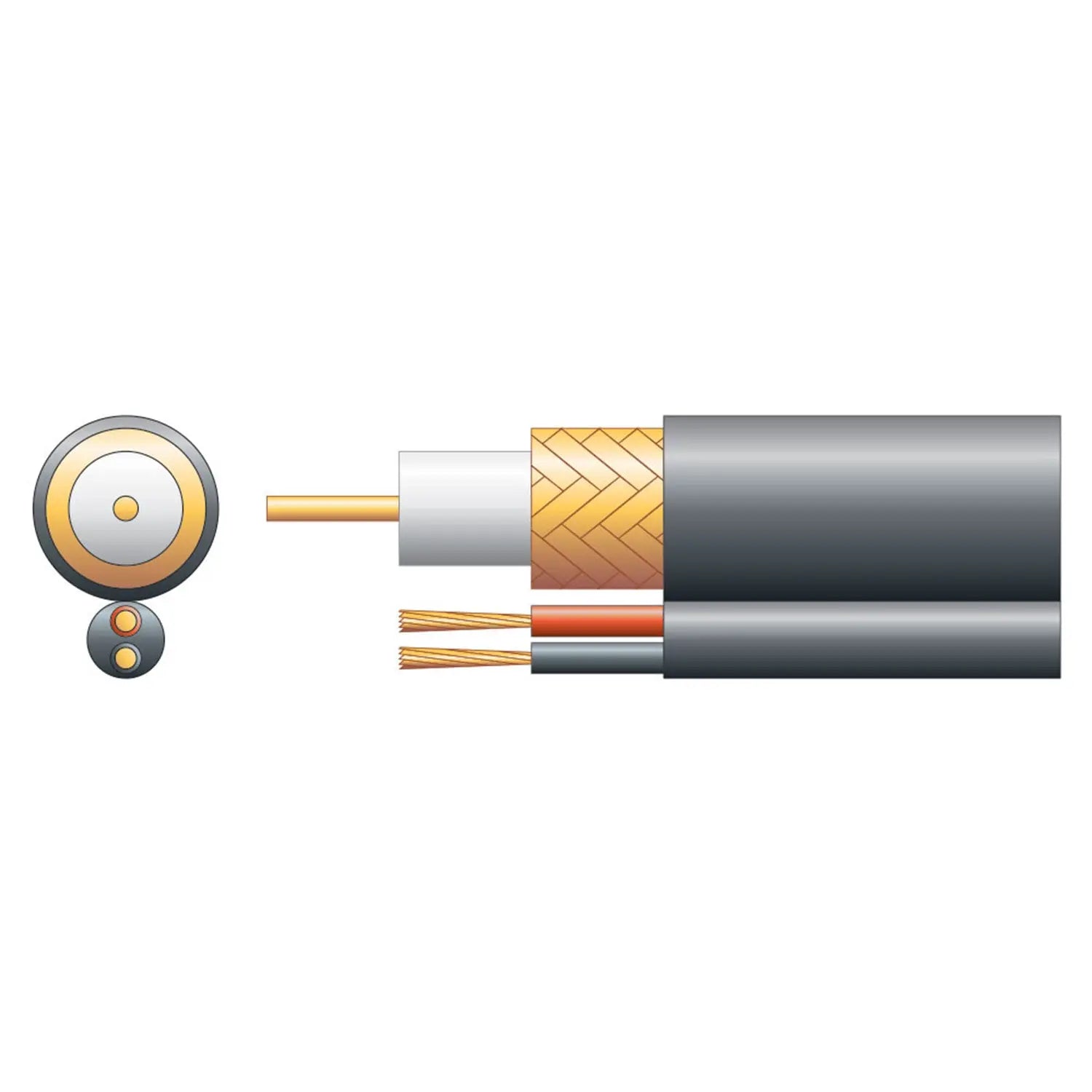

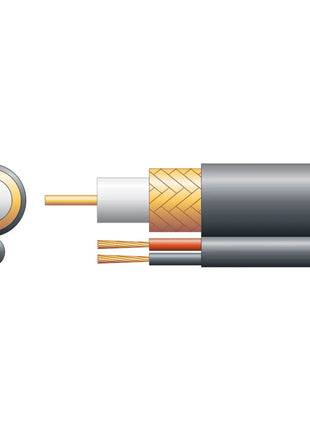

75 Ohms RG59 coaxial cable coupled with a two core power cable. Constructed of a solid oxygen free copper conductor, foam filled polyethylene dielectric and copper clad aluminium braid. Paired with a two core strand conductor double insulated power cable. Designed for CCTV power and signal transmission.
Solid OFC coaxial conductor
Foam filled PE dielectric
CCA braid
Stranded OFC power cable conductor
Supplied in 100m reel with metric cut markers
Conductor diameter 0.8mmØ
CSA 0.5mm²
Dielectric 3.7mmØ foam PE
Braid 48 x 0.12mmØ
Cable : diameter 6mmØ
Impedance 75 Ohms
Capacitance 67pF/m
Velocity factor 83%
Power cable 2 x 7/0.38mmØ (0.79mm²) bare copper, red/black
Max. current 6A
Colour Black
Length 100m
Weight 6.4kg
Return loss 5-400MHz 24dB min./100m
Return loss 450-1000MHz 20dB min./100m
Return loss 1000-2150MHz 16dB min./100m
Attenuation @ 5MHz 2.8dB max./100m
Attenuation @ 50MHz 5.1dB max./100m
Attenuation @ 100MHz 7.3dB max./100m
Attenuation @ 200MHz 10.1dB max./100m
Attenuation @ 400MHz 14.9dB max./100m
Attenuation @ 860MHz 22.1dB max./100m
Attenuation @ 1000MHz 24.7dB max./100m
Attenuation @ 1750MHz 34.1dB max./100m
Attenuation @ 2150MHz 38.1dB max./100m
Conductor material Solid OFC
Braid material CCA
