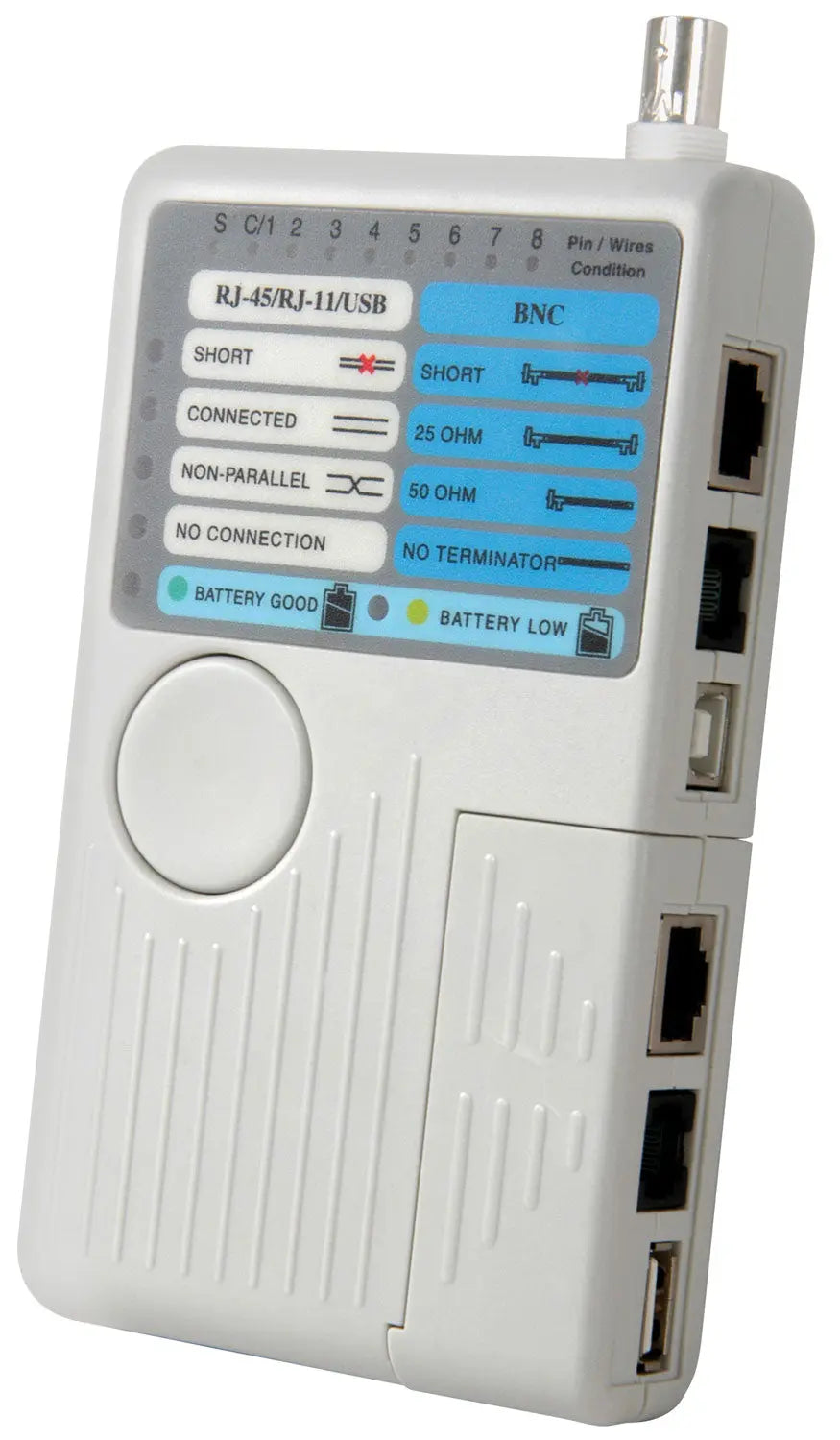

A handheld test meter for determining continuity and wire/pin-related faults in network, telephone, USB and coaxial cables, before and after installation. The device comprises a main module and detachable remote. To test a cable, its ends must be connected to the appropriate RJ45 (UTP/STP), RJ11 or USB jacks in both units. BNC leads must be connected to the plug on the top of the main module and terminated using the BNC remote jack (included) before testing. Pressing the test button generates an audible beep and one of several LED indications on the front panel, denoting various connection statuses, including crossover. The tester is battery powered, with an LED indicator to show when a replacement cell is required. A carry case is included, for protection in transit and storage.
Simple single-button test and audible alert for intuitive use
Easy-to-read LED indication for short/open circuit, crossover and no connection
Battery status indication
Carry case included
Remote unit stores conveniently within the main unit
Tests all common network types: RJ45 (UTP/STP), RJ11, USB and BNC
Max. cable length 180m (600ft)
Battery 1x 9Vdc PP3 (not supplied)
Dimensions 143 x 86 x 26.5mm
Weight 202g
