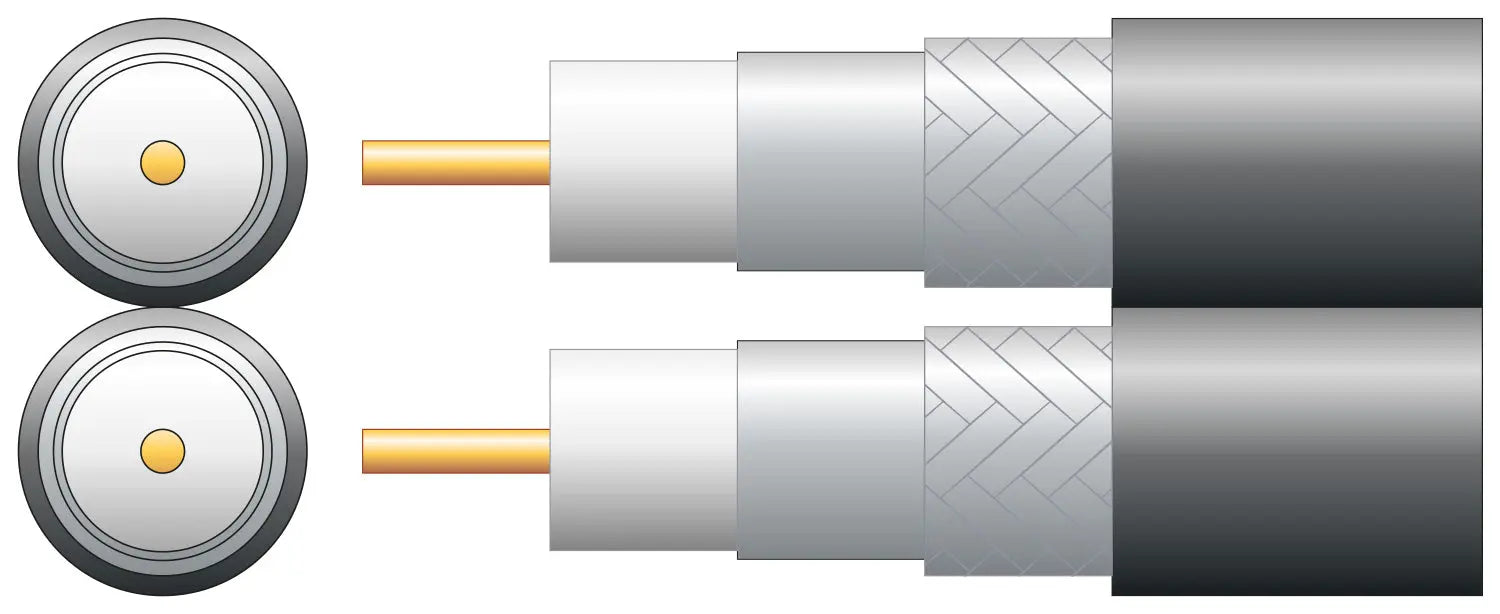

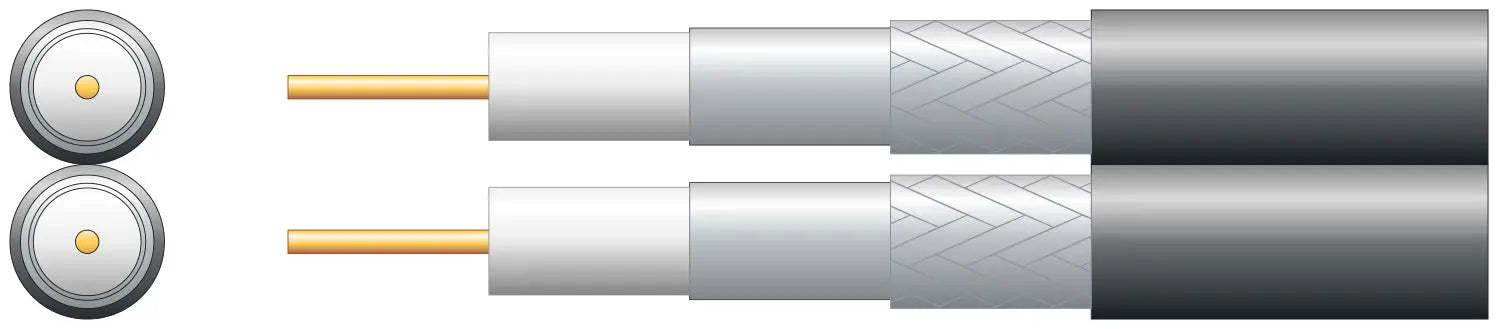

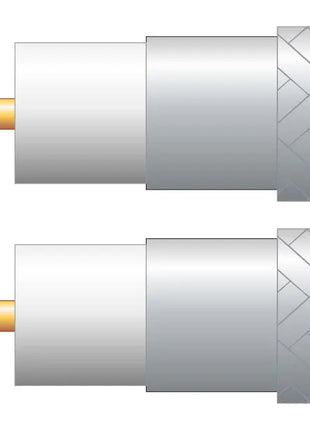

75 Ohms twin RG6 coaxial cable constructed of solid copper clad steel conductor, foam filled polyethylene dielectric, aluminium foil screen, aluminium braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for satellite dish installation with dual or quad LNB.
Solid CCS conductor
Foam filled PE dielectric
Binded aluminium screen
Aluminium braid
Supplied in 100m or 250m reel with metric cut markers
Conductor diameter 2 x 1mmØ
CSA 2 x 0.79mm²
Dielectric 4.6mmØ foam PE
Screen Aluminium / PET foil
Braid 2 x 64/0.12mmØ
Cable : diameter 2 x 6.6mmØ
Impedance 75 Ohms
Capacitance 54pF/m
Velocity factor 83%
Return loss 5-400MHz 24dB min./100m
Return loss 450-1000MHz 20dB min./100m
Return loss 1000-2150MHz 16dB min./100m
Attenuation @ 5MHz 2.8dB max./100m
Attenuation @ 50MHz 5.1dB max./100m
Attenuation @ 100MHz 6.9dB max./100m
Attenuation @ 200MHz 10.1dB max./100m
Attenuation @ 400MHz 14.9dB max./100m
Attenuation @ 860MHz 20.1dB max./100m
Attenuation @ 1000MHz 22.2dB max./100m
Attenuation @ 1750MHz 29.6dB max./100m
Attenuation @ 2150MHz 33.3dB max./100m
Conductor material Solid CCS
Braid material Aluminium
