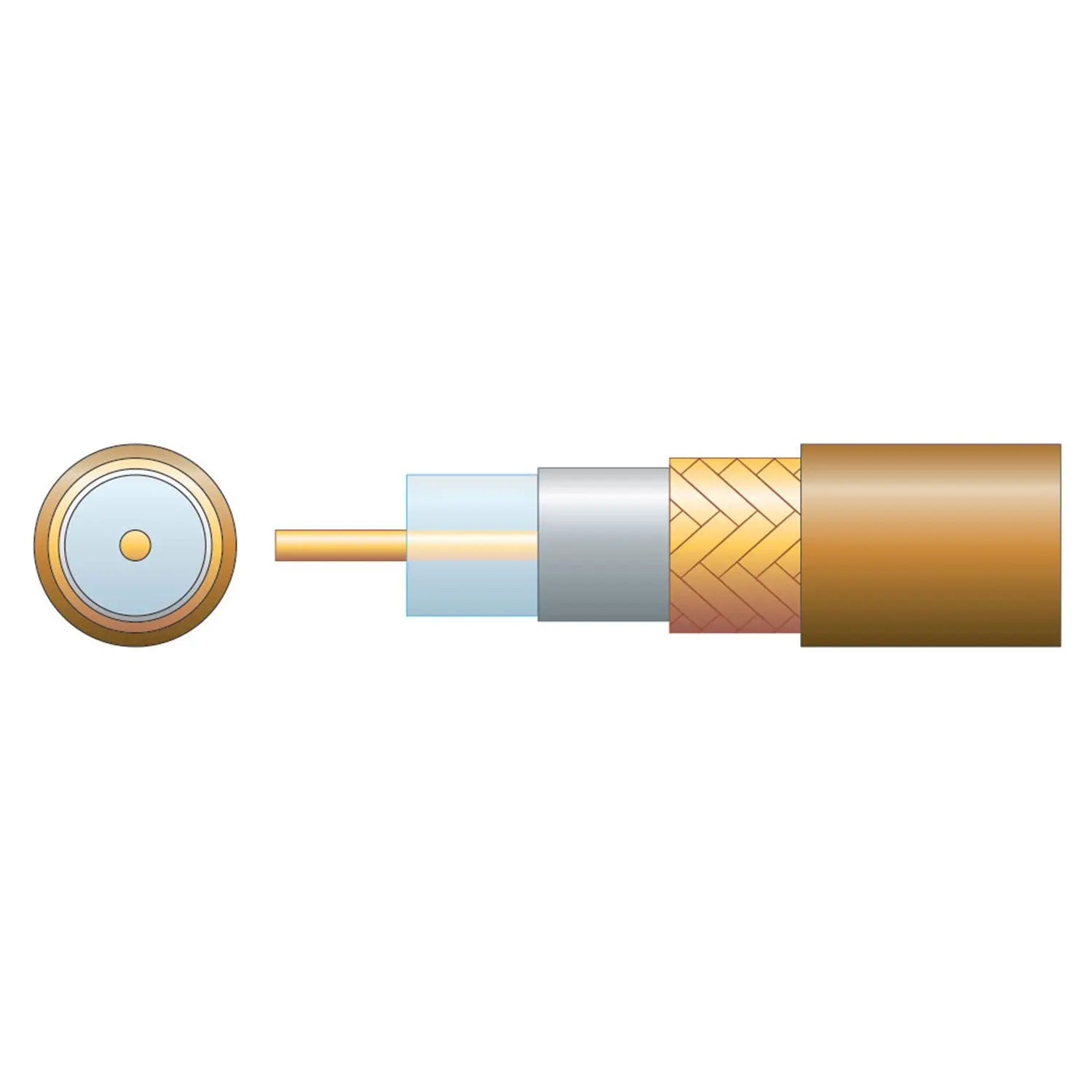

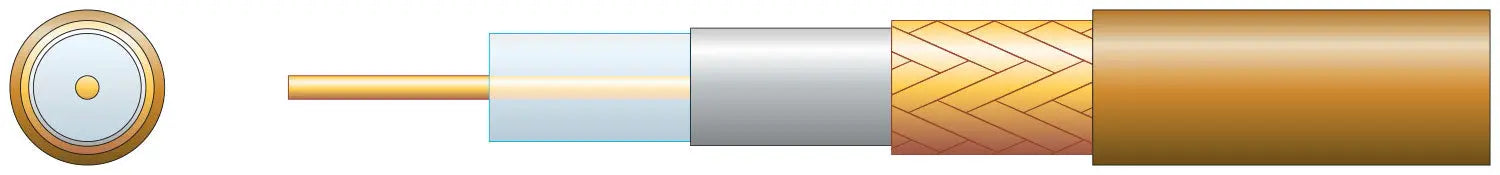

75 Ohms RG6 coaxial cable constructed of solid copper clad steel conductor, air spaced polyethylene dielectric, aluminium foil screen, copper clad aluminium braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for digital, satellite and cable TV signal transmission.
Solid CCS conductor
Air spaced PE dielectric
CCA braid
Binded aluminium foil screen
Supplied in 100m reel with metric cut markers
Conductor diameter 1mmØ
CSA 0.79mm²
Dielectric 4.6mmØ air spaced PE
Braid 48 x 0.12mmØ
Screen Aluminium / PET foil
Cable : diameter 6.6mmØ
Impedance 75 Ohms
Capacitance 54pF/m
Velocity factor 83%
Length 100m
Weight 4.2kg
Return loss 5-400MHz 24dB min./100m
Return loss 450-1000MHz 20dB min./100m
Return loss 1000-2150MHz 16dB min./100m
Attenuation @ 5MHz 2.9dB max./100m
Attenuation @ 50MHz 5.2dB max./100m
Attenuation @ 100MHz 6.9dB max./100m
Attenuation @ 200MHz 10.2dB max./100m
Attenuation @ 400MHz 14.9dB max./100m
Attenuation @ 860MHz 20.3dB max./100m
Attenuation @ 1000MHz 22.5dB max./100m
Attenuation @ 1750MHz 29.8dB max./100m
Attenuation @ 2150MHz 33.6dB max./100m
Conductor material Solid CCS
Braid material CCA
