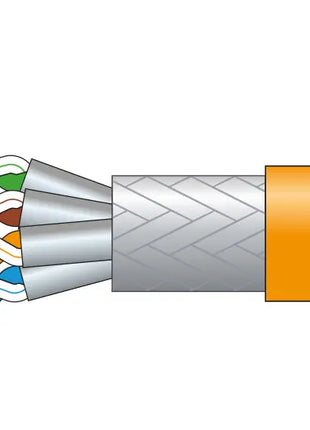

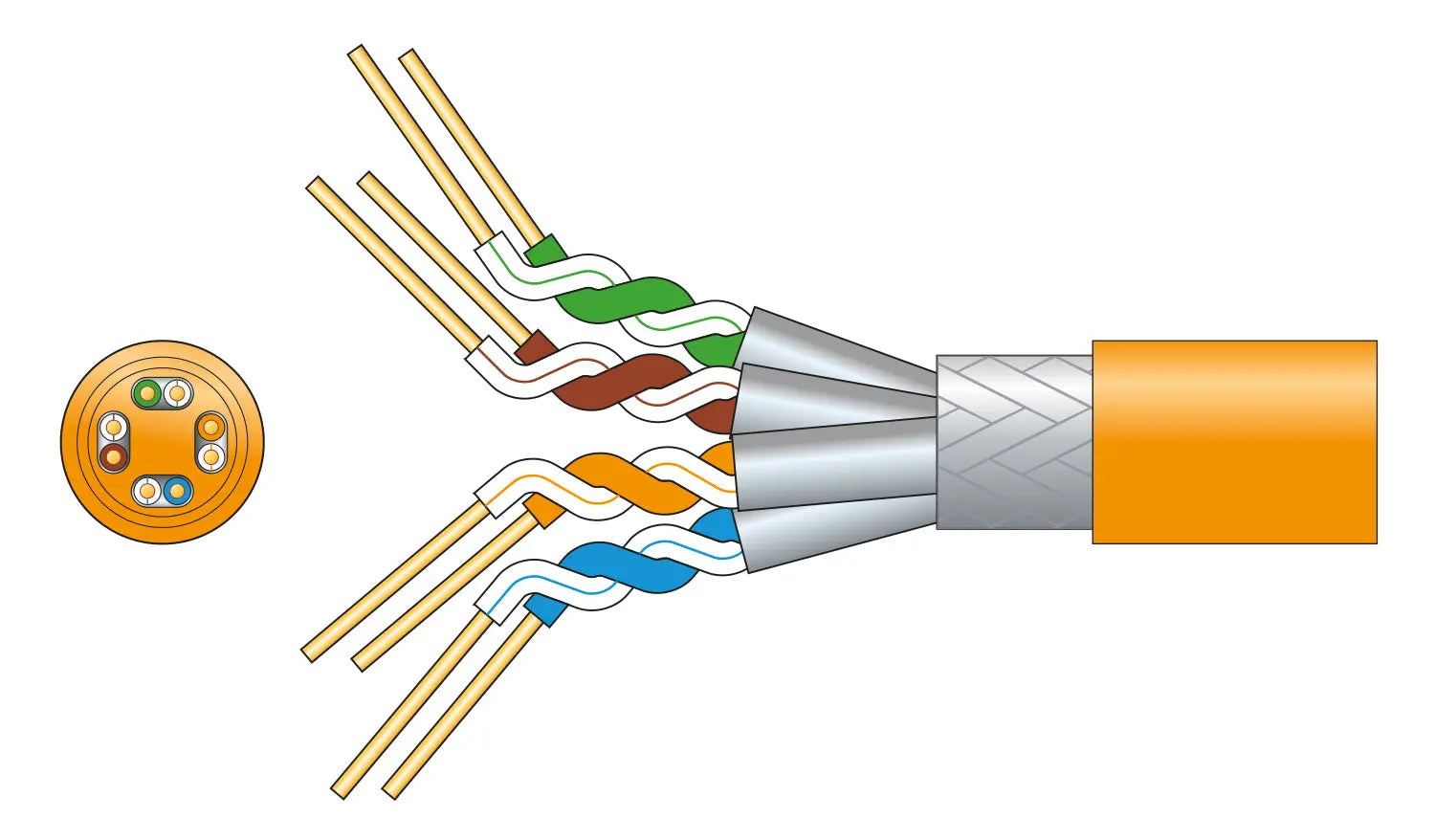

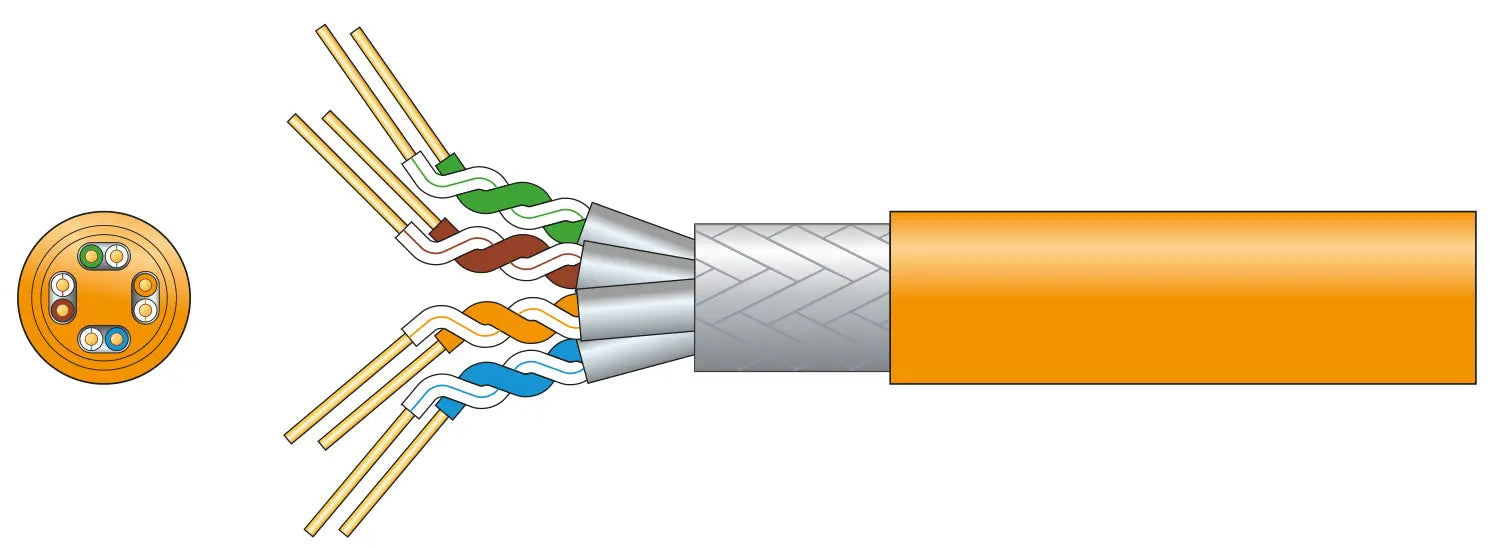

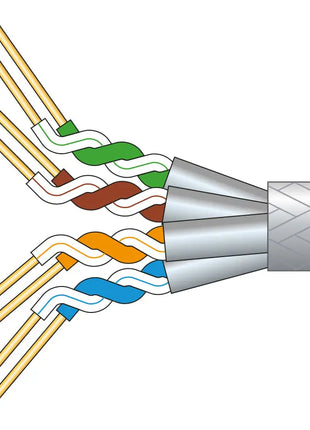

Cat7 oxygen free copper twisted pair data cable with low smoke zero halogen sheath. Individual pair aluminium foil screen and overall braided aluminium screen provide protection from any pair or alien crosstalk. Supplied on a wooden drum reel and marked at 1 metre intervals, this cable is designed for ultra high speed data transmission up to 10 Gbps at bandwidths up to 600MHz.
Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire
Delivers ultra high speed data transmission up to 10 Gbps at bandwidths up to 600MHz
AWG23 oxygen free solid copper conductor
Supplied on a sturdy wooden drum reel
Conductor Solid OFC
Conductor diameter 0.560±0.005mm
Cable : diameter 7.2±0.5mm
Screen Aluminium/Mylar foil
Braid material Aluminium magnesium alloy
Insulation PE 1.30±0.05mm
Sheath LSZH 0.50±0.05mm
Capacitance <330pf/100m
DC resistance @ 20°C <9.38 Ohms/100m
Impedance (1 to 100MHz) 100±15Ω
Return loss >20.95dB
Attenuation <1.92dB
NEXT >81.17dB
Phase delay <426.34ns
PSNEXT >81.07dB
ELFEXT >58.61dB
PSELFEXT >55.88dB
Colour Orange
Weight 17.5kg
Impedance (100 to 250MHz) 100±18Ω
Impedance (250 to 600MHz) 100±25Ω
