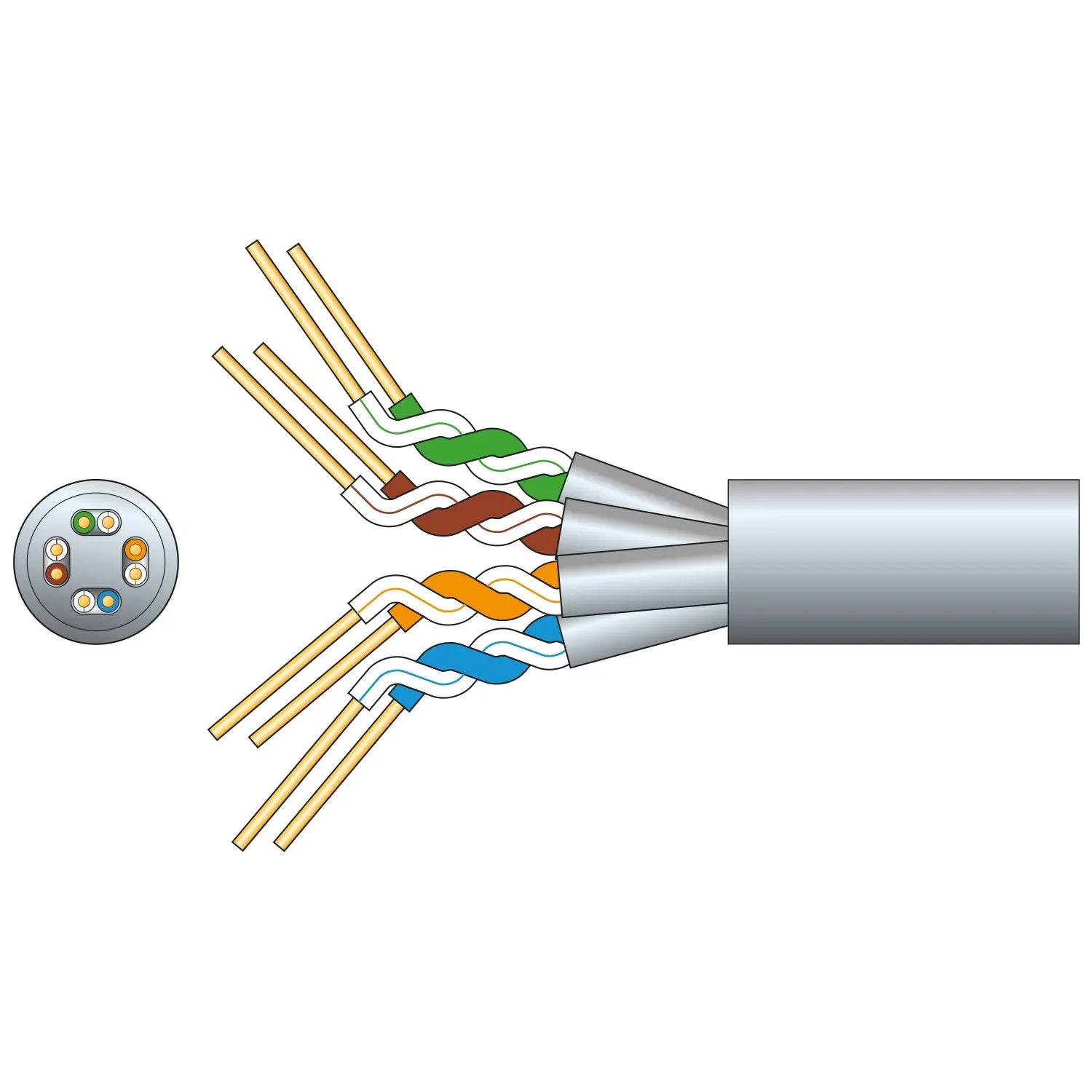

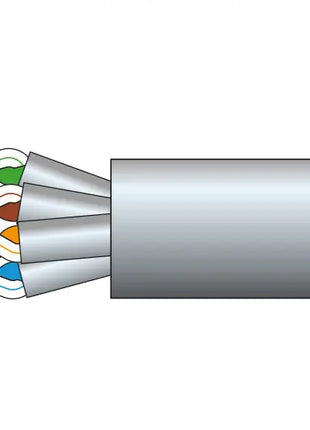

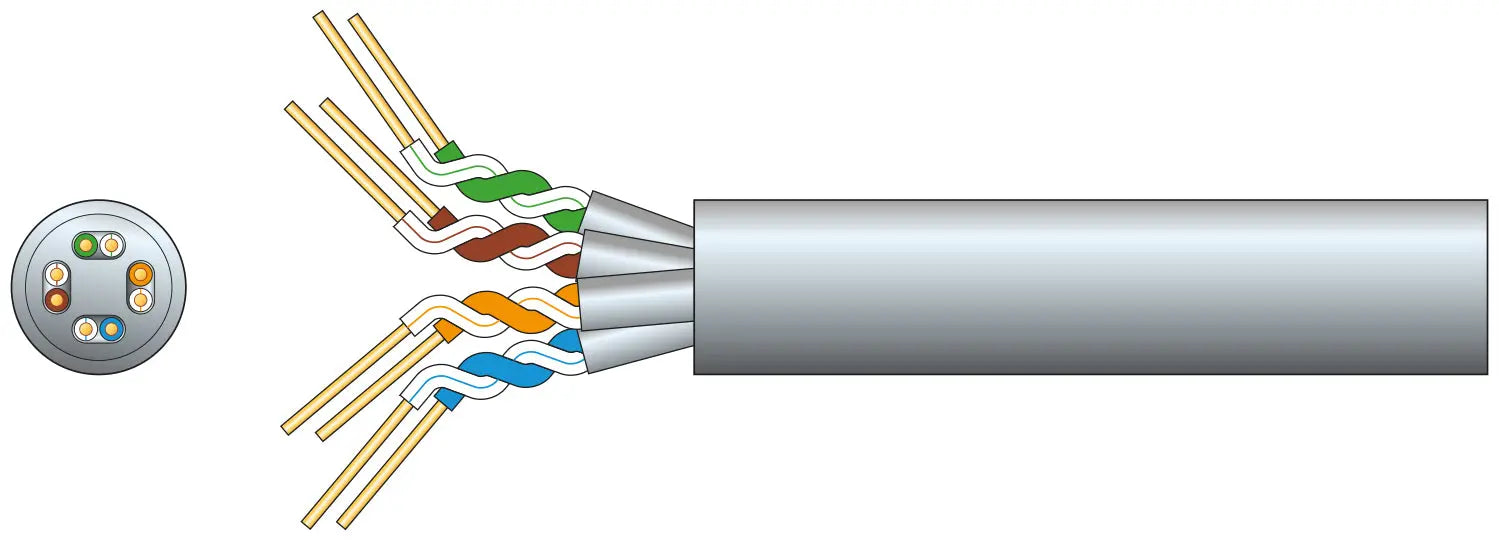

Cat6a oxygen free copper twisted pair data cable with PVC sheath and individual pair aluminium foil screen. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.
AWG 23 oxygen free solid copper conductor
Supplied on a sturdy wooden drum reel
Passes Cat6a fluke test 100m at 500MHz
Complies to TIA/EIA-568 Cat6a standard
Conductor Solid OFC
Strands 8 x 1/0.560mmØ ±2%
Cable : diameter 7.3±0.5mm
Screen Aluminium/Mylar foil
Insulation PE 1.330±0.05mmØ
Sheath PVC 0.55±0.05mm thickness
DC resistance @ 20°C <9.38 Ohms/100m
Impedance (100 to 250MHz) 100±15 Ohms
Impedance (250 to 500MHz) 100±22 Ohms
Return loss >25.61dB
Attenuation <2.51dB
NEXT >103.94dB
PSNEXT >102dB
ELFEXT >110.68dB
PSELFEXT >108.56dB
Phase delay <428.1ns
Colour Grey
Length 305m
Weight 17.4kg
Capacitance <330pf/100m
