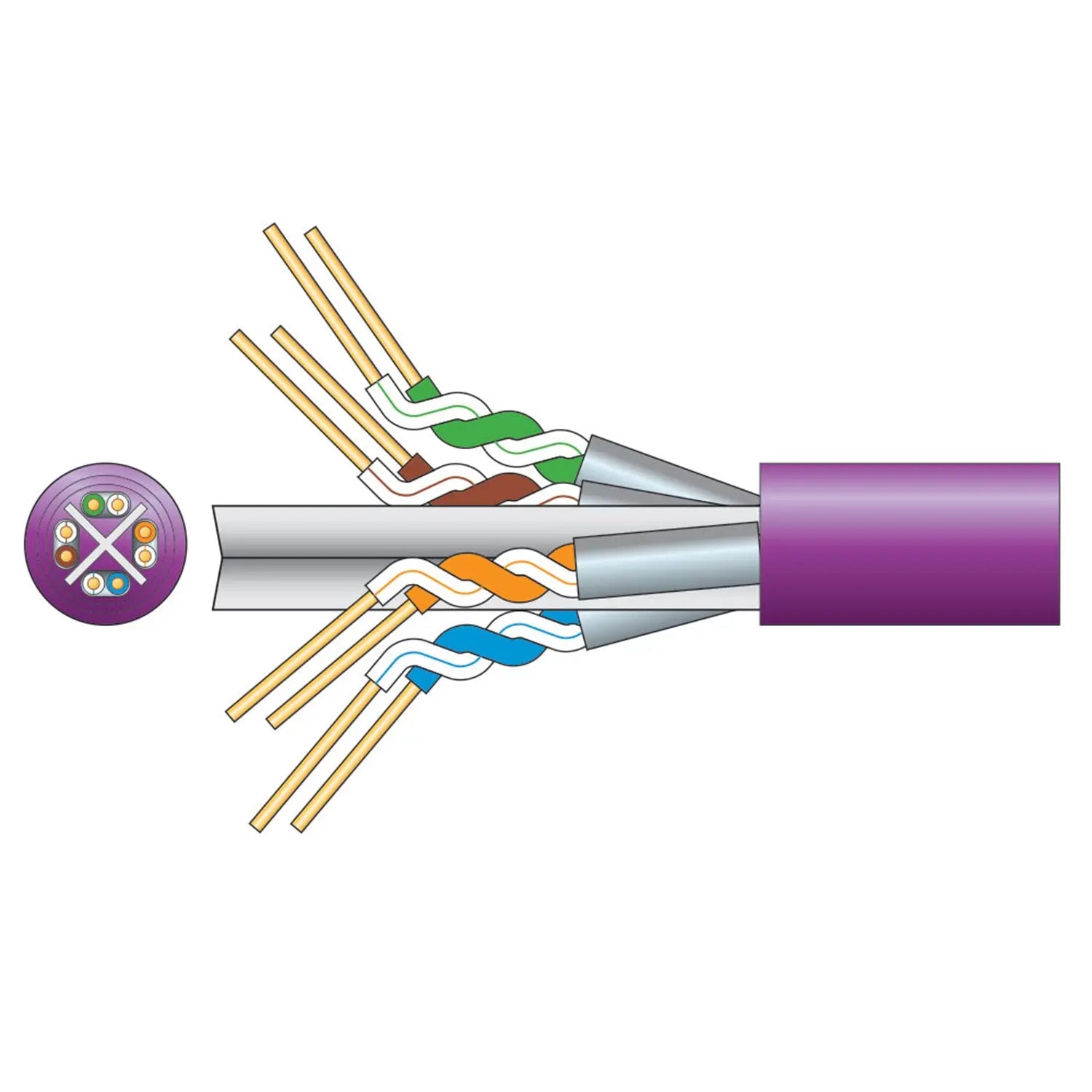

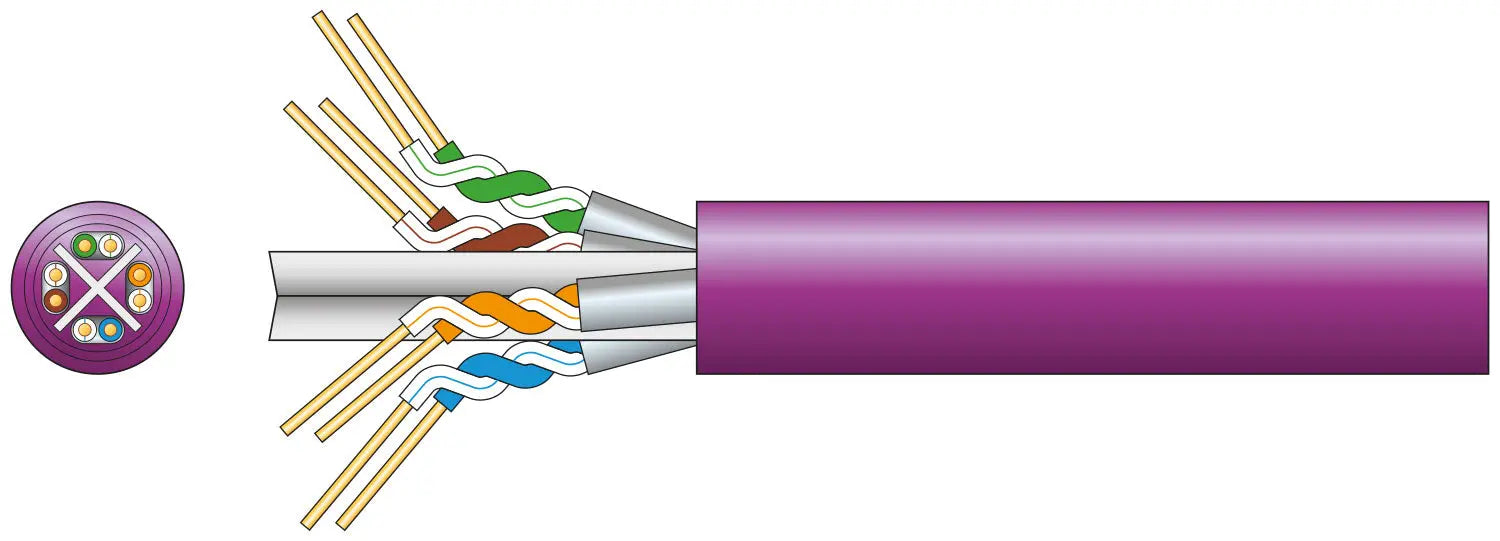

Cat6a oxygen free copper twisted pair data cable with low smoke zero halogen sheath and individual pair aluminium foil screen. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.
AWG 23 oxygen free solid copper conductor
Supplied on a sturdy wooden drum reel
Passes Cat6a fluke test 100m at 500MHz
Complies to TIA/EIA-568 Cat6a standard
Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire
HDBaseT Compliant
Conductor Solid OFC
Strands 8 x 1/0.565mmØ ±2%
Conductor CSA 8 x 0.251mm²
Cable : diameter 7.5mmØ
Insulation PE 0.385mm thickness
Sheath LSZH 0.55mm thickness
Capacitance 6.6nF/100m
DC resistance @ 20°C <7.8 Ohms/100m
Impedance (250 to 500MHz) 100±22 Ohms
Return loss >25dB @100m
Attenuation <45.3dB @100m
NEXT >74.3dB
PSNEXT >72.3dB
ELFEXT >14dB
PSELFEXT >11dB
Phase delay <570ns
Cable colour Lilac
Length 305m
Weight 14.5kg
Screen Aluminium foil
Impedance (100 to 250MHz) 100±15 Ohms
