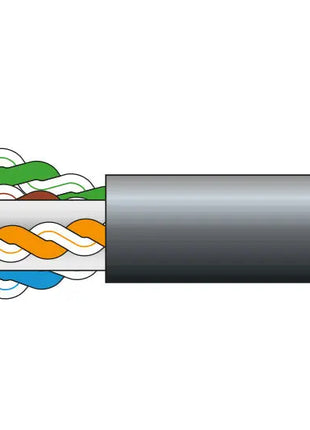

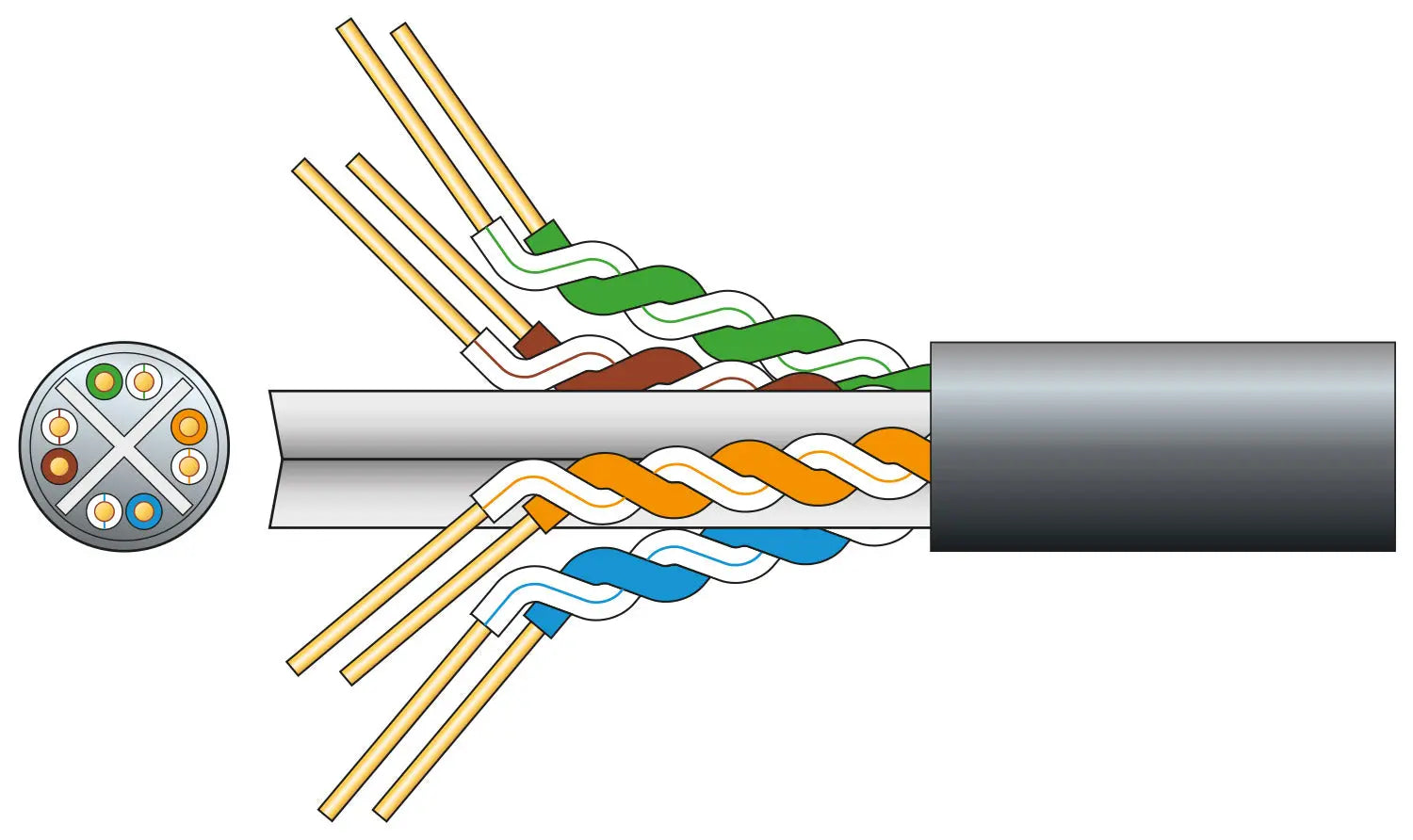

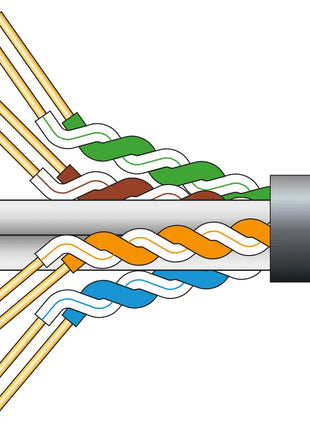

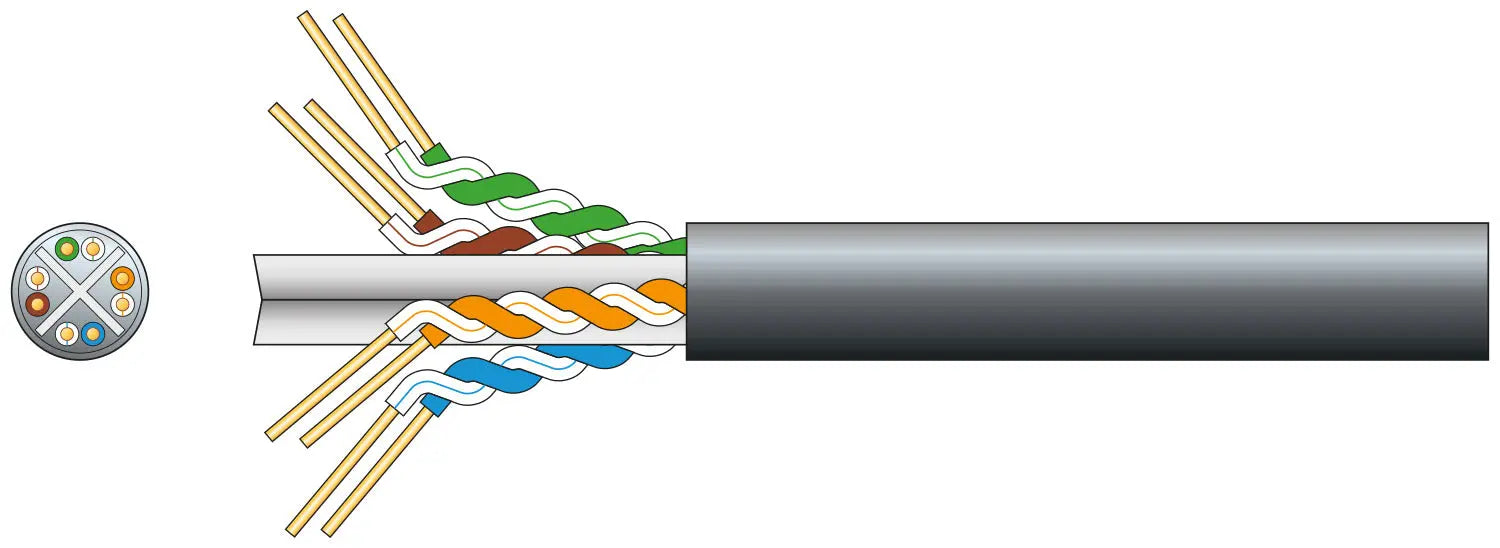

Cat6 oxygen free copper twisted pair data cable with LDPE sheath, supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications in an outdoors environment.
Oxygen free solid copper conductor
LDPE sheath and UV resistant properties make this cable ideal for outdoor installations
Supplied in an easy-pull dispensing box and marked at 1m intervals
Passes Cat6 fluke test 100m at 250MHz
Complies to TIA/EIA-568 Cat6 standard
Conductor Solid OFC
Strands 8 x 0.53mmØ ±2%
Cable : diameter 6.0±0.05mm
Insulation HDPE 0.93±0.05mm
Sheath LDPE 0.55±0.05mm thickness
DC resistance @ 20°C <9.38 ohms/100m
Impedance (100 to 250MHz) 100±15 ohms
Return loss >20.1dB @ 100MHz
Attenuation >19.8dB @ 100MHz
NEXT >44.3dB @ 100MHz
Phase delay >537.60ns @ 100MHz
PSNEXT >42.3dB @ 100MHz
ELFEXT >27.8dB @ 100MHz
PSELFEXT >24.8dB @ 100MHz
Cable colour Black
