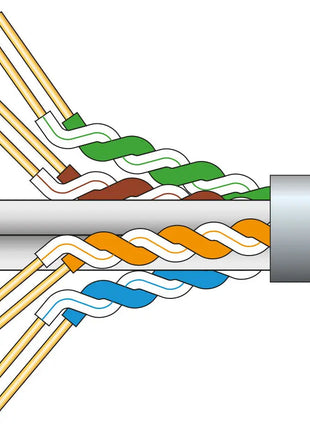

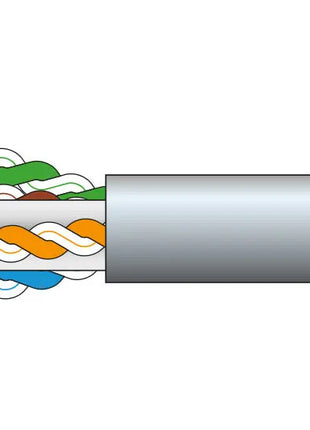

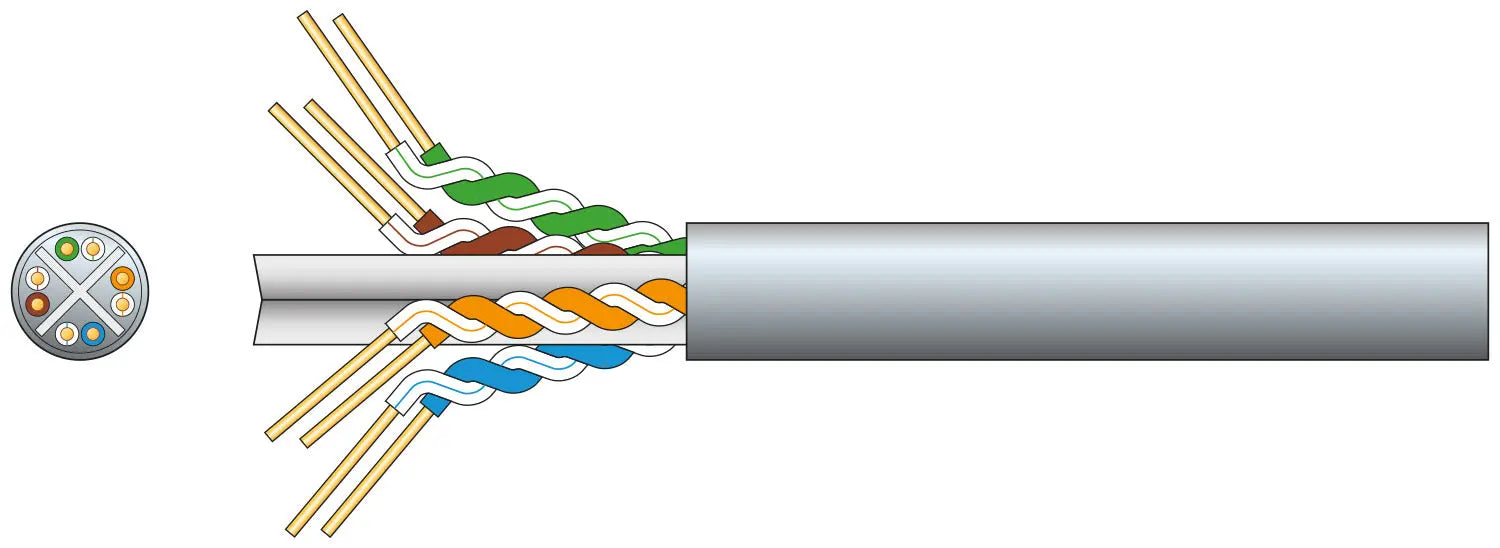

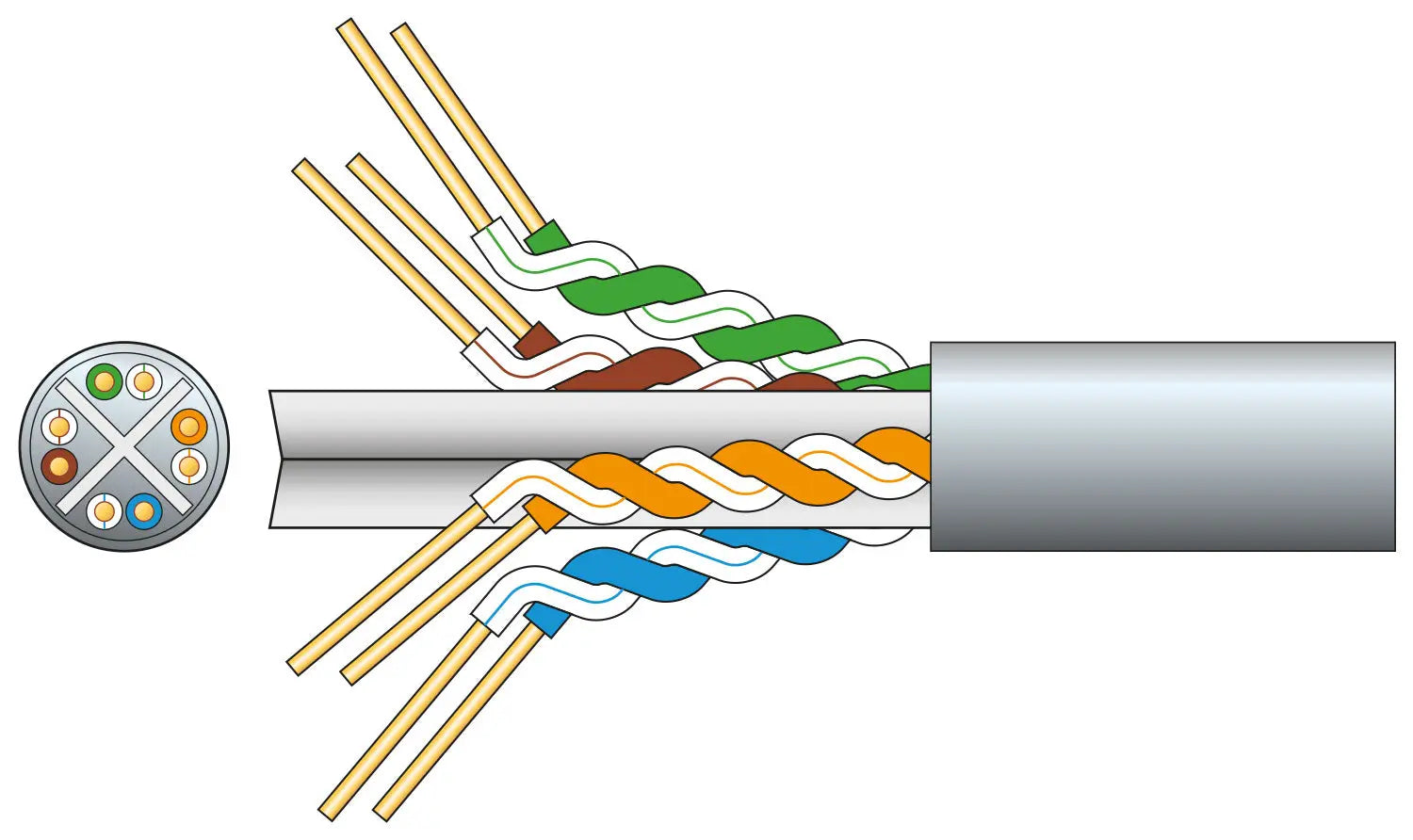

Cat6 oxygen free copper twisted pair data cable supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.
Oxygen free solid copper conductor
Supplied in an easy-pull dispensing box and marked at 1m intervals
Passes Cat6 fluke test 100m at 250MHz
Complies to TIA/EIA-568 Cat6 standard
HDBaseT Compliant
Strands 8 x 1/0.54mmØ ±2%
Conductor CSA 8 x 0.229mm²
Cable : diameter 5.8mmØ
Insulation HDPE 0.195mm thickness
Sheath PVC 0.55mm thickness
Capacitance 5.2nF/100m
DC resistance @ 20°C <9.5 ohms/100m
Impedance (100 to 250MHz) 100±15 ohms
Return loss >17.3dB @100m
Attenuation <32.8dB @100m
NEXT >38.3dB
PSNEXT >36.3dB
ELFEXT >19.8dB
PSELFEXT >16.8dB
Phase delay <570ns
Conductor Solid OFC
