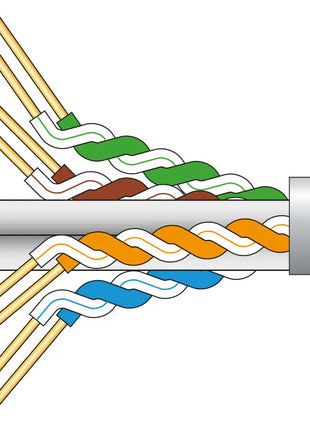

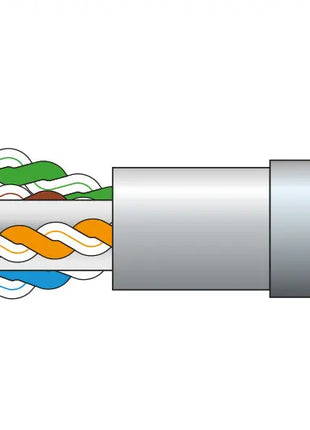

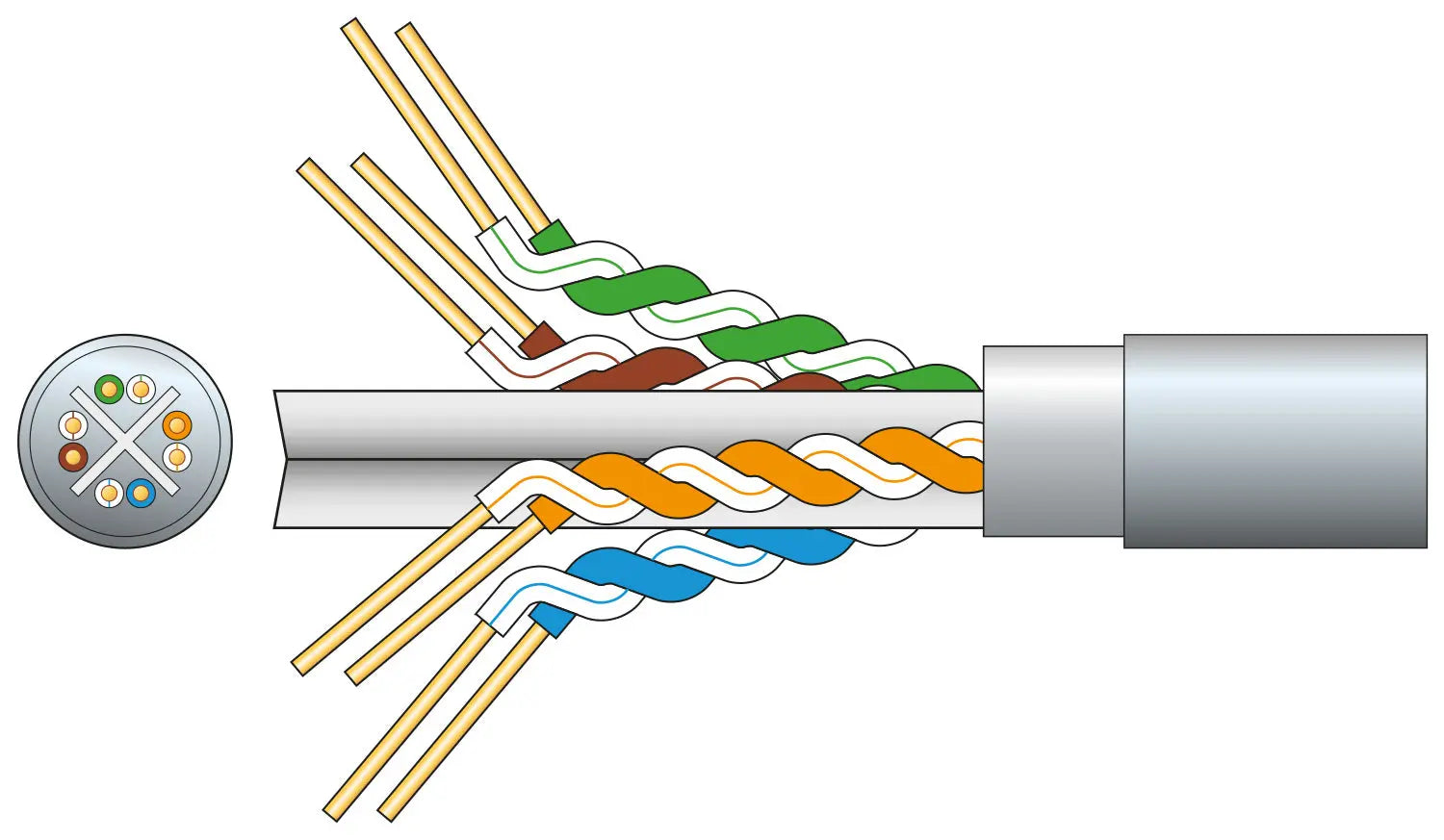

Cat6 oxygen free copper twisted pair data cable with overall aluminium foil screen. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.
AWG 23 oxygen free solid copper conductor
Supplied on a sturdy wooden drum reel
Passes Cat6 fluke test 100m at 250MHz
Complies to TIA/EIA-568 Cat6 standard
Strands 8 x 1/0.57mmØ ±2%
Conductor CSA 8 x 0.255mm²
Cable : diameter 7.4mmØ
Insulation HDPE 0.275mm thickness
Sheath PVC 0.6mm thickness
Capacitance 5.5nF/100m
DC resistance @ 20°C <9.5 ohms/100m
Impedance (100 to 250MHz) 100±15 ohms
Return loss >17.3dB @100m
Attenuation <32.8dB @100m
NEXT >38.3dB
PSNEXT >36.3dB
ELFEXT >20dB
PSELFEXT >17dB
Phase delay <570ns
Length 305m
Weight 16.5kg
Screen material Mylar + Aluminium/Mylar + Drain wire
Conductor Solid OFC
Cable colour Grey
