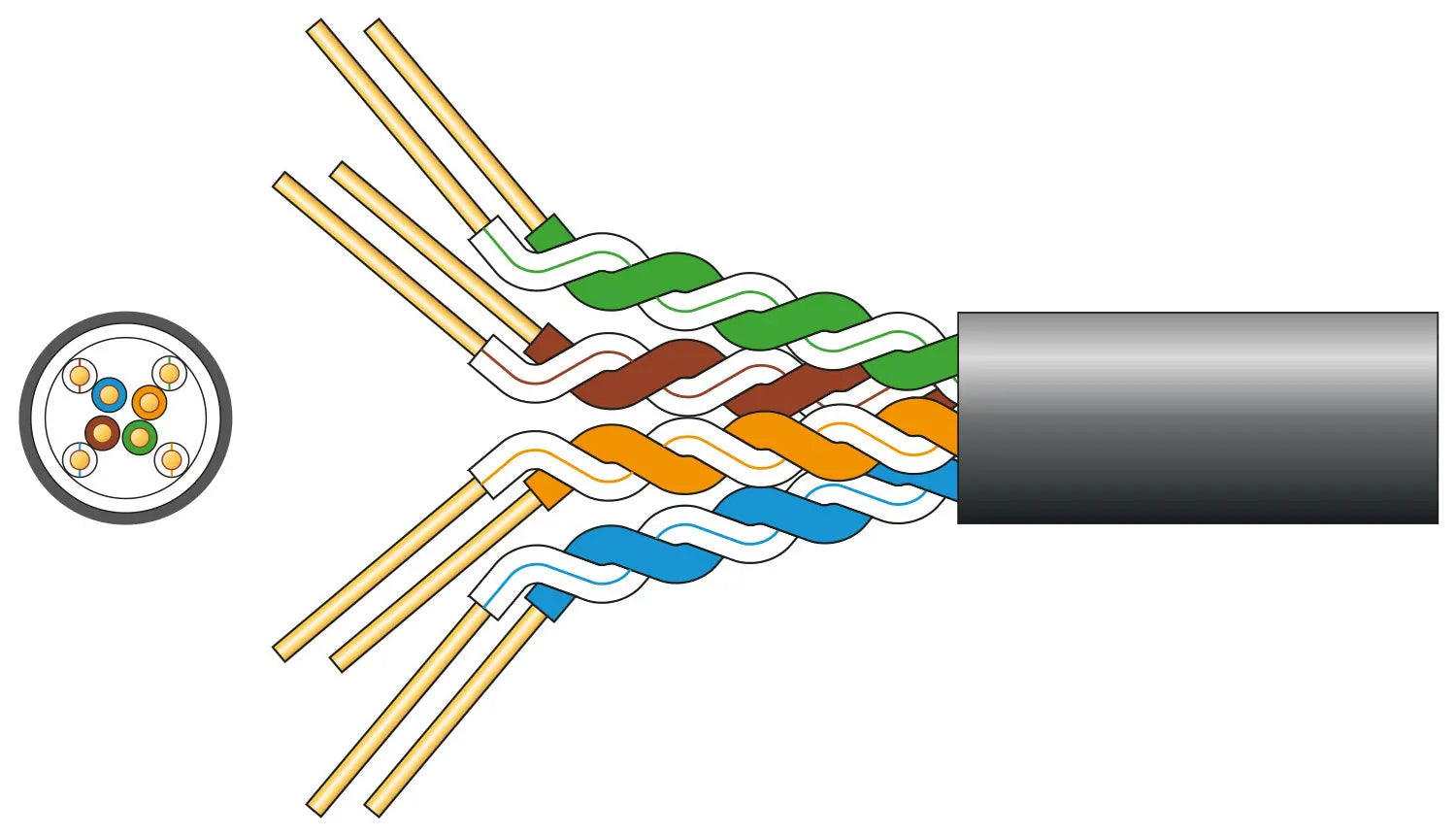

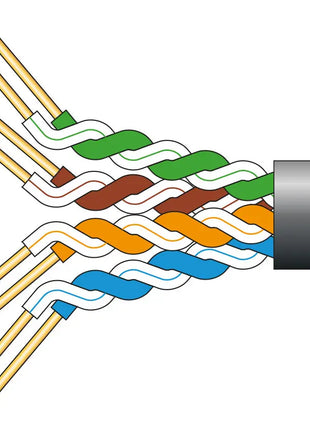

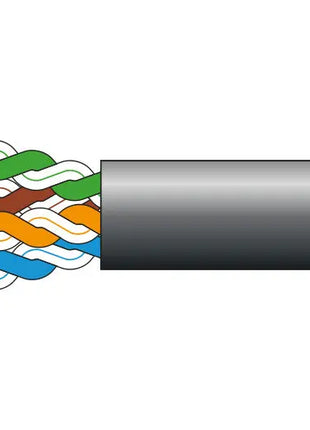

Cat5e oxygen free copper 4x twisted pair data cable with LDPE sheath. Supplied in dispensing box and marked at 1 metre intervals, this cable is designed for high speed data transmission such as Gigabit Ethernet applications.
LDPE sheath and UV resistant properties make this cable ideal for outdoor installations
AWG 24 oxygen free solid copper conductor
Supplied in an easy-pull dispensing box and marked at 1m intervals
Complies to TIA/EIA-568-C.2 Cat5e standard
Conductor Solid OFC
Strands 8 x 1/0.5mmØ ±2%
Conductor CSA 8 x 0.196mm² ±2%
Cable : diameter 5.2±0.4mmØ
Insulation HDPE 0.87±0.03mmØ
Sheath LDPE 0.55±0.05mm thickness
DC resistance @ 20°C <9.5 ohms/100m
Impedance (1 to 100MHz) 100±15 ohms
Return loss >20.1dB @ 100MHz
Attenuation >22dB @ 100MHz
NEXT >35.3dB @ 100MHz
Phase delay >537.60ns @ 100MHz
PSNEXT >32.3dB @ 100MHz
ELFEXT >23.8dB @ 100MHz
PSELFEXT >20.8dB @ 100MHz
Cable colour Black
Cable : length 305±1.5m
Weight 8.1Kg
