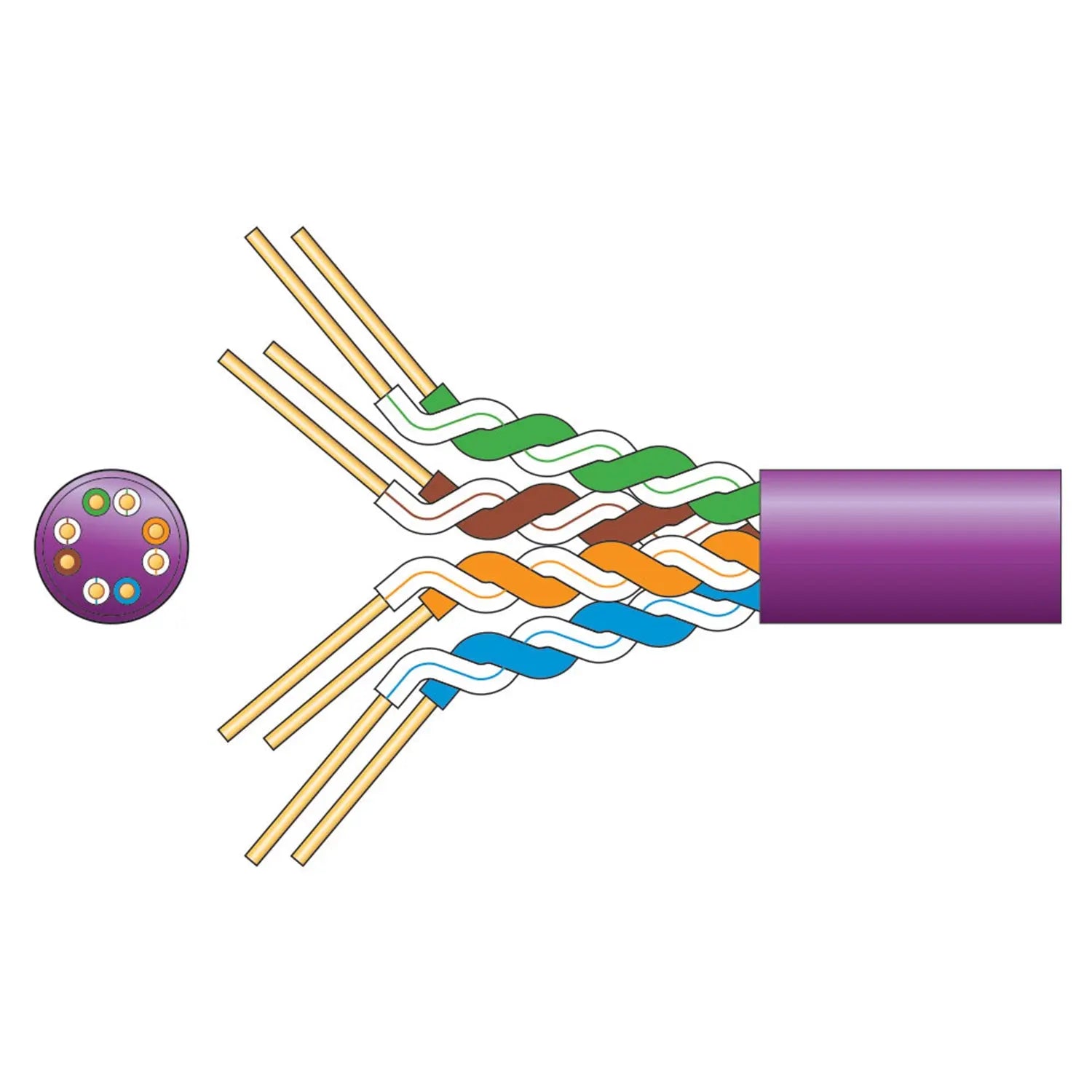

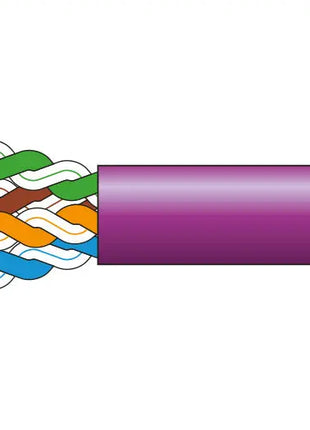

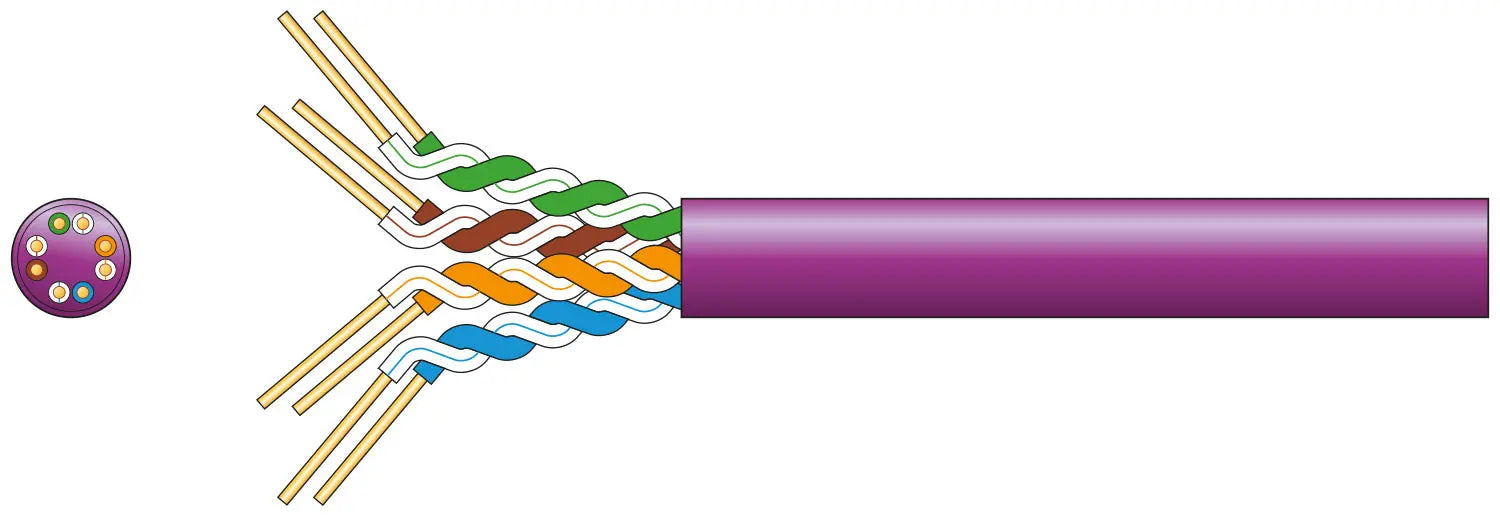

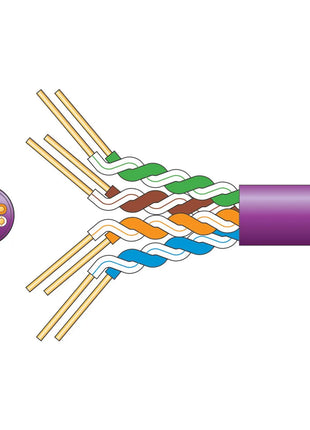

Cat5e oxygen free copper twisted pair data cable with low smoke zero halogen sheath. Supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.
Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire
AWG 24 oxygen free solid copper conductor
Supplied in an easy-pull dispensing box
Passes Cat5e fluke test 100m at 100MHz
Complies to TIA/EIA-568 Cat5e standard
HDBaseT Compliant
Strands 8 x 1/0.5mmØ ±2%
Conductor CSA 8 x 0.196mm²
Cable : diameter 5mmØ
Insulation HDPE 0.19mm thickness
Sheath LSZH 0.5mm thickness
Capacitance 4.9nF/100m
DC resistance @ 20°C <9.5 ohms/100m
Impedance (1 to 100MHz) 100±15 ohms
Return loss >20dB @100m
Attenuation <22dB @100m
NEXT >35.3dB
PSNEXT >32.3dB
ELFEXT >23.8dB
PSELFEXT >20.8dB
Phase delay <570ns
Cable colour Lilac
Length 305m
Weight 8.6kg
Conductor Solid OFC
