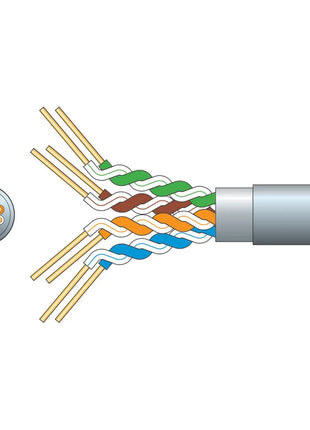

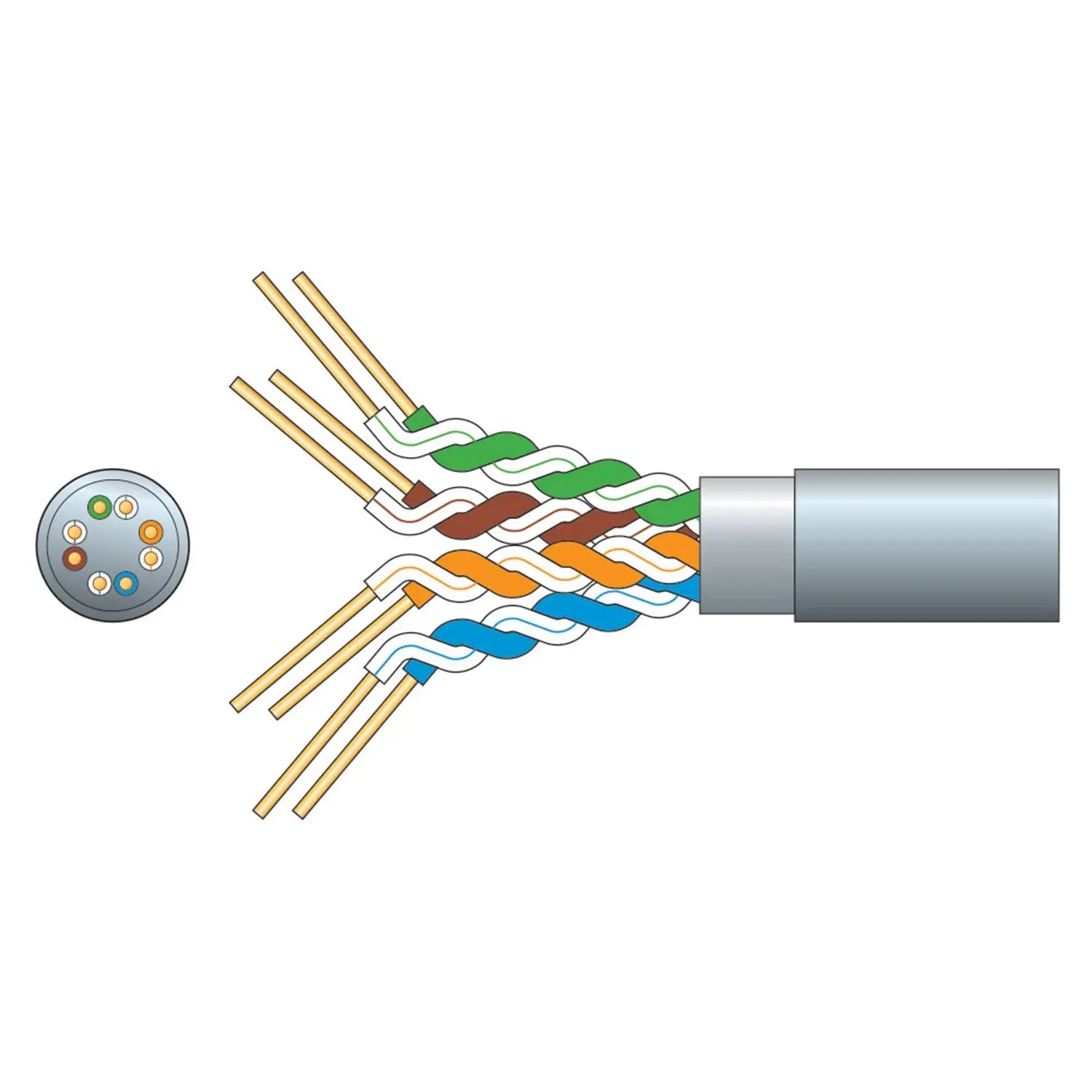

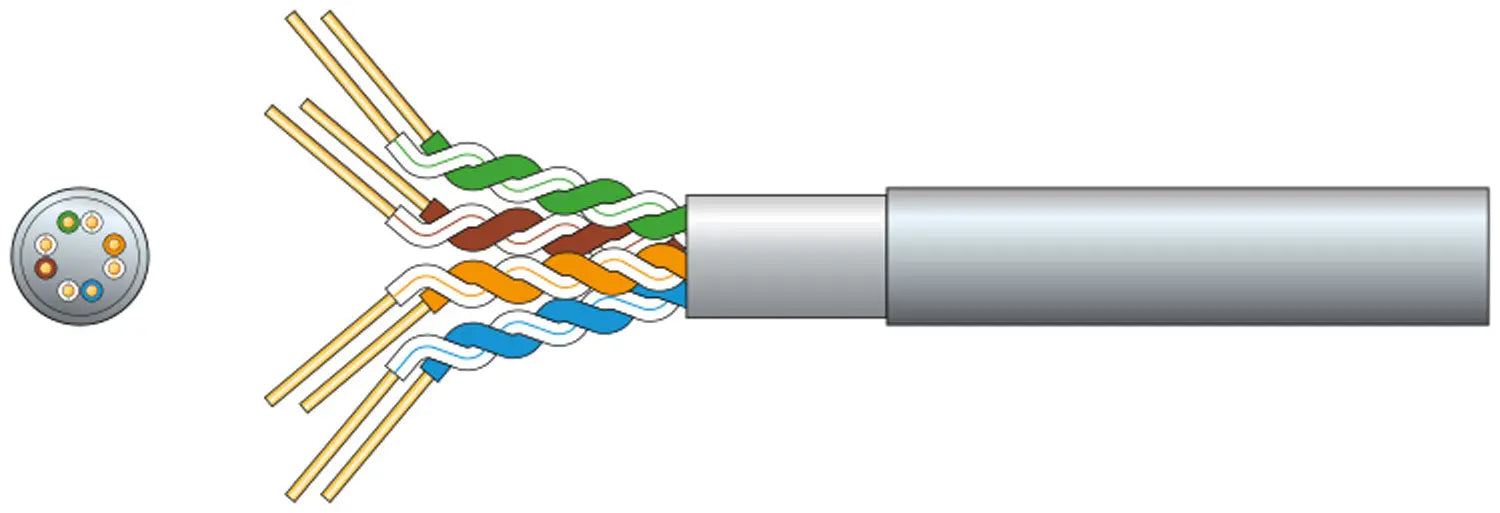

Cat5e oxygen free copper twisted pair data cable with overall aluminium foil screen. supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.
AWG 24 oxygen free solid copper conductor
Supplied in an easy-pull dispensing box
Passes Cat5e fluke test 100m at 100MHz
Complies to TIA/EIA-568 Cat5e standard
Strands 8 x 1/0.5mmØ ±2%
Conductor CSA 8 x 0.196mm²
Insulation HDPE 0.225mm thickness
Screen material Mylar + Aluminium/Mylar + Drain wire
Sheath PVC 0.55mm thickness
Capacitance 5.0nF/100m
DC resistance @ 20°C <9.5 ohms/100m
Impedance (1 to 100MHz) 100±15 ohms
Return loss >20dB @100m
Attenuation <22dB @100m
NEXT >35.3dB
PSNEXT >32.3dB
ELFEXT >23.8dB
PSELFEXT >20.8dB
Phase delay <570ns
Colour Grey
Length 305m
Weight 11.8kg
Cable : diameter 5.8mmØ
Conductor Solid OFC
