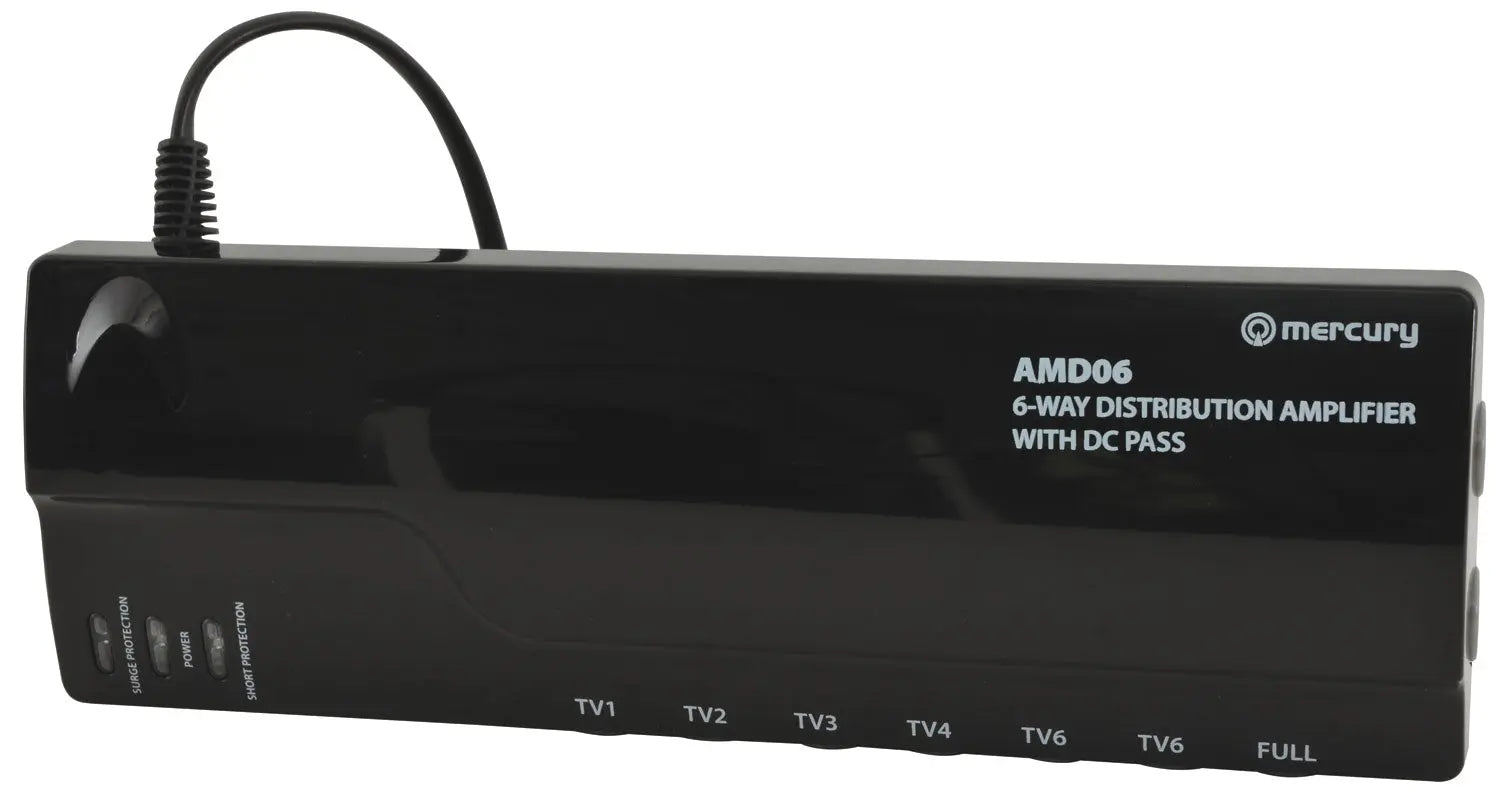

Distribution amplifiers with built in 5G/4G LTE filter, designed to improve the quality of audio and video by amplifying weak VHF/UHF signals and distributing them across a designated area. Suitable for both professional and domestic installations and fully compatible with Digital Terrestrial/Satellite/Cable TV and DAB/FM radio signals.
Integrated LTE signal filter avoids interference and channel loss from 5G & 4G mobile signals
Separate inputs for VHF and UHF
DC pass allows the control of satellite via Magic Eye remote extender
High gain output for additional distribution connection
Built in surge and short circuit protection, and maximum output limiter prevents overload
Built in low noise amplifier with wideband output
Side mounted terminals allow easy cable management
Coaxial socket connection, F socket adaptors included to allow F-Type connection
Fully screened amplifier compatible with Digital Terrestrial/Satellite/Cable TV and DAB/FM radio signals
Frequency range : VHF 47 - 230MHz
Frequency range : UHF 470-694MHz(5G)
Full gain output 20dB
Isolation 22dB
Noise <3.8dB
Input 2 x coax sockets
Power 230Vac, 50Hz
Impedance 75 Ohms
Cable : length 1.0m
