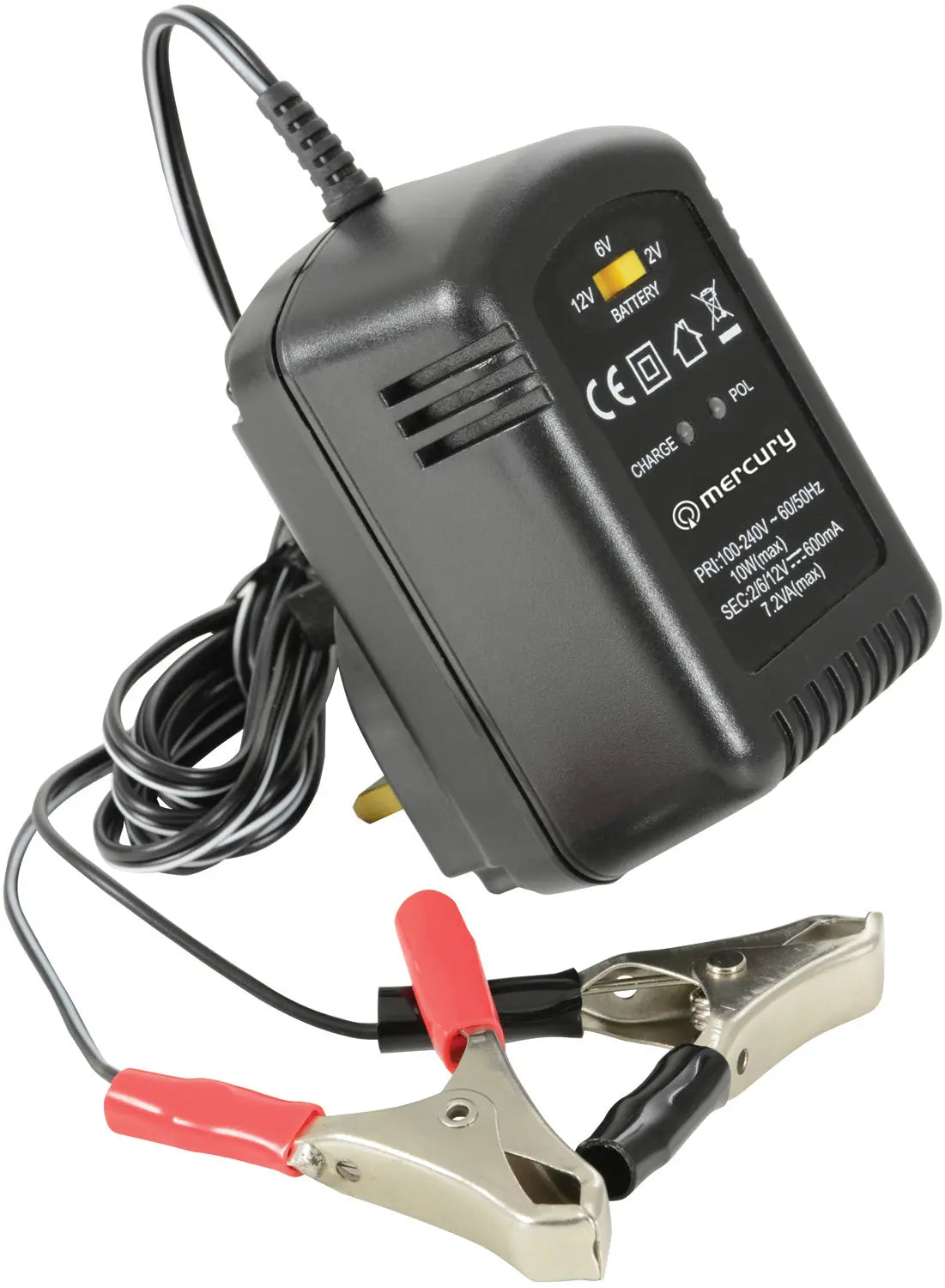

This charger is designed for use with 2V, 6V or 12V lead acid batteries only. There is a built-in poly-switch for over current protection and polarity reverse protection to ensure that the battery won’t be damaged during the charging process. The appropriate battery voltage can be selected via the switch on the front of the unit and a set of crocodile clips attached to a fixed 1.2m fly lead enable easy attachment to your battery.
Output voltage selected with slide switch
Fixed 1.8m flylead with crocodile clips
Note: Batteries not included
Green charging and red polarity LED's on the front of the unit
Input voltage AC100-240V @ 60/50Hz
Max. current 600mA
Output voltage 2/6/12V
Lead length 1.8m
Dimensions 82 x 56 x 80mm
Weight 125g
