Martin Audio CDD-LIVE 8 | Ultra-Compact 8-Inch Active PA Speaker
Exceptional fidelity, unparalleled coverage. The Martin Audio CDD-LIVE 8 is a self-powered, two-way system designed for applications that demand high output and absolute clarity from a discrete enclosure. At its core is an 8-inch Coaxial Differential Dispersion (CDD) driver that combines the LF and HF sections into a single point source, eliminating the off-axis frequency response issues found in standard designs. With 1300W of peak Class D amplification and onboard Dante digital networking, the CDD-LIVE 8 simplifies complex setups while delivering a world-class sonic experience.
Why Choose the CDD-LIVE 8?
-
Coaxial Differential Dispersion (CDD): Innovative driver technology provides a more consistent tonal balance across the audience compared to fixed X by Y coverage patterns.
-
Point Source Summation: The coaxial design achieves a perfect "point source" output, resulting in exceptional phase coherence and a natural, transparent sound.
-
Integrated Class D Power: Delivers a massive 1300W peak output (1000W LF / 300W HF) with a high-efficiency switched-mode power supply.
-
Dante Digital Networking: Enables high-quality digital audio distribution and remote control over a single CAT5 cable, eliminating the need for bulky analog looms.
-

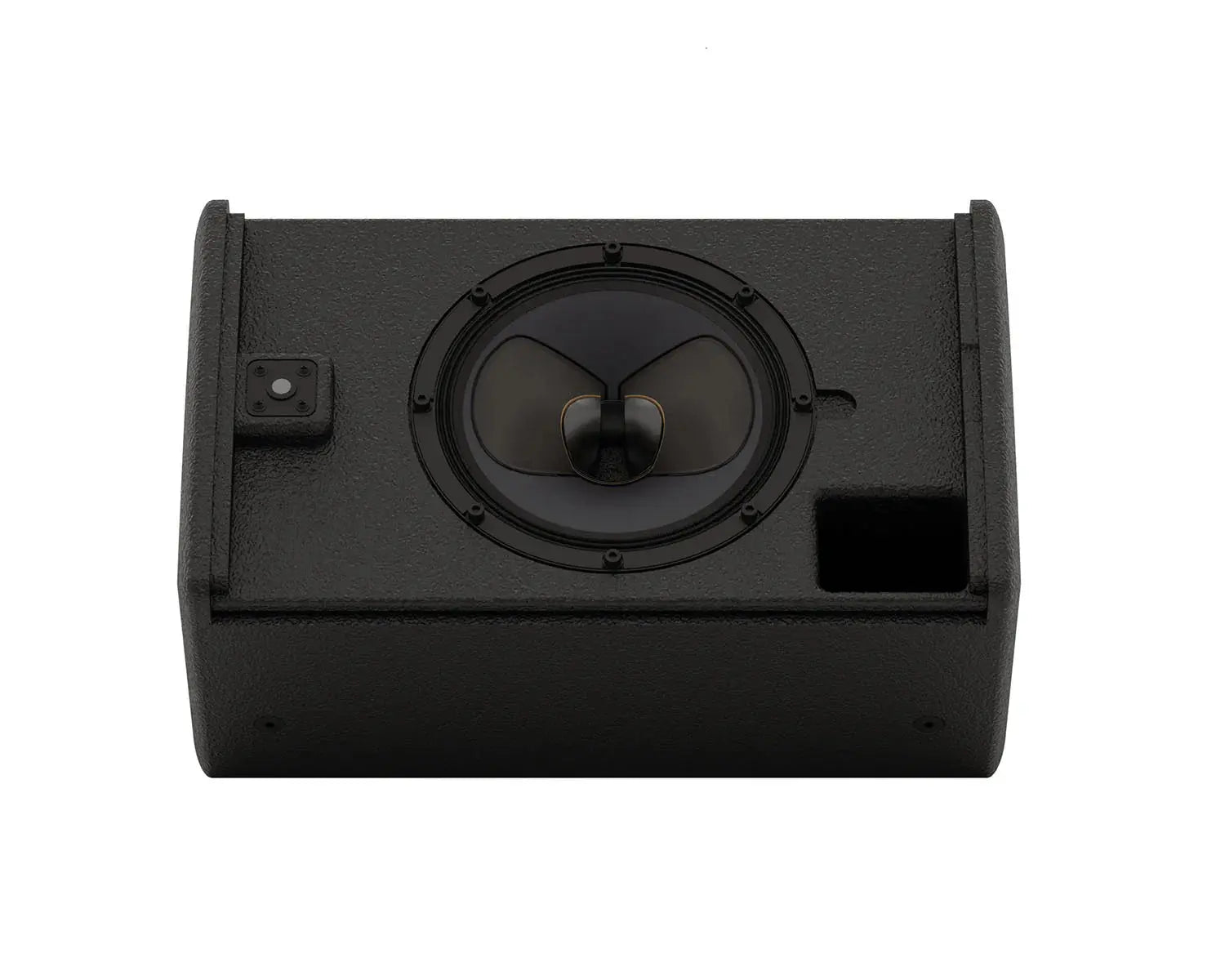

User-Rotatable Driver: The protective grille is screw-free, allowing you to easily rotate the coaxial driver for horizontal or vertical mounting in seconds.
Professional Control and Versatility
Intuitive DSP and Software Control The CDD-LIVE 8 features a sophisticated internal DSP that can be managed via Ethernet using Martin Audio's VU-NET software. This allows for precise adjustments to parametric EQ, delay, and gain. For simpler "plug-and-play" scenarios, the rear panel includes quick-access presets for pole mounting and stage monitor use.
Tour-Grade Construction Built to withstand the rigors of professional use, the enclosure is constructed from multi-laminate plywood and finished in a hard-wearing polyurea coating. It features a versatile multi-angle design that allows it to excel as a main PA speaker, a discrete front-fill, or a low-profile stage monitor.
Global Power Ready The auto-ranging power supply ensures the CDD-LIVE 8 operates seamlessly on mains voltages from 100V to 240V. With Power Factor Correction (PFC) and a Neutrik Powercon True1 connector, it offers the safest and most reliable power connection available for high-end touring and installations.
Technical Specifications
-
Type: Ultra-compact, Coaxial Differential Dispersion active two-way system
-
Driver: 8-inch LF / 1-inch exit HF Coaxial Driver
-
Frequency Response: 70 Hz to 20 kHz (plus/minus 3dB)
-
Max SPL: 117dB continuous / 123dB peak
-
Dispersion: 110-80 degrees Horizontal, 60 degrees Vertical (User-rotatable)
-
Amplifier: 1300W Total Peak (Class D)
-
Connectivity: XLR Input/Link, Dante Ethercon (RJ45), Powercon True1
-
DSP: Onboard PEQ, Delay, and Preset selection via VU-NET
-
Cabinet: Multi-laminate plywood with textured black PU coating
-
Weight: 14.0 kg
Frequently Asked Questions
Can I use this speaker as a floor monitor? Yes. The CDD-LIVE 8 features a multi-angle enclosure specifically designed for use as a high-performance micro stage monitor. Its coaxial design is particularly effective here, as it provides a consistent sound even if the performer moves around.
What is the benefit of Dante? Dante allows you to send high-resolution digital audio over standard network cables. This prevents signal loss over long distances and allows you to control multiple speakers across a network from a single laptop, drastically reducing setup time and cabling costs.
Is it safe for outdoor use? The standard model is rated for indoor use, but a factory-fitted IP24 option with a rain cowl is available for installations where the speaker may be exposed to light splashes or moisture.
What is In The Box?
