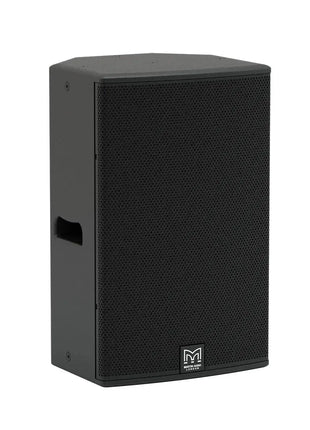

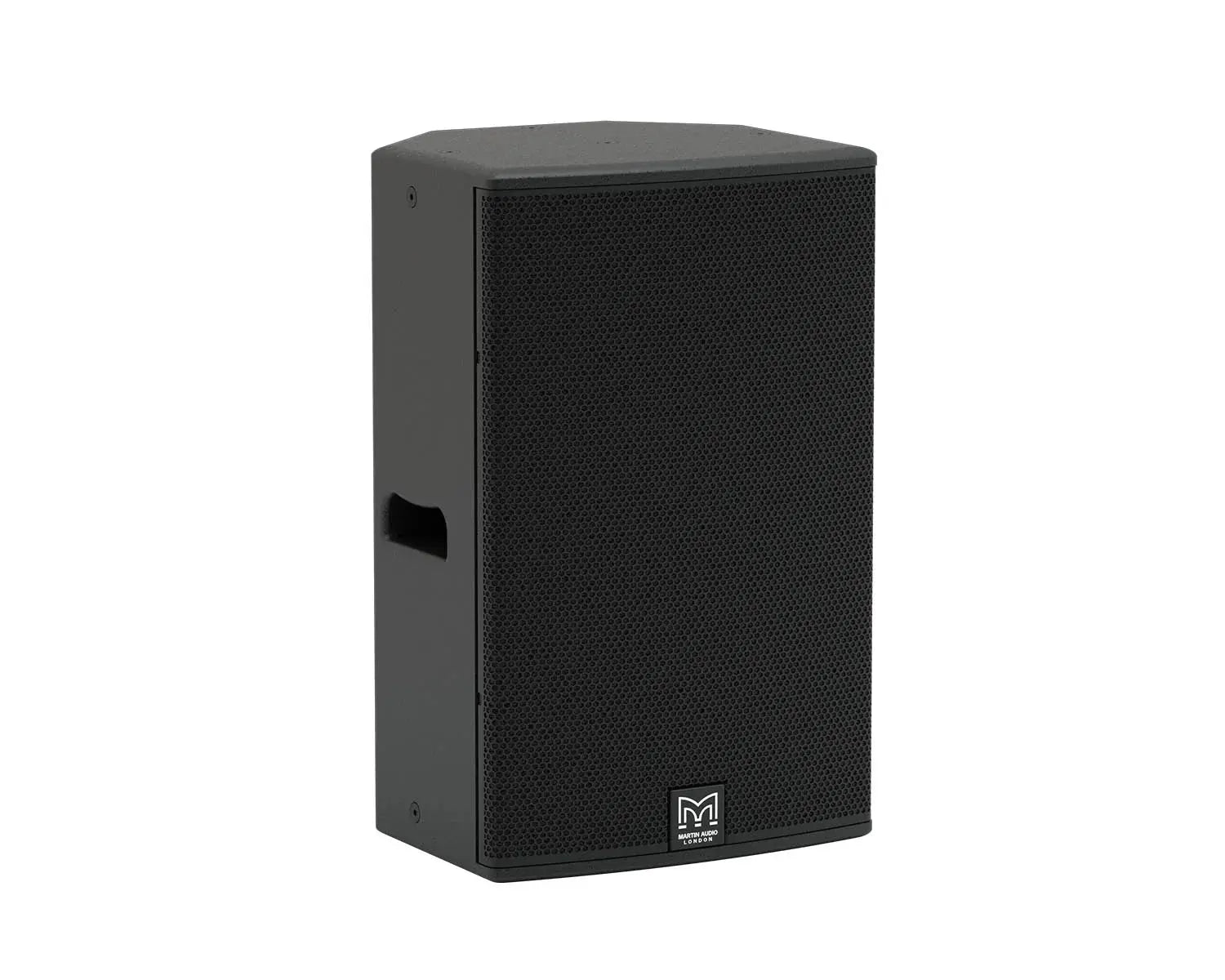

Martin Audio Blackline XP12 | 1300W 12-Inch Active Professional Loudspeaker

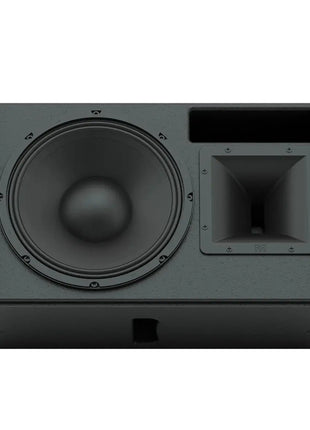

The industry standard for portable power. The XP12 is a bi-amplified 2-way system featuring a high-specification 12-inch low-frequency driver and a 1-inch exit compression driver. Powered by a 1300W Class-D amplifier (1000W LF / 300W HF), this speaker delivers incredible headroom and a peak SPL of 128dB. The integrated DSP manages crossover, limiting, and a user-adjustable 3-band EQ, ensuring the "Martin sound" remains consistent at any volume. With its rotatable 80 x 50 degree horn and multi-angle birch-ply enclosure, the XP12 is as effective as a front-of-house main as it is a high-performance floor monitor.
Why Choose the Martin Audio Blackline XP12?
-
Massive 1300W Peak Power: Ultra-efficient Class-D bi-amplification provides professional-grade output for medium-sized venues and events.
-
Compact 12-Inch Format: Offers a perfect balance between portable size and high-output punch, ideal for mobile performers.
-

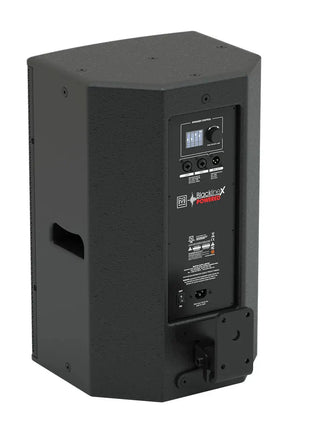

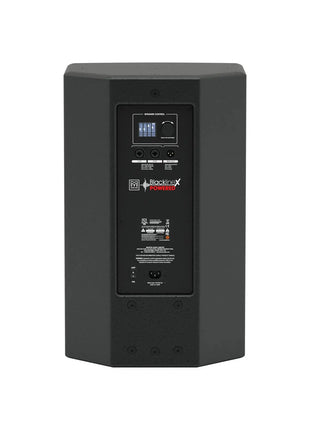

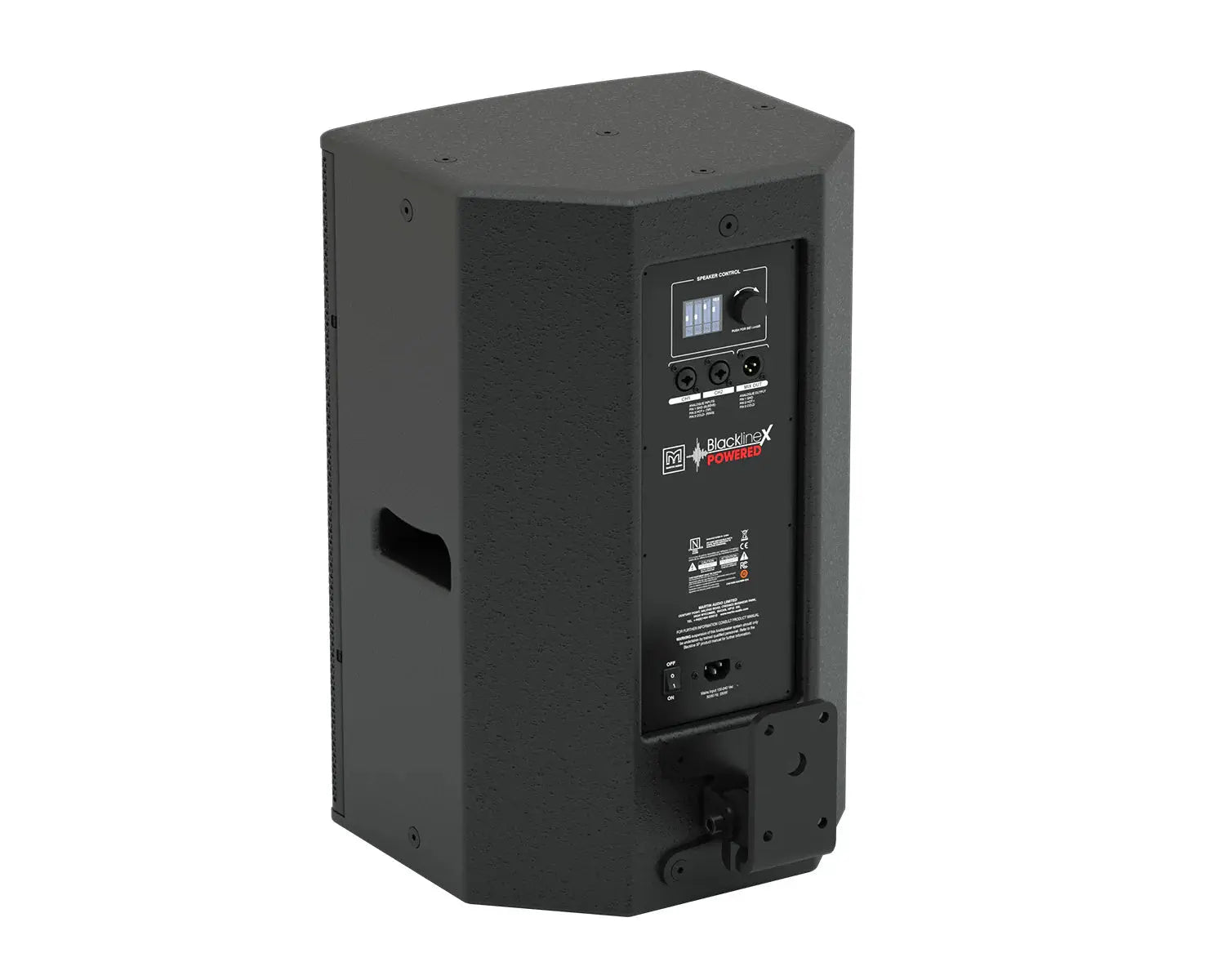

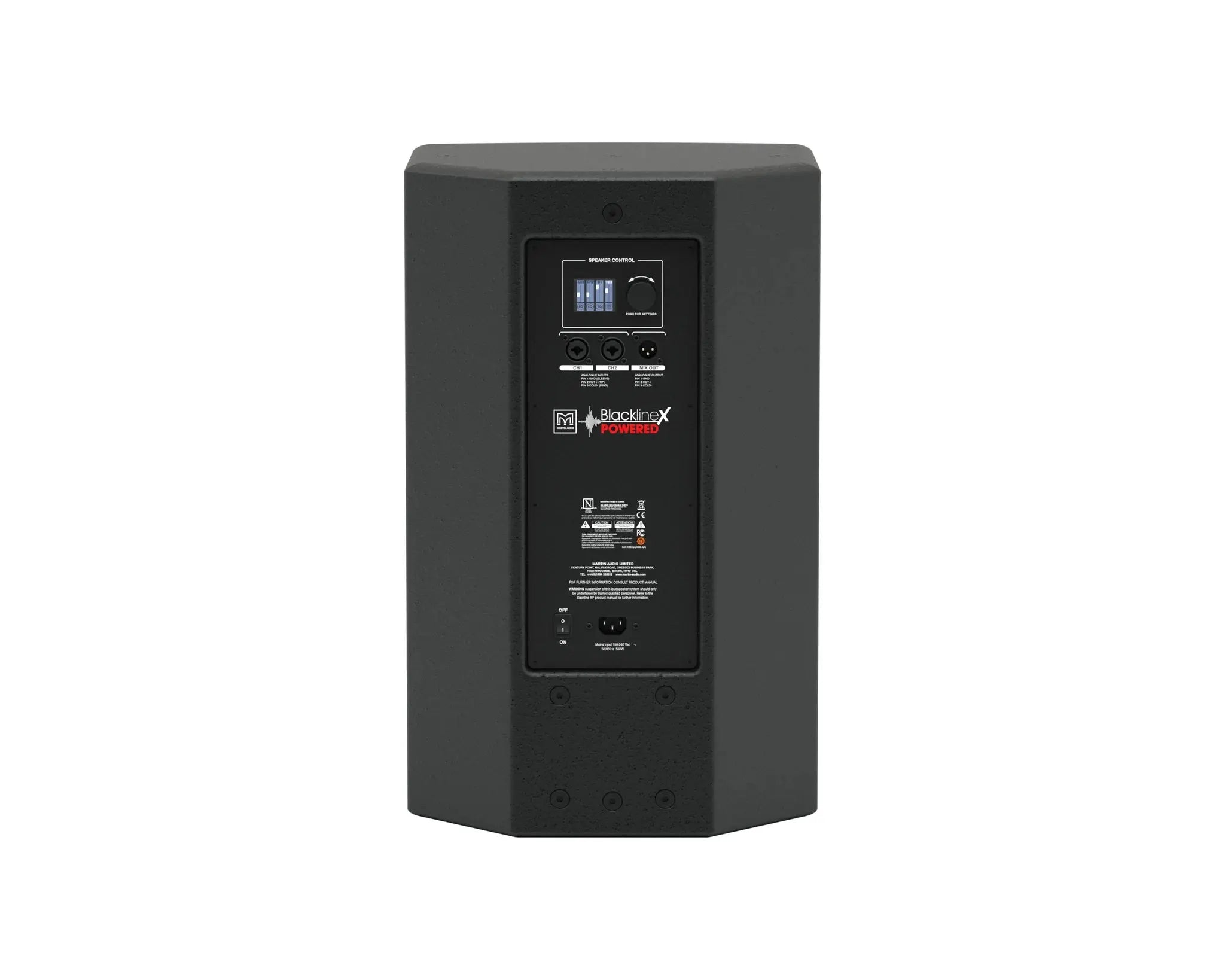

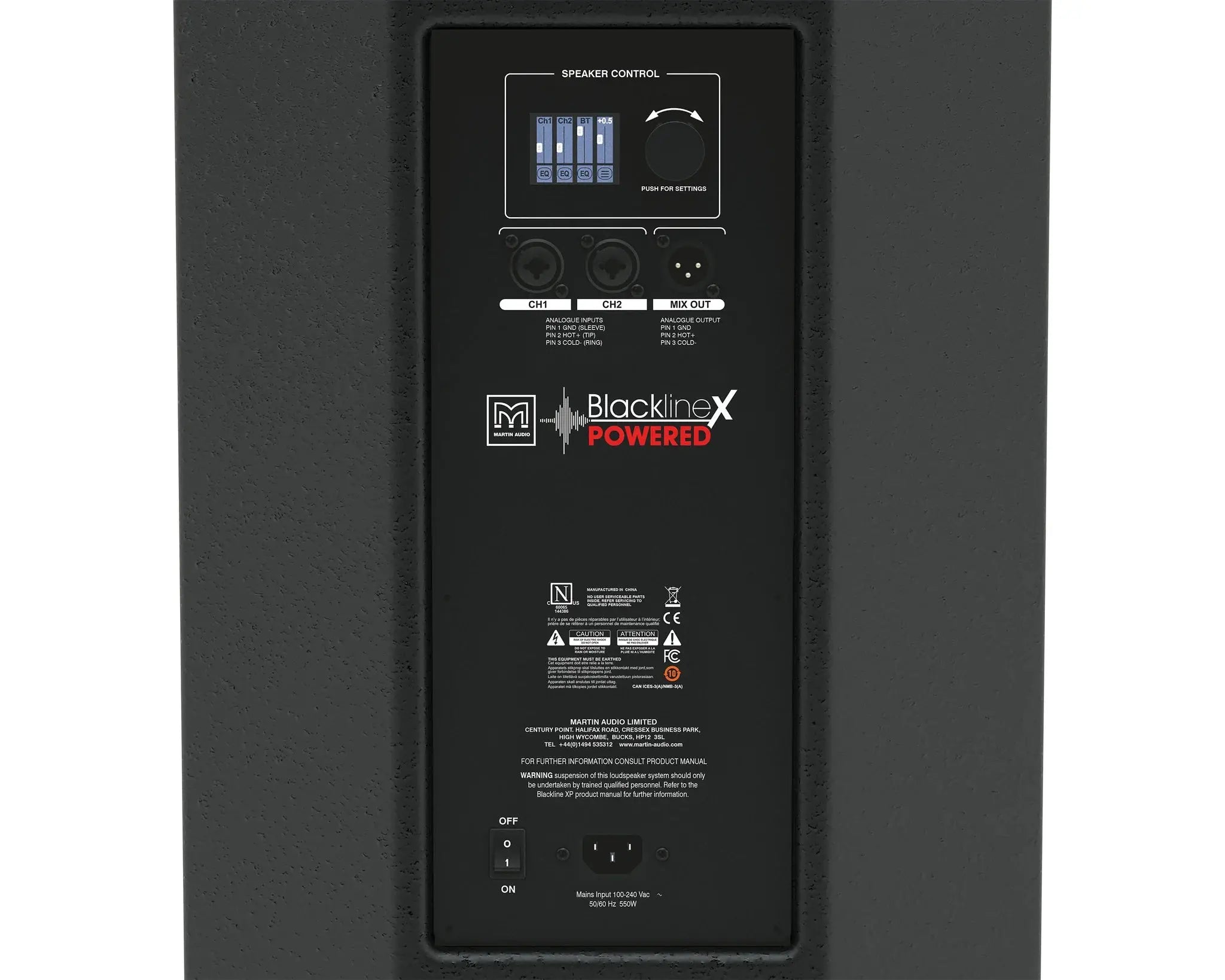

Onboard 3-Channel Mixer: Includes two independent XLR/TRS combo inputs with gain control and a dedicated 3.5mm stereo jack for direct playback.
-
Advanced DSP Control: Features a rotary encoder and multi-function screen for adjusting 3-band EQ, presets, and system limiters.
-
Rotatable High-Frequency Horn: The 80 degree x 50 degree horn can be rotated for horizontal use, ensuring perfect dispersion in any orientation.
-
App-Based Control: Compatible with the XP Connect app for iOS, allowing for wireless remote control of mixer levels and EQ settings.
-
Professional Birch-Ply Cabinet: Constructed from 15mm birch-ply with a textured black paint finish for superior acoustic properties and durability.
-
Versatile Mounting: Includes a dual-angle pole-mount socket and 17 x M8 rigging points for a wide variety of installation options.
Professional Sonic Accuracy and Versatility
Elite Performance The Blackline XP12 is engineered to deliver a flat, natural frequency response that reproduces audio with stunning accuracy. Whether you are playing pre-recorded music or mixing a live band, the XP12 provides the warmth and detail that Martin Audio is famous for. Its high-output compression driver ensures that high frequencies remain crisp and clear even at the back of the room.

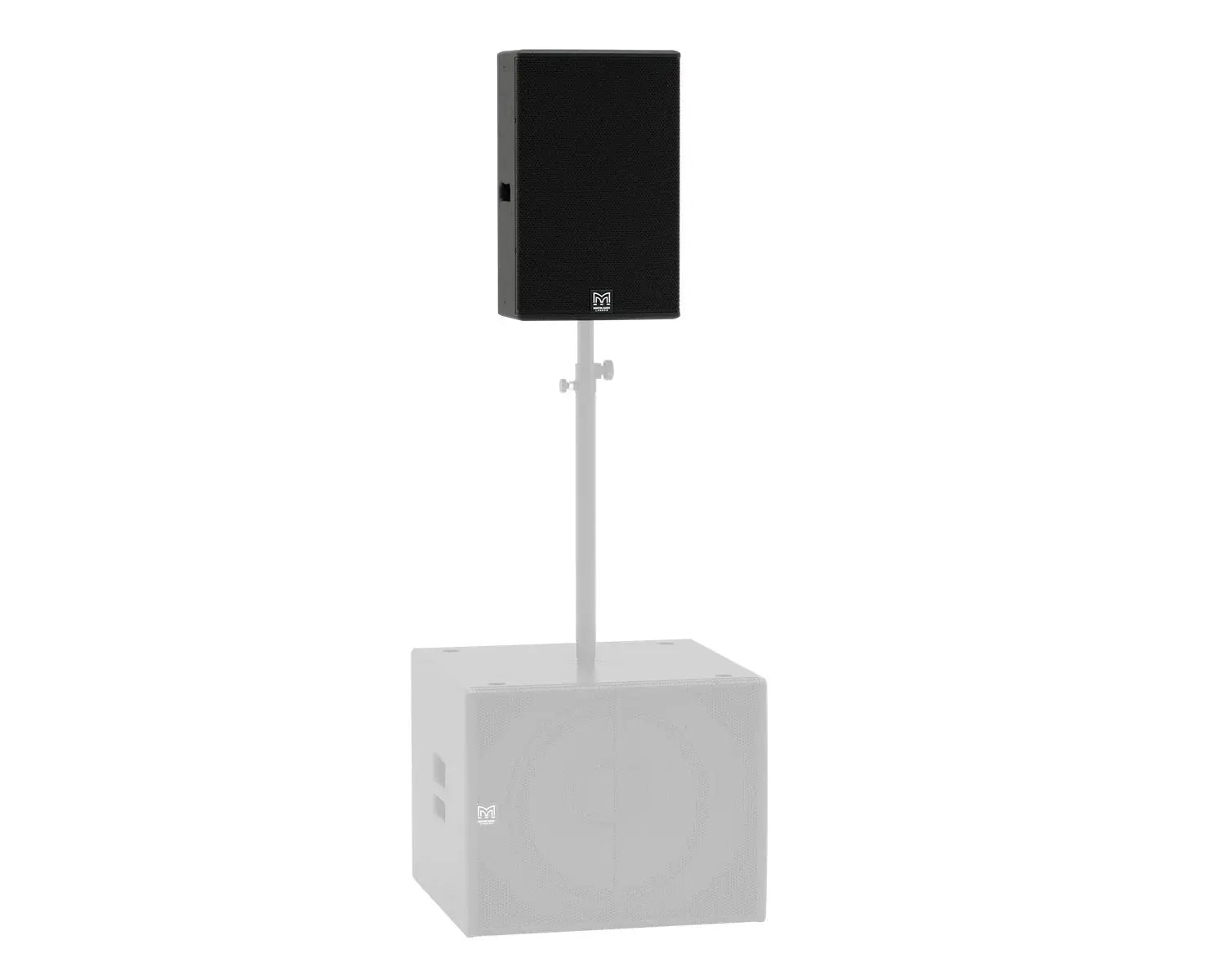

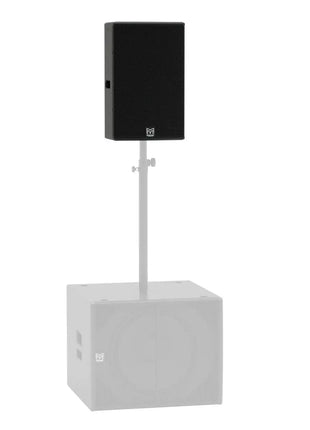

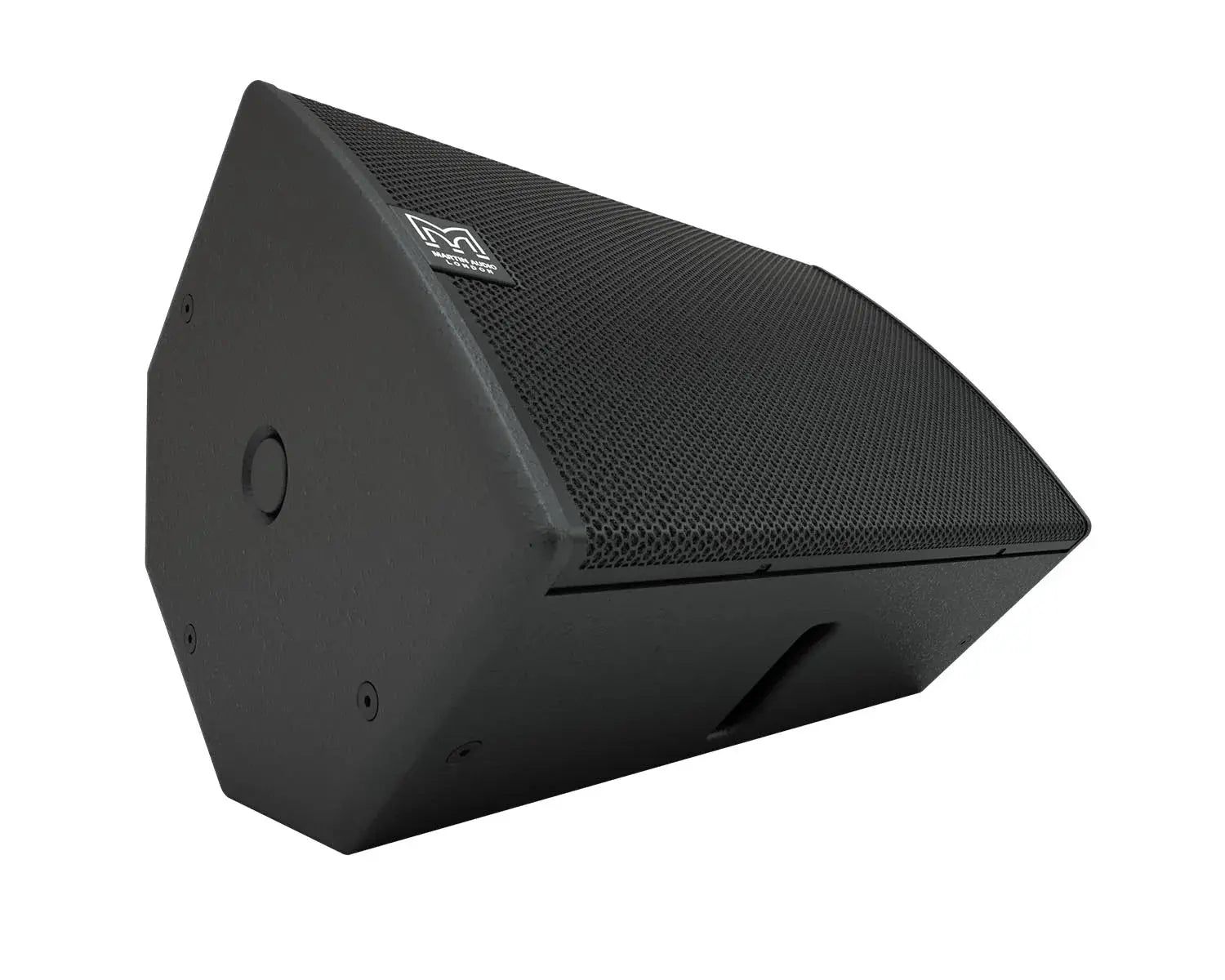

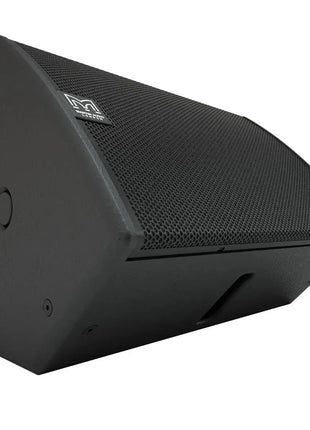

Flexible Configuration The symmetrical, multi-angle cabinet allows the XP12 to be used as a high-fidelity floor monitor with a focused coverage pattern. For larger events, the XLR Mix Output allows you to daisy-chain the signal to extra speakers or an XP118 subwoofer to create a complete full-range professional sound system.
Technical Specifications
-
Speaker Type: 2-Way Active Powered Loudspeaker
-
Frequency Response: 62 Hz – 20 kHz (+/- 3dB)
-
Max SPL: 128 dB Peak
-
Power Output: 1300W Peak (1000W LF / 300W HF)
-

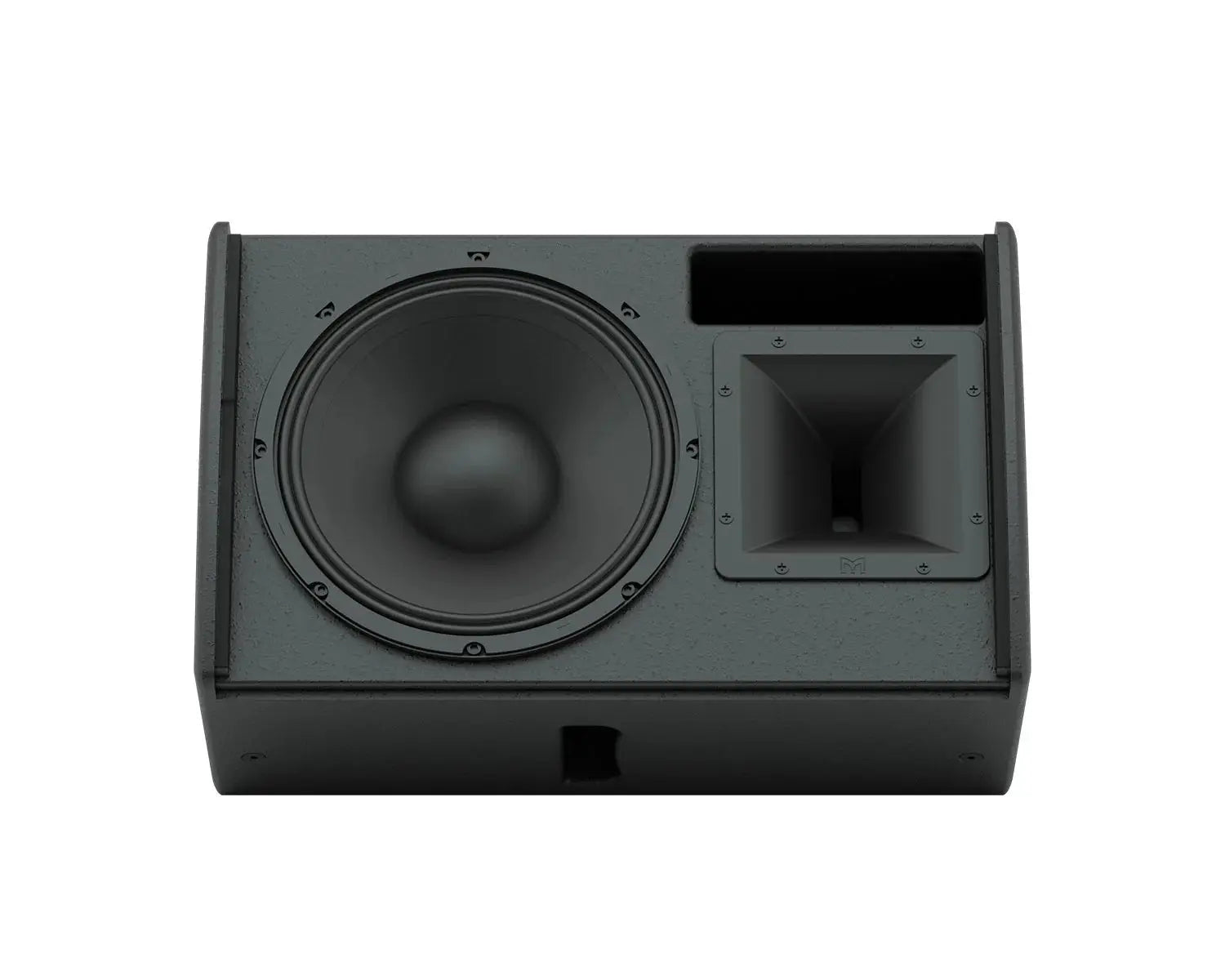

LF Driver: 12-inch with 2.5-inch voice coil
-
HF Driver: 1-inch exit compression driver with 1.7-inch voice coil
-
Dispersion: 80 degree H x 50 degree V (Rotatable)
-

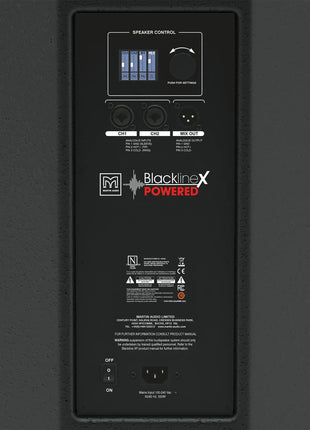

Inputs: 2 x XLR/TRS Combo, 1 x 3.5mm Stereo Jack
-
Outputs: 2 x XLR (Individual channel), 1 x XLR (Mix Out)
-
Material: 15mm Birch-ply
-
Weight: 18 kg
-
Dimensions: 358 x 574 x 318 mm
Frequently Asked Questions
Is the Bluetooth only for control? On the Blackline XP series, the Bluetooth connectivity via the XP Connect app is primarily for controlling the mixer, EQ, and internal settings. For audio playback, it is recommended to use the physical 3.5mm jack or a dedicated wireless receiver.
Can I use this horizontally? Yes. You can rotate the high-frequency horn 90 degrees so that the dispersion remains correct (80 degrees horizontal) when the speaker is placed on its side or mounted horizontally in a permanent installation.
Is it easy to transport? At 18kg and featuring an ergonomic top handle, the XP12 is very manageable for a single person to lift onto stands, making it an excellent choice for solo performers and mobile DJs.
