MagicFX Powershot I – Compact DMX Confetti & Streamer Launcher with Baseplate
Buy the MagicFX Powershot I, a professional DMX-controlled electric cannon launcher featuring an integrated heavy baseplate, physical angle indicator, and direct DMX512 onboard control. In stock, fast UK delivery.

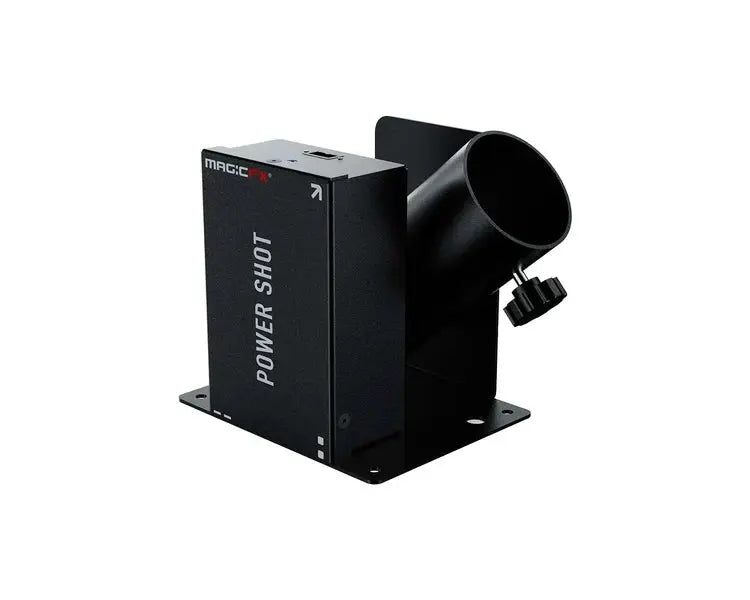

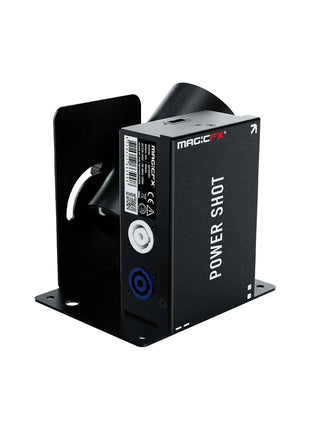

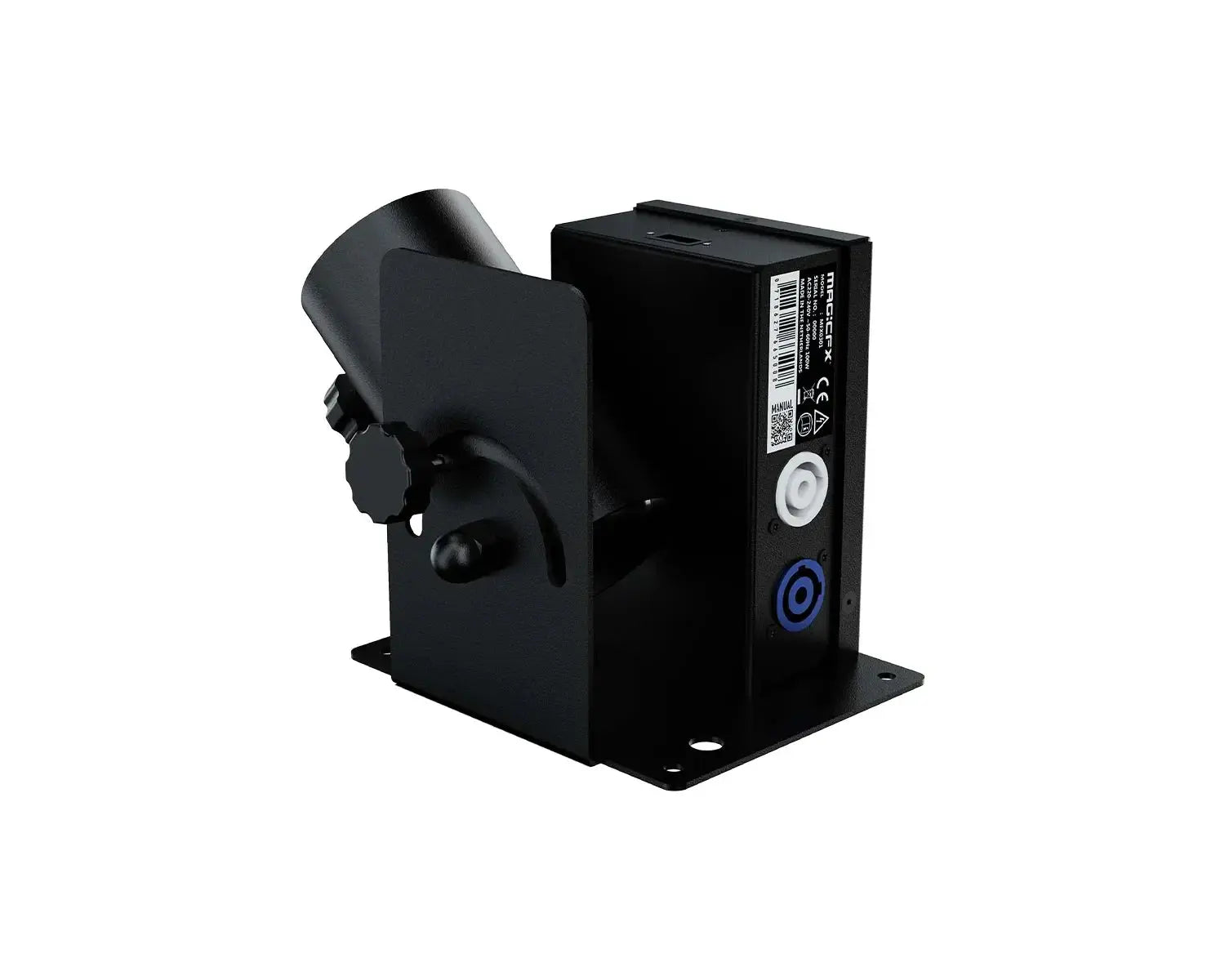

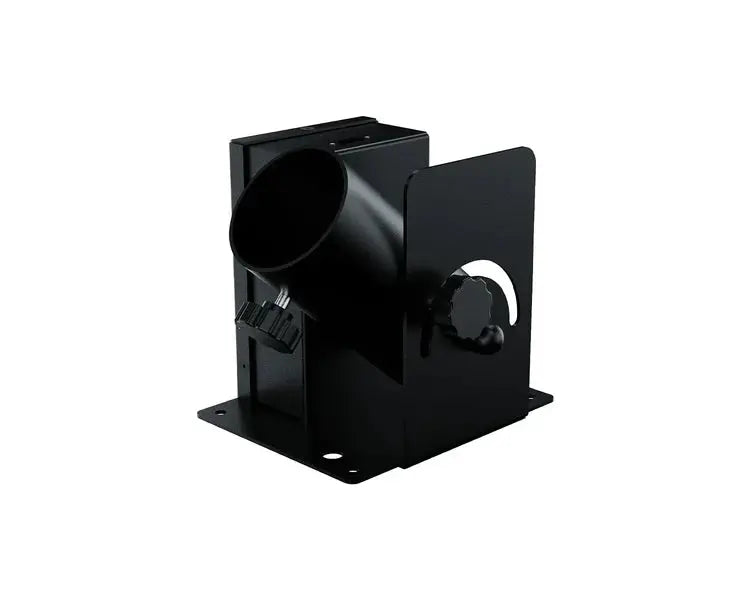

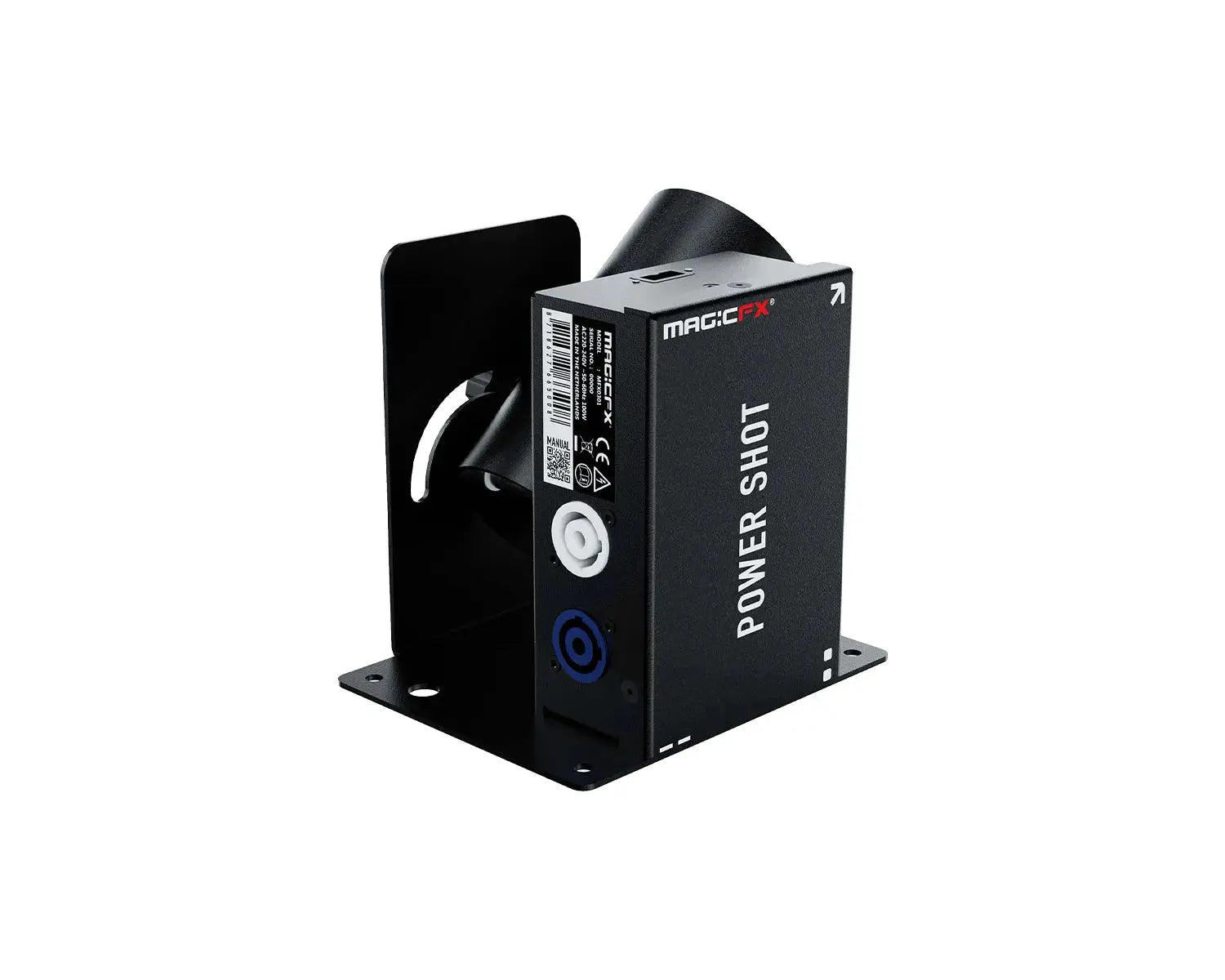

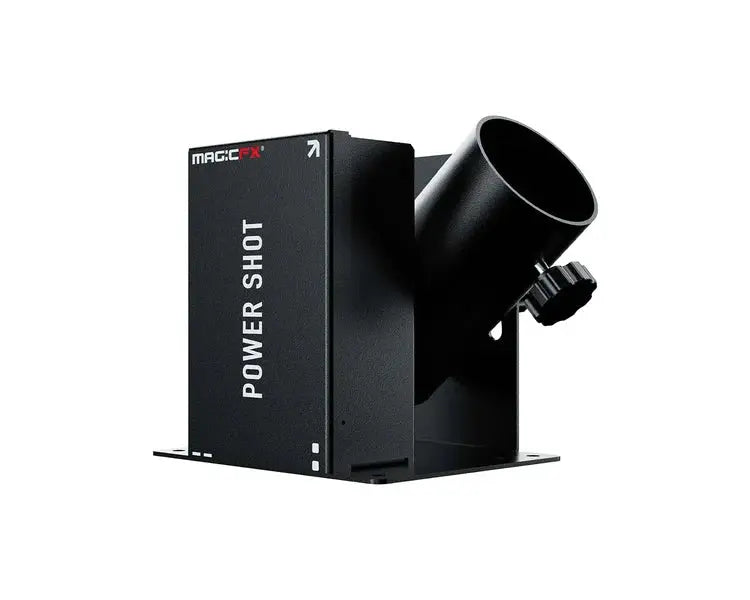

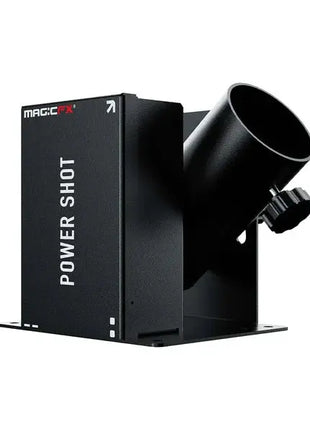

The MagicFX Powershot I is a professional, high-velocity DMX-controlled electric confetti and streamer launcher designed for mobile DJs, venue installation teams, festival staging crews, and production rental houses. Unlike traditional launchers that require external relay packs, the Powershot I features integrated onboard DMX512 control, allowing lighting designers to trigger shot cues directly from any DMX console or software rig. Supplied complete with a heavy, stable mounting baseplate, this compact firing unit accepts all standard pre-filled MagicFX electric cannon cartridges (available in 50cm and 80cm options). It propels paper or metallic confetti streams up to 12 metres into the air and throws streamer ribbons up to 20 metres across venues. Housed in a weatherproof, powder-coated steel chassis with locking Neutrik powerCON TRUE1 routing, the system provides zero-delay, synchronized visual effects execution.
Staff Take: The Expert Verdict
The single strongest selling point of the MagicFX Powershot I is its native onboard DMX control combined with the included heavy floor baseplate. The standout feature is being able to daisy-chain DMX signal directly into the unit without needing external DMX switchpacks or relay boxes, significantly simplifying your stage wiring setup. We highly recommend this complete launcher package for venue installation engineers, festival lighting directors, and mobile DJs who want direct console trigger control for synchronized visual drops.
Why Choose the MagicFX Powershot I DMX Launcher?
-
Integrated onboard DMX512 control: Features built-in 3-pin or 5-pin DMX inputs and outputs to trigger confetti cues directly from lighting desks without external switchpacks.
-
Supplied with heavy floor baseplate: Comes complete with a heavy-duty steel baseplate to ensure maximum floor stability during high-recoil firing.
-
Instant zero-delay electrical ignition: Triggers attached electric cartridges the exact millisecond a DMX firing command or power signal is received.
-
12m confetti & 20m streamer projection: Compatible with 50cm and 80cm electric cartridges to deliver high-velocity output scaled to venue height.
-
Integrated visual angle indicator: Outfitted with a physical angle graduation guide and locking clamp to lock in precise deployment vectors across stage arrays.
-
Onboard LED test & DMX status indicator: Features diagnostic LEDs to quickly confirm DMX signal reception and electrical loop continuity before going live.
-
Automatic 4-second safety cutoff: Protects internal firing circuits and consumables by automatically cutting power 4 seconds after activation.
-
Rugged weather-resistant steel chassis: Powder-coated steel enclosure engineered for harsh outdoor staging environments and touring road use.
Who is the MagicFX Powershot I best suited for?
The MagicFX Powershot I is engineered first and foremost for professional lighting designers, festival staging technicians, venue integrators, and touring production providers who manage live concerts and theater shows. Its native DMX functionality allows technicians to map confetti drops directly into lighting cues, synchronizing explosive visual effects with lighting blackouts, chorus drops, or timecode automation.
For secondary applications, this baseplate-mounted launcher is an exceptional solution for corporate event staging teams, nightclub installations, and high-end mobile DJs. The included floor baseplate allows the unit to sit securely on stage floors, risers, or DJ booths without requiring permanent bolting or truss clamps.
MagicFX Powershot I vs Standard Non-DMX Launchers — What's Changed?
The primary advantage of choosing the MagicFX Powershot I over standard non-DMX launchers (such as basic AC-switched models) is the total elimination of external relay hardware. Traditional electric launchers require a separate DMX switchpack or relay box to convert DMX commands into AC mains power. The Powershot I integrates DMX processing directly inside the chassis, allowing you to run standard DMX cables straight to the unit alongside constant mains power.
Secondary enhancements focus on floor stability and setup efficiency. Supplying the unit complete with a heavy, custom-fitted baseplate guarantees that the launcher stays anchored during high-pressure recoil, while onboard LED diagnostic lights allow technicians to troubleshoot signal and loop continuity right on the stage floor.
How to Set Up the MagicFX Powershot I
-
Place the heavy steel baseplate on a flat, stable floor surface, or clamp the launcher chassis to a truss line using an M10 coupler.
-
Adjust the firing barrel to your desired angle using the integrated physical graduation guide, then tighten the locking collar.
-
Insert a compatible pre-loaded electric confetti or streamer cannon cartridge (50cm or 80cm) into the holder collar.
-
Plug the electronic wire lead from the cartridge directly into the launcher's connection socket.
-
Connect your DMX signal cable into the DMX IN port, setting your preferred start address using the onboard dipswitches or digital display.
-
Connect incoming mains power using a locking Neutrik powerCON TRUE1 cable.
-
Verify DMX signal reception and loop continuity on the diagnostic LEDs, clear the blast area, and trigger the cue from your console.
Technical Specifications
Frequently Asked Questions
Do I need a separate DMX switchpack to control the Powershot I?
No, you do not. The Powershot I features integrated onboard DMX control, meaning you can plug a standard DMX line directly into the unit and assign it a DMX start address without needing an external relay module.
Can I daisy-chain power and DMX across multiple Powershot I units?
Yes, absolutely. The unit is equipped with Neutrik powerCON TRUE1 power input/output connectors and DMX pass-through ports, allowing you to daisy-chain both power and control data cleanly across multiple launchers along the front of a stage.
Can the Powershot I be removed from the baseplate for truss mounting?
Yes. The launcher module can be unbolted from the heavy floor baseplate and mounted directly to aluminum trussing or lighting bars using a standard M10 truss clamp and safety wire.
What happens if I accidentally leave the DMX firing channel ON?
The launcher includes an automatic 4-second electronic safety cutoff circuit. This cuts electrical current to the cartridge socket after 4 seconds to protect the internal firing components from thermal stress, even if the DMX channel remains active.
Does the unit require gas or compressed air tanks?
No external gas tanks or compressors are needed. The launcher acts as an electrical controller that fires pre-pressurized MagicFX electric cartridges, which contain a self-contained nitrogen charge built into the base of each consumable tube.
What's In The Box?
-
1 × MagicFX Powershot I Compact DMX FX Firing Unit
-
1 × Heavy-Duty Steel Floor Mounting Baseplate
-
1 × Integrated Adjustable Cannon Collar with Angle Indicator
-
1 × Onboard DMX Controller Module
-
1 × Operational User Instruction Manual
