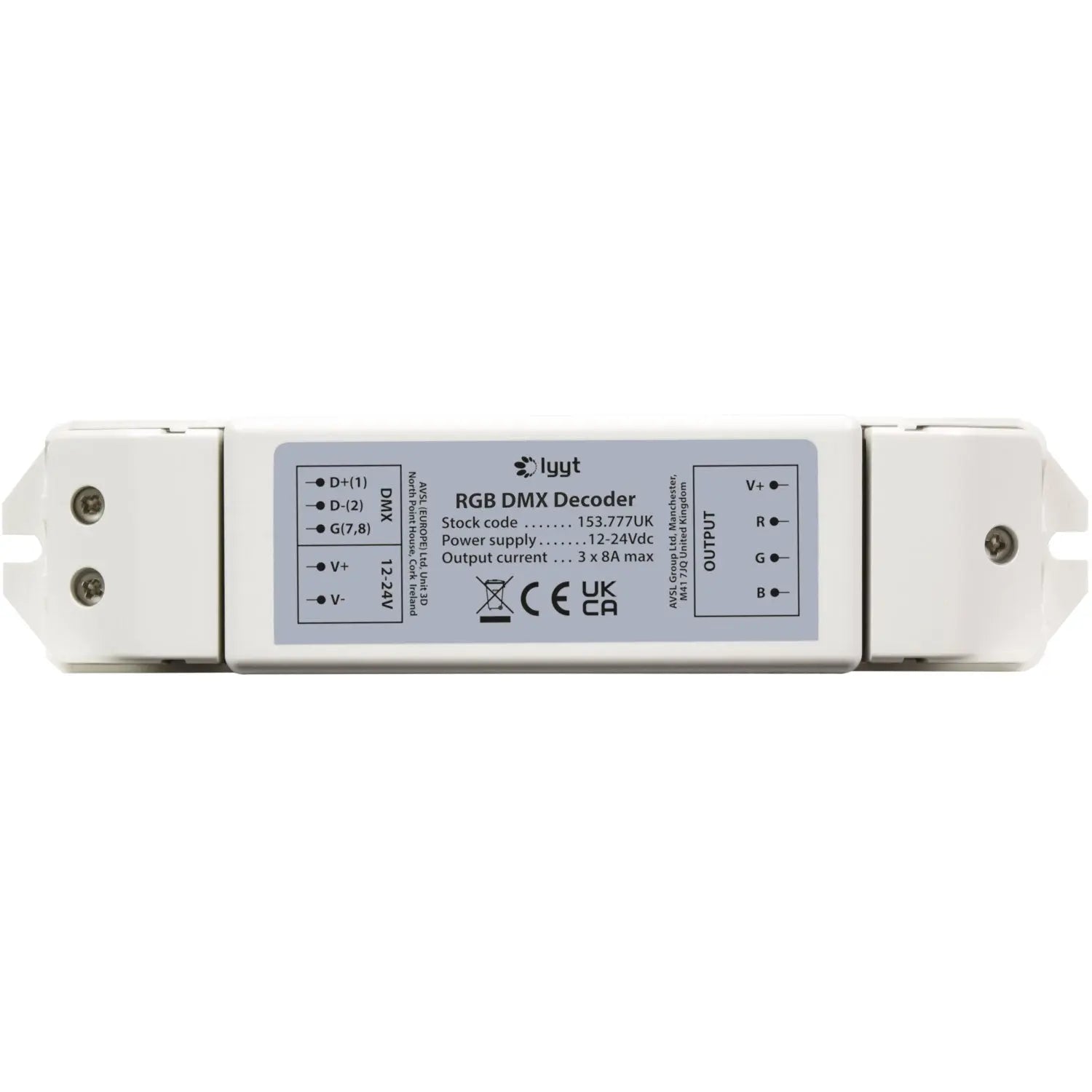

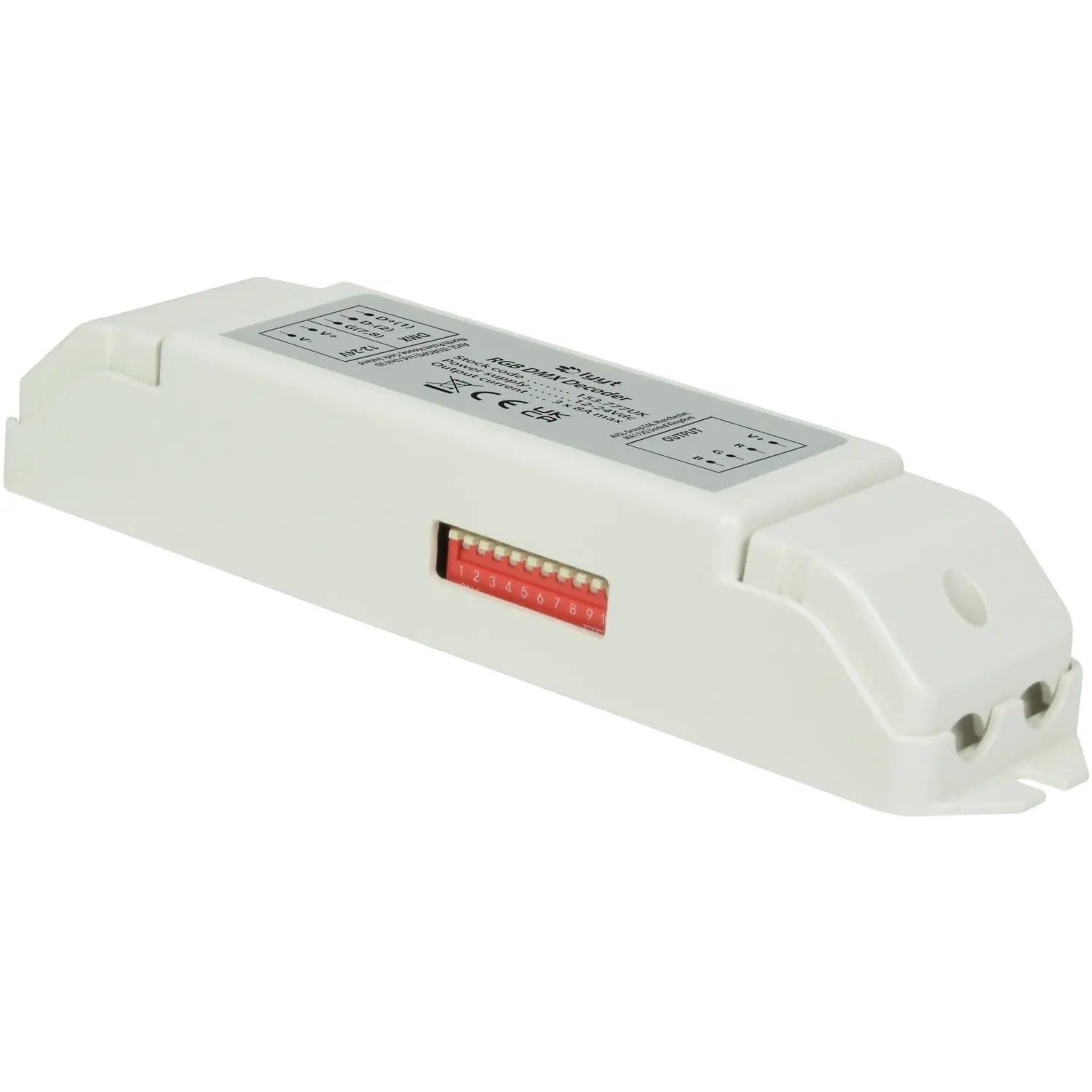

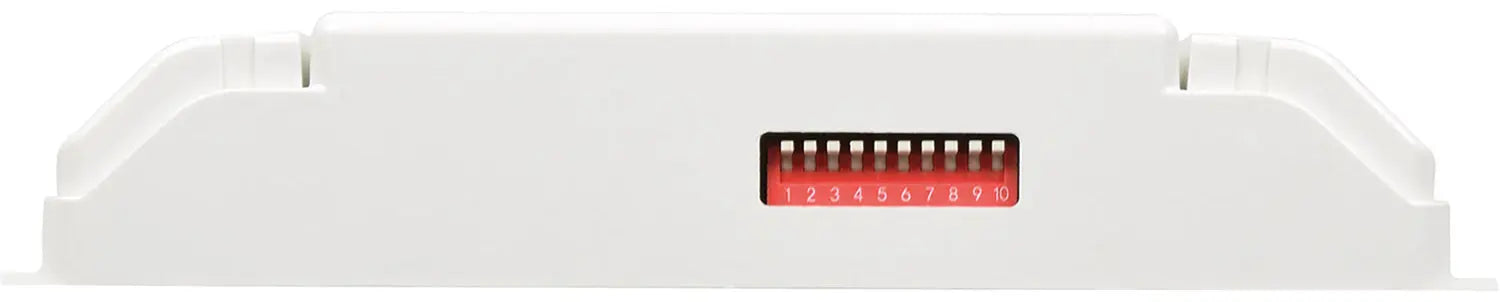

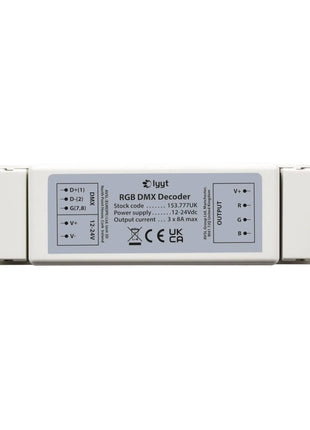

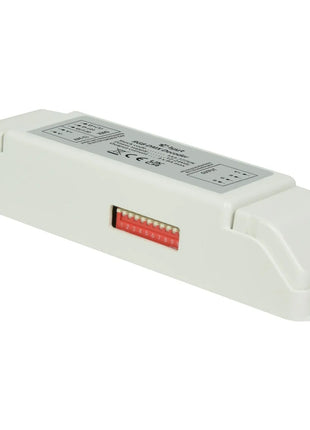

This DMX decoder is designed to convert the universal standard DMX512/1990 into analogue signal to control either 12V or 24V RGB LED tape. This model can drive 8A/channel and it simply assigns a colour per DMX channel. DC power input and colour channel outputs are connected via screw terminals. DMX input and through connection are also via screw terminals with the start address set by side mounted DIP switches. Powered by a 12V or 24V power supply, this decoder enables 3 channel DMX control of Red, Green and Blue output
3 channel DMX control for RGB colour mixing
256 levels of brightness
Up to 8A output per channel
12V or 24V operation
Screw terminal DMX input
Power supply 12-24Vdc
Power : max. ≤288W/12V≤576W/24V
Current consumption 24A max.
DMX channels 3
Output current 3 x 8A max.
Power connection Screw terminals
Output Blue, Red, Green, V+
Working temperature -20～50℃
IP rating IP20
Dimensions 170 x 30 x 40mm
Weight 92g
