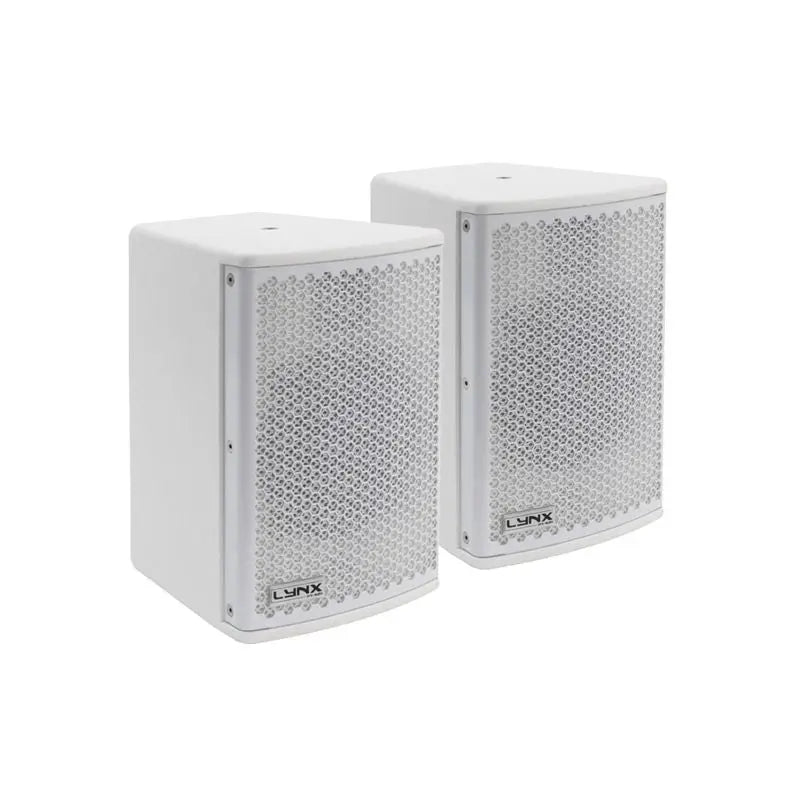

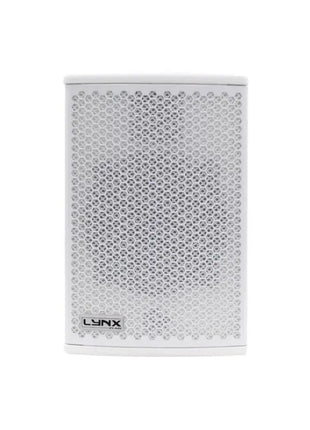

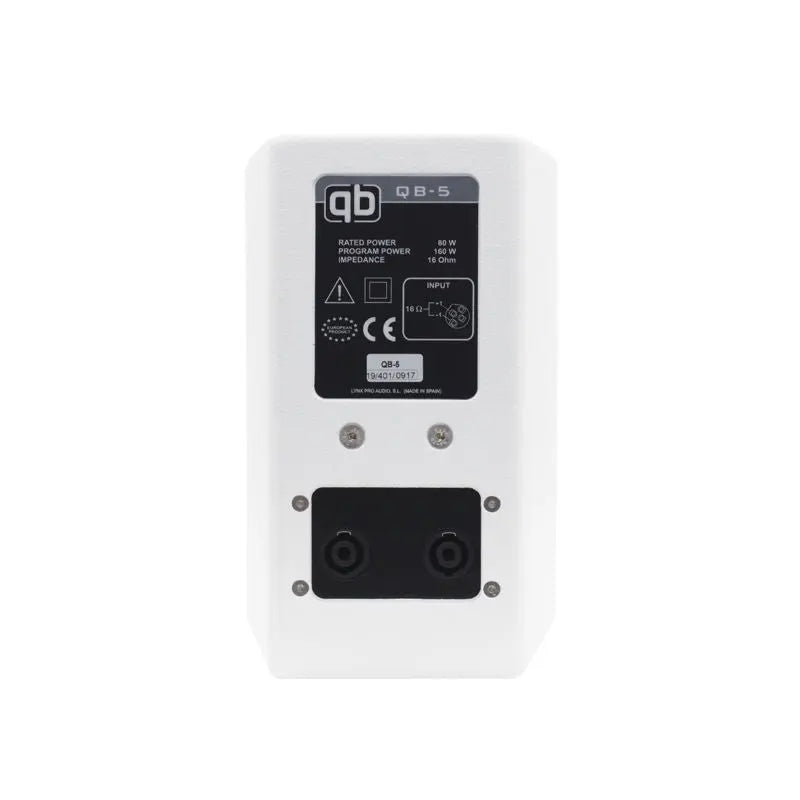

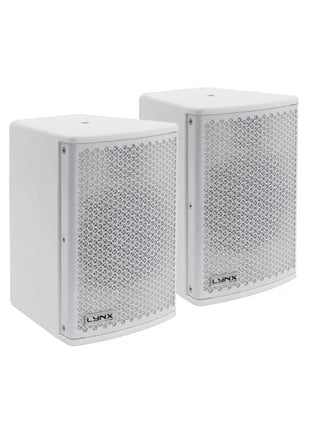

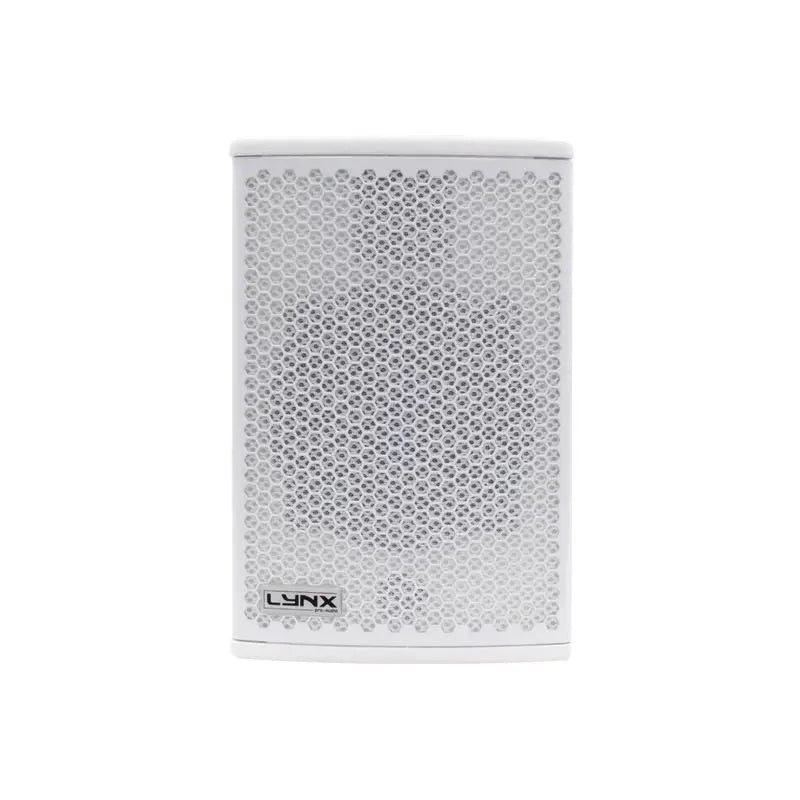

Ultra-compact full range two-way passive cabinet for background sound reinforcement. It consists of a 5” transducer and a 1” high frequency neodymium tweeter. It offers 90° conical dispersion and 107dB SPL (320W peak power). For increased low frequency reinforcement the QB-5 can be used in conjunction with the SUB-08. Continuous power (RMS): 80W Peak power: 320W Maximum calculated SPL: 107dB Sensitivity (1W/1m): 88dB Frequency range (-3dB): 75Hz – 18KHz Dispersion: 90° conical LF / HF transducers: 5”/1” Nominal impedance: 16Ω Connections: 2 x Neutrik speakON NL4 Mounting options: Two M6 rigging points on rear Ultra compact two-way cabinet 5” (32mm voice coil) LF transducer and a 1” HF neodymium tweeter MDF construction Heavy duty internal cabinet bracing Discrete rear panel with recessed angled connectors Heavy duty powder coated front grille with a special acoustic rear fabric to protect the transducers against dust and dirt White durable waterbased paint finish
