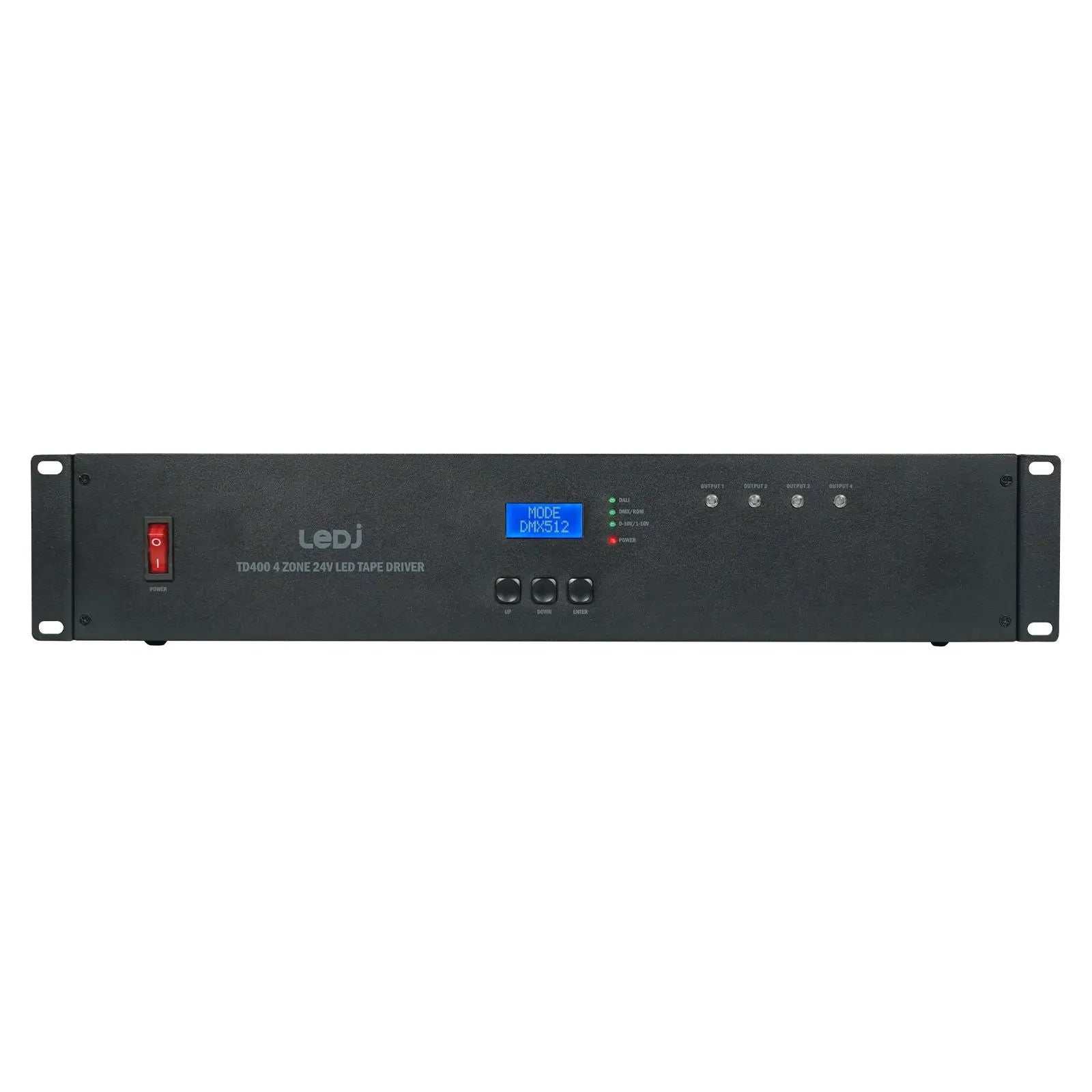

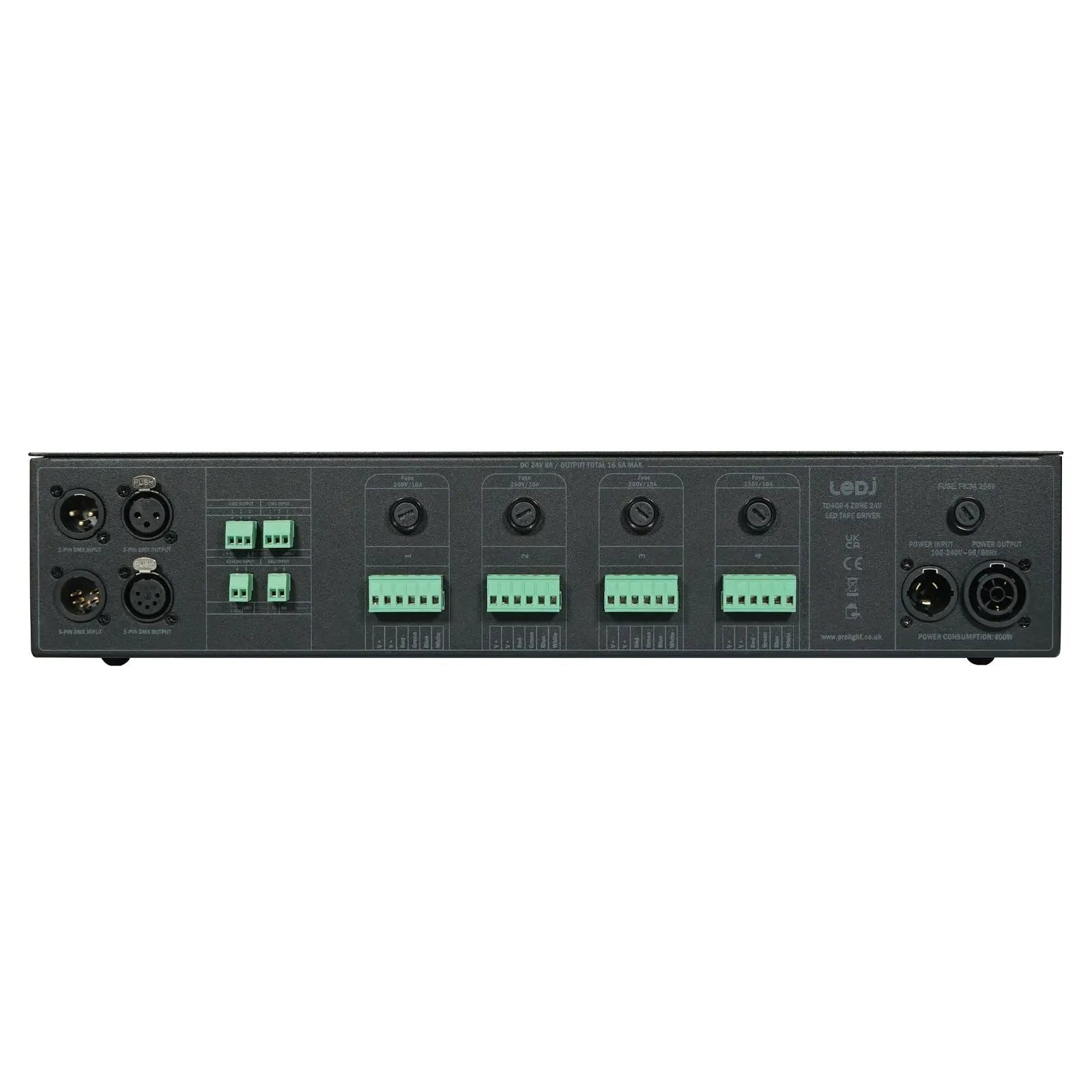

The TD400 is a multi protocol all-in-one solution for driving up to 400W of RGB/RGBW constant voltage LED flexible tape across four output zones. Housed within a 2U rackmount chassis with rack ears which can be removed and refitted as wall brackets. The front panel features a push button display LED mode indicators and LED RGB output indicators allowing the installer or user to glance at the front panel as a quick check of the colour selected on each zone. 4 button menu with LCD displayFour LED RGB output indicator LEDSDMX 0-10V DALI and stand alone (manual) control modesRDM (Remote Device Management)Fan cooled 2U 19" rack mount chassisUp to 10A per zone (fused) 16.6A overall RGB/RGBW drive currentFour 6-way phoenix connector for LED drive outputFused outputsDMX input/output via phoenix connector 3-Pin XLR and 5-Pin XLR0-10V analogue input via phoenix connectorDALI input via phoenix connectorpowerCON TRUE1 input/output
