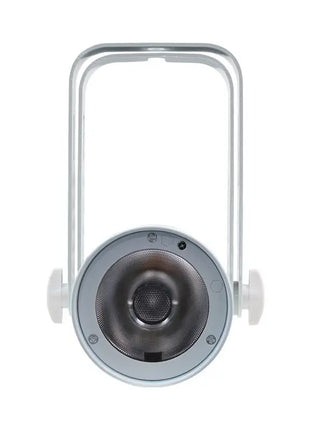

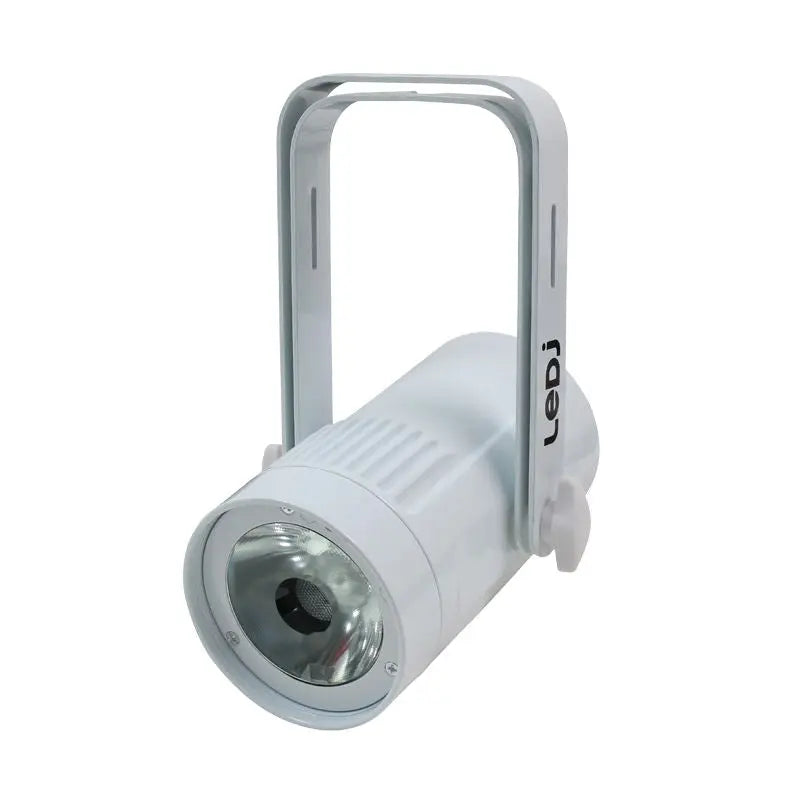

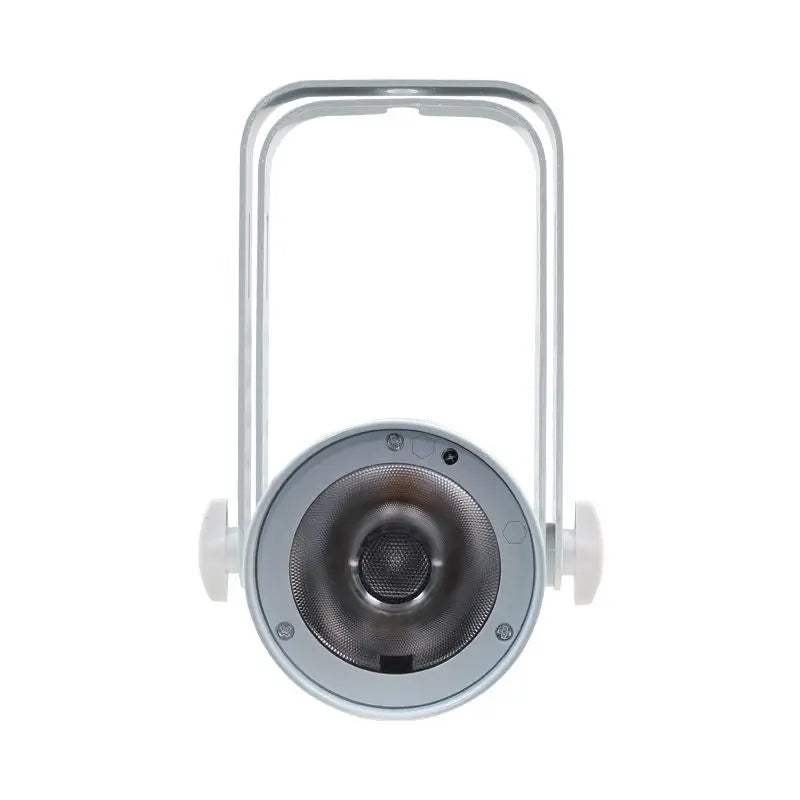

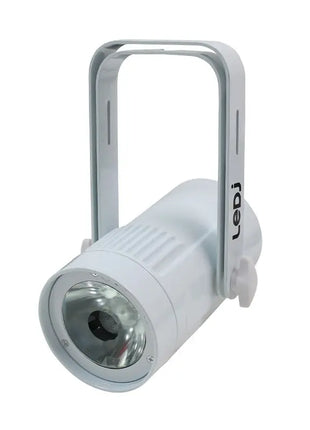

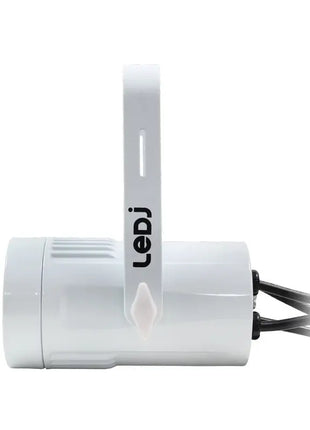

The Event Spot compact LED Pinspot is a high-performance, versatile lighting fixture designed for precision and impact. Powered by a 15W quad-colour LED (RGBW), it delivers the brightness and output equivalent to a 100W halogen lamp while maintaining the efficiency of modern LED technology. This unit is ideal for highlighting retail displays, pinspotting centrepieces at events, or creating intimate mood lighting on restaurant tables.
Why Choose the Event Spot Pinspot?
-
Exceptional Versatility: The fixture features a sharp 4-degree native beam angle for intense pinspotting.
-

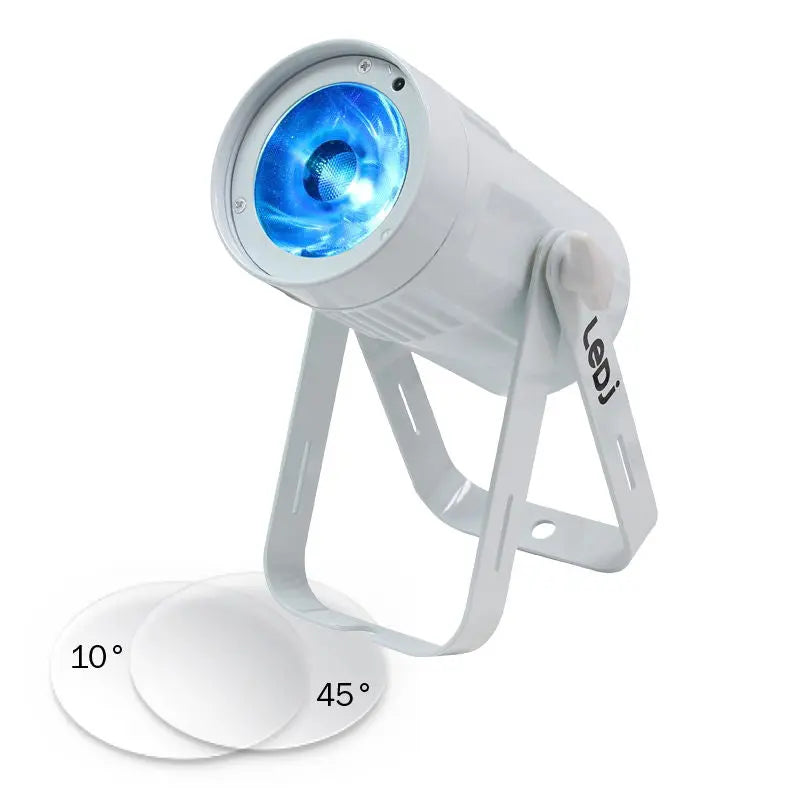

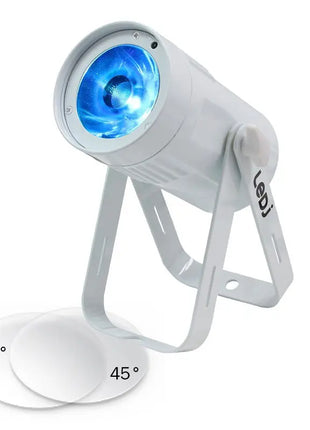

Customizable Optics: It is supplied with two optional frost lenses (10-degree and 45-degree) to easily adapt the beam for wider wash applications or soft spotlighting.
-

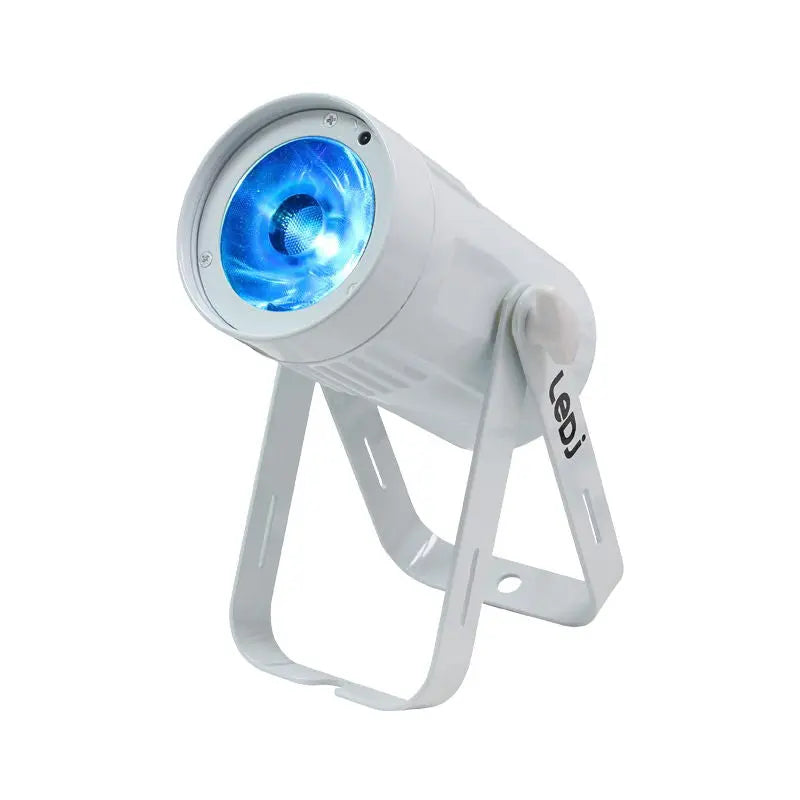

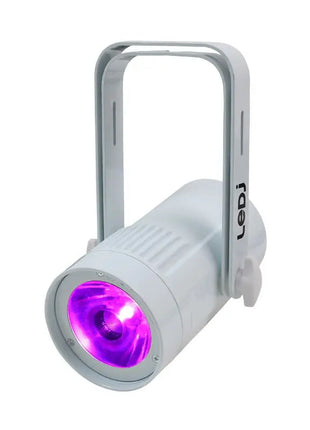

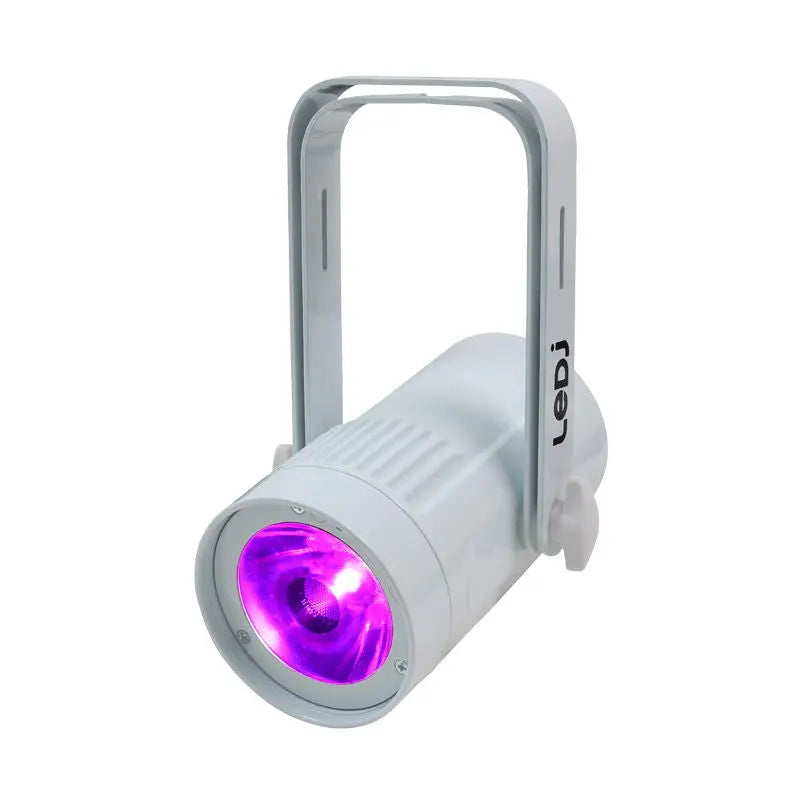

Professional Colour Mixing: The RGBW quad-colour LED allows for vibrant static colours, smooth colour fades, and rapid colour changes.
-
Flexible Control: Operate via DMX (1, 4, 6, or 7 channels), built-in programs, or master/slave modes for perfectly synchronized light shows.
-

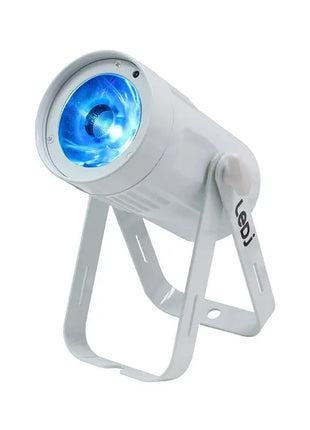

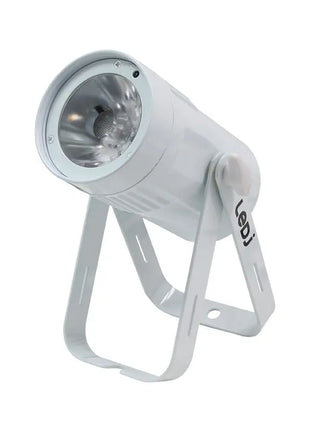

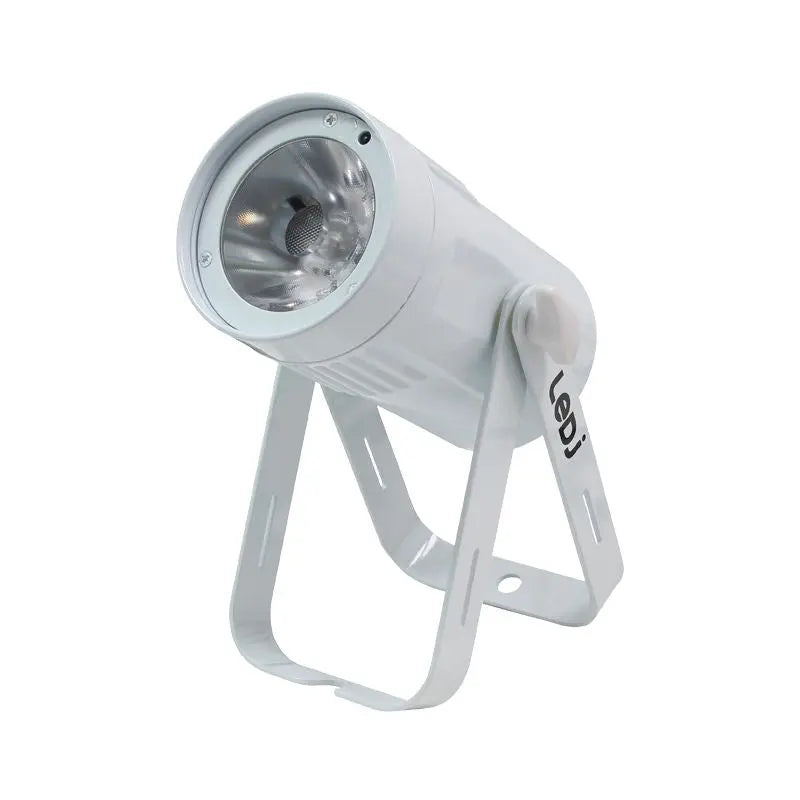

Robust Rigging: The included bracket is designed for multiple rigging configurations or stable floor-standing applications.
Precision Lighting Performance
High-Output Optics The Event Spot is engineered for punchy delivery. At a 2-metre distance, the 4-degree native beam produces 9700 Lux, while the 10-degree and 45-degree lenses provide 3866 Lux and 497 Lux respectively, ensuring you have the right intensity for any distance or display.
Smooth Dimming and Effects Equipped with 0 to 100% dimming and a variable strobe function, you have total control over the atmosphere. With a 1.1kHz refresh rate, the output is flicker-free, making it suitable for environments where video recording may take place.

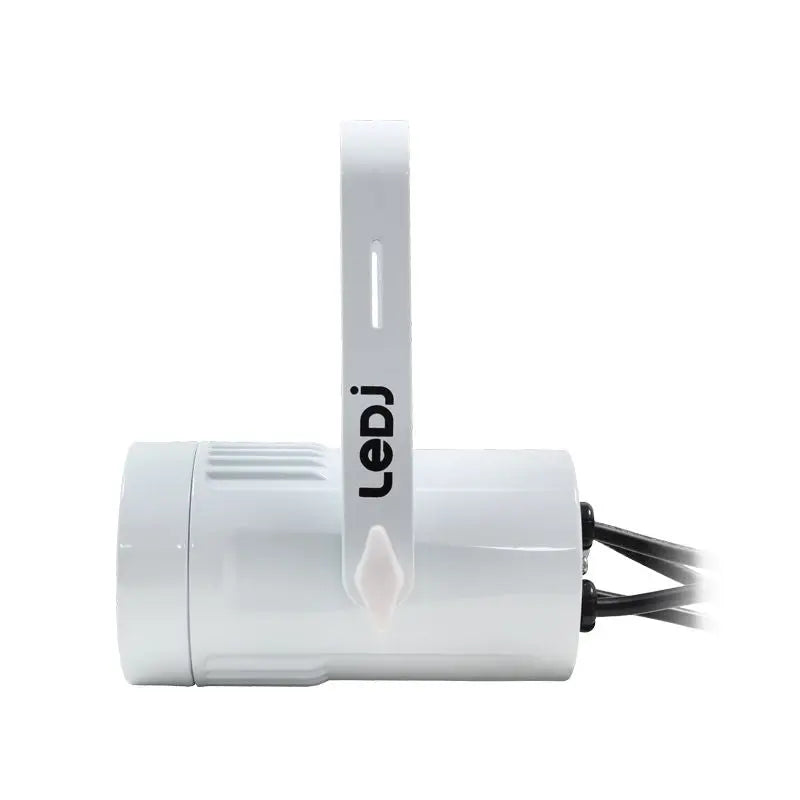

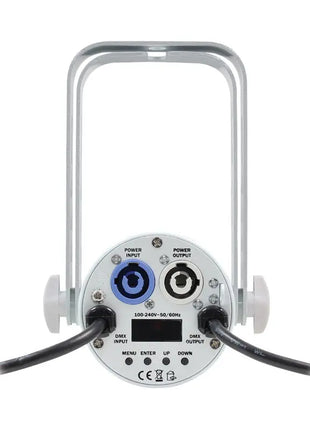

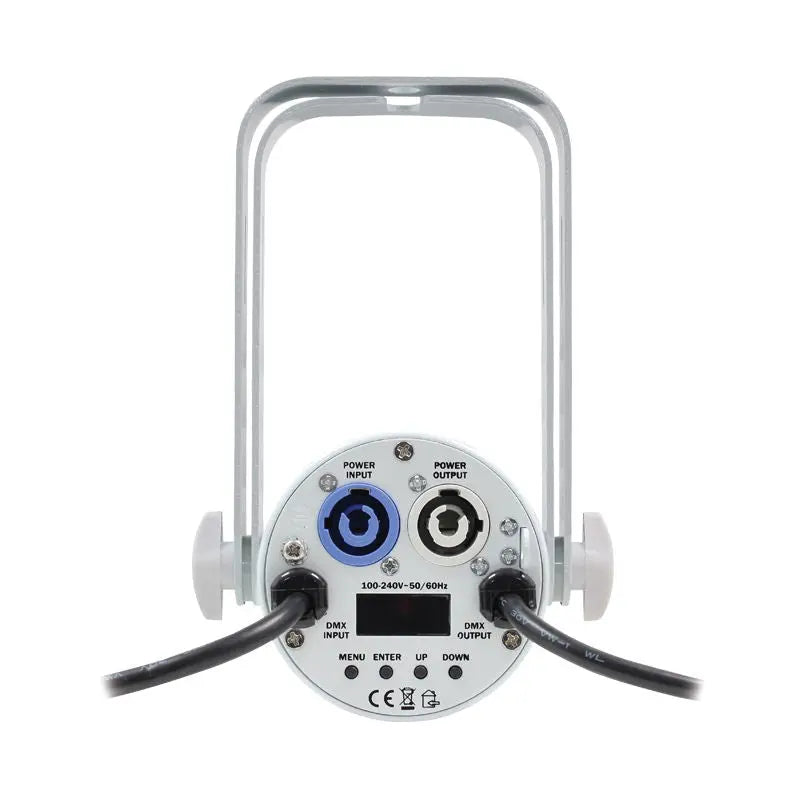

Professional Connectivity Designed for the demanding event industry, the fixture features powerCON input and output for easy daisy-chaining of power, alongside 3-pin XLR trailing connections for DMX. The convection-cooled design ensures silent operation, which is essential for quiet gallery or restaurant settings.
Technical Specifications
-
Light Source: 1 x 15W quad-colour LED (RGBW)
-
Beam Angles: 4 degrees (native), 10 degrees, and 45 degrees (with included lenses)
-
DMX Channels: 1, 4, 6, or 7 selectable
-
Dimming: 0 to 100 percent
-
Refresh Rate: 1.1kHz
-
Cooling: Convection cooled (silent)
-

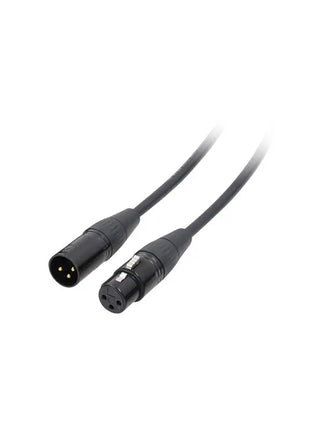

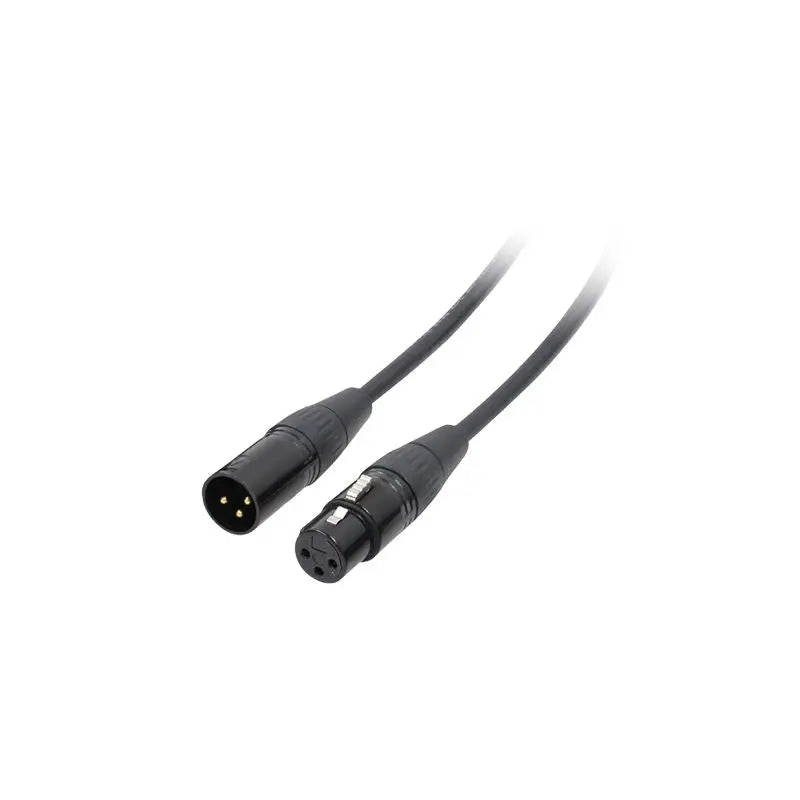

I/O Connections: powerCON in/out, 3-Pin XLR in/out
-
User Interface: 4-button menu with LCD display
Frequently Asked Questions
Can I control this without a DMX console? Yes. The fixture features built-in programs and static colour modes that can be accessed via the 4-button LCD menu. It is also compatible with the optional IR remote (LEDJ90C) for convenient wireless control.
Is this light silent? Yes. Because it is convection cooled, there are no internal fans, making it completely silent and ideal for noise-sensitive environments like museums, galleries, or quiet restaurants.
What is In The Box?
-
Event Spot LED Pinspot
-
10-degree Frost Lens
-
45-degree Frost Lens
-
Power Cable
