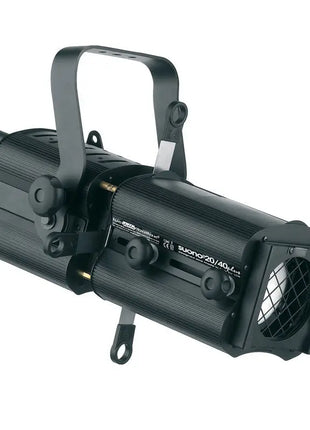

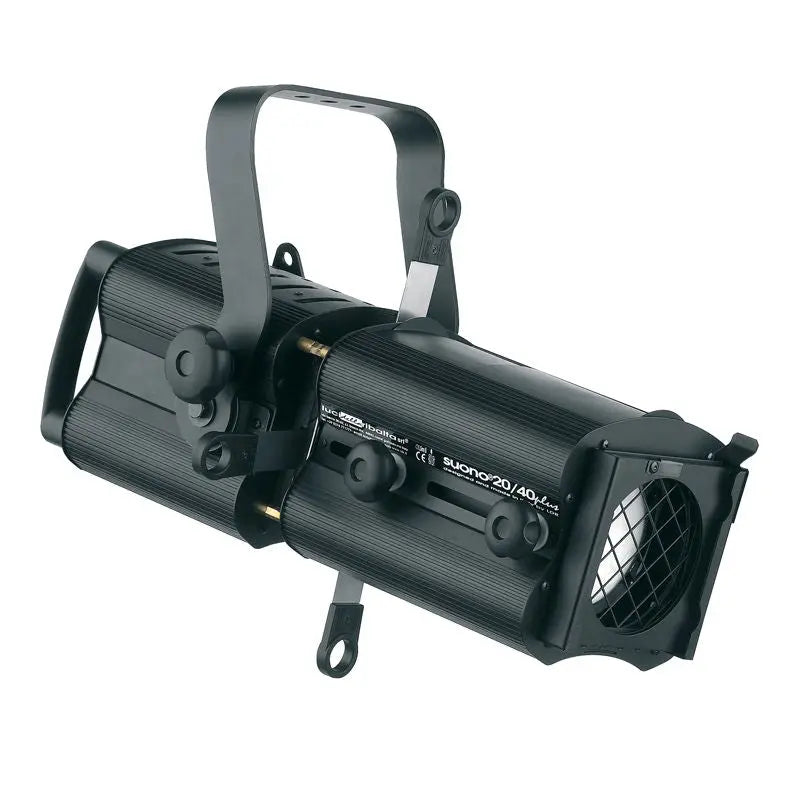

This versatile 300W/500W/650W profile spotlight is designed for shorter throws. A double condenser zoom focus optical system provides a crisp projection of gobos and a flat beam of between 20° and 40°. Features include a rotating gate insulated rear handle hinged lamp tray and double microswitch interlock for safe lamp replacement. A gel frame safety guard and 4 beam shutters are all included as standard. 650W lamp (not included) Beam style: Well defined flat field profile projector Optical system: Double condenser with variable zoom Adjustable beam angle: 20° - 40° 20° - 493 Lux @ 10m 40° - 365 Lux @ 10m - Varies dependant on lamp Focus adjustment: Slide zoom controls on side (diameter and softness) Working position: Max. tilting ±70° from horizontal Beam shaping: 4 shutters supplied and optional iris diaphragm Lamp base: GY9.5 Lamp types: 300W 230V M38 2950K 2000hrs 500W 230V T18 3000K 360hrs / T25 3000K 360hrs / M40 2950K 2000hrs 650W 230V T26 3050K 600hrs / T27 3050K 600hrs 300W 120V CP81 FKW 3200K 50hrs 650W 120V CP89 FKR 3200K 200hrs Positional adjustment single rim-clamp tilt lock Reflector: 55mm diameter aluminium Auto-disconnect double-pole microswitch Gobo size: M/D metal Rotating gate with 4 shutters 3 accessory runner slots 125 x 125mm gel frame (DIN standard) supplied Mounting bracket Captive power connection Power cable to bare ends included Construction: Extruded aluminium and sheet steel
