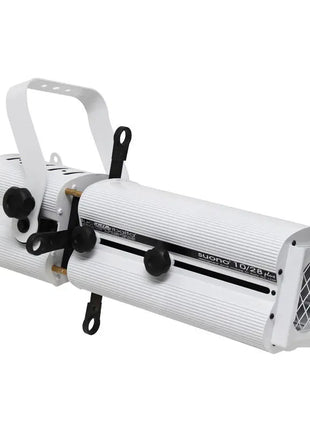

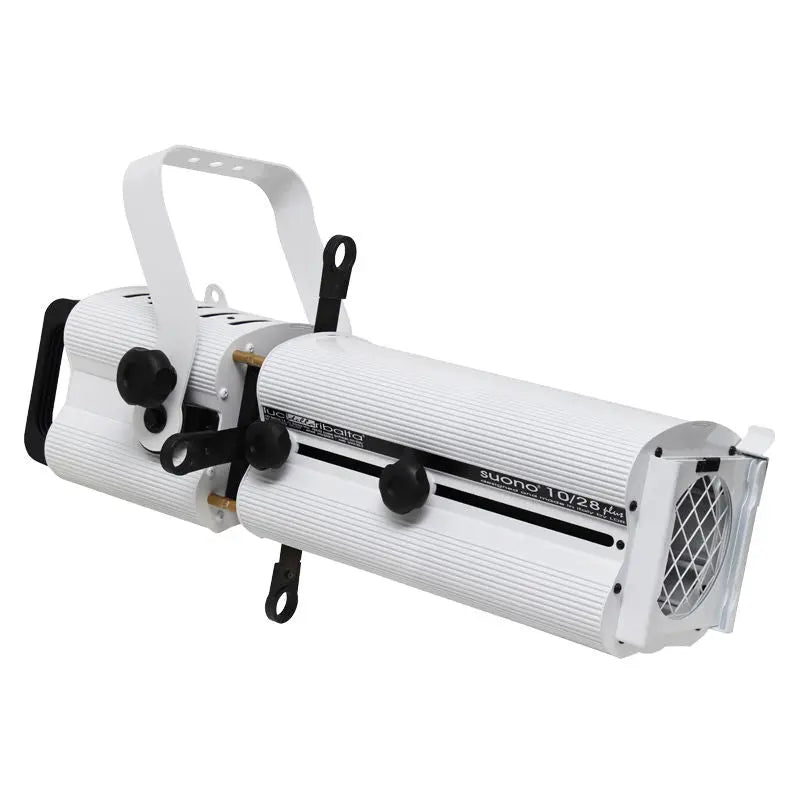

Compact and high-specification 300/500W/650W profile spotlight with a double-condenser zoom focus optical system to provide crisp projection of gobos and a flat beam between 10° and 28°. Features include a rotating gate zoom controls on teflon sleeves hinged lamp tray and double-pole microswitch interlock for safe lamp replacement. A gel frame safety guard and 4 beam shutters are all included as standard. 650W lamp max. (not included) Beam style: Well defined flat field profile projector Optical system: Double condenser with variable zoom Adjustable beam angle: 10° - 28° 10° - 525 Lux @ 10m 28° - 265 Lux @ 10m - Varies dependant on lamp Focus adjustment: Slide zoom controls on side (diameter and softness) Working position: Max. tilting ±70 ° from horizontal Beam shaping: 4 shutters supplied and optional iris diaphragm Lamp base: GY9.5 Lamp types: 300W 230V M38 2950K 2000hrs 500W 230V T18 3000K 360hrs / T25 3000K 360hrs / M40 2950K 2000hrs 650W 230V T26 3050K 600hrs / T27 3050K 600hrs 300W 120V CP81 FKW 3200K 50hrs 650W 120V CP89 FKR 3200K 200hrs Positional adjustment single rim-clamp tilt lock Auto-disconnect double-pole microswitch Gobo size: M/D metal Rotating gate with 4 shutters 3 accessory runner slots 125 x 125mm gel frame (DIN standard) supplied Mounting bracket Captive power connection Power cable to bare ends included Construction: Extruded aluminium and sheet steel
