Description

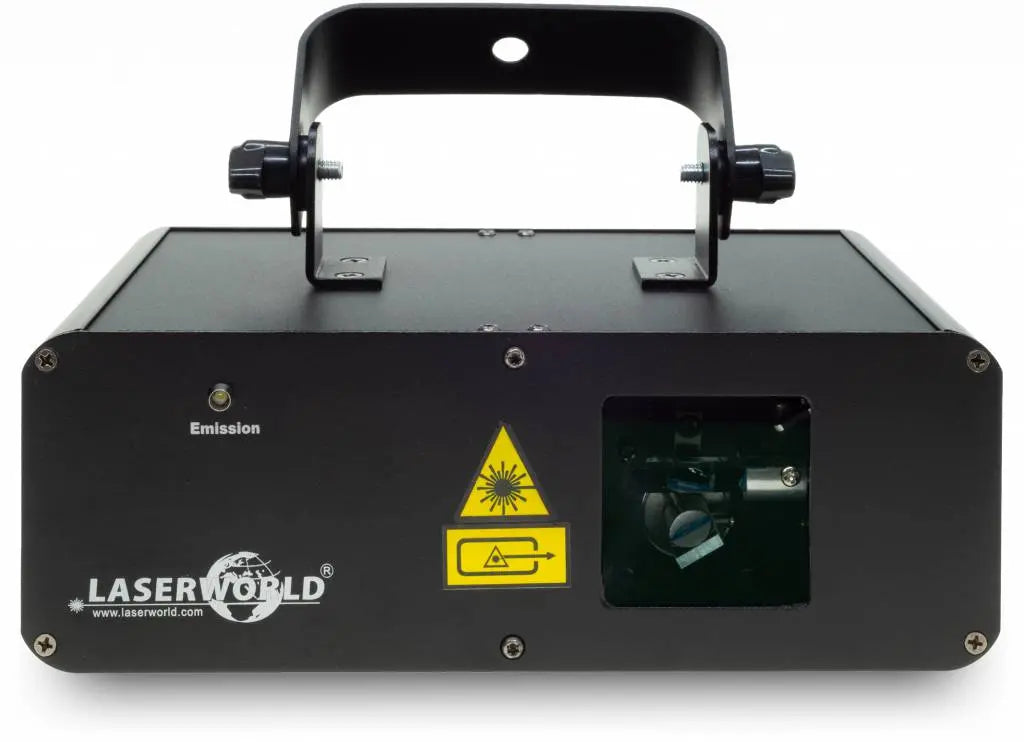

Laserworld EL-400RGB MKII - 400mW RGB Laser Show System
The Laserworld EL-400RGB MKII is a versatile RGB laser show system designed for plug-and-play operation and DMX control. It's perfect for creating dynamic in-air beam waves and tunnel effects, ideal for home parties, bars, mobile DJ events, and small to medium-sized clubs.
Key Features
RGB Color Mixing:
Red (650nm), green (532nm), and royal-blue (445nm) laser modules for vibrant colors, including stunning white light.
Moderate Output Power:
Total output power of up to 400mW.
In-Air Effects:
Projects beam waves and tunnel effects.
Multiple Control Modes:
Plug-and-play operation for easy setup.
DMX control for advanced programming.
Sound-to-light mode with adjustable microphone sensitivity.
Standalone mode for automatic pattern playback.
Built-in Patterns:
Approximately 50 preset effects (layers, tunnels, fences, waves, etc.).
High-Speed Motors:
Step motors with 3-8 kpps for dynamic pattern creation.
Compact Design:
Portable and easy to transport.

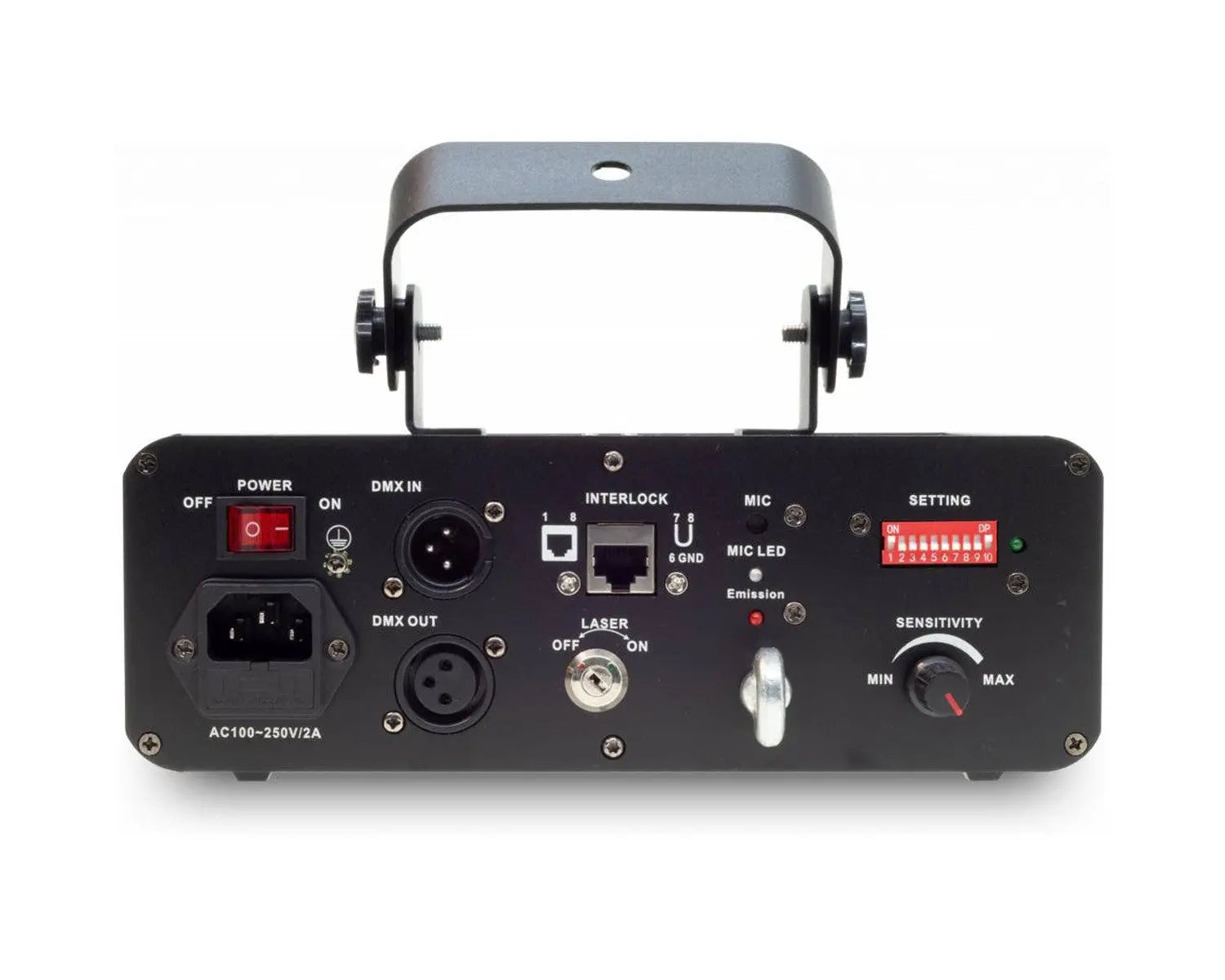

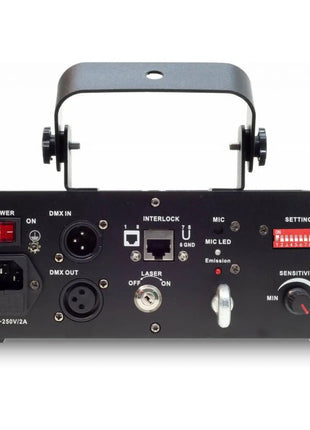

Safety Features:
Interlock connector for safety switch.
Key switch for added security.
Beam Specifications:
Beam diameter of approximately 3 mm.
Beam divergence of approximately 2 mrad.
Technical Specifications
Laser Power: Up to 400mW total
Laser Modules:
Red: 650nm diode laser
Green: 532nm DPSS laser
Blue: 445nm diode laser
Scan Speed: 3-8 kpps
Beam Diameter: Approximately 3 mm
Beam Divergence: Approximately 2 mrad
Control Modes: DMX, sound-to-light, standalone, plug-and-play
Built-in Patterns: Approximately 50
Colors: RGB, including white
What's in the box
Laserworld EL-400RGB MKII laser system
Power cable
User manual
