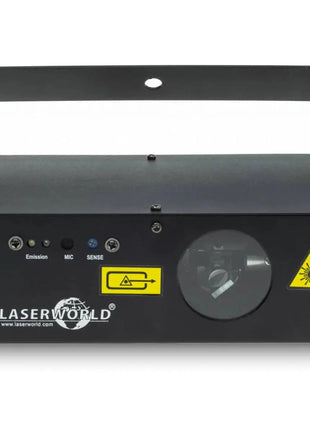

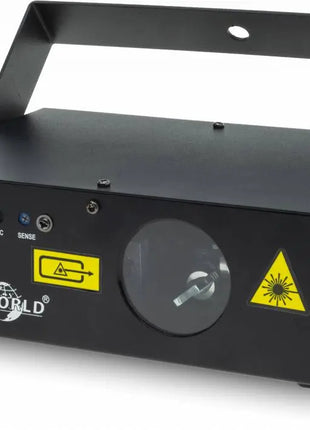

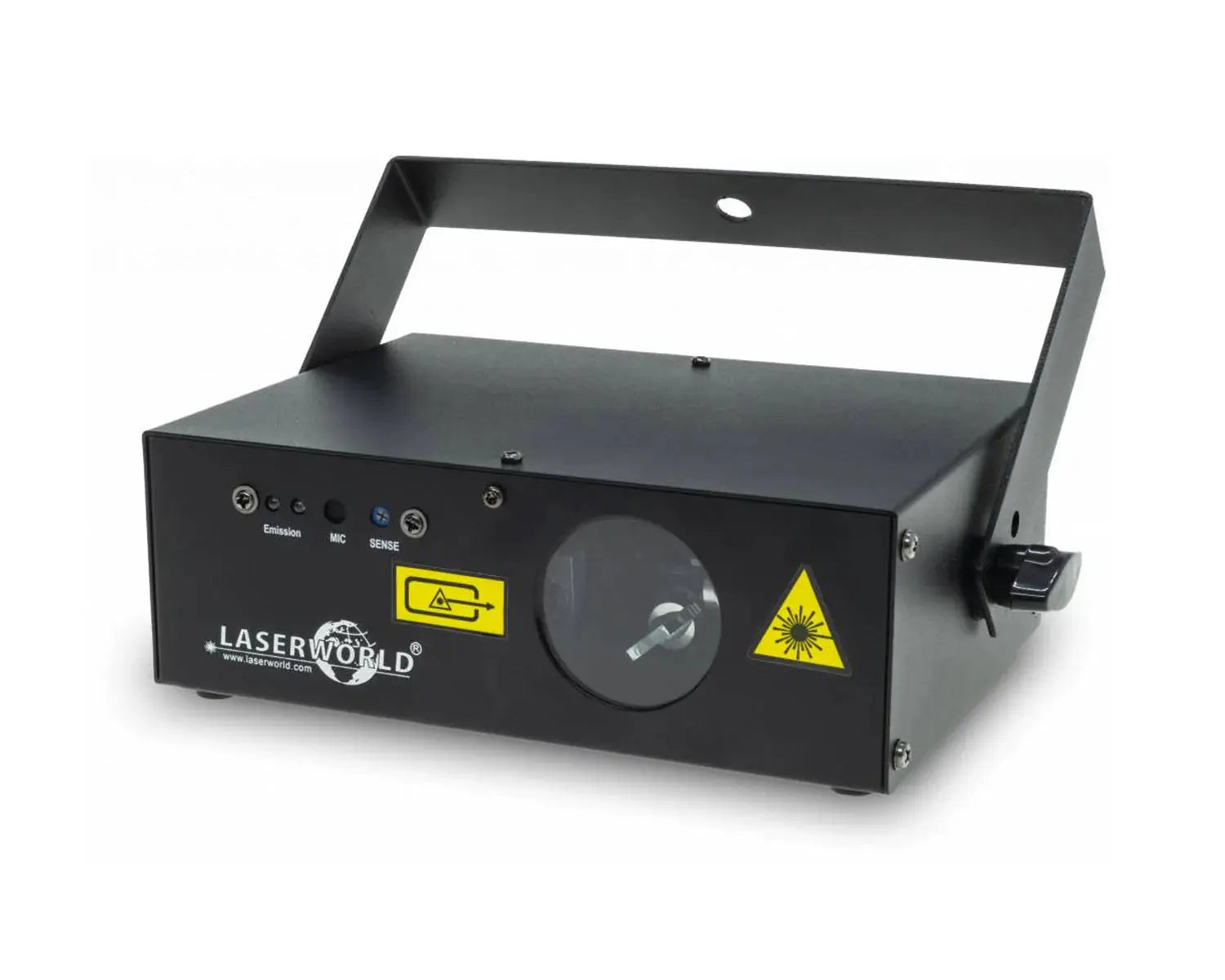

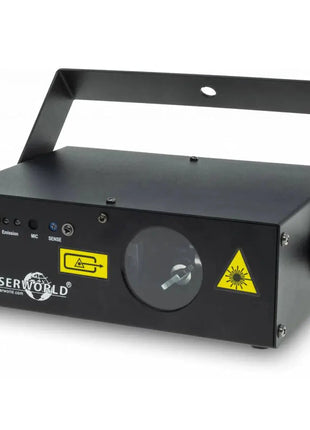

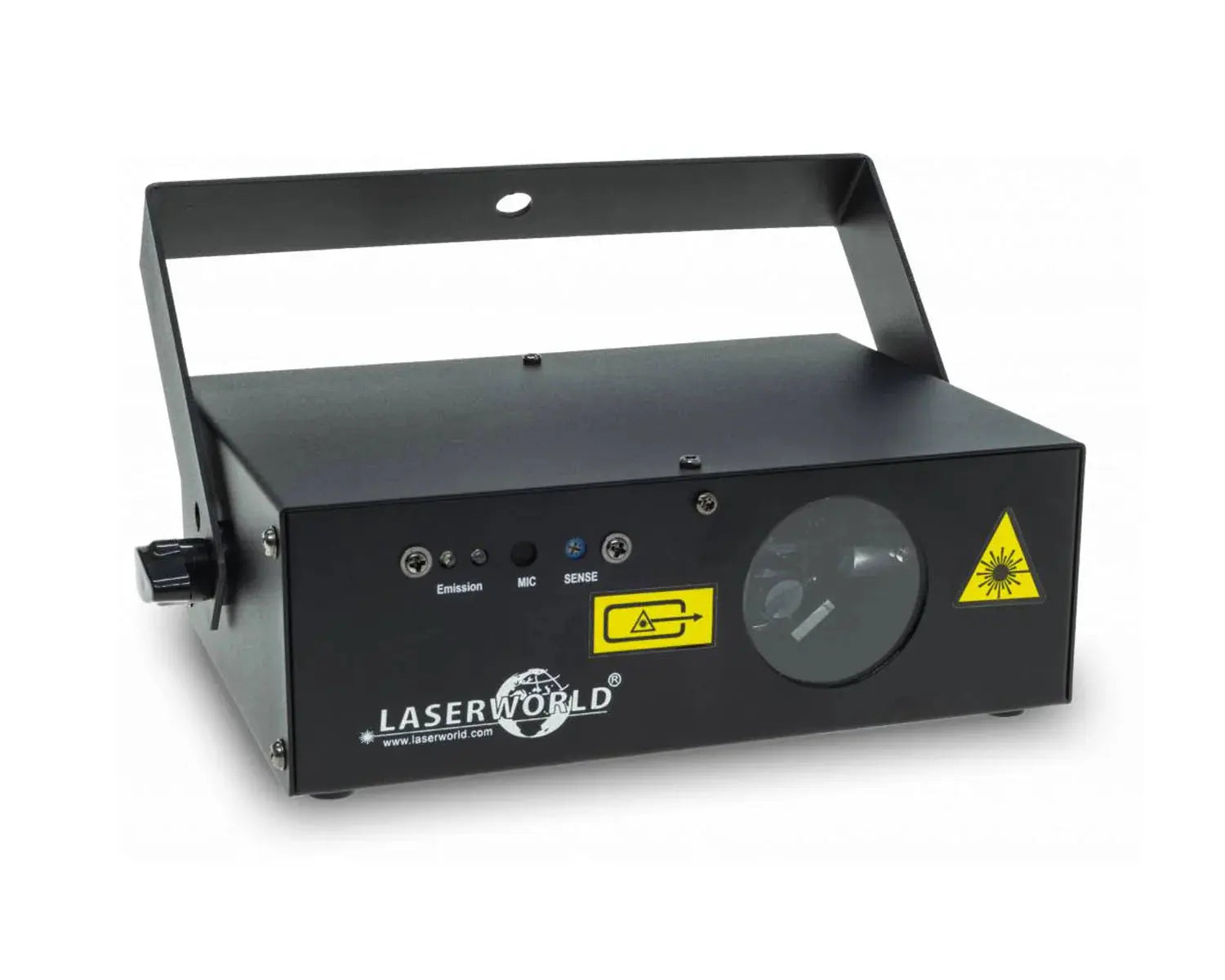

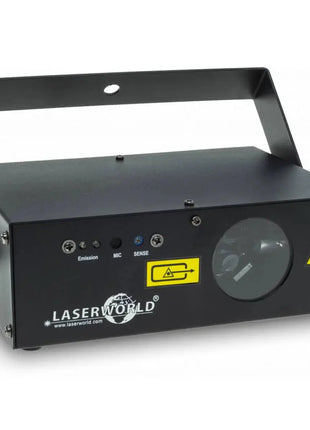

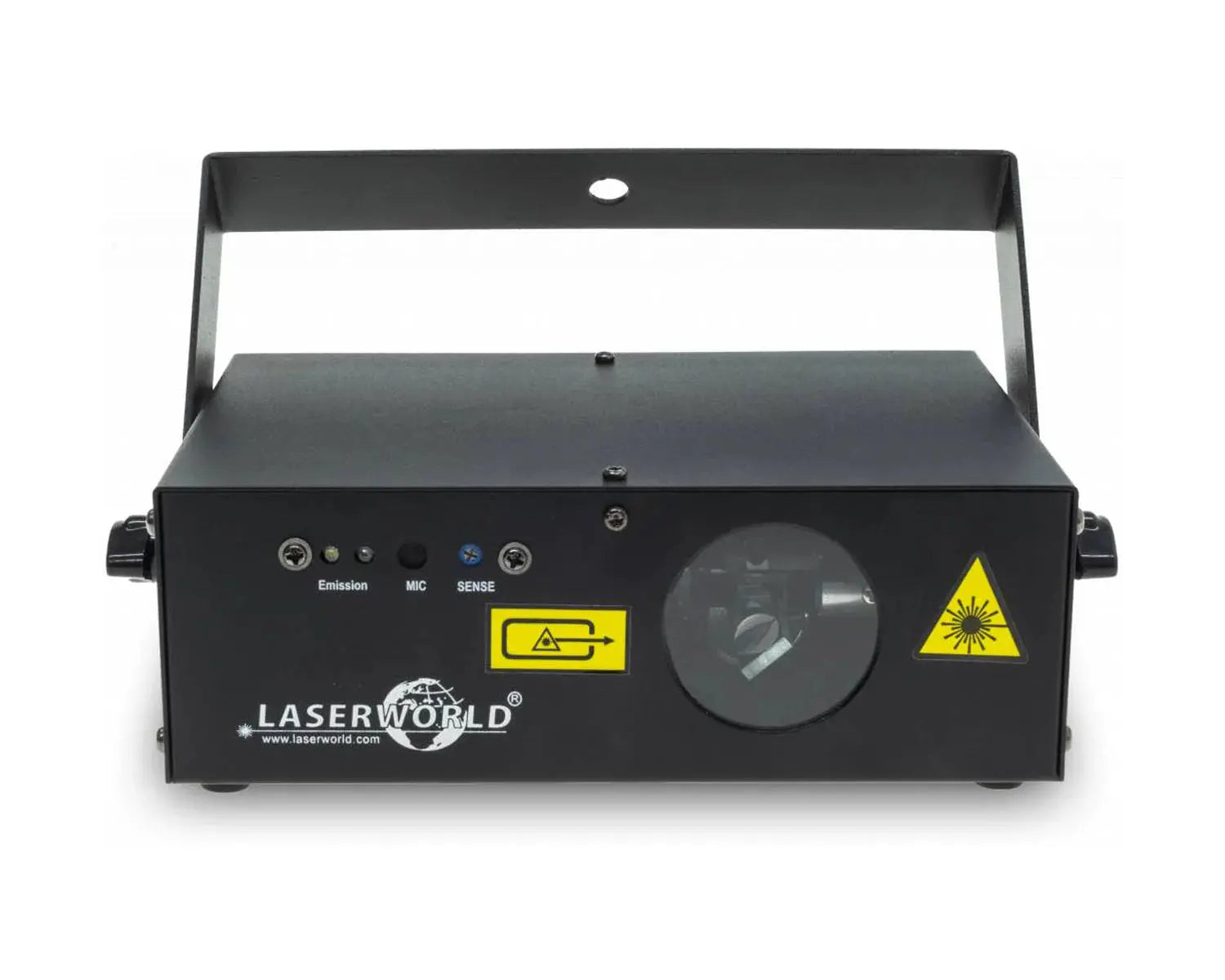

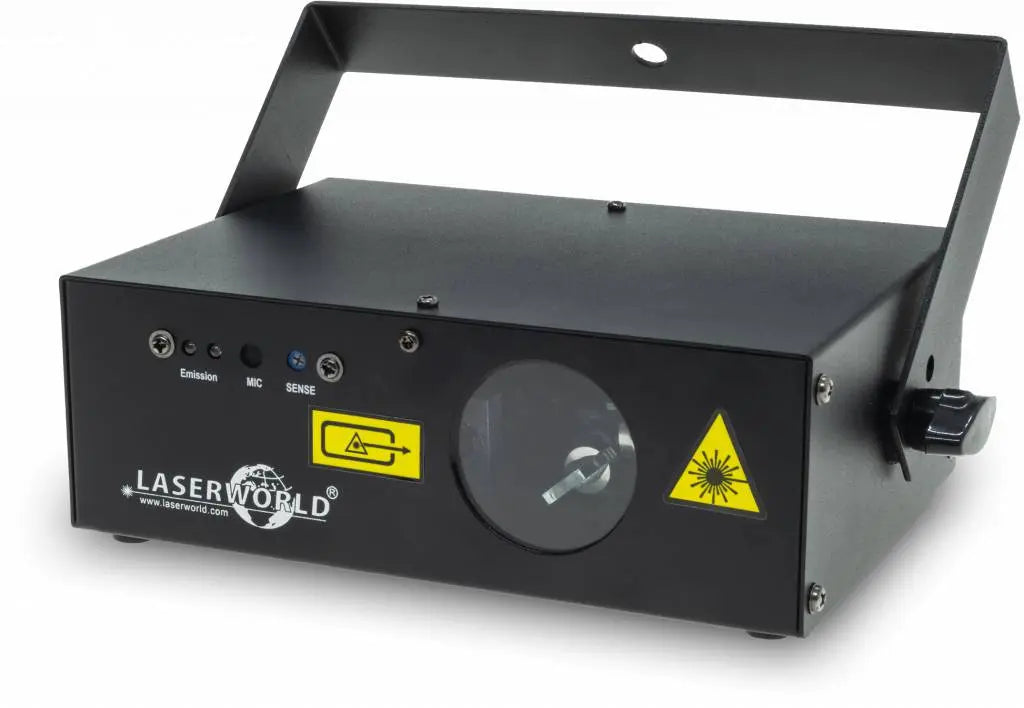

Laserworld EL-230RGB MK2

Laserworld EL-230RGB MK2 - Versatile RGB Diode Laser Projector

The Laserworld EL-230RGB MK2 is a versatile RGB laser system boasting a total output power of up to 230mW. It's an excellent solution for first-time users and mobile applications, frequently found in bars, small clubs, private parties, or for home use.

This projector's vibrant colors and impressive brightness are thanks to its red diode laser module (650nm), green DPSS laser module (532nm), and royal-blue laser module (445nm). The beams offer a precise diameter of about 4mm and a divergence of approximately 1mrad. Its high-speed stepper motors provide scanning speeds of 2-5kpps and a wide scan angle of up to 30 degrees, allowing for dynamic light shows.

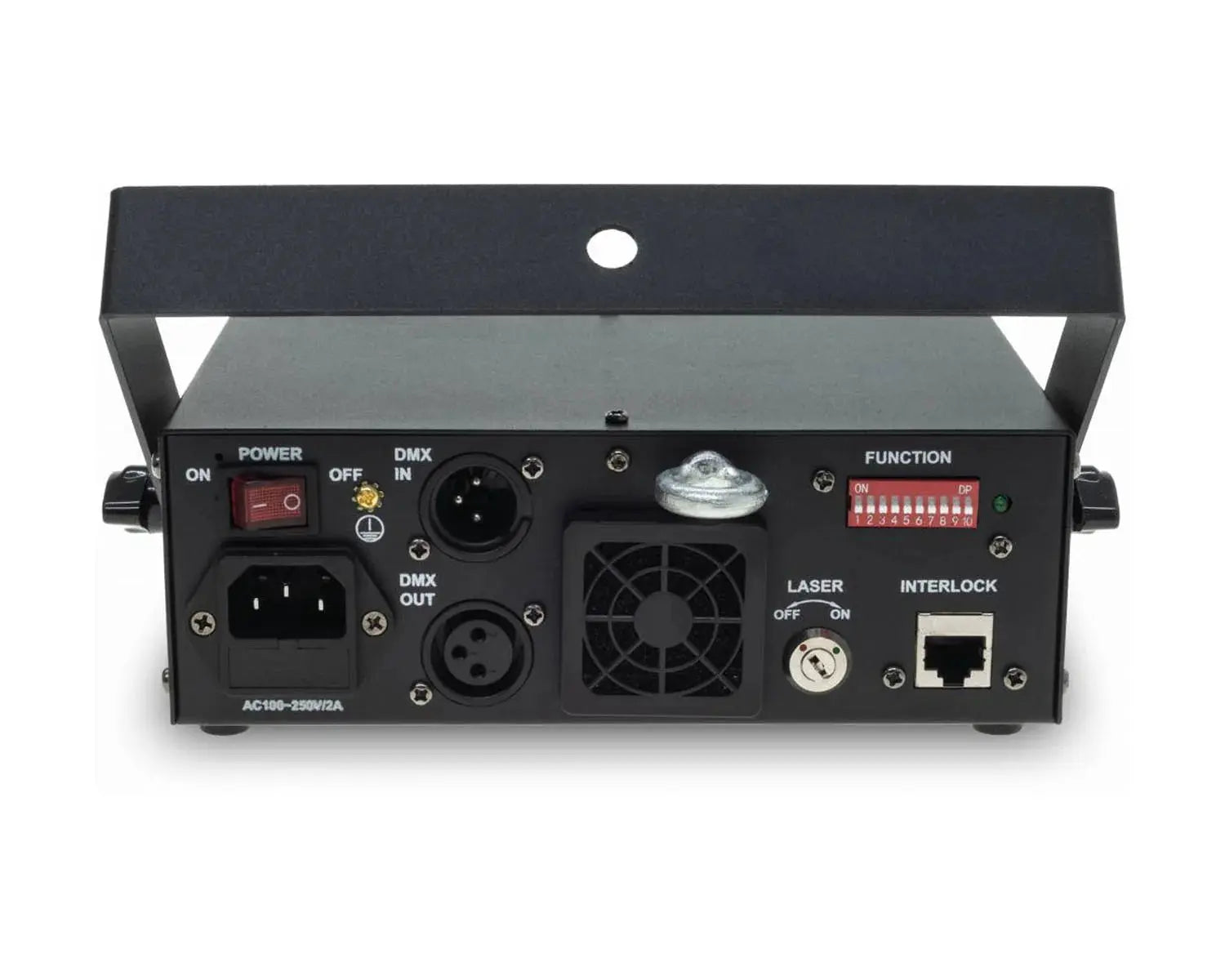

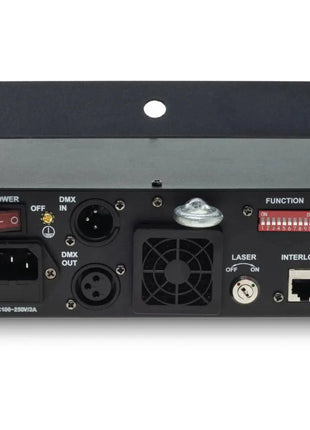

About 50 pre-programmed basic patterns, including layers, tunnels, fences, and waves, can be easily controlled via DMX. For added convenience, the EL-230RGB MK2 also features sound-to-light and stand-alone modes. The sensitivity of the integrated adjustable microphone can be fine-tuned for optimal sound-to-light performance. For safety, this compact device includes an interlock connector for a safety switch and a key switch located at the rear.


Key Features

  • Vibrant RGB Laser System: Features red (650nm), green (532nm), and royal-blue (445nm) laser modules for beautiful colors and brightness.

  • Total Output Power: Up to 230 mW total power, with a guaranteed output of 170 mW.

  • Precise Beam Quality: Beams have a diameter of about 4 mm and a beam divergence of approximately 1 mrad.

  • Dynamic Scanning: Offers high-speed step motors (up to 2-5 kpps) and a wide scan angle of up to 30 degrees.

  • Extensive Pre-set Patterns: Includes about 50 basic patterns such as layers, tunnels, fences, and waves.

  • Multiple Operating Modes: Supports DMX programmable control, stand-alone mode, and sound-to-light mode.

  • Adjustable Microphone Sensitivity: Integrated microphone sensitivity can be adjusted for sound-to-light mode.

  • Safety Features: Equipped with an interlock connector for a safety switch and a key switch.


Technical Specifications

  • Total Power: 230 mW

  • Guaranteed Power: 170 mW

  • Power Red: 100 mW / 650 nm

  • Power Green: 20 mW / 532 nm

  • Power Blue: 50 mW / 445 nm

  • Beam Specifications: ca. 4 mm / 1 mrad

  • Scanner: High-speed step motors, up to 2-5 kpps

  • Max. Scan Angle: 30°

  • Laser Source: Diode, DPSS Laser

  • Laser Class: 3B

  • Operation Modes: Stand-Alone, Sound-to-Light, DMX

  • Basic Patterns: ca. 50 (layers, tunnels, fences, waves, etc.)

  • Power Supply: 85V - 250 V AC

  • Power Consumption: 30 W

  • Dimensions: 205 x 145 x 75 mm

  • Weight: 2.0 kg


Suitable For

  • First-time laser users

  • Mobile use

  • Bars

  • Small clubs

  • Private parties

  • Home use


What's in the box

  • Laserworld EL-230RGB MK2 Laser Projector

  • Power cable

  • User manual

  • Interlock connector

  • Key

Product form

Laserworld EL-230RGB MK2

Free pickup in our shop(s)

£139.00

  • In-Stock
  • Fast tracked delivery
  • Service excellence guaranteed
    iFrame
    ×
    • Don't want to order online? Call us on 01635 780002

    SKU: EL-230RGBMk2
    Barcode: 7640144991630

    Laserworld EL-230RGB MK2 - Versatile RGB Diode Laser Projector

    The Laserworld EL-230RGB MK2 is a versatile RGB laser system boasting a total output power of up to 230mW. It's an excellent solution for first-time users and mobile applications, frequently found in bars, small clubs, private parties, or for home use.

    This projector's vibrant colors and impressive brightness are thanks to its red diode laser module (650nm), green DPSS laser module (532nm), and royal-blue laser module (445nm). The beams offer a precise diameter of about 4mm and a divergence of approximately 1mrad. Its high-speed stepper motors provide scanning speeds of 2-5kpps and a wide scan angle of up to 30 degrees, allowing for dynamic light shows.

    About 50 pre-programmed basic patterns, including layers, tunnels, fences, and waves, can be easily controlled via DMX. For added convenience, the EL-230RGB MK2 also features sound-to-light and stand-alone modes. The sensitivity of the integrated adjustable microphone can be fine-tuned for optimal sound-to-light performance. For safety, this compact device includes an interlock connector for a safety switch and a key switch located at the rear.


    Key Features

    • Vibrant RGB Laser System: Features red (650nm), green (532nm), and royal-blue (445nm) laser modules for beautiful colors and brightness.

    • Total Output Power: Up to 230 mW total power, with a guaranteed output of 170 mW.

    • Precise Beam Quality: Beams have a diameter of about 4 mm and a beam divergence of approximately 1 mrad.

    • Dynamic Scanning: Offers high-speed step motors (up to 2-5 kpps) and a wide scan angle of up to 30 degrees.

    • Extensive Pre-set Patterns: Includes about 50 basic patterns such as layers, tunnels, fences, and waves.

    • Multiple Operating Modes: Supports DMX programmable control, stand-alone mode, and sound-to-light mode.

    • Adjustable Microphone Sensitivity: Integrated microphone sensitivity can be adjusted for sound-to-light mode.

    • Safety Features: Equipped with an interlock connector for a safety switch and a key switch.


    Technical Specifications

    • Total Power: 230 mW

    • Guaranteed Power: 170 mW

    • Power Red: 100 mW / 650 nm

    • Power Green: 20 mW / 532 nm

    • Power Blue: 50 mW / 445 nm

    • Beam Specifications: ca. 4 mm / 1 mrad

    • Scanner: High-speed step motors, up to 2-5 kpps

    • Max. Scan Angle: 30°

    • Laser Source: Diode, DPSS Laser

    • Laser Class: 3B

    • Operation Modes: Stand-Alone, Sound-to-Light, DMX

    • Basic Patterns: ca. 50 (layers, tunnels, fences, waves, etc.)

    • Power Supply: 85V - 250 V AC

    • Power Consumption: 30 W

    • Dimensions: 205 x 145 x 75 mm

    • Weight: 2.0 kg


    Suitable For

    • First-time laser users

    • Mobile use

    • Bars

    • Small clubs

    • Private parties

    • Home use


    What's in the box

    • Laserworld EL-230RGB MK2 Laser Projector

    • Power cable

    • User manual

    • Interlock connector

    • Key
