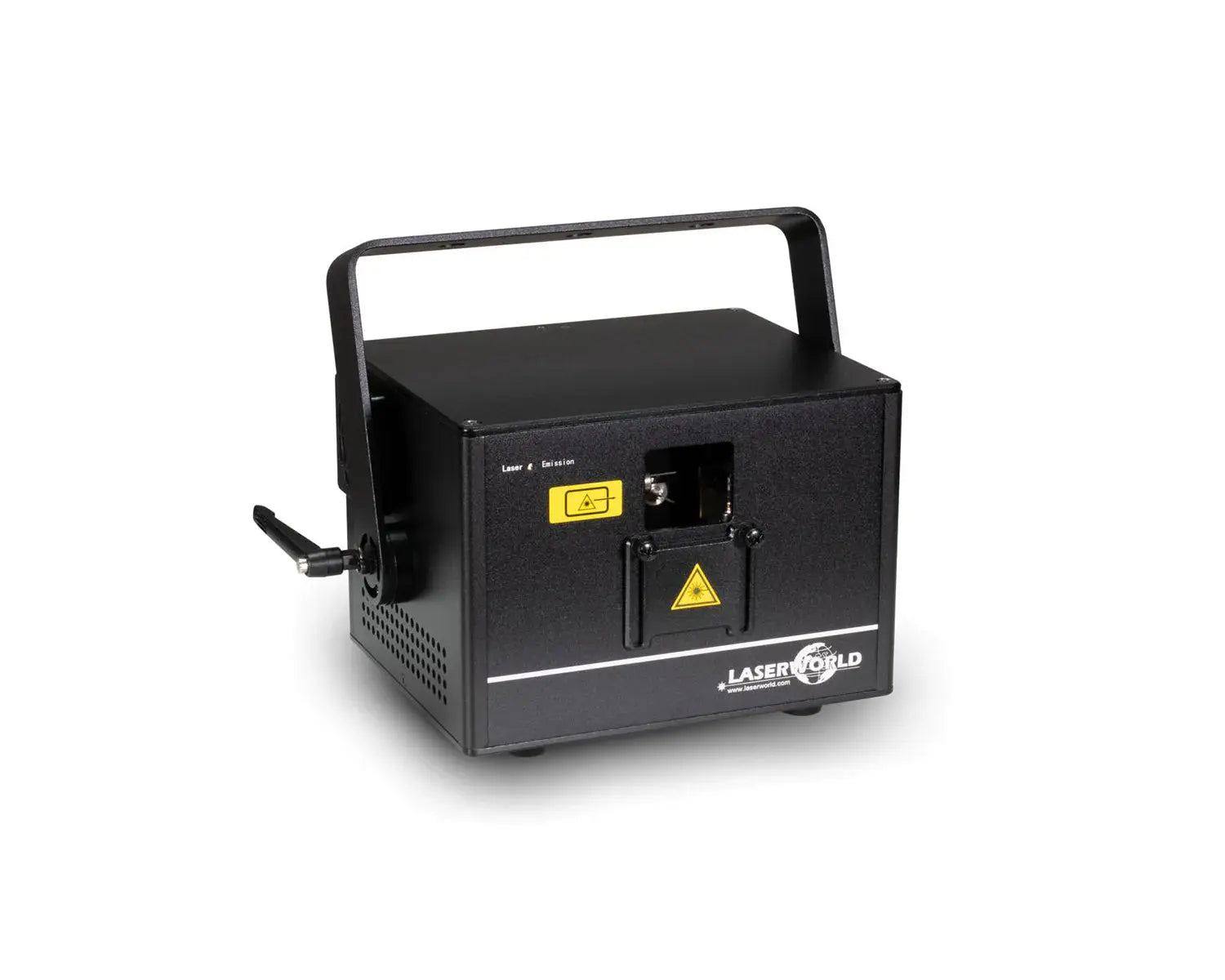

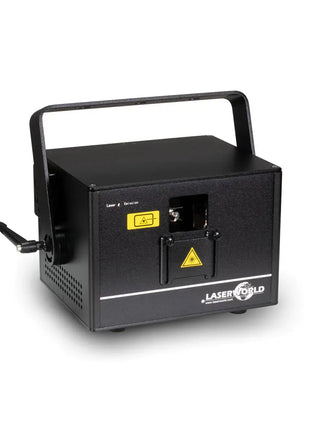

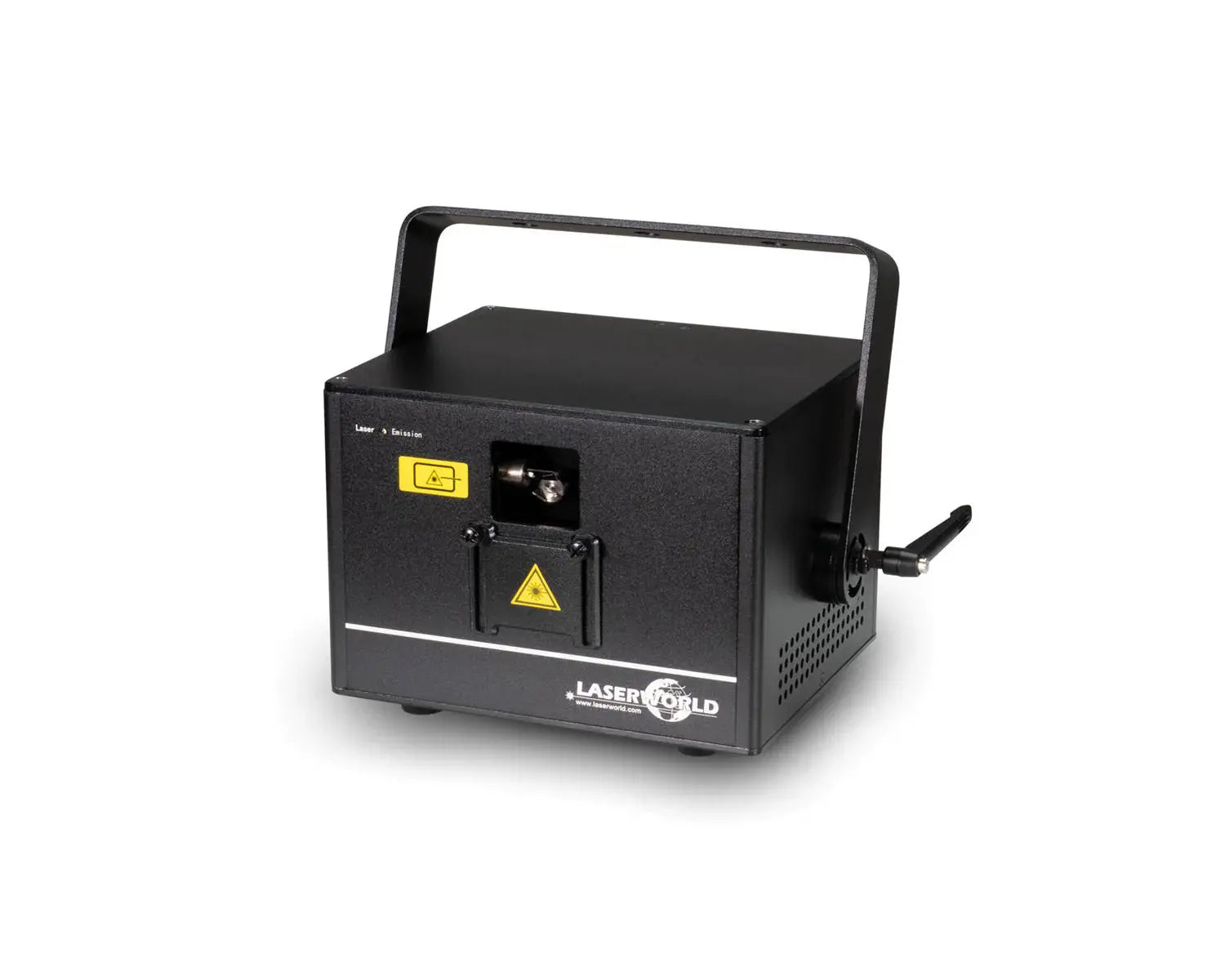

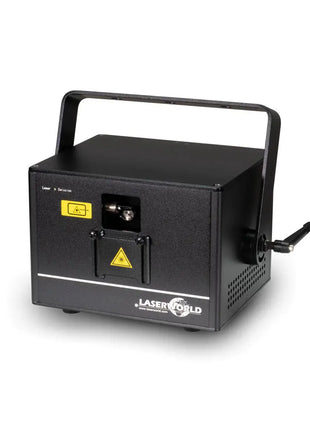

The Laserworld CS-3000RGB show laser projector is a highly versatile and compact lighting solution, ideal for creating stunning laser displays in various settings. Its newly designed, lightweight, and robust housing features a stable bracket, offering flexible mounting options for hanging installations on trusses or ceilings, as well as standing setups. This makes it an excellent choice for mobile DJs, temporary event productions, and permanent installations in clubs and entertainment venues. This powerful, pure diode RGB laser system delivers dynamic and vibrant full-colour shows, designed to captivate audiences and elevate any event.
-
High-Performance Pure Diode RGB Laser System: This analogue modulated multi-colour RGB laser system boasts a guaranteed output power of 3,000 mW. It features a meticulously balanced combination of laser sources for exceptional colour brilliance and powerful laser beams:
-
Red Laser Source: 800 mW / 638 nm
-
Green Laser Source: 900 mW / 520 nm
-
Royal-Blue Laser Source: 1,500 mW / 450 nm
-
The diode-only laser system ensures consistent performance and longevity.
-
Superior Beam Specifications: Offers very precise and defined laser beams with approximately 4 mm beam diameter and an impressive 1.1 mrad beam divergence, resulting in sharp and impactful projections.
-
Rapid Scanning Speed: Equipped with a high-speed galvo system capable of a scan speed of up to 30kpps @ 8°, allowing for smooth, fluid movements and intricate pattern generation.
-
Comprehensive Control Options for Dynamic Shows:
-
DMX Control: Seamlessly integrate with existing lighting setups and gain full control over patterns, colours, and effects.
-
Automatic Mode: Enjoy pre-programmed patterns that run autonomously, perfect for quick setup and continuous operation.
-
Sound-to-Light Mode: The laser system projects patterns in sync with music and ambient sounds, creating an engaging visual experience. The microphone sensitivity is easily adjustable via the integrated display.
-
Master-Slave Mode: Daisy-chain multiple CS-3000RGB units (slave projectors) via DMX to a main projector (master projector) for synchronized, large-scale laser shows, expanding your creative possibilities.
-
Professional ILDA Interface: Provides robust computer control, enabling the display of custom laser shows, company logos, intricate texts, unique graphics, and animations when used with compatible laser control software.
-

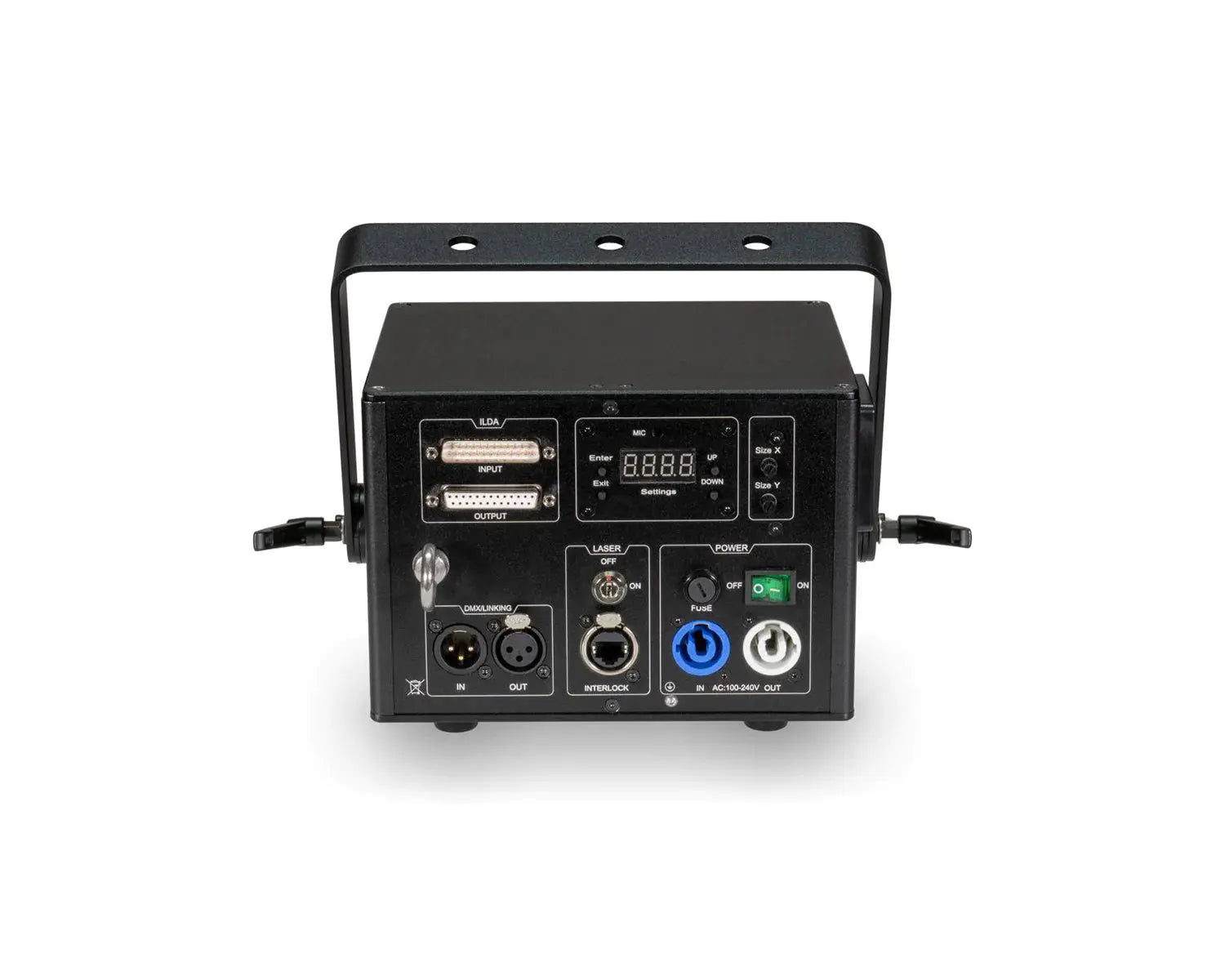

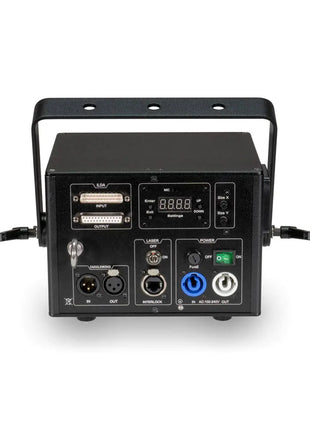

User-Friendly Adjustments: Pattern size (X and Y axis) can be conveniently set using two rotary buttons located on the rear of the housing, allowing for precise customization of projections.
-
Extensive Built-in Patterns: Features approximately 130 pre-programmed basic patterns, including popular effects like layers, tunnels, fences, and waves, which can be projected in various colours and at different speeds.
-
Expansive Colour Palette: Capable of producing several hundred vibrant colours, including a crisp white, providing immense creative flexibility for any event theme.
-

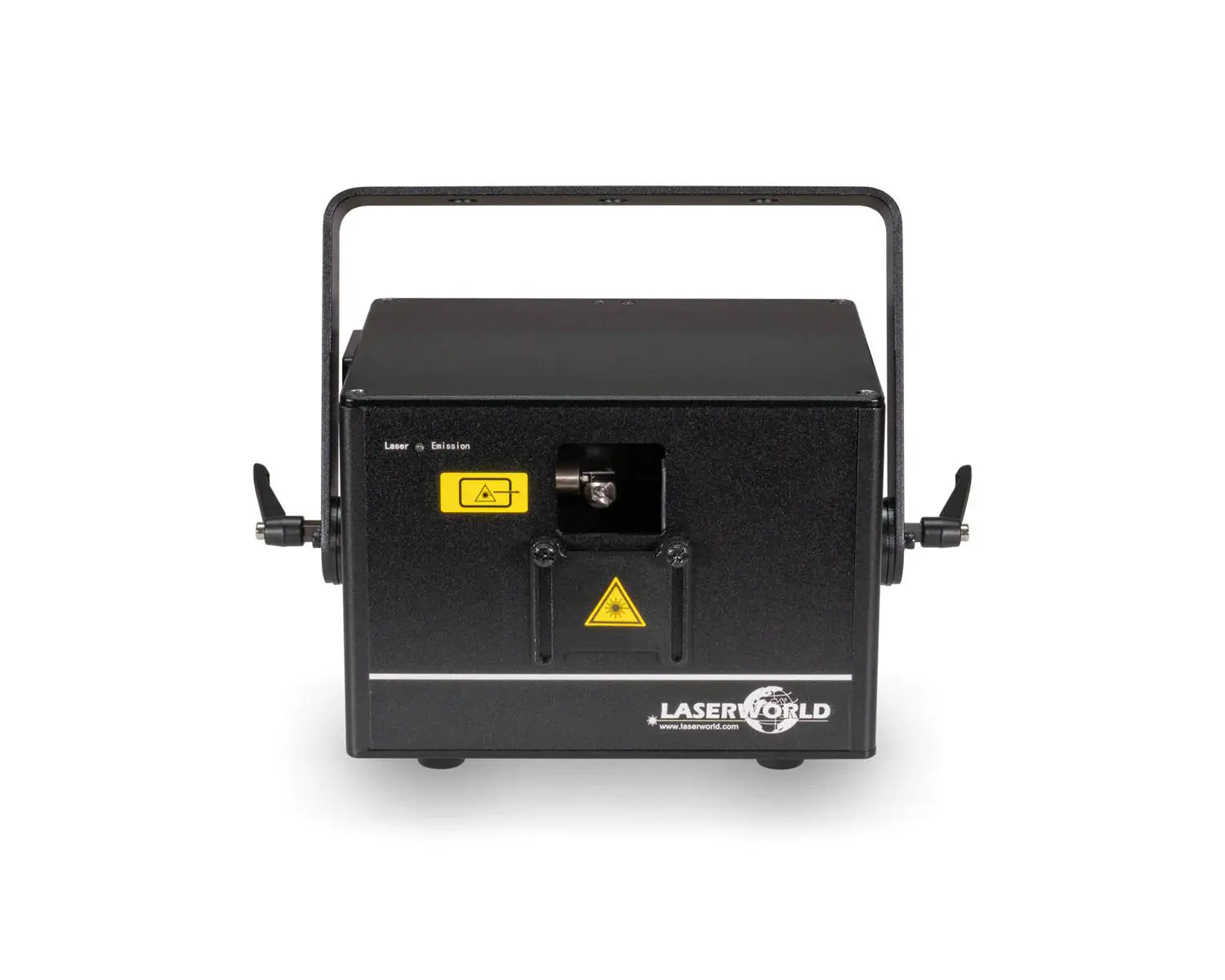

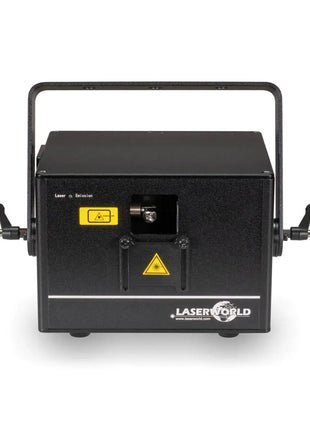

Advanced Safety Features: Includes a key switch, an interlock connector, and an on-off switch to ensure secure operation and compliance with safety regulations. A front panel laser beam masking plate offers additional beam control.
-

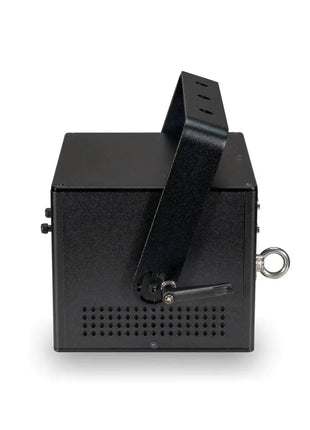

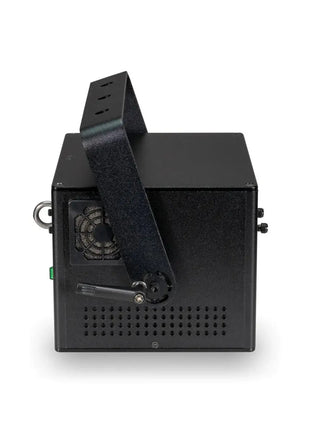

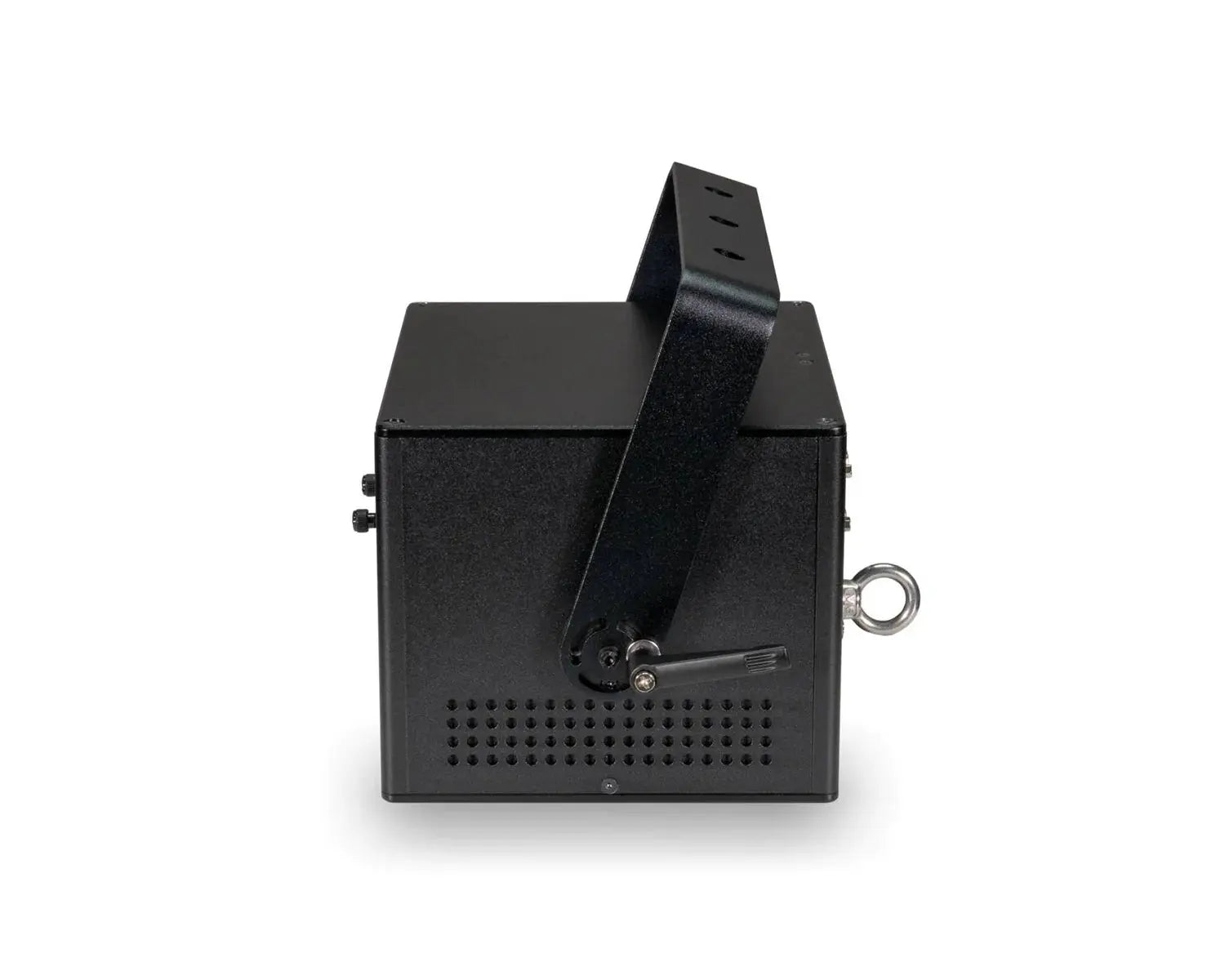

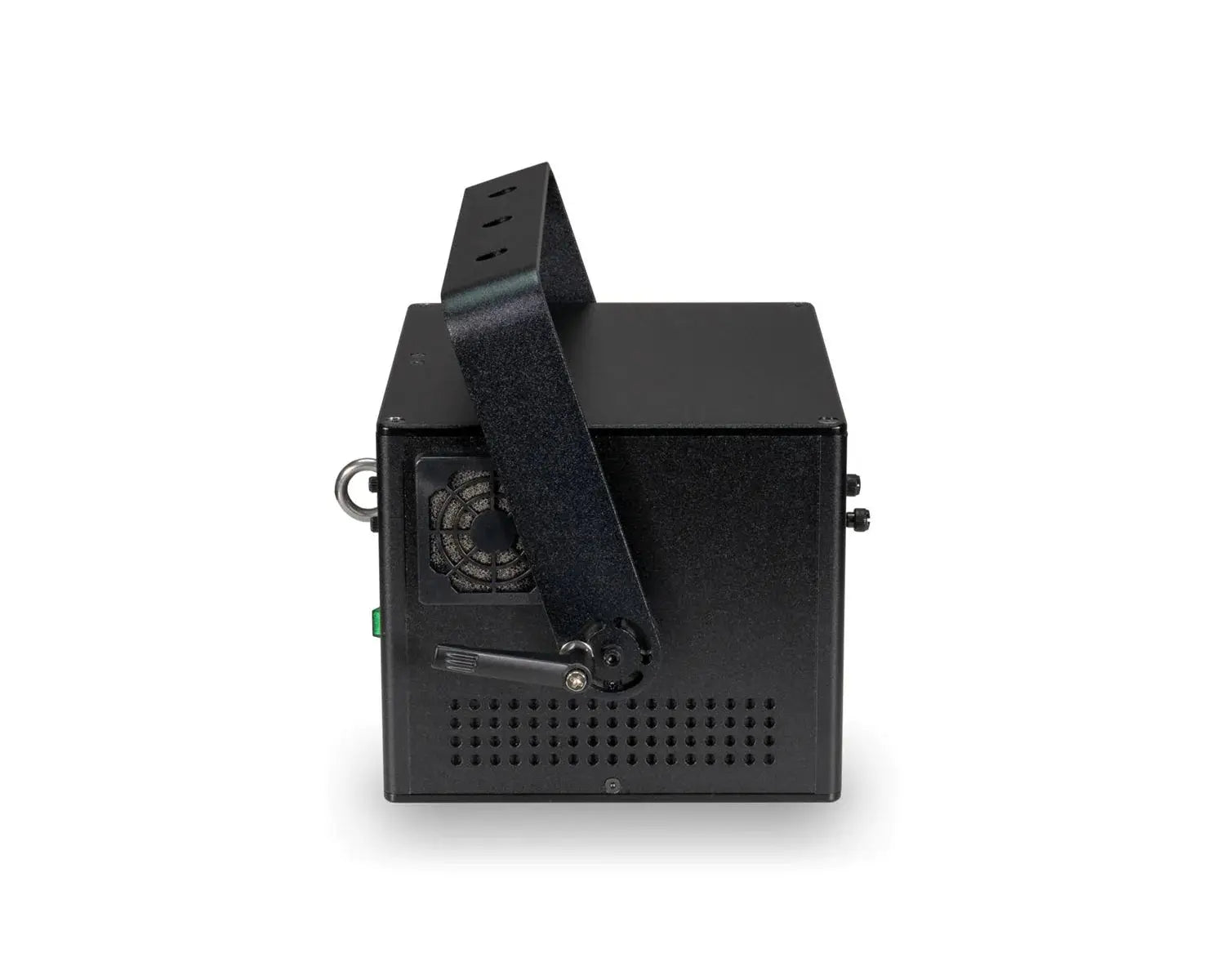

Flexible Mounting: Comes with a 360° mounting bracket, offering maximum versatility for positioning the projector to achieve desired projection angles.
-
Guaranteed Power: 3,000 mW
-
Power Red: 800 mW / 638 nm
-
Power Green: 900 mW / 520 nm
-
Power Blue: 1,500 mW / 450 nm
-
Beam Specifications: ca. 4 mm / 1.1 mrad
-
Scanner: 30kpps @ 8°
-
Max. Scan Angle: 40°
-
Laser Source: Diode
-
Laser Class: 4
-
Operation Modes: Stand-alone, Sound-to-light, DMX, ILDA, Master-slave
-
Basic Patterns: ca. 130 (layers, tunnels, fences, waves, etc.)
-
Power Supply: 85 V - 250 V AC, 50/60 Hz
-
Power Consumption: 46 W
-
Dimensions: 200 x 165 x 141 mm
-
Weight: 4.0 kg
