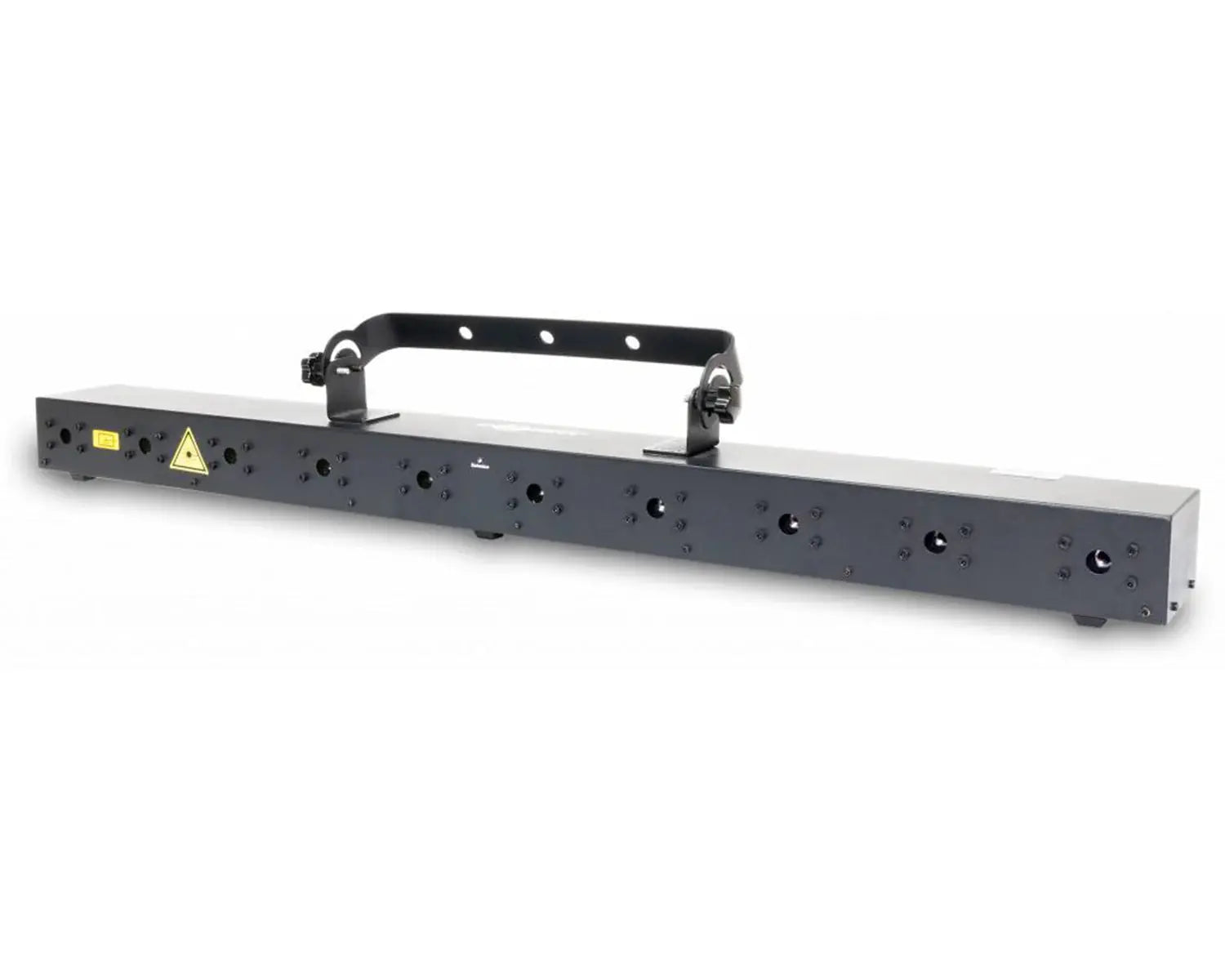

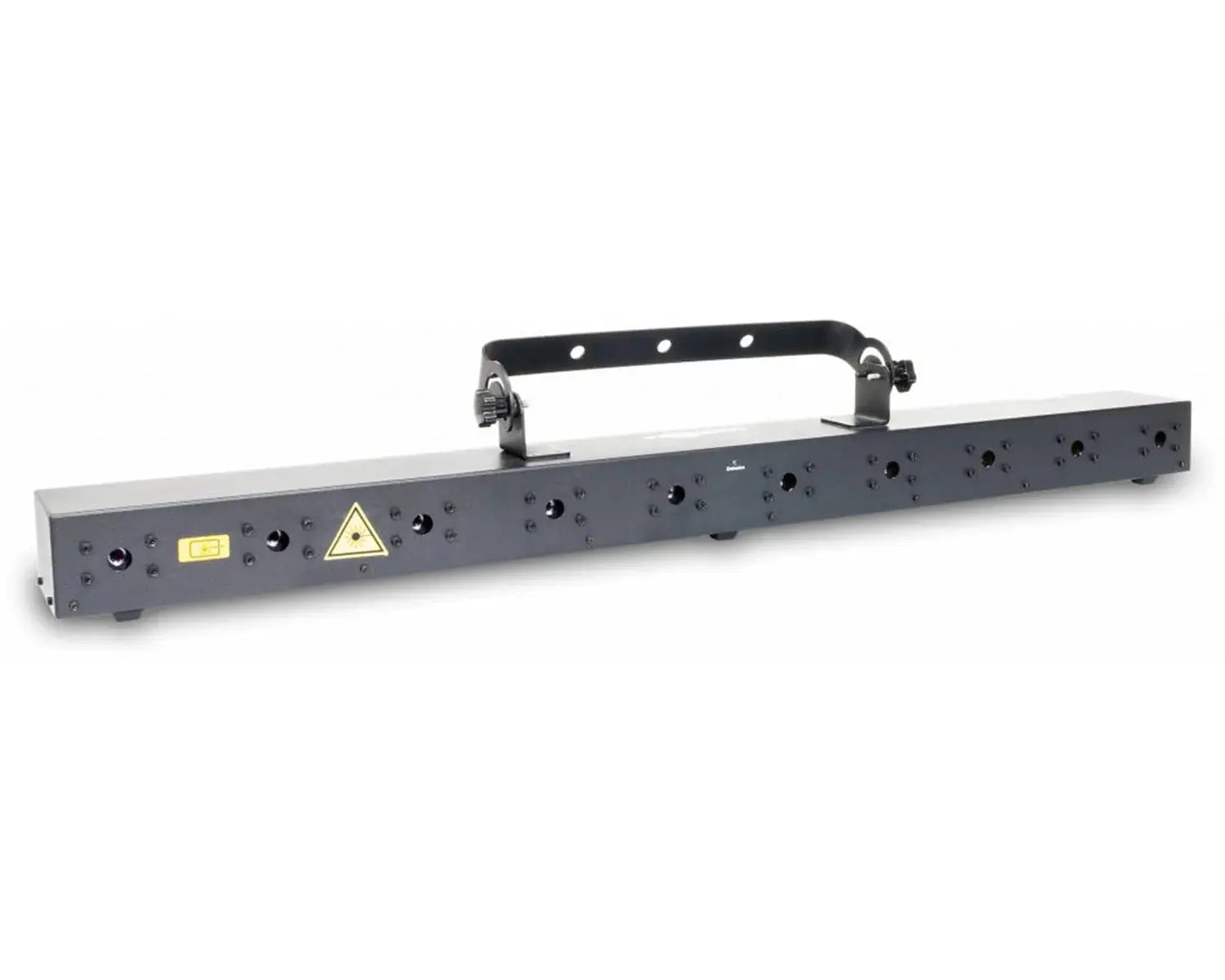

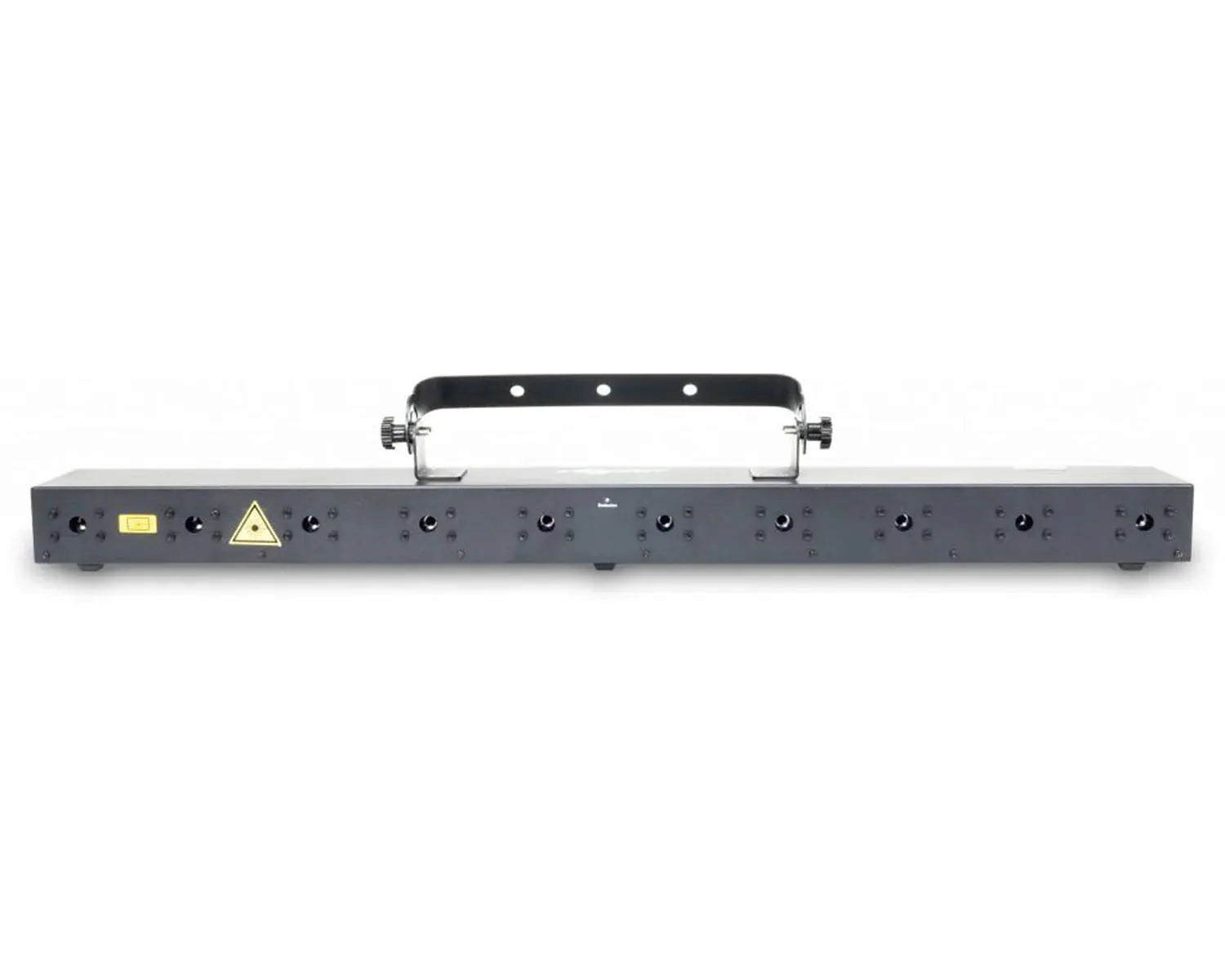

The Laserworld BeamBar 10B MK3 is a high-impact laser system designed to create stunning visual effects with its 10 individual blue laser beams. This versatile beam bar is perfect for illuminating medium to large-sized events, delivering powerful and dynamic stage effects. With comprehensive control options including DMX, stand-alone, and sound-to-light modes, the BeamBar 10B MK3 is an essential addition for stages, concerts, nightclubs, and professional show productions aiming to create an unforgettable visual spectacle.
-
Powerful Multi-Beam Blue Laser: Boasts an impressive guaranteed total output power of 1,400 mW, distributed across 10 distinct blue laser beams. Each beam is generated by a dedicated 140mW / 450nm blue diode laser module, ensuring exceptional brightness and visual impact.
-
Vibrant Blue Diode Lasers: Utilizes 10 high-quality blue diode laser sources (450nm) that produce intensely bright and deep blue beams, creating dramatic and captivating visual effects ideal for a wide range of performances.
-
Analog Modulation for Superior Brightness Control: Features analog modulation, which provides precise brightness control for each beam. This allows for smooth, dynamic dimming and vibrant colour intensity variations, crucial for sophisticated lighting designs.
-
Individual Beam Alignment for Precision: Each of the 10 laser beams can be individually aligned through a convenient 4-point alignment system. This system is easily accessible from the front of the unit, simplifying adjustments and ensuring perfect beam positioning without needing to open the housing.
-
Comprehensive DMX Programmability: Fully DMX programmable, allowing for detailed control over each of the 10 laser beams. This enables the creation of complex and synchronized effects, including intricate chasers, sweeping beam arrays, and dynamic fan effects, integrating seamlessly into any lighting rig.
-
Versatile Operation Modes:
-
DMX Control: Offers full creative command over patterns, intensity, and movement.
-
Stand-alone Mode: Runs pre-programmed sequences independently without external input.
-
Sound-to-Light Mode: Reacts dynamically to music and audio, synchronizing laser effects with the beat and rhythm for an immersive audience experience.
-
Master-Slave Mode: Easily link multiple BeamBar 10B MK3 units for synchronized, large-scale laser displays, with slave projectors mirroring the effects of the master unit.
-
Optimized Beam Specifications: Delivers precise laser beams with approximately 3.0mm beam diameter and an efficient 1.1mrad beam divergence, ensuring sharp and impactful projections even across large venues.
-
Robust and Durable Design: Built to withstand the rigours of professional use, making it a reliable and long-lasting investment for demanding event environments.
-
Guaranteed Power at aperture: 1,400 mW
-
Power Blue: 10 x 140 mW / 450 nm
-
Beam Specifications: ca. 3.0 mm / 1.1 mrad
-
Laser Source: Diode
-
Laser Class: 3B
-
Operation Modes: DMX, Stand-alone, Sound-to-Light, Master-slave
-
Accessories: Interlock connector, manual, key
-
IP Rating: IP4X (Protection against solid objects larger than 1mm, no protection against liquids)
-
Power Supply: 100V - 250V AC, 50/60 Hz
-
Power Consumption: 50 W
-
Dimensions: 1000 x 160 x 80 mm
-
Weight: 9.0 kg
