Description

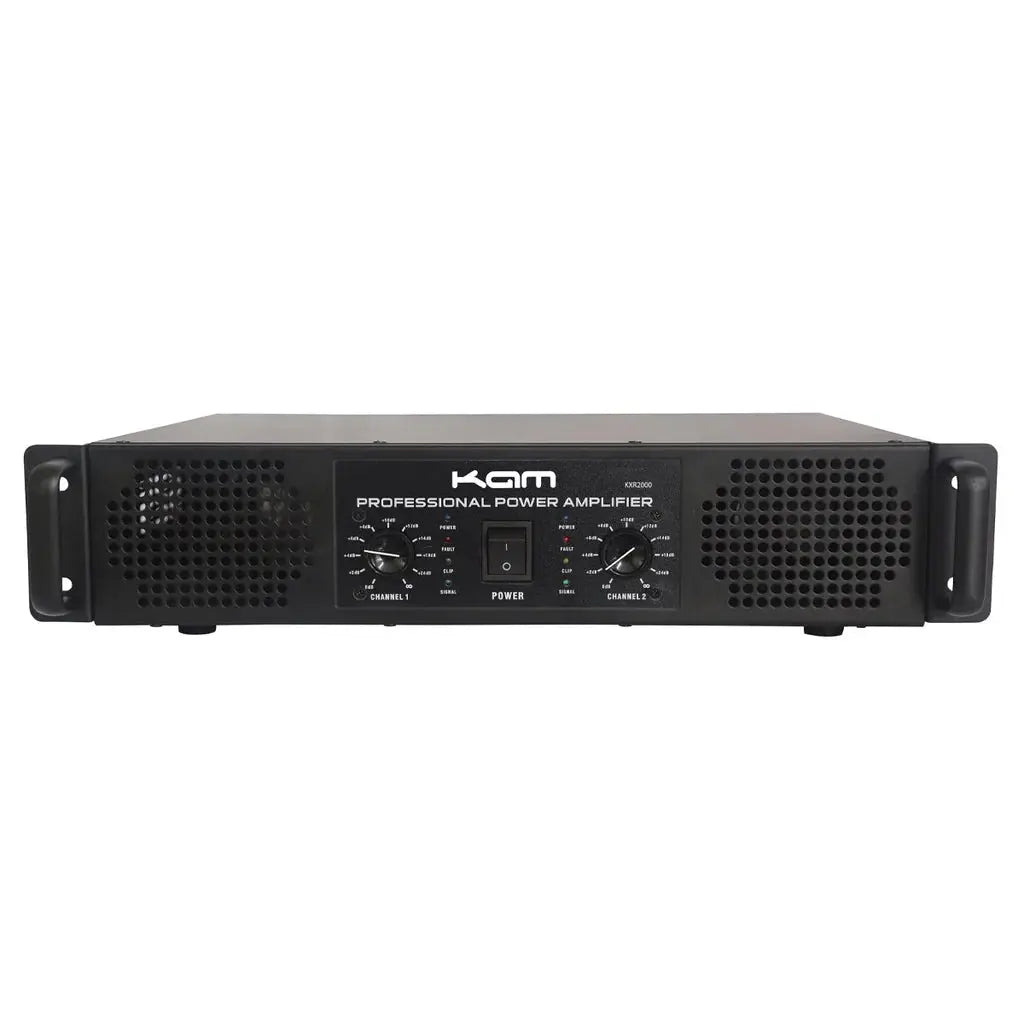

KAM KXR2000 - 200W Professional Stereo Power Amplifier
The Kam KXR2000 is a professional-grade 200 Watt Stereo Power Amplifier designed for a vast range of sound reinforcement environments. It features a 2U rack-mountable design with low noise, making it ideal for live sound, studio use, and commercial installations.
Key Features
2U Rack Mountable: Designed for easy integration into standard equipment racks.
2-Channel Stereo or Bridged Output Modes: Offers flexible configuration options.

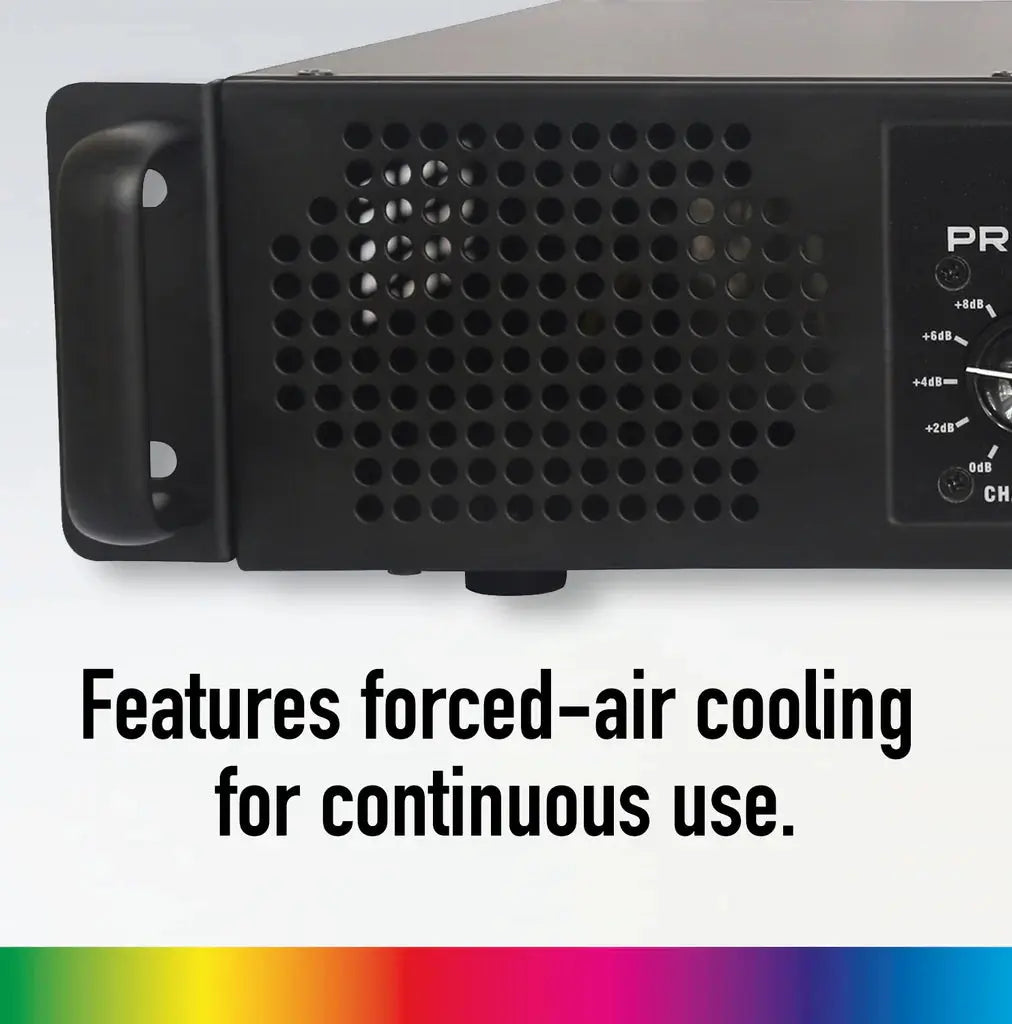

Forced-Air Cooling: Ensures continuous use and prevents overheating.

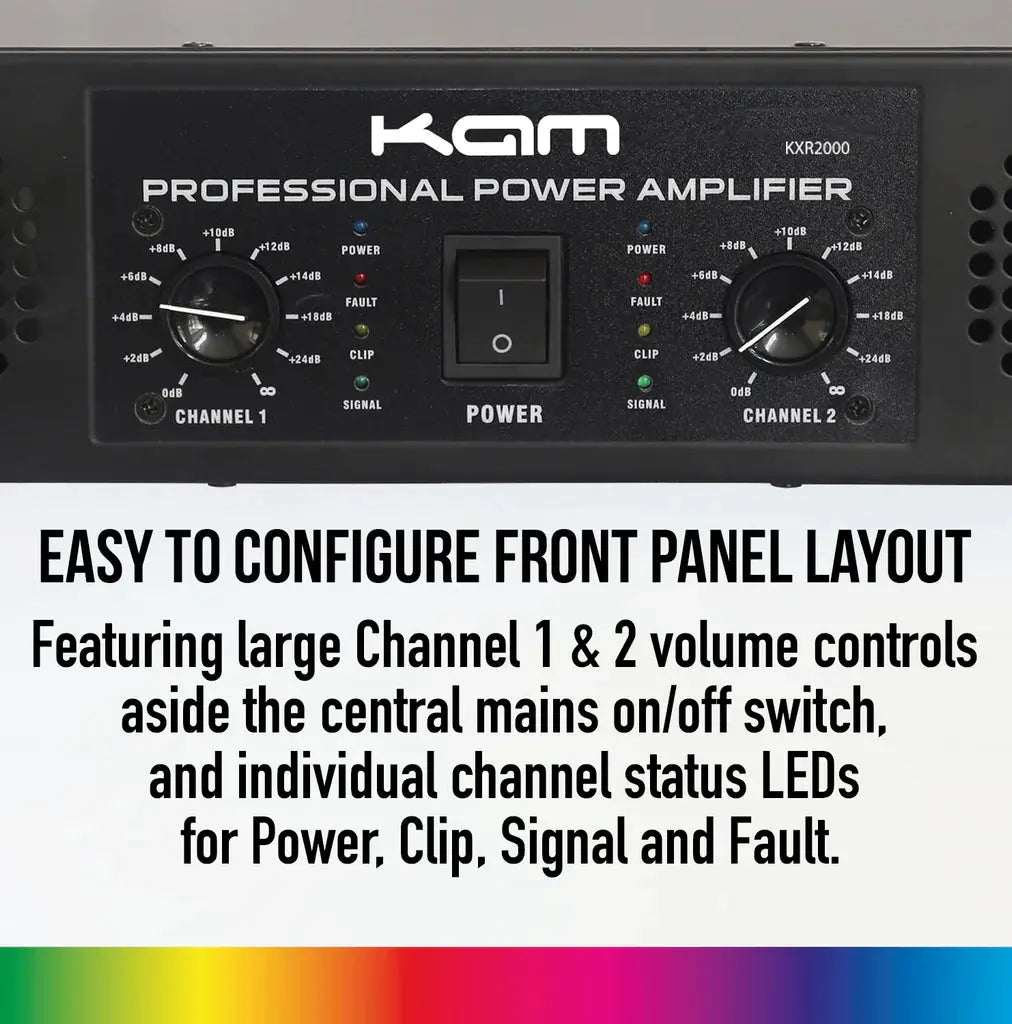

Easy to Configure Front Panel Layout: Features large Channel 1 and 2 volume controls and a central mains on/off switch.
Individual Channel Status LEDs: Indicators for Power, Clip, Signal, and Fault.

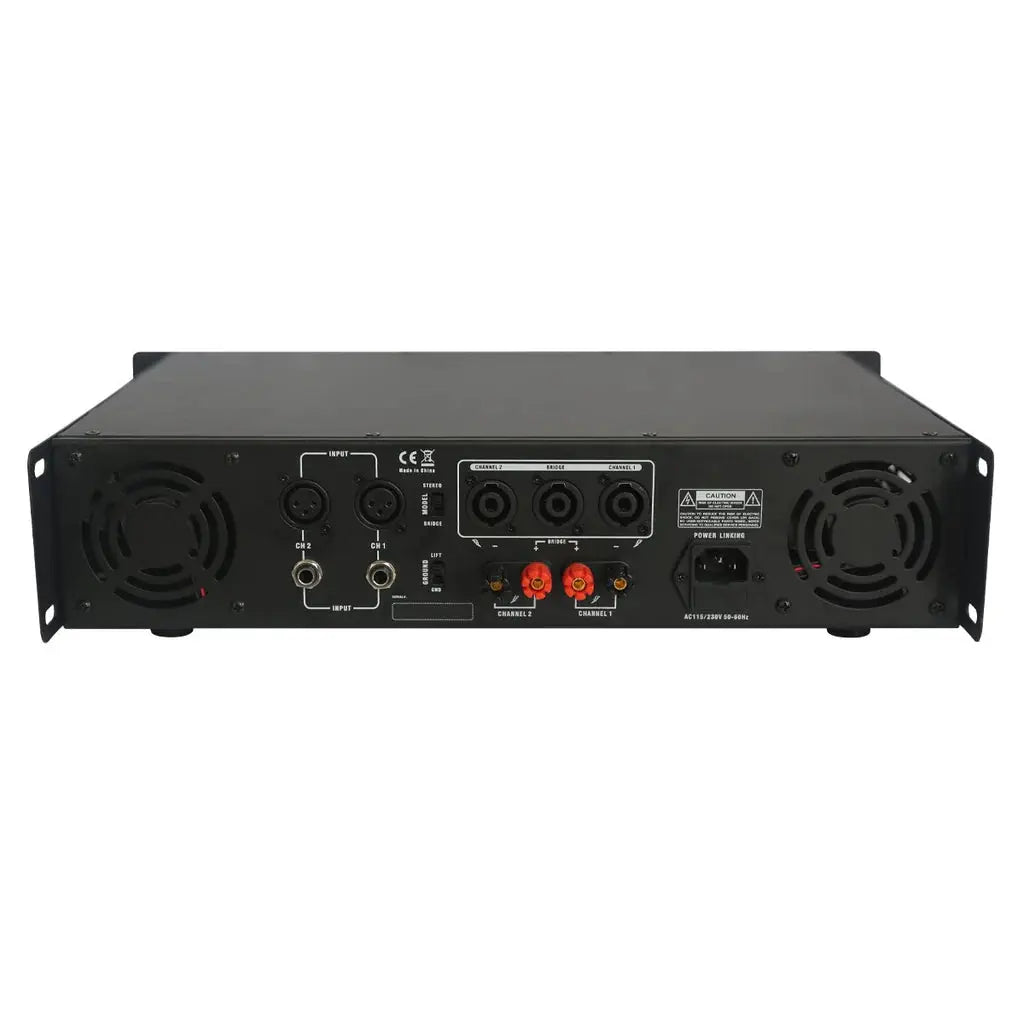

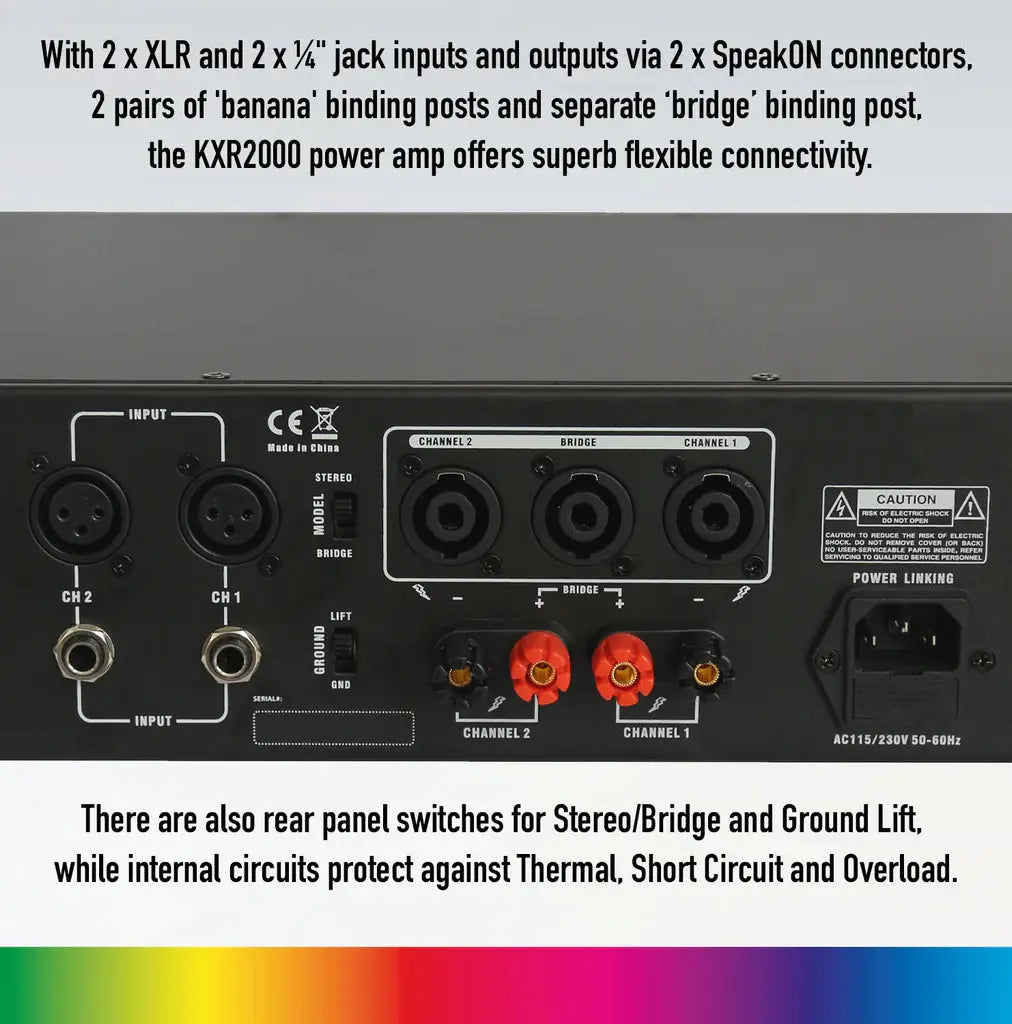

Flexible Connectivity:
2 x XLR inputs.
2 x 1/4" jack inputs.
2 x SpeakON outputs.
2 pairs of 'banana' binding posts outputs.
Separate ‘bridge’ binding post output.
Rear Panel Switches: For Stereo/Bridge mode and Ground Lift.
Internal Circuit Protection: Guards against Thermal, Short Circuit, and Overload.
Switchable Operation Voltage: Can be changed from 240V to 110V for worldwide use.
High-Quality Audio: Delivers faultless, high-quality audio with superb clarity and headroom.
Impressive Signal/Noise Ratios.
Technical Specifications
Rack Size: 2U
Output Power Stereo 8 Ohms: 64W
Output Power Stereo 4 Ohms: 100W
Bridge 8 Ohms: 169W
Frequency Response: 20Hz - 20kHz
Input Sensitivity: AC1V
Maximum Input Level: 5.5V
Input Impedance Active Balanced: 20Kohms
Signal/Noise Ratio: 84dB

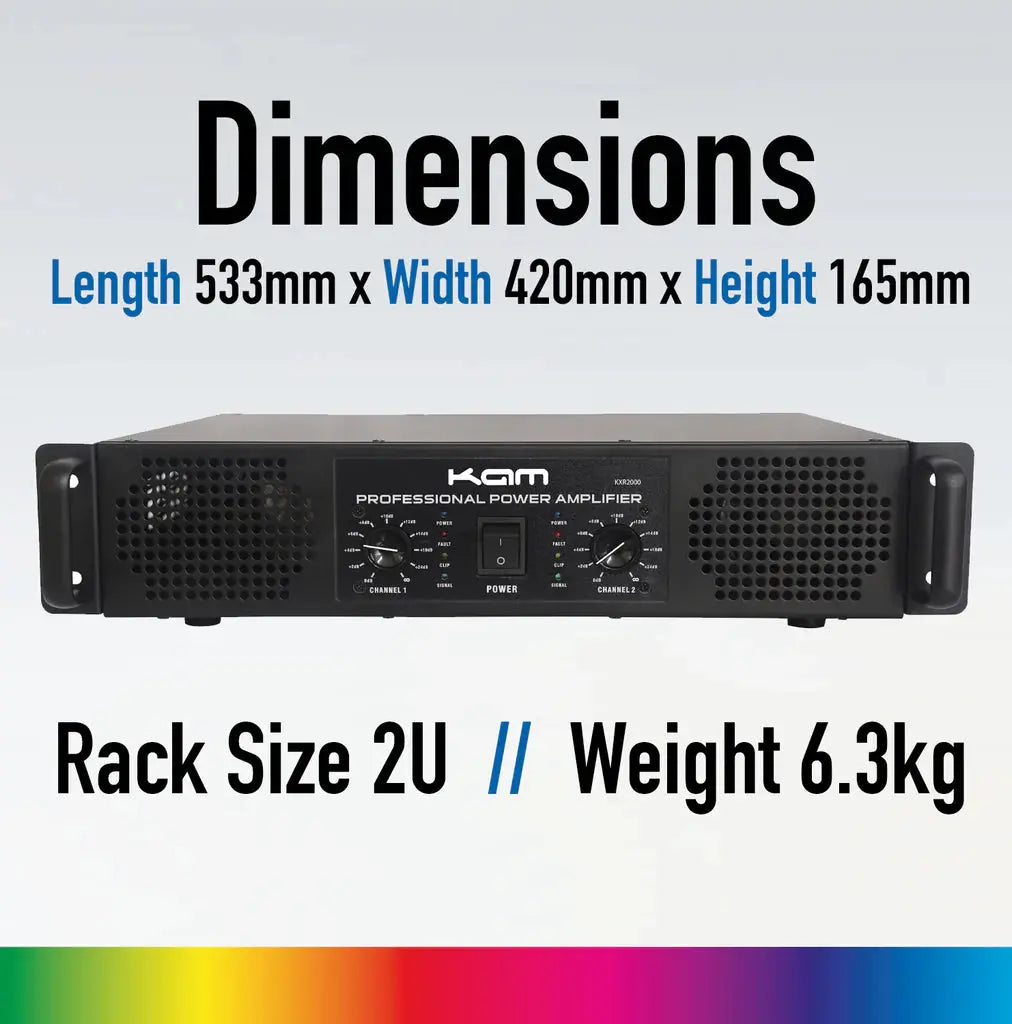

Dimensions (L x W x H): 533 x 420 x 165 mm
Weight: 6.3kg
Suitable For
Live-sound applications.
Studio environments.
Commercial installations.
What's in the box
Kam KXR2000 Power Amplifier
Power Cable
User Manual
