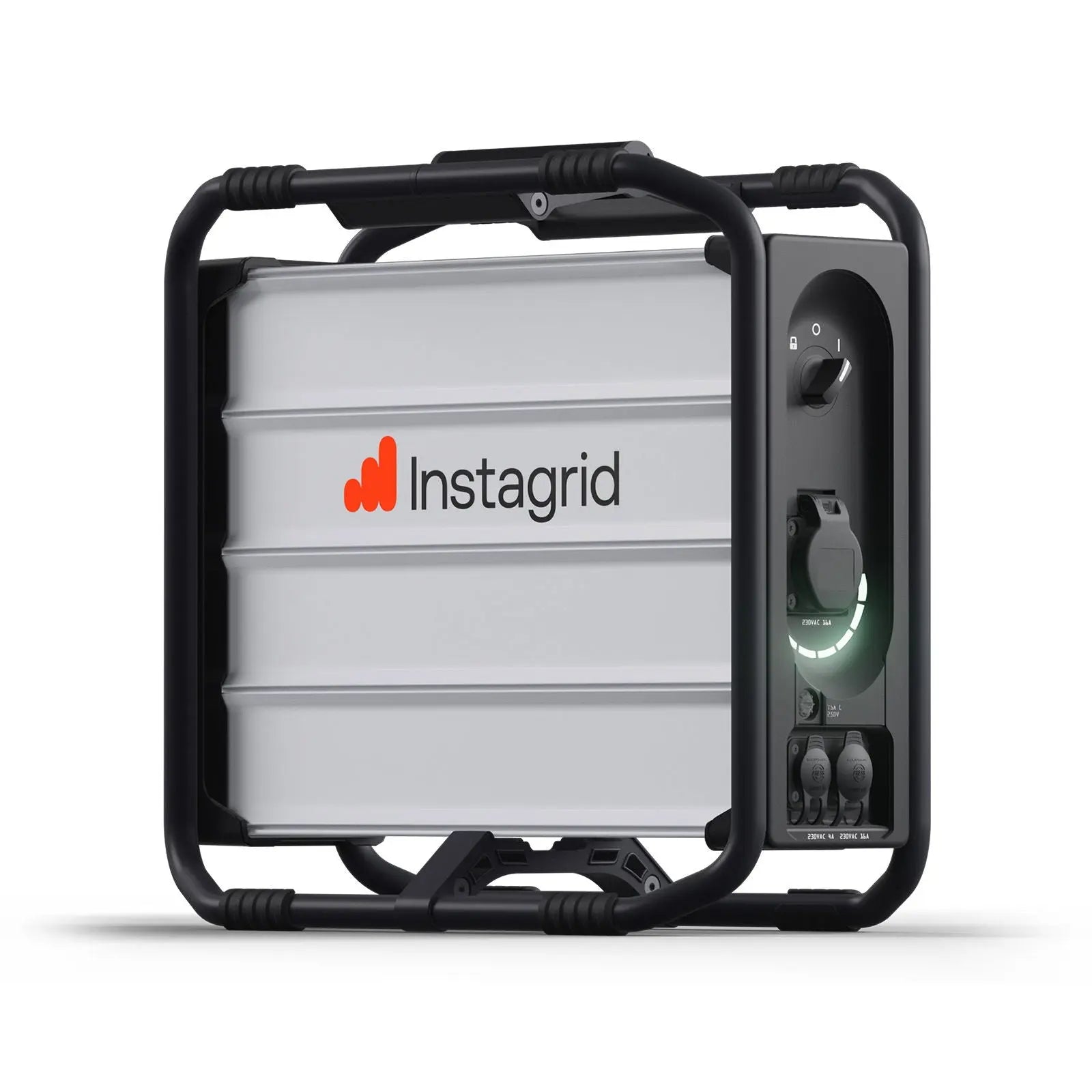

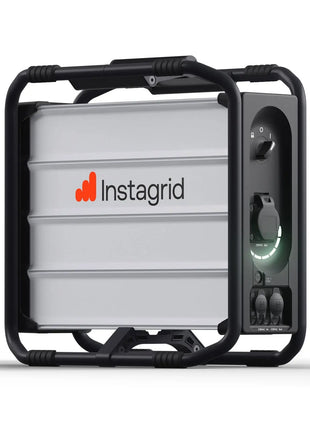

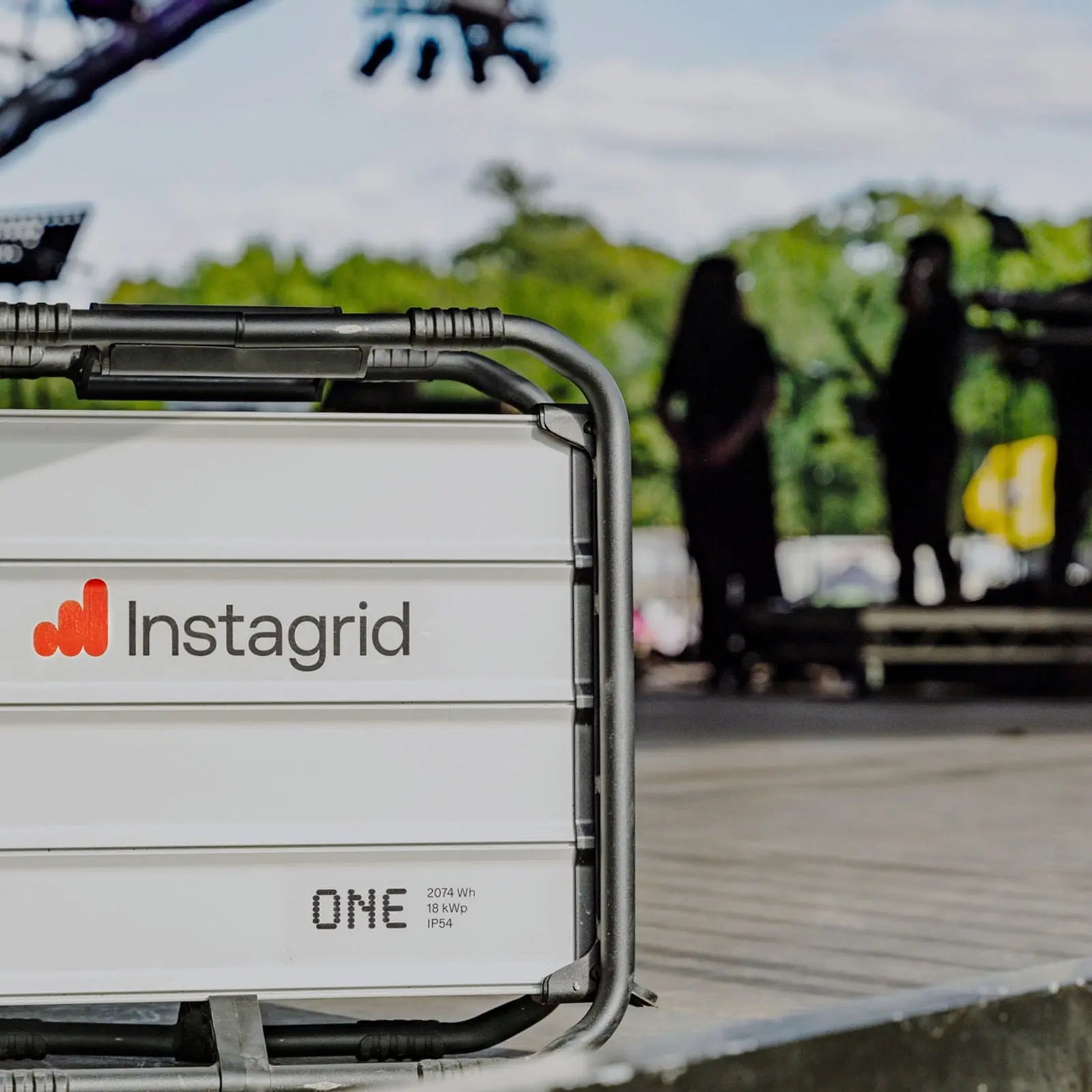

Instagrid ONE Type G | 3.6kW Portable 230V Battery Power Supply IP54

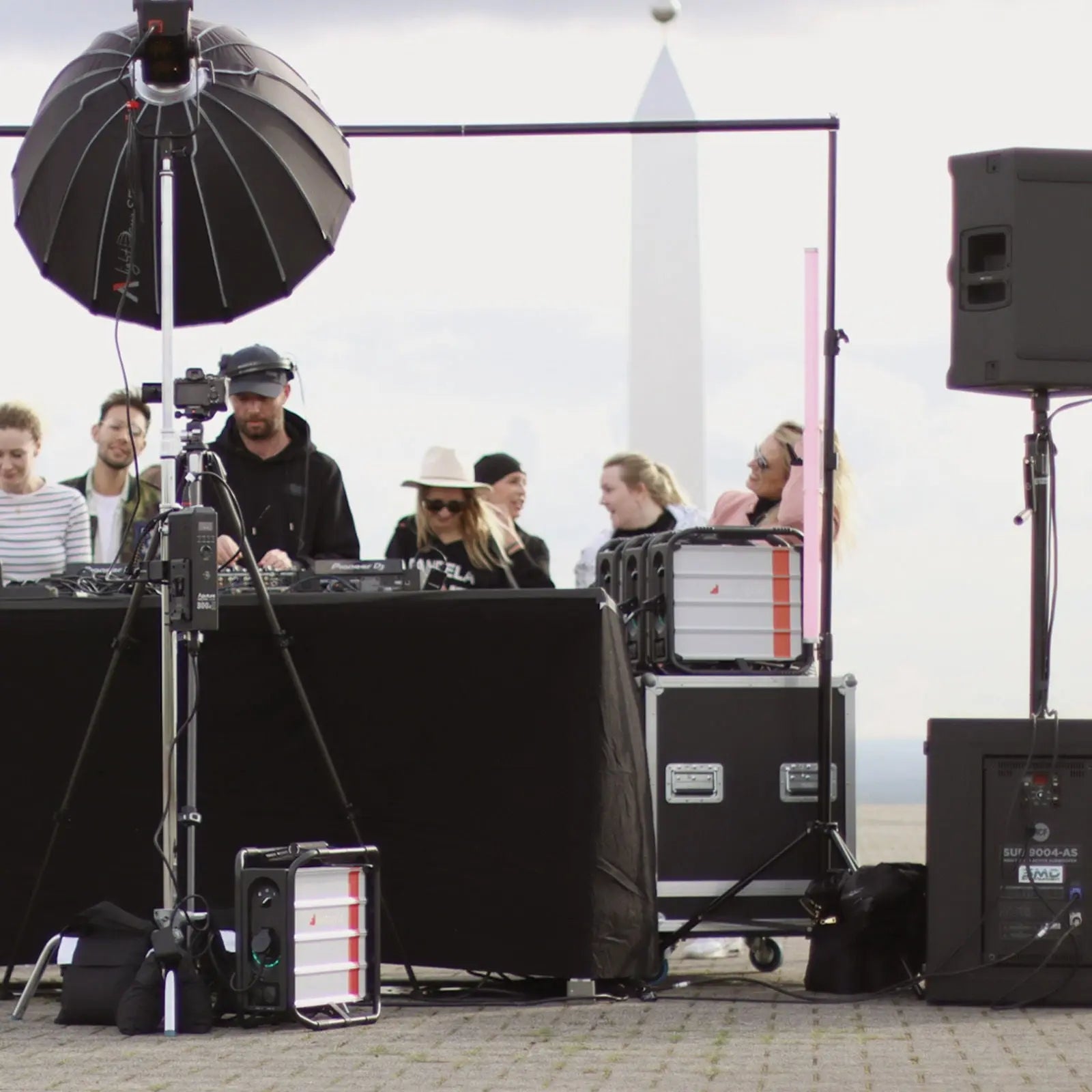

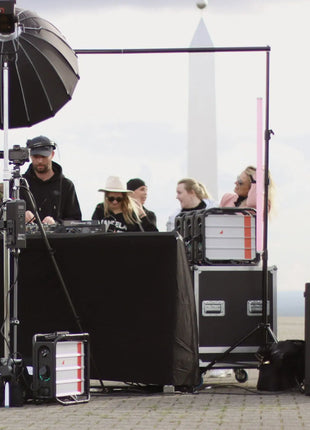

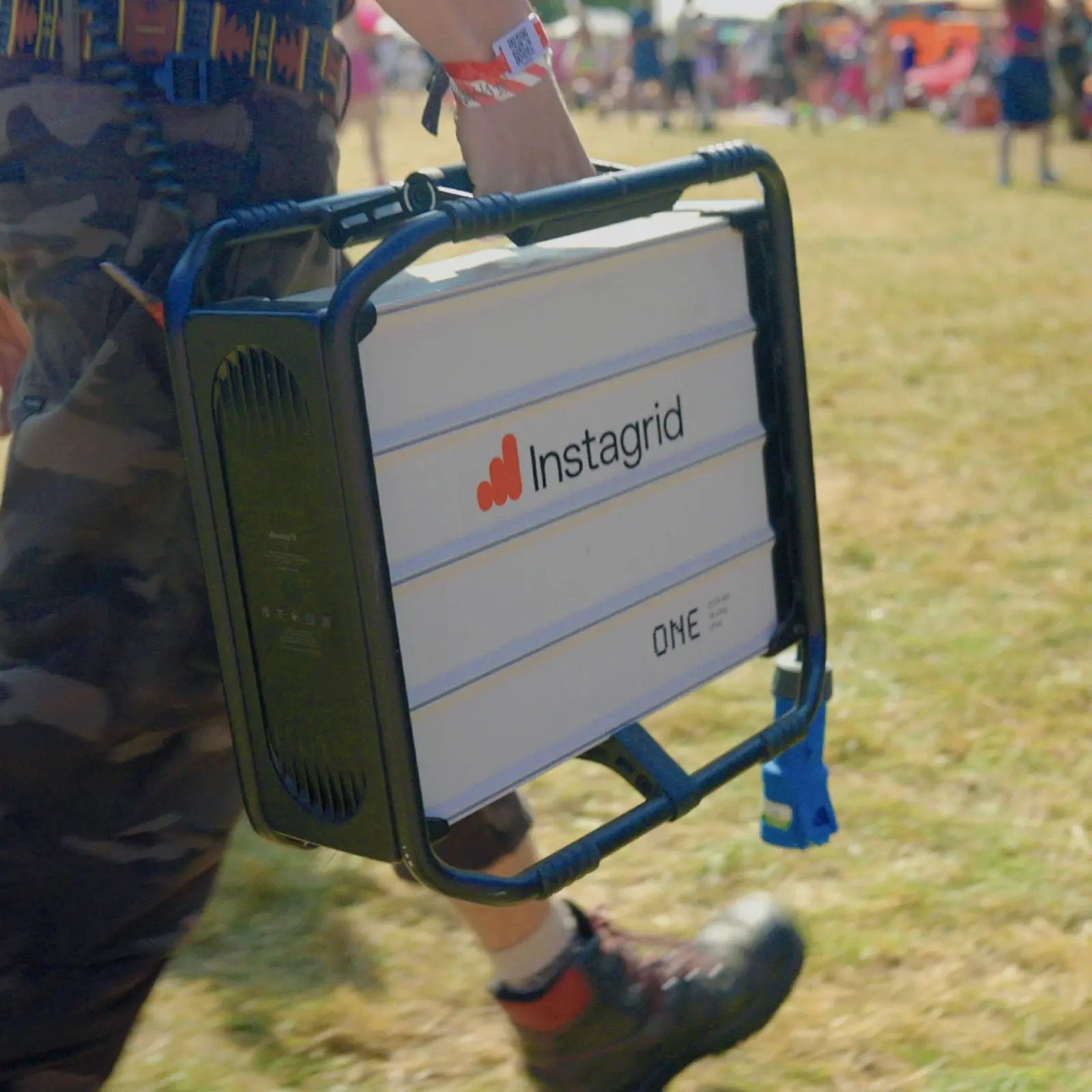

Grid power in the palm of your hand. The Instagrid ONE Type G delivers a continuous rated output of 3,600W (16A), rivaling a standard wall socket. Its advanced stacked micro-inverter architecture allows it to handle massive peak loads of up to 18,000W, making it capable of powering high-draw equipment like large lighting rigs, PA systems, and heavy-duty power tools without the need for trailing cables or fuel. Weighing just 20kg and featuring a rugged IP54-rated enclosure, it provides clean, instant power in all weather conditions, ensuring your production or project stays running wherever the job takes you.
Why Choose the Instagrid ONE Type G?
-
Powerful 3.6kW Continuous Output: Delivers grid-quality 230V / 16A AC power for professional-grade performance.
-
Massive 18kW Peak Capacity: Handles extreme start-up currents and heavy electrical loads with ease.
-
High-Capacity Lithium Battery: Features a 2,074Wh capacity, enough to power LED soft lights for approx. 5 hours or a coffee machine for 160+ cups.
-
Ultra-Fast Charging: Recharges from 0 to 100% in under 2.5 hours from a standard 230V socket.
-
Silent & Eco-Friendly: Fanless design operates at less than 30dB with zero local emissions, making it perfect for sound-sensitive film sets.
-
All-Weather Reliability: IP54-rated for protection against dust and water splashes; operates in temperatures from -20°C to +60°C.
-

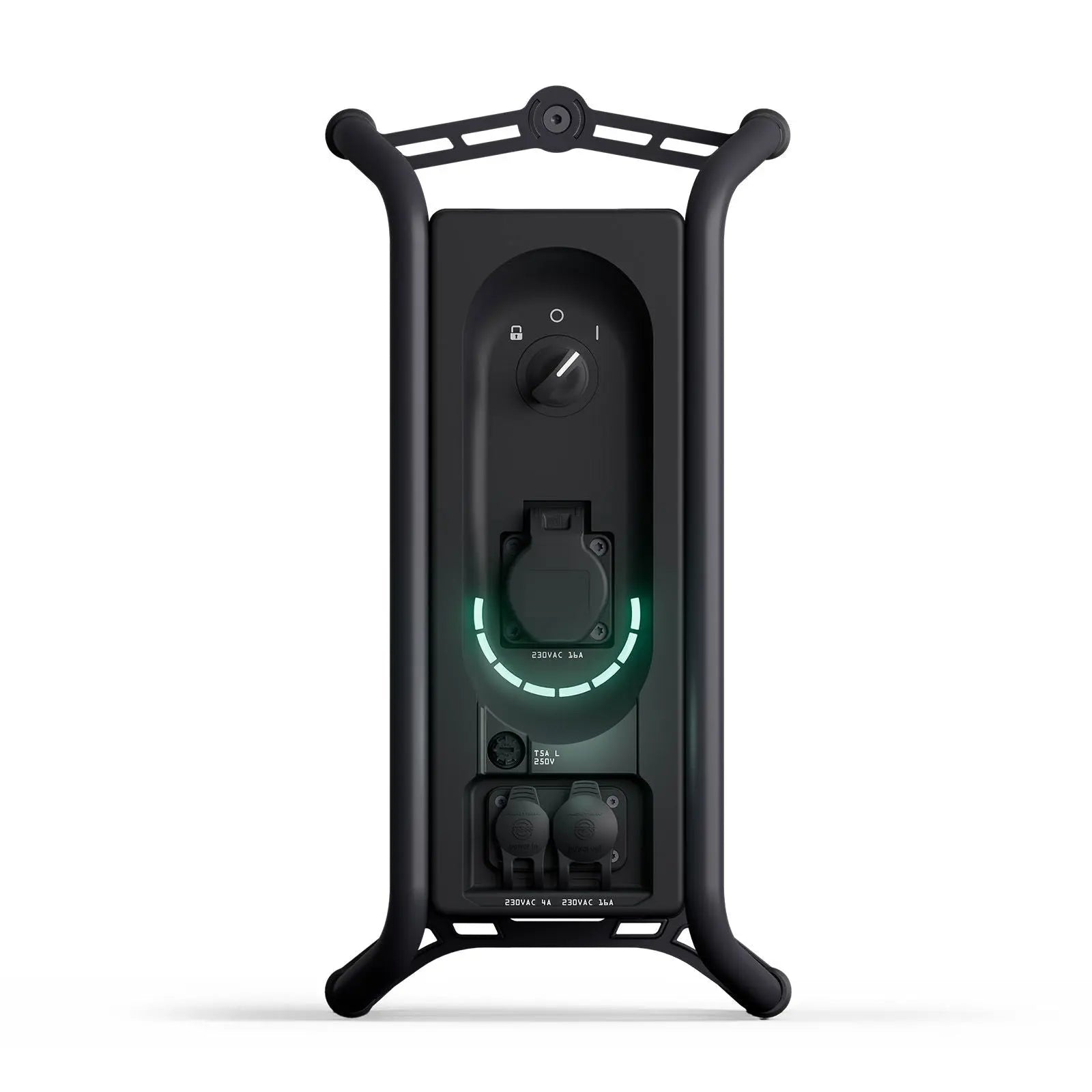

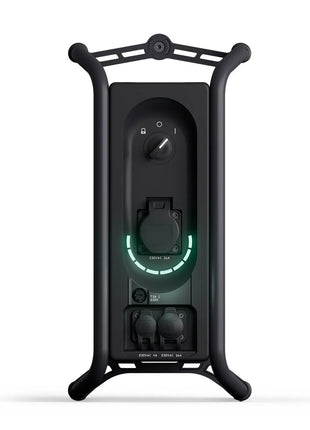

Dual Output Options: Equipped with 1 x BS 1363 (13A) UK socket and 1 x Neutrik PowerCON TRUE1 TOP® for professional gear compatibility.
-
Smart App Monitoring: Use the Instagrid App to monitor real-time charge, temperature, usage statistics, and location.
-
Expandable Performance: Compatible with Instagrid LINK and LINK MAX systems for expanded capacity or 3-phase power configurations.
Professional Power Conversion Technology
Grid Stability, Anywhere Unlike conventional battery systems that rely on a single central inverter, the Instagrid ONE uses a sophisticated micro-inverter system. This breakthrough allows the unit to produce a pure AC sine wave with grid-level stability, ensuring even the most sensitive electronics are powered safely and reliably.

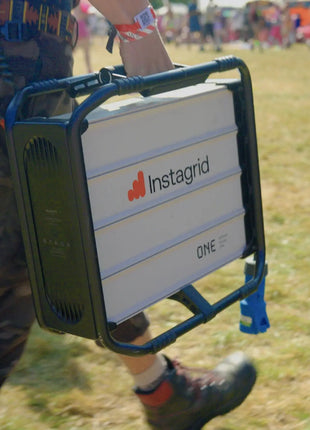

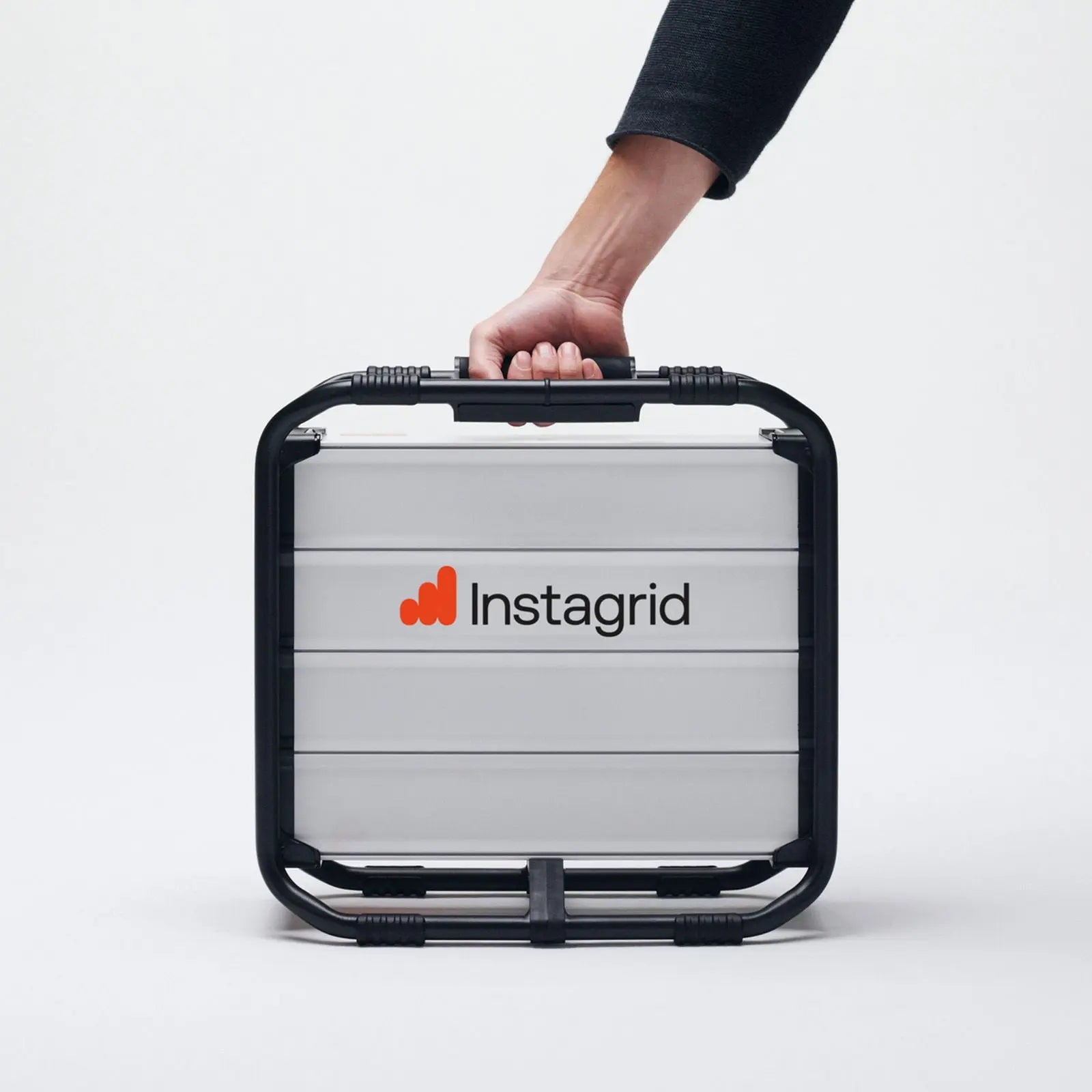

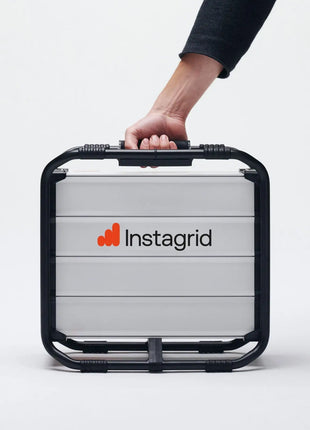

Built for Demand The Instagrid ONE is designed for professionals who cannot afford downtime. With its hand-carryable form factor and high overload tolerance—up to 250% (9,000W) for 10 seconds—it handles the initial surge of high-torque tools and large lighting fixtures without cutting out.
Technical Specifications
-
Rated Output Power: 3,600W (230V AC / 16 A)
-
Peak Output Power: 18,000W
-
Overload Tolerance: 150% (5.4kW) for 500s; 200% (7.2kW) for 50s; 250% (9kW) for 10s
-
Battery Capacity: 2,074Wh (Lithium-ion)
-
Charge Time: < 2.5 hours (0–100%)
-
Output Sockets: 1 x BS 1363 (13A), 1 x Neutrik PowerCON TRUE1 TOP®
-
IP Rating: IP54 (Dust and splash resistant)
-
Noise Emission: < 30 dB(A) (Fanless cooling)
-
Weight: 20 kg
-
Dimensions: 420 x 210 x 420 mm
What’s In The Box?
Why Buy From djkit?
At djkit, we recommend the Instagrid ONE Type G as the definitive power solution for professionals who need off-grid freedom without compromise. It is the most robust, powerful, and portable battery system in its class. With our fast UK delivery and specialist technical support, we help you transition to clean, silent energy for your events and productions, ensuring your gear stays powered no matter where the location.
