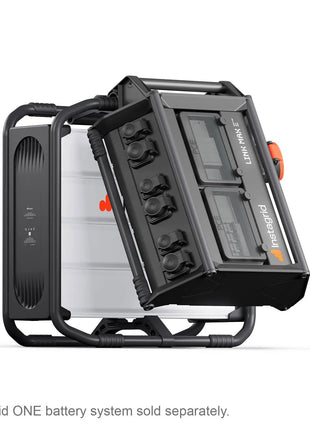

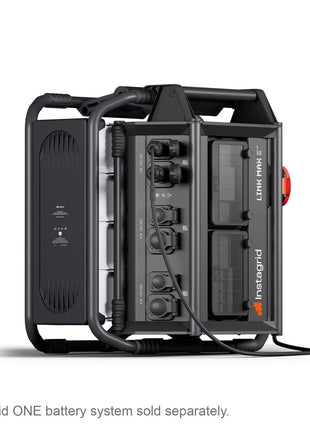

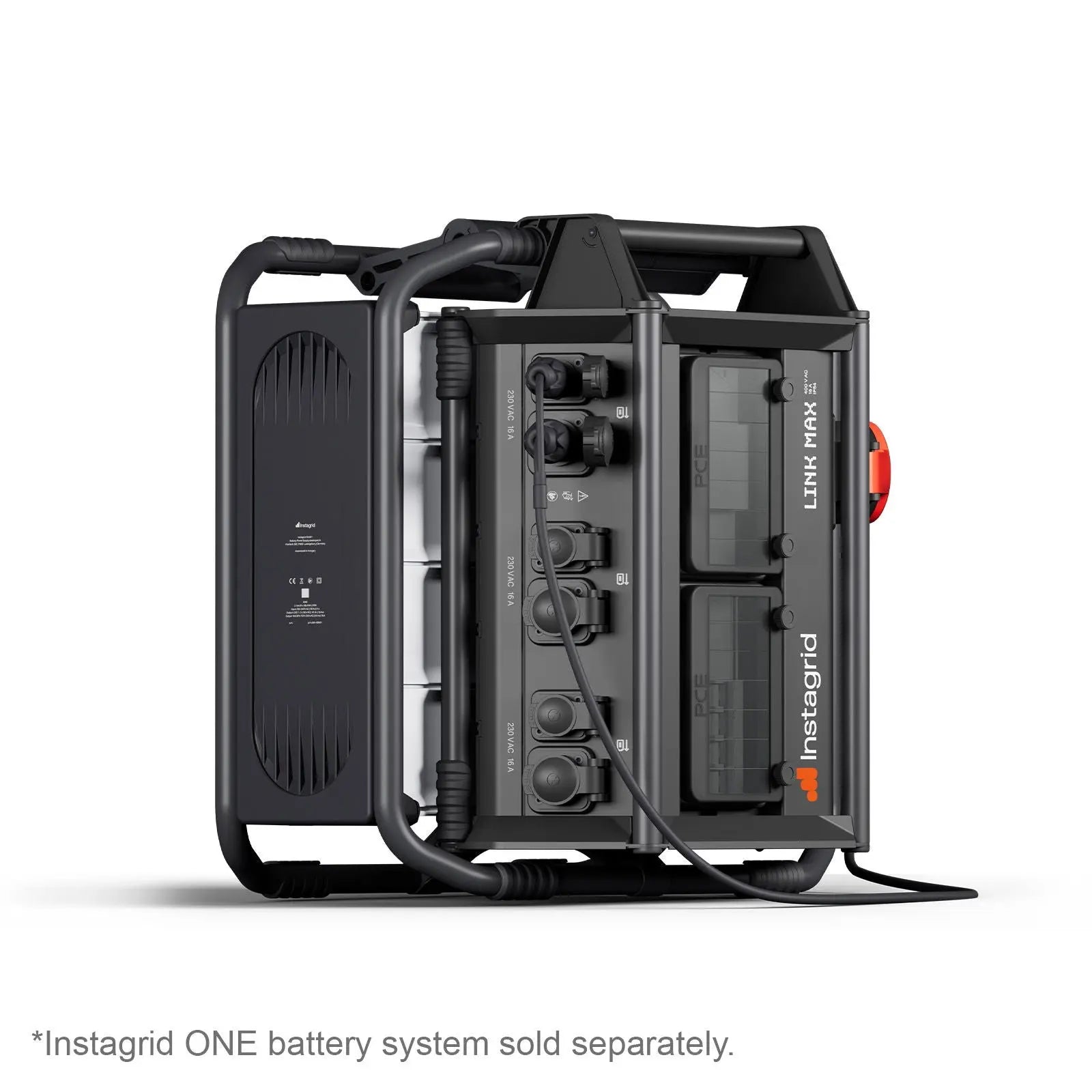

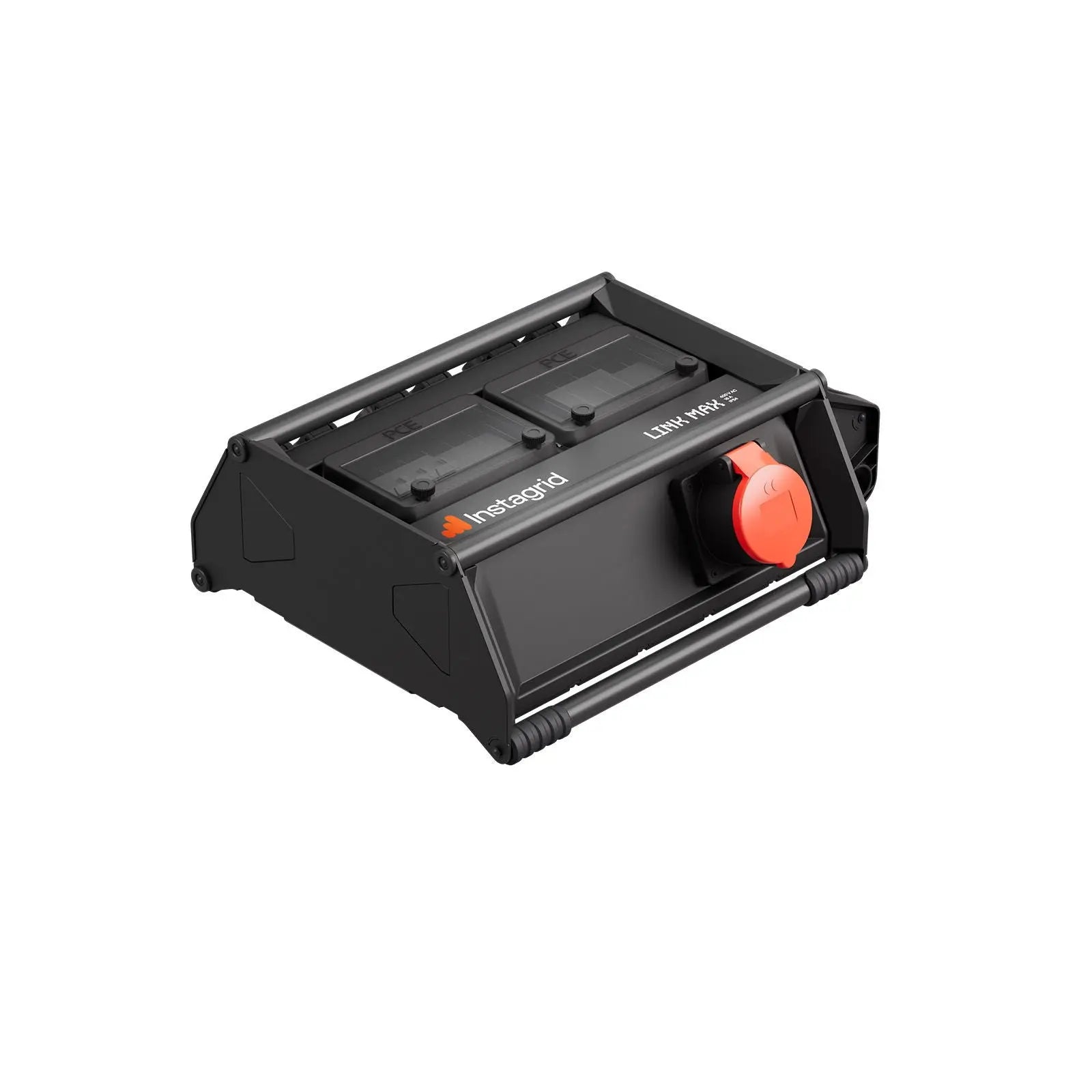

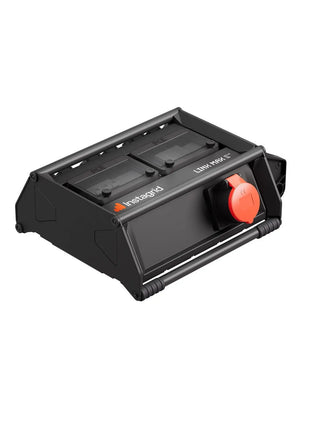

Instagrid LINK MAX | 400V Three-Phase Power Distributor IP54

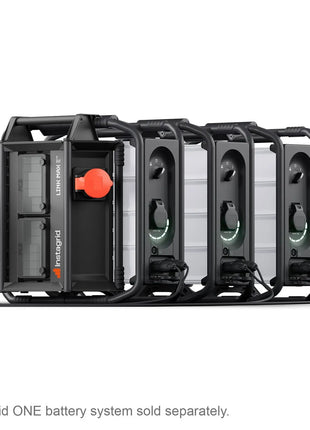

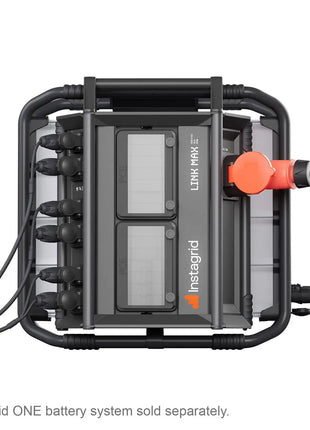

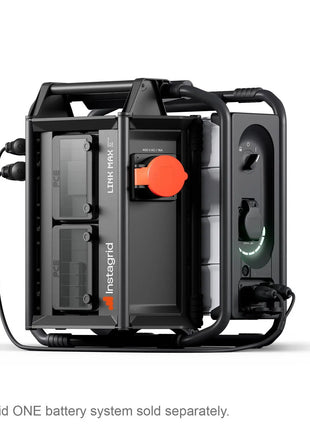

Industrial power, anywhere you need it. The Instagrid LINK MAX is the ultimate solution for off-grid sites that require three-phase electricity without the noise or environmental impact of a diesel generator. This intelligent hub parallels three Instagrid ONE portable power supplies to deliver a continuous 10kW output (3 x 3.6kW) with a combined peak capacity of 54kW. Featuring an ultra-fast switching time of less than 20 milliseconds, it provides an uninterruptible power supply (UPS) for sensitive 400V equipment. Built into a rugged, IP54-rated frame, the LINK MAX is engineered for the toughest professional environments, from large-scale film sets to remote infrastructure projects.
Why Choose the Instagrid LINK MAX?
-
Three-Phase 400V Output: Seamlessly combines three Instagrid ONE units to provide a genuine 400V / 16A three-phase AC supply.
-
High Power Capacity: Delivers 10.8kW of continuous rated power to run heavy-duty industrial motors and large lighting rigs.
-
Massive 54kW Peak Load: Handles extreme startup surges with a combined peak output of 54,000W across the three linked units.
-
Uninterrupted Performance: Features a <20ms switching time, acting as a high-capacity UPS for mission-critical 400V hardware.
-

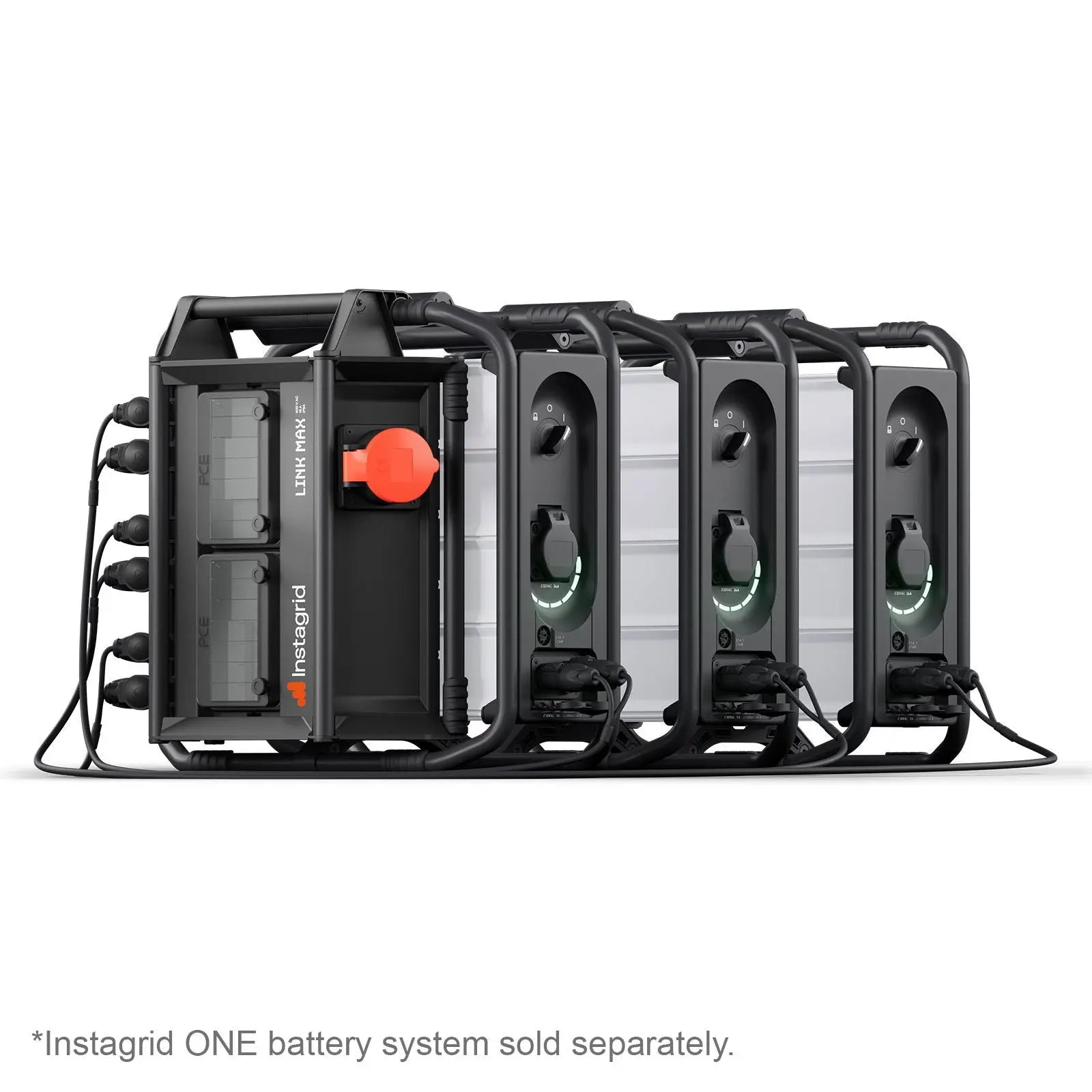

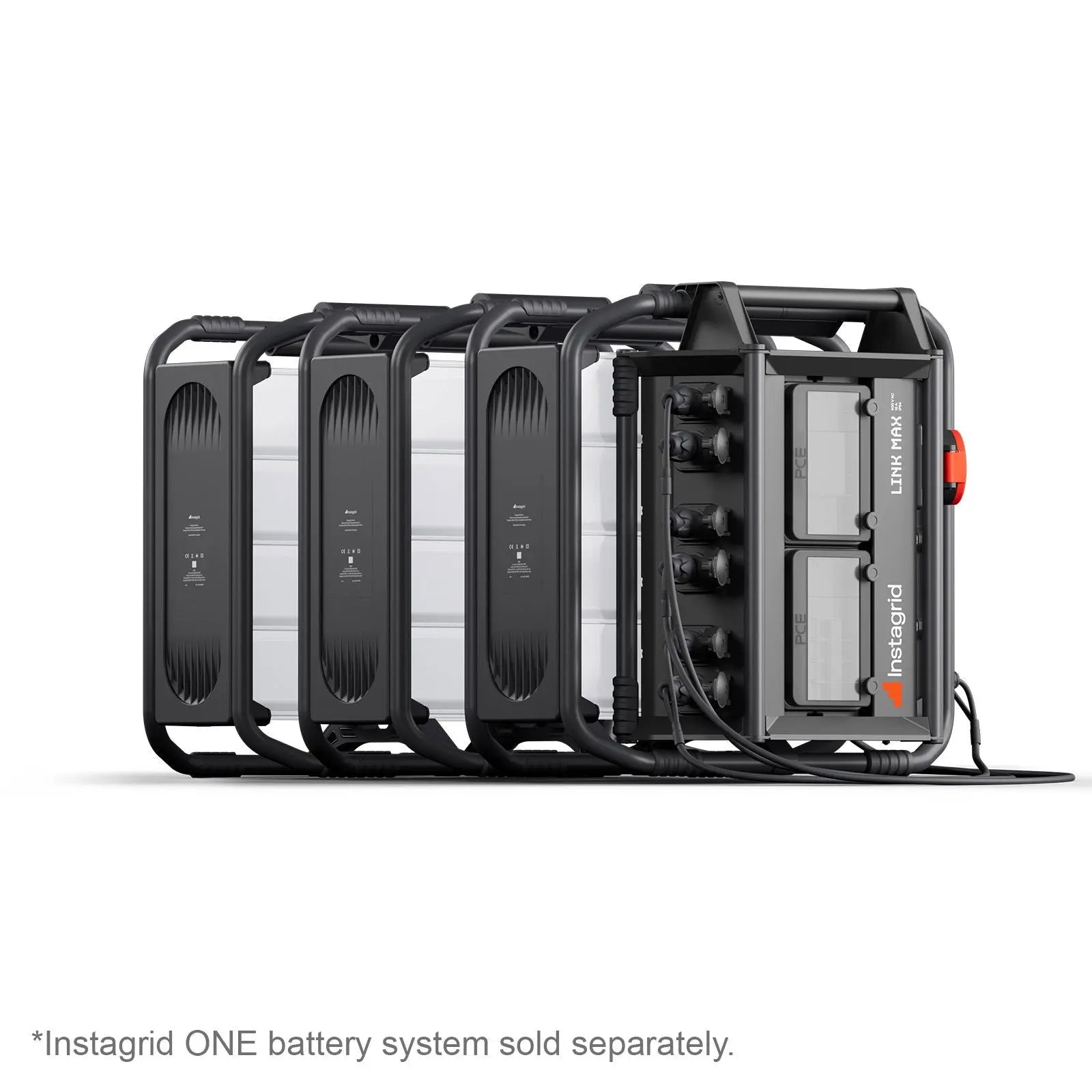

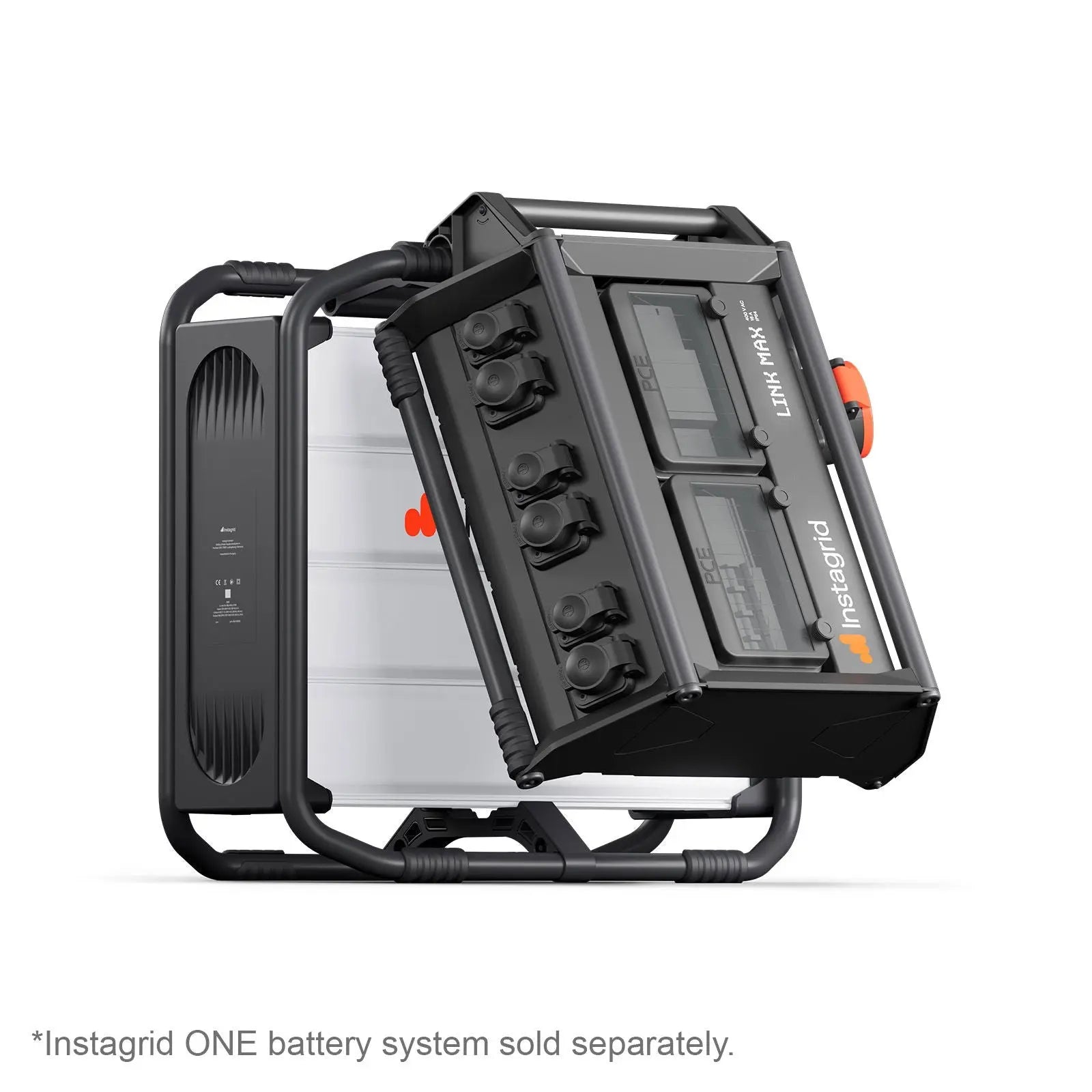

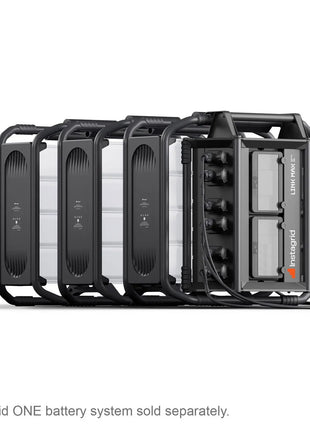

Modular & Scalable: Link up to three Instagrid ONE units for 6.3kWh of total energy capacity.
-

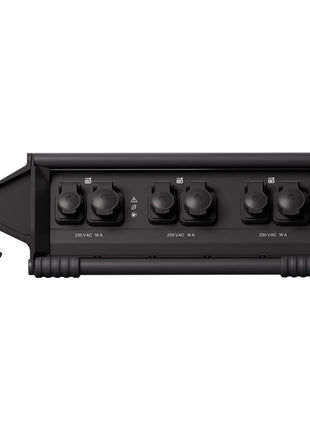

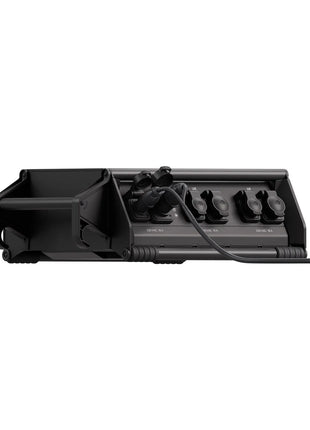

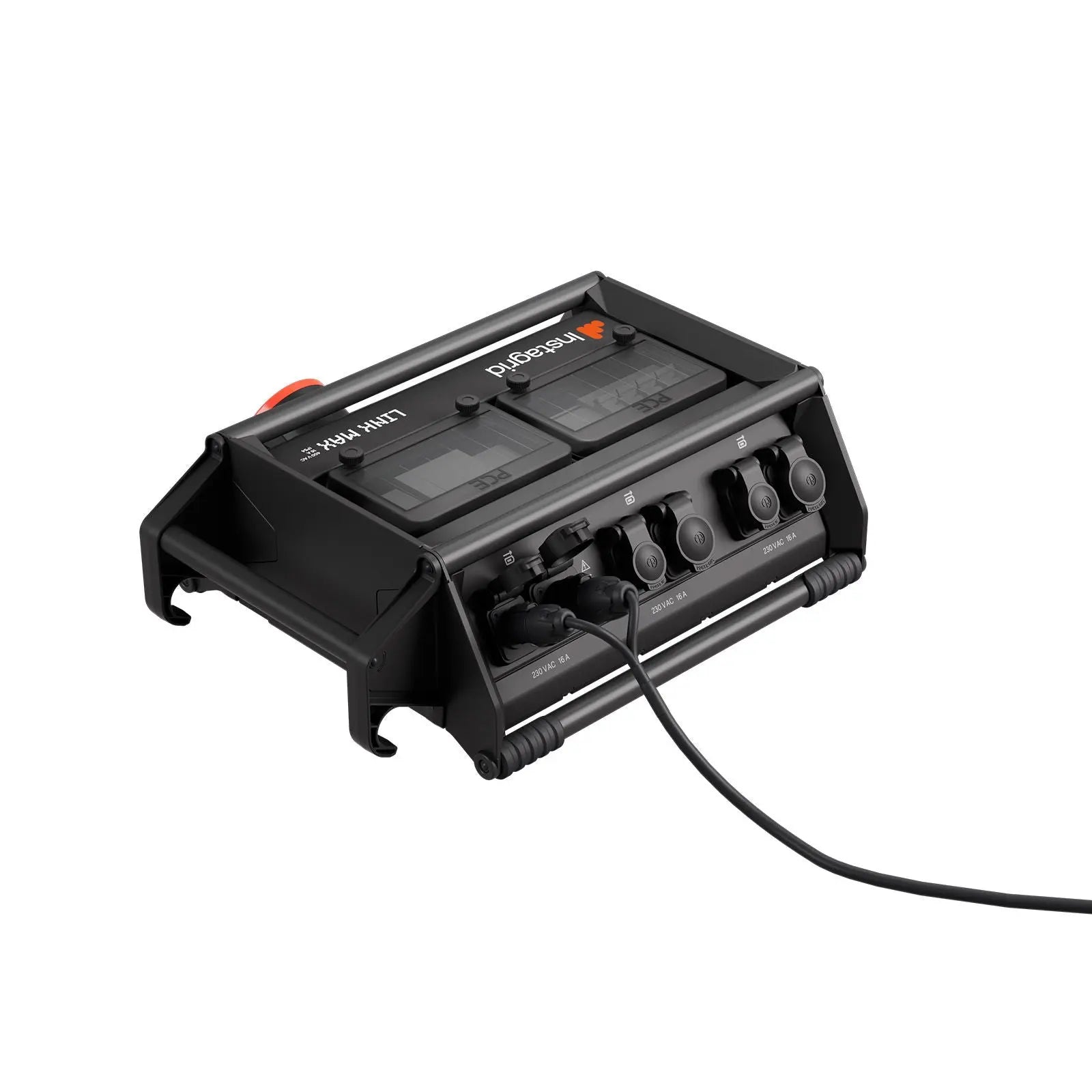

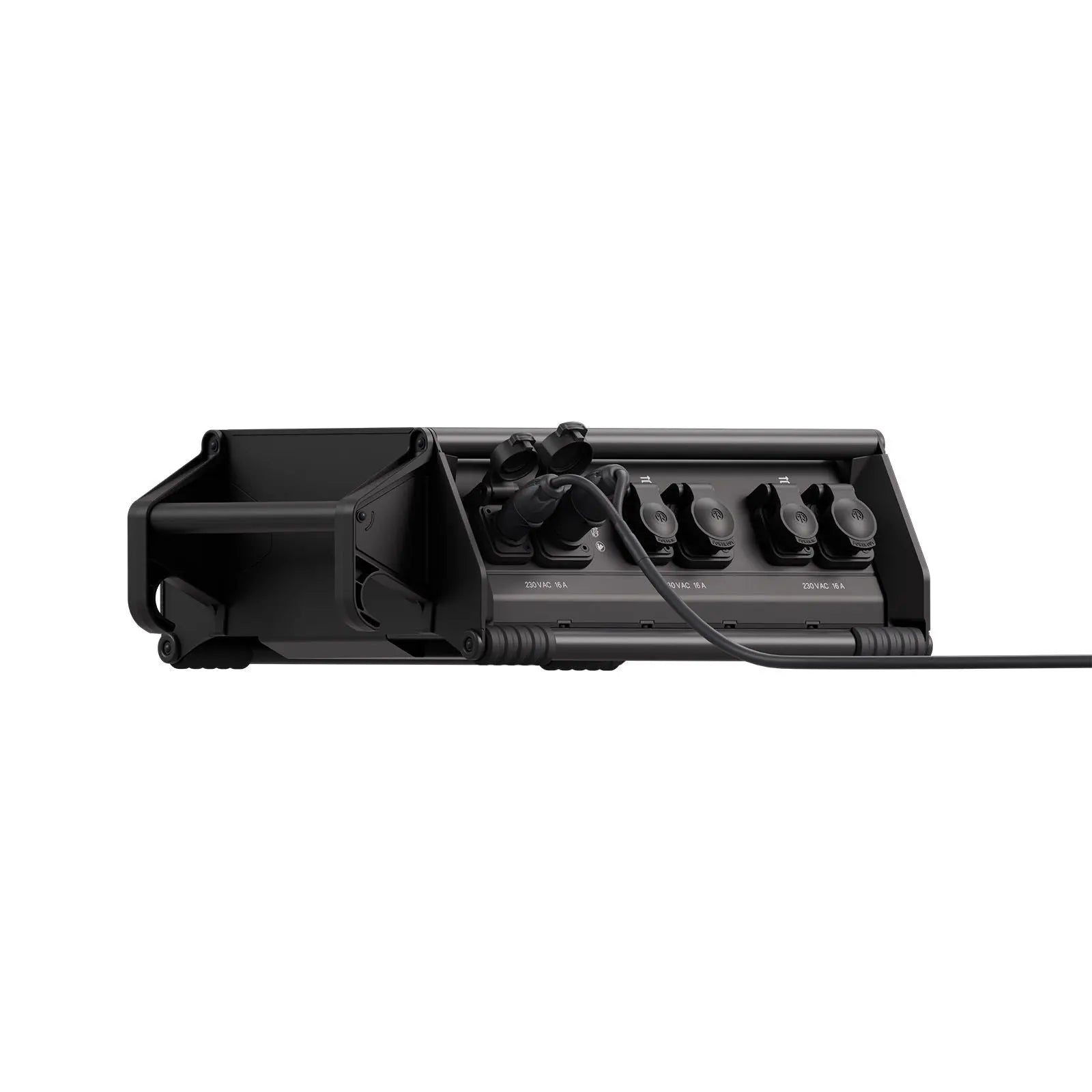

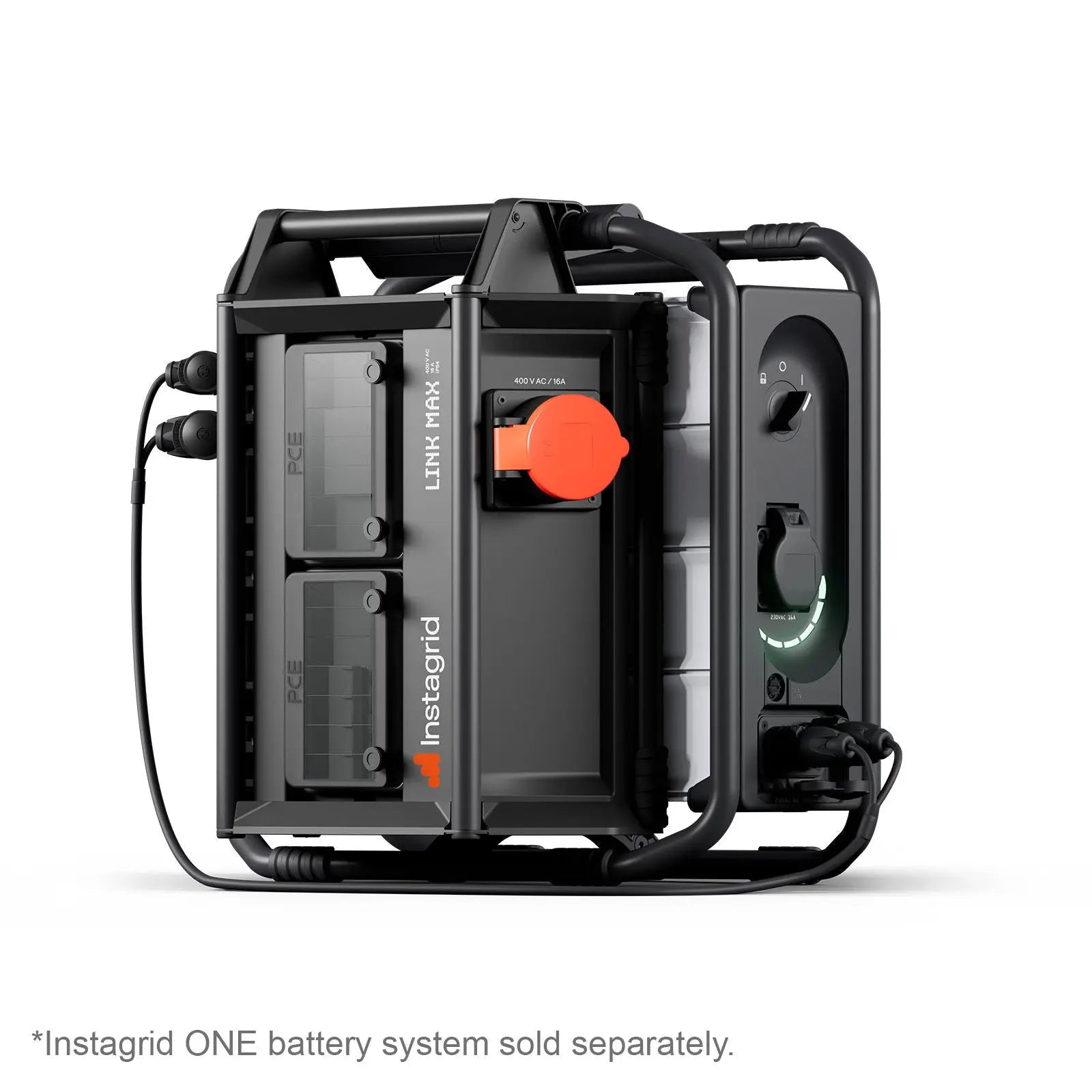

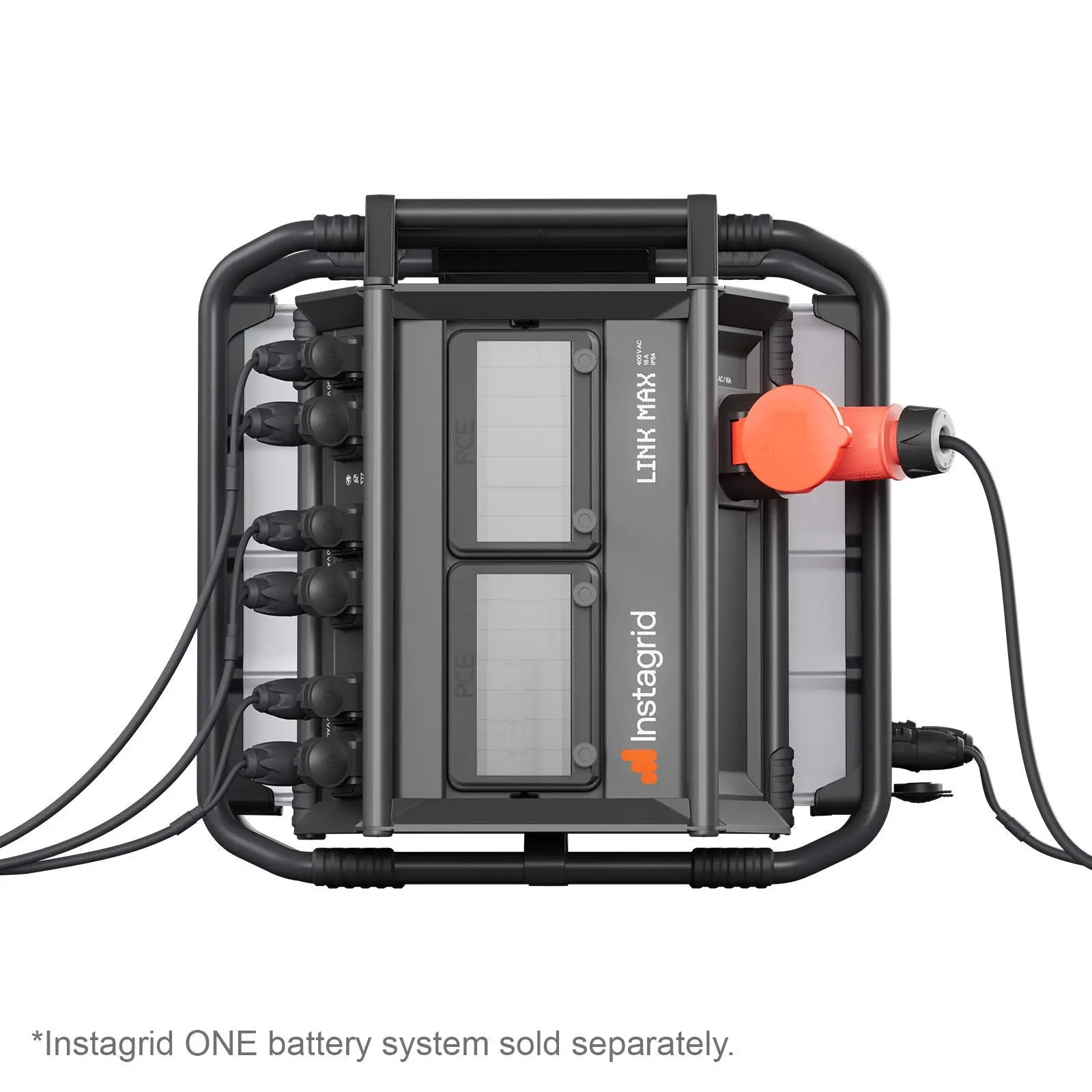

Professional Connectivity: Equipped with 1 x CEE 16A 400V (5-pin) output and 3 x 230V AC (RCD protected) outlets for maximum versatility.
-
Integrated Safety Suite: Features a 3-phase 30mA RCD and a 16A 3-pole circuit breaker for comprehensive on-site protection.
-
All-Weather Durability: IP54-rated enclosure is resistant to dust and water splashes, operating reliably from -15°C to +40°C.
-

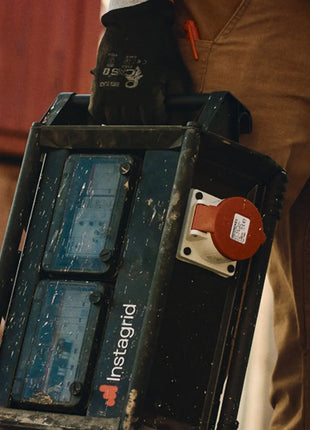

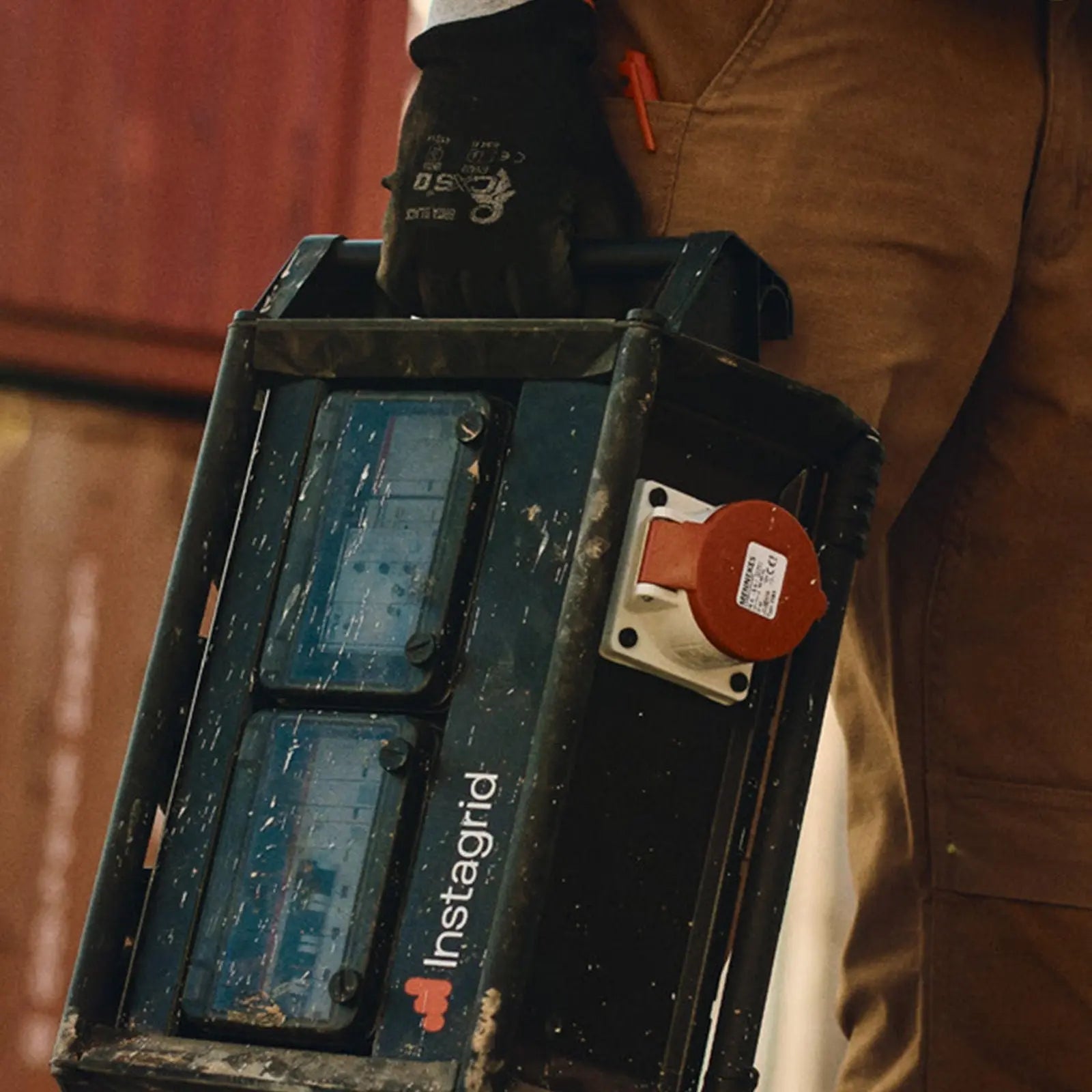

Lightweight Portability: At just 8kg, the LINK MAX is easily transported and deployed by a single person.
Professional 3-Phase Management
The Power of Three The LINK MAX utilizes advanced synchronization technology to align the phases of three separate Instagrid ONE units into a perfect 400V sine wave. This allows professionals to replace 10kVA generators with a silent, portable battery setup that requires zero fuel and zero maintenance.
Versatile Distribution Beyond its three-phase capabilities, the LINK MAX acts as a heavy-duty power center. With three independent 230V outlets, you can power a mix of standard and industrial equipment simultaneously, ensuring your entire workspace is supported by clean, grid-quality energy.
Technical Specifications
-
Nominal Output Power: 10,800 W (3 x 3,600W)
-
Peak Output Power: 54,000 W (Combined)
-
Output Voltage: 400 V AC (3-Phase) / 230 V AC (Single Phase)
-
Nominal Current: 16 A
-
Switching Time: < 20 ms
-

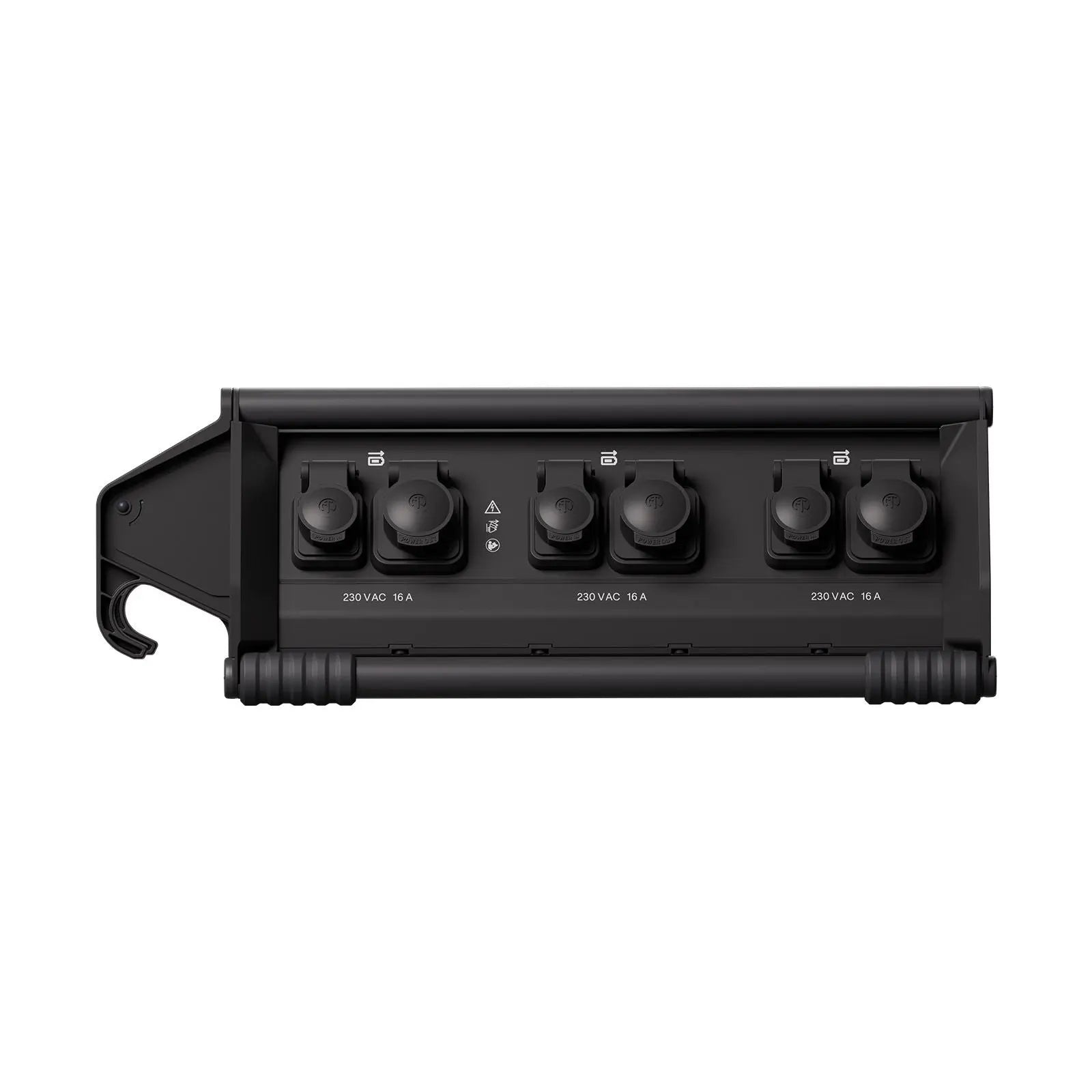

Input Connections: 3 x Neutrik PowerCON TRUE1 TOP®
-

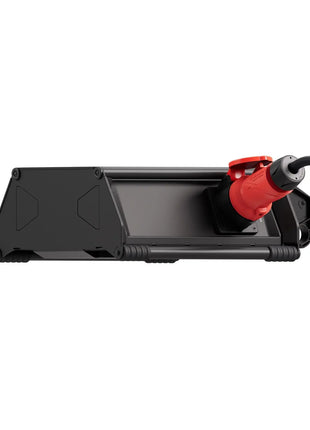

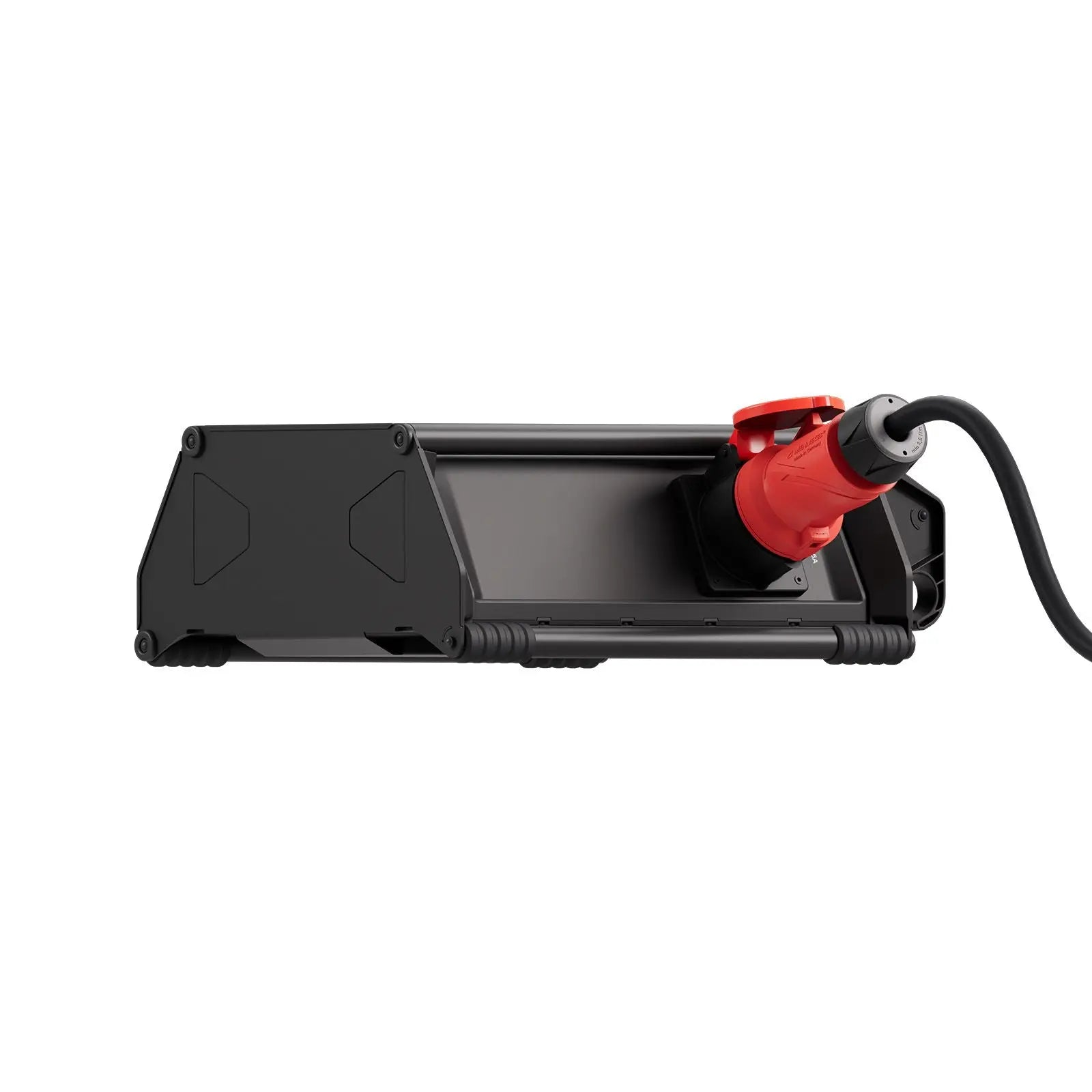

Output Sockets: 1 x CEE 16A (5p, 400V), 3 x 230V AC (UK/EU)
-
Safety Features: 4P 30mA Type A RCD; 3-Pole B16 Circuit Breaker
-
IP Rating: IP54
-
Weight: 8 kg
-
Dimensions: 520 x 400 x 200 mm
What is In The Box?
Why Buy From djkit?
At djkit, we recommend the Instagrid LINK MAX as the professional choice for off-grid industrial power. It is the most sophisticated way to achieve a silent, high-output three-phase supply without the logistical burden of traditional generators. With our fast UK delivery and expert support, we help you deploy advanced battery technology for your most demanding events and industrial projects.
