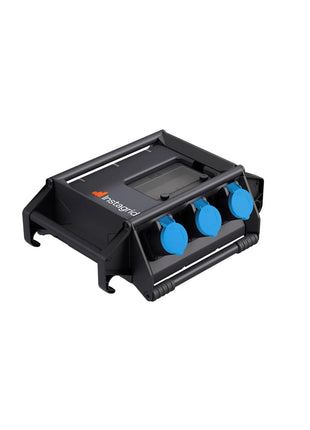

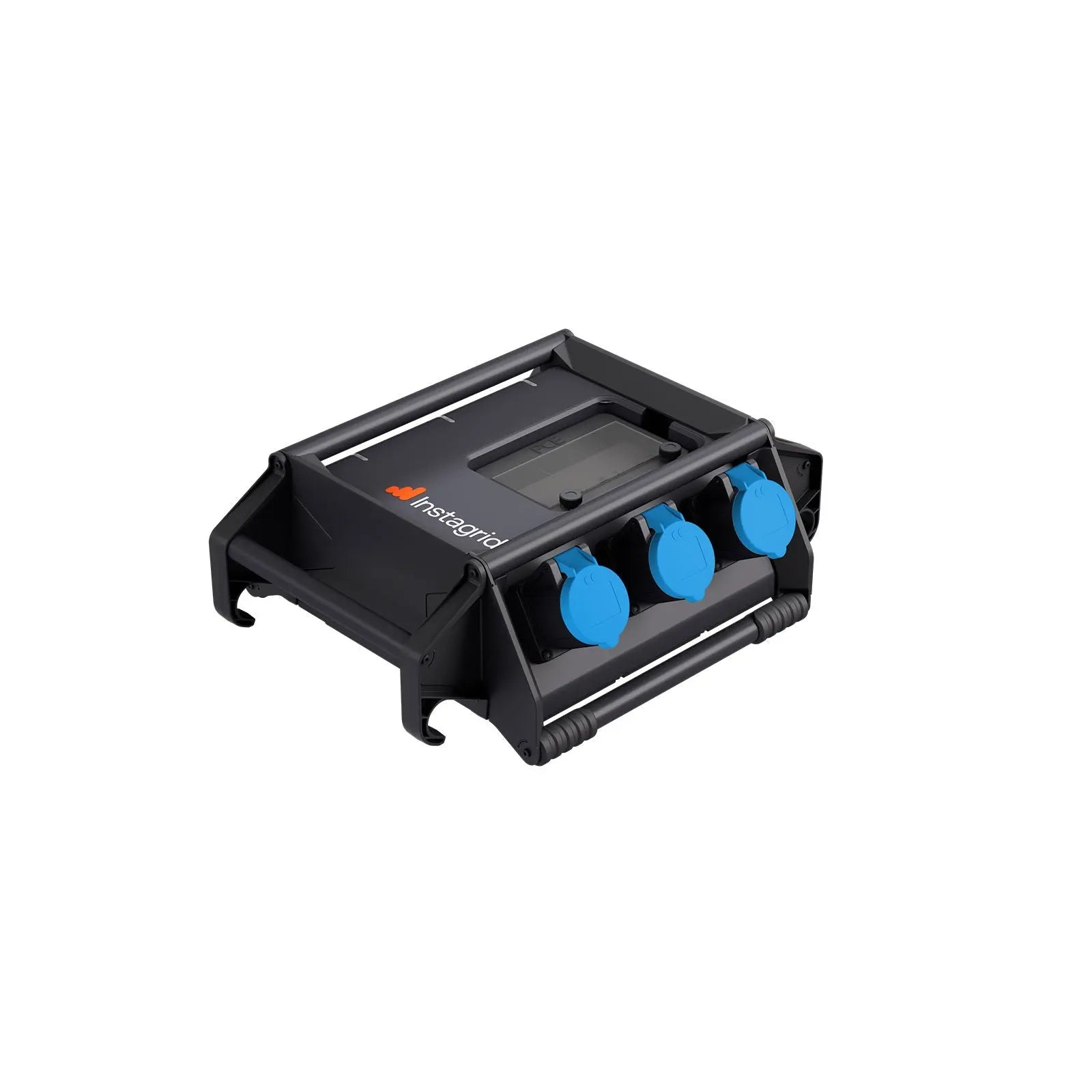

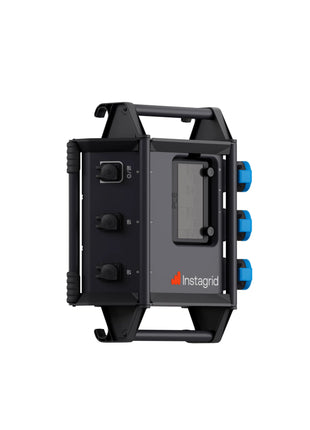

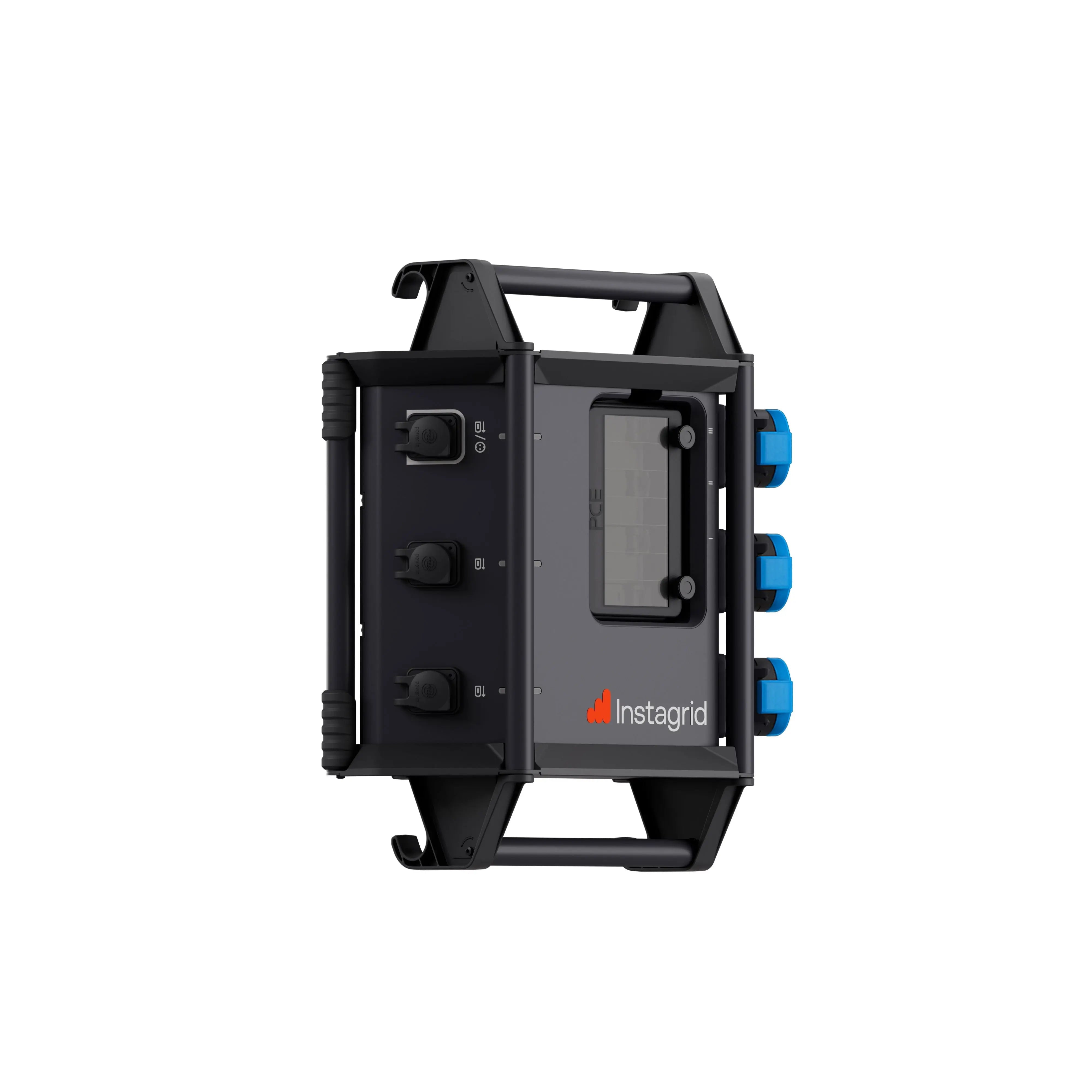

Instagrid LINK 36 | Smart Power Distributor 230V IP54
Uninterrupted power for the most demanding sites. The Instagrid LINK 36 is the ultimate companion for off-grid operations, enabling seamless "Island Mode" to combine up to three Instagrid ONE units into a single high-capacity power source. With a lightning-fast switching time of less than 20 milliseconds, it functions as a reliable Uninterruptible Power Supply (UPS), ensuring sensitive electronics and heavy-duty tools remain operational during battery swaps or mains transitions. Housed in a rugged, lightweight, and IP54-rated frame, the LINK 36 delivers safe, RCD-protected 230V power for up to three devices concurrently, making it an essential tool for any professional requiring clean and silent energy.
Why Choose the Instagrid LINK 36?
-

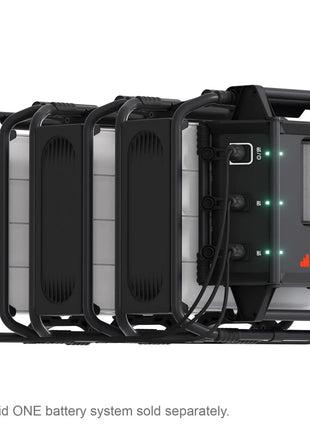

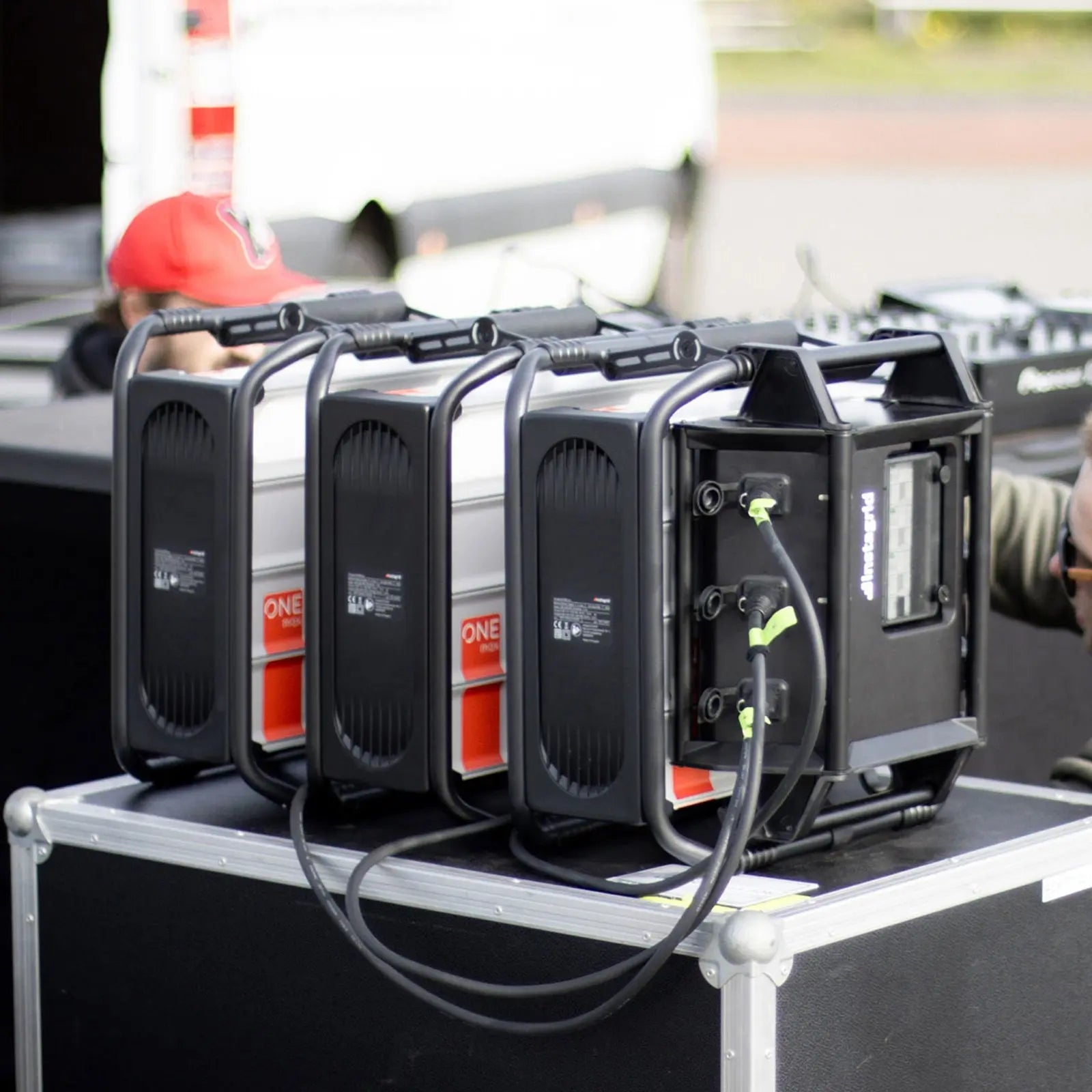

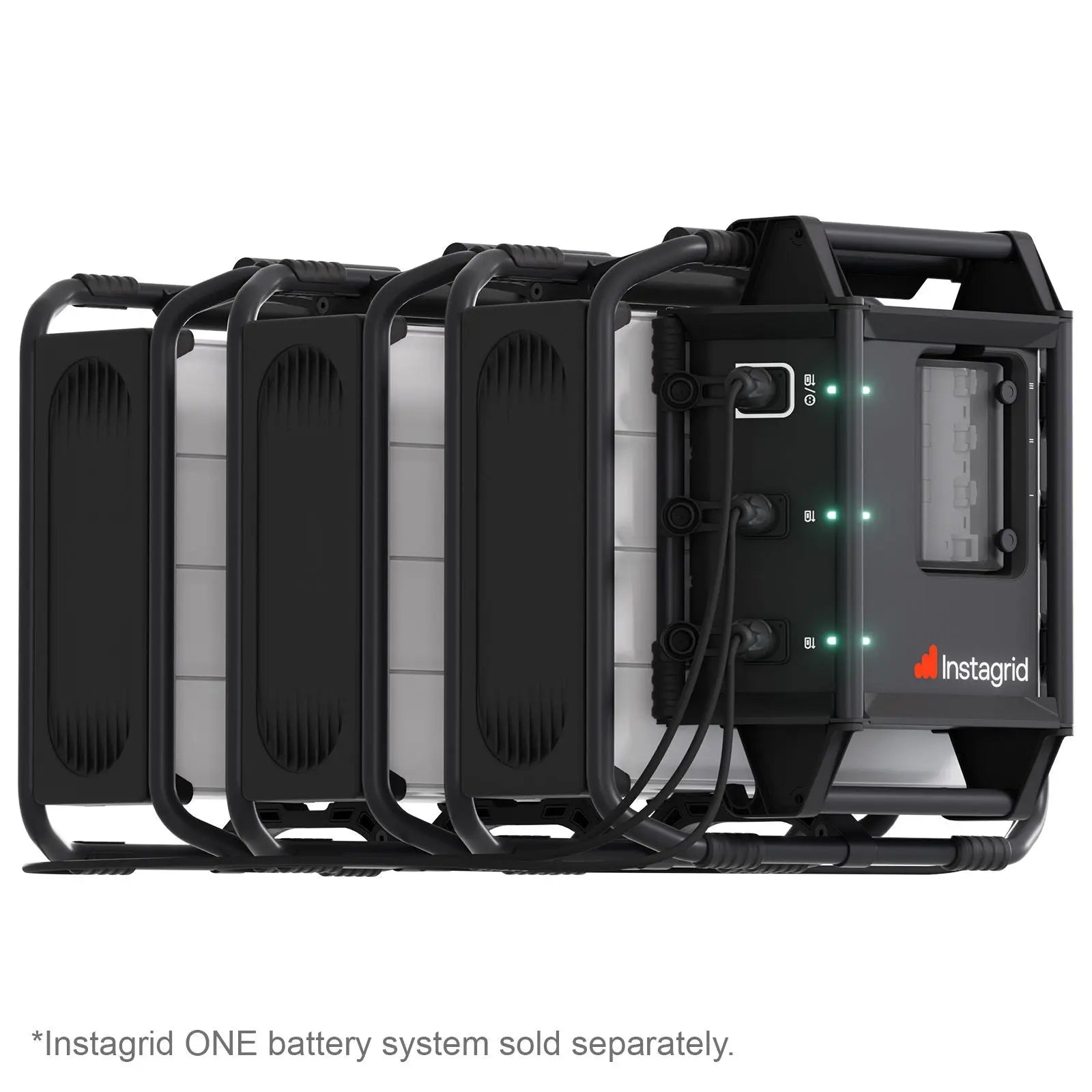

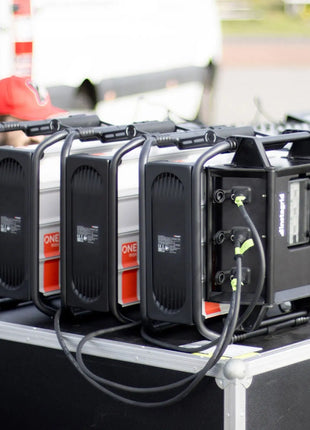

Triple Your Capacity (Island Mode): Parallel up to three Instagrid ONE units to create a massive 6.3 kWh energy reservoir for long-duration jobs.
-
Seamless Hot-Swapping: Replace depleted batteries during operation without losing power to your equipment for effectively unlimited runtime.
-
Mission-Critical Reliability: Ultra-fast <20ms switching ensures sensitive gear like film lighting or communications equipment never shuts down.
-

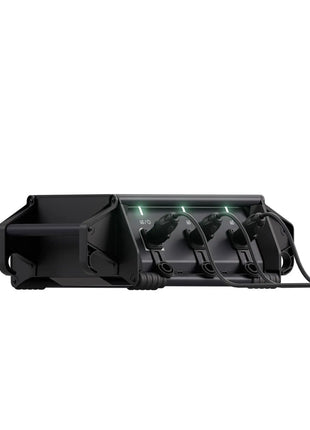

Triple Device Distribution: Power up to three separate devices simultaneously via three dedicated, RCD-protected outlets.
-
Integrated Professional Safety: Features 3x individual RCDs (Type A, 30mA) and a 16A circuit breaker for maximum on-site protection.
-
Rugged All-Weather Design: IP54-rated for dust and splash resistance, built to operate in harsh environments from -15°C to +40°C.
-

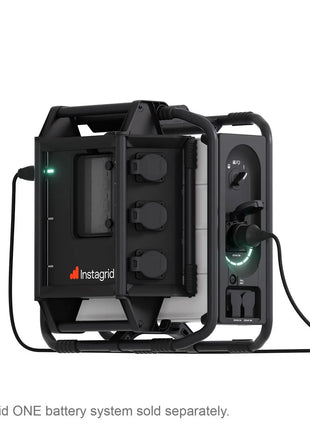

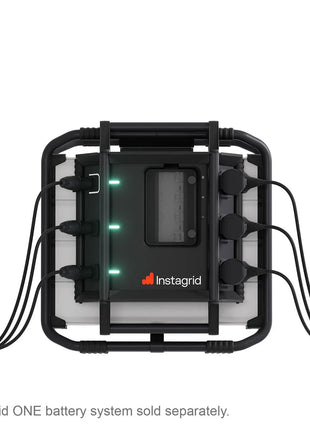

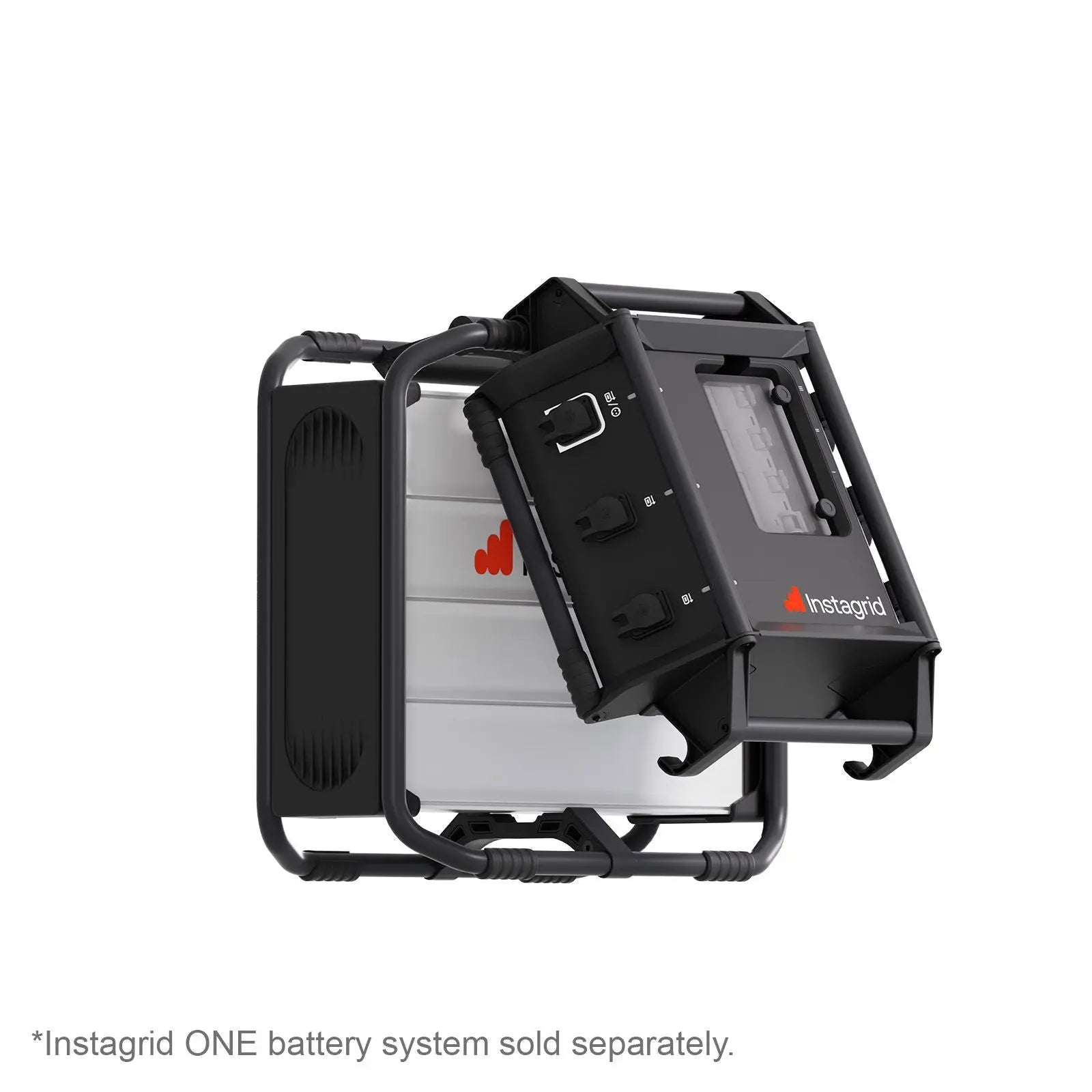

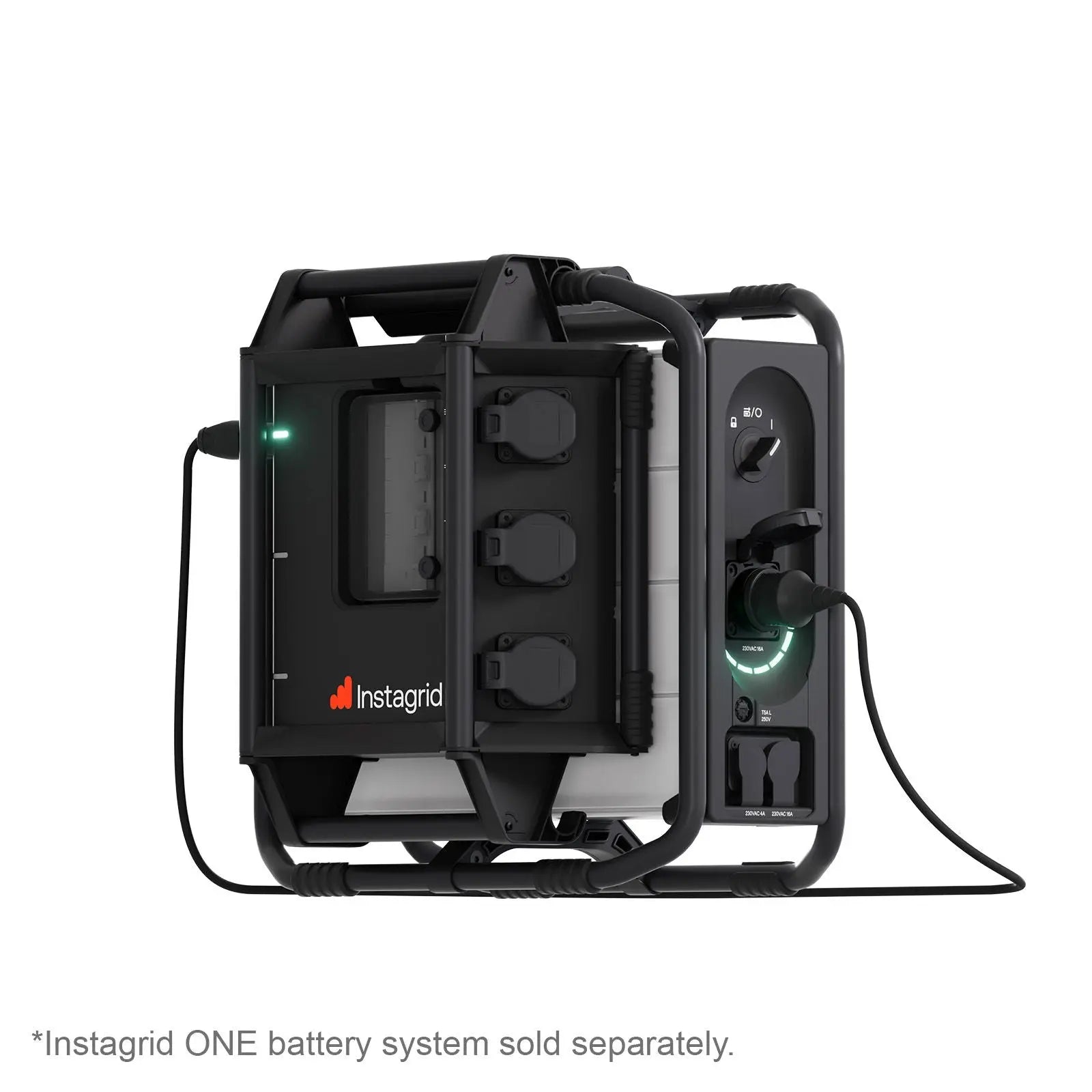

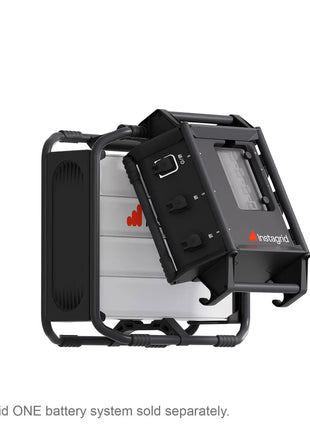

Intelligent Mounting Options: Features a versatile hook-and-release system for direct attachment to an Instagrid ONE, plus screw and velcro mounting options.
-
Ultra-Lightweight Portability: Weighing just 4.5kg, it adds minimal bulk to your mobile power rig.
Advanced Power Management and Connectivity

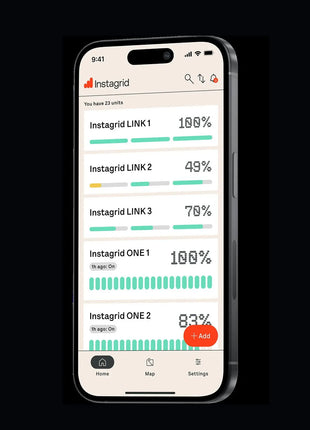

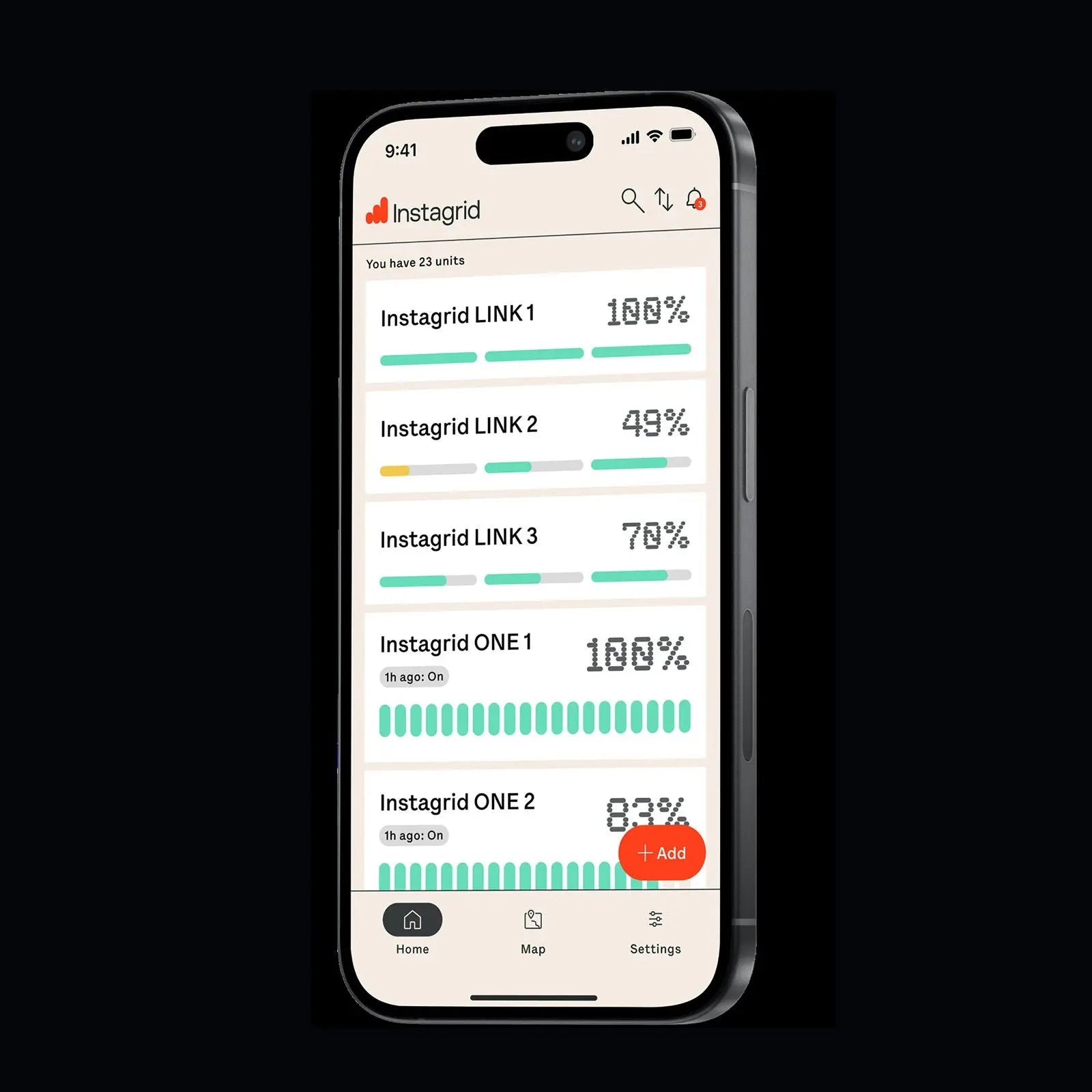

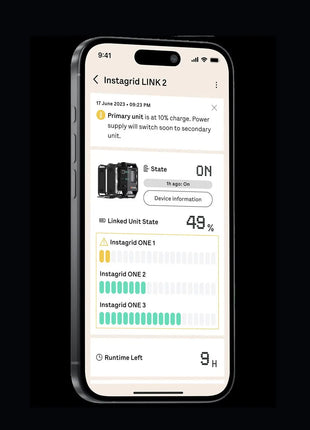

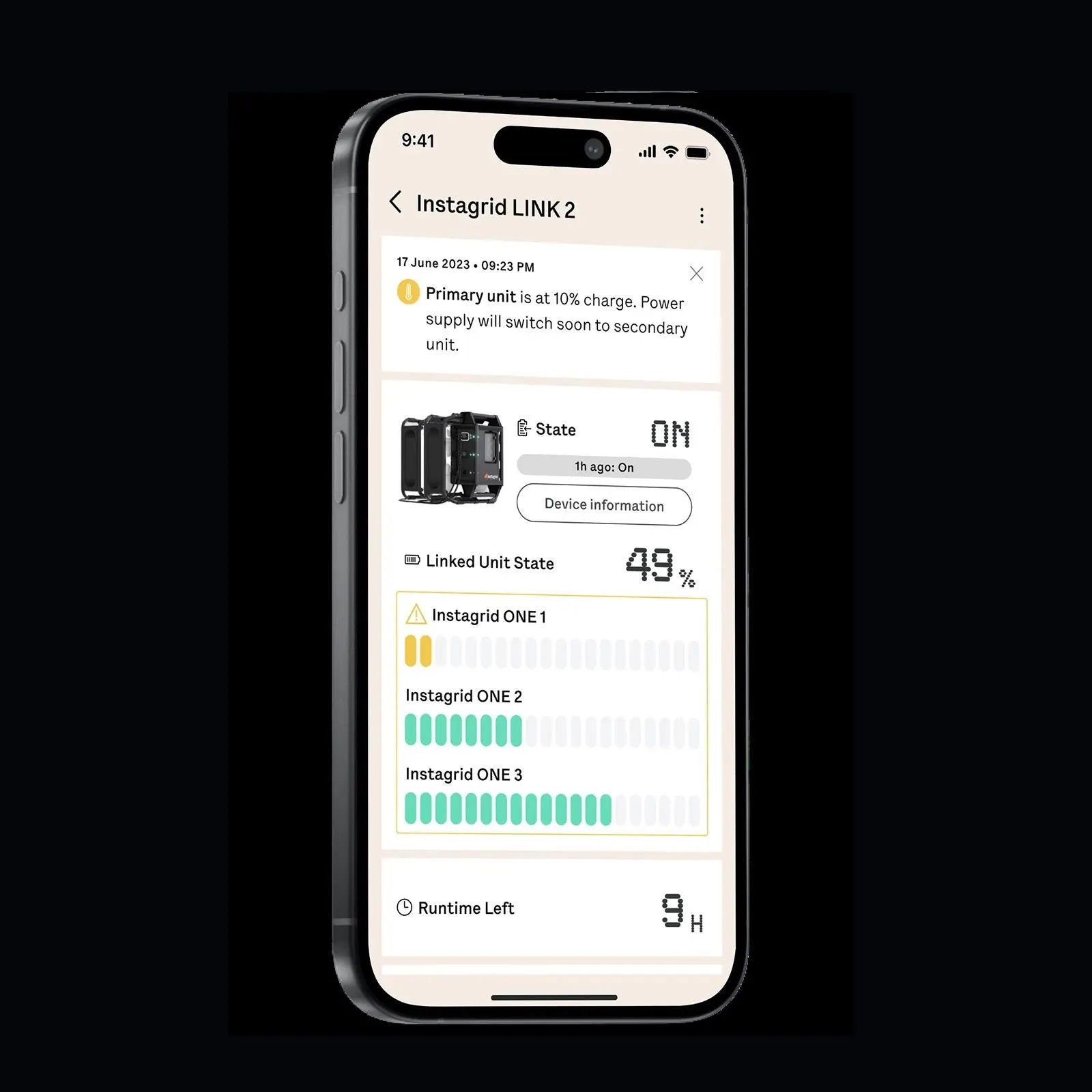

Smart Fleet Management When paired with the Instagrid App, the LINK 36 allows for comprehensive monitoring of your power setup. View real-time unit status, usage statistics, and receive notifications to optimize your energy deployment across the entire job site.
Industrial Performance Examples When combined with three Instagrid ONE units, the LINK 36 can power extreme industrial tasks, such as welding up to 267 electrodes or drilling 96 holes with a 3.3 kW diamond core drill. It is equally effective for complex multi-device setups, such as running a core drill, vacuum pump, and water pump simultaneously and continuously.
Technical Specifications
-
Nominal Output Power: 3,600 W
-
Output Voltage: 230 V AC / 50 Hz
-
Output Current: 16 A
-
Switching Time: < 20 ms
-

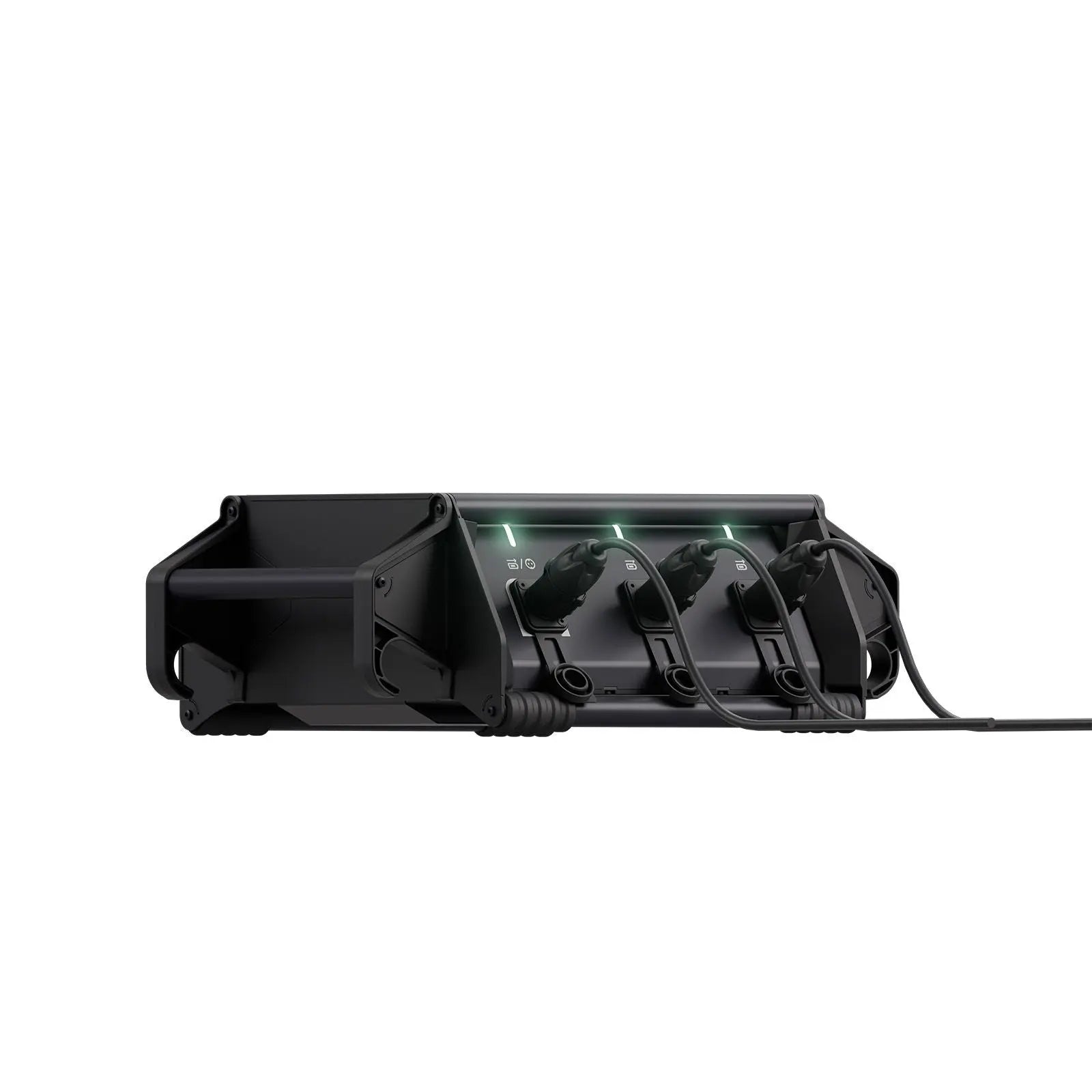

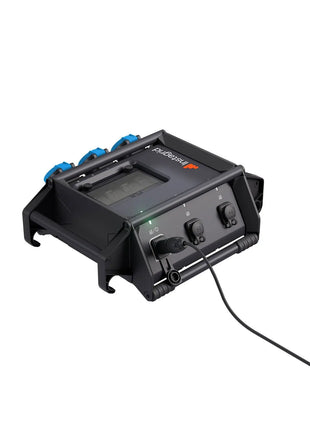

Input Connections: 3 x Neutrik PowerCON TRUE1 TOP® (1x Primary, 2x Secondary)
-
Output Sockets: 3 x 230V AC (RCD Protected)
-
Safety Devices: 3 x 1P+N RCD Type A (30mA); 1 x 1P B16 Circuit Breaker
-
IP Rating: IP54 (Dust and splash resistant)
-
Operating Temperature: -15°C to +40°C
-
Weight: 4.5 kg
-
Dimensions: 400 x 310 x 140 mm
What is In The Box?
-
1 x Instagrid LINK 36 Smart Power Distributor
-
1 x Connection Cable (Neutrik to Output)
-
1 x Quick Start Guide / Manual
