Description

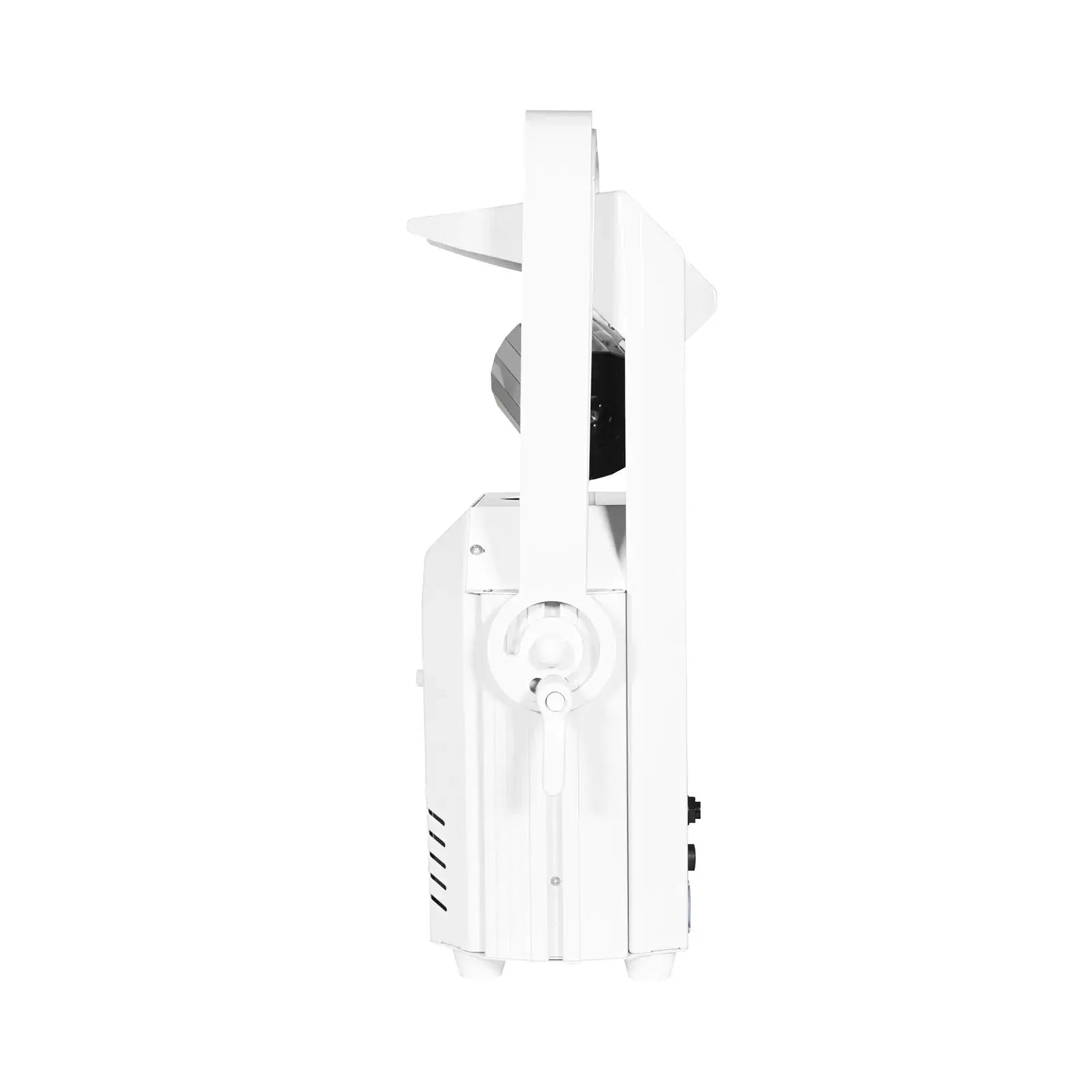

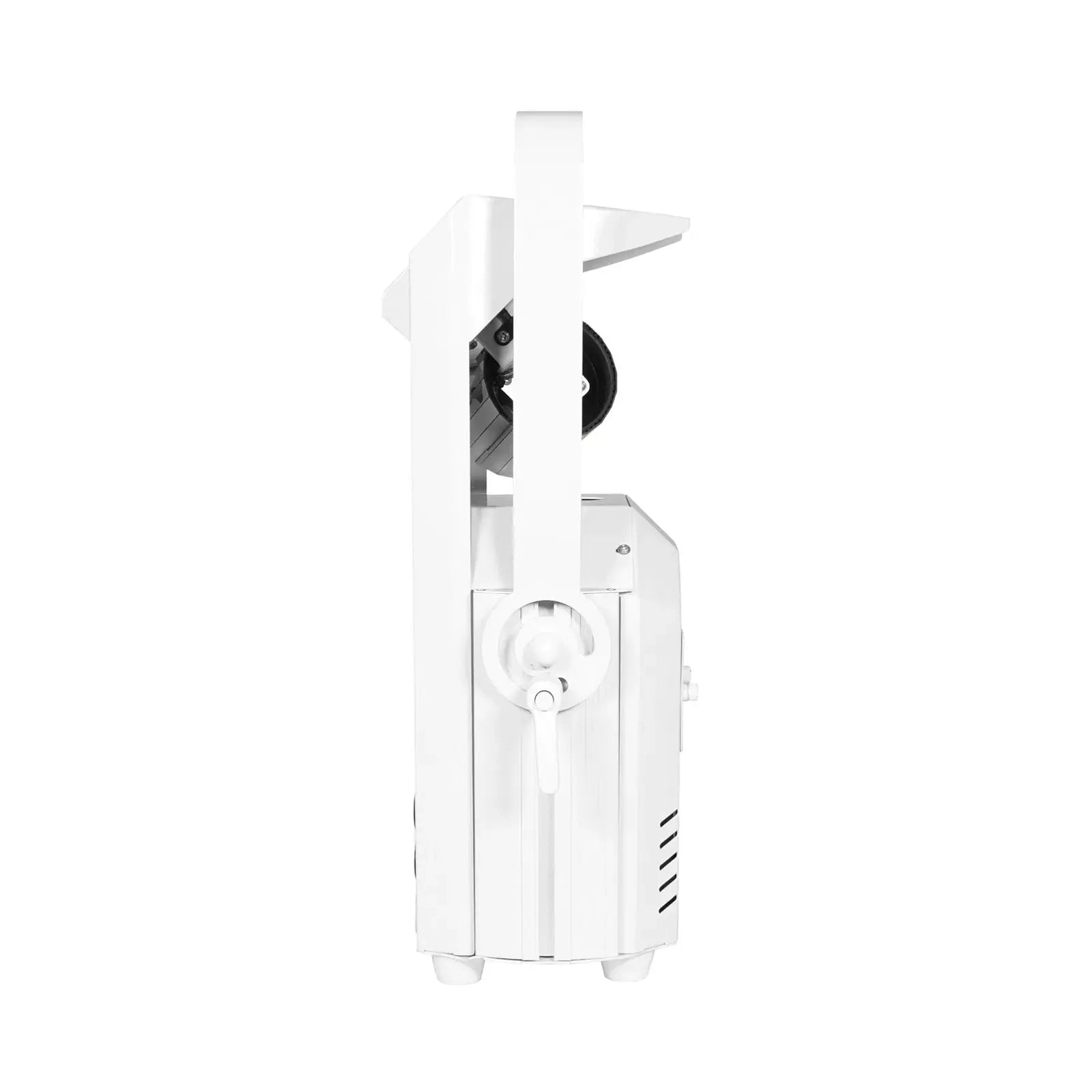

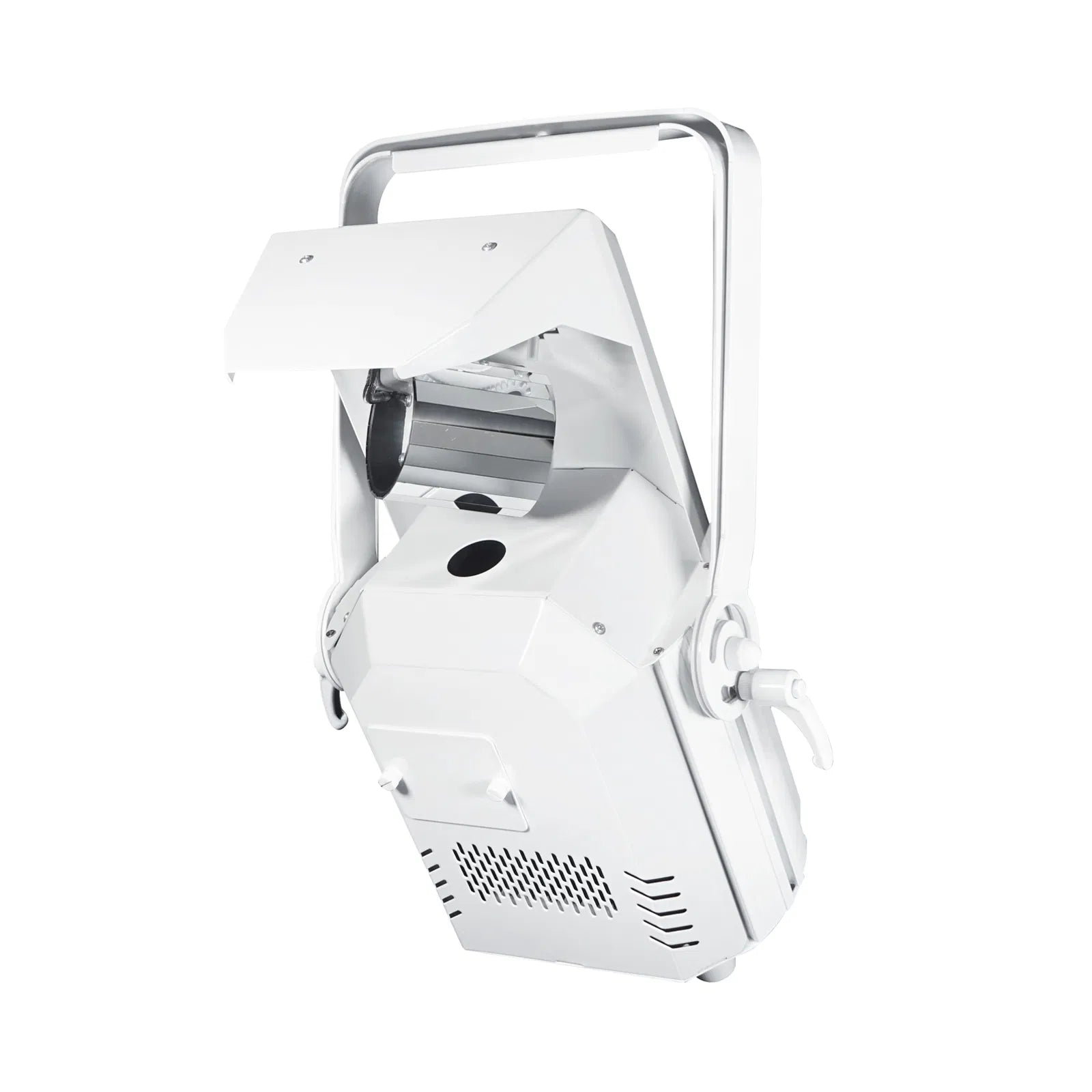

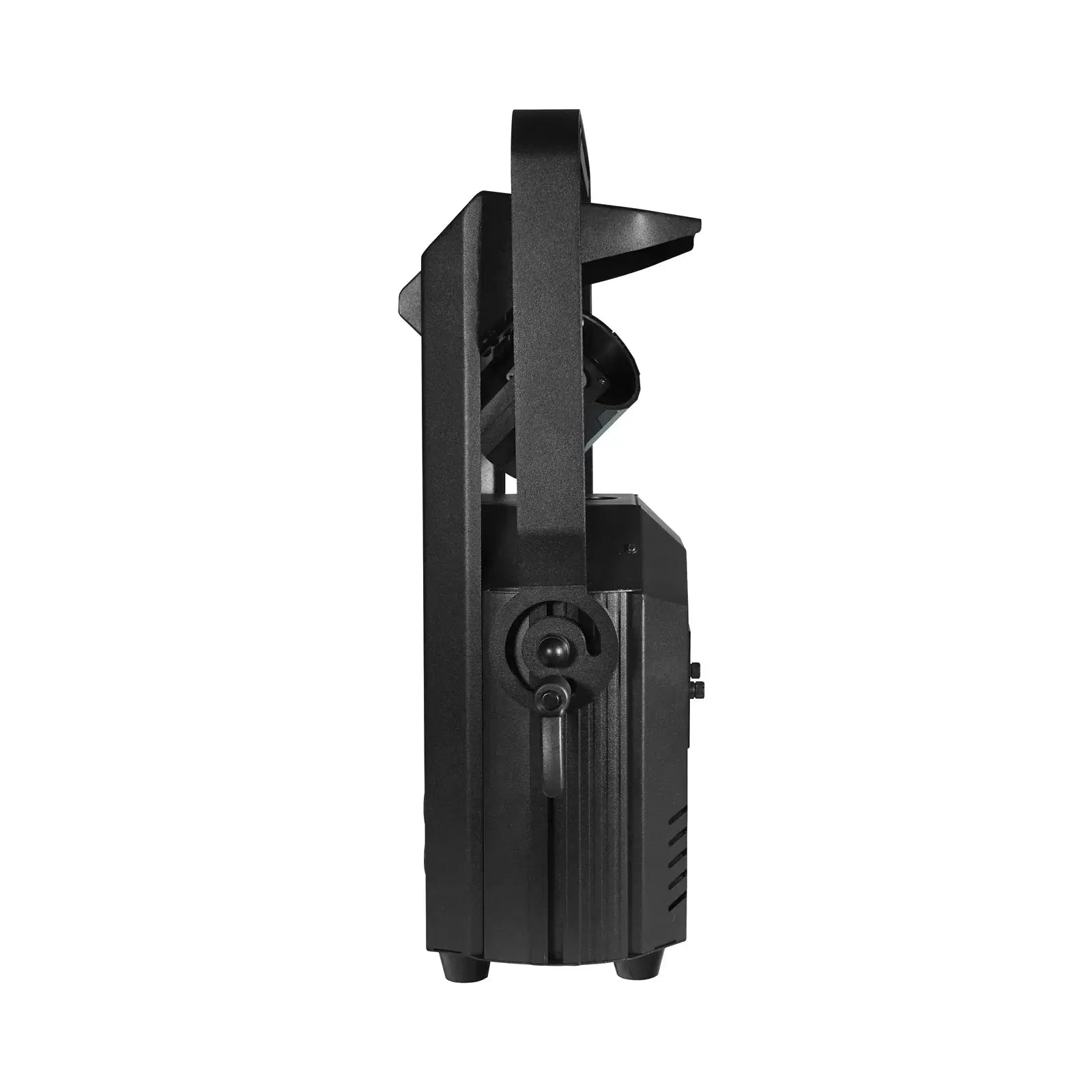

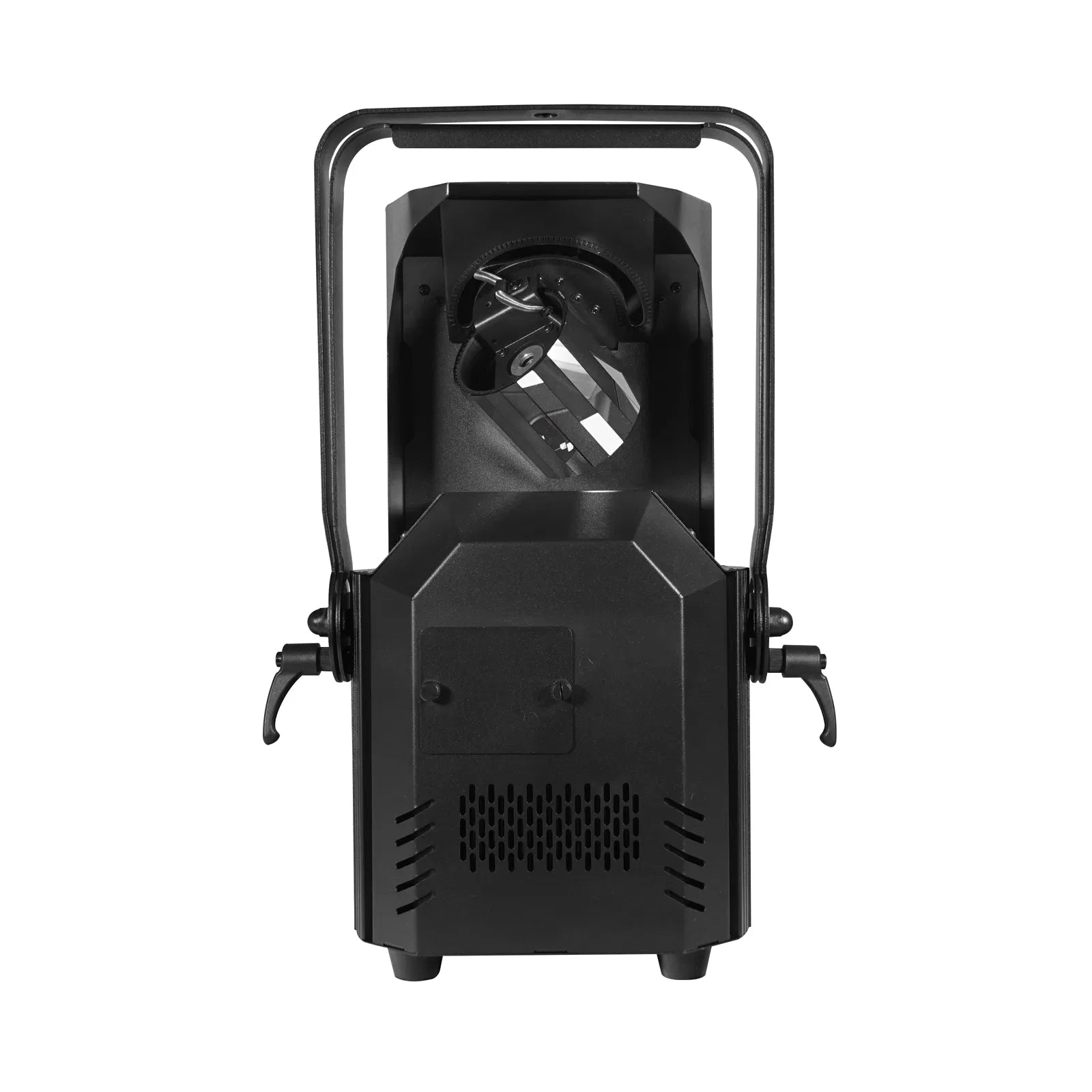

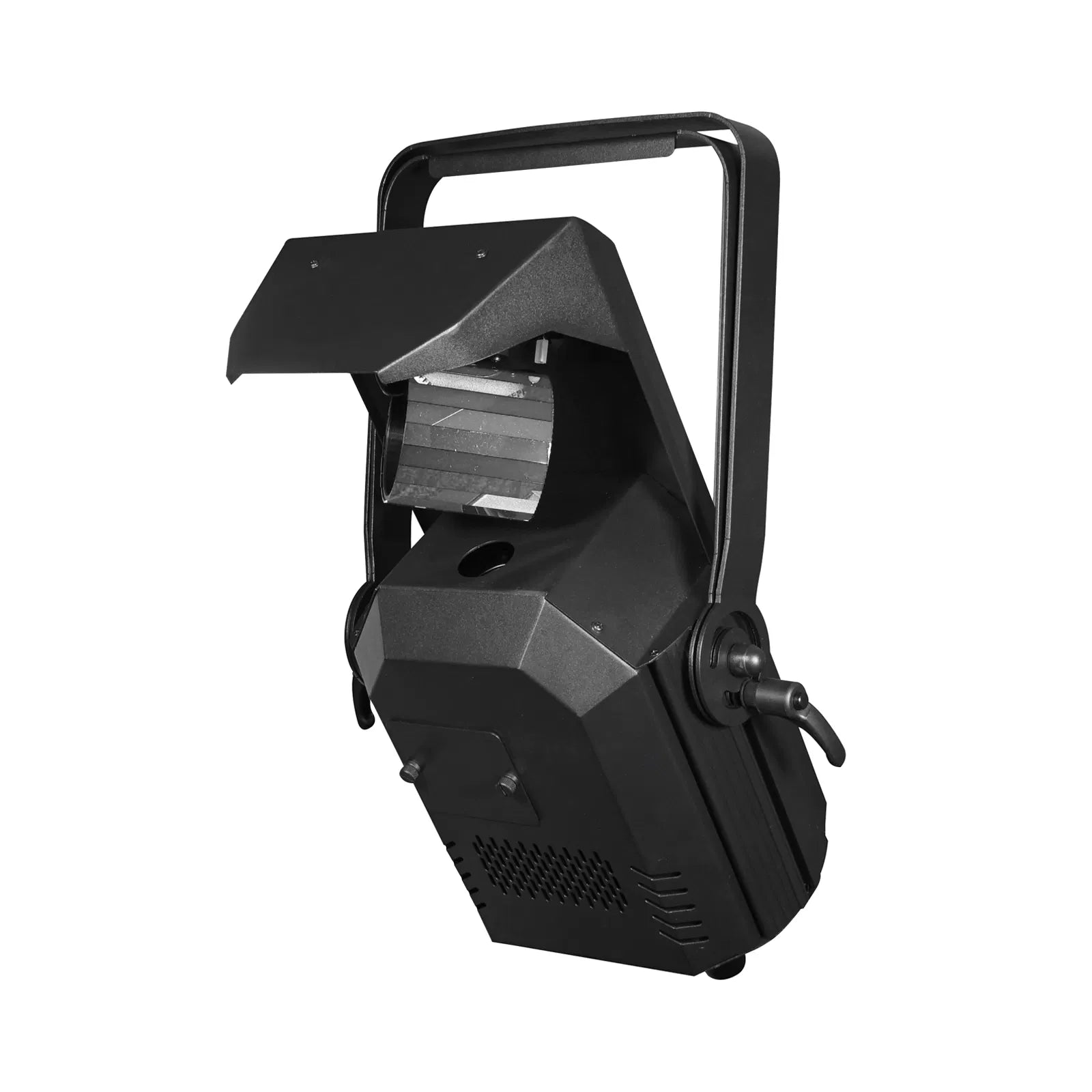

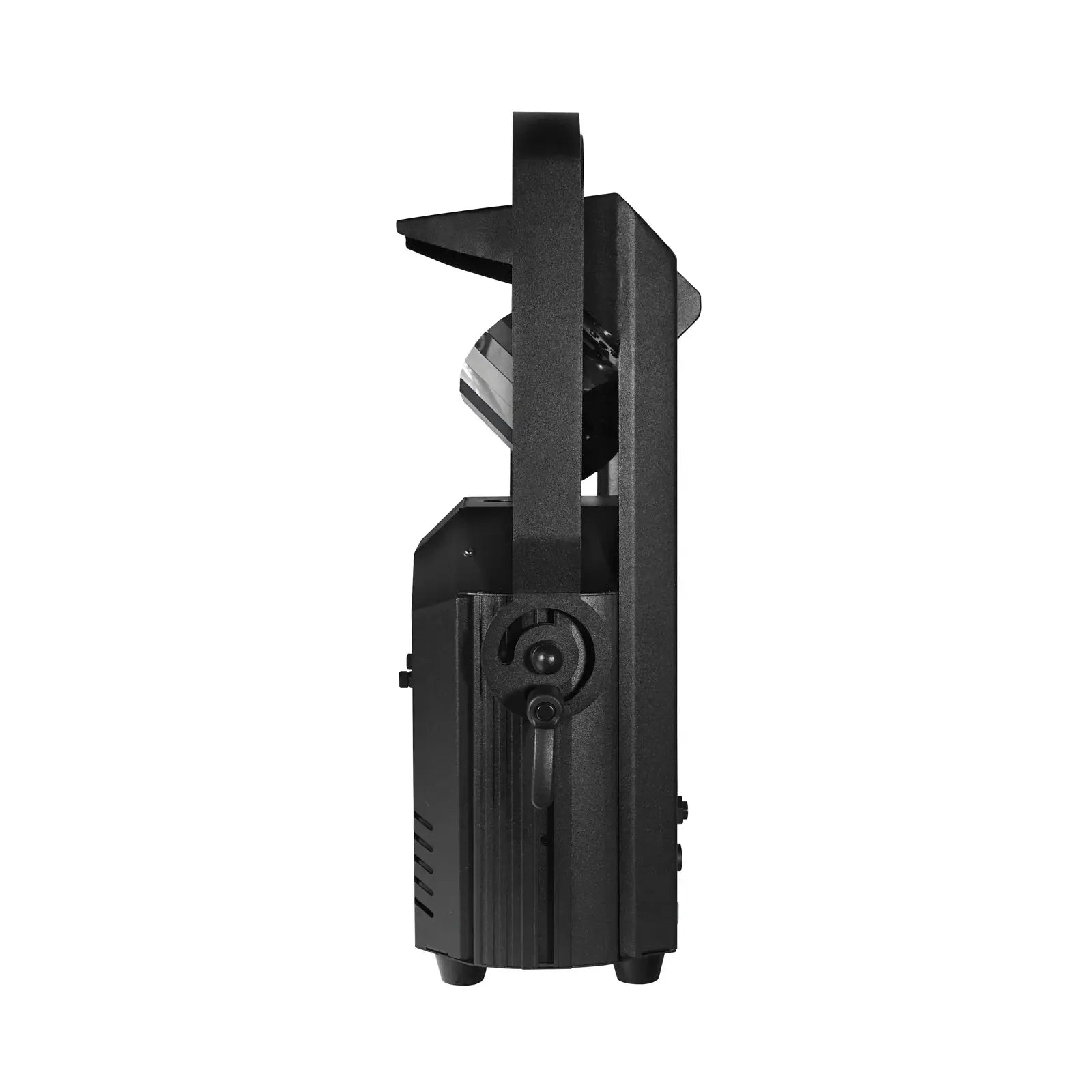

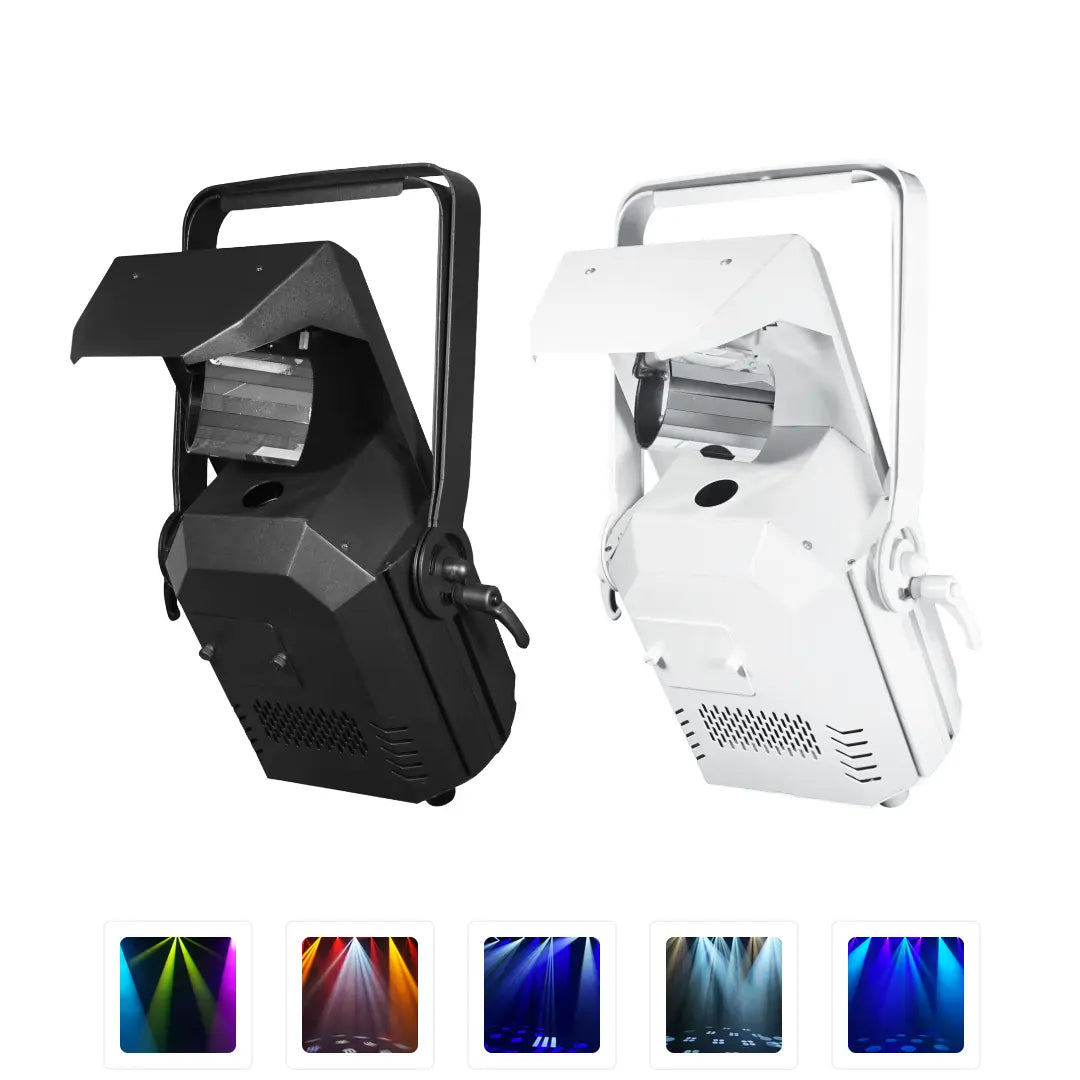

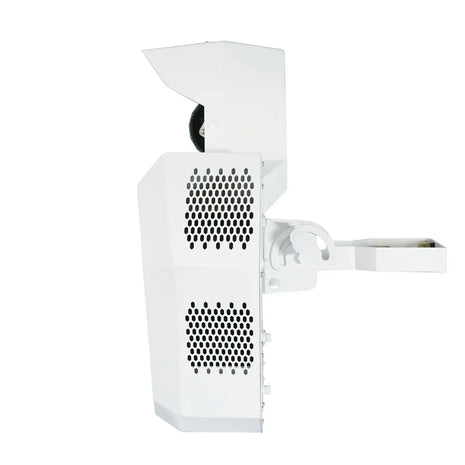

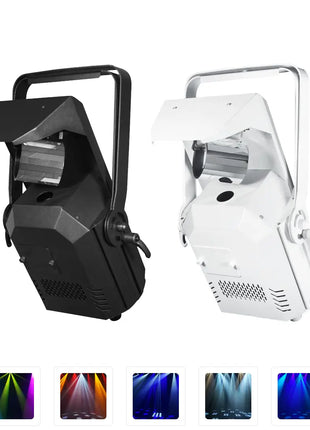

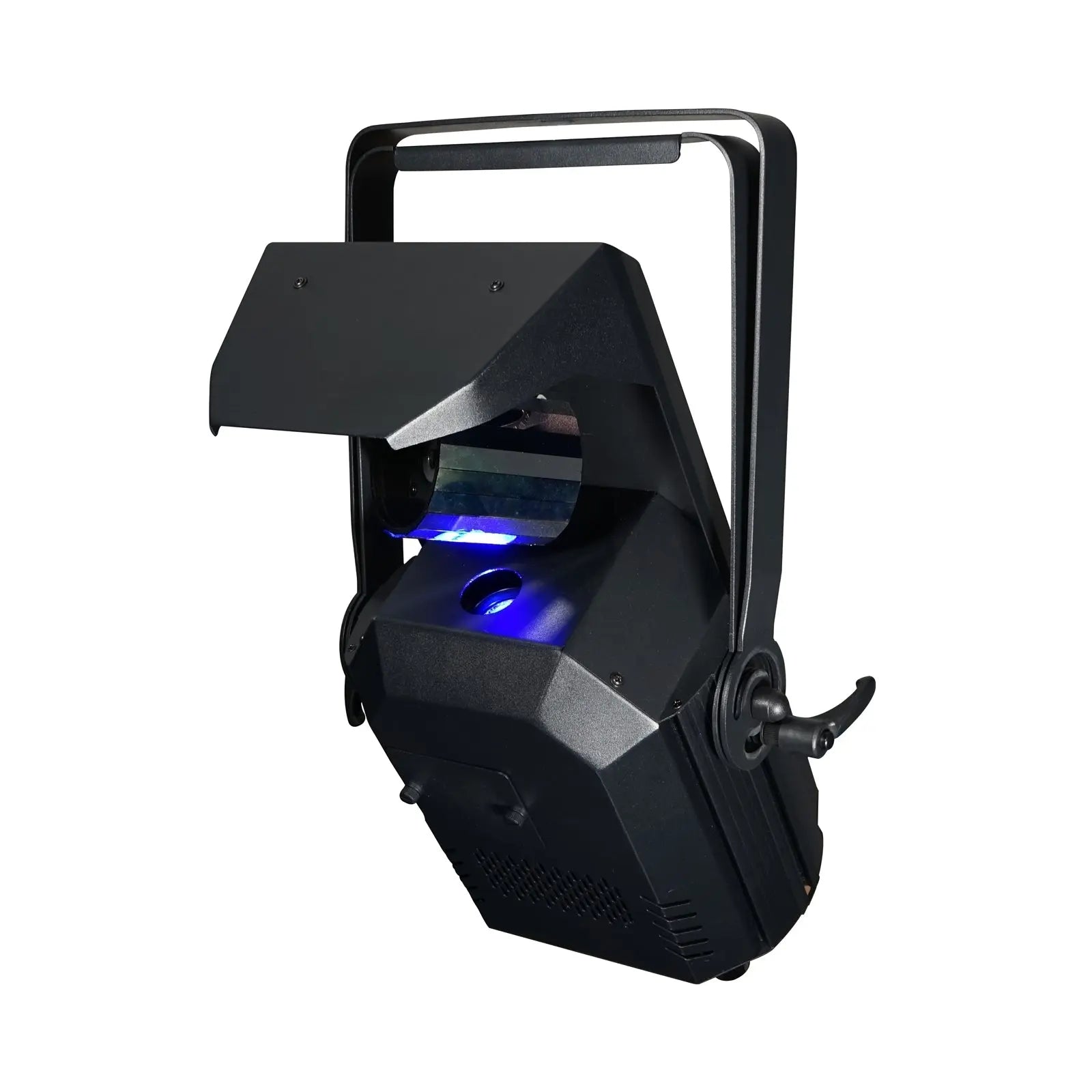

Equinox Helix Roller XP - LED Barrel Effect Projector
The Equinox Helix Roller XP is a powerful LED barrel effect projector designed to deliver long-distance, high-impact gobo projections. It features a 150W LED, motorized focus, and a rotating barrel, along with interchangeable gobos and a separate color wheel.
Key Features
150W Cool White LED (8000K): Provides high output and bright projections.
Motorized Focus: Ensures crisp and clear gobo projections.
Rotating Barrel: Allows for wide area coverage and dynamic effects.
8 Interchangeable Gobos: Provides versatile pattern projections.
9 Colours + Open Colour Wheel: Offers a wide range of color options.
Additional 11-Piece Gobo Pack Included: Expands gobo selection for various events.
Smart Programming: Enables manual or automatic color additions to selected gobos.
Long-Distance Projection: Superior optics for impactful beams.

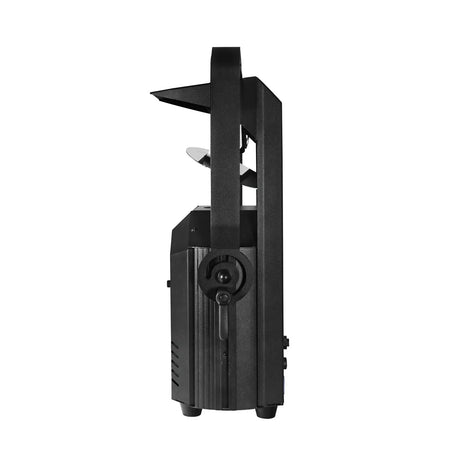

Linkable with Helix Scan XP and Helix XP: For synchronized light shows.
Multiple Control Options: DMX, Auto, Sound-Active, Master/Slave modes, and optional CA 8 controller.
Pan and Tilt Movement: 180° pan and 360° tilt for dynamic effects.
0-100% Dimming and Variable Strobe: For adjustable intensity and strobe effects.

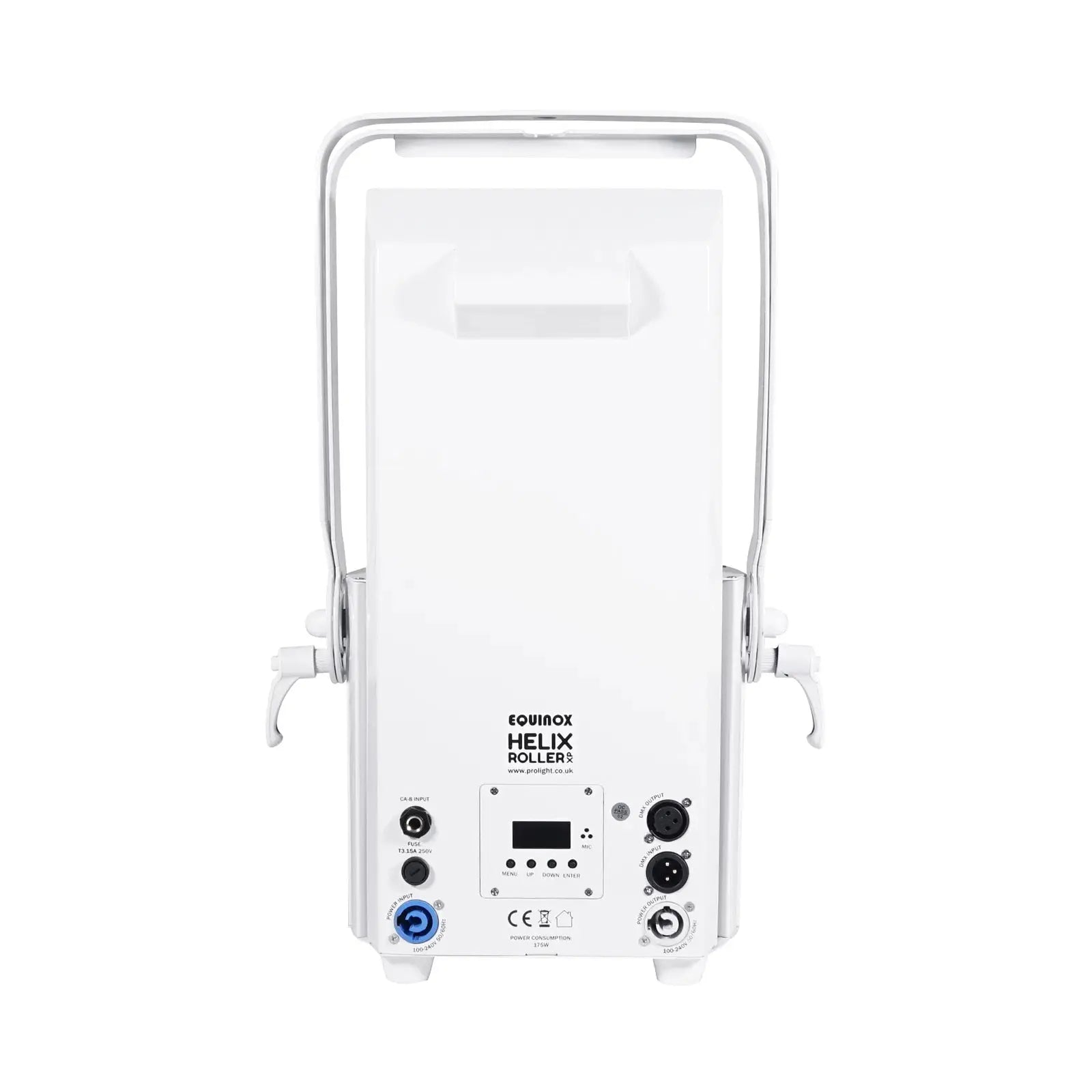

LED Display with 4 Push Button Menu: For easy configuration.
PowerTwist Input/Output: For secure power connections.
3-Pin XLR Input/Output: For DMX connectivity.
Fan Cooled: Ensures reliable operation.
Bracket for Multiple Rigging or Floor Standing Applications: For flexible installation.
Technical Specifications
LED: 1 x 150W Cool White LED (8000K)
Beam Angle: 10.2°
Lux: 9645 Lux @ 2m
CRI: 72
Refresh Rate: 5kHz
Focus: Motorized
Gobo Wheel: 8 rotating, replaceable gobos + 11 extra gobos.
Colour Wheel: 9 colours + open
DMX Channels: 29 or 11 selectable
Pan: 180°
Tilt: 360°
Dimming: 0 - 100%
Strobe: Variable
What's in the box:
Equinox Helix Roller XP LED Barrel Effect Projector
11 piece additional gobo pack.
Power Cable
Mounting Bracket
User Manual
