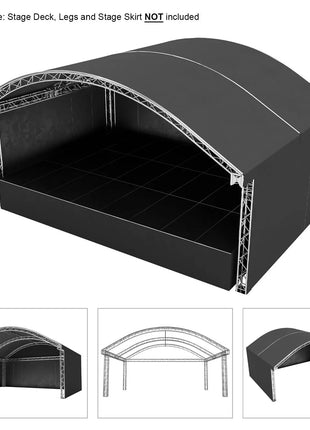

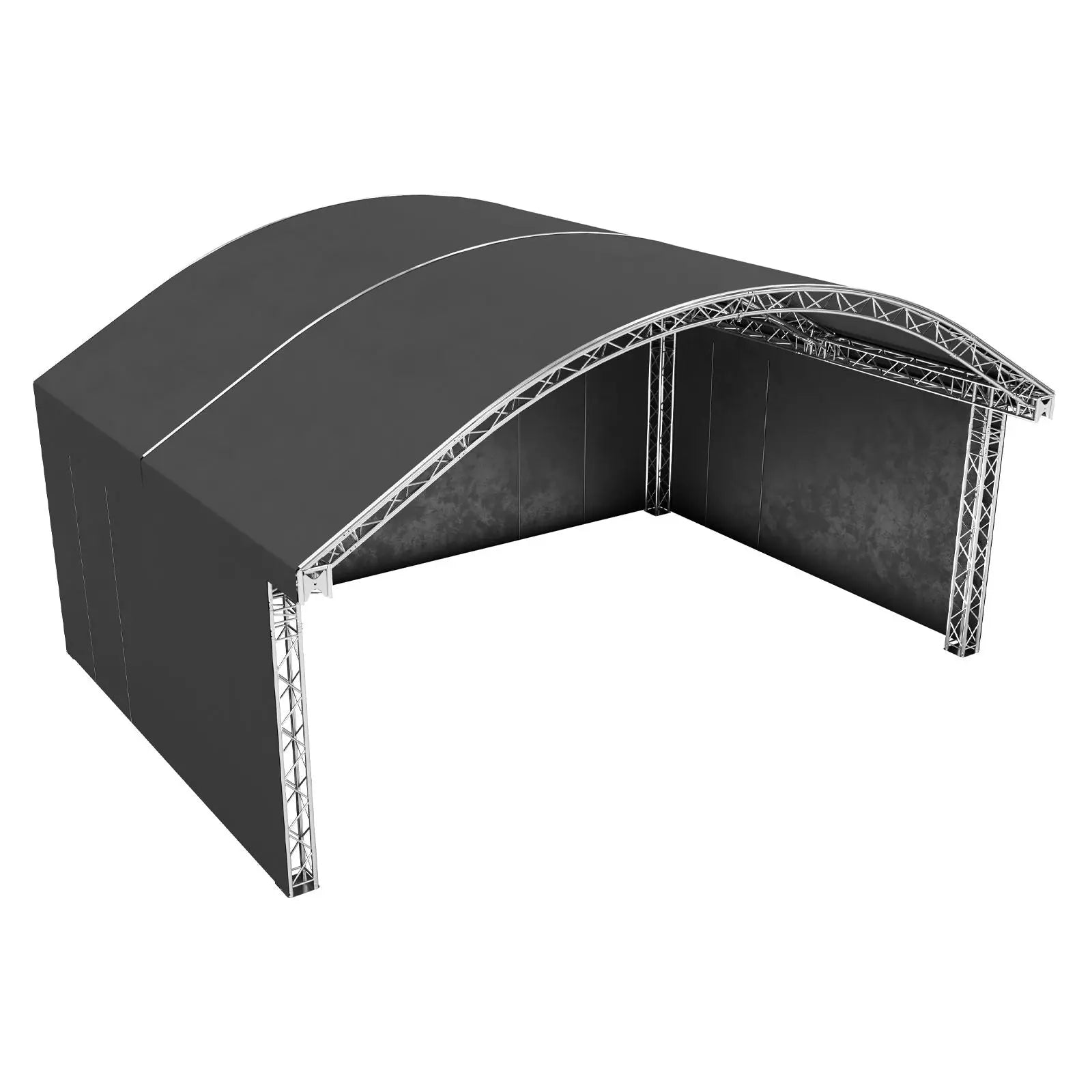

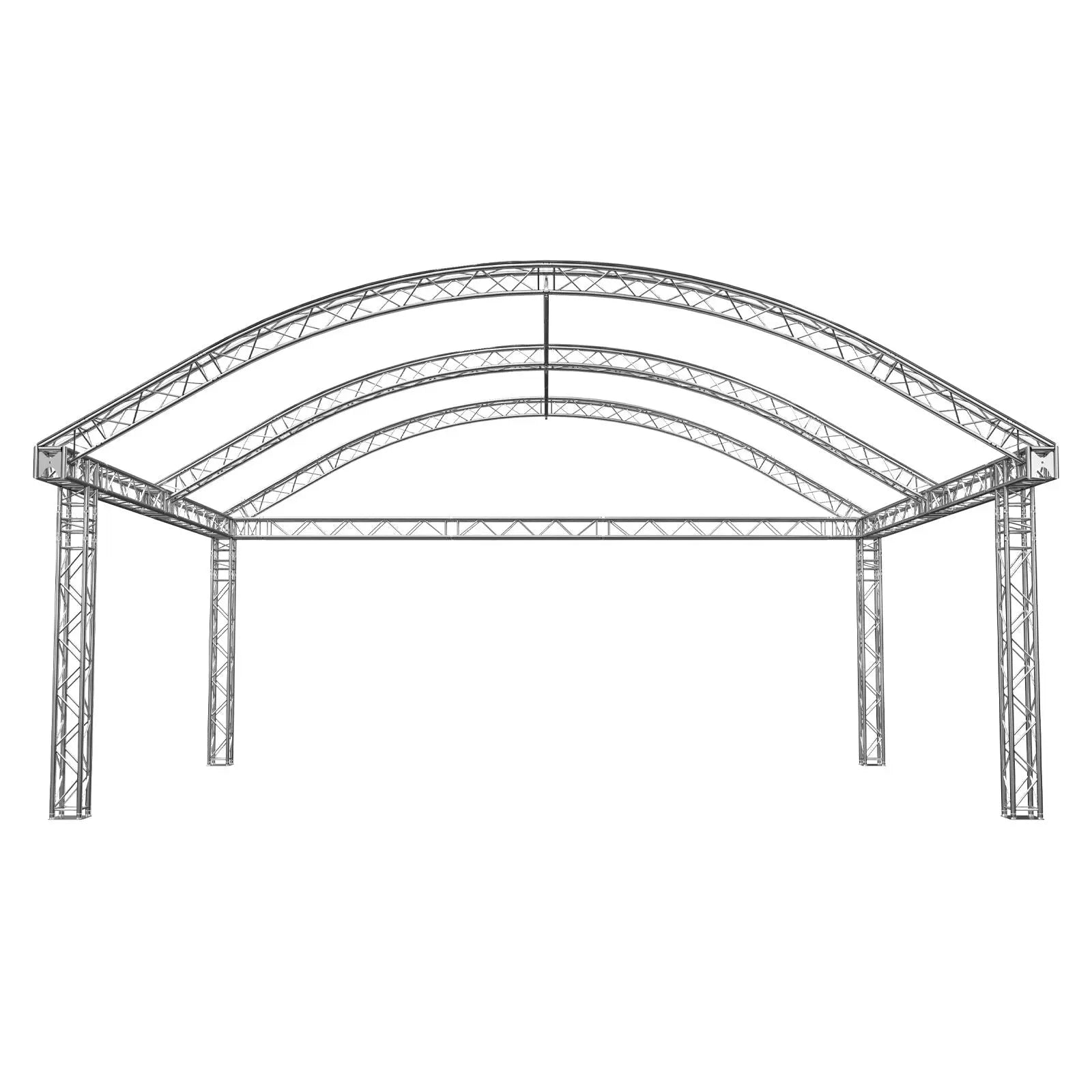

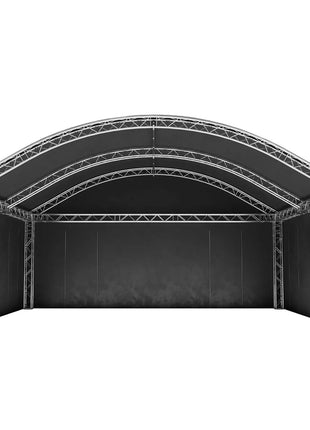

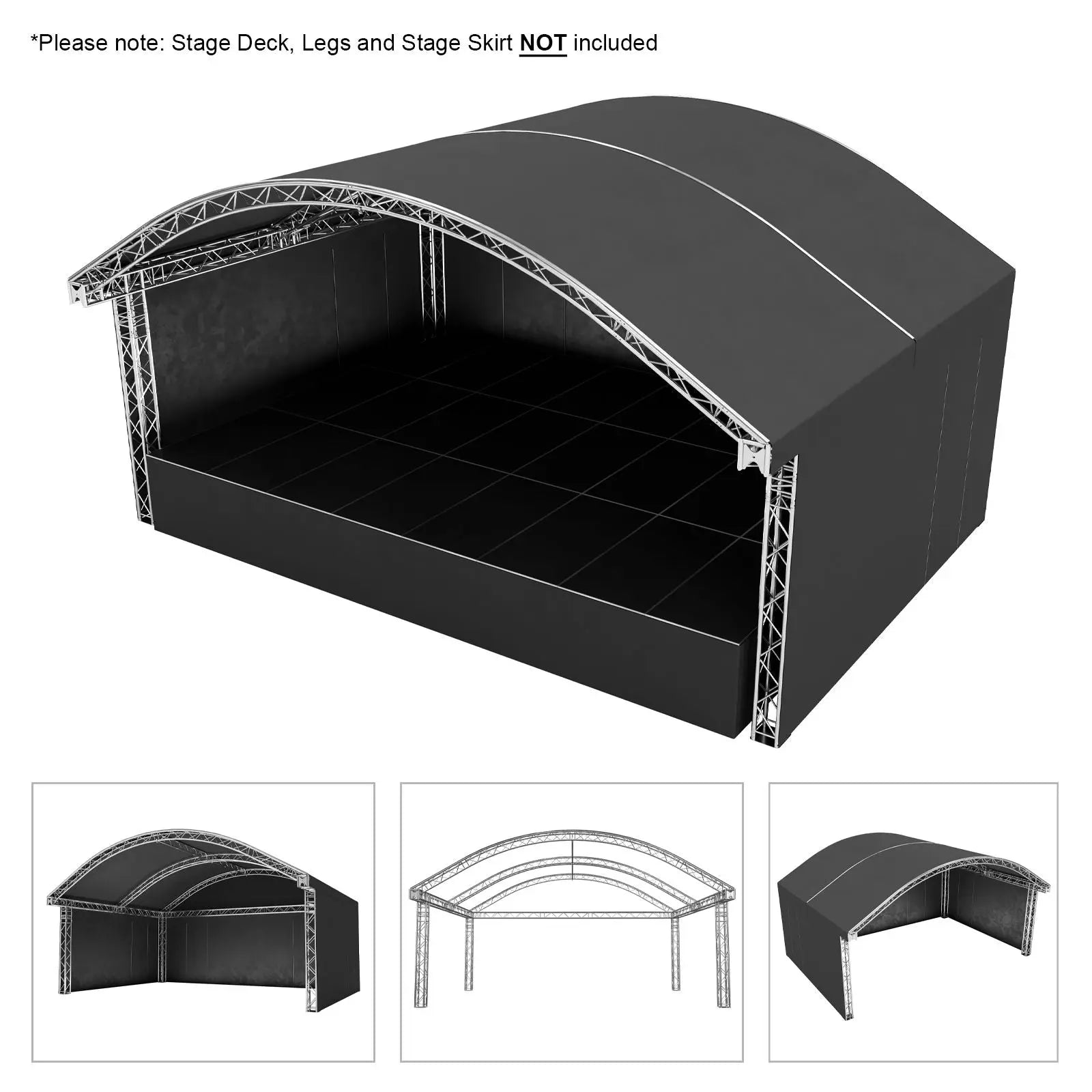

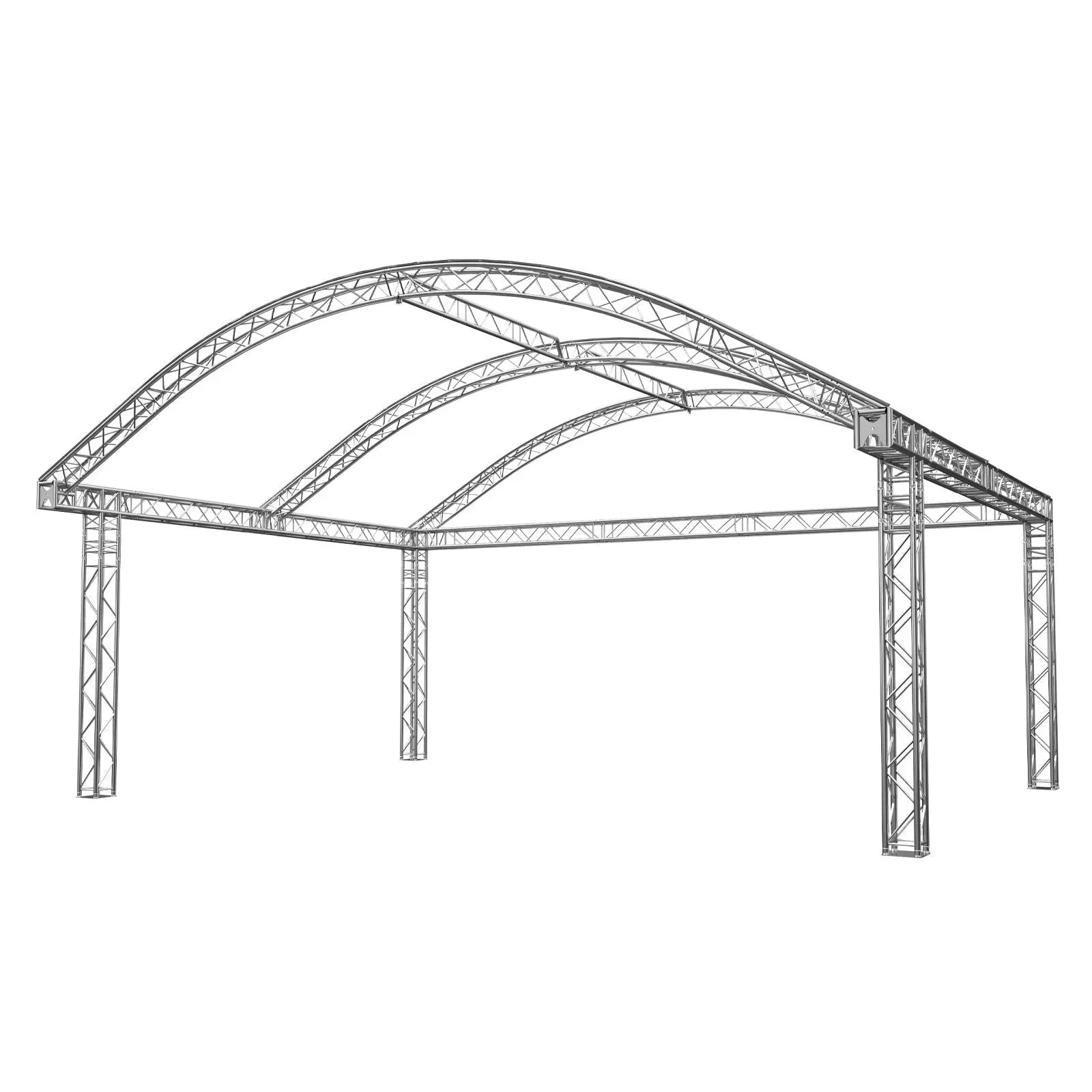

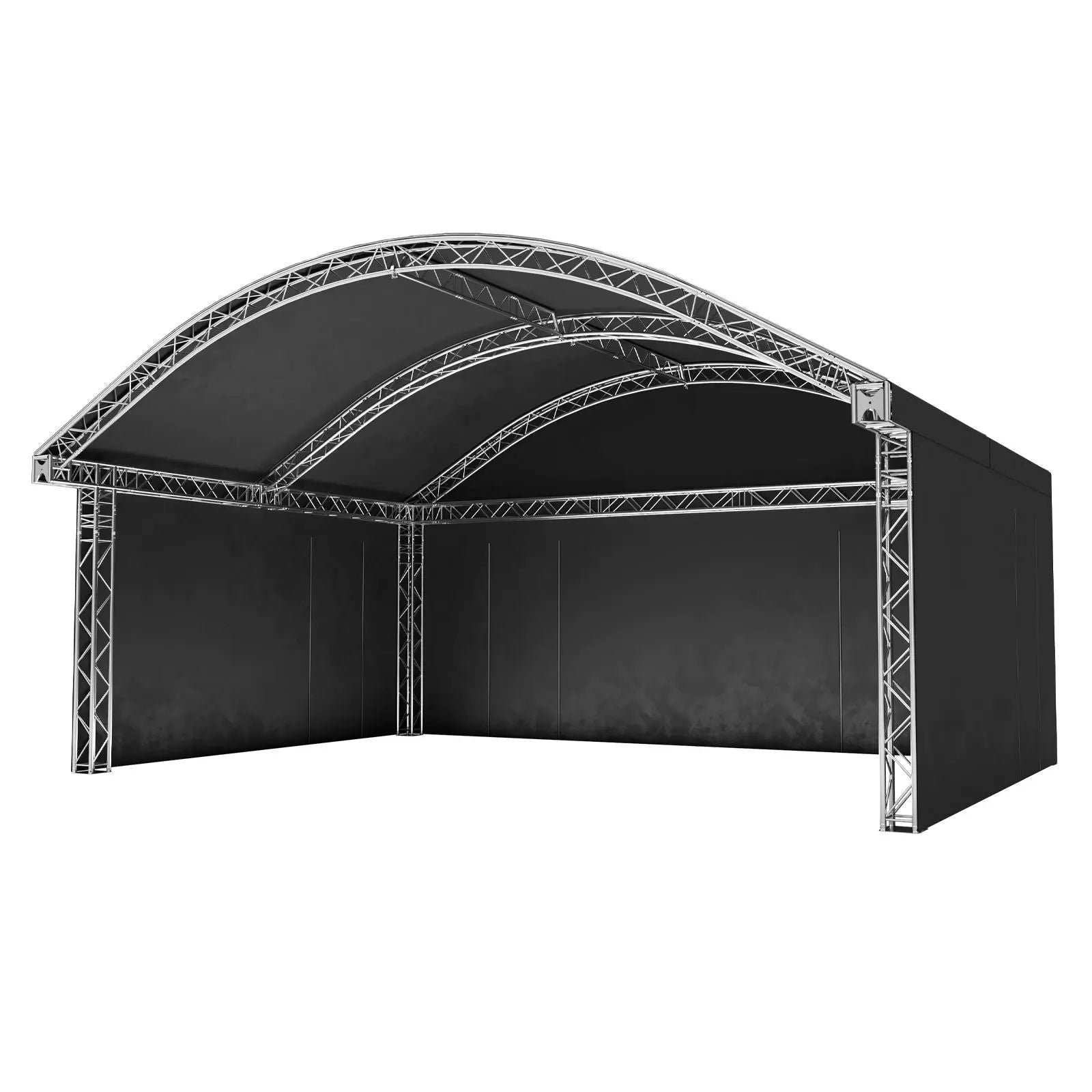

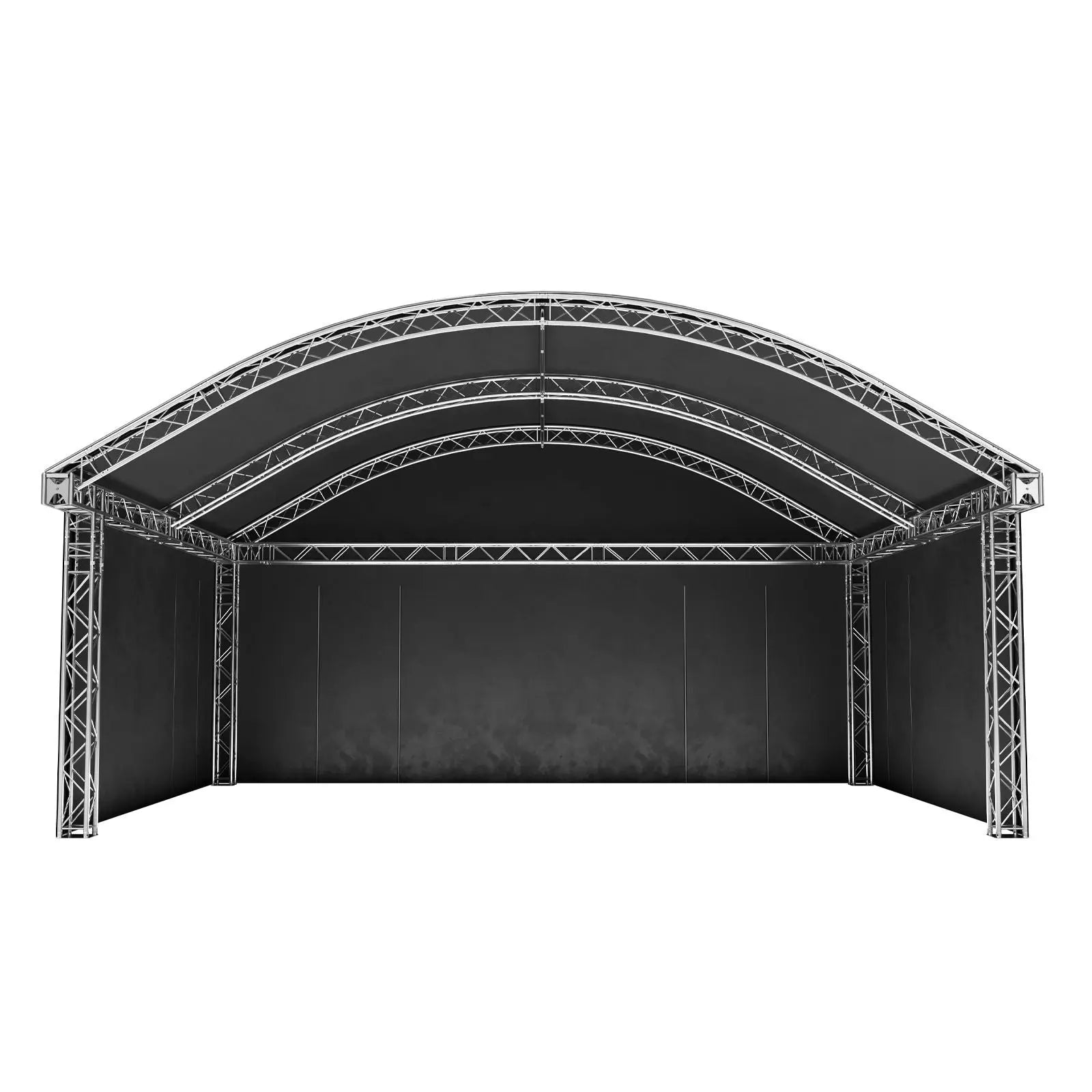

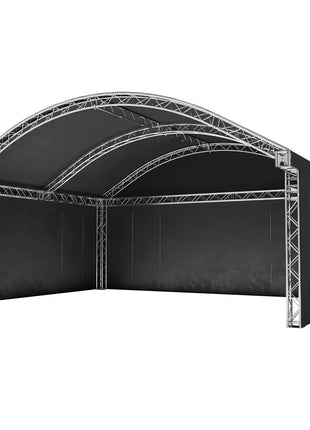

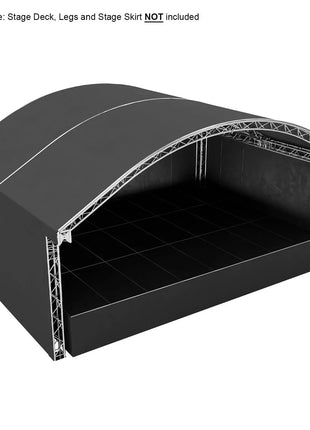

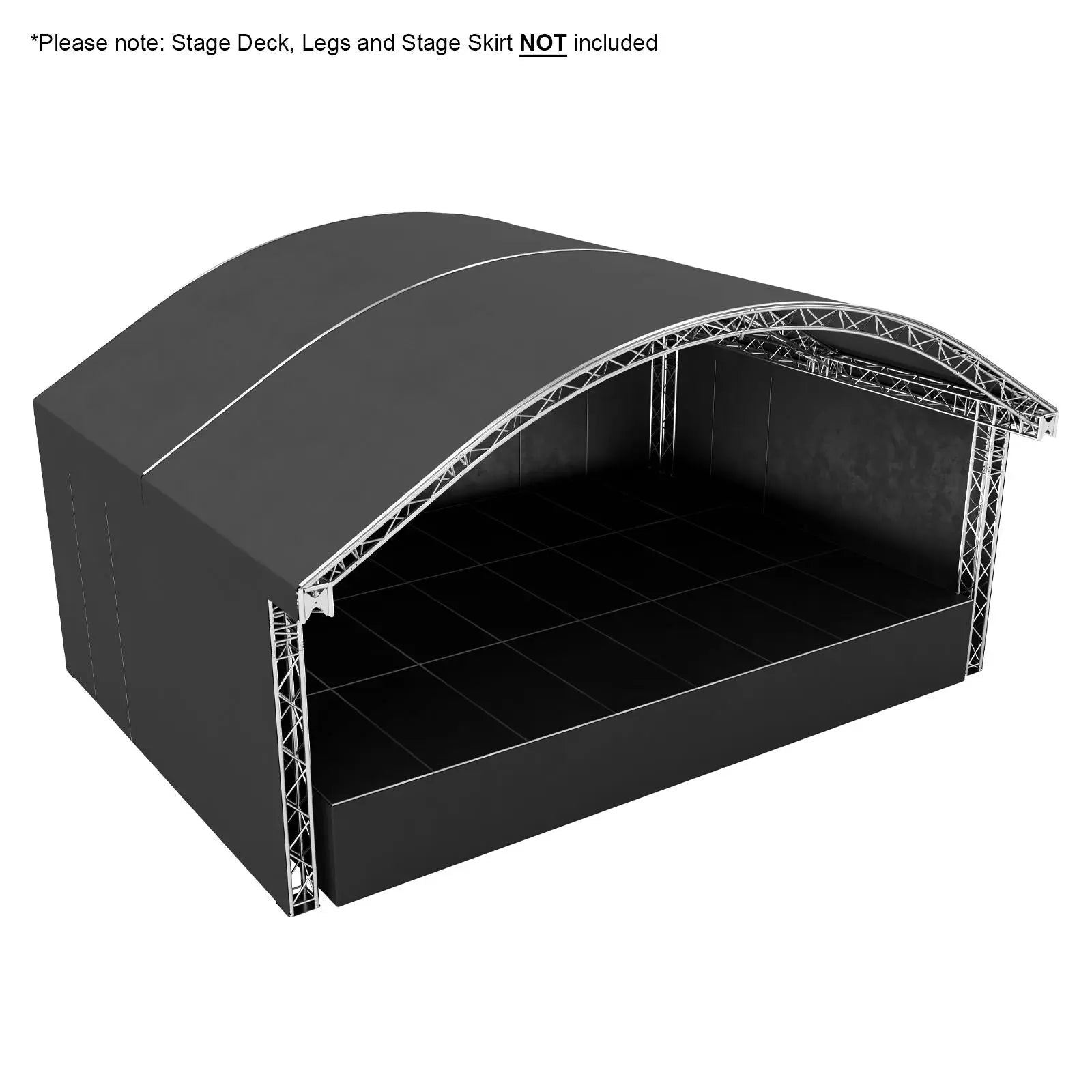

The round arch roof GT-RBB 8 x 6 is a quick and easy solution for small to medium sized events. The specially developed corner pieces enable the stage roof to be erected without further corner bracing and steel wires. The front corners are each equipped with a load bearing point for PA systems up to 250kg per side. In general loads of up to 1400kg could be evenly distributed across the full system. All arch parts are equipped with a keder rail which allows the roof tarpaulin to be inserted easily. The side panels are made of gauze with a total of 4 door cutouts. These panels can be taken down or rolled up and secured in the event of strong winds or other application where they are not required. Additional ballast options can be implemented. Structural report provided with system The arched stage can also be built as a 6 x 4m variant (additional truss and tarpaulins are required) All straight runs can be built using standard F34 trusses Additional ballast options can be implemented the minimum ballast is 4000kg Maximum roof load: up to 1.9 tons (1400kg + 500kg audio) Truss system: F34
