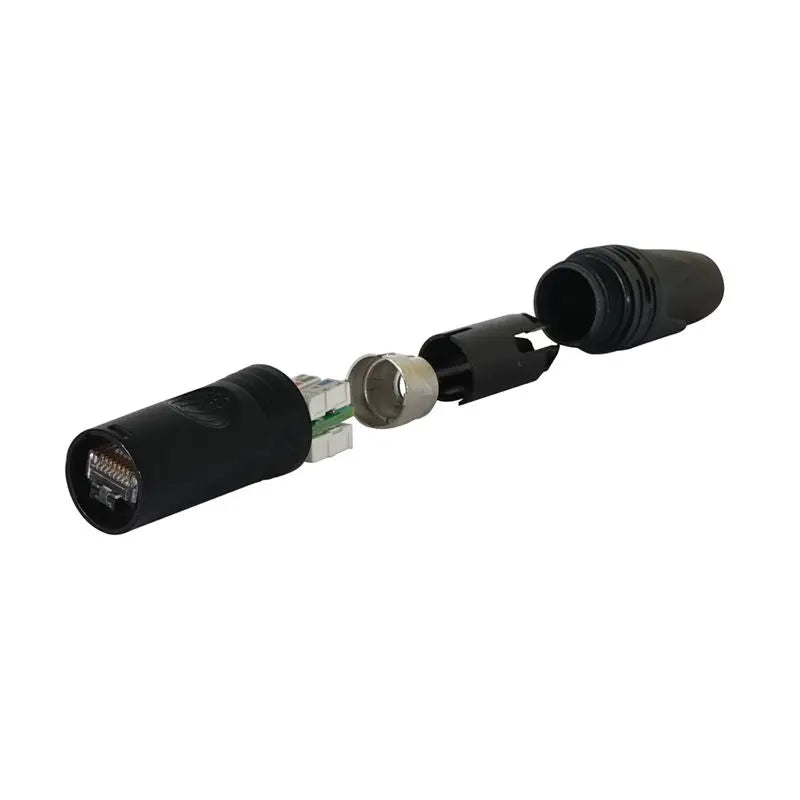

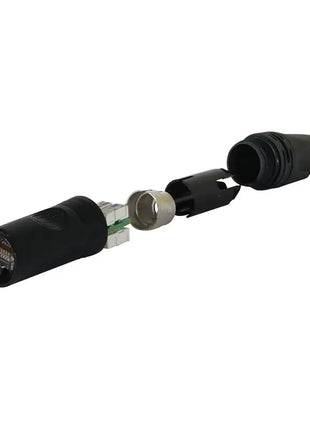

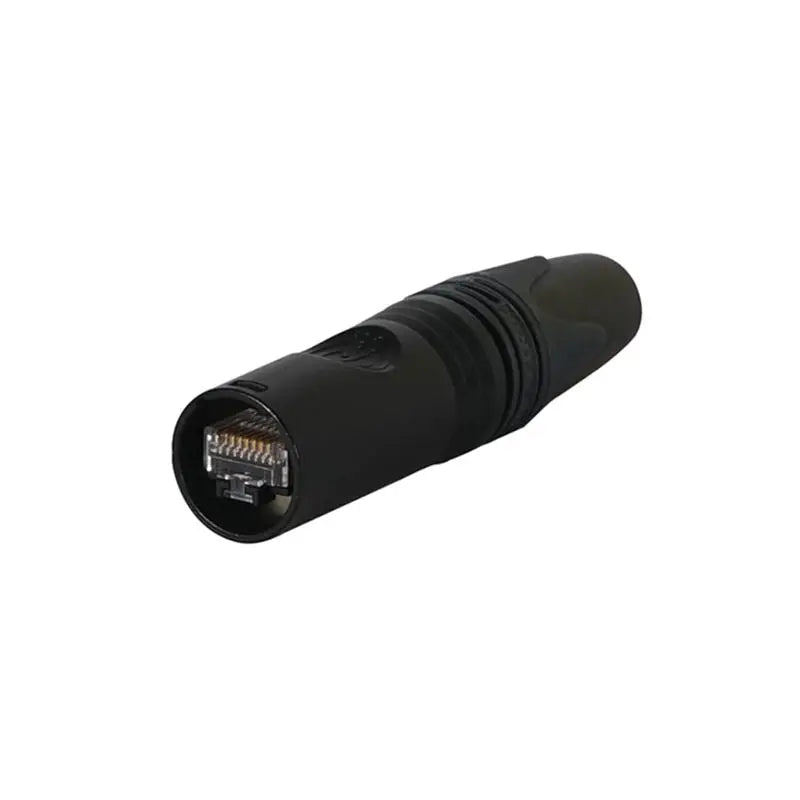

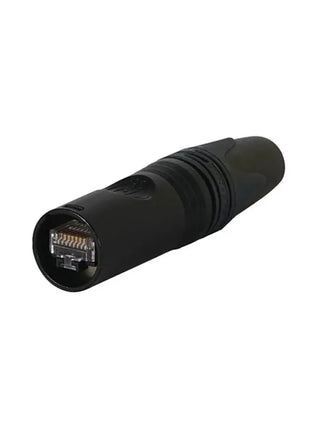

A nickel plated etherCON CAT6A connector self-termination for insulation diameter ≤1.1mm. The set NE8MX6-B consists of a cable plug carrier offering a robust metal shell proven Neutrik chuck-type strain relief and a CAT6A compliant RJ45 plug carrier offering a robust metal shell proven Neutrik chuck-type strain relief and a CAT6A compliant RJ45 plug. The set is suitable for a cable diameter range of 7mm to 9.5mm and wire gauge of AWG24/1 - AWG22/1 (solid) or AWG24/7 - AWG22/7 (stranded). Please note: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B. If the insulation diameter is =1.1mm please refer to CONN273. Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2PoE++ compliant according to 802.3bt Type4 IP65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W Rugged latch lock system million fold proven Intermateable with the existing etherCON CAT5 range Unique Neutrik chuck-type strain relief
