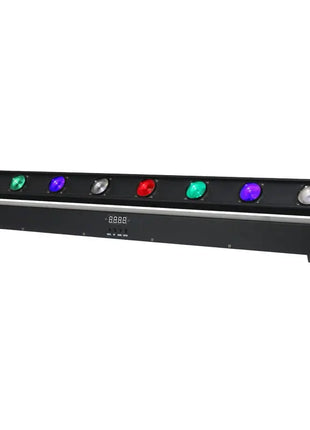

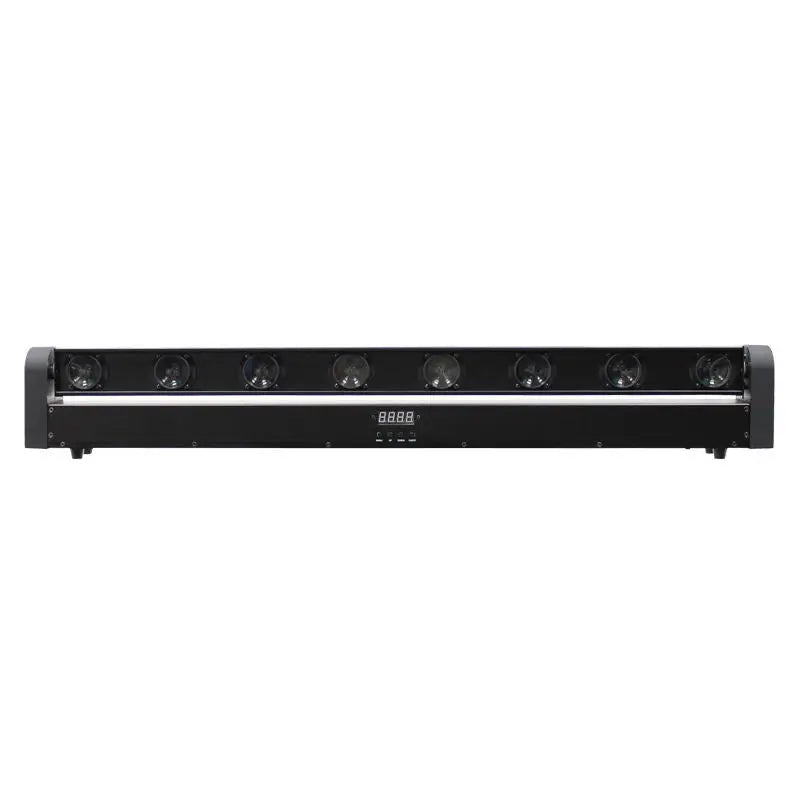

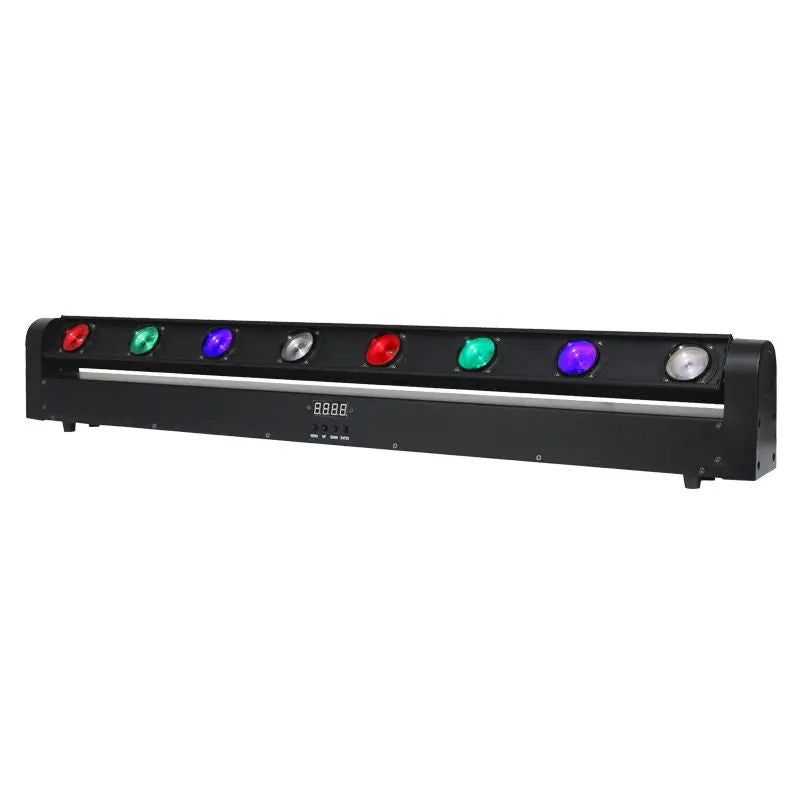

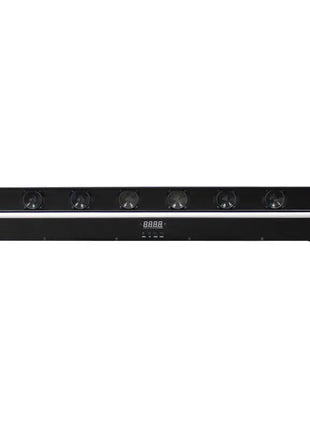

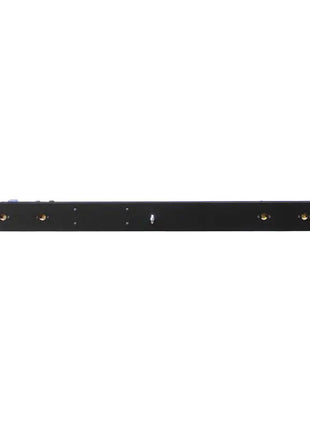

Equinox Swing Batten | Motorised 8 x 10W RGBW Moving Beam Bar
Dynamic motion, razor-sharp beams. The Swing Batten (EQLED033) features eight 10W CREE Quad-colour LEDs (RGBW), each producing a tight 4-degree beam for maximum aerial impact. With a motorized tilt of 220 degrees, the bar can sweep across a dance floor or stage, creating synchronized "fan" and "scissor" effects. Each of the eight LEDs is individually controllable, allowing for complex pixel-mapping, sequential chases, and intricate patterns. Despite its high-intensity output—reaching 16,100 Lux at 2 meters per LED—the fixture is convection cooled, ensuring completely silent operation and reducing the risk of dust buildup inside the unit.
Why Choose the Equinox Swing Batten?
-
High-Intensity CREE LEDs: Eight 10W RGBW LEDs provide incredible brightness and punchy color saturation that excels in hazy environments.
-
Ultra-Narrow 4-Degree Beams: Tight beam optics ensure that each "needle" of light remains defined even over long distances.
-
220-Degree Motorised Tilt: Smooth and rapid motorised movement allows for sweeping aerial effects and dynamic stage coverage.
-
Individual Pixel Control: Every LED can be mapped independently via DMX, enabling creative chasing effects and custom light patterns.
-
Silent Convection Cooling: No internal fans mean 100% silent operation, making it ideal for quiet venues or theater applications.
-

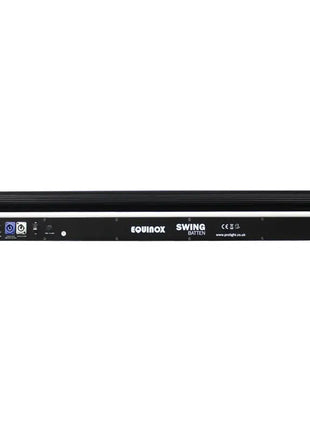

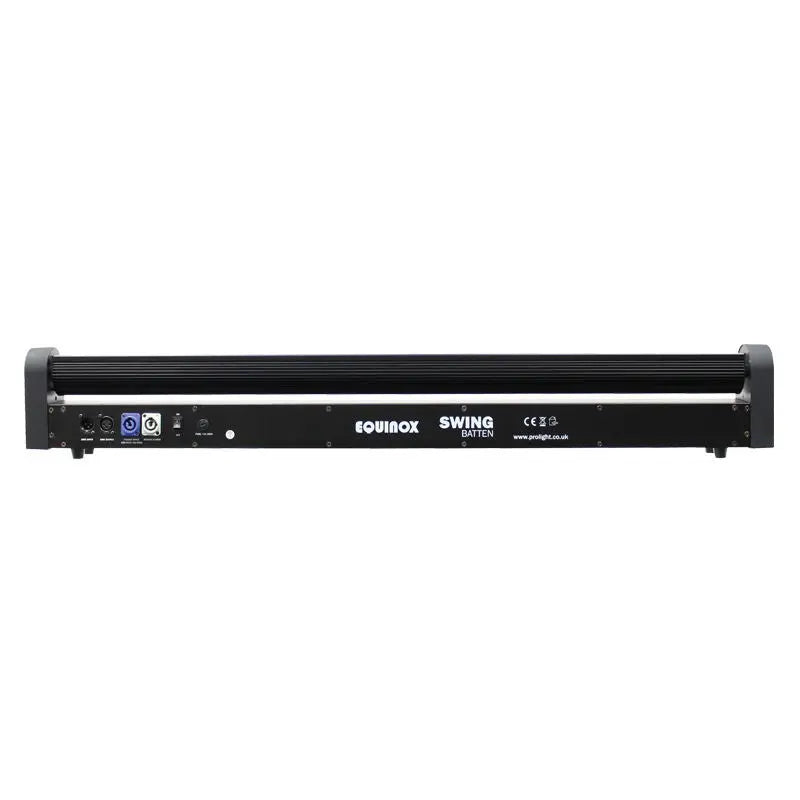

Pro-Grade Connectivity: Equipped with PowerCON input/output for easy power linking and 3-pin XLR for reliable DMX data transmission.
-

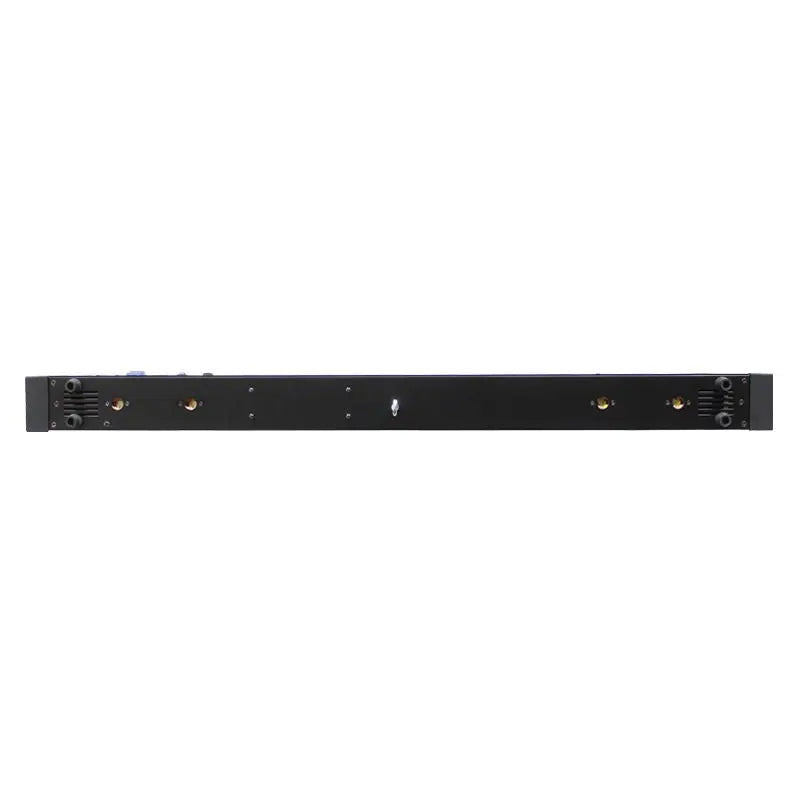

Fast Rigging System: Includes quick-release Omega clamps for secure and rapid mounting to trussing or lighting stands.
-
Versatile Operation: Supports 6, 12, or 16 DMX channels, alongside automated, sound-active, and master/slave modes for various user levels.
Professional Build and Creative Effects
Precision Engineering The Swing Batten is built to withstand the rigours of the road while maintaining a sleek, low-profile design. The 400Hz refresh rate ensures a steady output, while the smooth 0–100% electronic dimming and variable strobe effects provide the tools needed for high-energy builds and transitions.

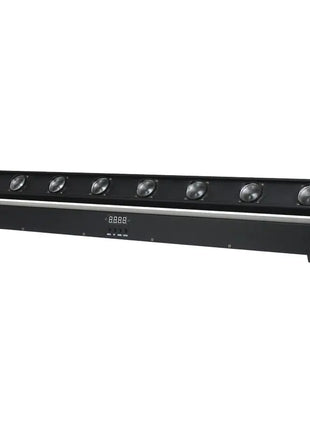

Seamless Integration Using the onboard 4-button LED menu, users can quickly set DMX addresses or select one of the many built-in programs. When used in multiples, the Swing Batten creates a massive wall of light that can be synchronized perfectly using the master/slave function, providing a high-end touring look for any mobile production.
Technical Specifications
-

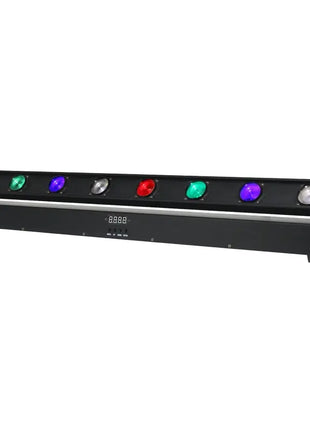

Light Source: 8 x 10W CREE Quad-colour LEDs (RGBW)
-
Lux @ 2m (per LED): 16,100 Lux
-
Beam Angle: 4 degrees
-
Tilt Movement: 220 degrees
-
DMX Channels: 6, 12, or 16 selectable
-
Refresh Rate: 400Hz
-
Cooling: Convection (Fanless)
-
Power Input/Output: PowerCON
-
Data Connection: 3-Pin XLR In/Out
-
Dimensions: 105 x 1065 x 80 mm
-
Weight: 7.5 kg
Frequently Asked Questions
Is this light loud when it moves? The motorised tilt is driven by high-quality stepper motors that are designed for smooth, quiet operation. Combined with the fanless convection cooling, the fixture is exceptionally quiet during use.
How do I mount this to a truss? The Swing Batten comes supplied with quick-release Omega clamps. These allow you to snap the fixture onto a truss or bar in seconds, ensuring a secure fit for both horizontal and vertical rigging.
Can I use this without a DMX controller? Yes. You can use the "Sound Active" mode, which triggers the beams and movement to the beat of the music, or select "Auto Mode" to run through a variety of pre-programmed light shows.
What is In The Box?
Why Buy From djkit?
At djkit, we recommend the Equinox Swing Batten for performers who want to add "big room" visual drama to their setup. It is a highly effective way to create movement and depth in your light show without the bulk of traditional moving heads. With our fast UK delivery and expert support, we ensure your lighting rig is as dynamic as your performance.
