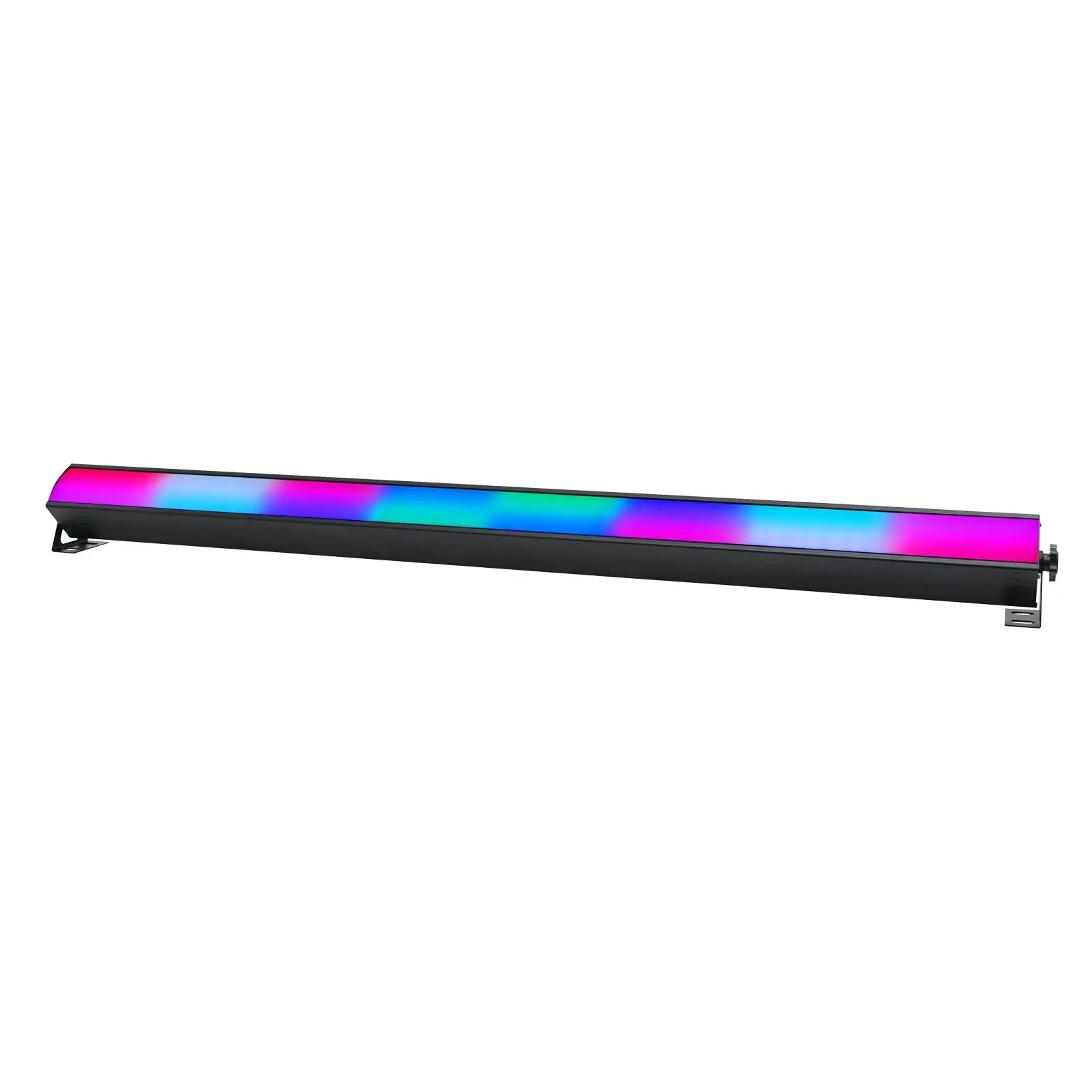

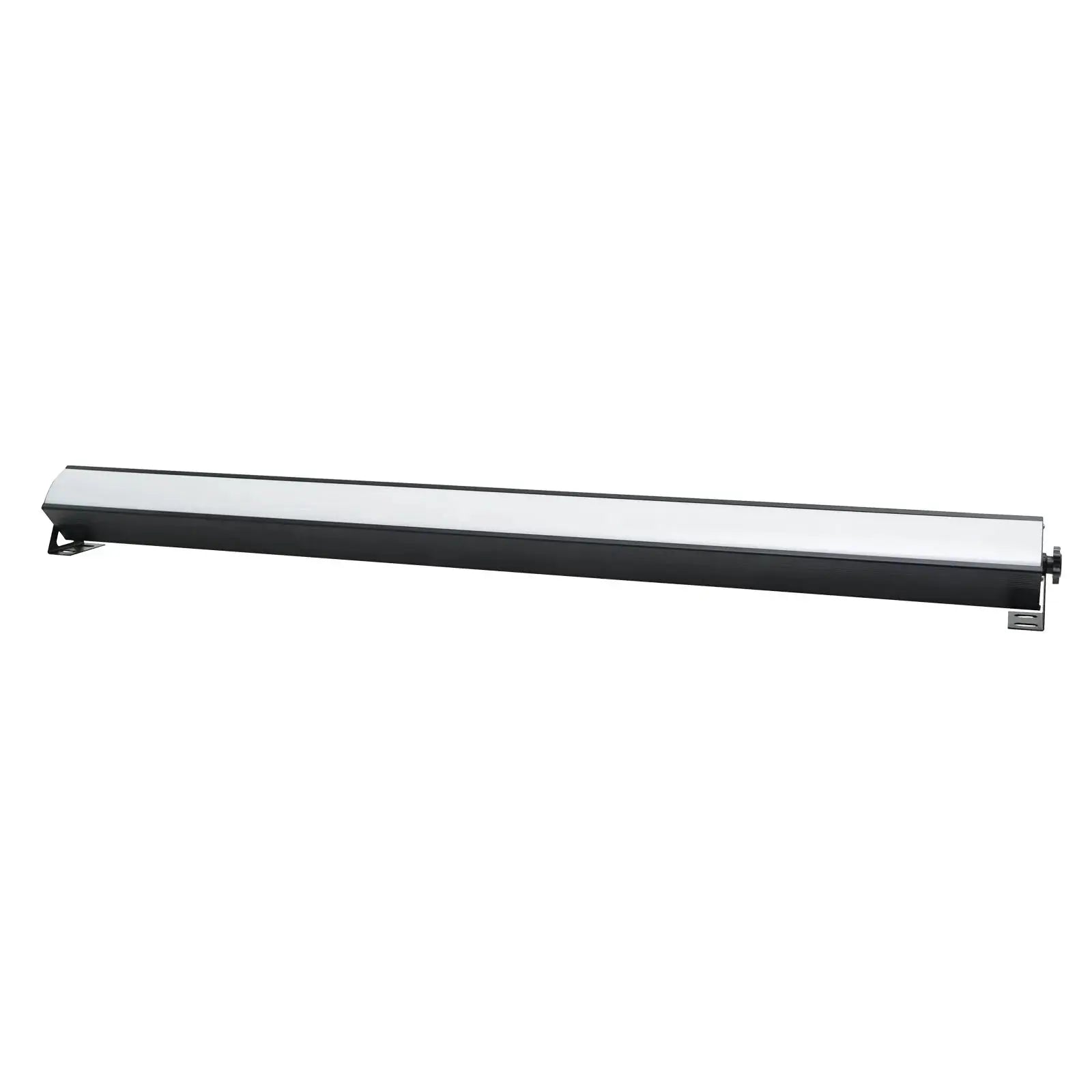

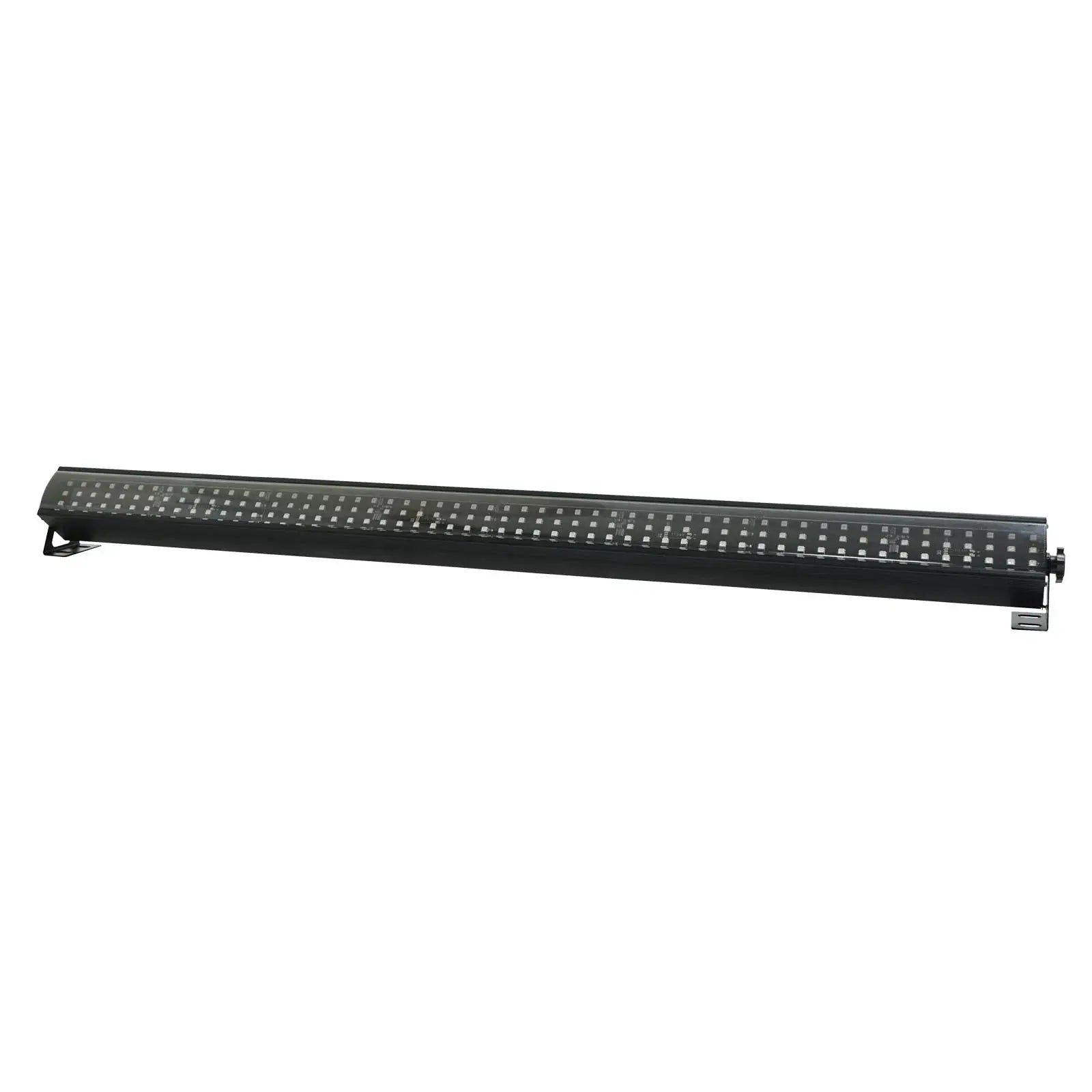

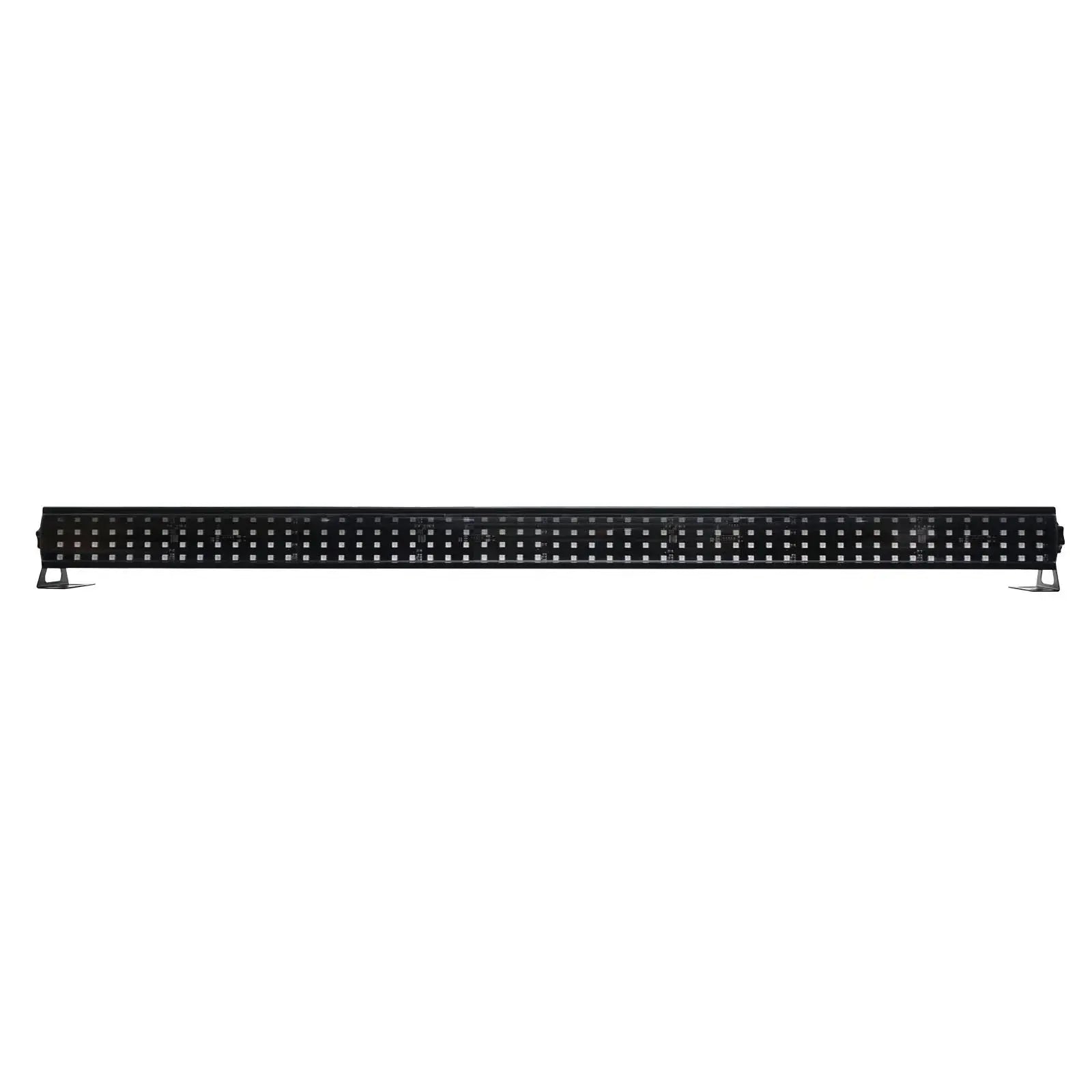

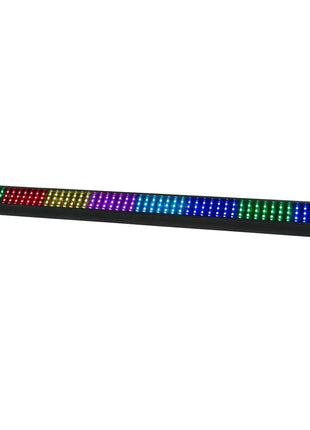

Equinox SpectraPix Batten

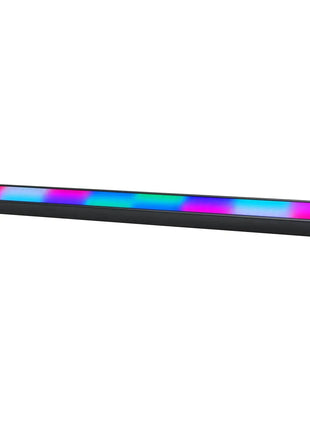

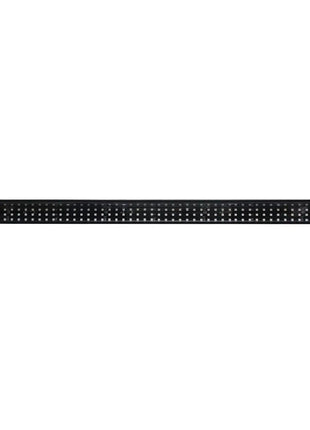

The Equinox SpectraPix Batten is a versatile and powerful LED lighting bar that delivers bold, vibrant colour and seamless blending. Packed with 224 tri-colour SMD 5050 RGB LEDs divided into 16 segments, this fixture provides extensive colour mixing capability for creating soft washes from a rich colour palette. Its standard milky frost effect front screen and an included clear front screen allow you to easily switch between a smooth wash and a sharp pixel effect, significantly expanding the unit’s versatility.

Key Features

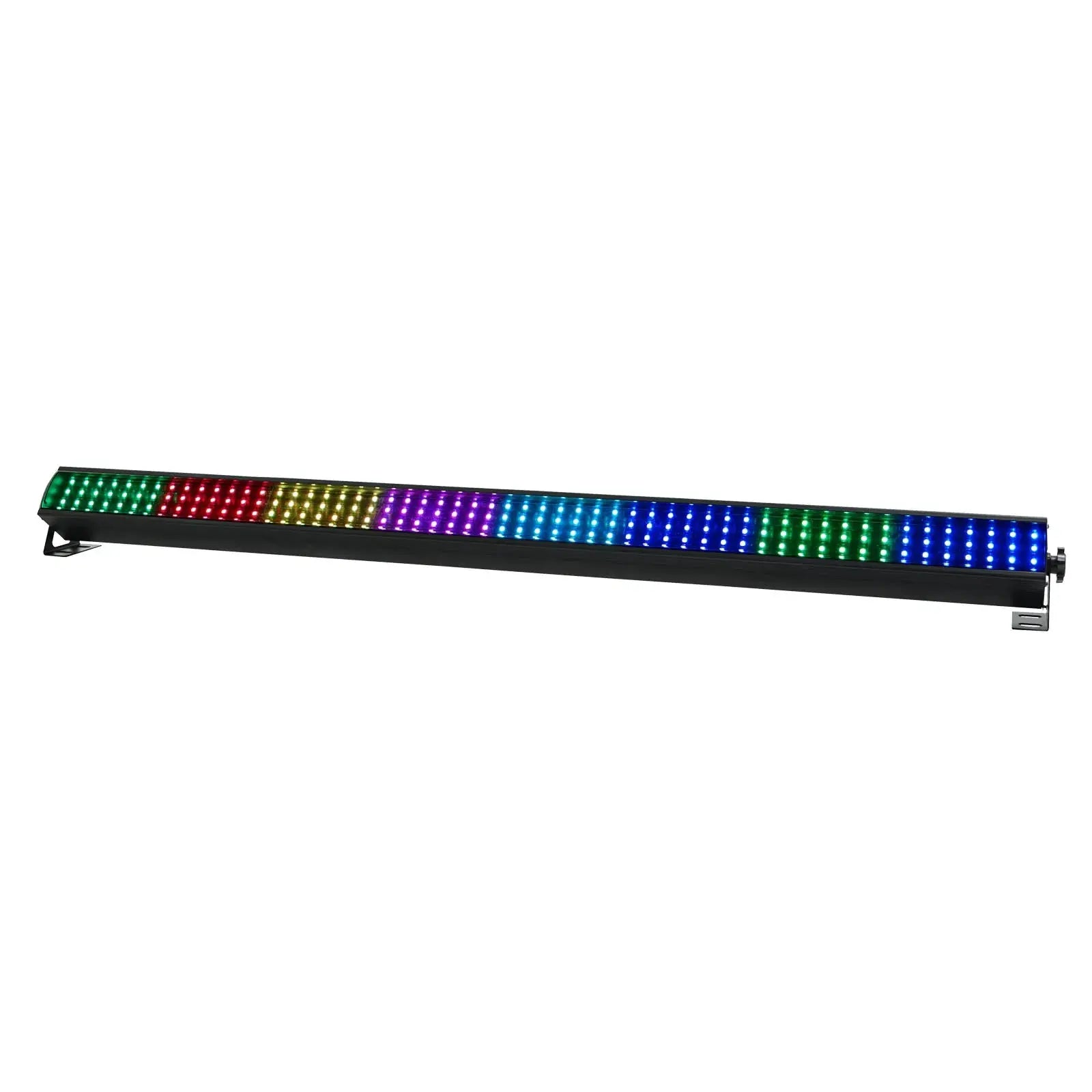

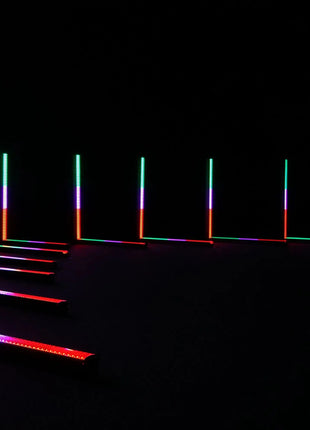

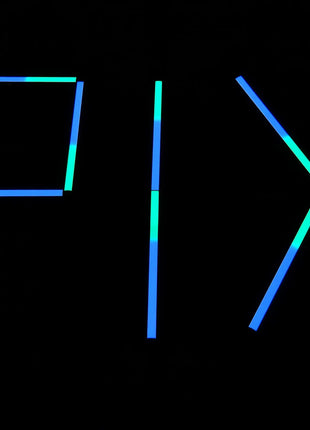

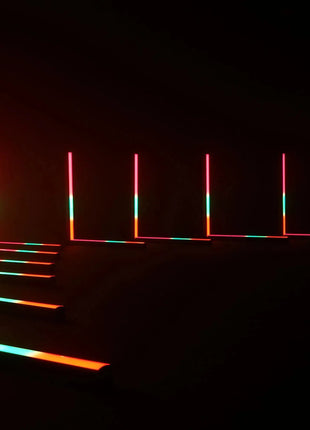

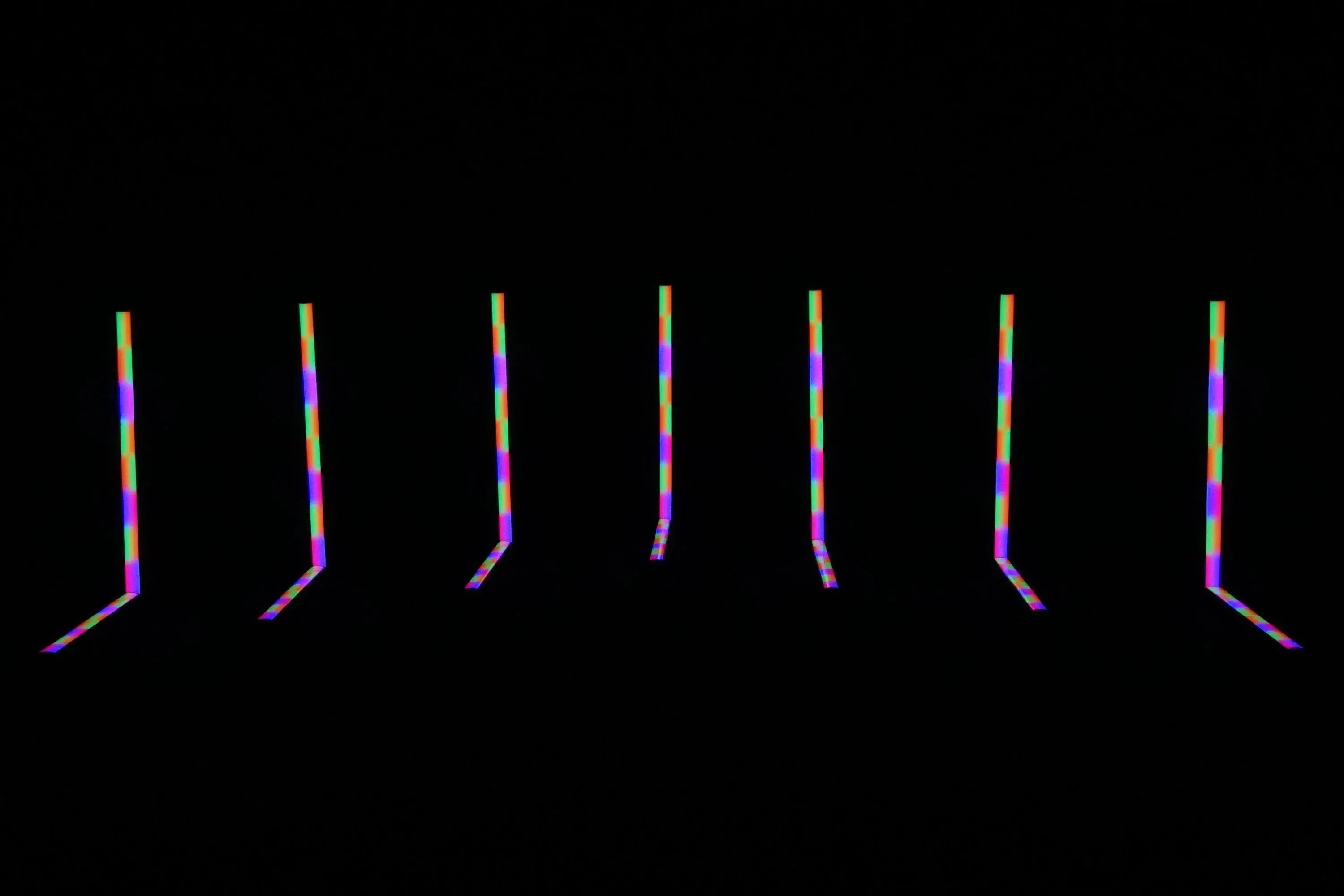

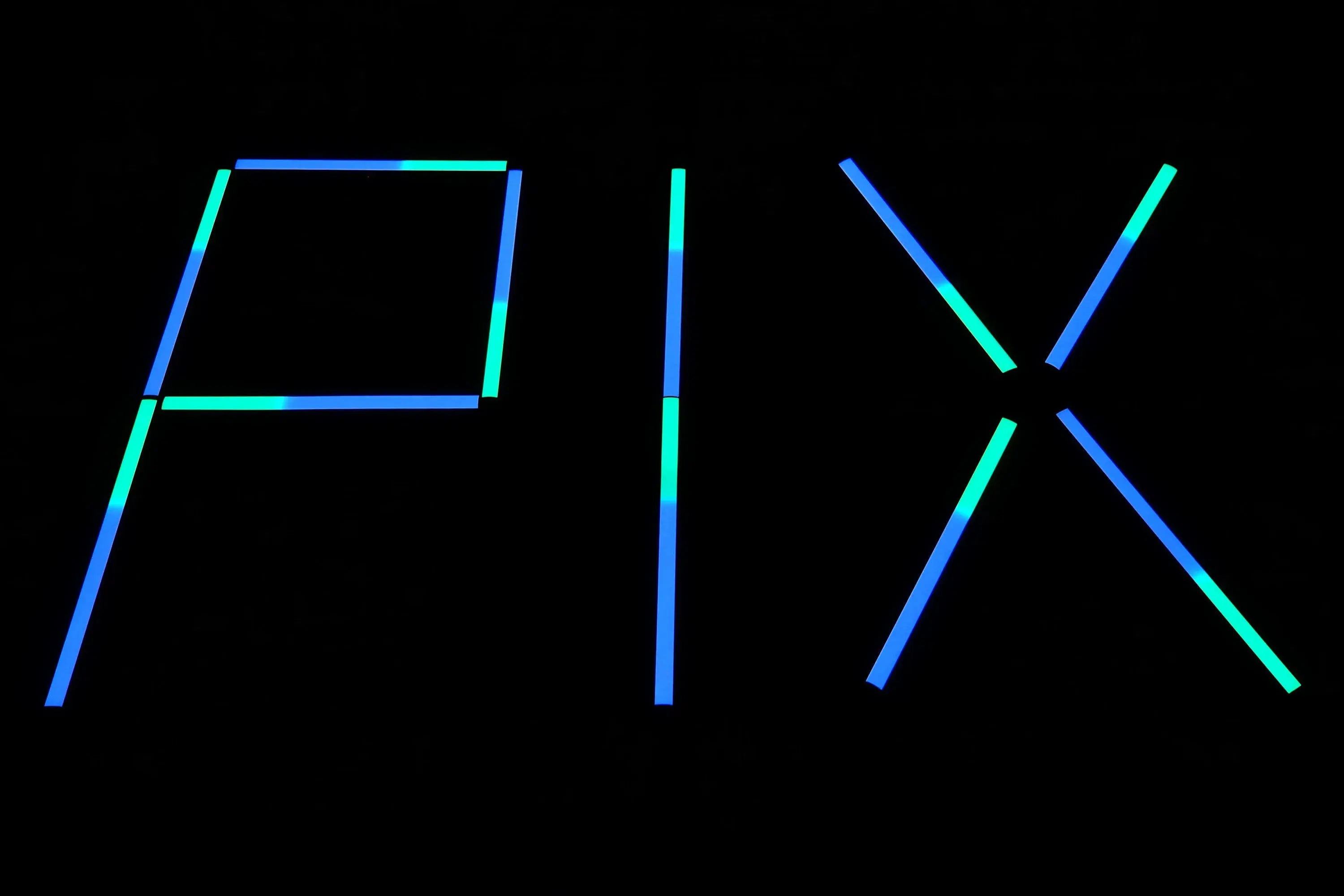

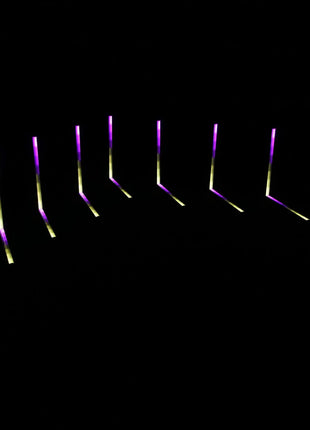

  • Pixel Zone Mapping: The 224 LEDs are divided into 16 individually controllable segments. This pixel zone mapping capability enables stunning chase programs and dynamic sweeping effects, vastly increasing creative possibilities in DMX mode.

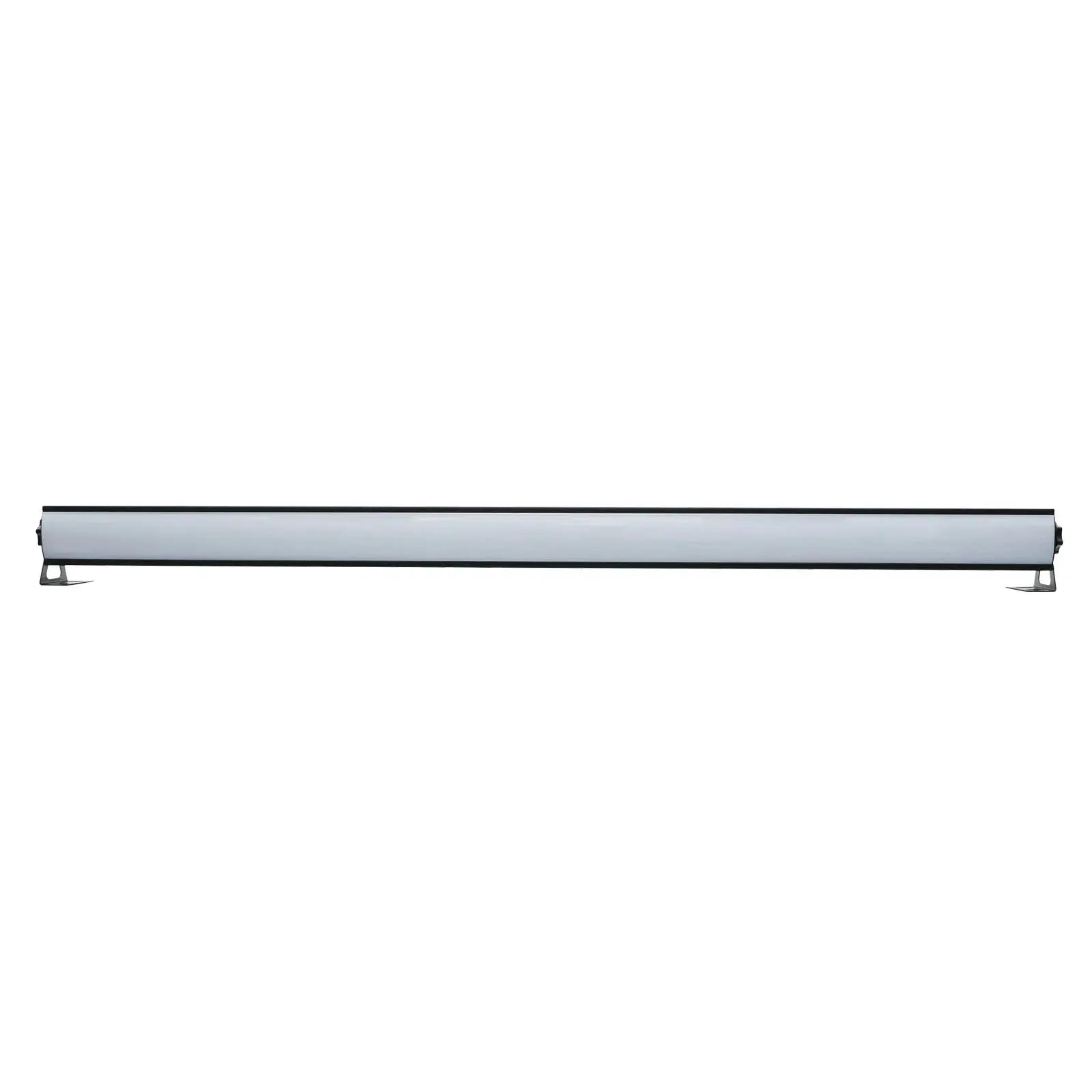

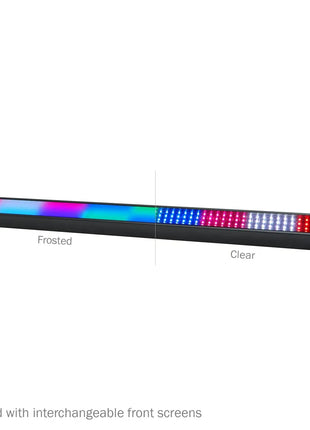

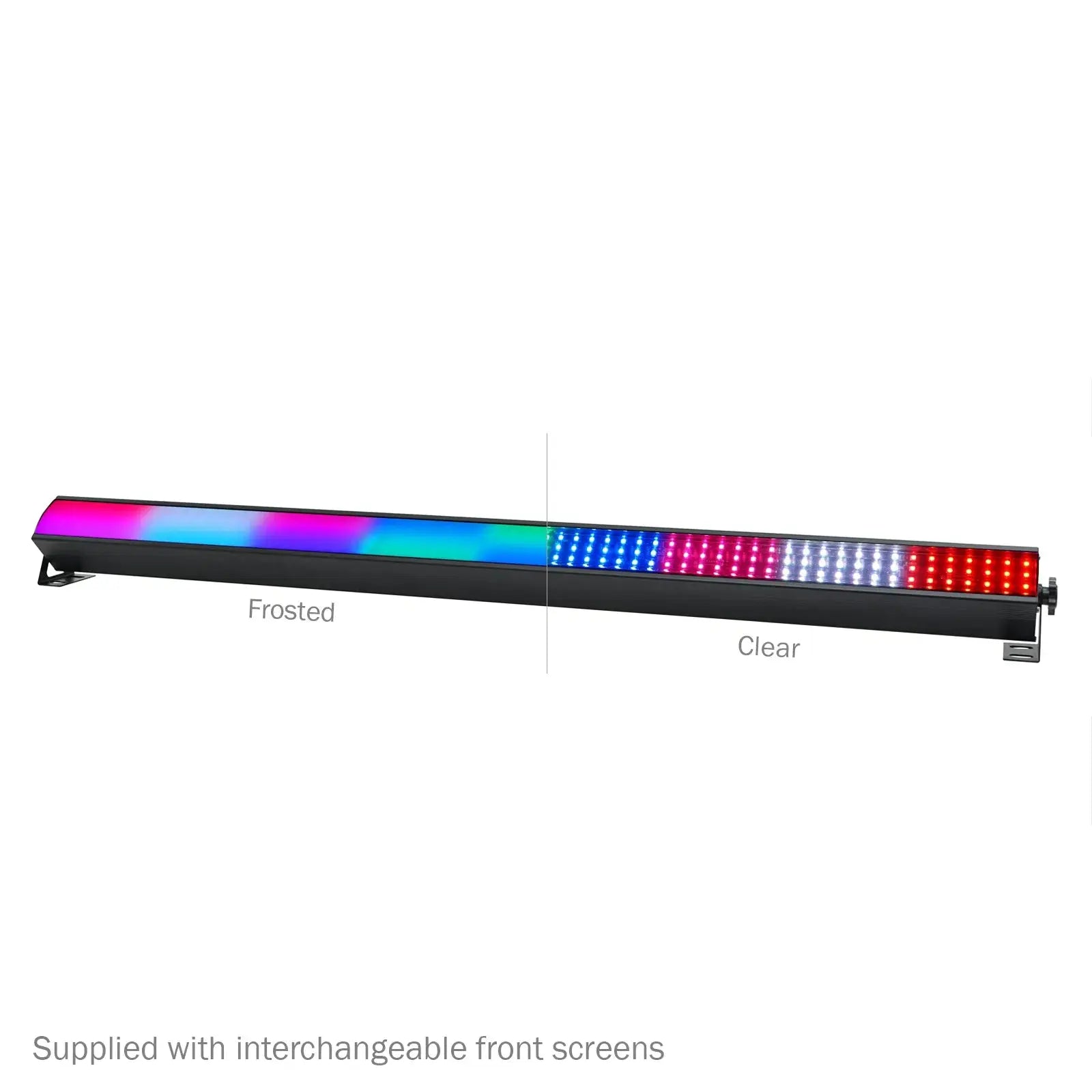

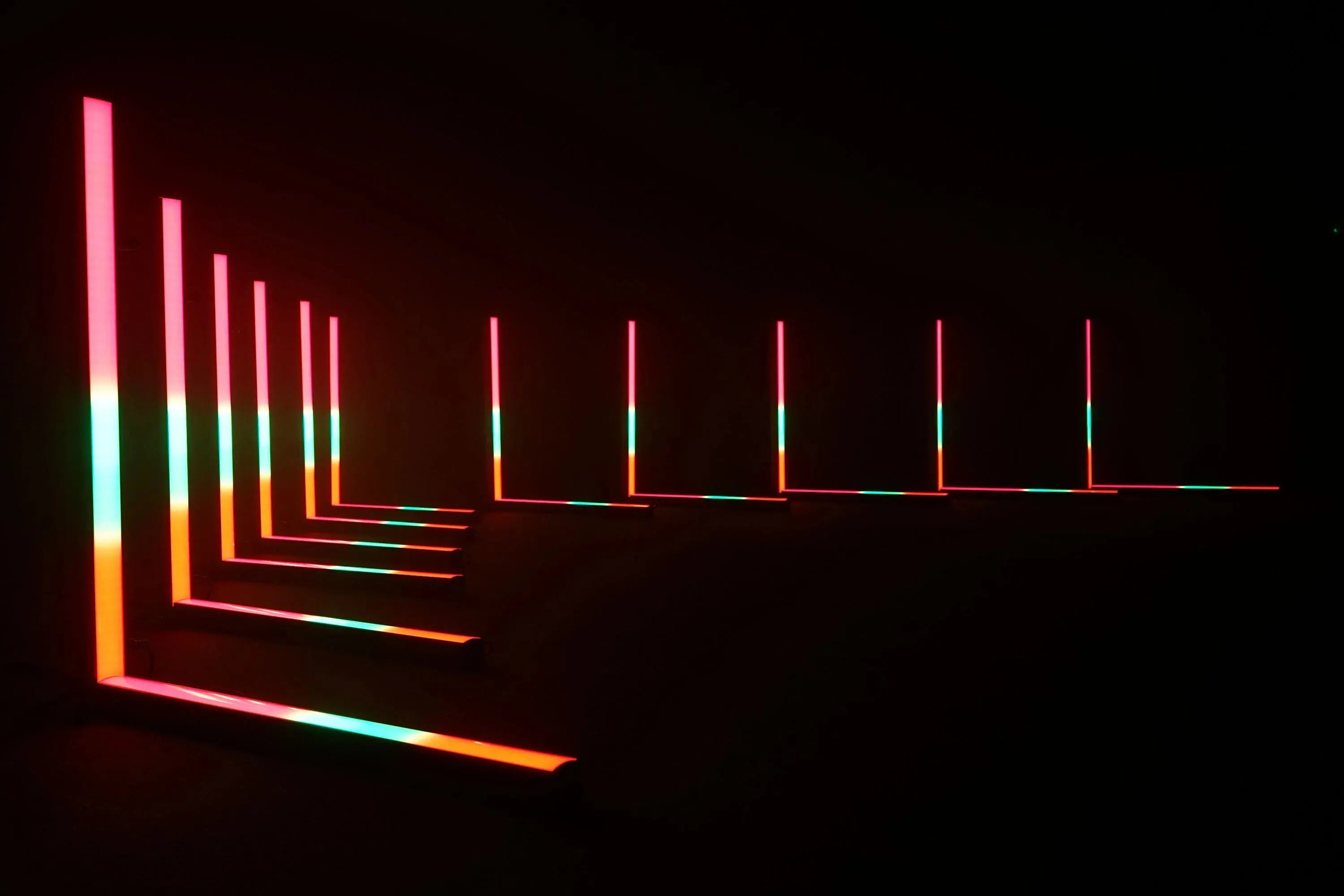

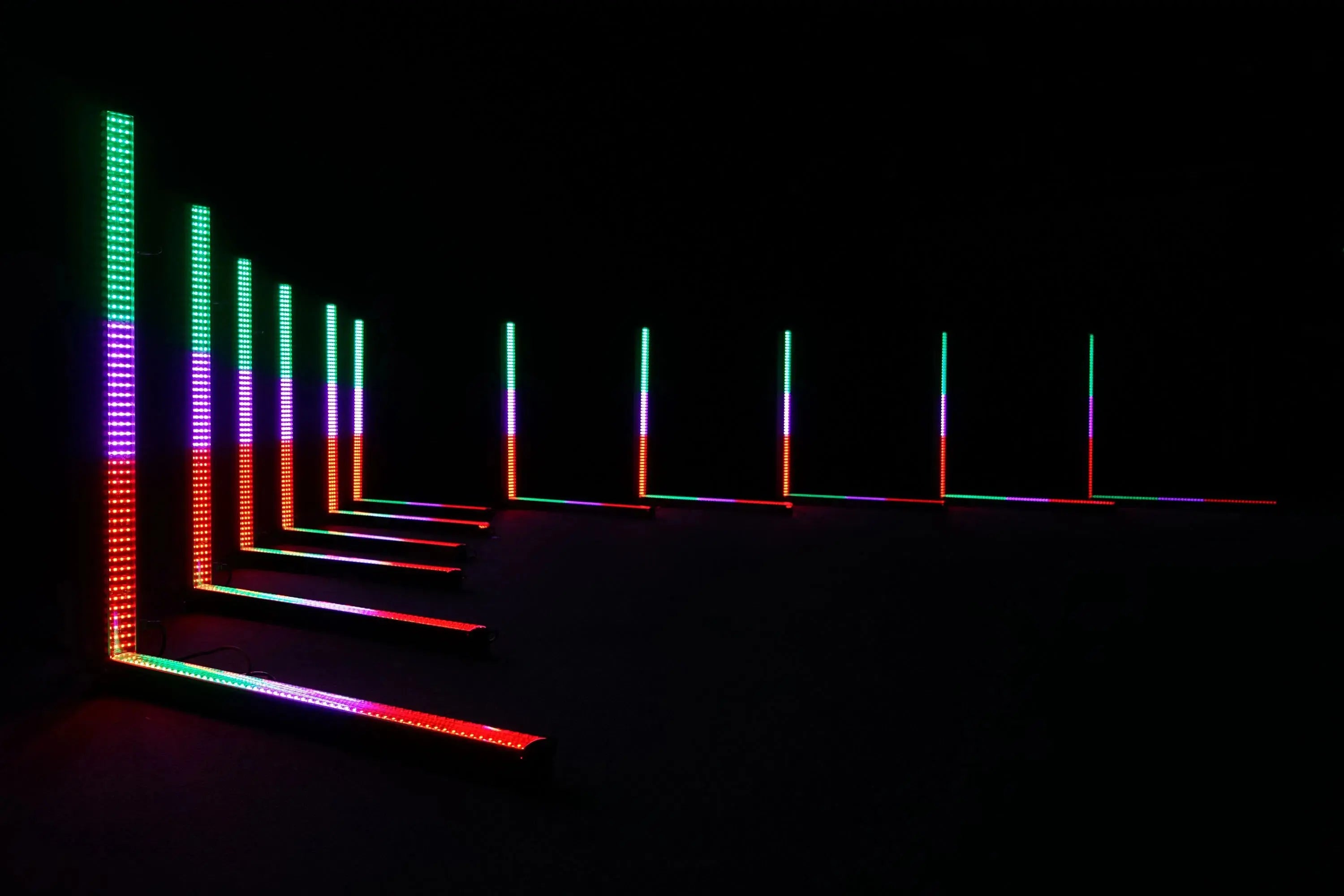

  • Dual Front Screens: Features a wide 120° viewing angle and comes with two easily interchangeable front screens: a milky frost effect for smooth, homogenized washes, and a clear front screen for maximum brightness and sharp pixel visibility.

  • Flexible Control: Onboard features include colour mixing, chase programs controlled in auto mode, or activated by music (sound active mode). Speed and variable strobe are selectable via the control panel.

  • Wide DMX Versatility: Offers a number of selectable DMX channel modes, including 3/3/5/24/48 or 53 channels, providing extensive control ranging from simple static colour up to full pixel mapping.

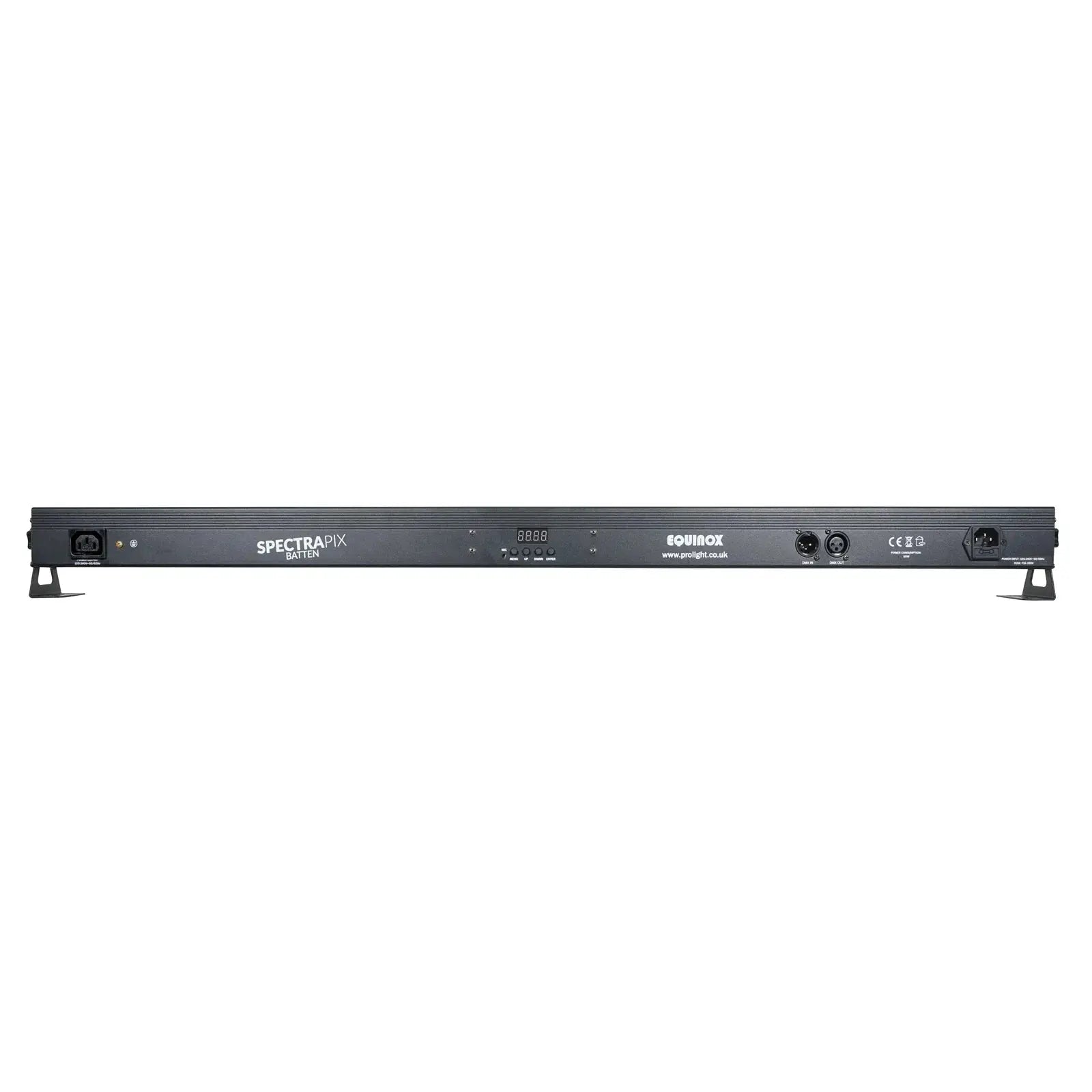

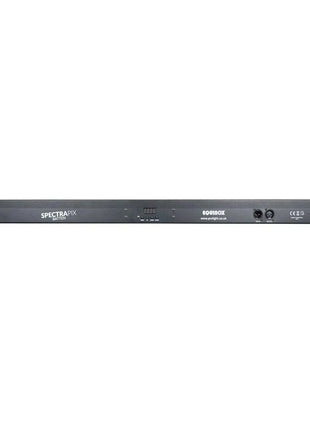

  • Professional Connectivity: The fixture features both IEC power input/output for power linking multiple units and 3-Pin XLR input/output for DMX daisy-chaining, allowing for large, integrated setups.

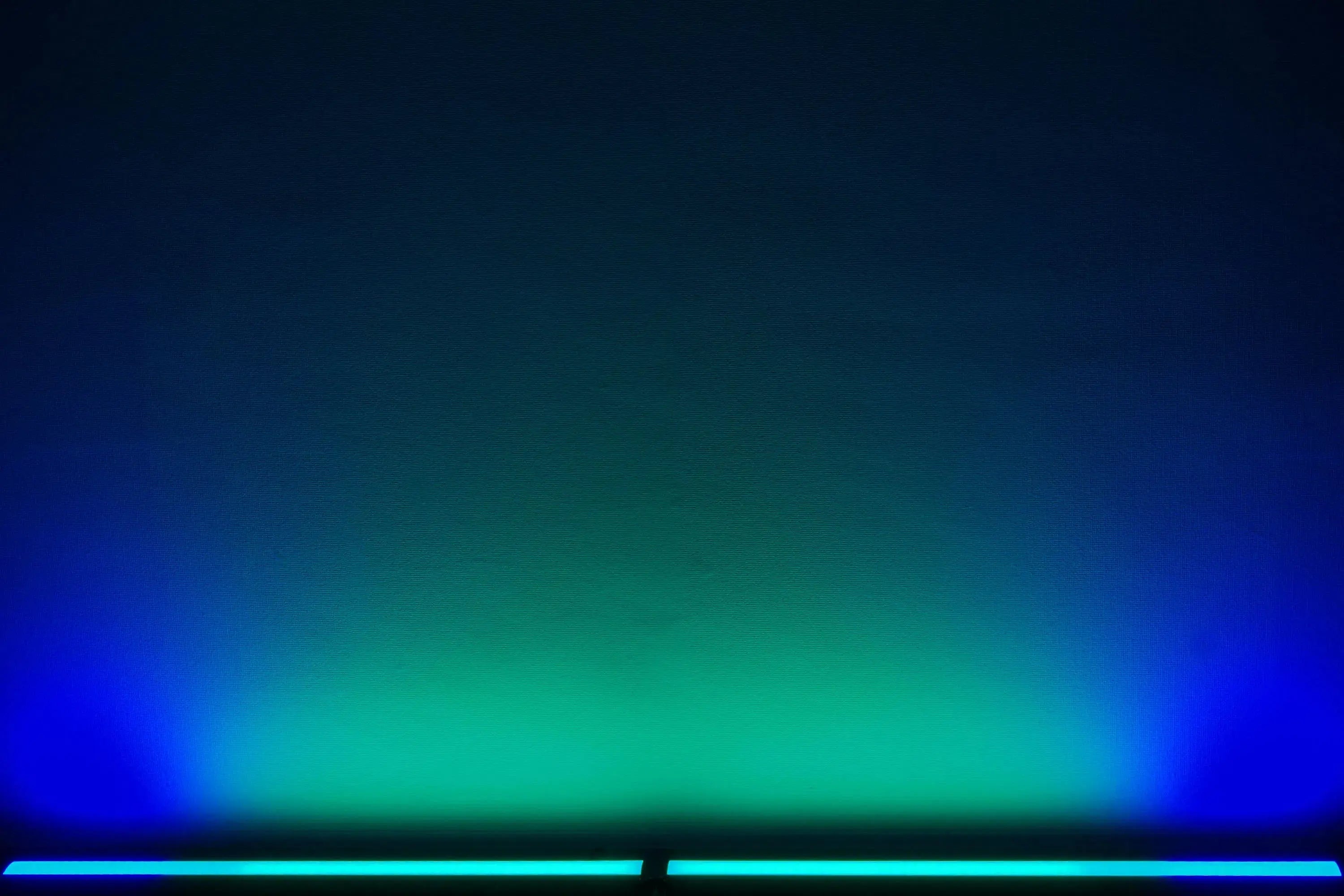

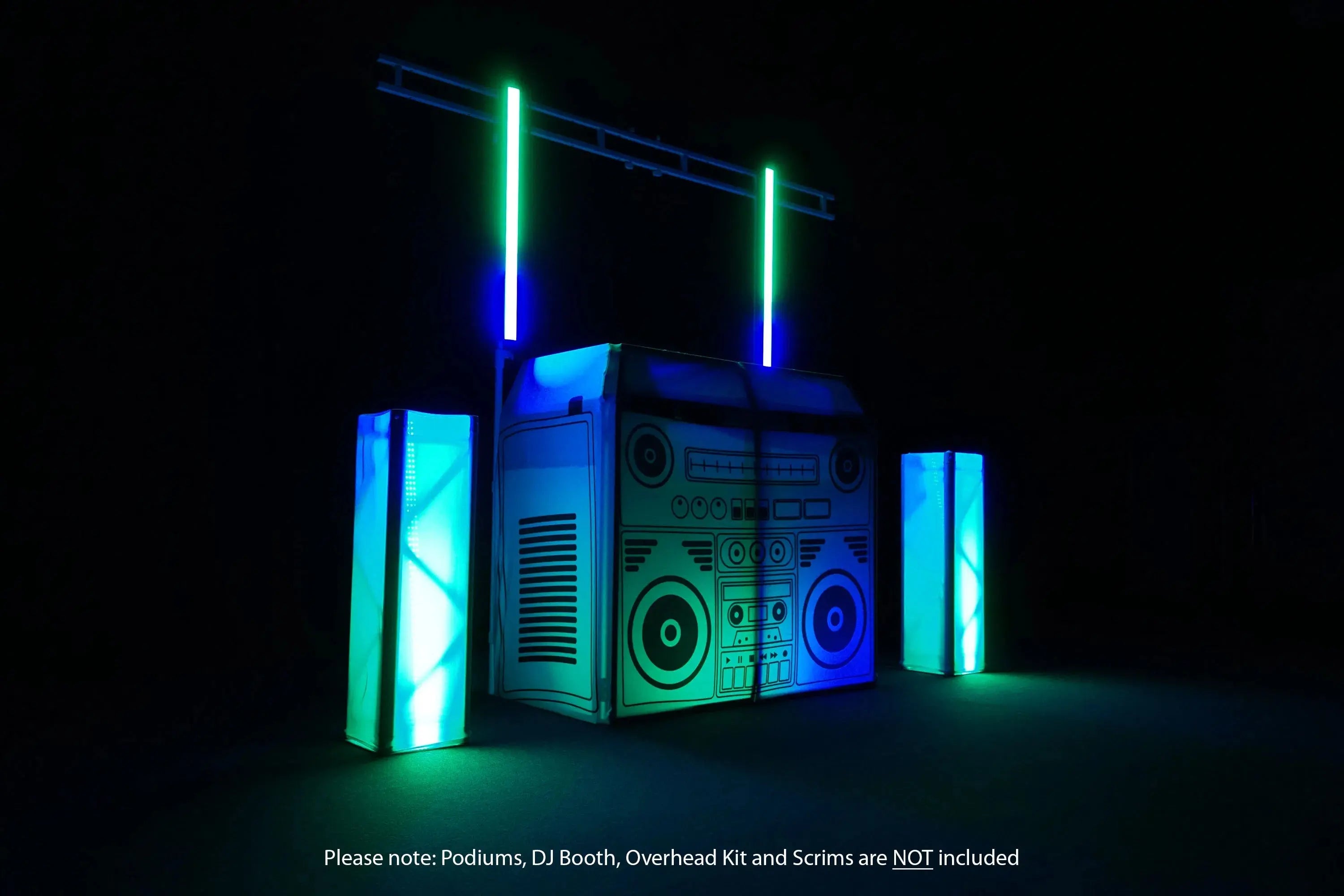

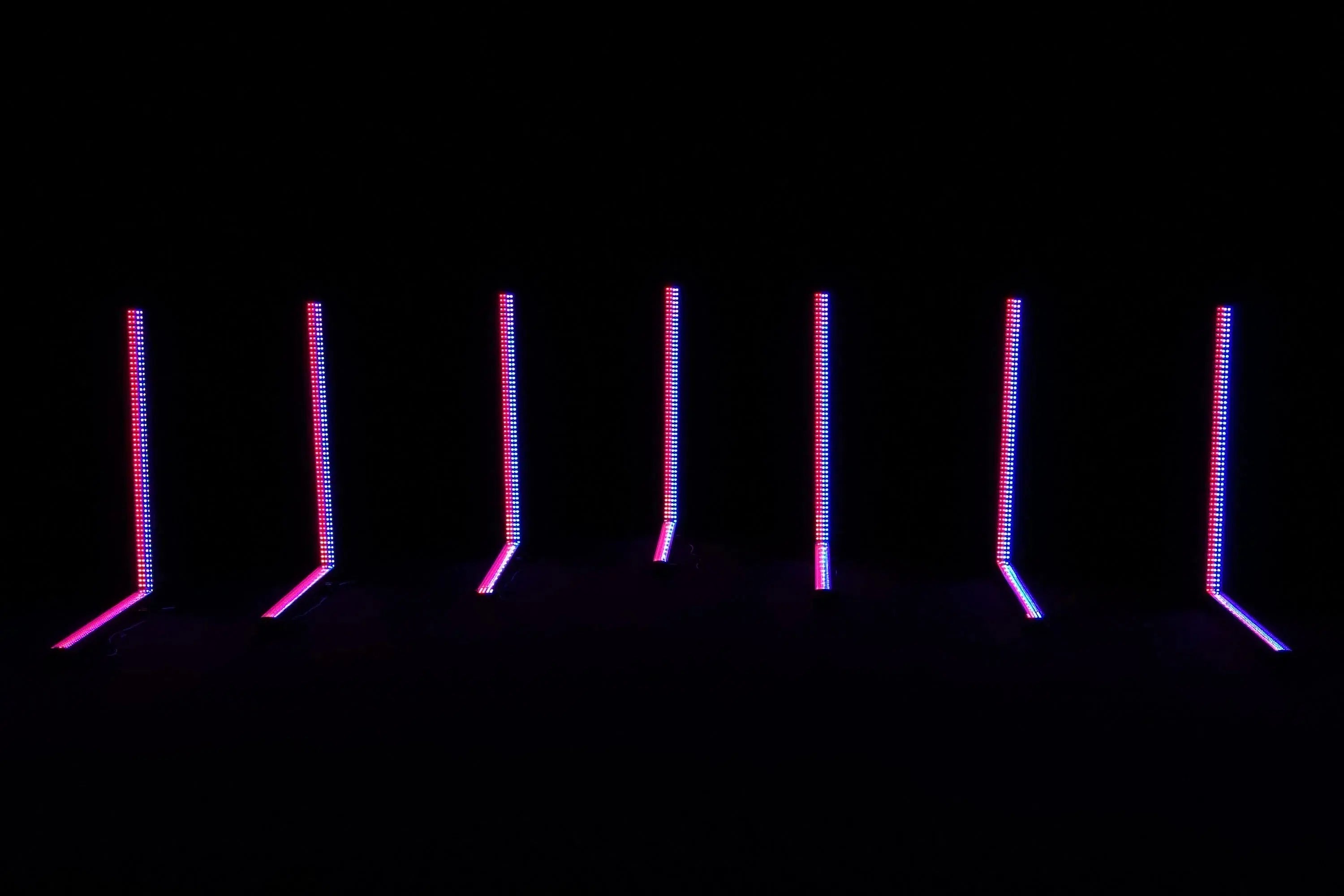

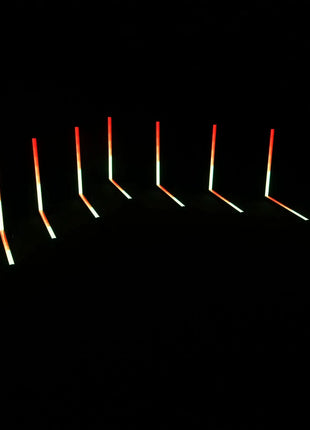

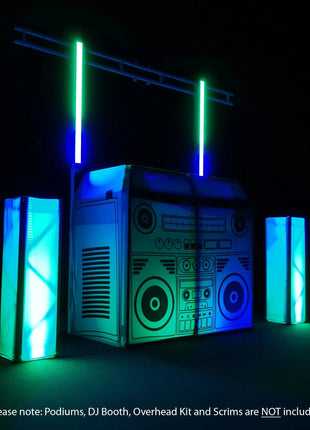

  • Adaptable Mounting: The included bracket allows for multiple rigging applications or quick, stable floor-standing setups for uplighting. The unit is convection cooled for silent operation.

  • High Refresh Rate: Features a high refresh rate (listed as 10kHz and 2.1kHz depending on the source) suitable for video and broadcast applications.

Technical Specifications

  • LEDs: 224 tri-colour SMD 5050 LEDs (RGB)

  • Segments: 16 individually addressable segments

  • Viewing Angle: 120°

  • Refresh Rate: 10kHz / 2.1kHz

  • Power Consumption: 50W

  • Power Supply: 100~240V, 50/60Hz

  • DMX Channels: 3/3/5/24/48 or 53 selectable

  • Control Modes: DMX, Static Colour, Auto, Sound Active, Master/Slave

  • Connections: 3-Pin XLR input/output, IEC power input/output

  • Dimensions (H x W x D): 85 x 1035 x 60 mm

  • Weight: 1.5 kg

  • Fuse: F3A 250V

What's in the box

  • Equinox SpectraPix Batten Fixture

  • Milky Frost Effect Front Screen (Pre-installed)

  • Clear Front Screen

  • 2 x Mounting Brackets/Feet

  • Power Cable

  • Instruction Manual

Product form

Equinox SpectraPix Batten

Free pickup in our shop(s)

£89.00

  • Available
  • Fast tracked delivery
  • Service excellence guaranteed
    iFrame
    ×
    • Don't want to order online? Call us on 01635 780002

    SKU: EQLED055

    Trustpilot

    The Equinox SpectraPix Batten is a versatile and powerful LED lighting bar that delivers bold, vibrant colour and seamless blending. Packed with 224 tri-colour SMD 5050 RGB LEDs divided into 16 segments, this fixture provides extensive colour mixing capability for creating soft washes from a rich colour palette. Its standard milky frost effect front screen and an included clear front screen allow you to easily switch between a smooth wash and a sharp pixel effect, significantly expanding the unit’s versatility.

    Key Features

    • Pixel Zone Mapping: The 224 LEDs are divided into 16 individually controllable segments. This pixel zone mapping capability enables stunning chase programs and dynamic sweeping effects, vastly increasing creative possibilities in DMX mode.

    • Dual Front Screens: Features a wide 120° viewing angle and comes with two easily interchangeable front screens: a milky frost effect for smooth, homogenized washes, and a clear front screen for maximum brightness and sharp pixel visibility.

    • Flexible Control: Onboard features include colour mixing, chase programs controlled in auto mode, or activated by music (sound active mode). Speed and variable strobe are selectable via the control panel.

    • Wide DMX Versatility: Offers a number of selectable DMX channel modes, including 3/3/5/24/48 or 53 channels, providing extensive control ranging from simple static colour up to full pixel mapping.

    • Professional Connectivity: The fixture features both IEC power input/output for power linking multiple units and 3-Pin XLR input/output for DMX daisy-chaining, allowing for large, integrated setups.

    • Adaptable Mounting: The included bracket allows for multiple rigging applications or quick, stable floor-standing setups for uplighting. The unit is convection cooled for silent operation.

    • High Refresh Rate: Features a high refresh rate (listed as 10kHz and 2.1kHz depending on the source) suitable for video and broadcast applications.

    Technical Specifications

    • LEDs: 224 tri-colour SMD 5050 LEDs (RGB)

    • Segments: 16 individually addressable segments

    • Viewing Angle: 120°

    • Refresh Rate: 10kHz / 2.1kHz

    • Power Consumption: 50W

    • Power Supply: 100~240V, 50/60Hz

    • DMX Channels: 3/3/5/24/48 or 53 selectable

    • Control Modes: DMX, Static Colour, Auto, Sound Active, Master/Slave

    • Connections: 3-Pin XLR input/output, IEC power input/output

    • Dimensions (H x W x D): 85 x 1035 x 60 mm

    • Weight: 1.5 kg

    • Fuse: F3A 250V

    What's in the box

    • Equinox SpectraPix Batten Fixture

    • Milky Frost Effect Front Screen (Pre-installed)

    • Clear Front Screen

    • 2 x Mounting Brackets/Feet

    • Power Cable

    • Instruction Manual
