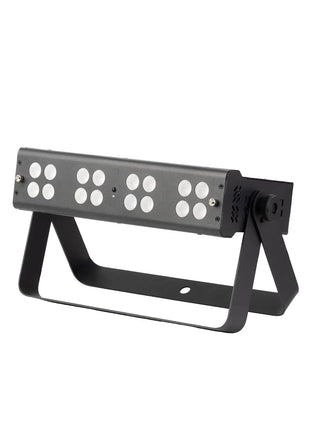

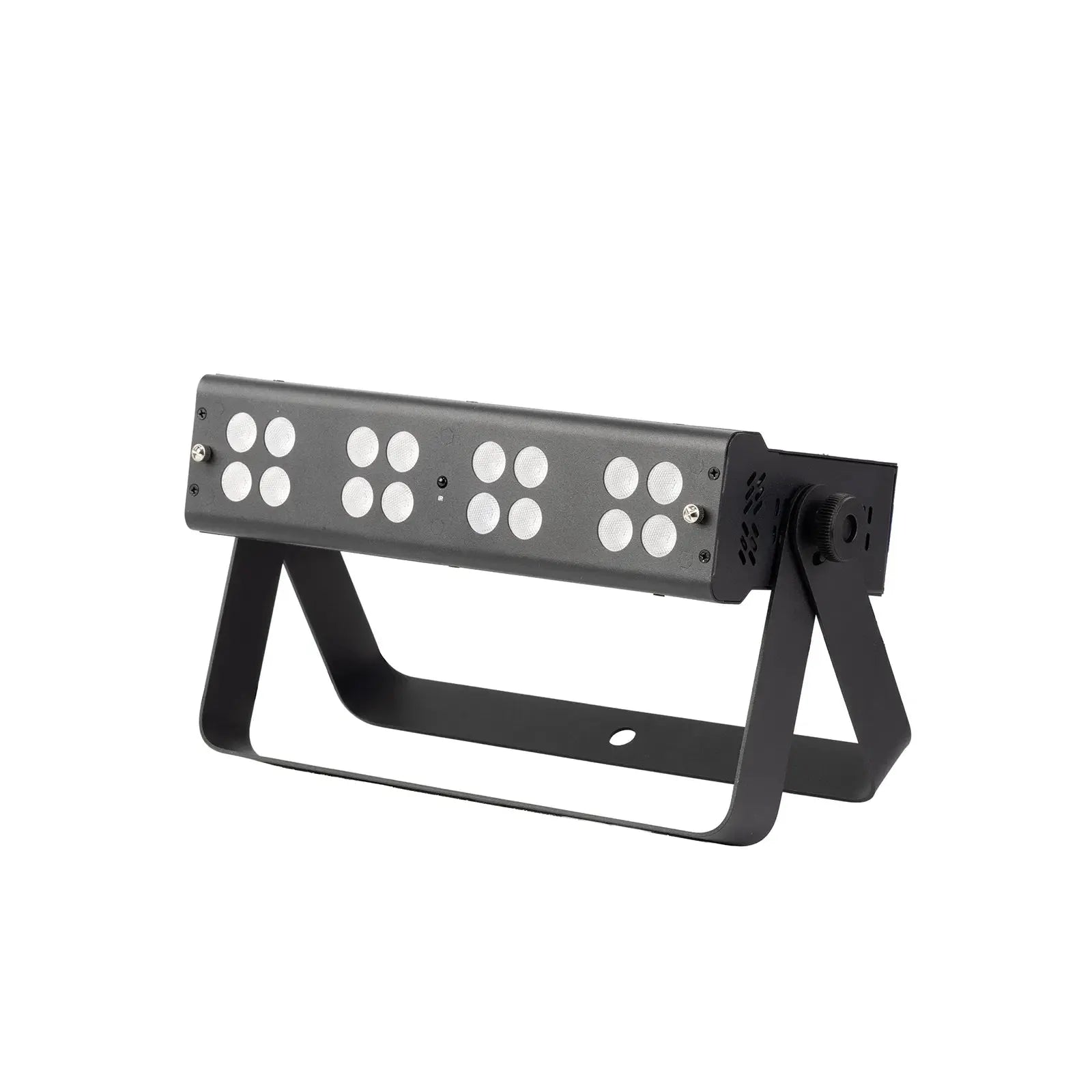

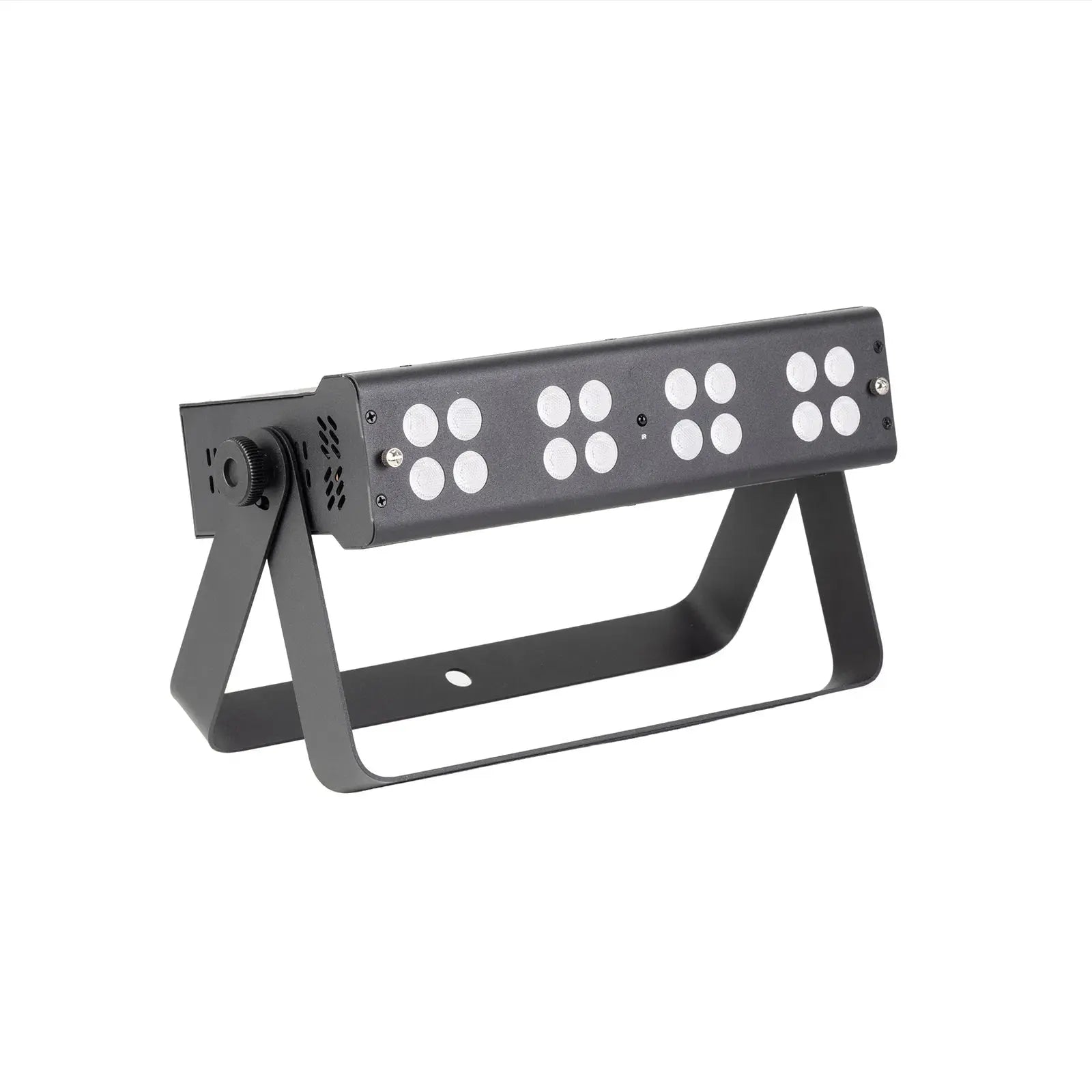

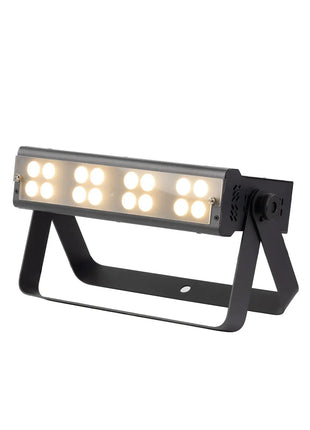

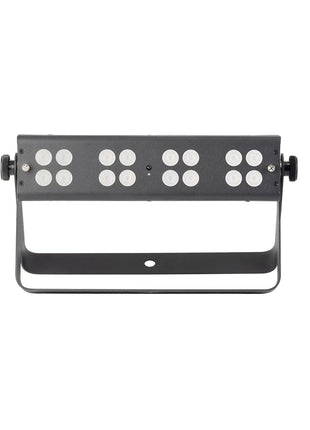

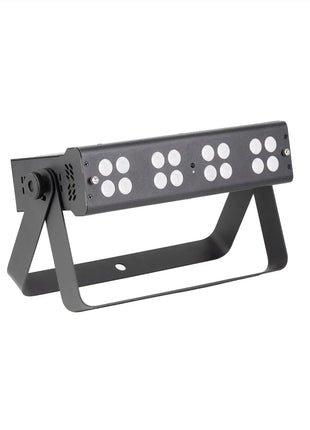

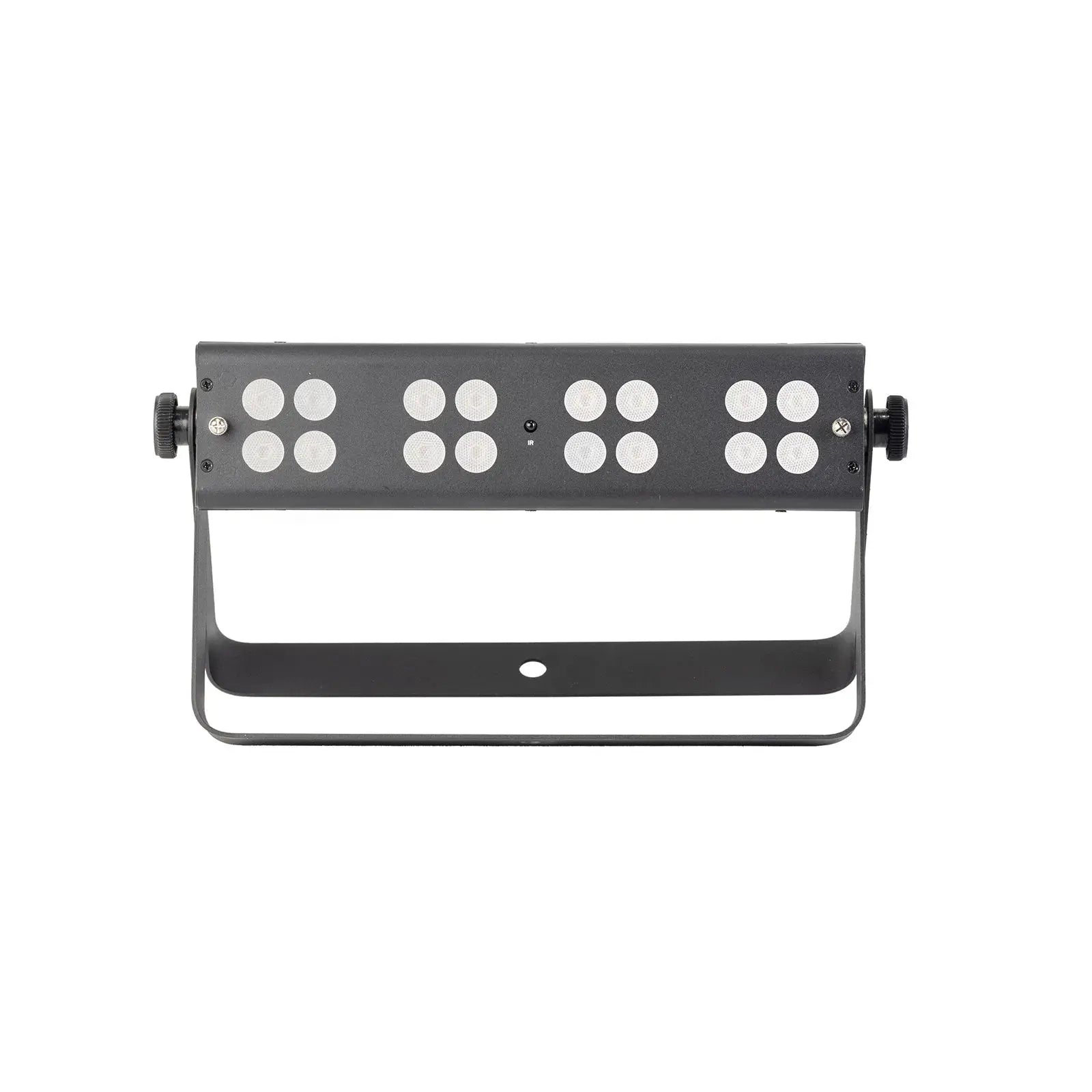

Equinox Quad Blox - 16 x 4W RGBWW LED Wash Light
The Equinox Quad Blox is a versatile and powerful wash fixture packed with sixteen 4W quad-colour LEDs (Red, Green, Blue, Warm White). It delivers bold, vibrant colour with seamless blending, making it ideal for background washes, uplighting, and stage accents. The unit comes supplied with a removable frost filter for exceptionally smooth washes. With a variety of built-in shows, individual segment control via DMX, and compatibility with wireless connectivity, the Quad Blox is a highly flexible lighting solution for both simple plug-and-play operation and advanced lighting design.
Key Features
-
Powerful Quad-Colour Output: Features 16 x 4W LEDs utilizing RGBWW (Red, Green, Blue, Warm White) technology. The addition of the Warm White LED provides better color temperature control and richer pastel colors than standard RGBW fixtures.
-

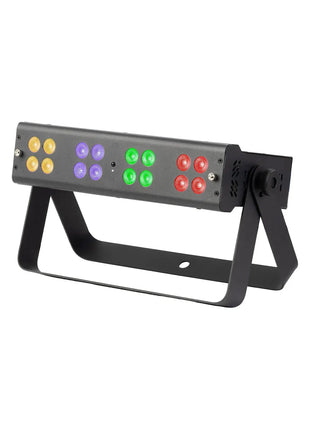

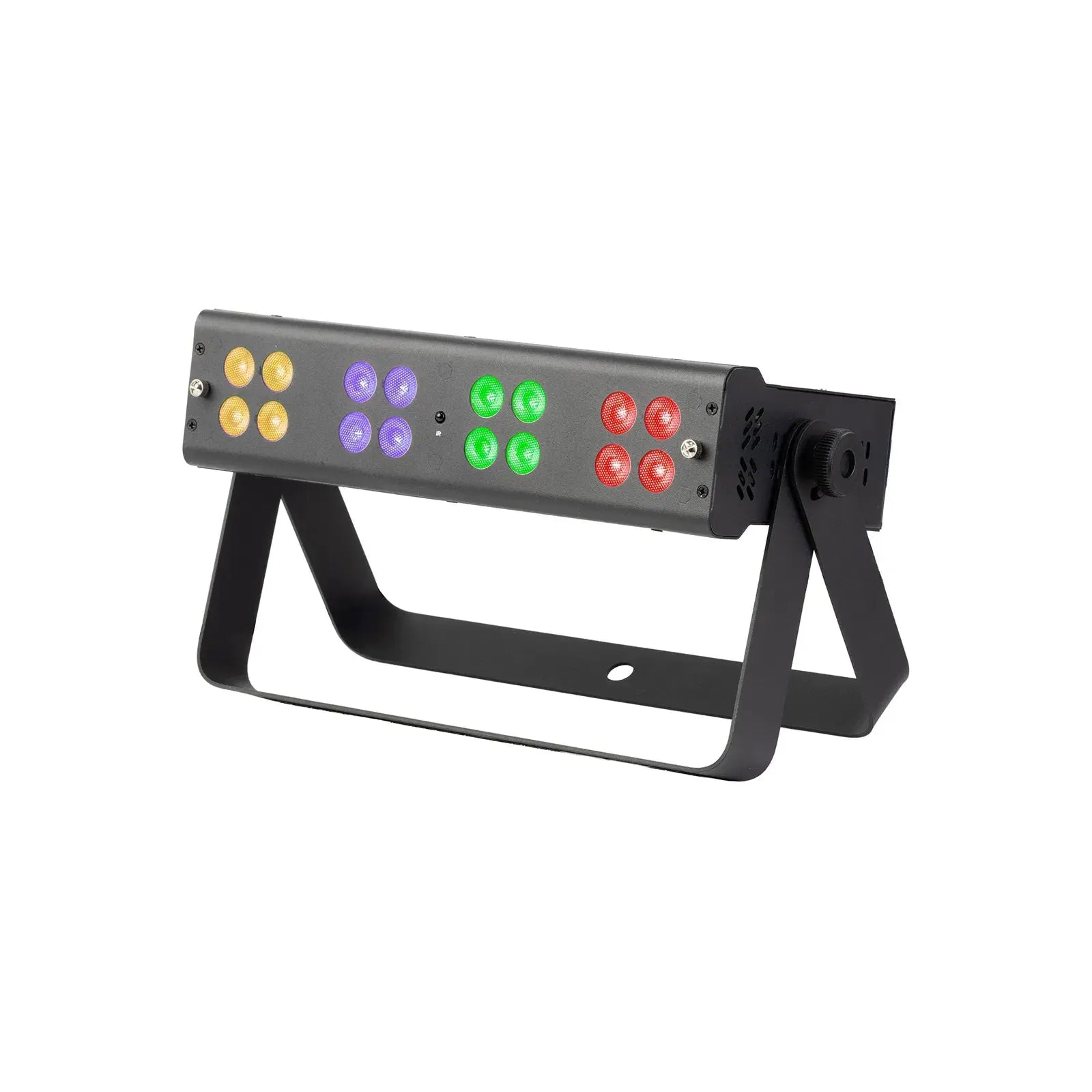

Segmented Pixel Mapping: Includes Pixel Zone Mapping across 4 distinct segments. This feature allows for individual control over each section in advanced DMX modes, enabling dynamic chasing, sweeping, and video-style effects.
-

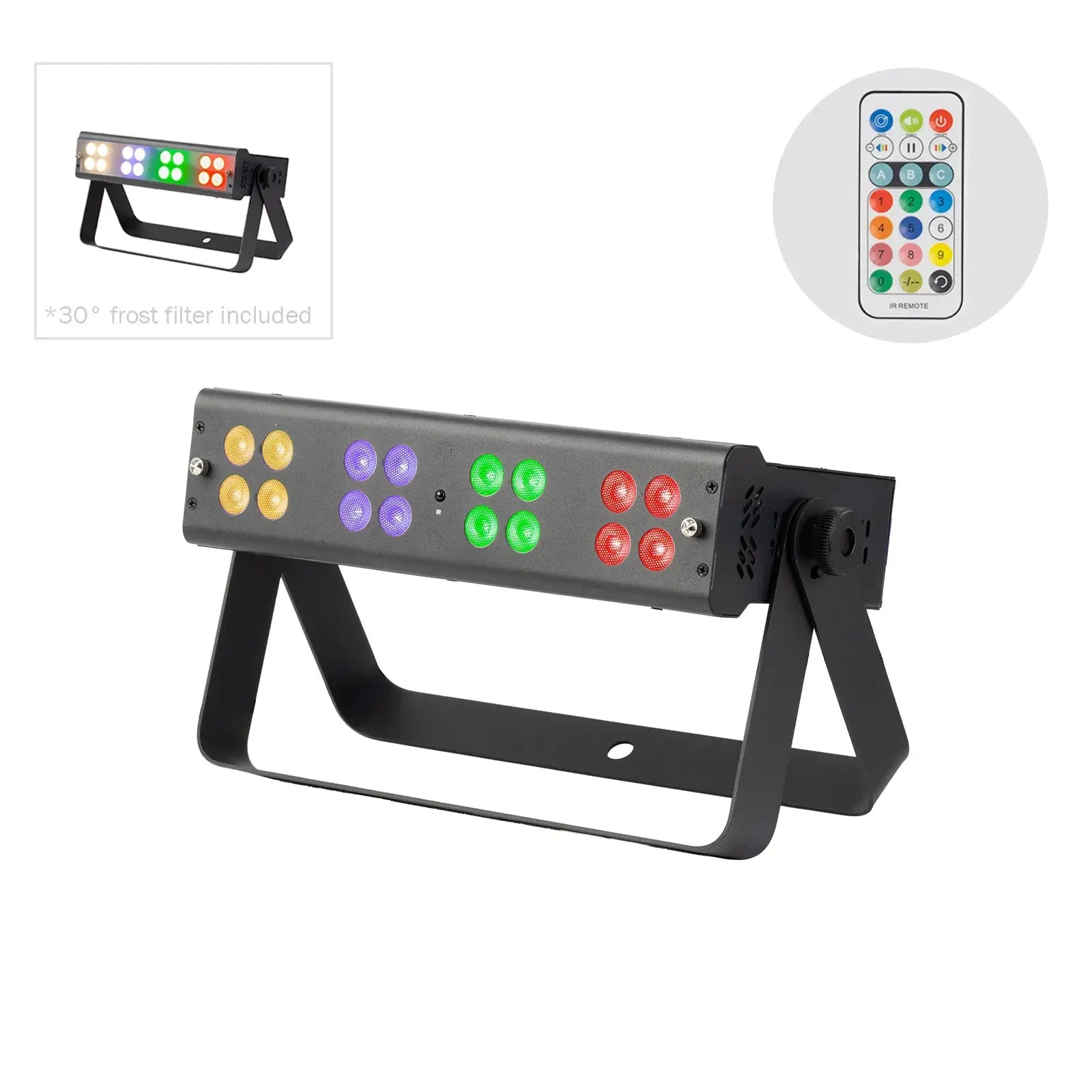

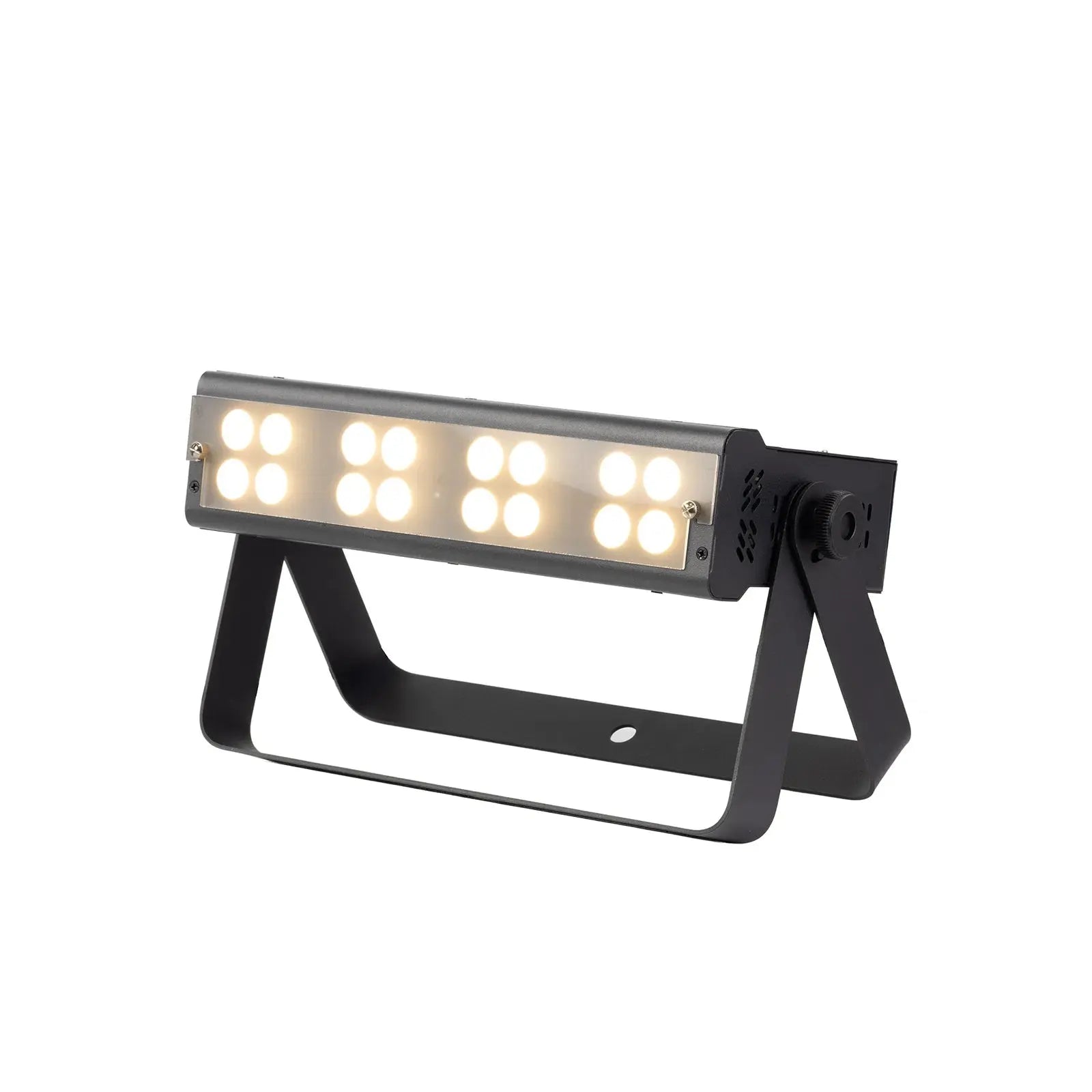

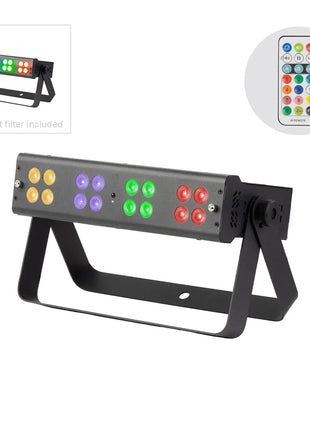

Seamless Washes and High Refresh Rate: A 30° frost filter is included and removable, allowing users to switch between a tight 20° beam and a smooth, homogenized wash. A 1200Hz refresh rate ensures flicker-free operation, making it ideal for video production and broadcast applications.
-

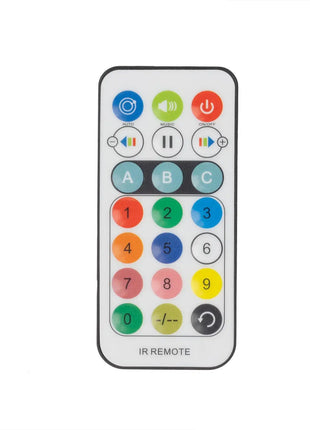

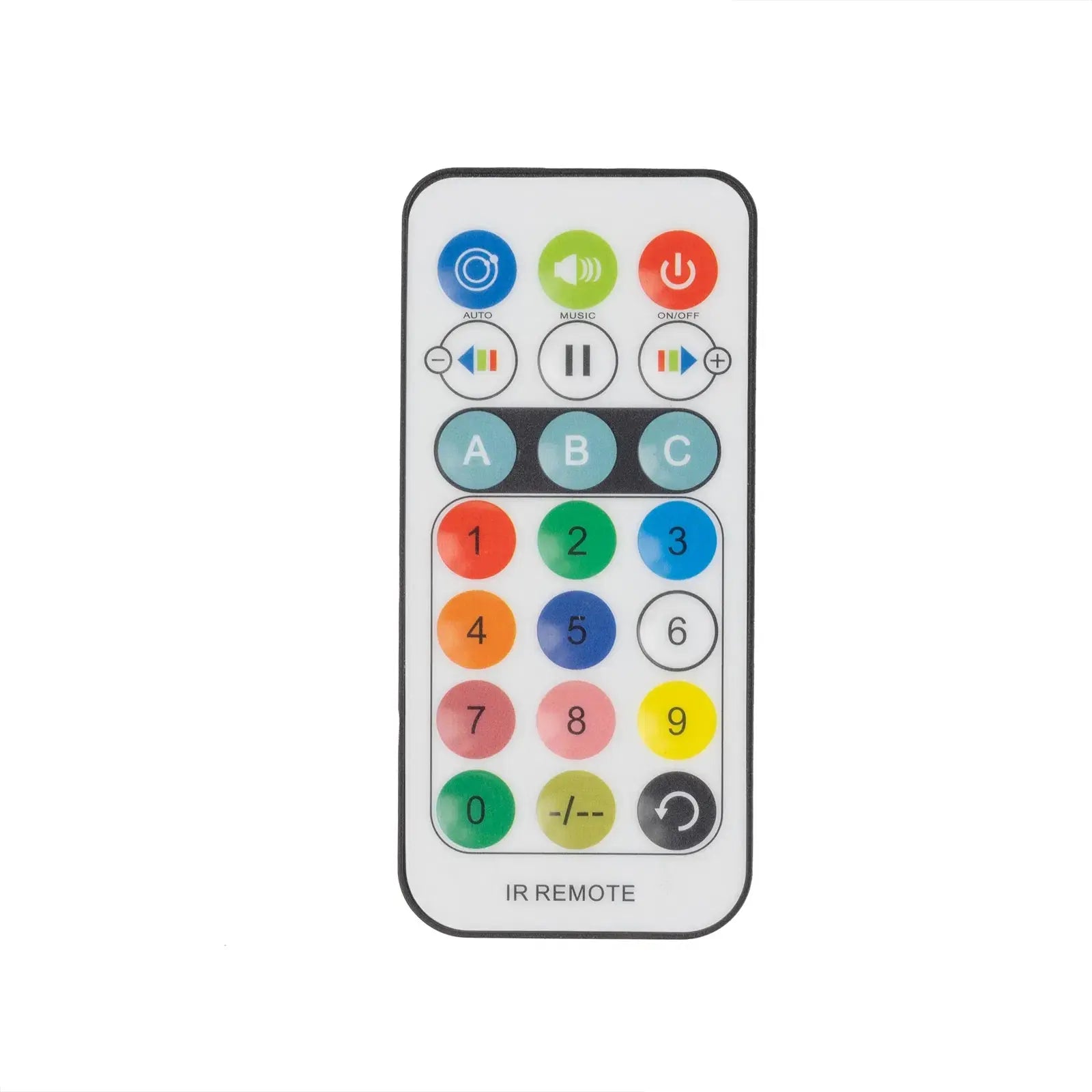

Flexible Control Options: Offers extensive control via Auto, Static Colour, Sound Active, Manual, and Primary/Secondary (Master/Slave) modes. It is supplied with an IR remote for convenient, instant control over the basic functions.
-

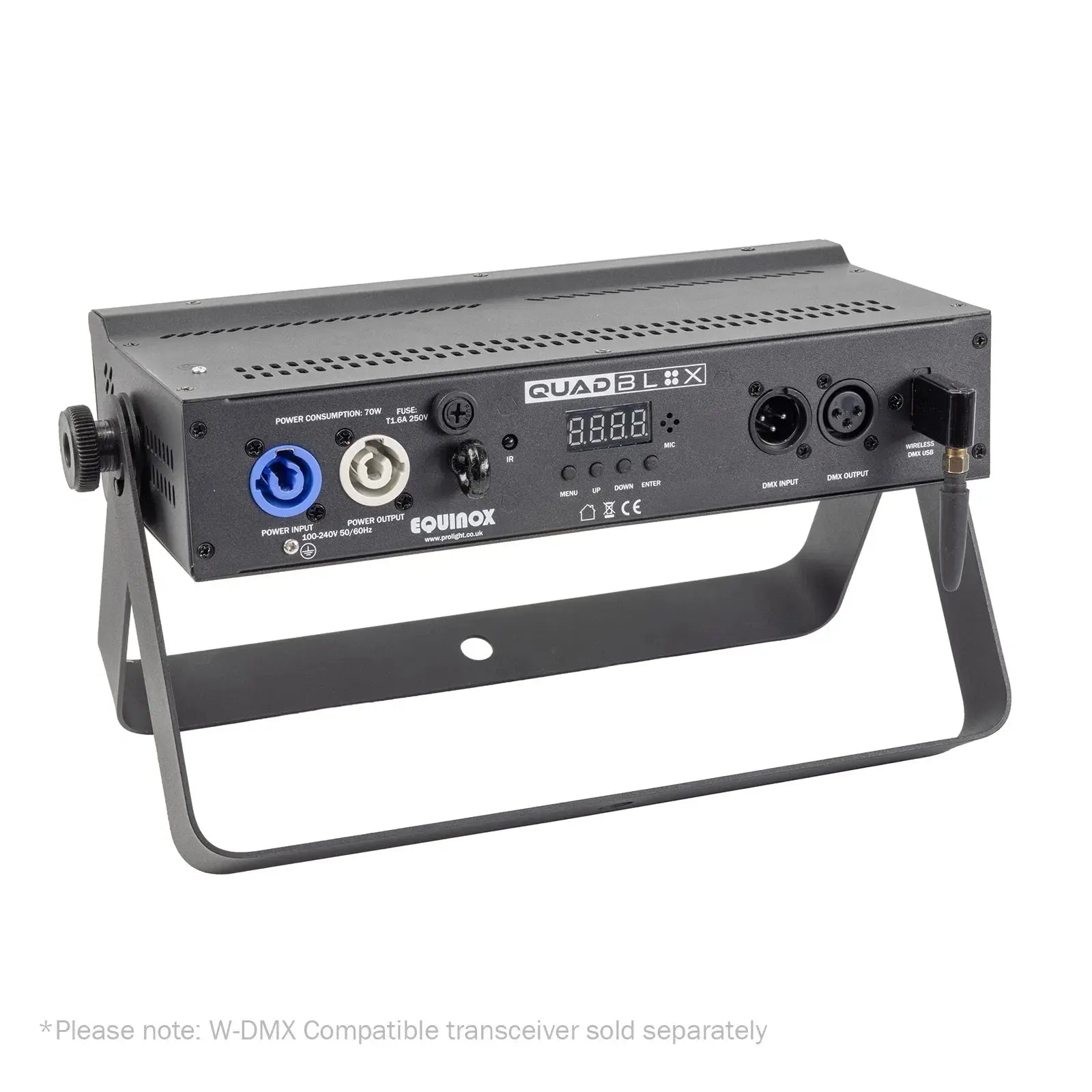

Wireless Ready: The unit is compatible with W-DMX USB (Transceiver required) for wireless primary/secondary linking or DMX control, eliminating the need for complex cable runs.
-

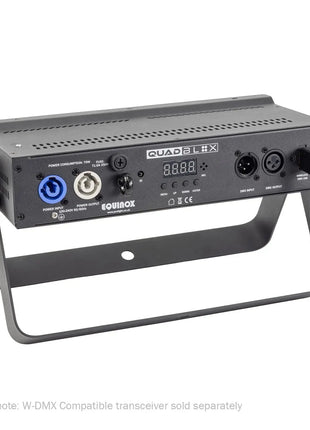

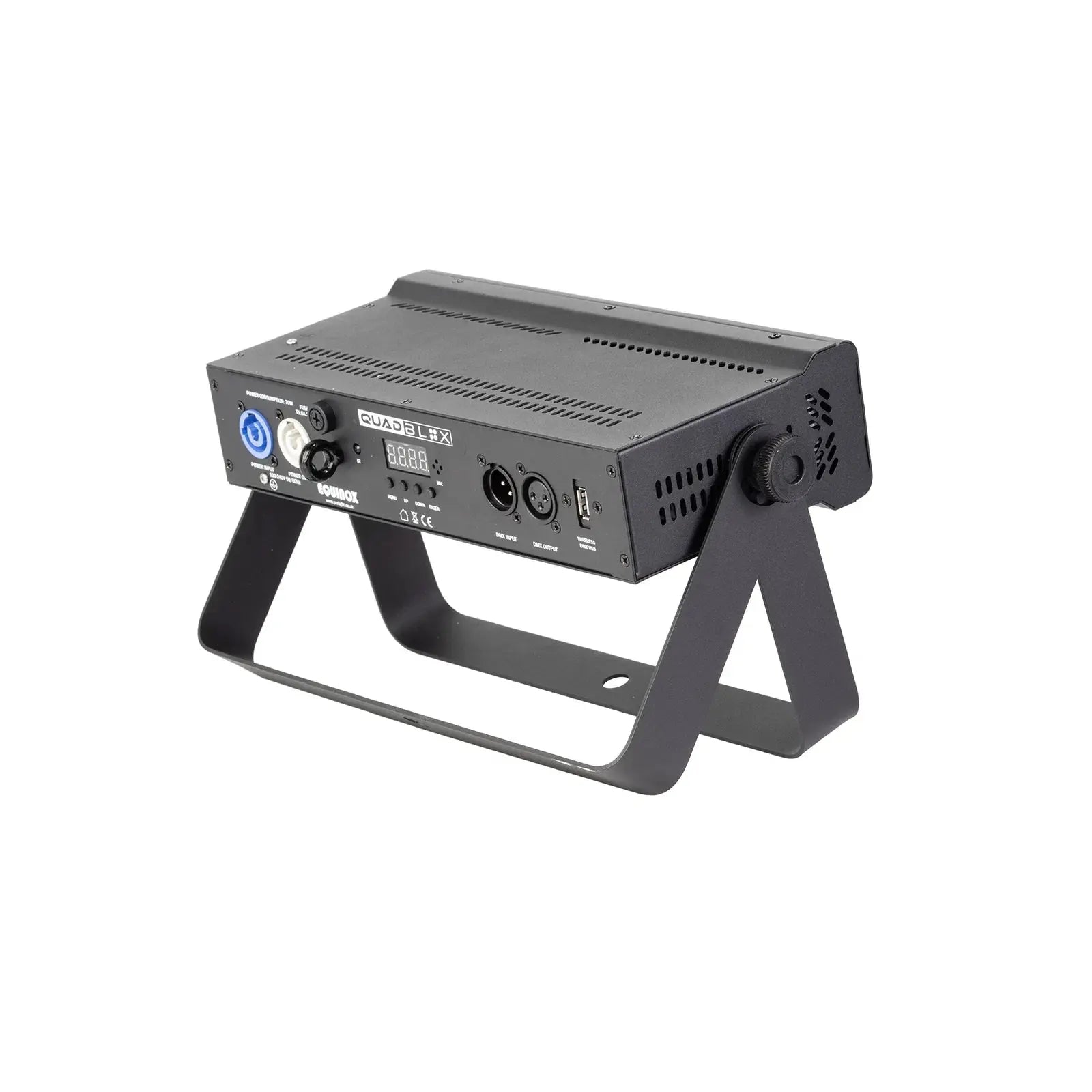

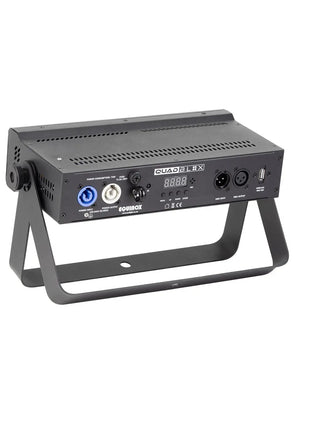

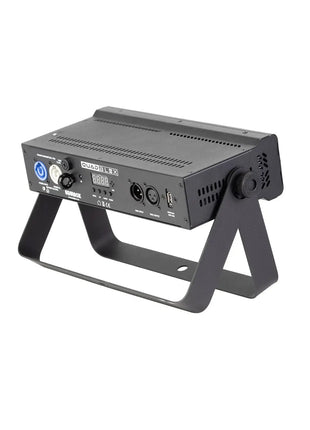

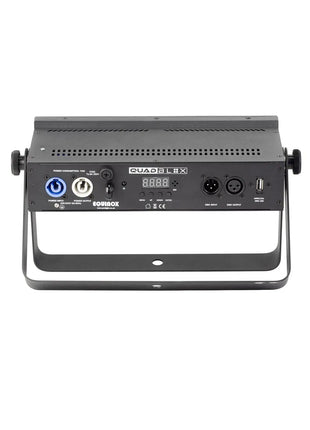

Professional Connectivity: Features both PowerTwist input/output for power linking multiple units and 3-pin XLR input/output for DMX daisy-chaining.
-

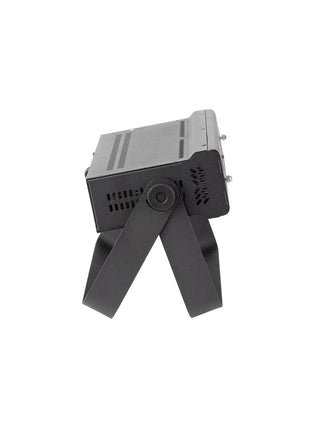

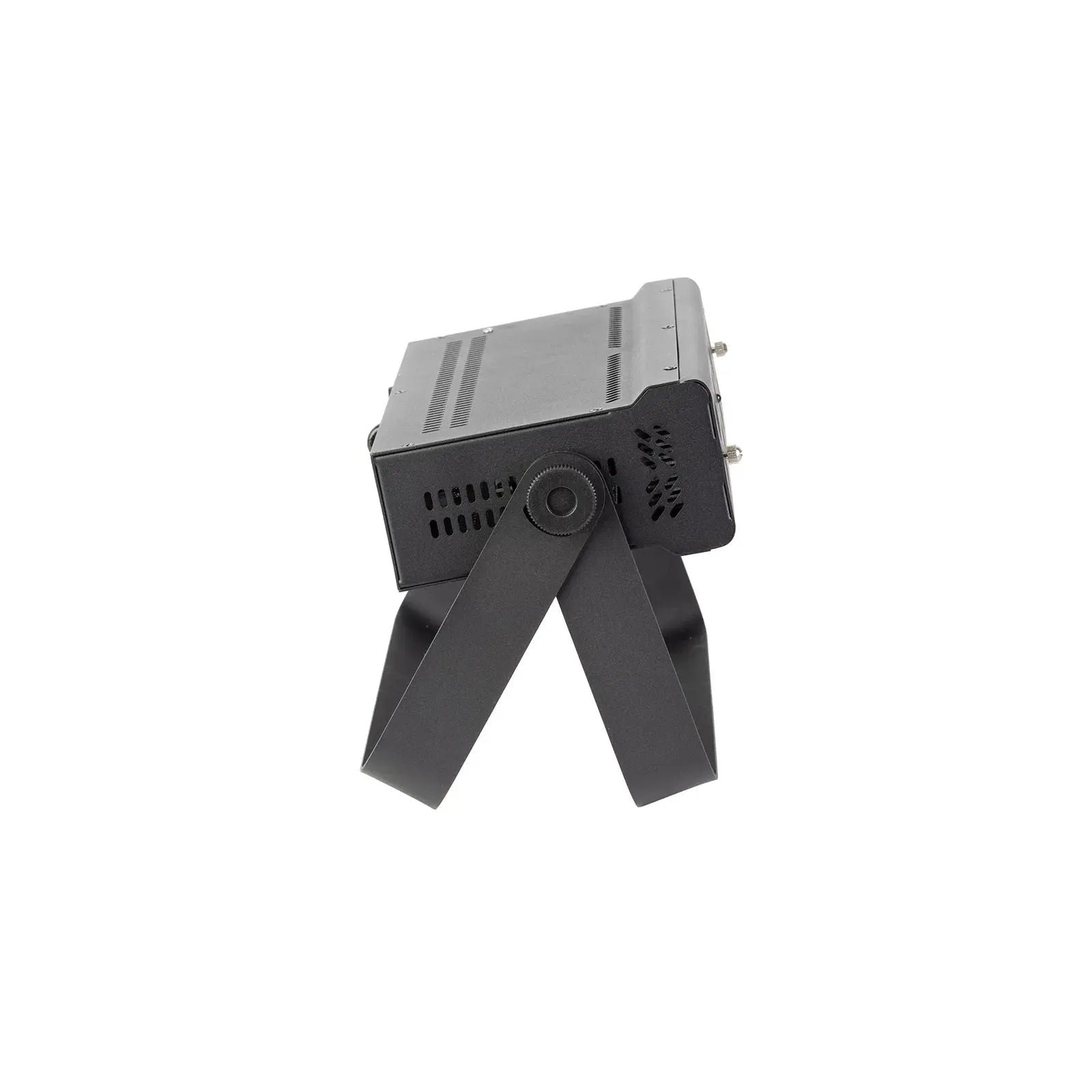

Robust and Adaptable Design: Comes equipped with a dual bracket that allows for multiple rigging positions or simple floor-standing setups for uplighting. The unit is convection cooled for silent operation.
Technical Specifications
-
LEDs: 16 x 4W quad-colour LEDs (RGBWW)
-
Power Consumption: 70W
-
Power Supply: 100~240V, 50/60Hz
-
DMX Channels: 4/6/9/16/18/20 selectable
-
Beam Angle: 20° (with 30° frost filter included)
-
Refresh Rate: 1200Hz
-
Control Modes: Auto, Static Colour, Sound Active, Manual, Primary/Secondary, DMX, W-DMX USB
-
Connections: PowerTwist input/output, 3-pin XLR input/output
-
Dimensions: 186.5 x 335 x 171.5mm
-
Weight: 2.6kg
-
Order Code: EQLED458
-
EAN: 5056742212657
