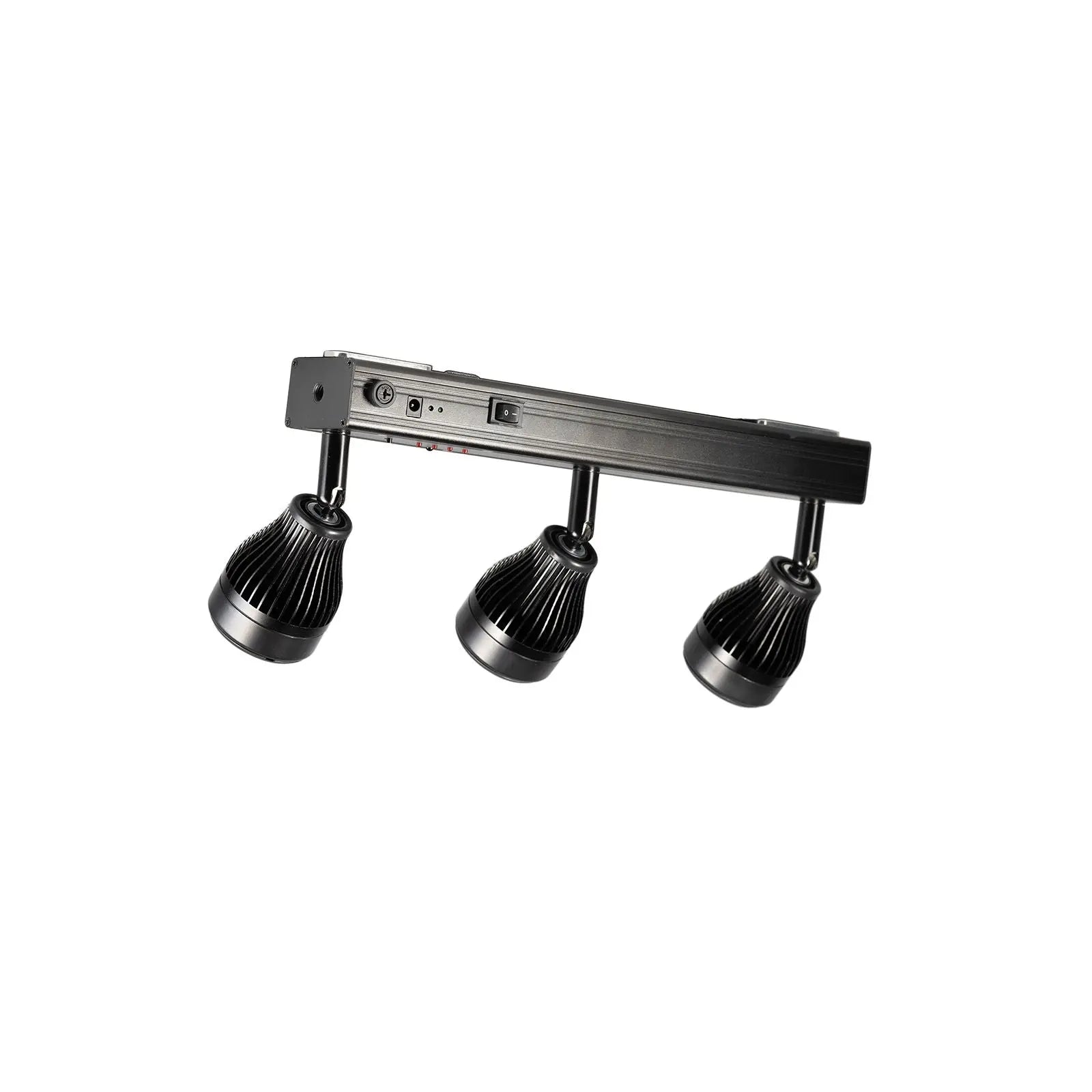

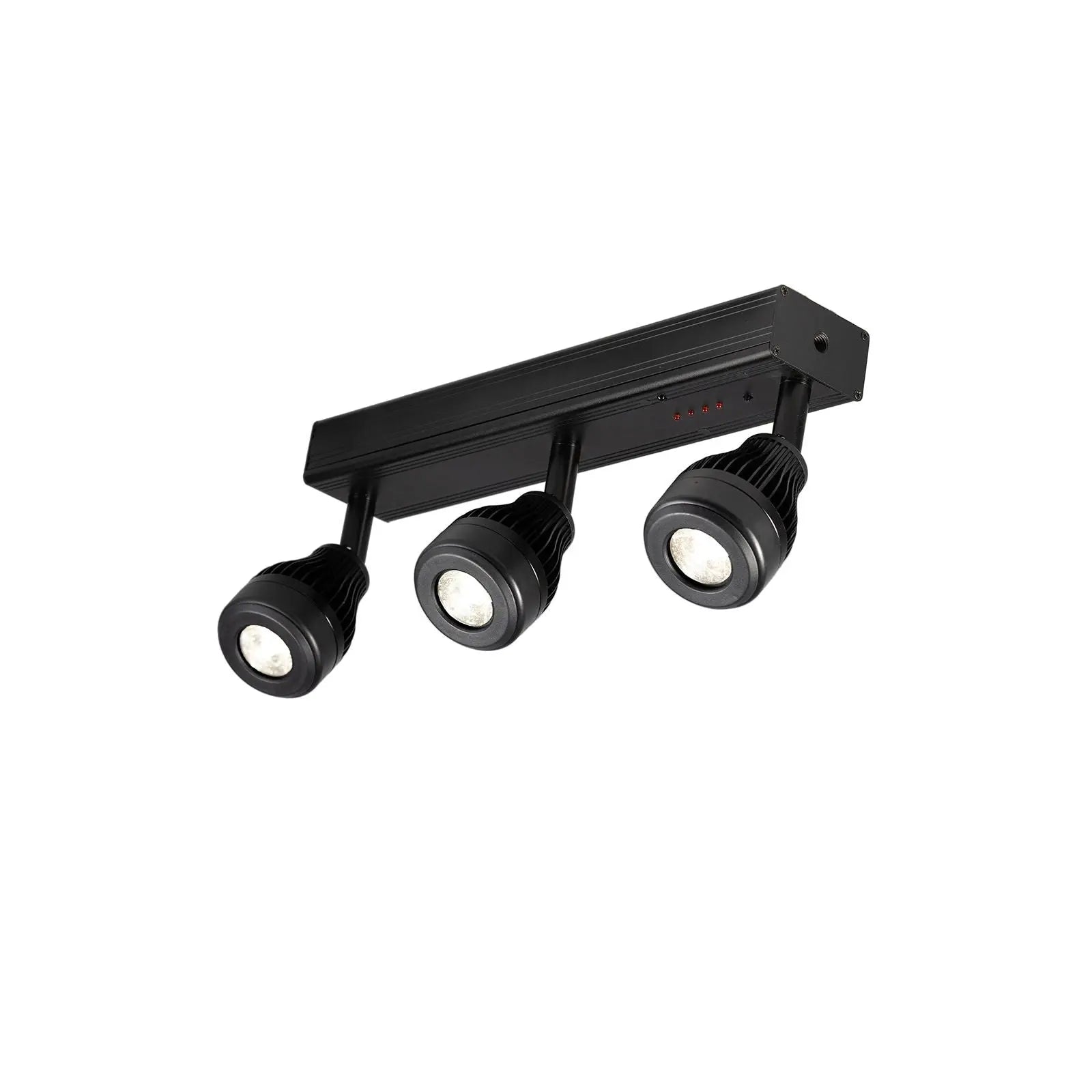

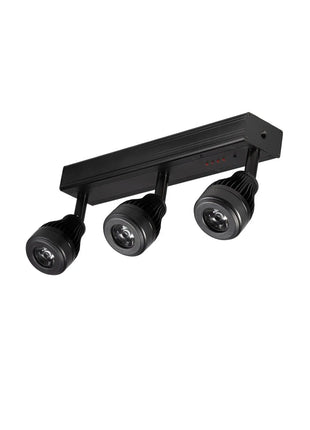

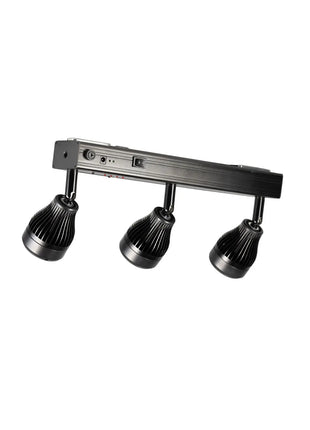

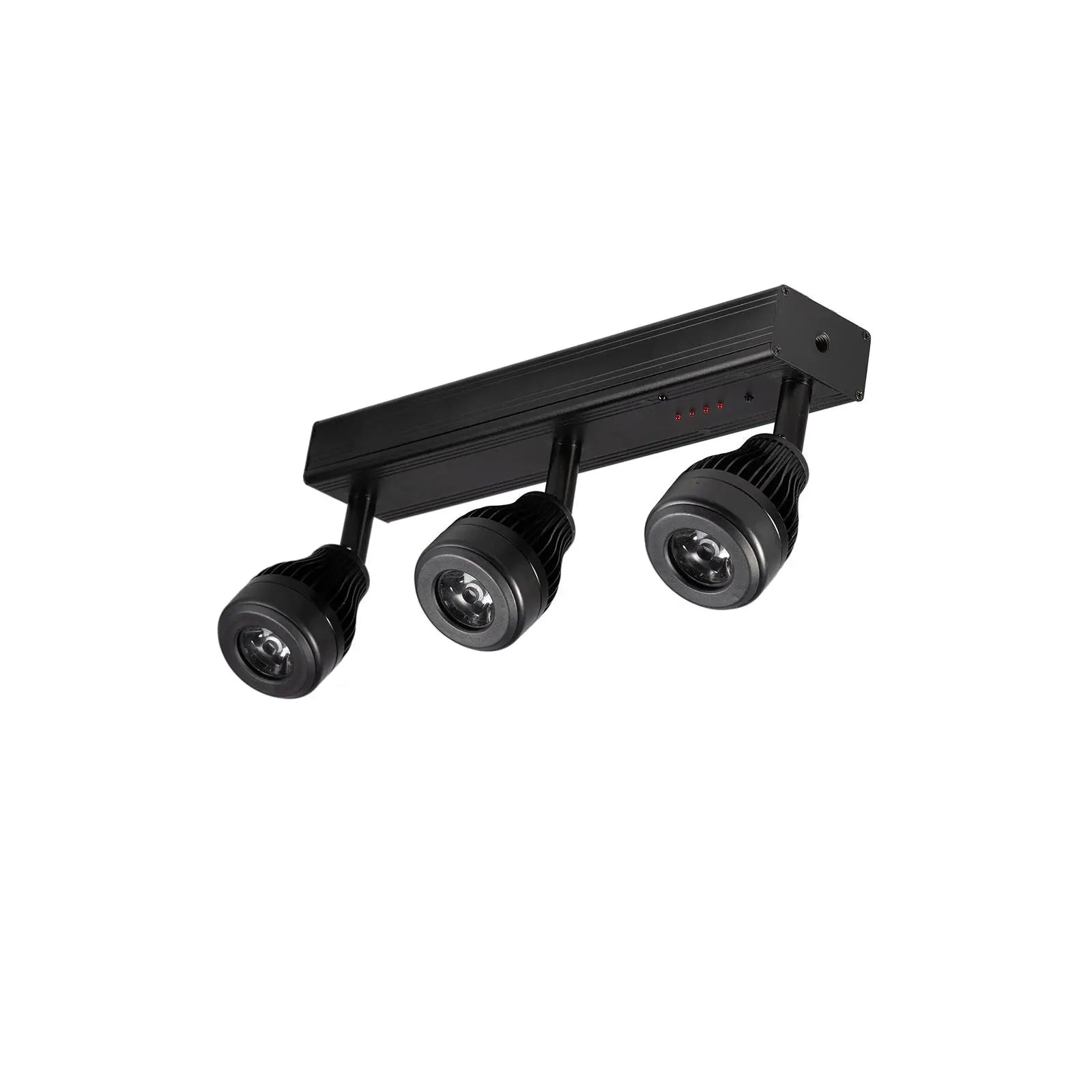

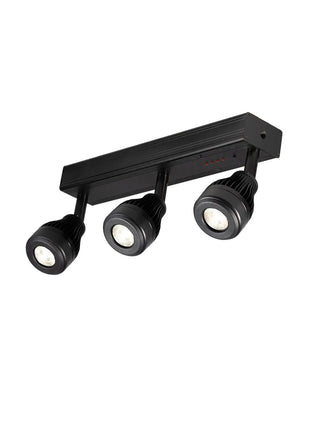

Equinox Pinbeam Rapid | Battery-Powered 3-Way Pinspot Bar
Wireless precision for every event. The Pinbeam Rapid combines three high-output 5W warm white LEDs on a single portable bar. With its built-in rechargeable battery, you can enjoy up to 8 hours of runtime at full brightness, making it a reliable solution for full-day exhibitions or evening wedding receptions. The unit is designed for maximum adaptability, offering a native narrow beam for focused spotting and including two sets of optional lenses for wider, softer washes.
Why Choose the Equinox Pinbeam Rapid?
-

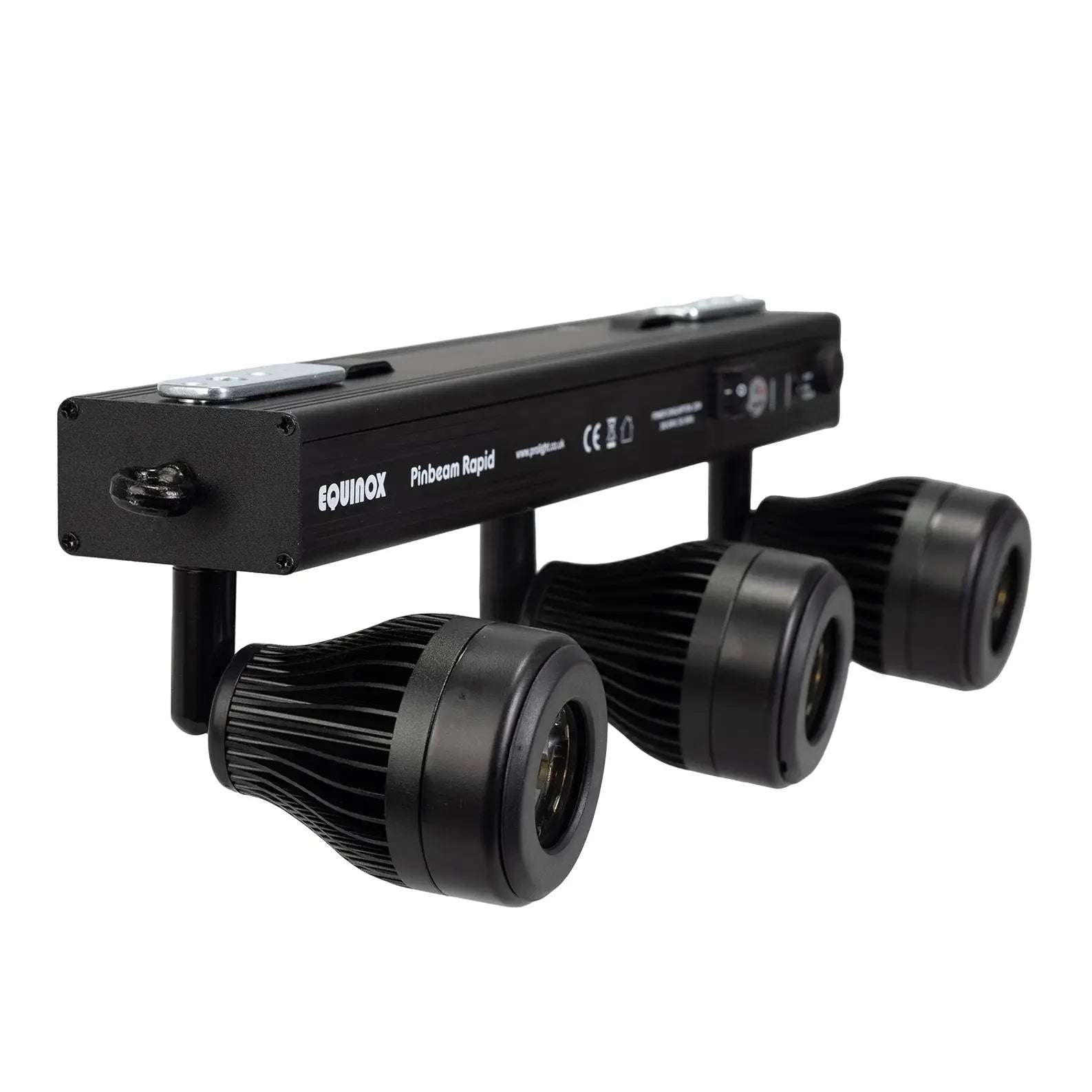

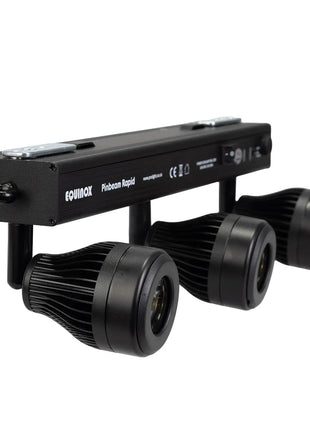

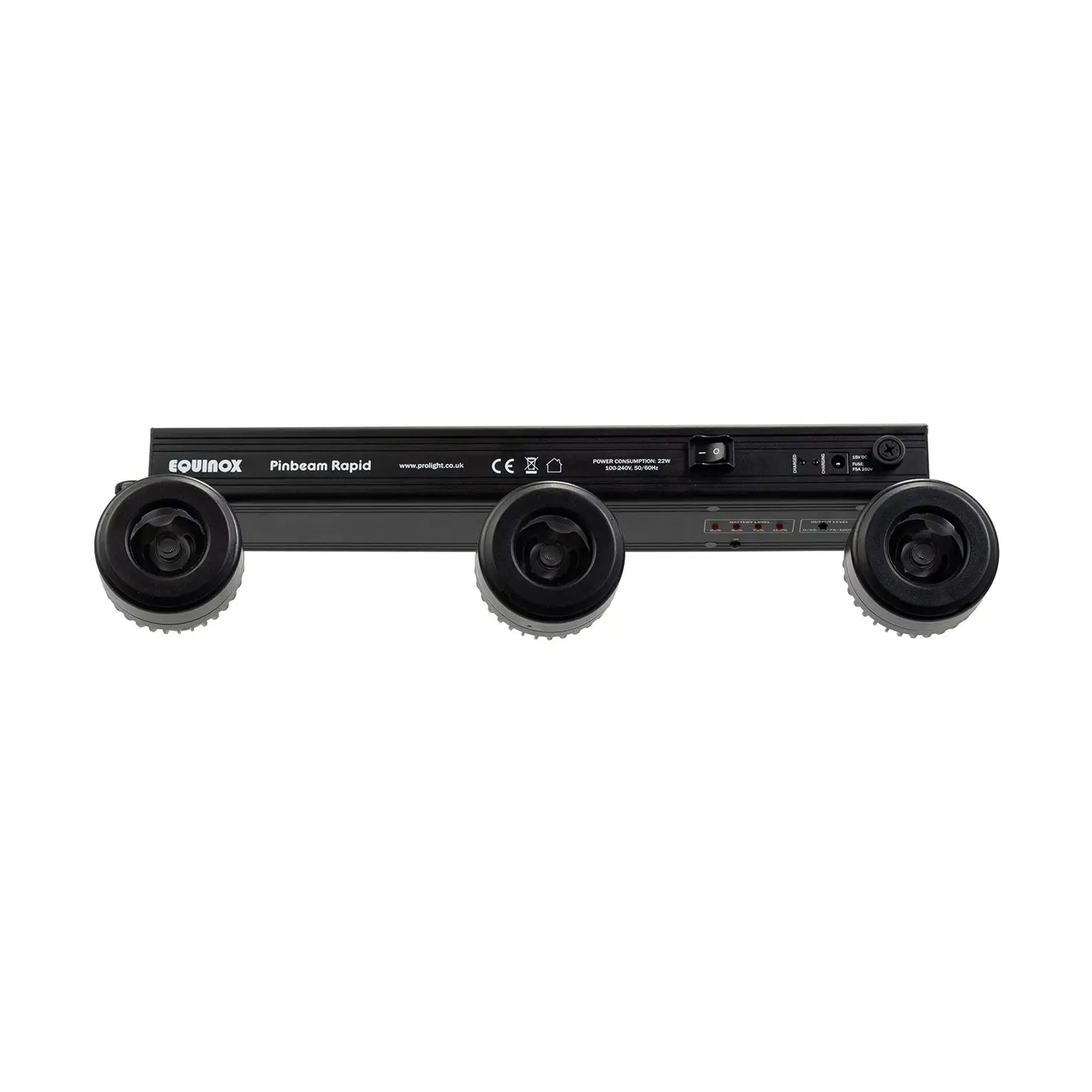

Three Independent Heads: Each of the three pinspots can be directed individually, allowing you to highlight multiple targets from a single mounting point.
-
True Wireless Portability: The internal 11.1V 7800mAh lithium-ion battery eliminates messy cables and speeds up setup in any venue.
-
Versatile Beam Shaping: Includes 10° and 25° frost lenses to supplement the native 5° beam, providing everything from tight spots to soft accent lighting.
-

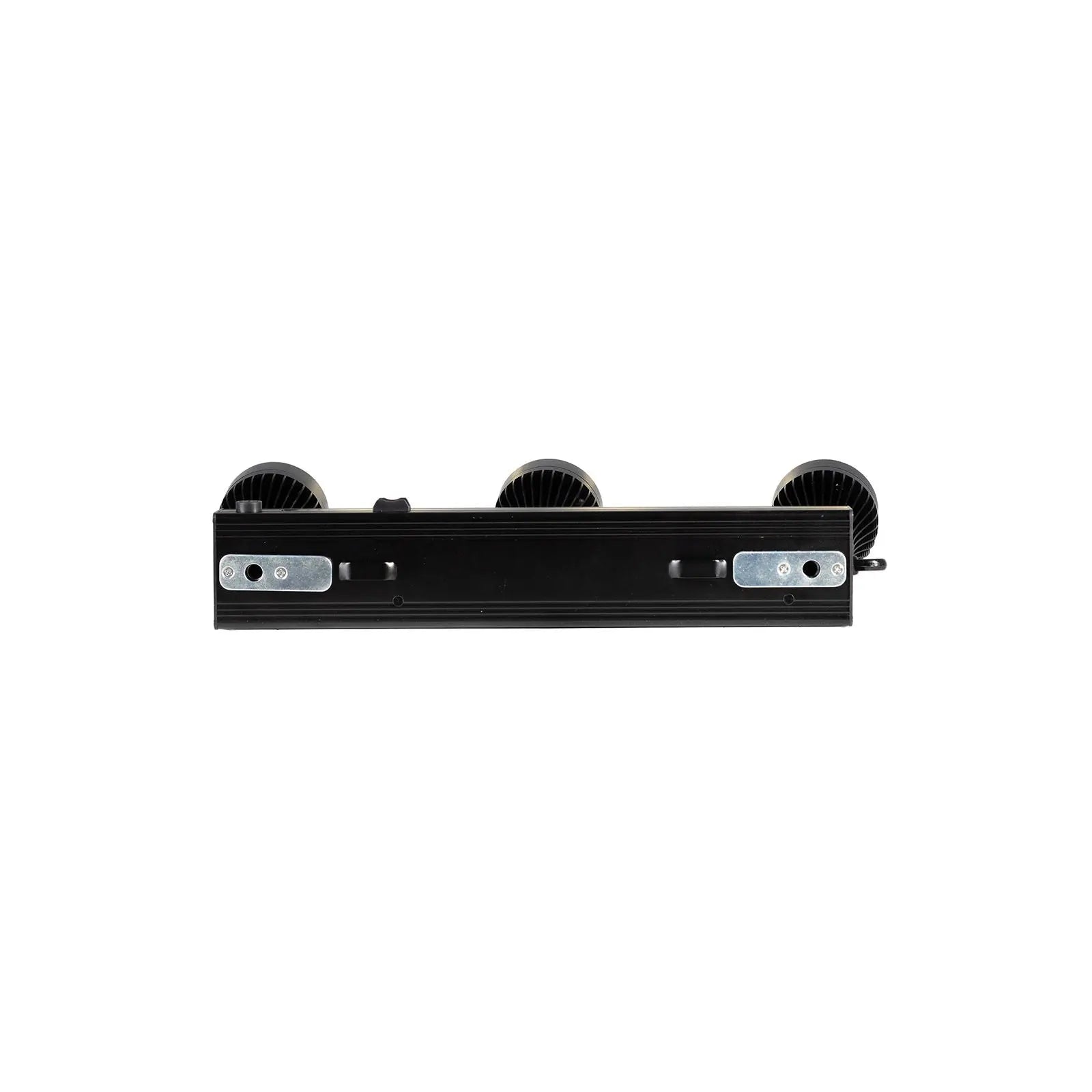

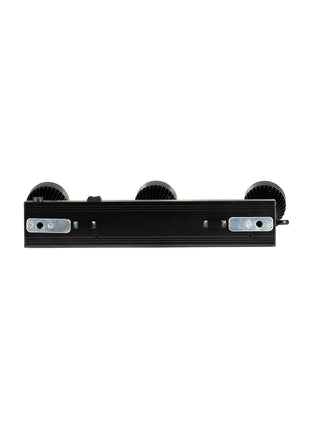

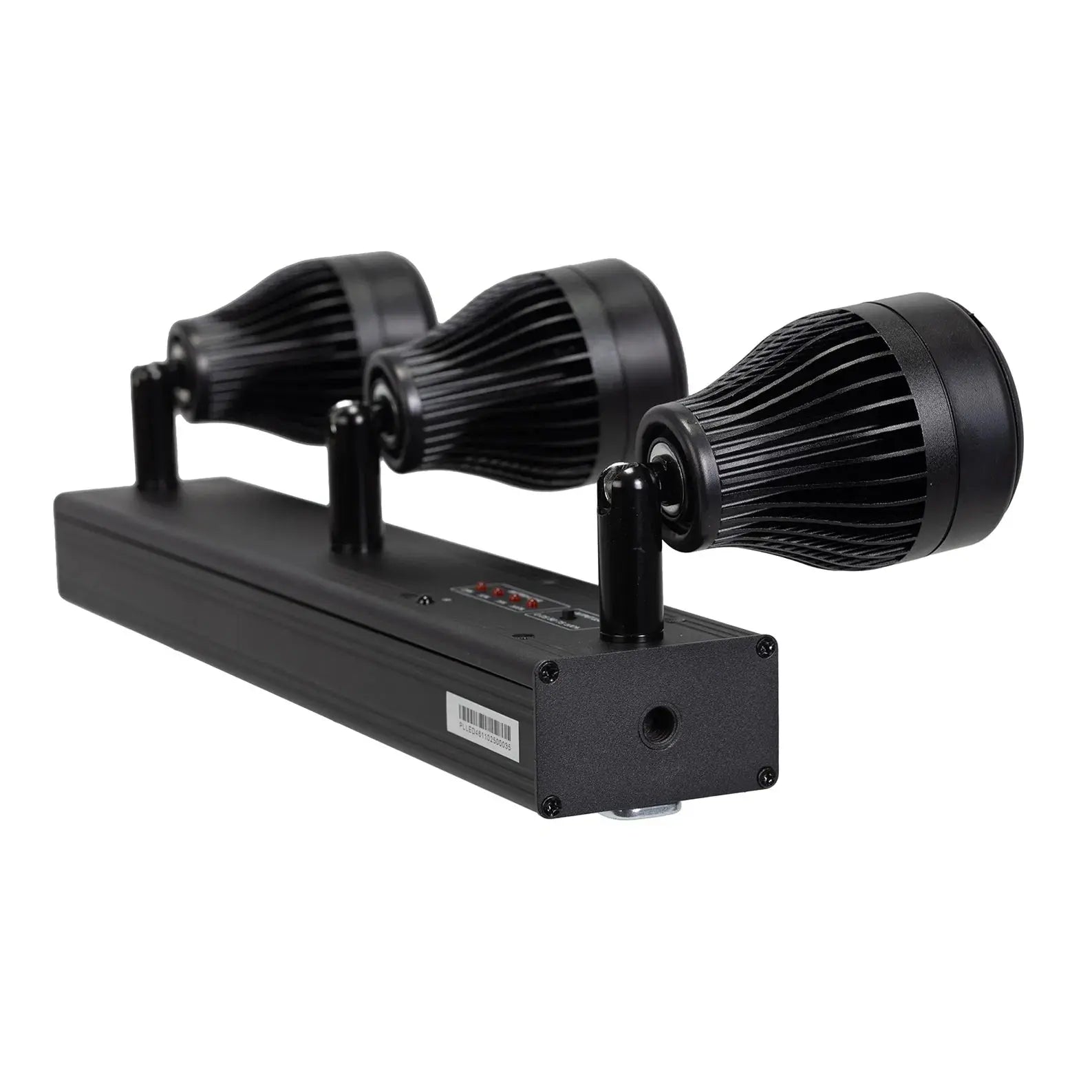

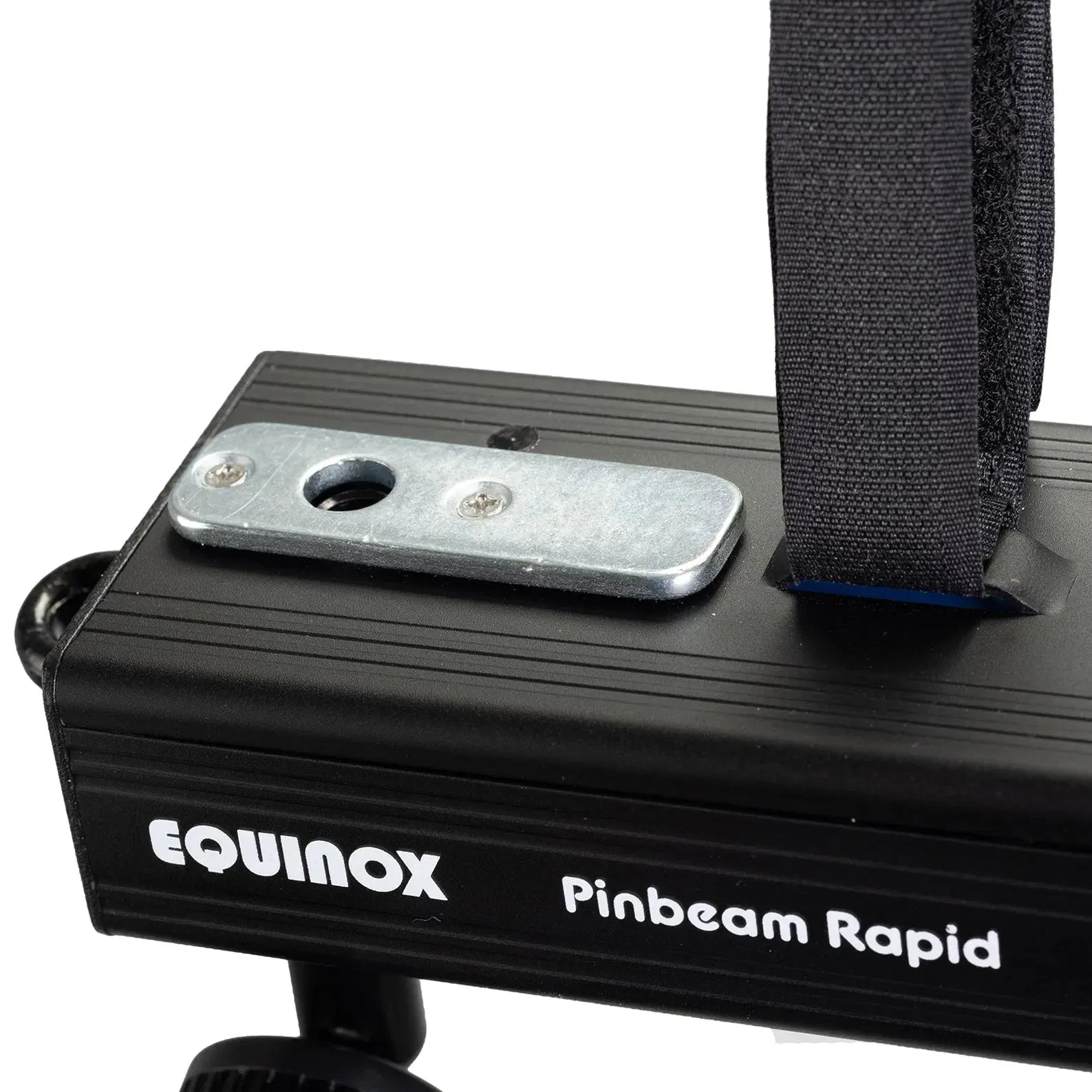

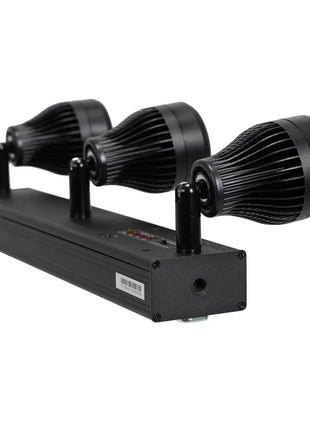

Flexible Mounting Options: Integrated strong magnets for ferrous surfaces, an M10 threaded hole for clamps, and included velcro straps for truss mounting.
-
Extended Performance: Offers up to 8 hours of runtime at 100% output, with a maximum recharge time of just 6 hours.
-
Simple IR Remote Control: The included remote allows for instant blackout and selection between four different brightness modes.
-
Natural Warm White Output: 3600K LEDs provide a clean, professional tone that enhances décor and floral arrangements.
-
Silent, Discreet Design: Convection cooling ensures silent operation, while the compact black bar blends seamlessly into event environments.
Adaptable Setup and Control

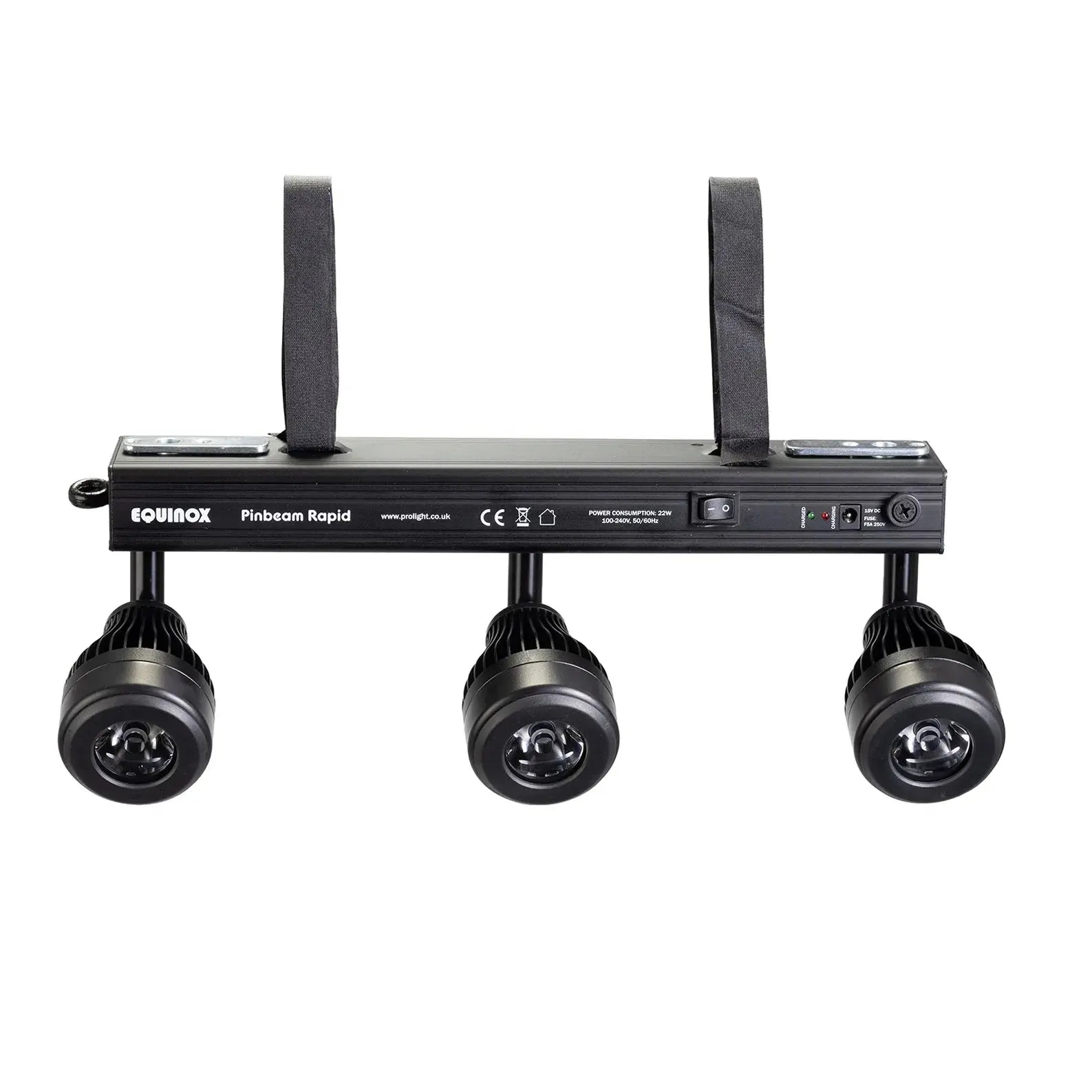

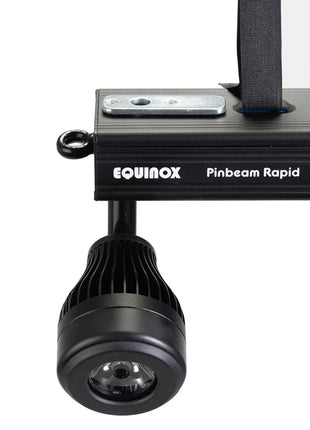

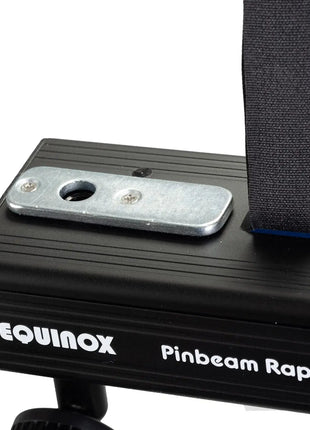

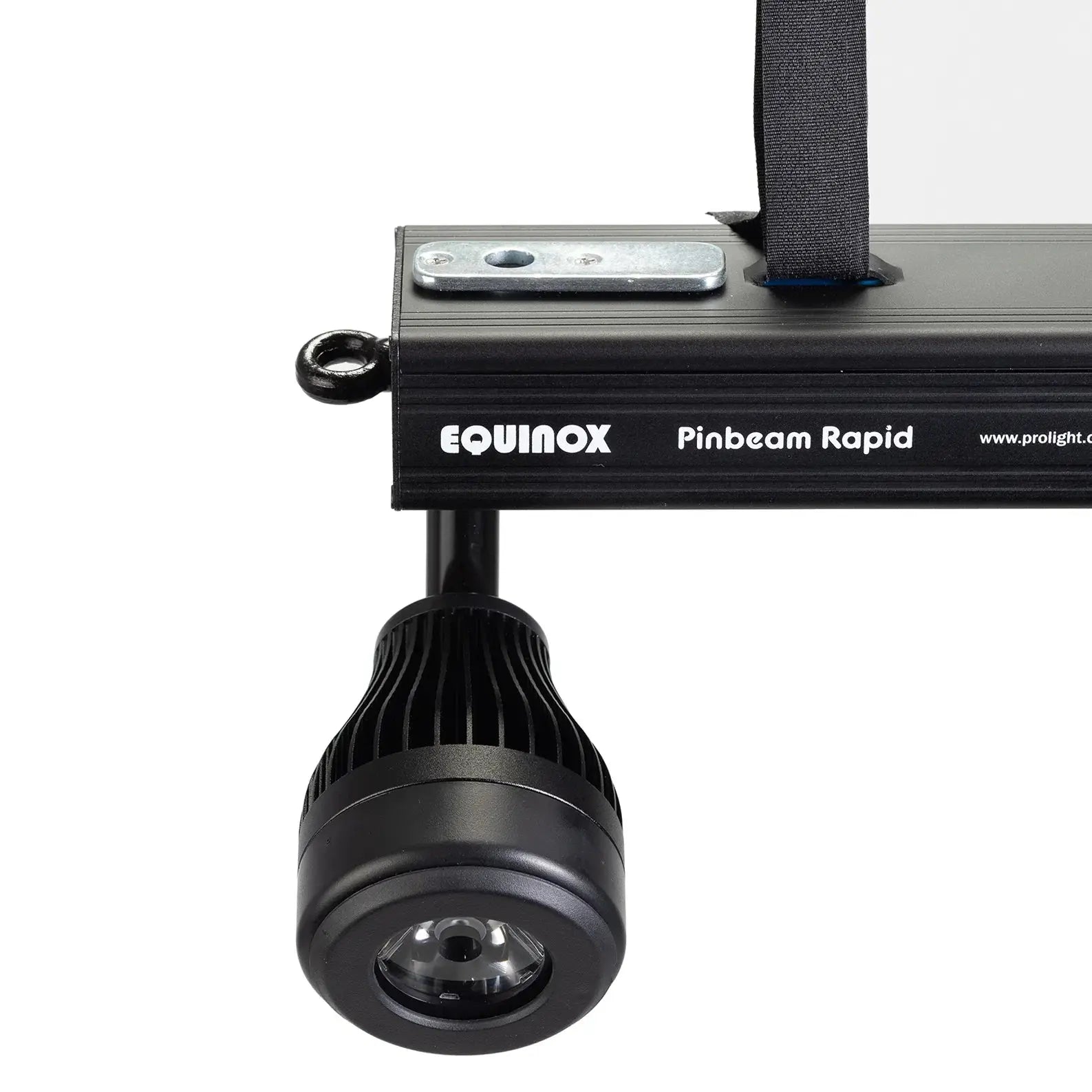

Multiple Rigging Solutions The Pinbeam Rapid is built to adapt to any environment. Whether you are sticking it to a metal beam using the built-in magnets, strapping it to a goalpost with velcro, or mounting it to a professional truss rig via the M10 rigging point, this bar ensures a secure and clean installation.

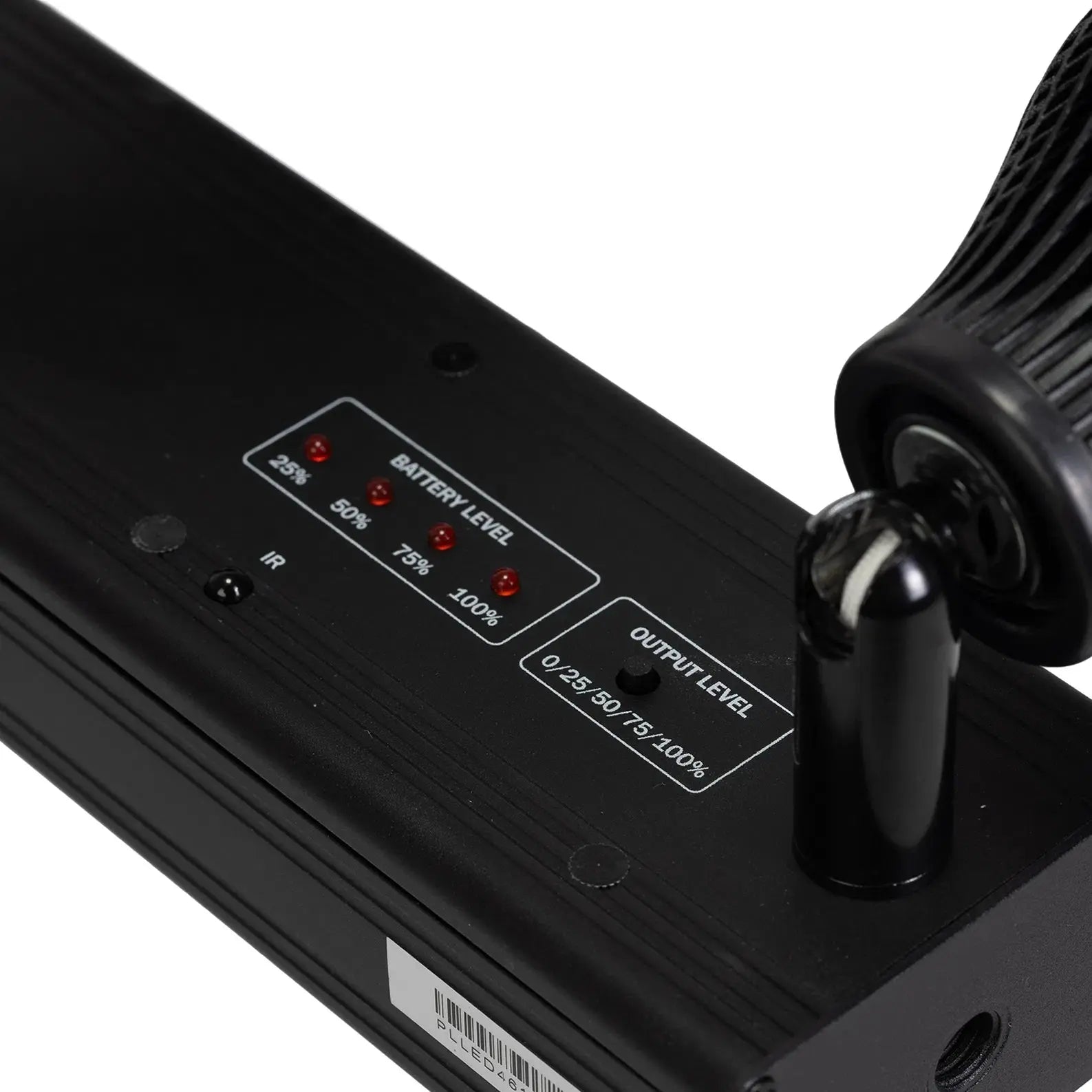

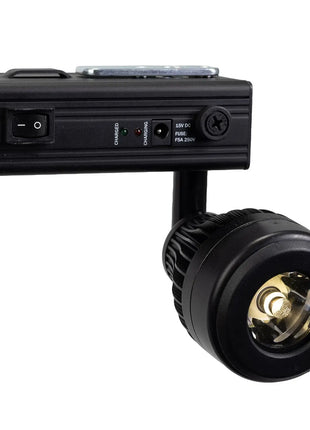

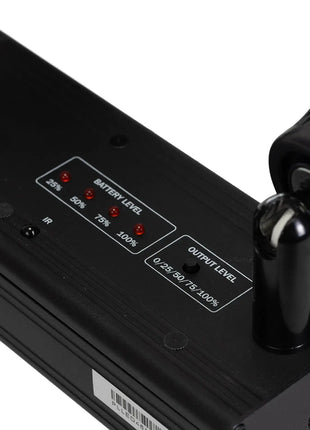

On-Board and Remote Operation Managing your lighting is effortless with the provided IR remote, which offers quick access to dimming and blackout. For hands-on adjustments, the unit features a manual dimming button and clear battery indicators so you can monitor your remaining runtime at a glance.
Technical Specifications
-
Light Source: 3 x 5W Warm White LEDs (3600K).
-
Beam Angle: 5° native; 10° and 25° lenses included.
-
Lux @ 2m (5°): 5641 Lux per spot.
-
CRI: 80.
-
Battery: 11.1V 7800mAh Lithium-ion.
-
Maximum Runtime: Up to 8 hours at 100% output.
-
Charging Time: 6 hours maximum.
-
Power Consumption: 22W.
-
Dimensions: 175 x 395 x 72 mm.
-
Weight: 1.65 kg.
Frequently Asked Questions

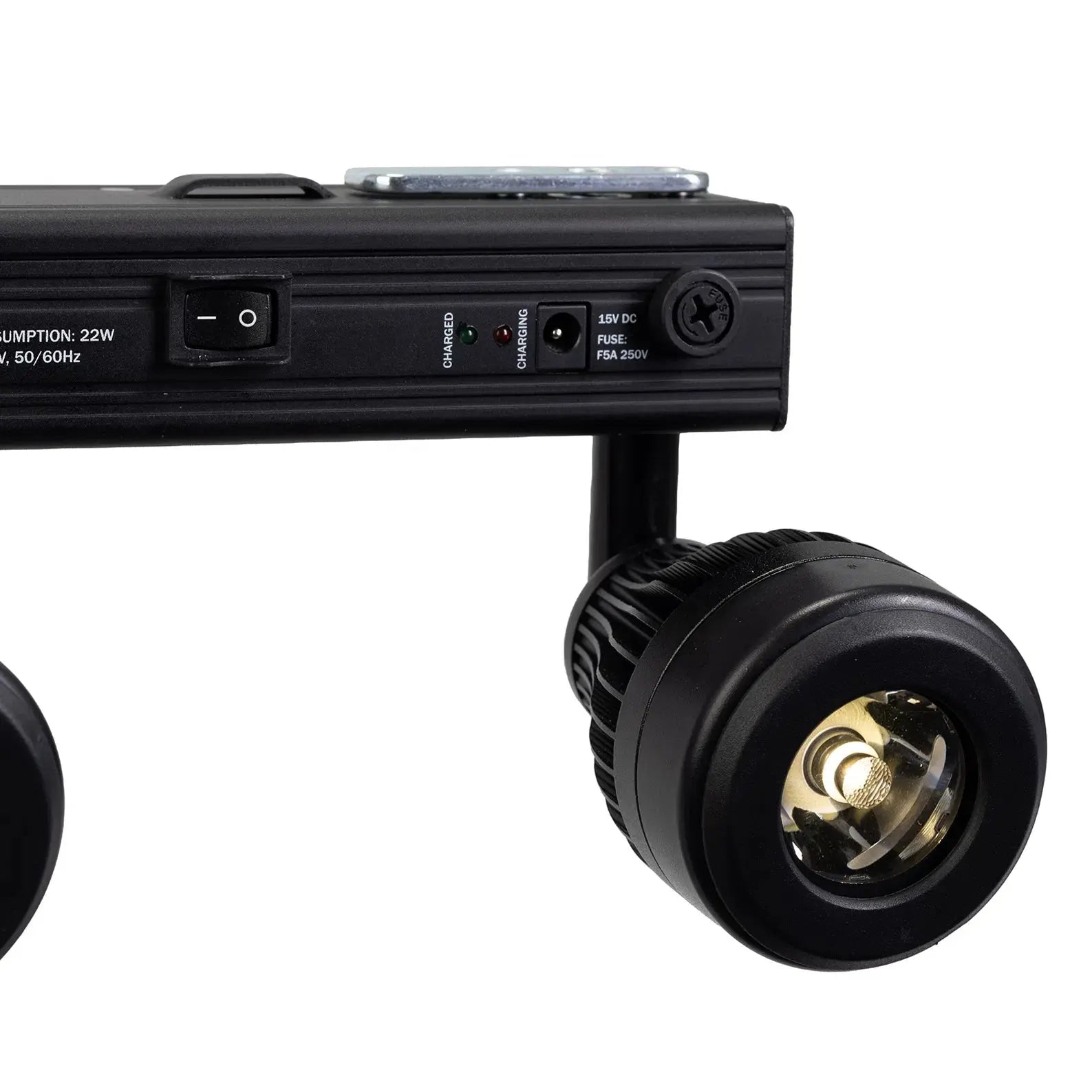

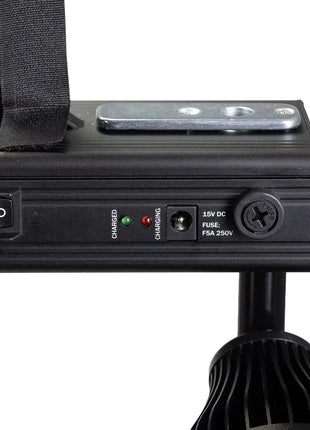

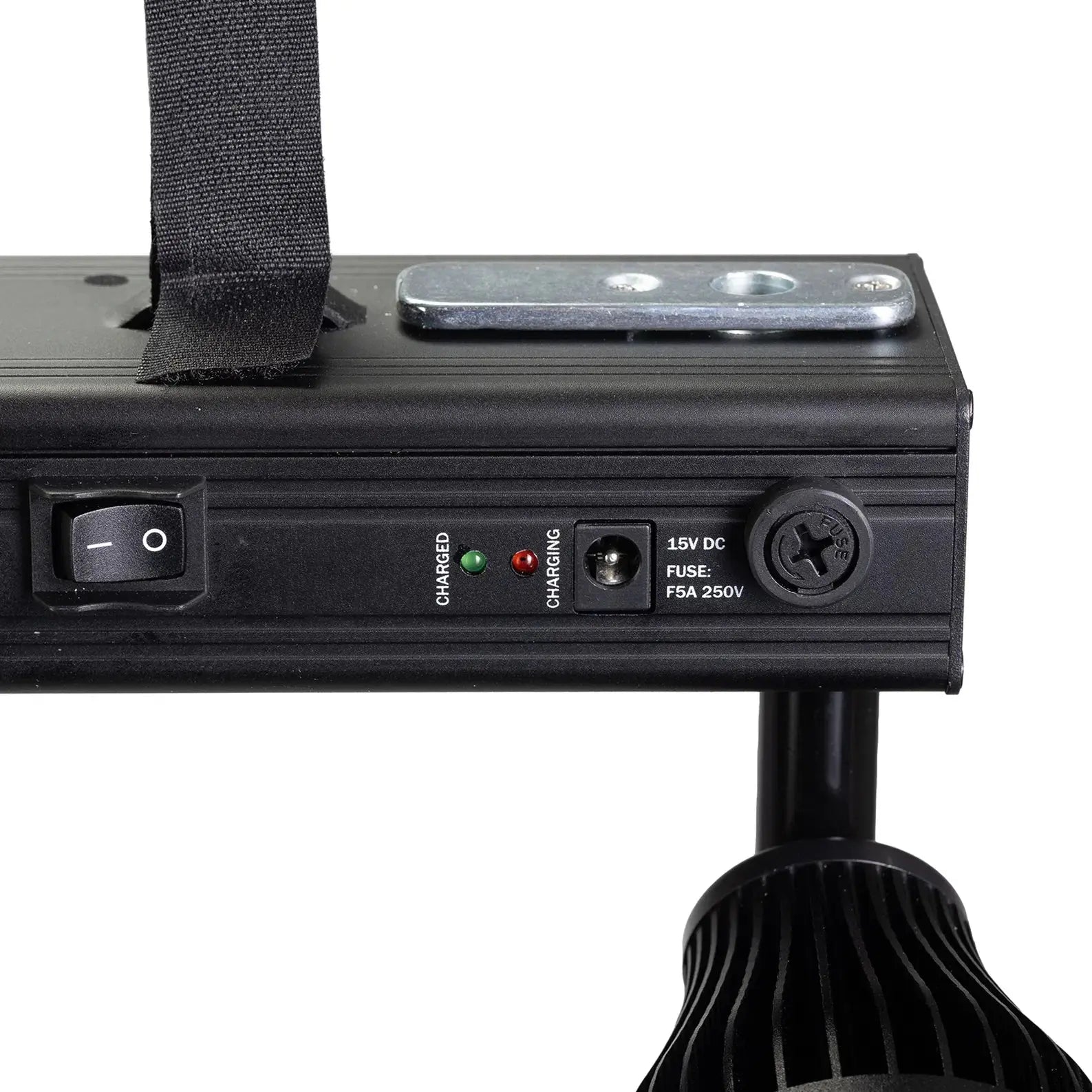

How long does it take to charge? The Pinbeam Rapid takes a maximum of 6 hours to fully charge using the supplied 15V DC charging adapter.
Can I use this for outdoor events? The unit is designed for indoor use and should be used in dry locations. For outdoor events, ensure it is protected from moisture and environmental elements.
What is the benefit of the different lenses? The native 5° lens is perfect for tight pinspotting of table centres. The 10° and 25° lenses soften the beam, which is better for architectural accenting or highlighting larger floral displays.
What is In The Box?
-
1 x Equinox Pinbeam Rapid Bar.
-
1 x IR Remote Control.
-
2 x 10° Frost Lenses.
-
2 x 25° Frost Lenses.
-
1 x 15V DC Charging Adaptor.
-
Velcro Straps for Truss Mounting.
-
User Manual.
