Description

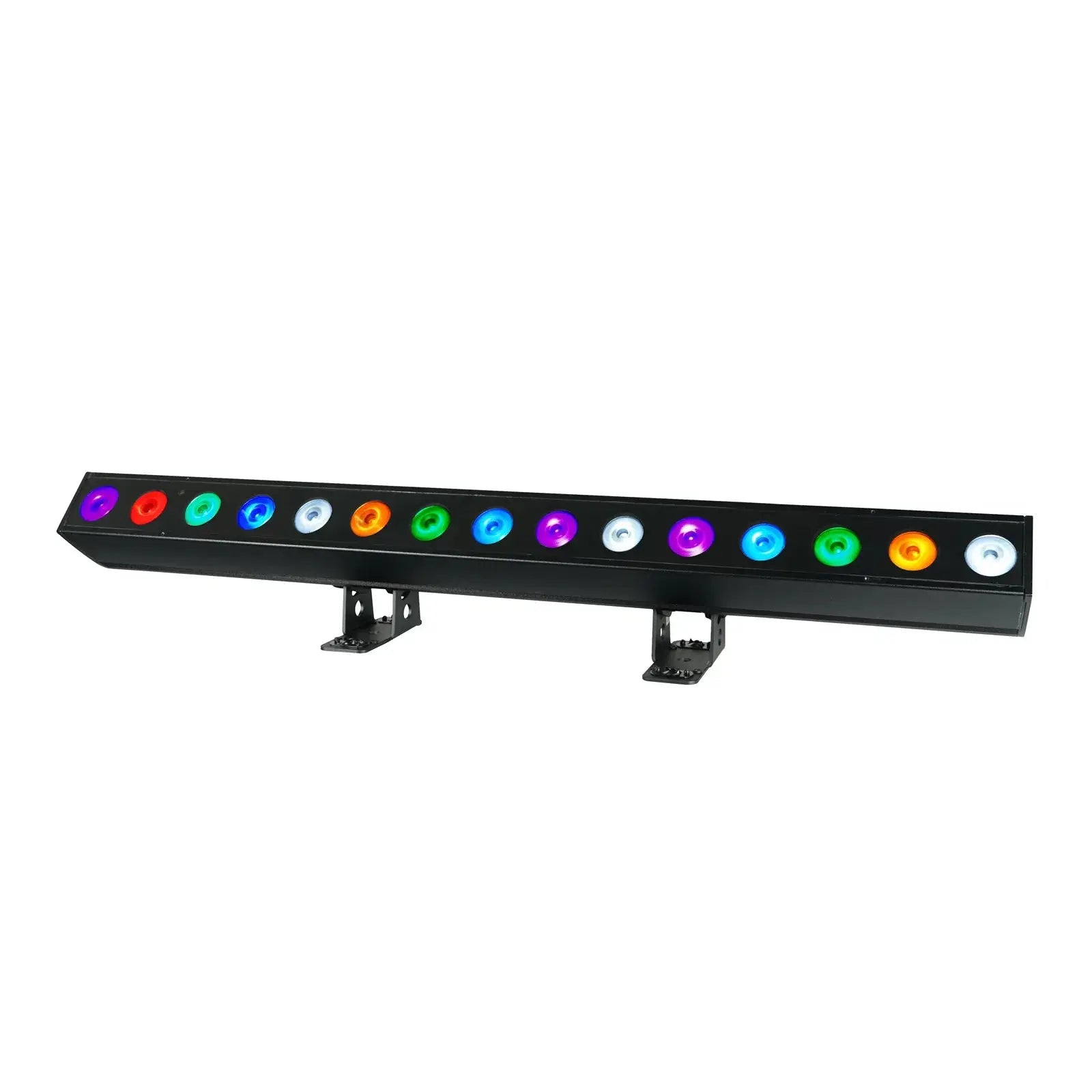

Elumen8 Meteor 150 HEX IP Pixel Batten
The Elumen8 Meteor 150 HEX IP Pixel Batten is a robust and versatile LED batten designed for both indoor and temporary outdoor use. Encased in a rugged IP65-rated housing, it delivers powerful and vibrant lighting effects with individual pixel control, making it suitable for a wide range of applications.
Key Features

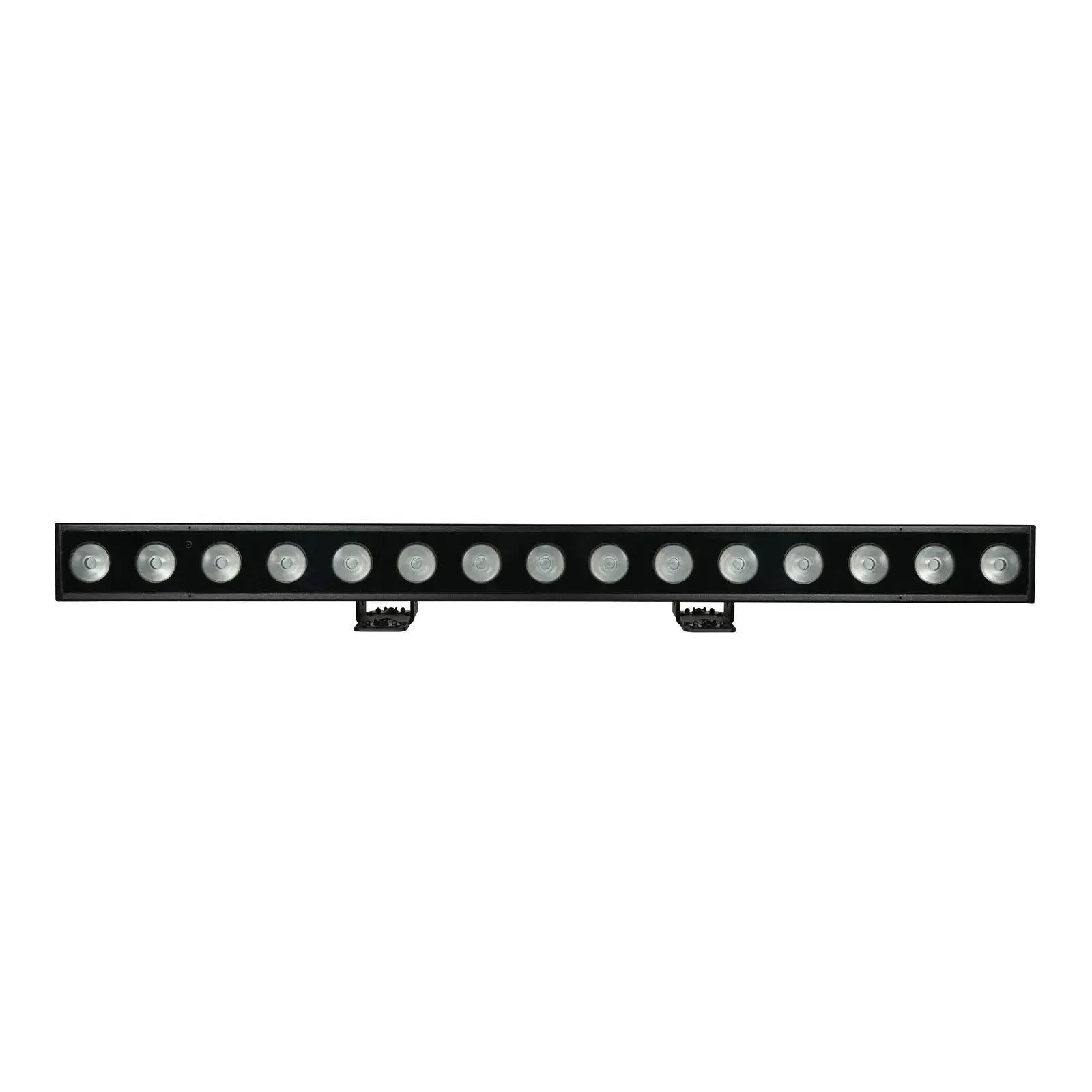

15 x 12W Six-Colour LEDs (RGBWAUV): Provides a wide spectrum of colors, including amber and UV, for rich and saturated hues, as well as subtle pastel shades.
20° x 30° Beam Angle: Offers a focused yet wide enough beam for washing facades and creating stage effects.
High Output LEDs: Delivers bright and impactful lighting.
Full Pixel Mapping Capabilities: Enables creative and dynamic pixel effects for advanced control.
Selectable DMX Channels: Offers flexibility with 6, 8, 12, 90, or 96 DMX channels.
Multiple Operational Modes: Includes Static colour, colour change, colour fade, and master/slave modes.
0-100% Dimming: Allows for smooth and precise intensity control.
4 Dimming Curves: Provides options for dimming response (Linear, square law, inverse square law, and S-curve).
Variable Strobe: Adjustable strobe speed for dynamic effects.
RDM (Remote Device Management): Enables remote control and configuration of the fixture.
OLED Display with 4 Button Menu: User-friendly interface for settings and control.

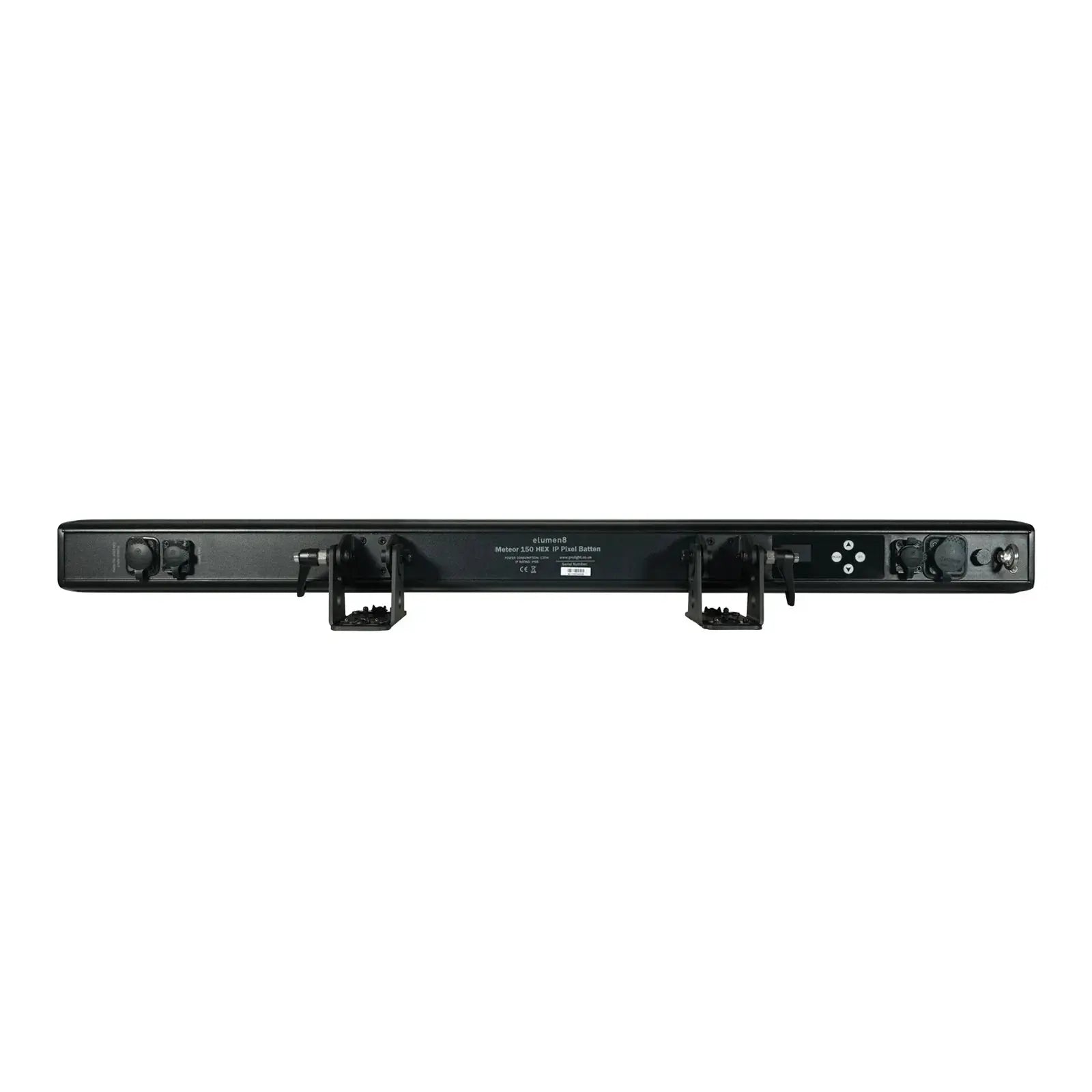

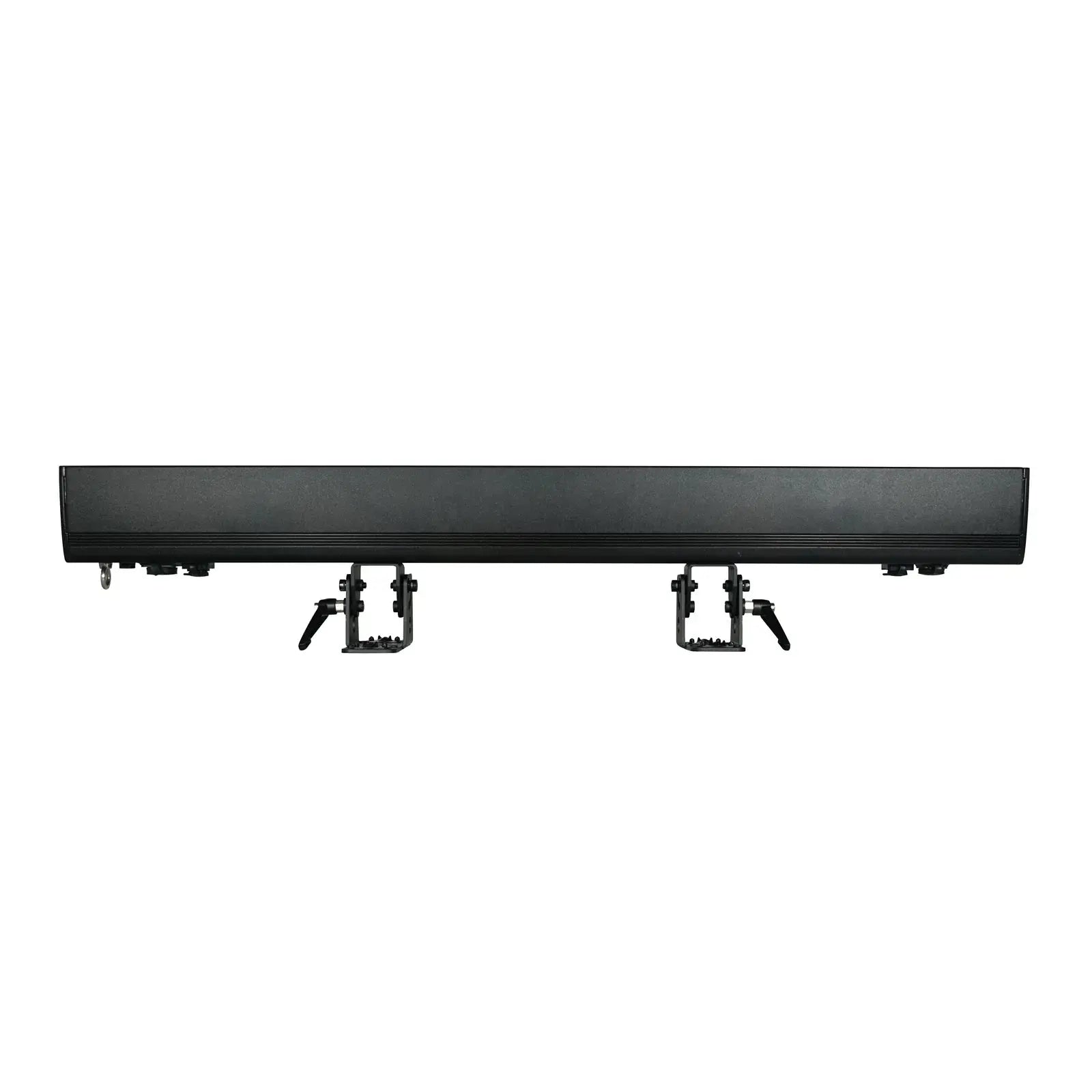

Bracket: Allows for multiple rigging or floor-standing applications.

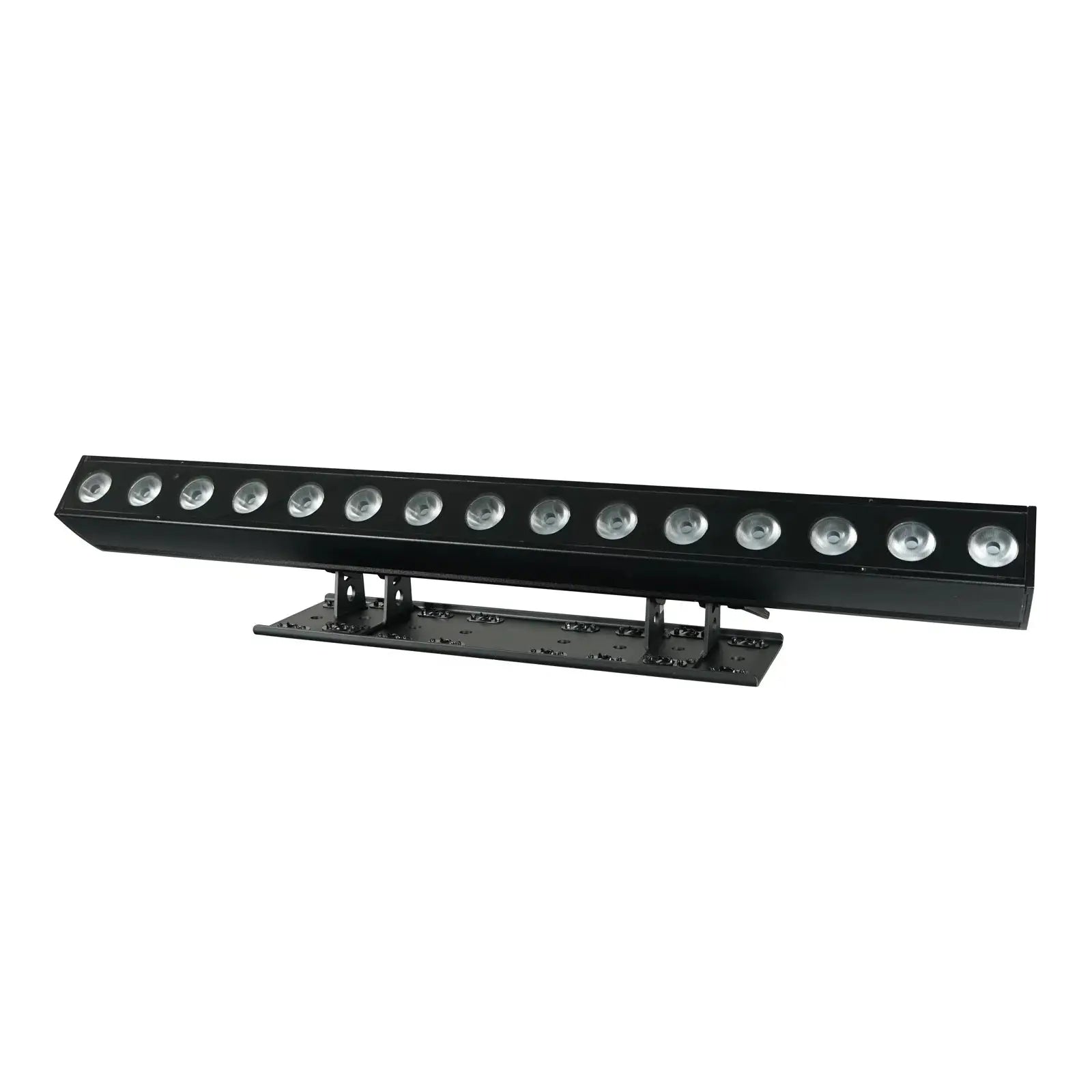

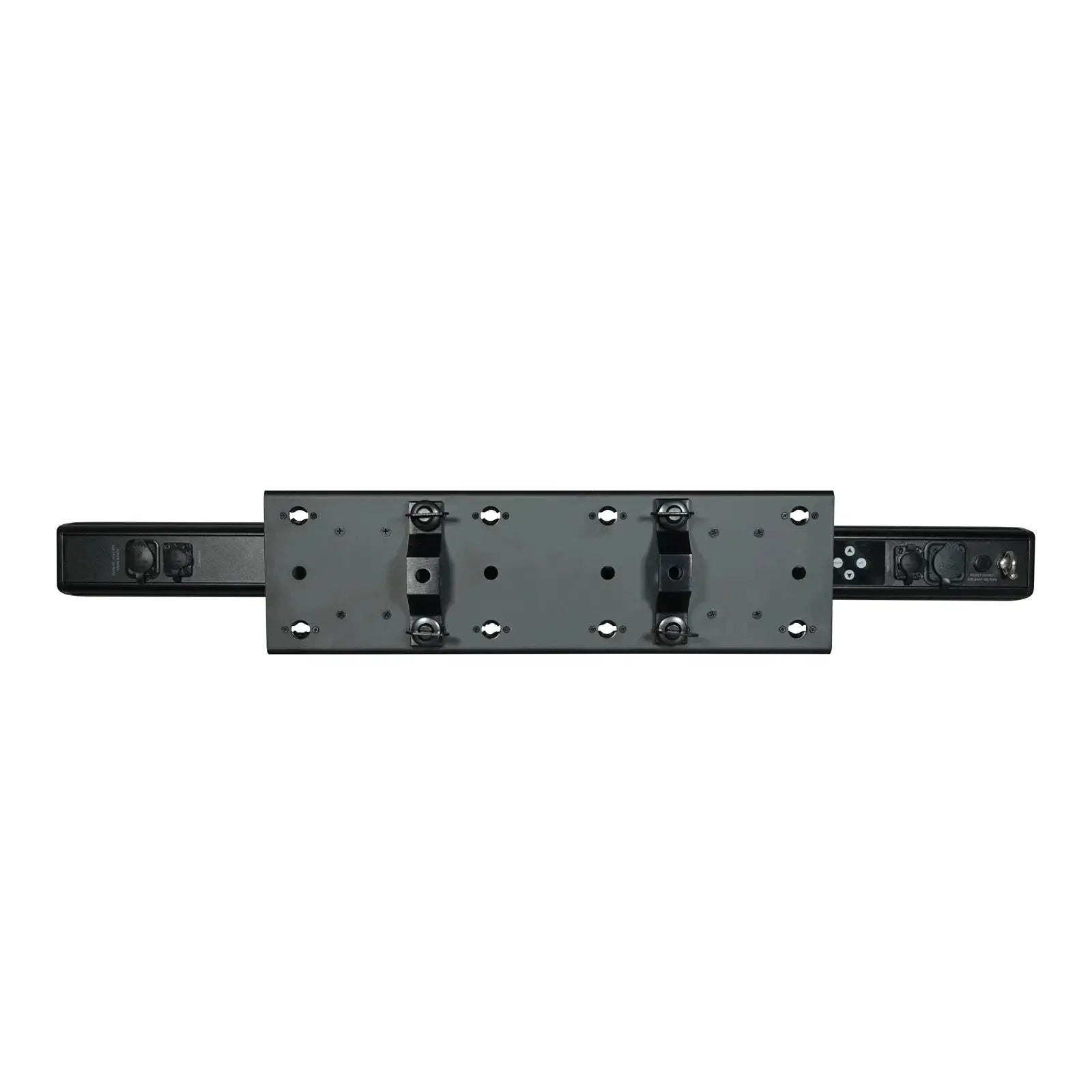

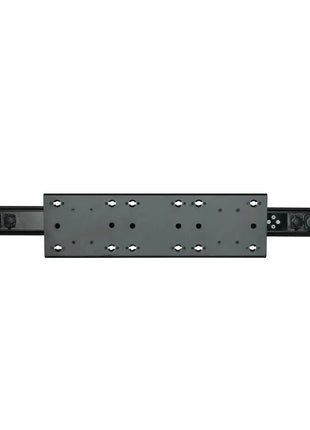

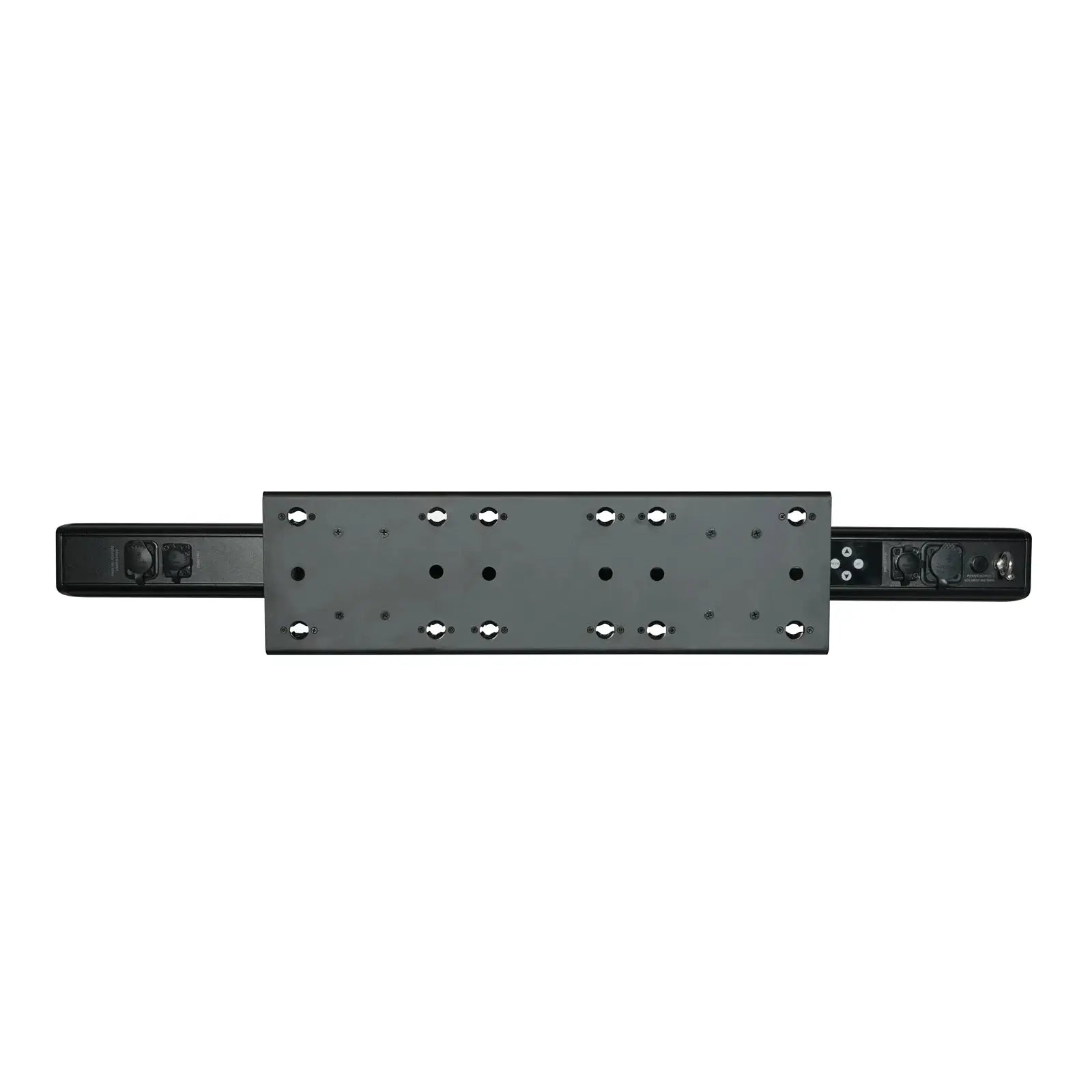

Removable Base Plate: Enables omega clamps to be rigged in multiple positions for flexible installation.

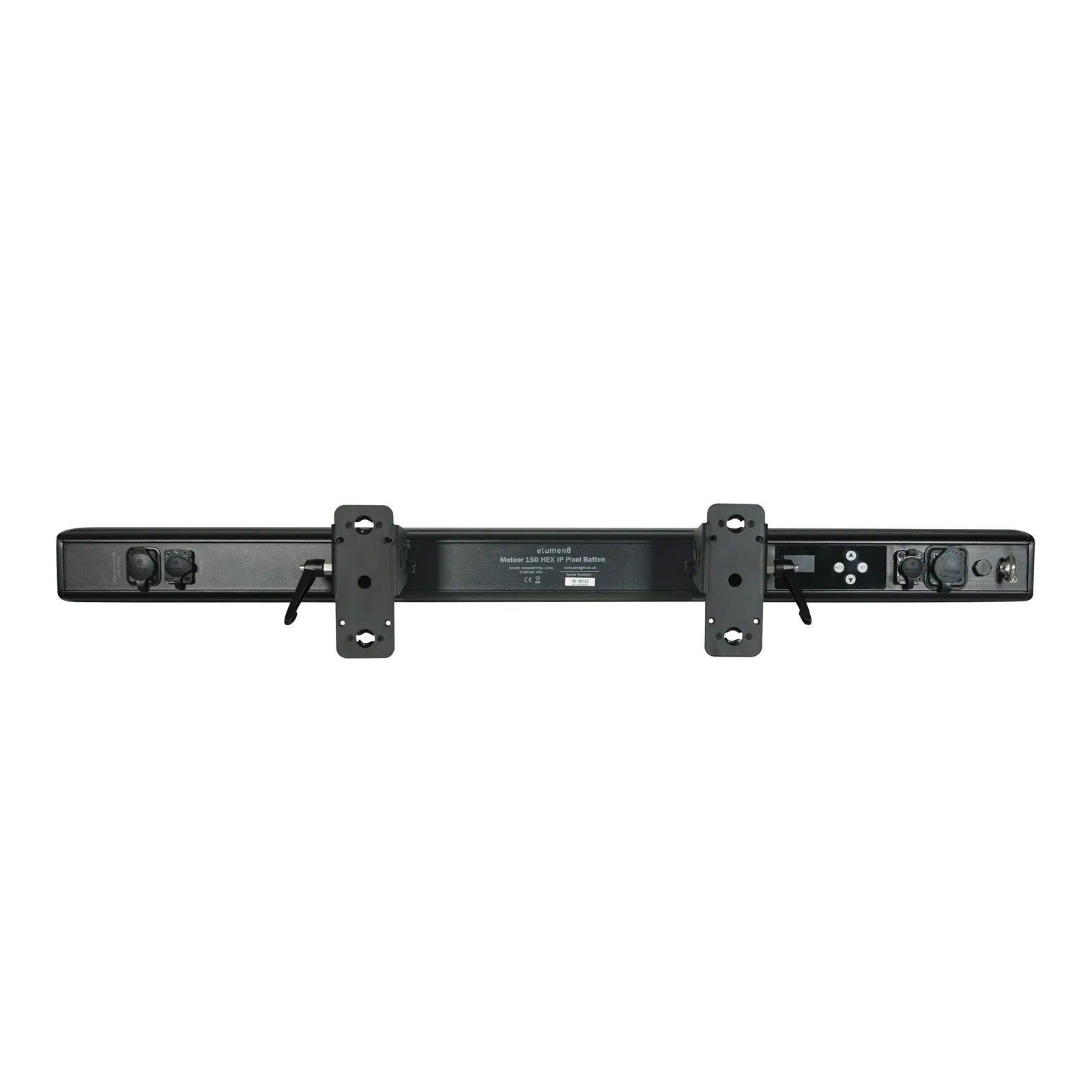

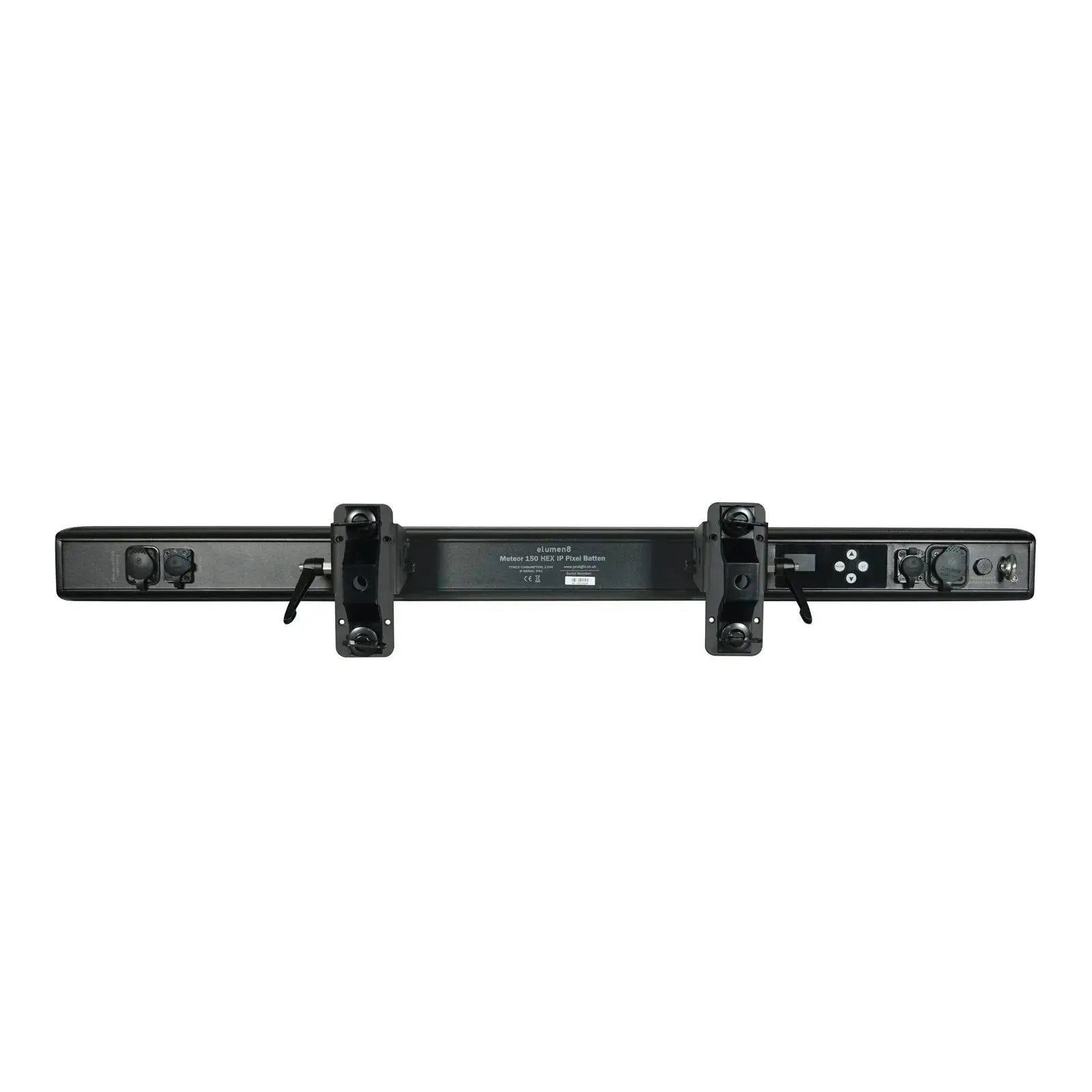

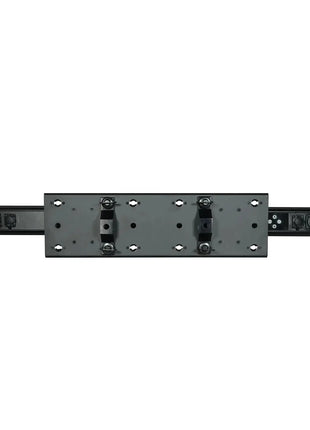

Quick Release Omega Clamps: For fast and easy mounting.
PowerTwist TR1 Input/Output: For secure power connections.
IP Rated 5-Pin XLR Input/Output: Weatherproof connectors for reliable DMX communication.
Convection Cooled: Silent operation without the need for fans.
2 Year Warranty: Provides peace of mind.
IP65 Rated Housing: Rugged construction suitable for indoor and temporary outdoor use.
Technical Specifications
LEDs: 15 x 12W six-colour LEDs (RGBWAUV)
Beam angle: 20° x 30°
Lux: 3,040 Lux @ 2m (full on)
Refresh rate: 1kHz, 4kHz, 8kHz or 16kHz selectable
DMX channels: 6/8/12/90 or 96 selectable
Dimming: 0 - 100%
Dimming curves: Linear, square law, inverse square law and S-curve
Strobe: Variable
IP rating: IP65
Power consumption: 130W
Power supply: 100~240V 50/60Hz
Dimensions (H x W x D): 191 x 990 x 145mm
Weight: 7.3kg
What's in the box
Equinox Meteor 150 HEX IP Pixel Batten
Quick release omega clamps
Removable base plate
PowerTwist TR1 input/output cable
User manual
