Equinox Merlin | 80W LED Multi-Gobo Mirrored Barrel Effect
Classic barrel energy with modern LED power. The Equinox Merlin is a dynamic and portable lighting effect designed to bring life to dancefloors, stages, and events. Driven by a punchy 80W cool-white LED, the Merlin utilizes a rotating mirrored barrel to project a synchronized "flower" of eight static gobos and colours. Its unique 360-degree tilt capability and wide-angle projection ensure that even small-to-medium venues are completely immersed in moving light. Whether you are a mobile DJ seeking a fast setup or a nightclub looking for a reliable centrepiece, the Merlin delivers professional results with ease.
Why Choose the Equinox Merlin?
-
High-Output 80W LED: A single 7500K cool-white LED provides the brightness and throw needed to cut through other lighting and atmospheric effects.
-

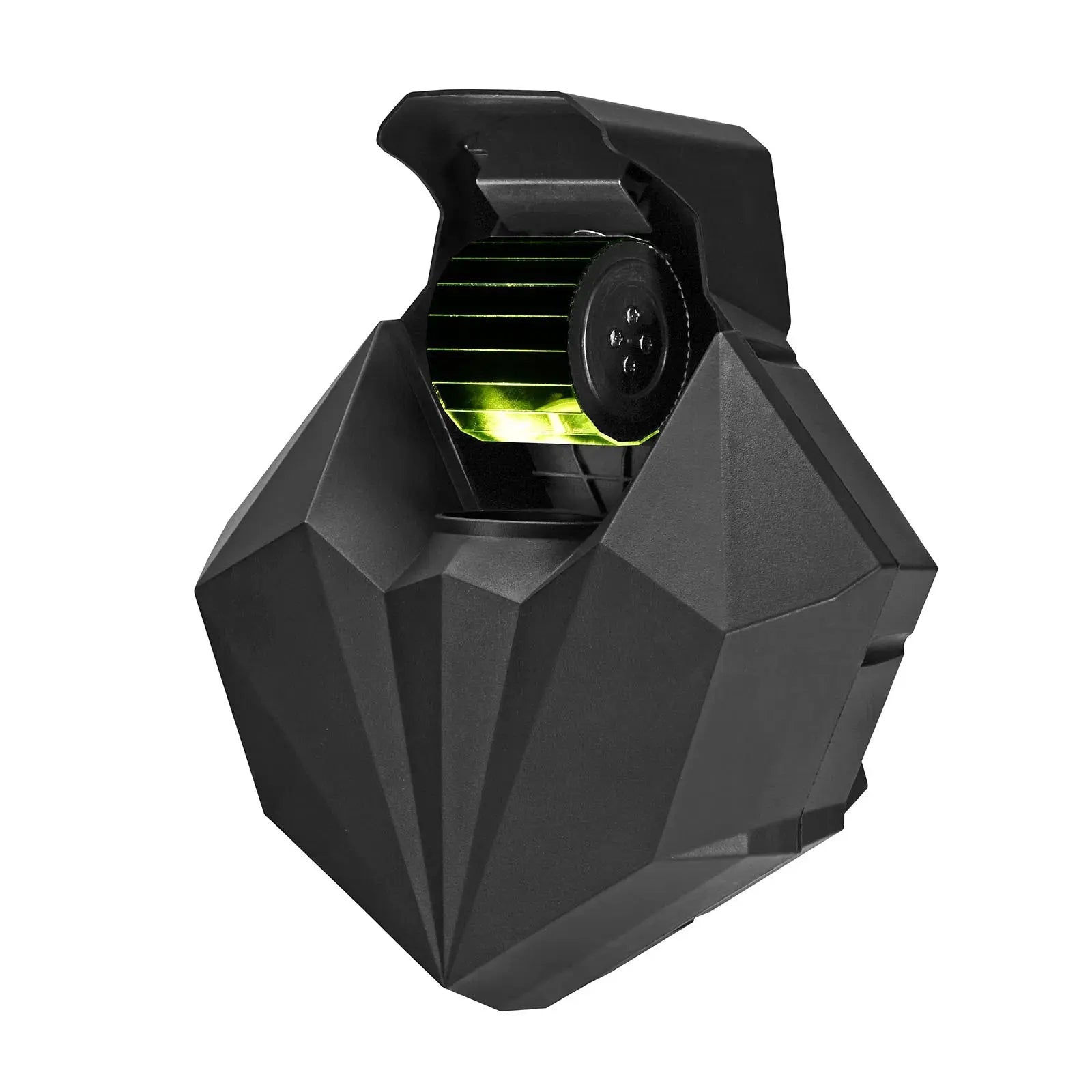

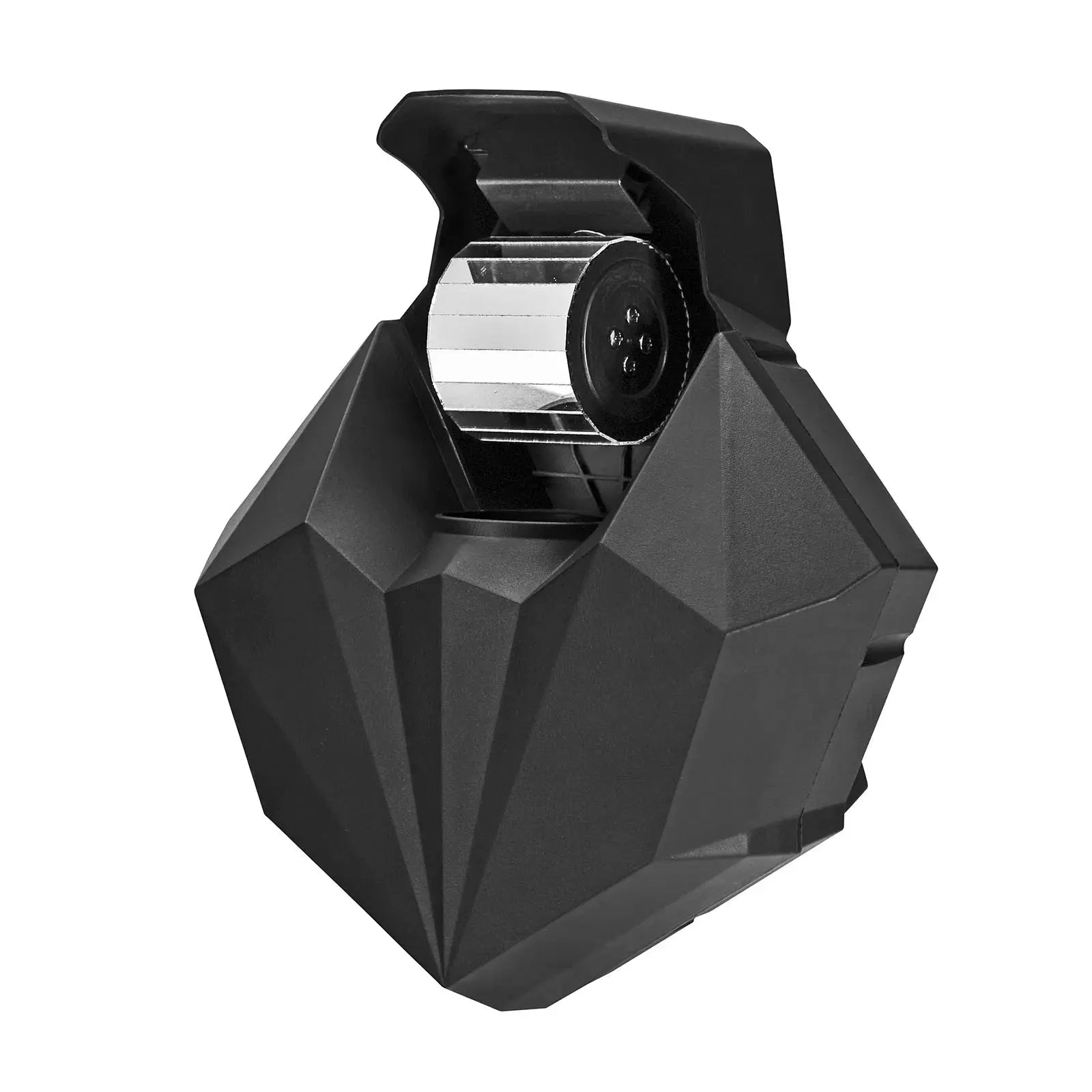

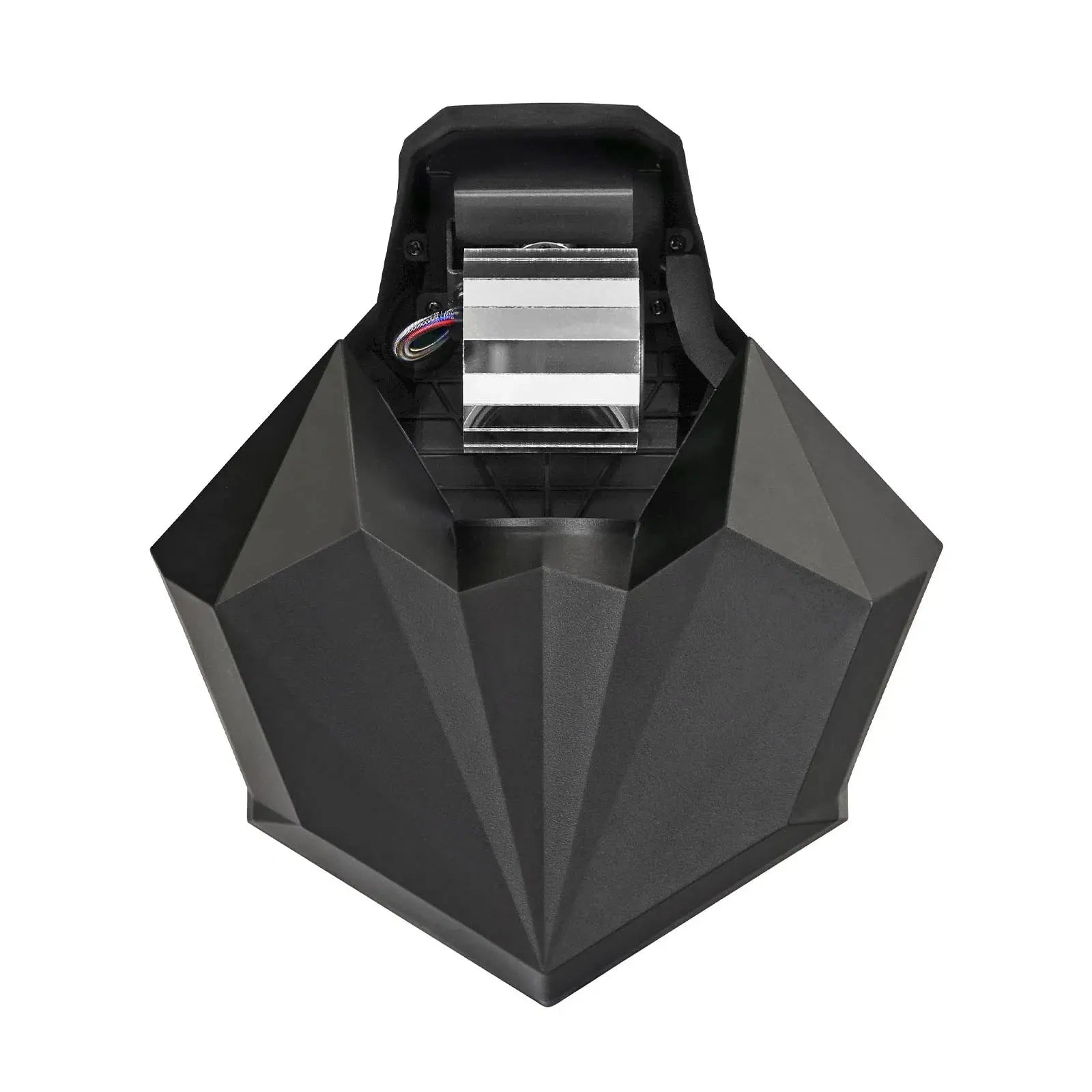

360-Degree Mirrored Barrel: The rotating barrel scatters a wide array of gobos, providing massive room coverage that standard moving heads cannot match.
-
Manual Adjustable Focus: Easily fine-tune the lens to ensure your gobo patterns are crisp and sharp on any wall or dancefloor.
-

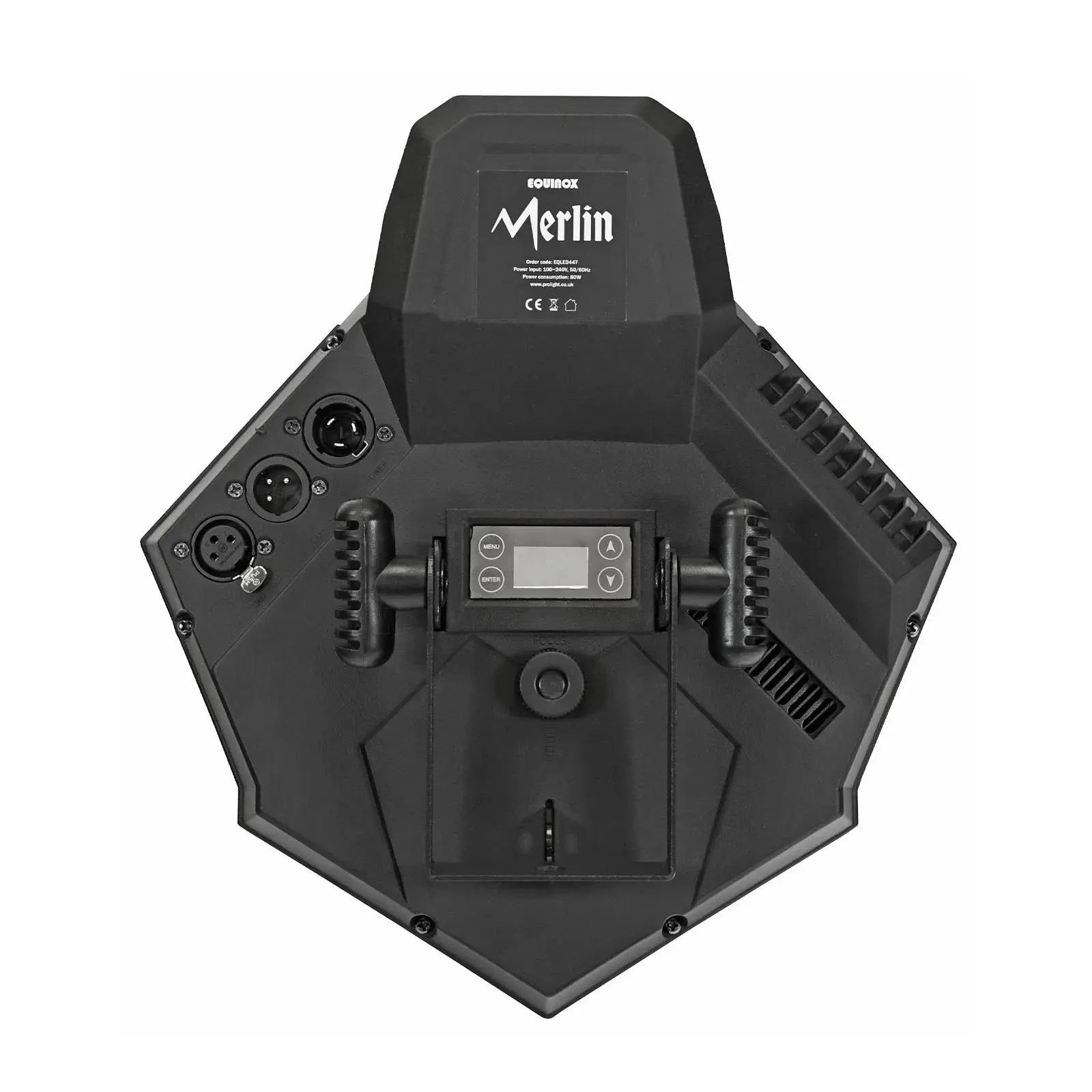

Pro-Grade Connectivity: Features PowerTwist TR1 input for secure power linking and 3-pin XLR for seamless DMX integration.
-
Versatile Control Modes: Choose between high-energy Sound-Active and Auto modes, or take full command via 2, 6, or 9 DMX channels.
-
Intuitive OLED Display: The 4-button menu and clear OLED screen make navigation and setting changes simple, even in dark environments.
Dynamic Movement and Precision
Immersive Room Coverage The Merlin is engineered to fill space. With a 180-degree pan and a continuous 360-degree tilt, the mirrored barrel can direct light in every direction. This makes it an incredibly efficient fixture, as one or two units are often enough to provide a complete light show for a standard-sized mobile DJ rig.
Creative Gobo and Colour Effects Featuring a wheel of 8 static gobos and colours plus an open slot, the Merlin produces a diverse range of visual textures. From slow, elegant rotations for a wedding first dance to rapid, strobing chases for a peak-time club set, the variable dimming and strobe functions allow you to match the energy of any event.

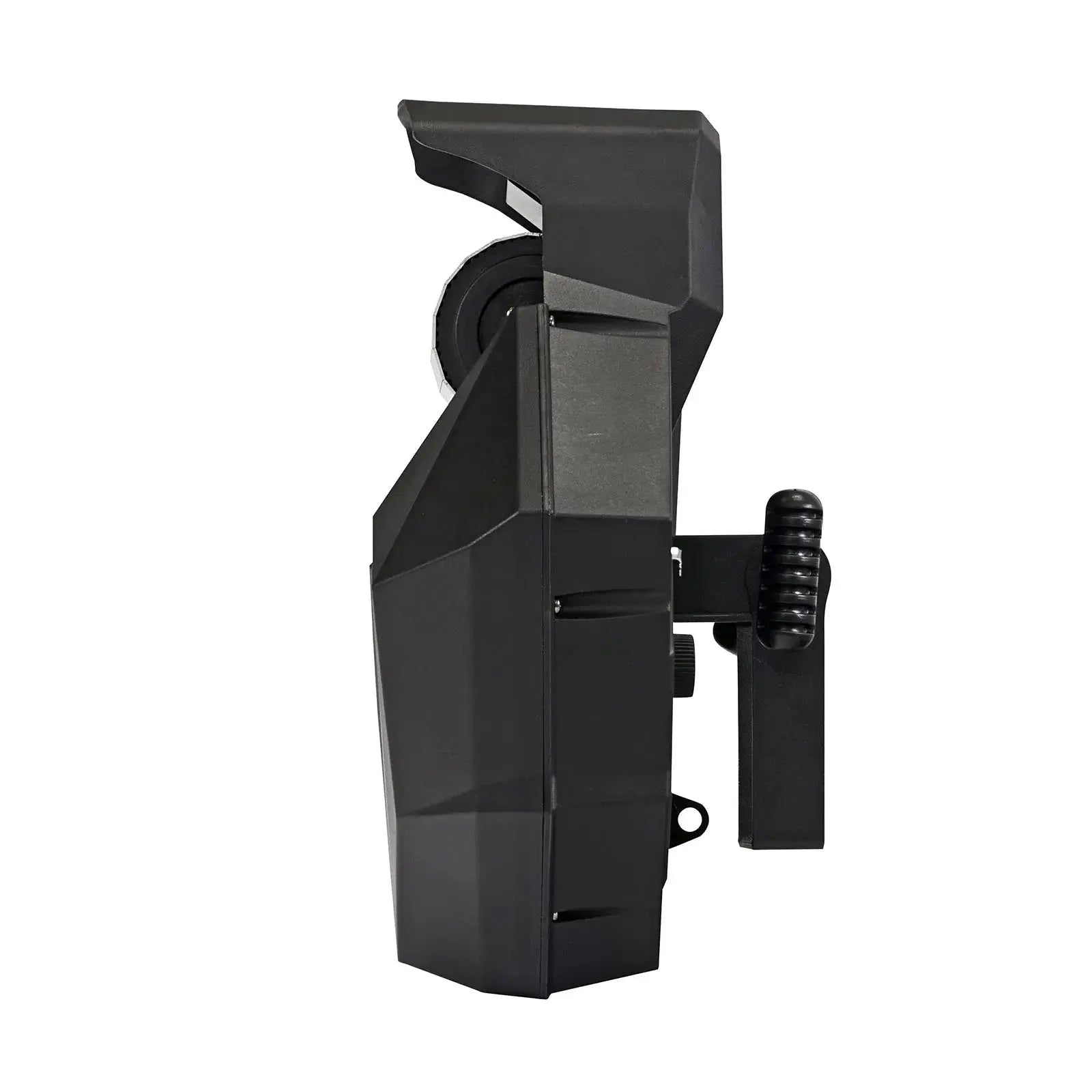

Road-Ready and Reliable Despite its powerful output, the Merlin remains compact and lightweight. It is fan-cooled for consistent performance during long sets and comes supplied with a sturdy hanging bracket, making it easy to mount on T-bars, stands, or overhead trussing.
Technical Specifications
-
Light Source: 1 x 80W Cool White LED (7500K)
-
Beam Angle: 4 degrees (per beam) / 27 degrees (per gobo flower)
-
Gobos and Colours: 8 static patterns plus open
-
DMX Channels: 2, 6, or 9 selectable
-
Control Modes: DMX512, Auto, Sound-Active, and Primary/Secondary
-
Pan and Tilt: 180 degrees (Pan) / 360 degrees (Tilt)
-
Dimming: 0 to 100 percent
-
Refresh Rate: 6 kHz (Flicker-free for video)
-
Power Connection: PowerTwist TR1 Input
-
Weight: 3.8 kg
-
Dimensions: 195 x 165 x 300 mm
Frequently Asked Questions
Is this light suitable for use with a DMX controller? Yes. The Merlin is fully DMX compatible and offers a 9-channel mode for those who want total control over the mirror movement, gobo rotation, and dimming/strobe effects.
How do I adjust the sharpness of the patterns? The Merlin features a manual focus ring on the front of the unit. Simply rotate the lens housing until the projected gobo patterns appear sharp on your target surface.
Can I link multiple units together? Absolutely. Using the Primary/Secondary mode, you can link several Merlin units together via DMX cables. Setting the first unit to Auto or Sound-Active will cause all subsequent units to mirror the master's movements and patterns perfectly.
What is In The Box?
-
Equinox Merlin LED Multi-Gobo Effect
-
PowerTwist TR1 Power Cable
-
Mounting Bracket and Hardware
-
User Manual
