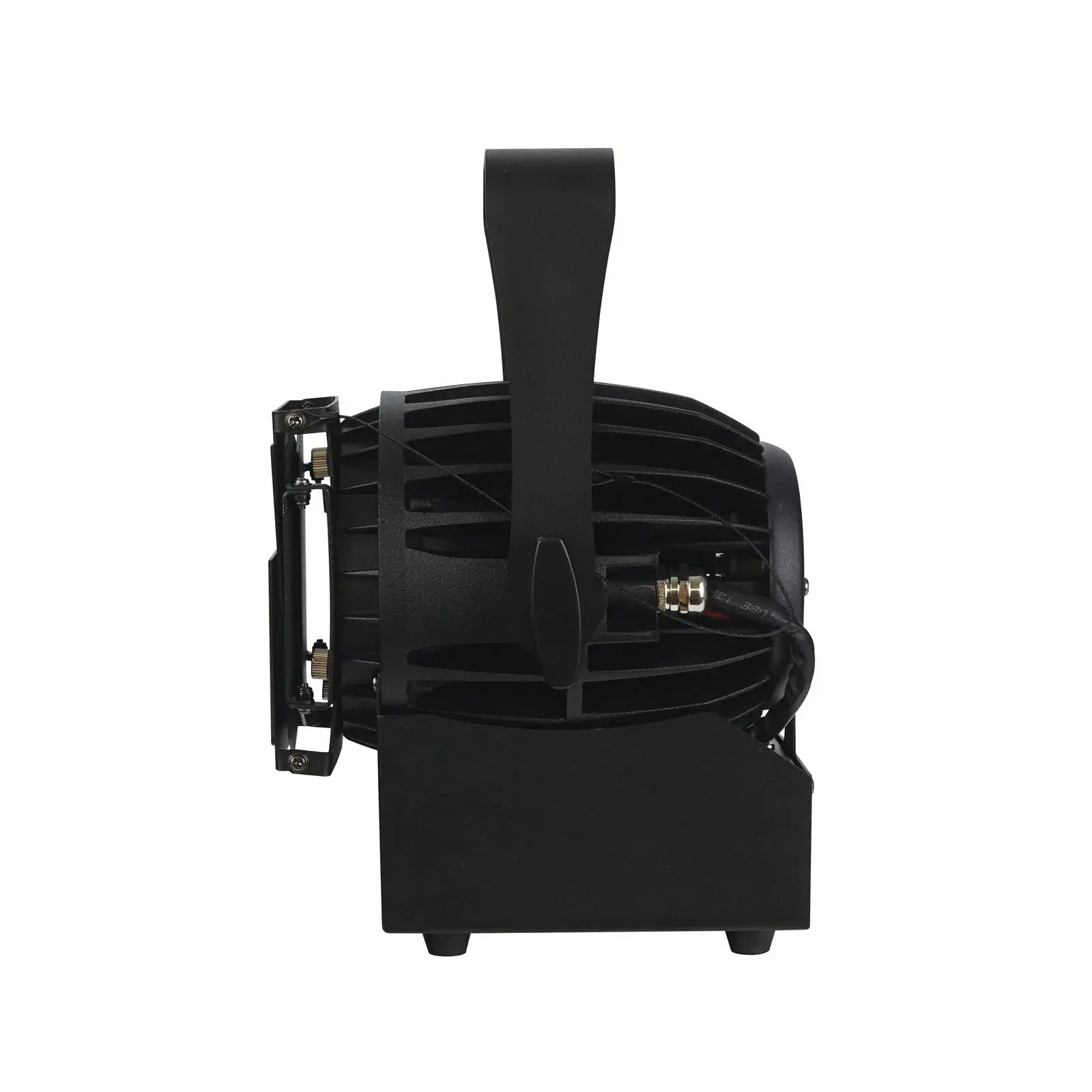

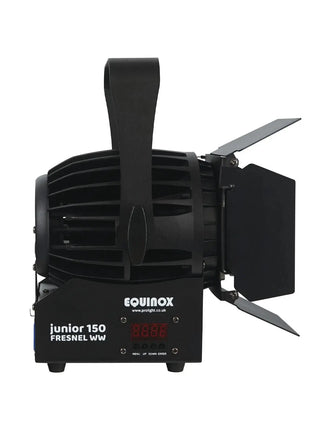

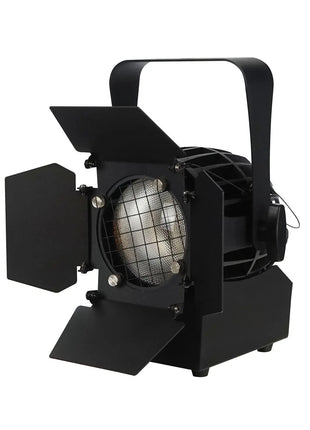

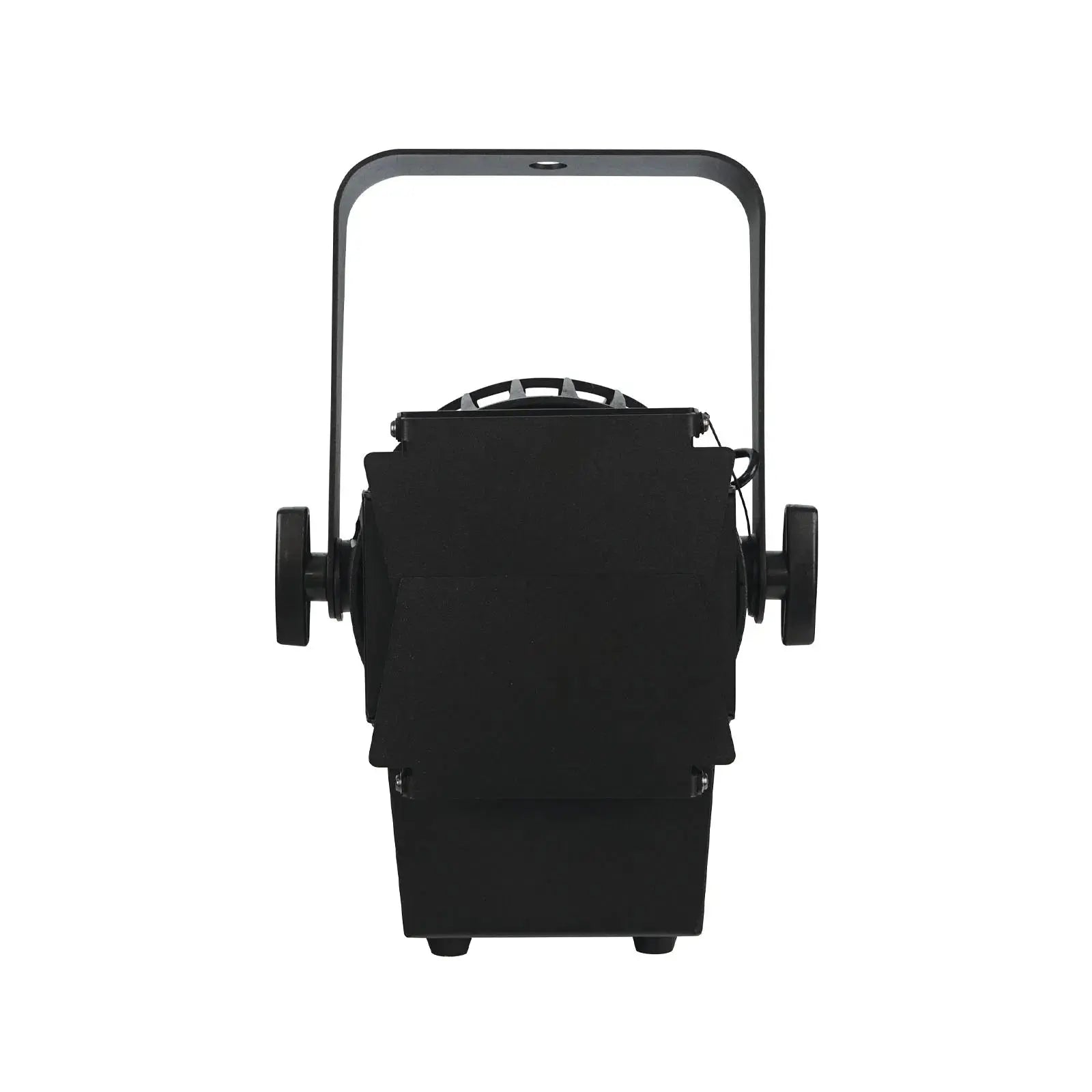

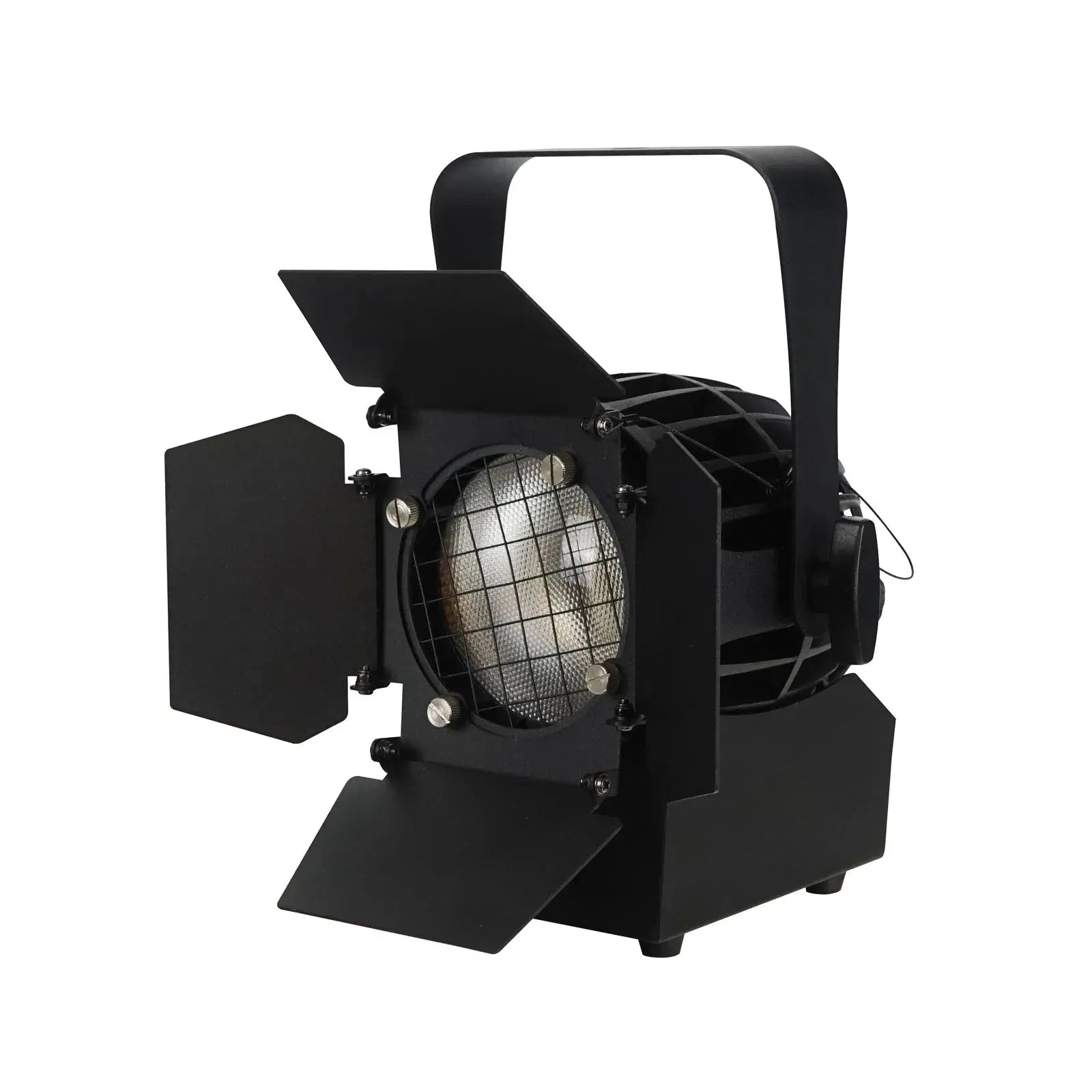

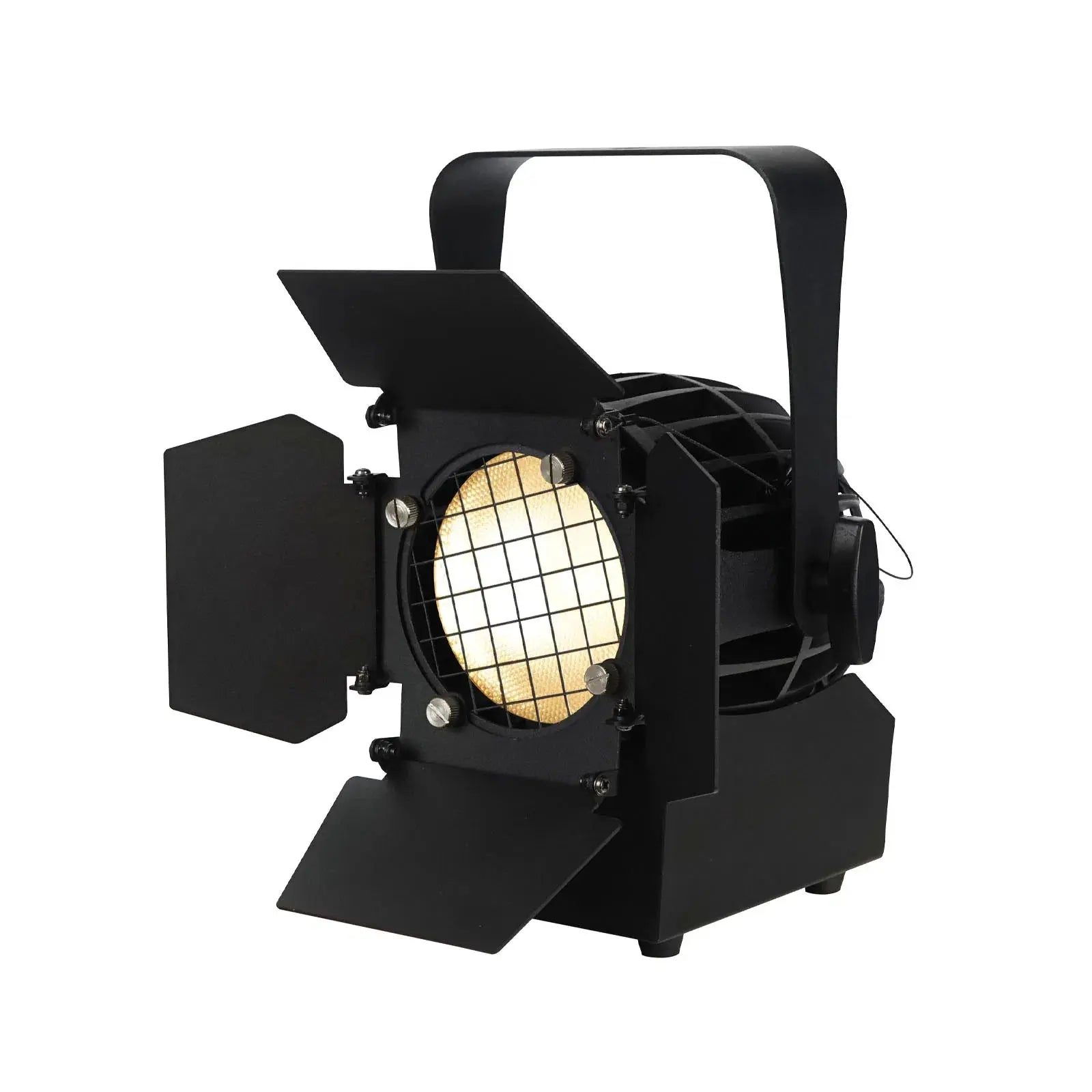

The Equinox Junior 150 Fresnel is a compact and exceptionally robust stage lighting fixture, perfectly designed for small stages, intimate studios, and versatile display lighting applications. This general-purpose Fresnel LED light delivers an impressive, high-quality output from its powerful 150W warm white COB LED source. It offers a consistent 2,900K color temperature and a high CRI (Color Rendering Index) rating of 90, ensuring natural and accurate color rendering for your subjects or performances. With its fixed 40° beam angle and intuitive controls, the Junior 150 provides an even wash of light, making it ideal for environments where space is at a premium but professional-grade, quiet lighting is essential.
-
Powerful 150W Warm White COB LED: Equipped with a single, high-output 150W warm white COB LED, providing impressive illumination suitable for key lighting, washes, or accenting.
-
Consistent Color Temperature & High CRI: Delivers a consistent 2,900K color temperature and boasts a high CRI Ra of 90. This ensures excellent color rendering, making subjects look natural and vibrant under its light.
-
Fixed 40° Beam Angle: Provides a fixed 40° beam angle, producing a smooth, even wash of light, ideal for general stage illumination, front lighting, or highlighting specific areas.
-

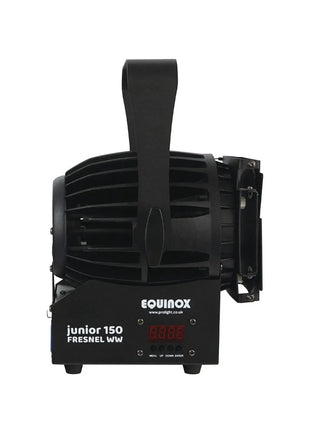

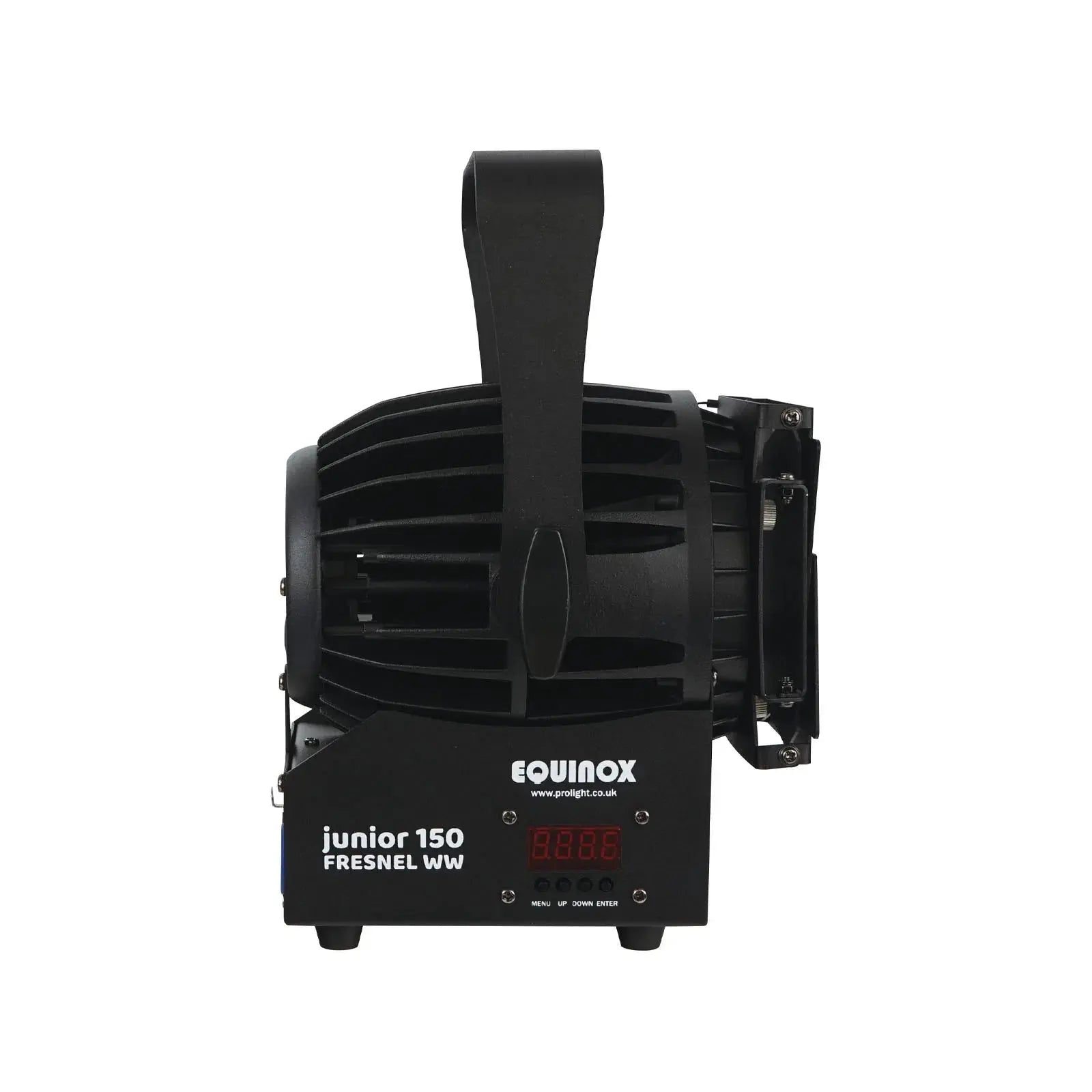

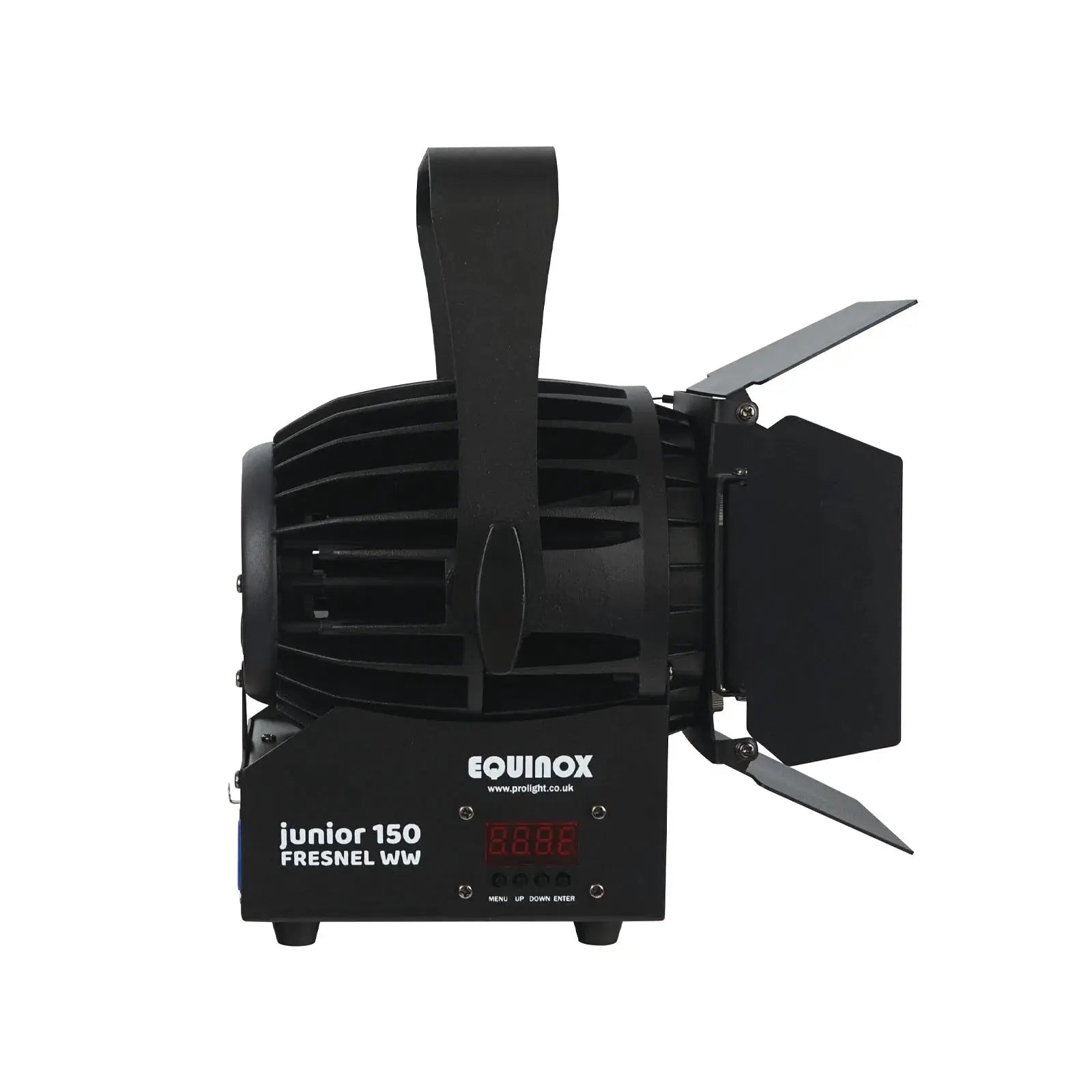

Intuitive Control Interface: Features an intuitive 4-button menu with an LED display on the rear. This allows for easy selection of DMX or manual dimming modes, and provides access to multiple dimming curve profiles.
-
Versatile Dimming Curves: Offers various dimming curve profiles, including both LED and halogen emulations (Linear, square law, inverse square law, S-curve), allowing for smooth and precise intensity adjustments that can mimic traditional theatrical lighting.
-
RDM Compatibility: Supports RDM (Remote Device Management), enabling bidirectional communication with compatible DMX controllers for easier setup, monitoring, and addressing from a distance.
-
Flexible DMX Control: Supports 1 or 3 DMX channel modes, providing flexibility for integration into various lighting systems, from simple setups to more complex DMX environments.
-

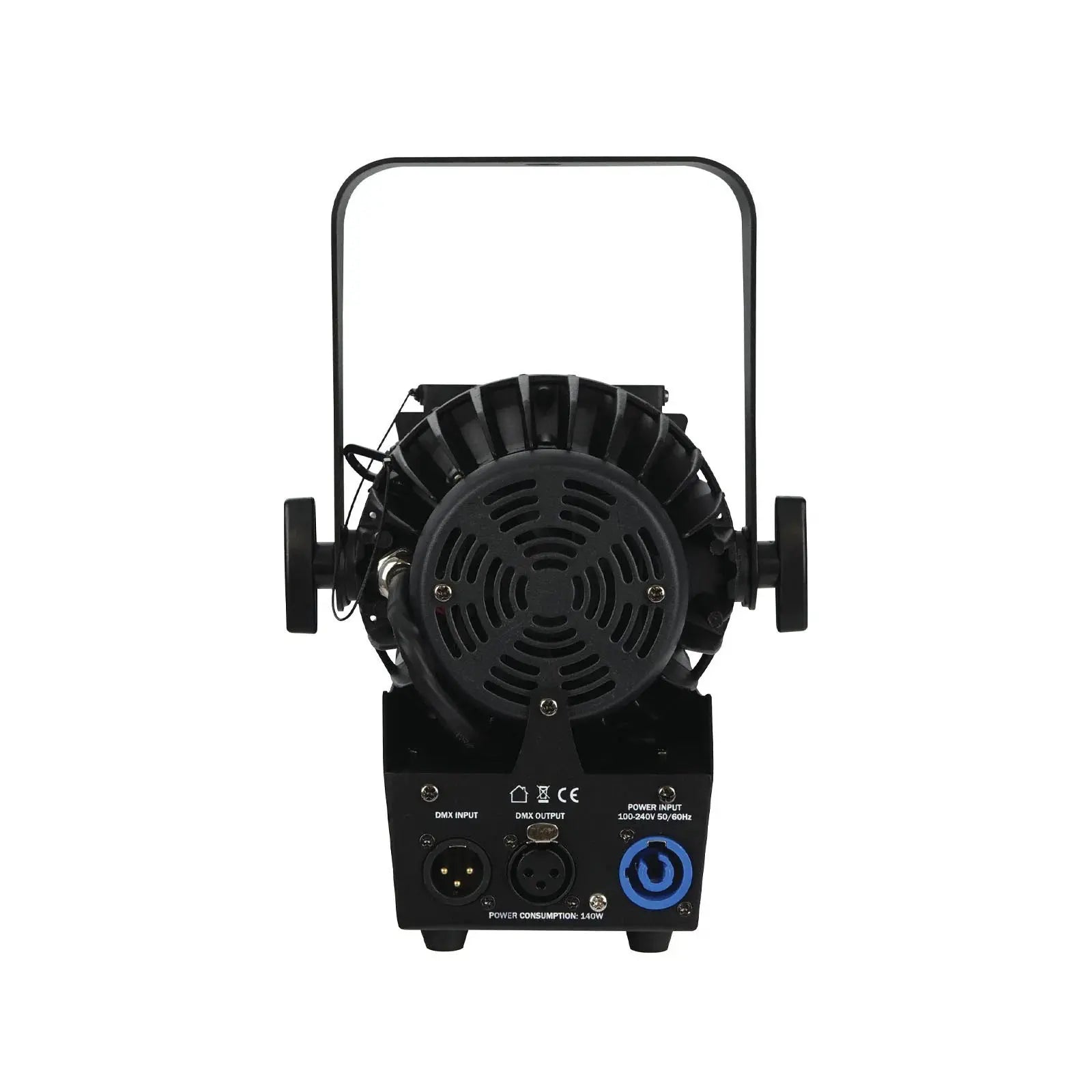

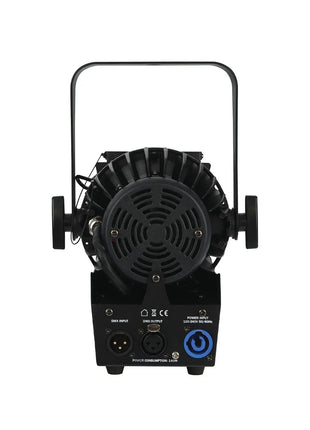

Robust Connectivity: Includes PowerTwist input for secure power connections and 3-Pin XLR input/output for reliable DMX signal chaining, ensuring rental-ready and problem-free connectivity.
-

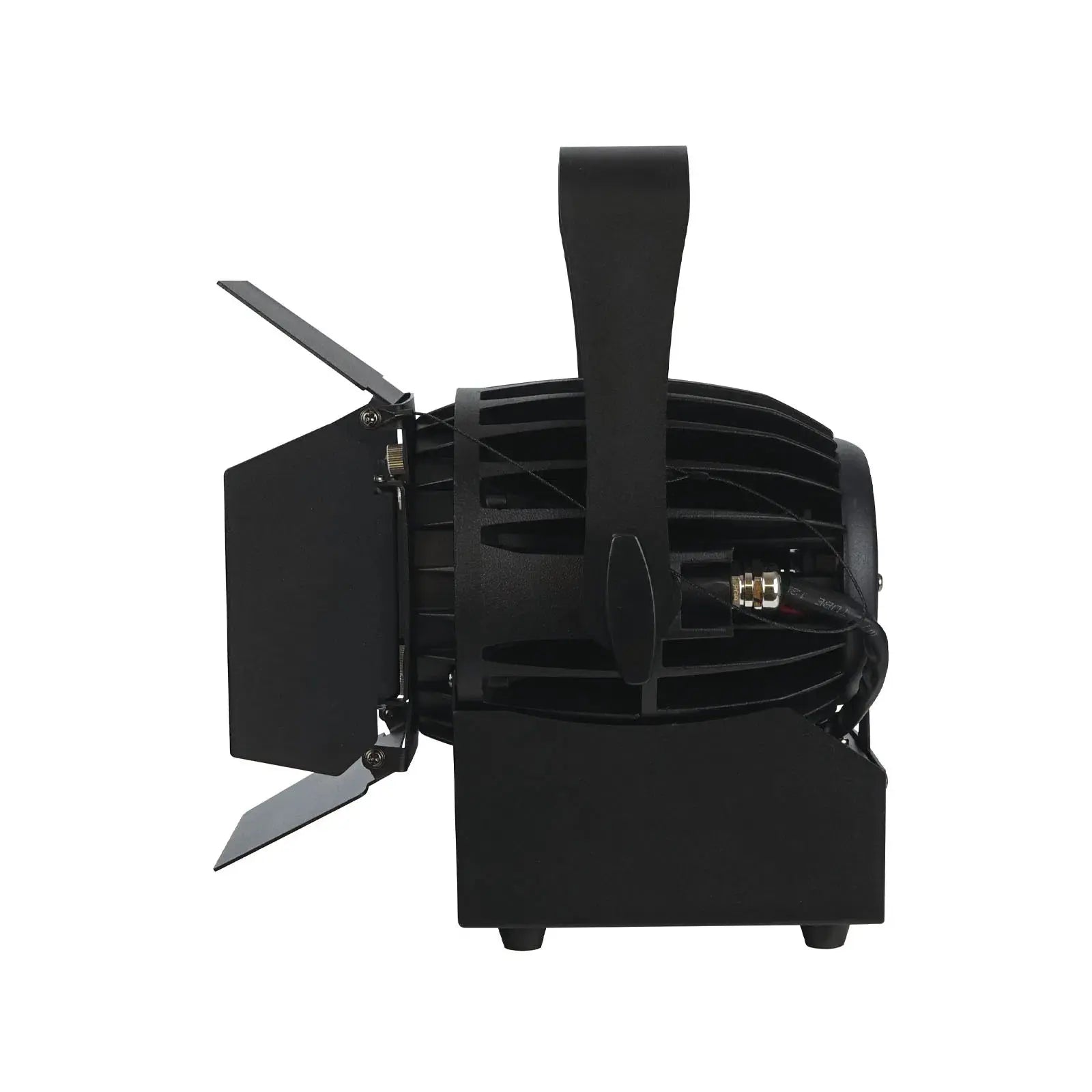

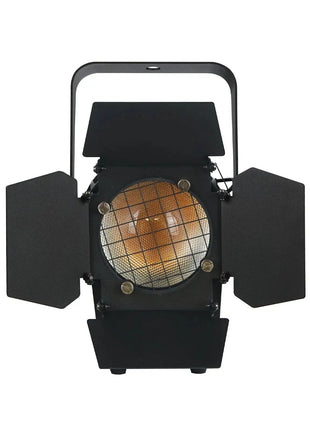

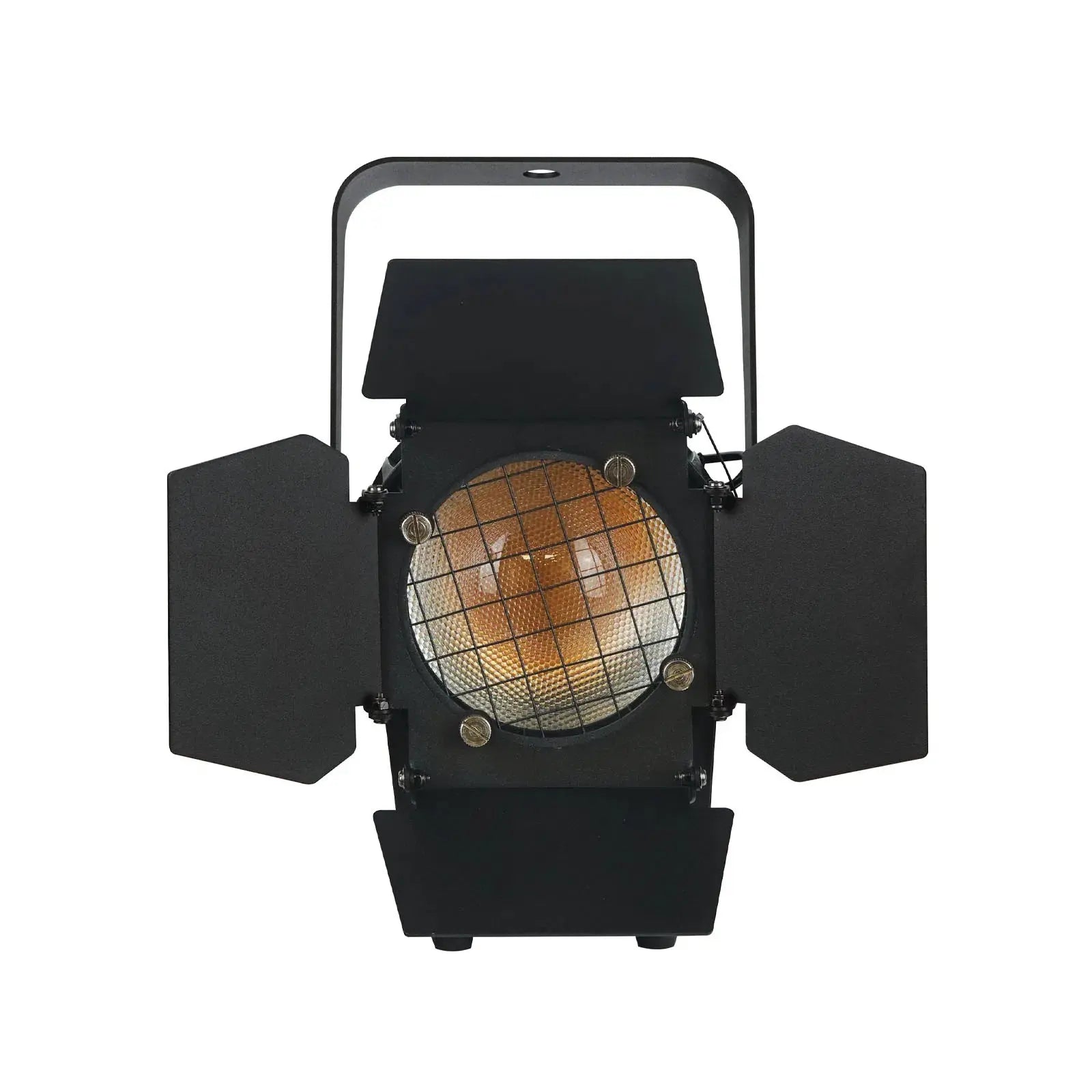

Included Barn Doors: Supplied with essential barn doors, allowing for precise control over the beam's spread and shape, preventing spill and directing light exactly where it's needed.
-
Efficient & Quiet Operation: Fitted with a temperature-controlled fan, the Junior 150 Fresnel operates both efficiently and quietly. This makes it particularly ideal for noise-sensitive environments such as theatre productions, broadcast studios, or fixed installations.
-
Compact & Lightweight Design: Its compact dimensions and light weight make it easy to transport, set up, and install in various applications, especially where space is limited.
-
Model Name: Junior 150 Fresnel WW
-
LED Source: 1 x 150W warm white COB LED
-
Color Temperature: 2,900K
-
Beam Angle: 40° (Fixed)
-
CRI Ra: 90
-
Refresh Rate: 11.8kHz
-
DMX Channels: 1 or 3 selectable
-
Control Protocols: DMX, RDM
-
Dimming: 0-100%
-
Dimming Curves: LED and halogen profiles (Linear, square law, inverse square law, S-curve)
-
Power Input: PowerTwist
-
DMX Connectivity: 3-Pin XLR input/output
-
Cooling: Temperature controlled fan
-
Power Consumption: 140W
-
Power Supply: 100~240V, 50/60Hz
-
Fuse: F3A 250V
-
Dimensions (H x W x D): 265 x 185 x 152mm
-
Weight: 2.9kg
