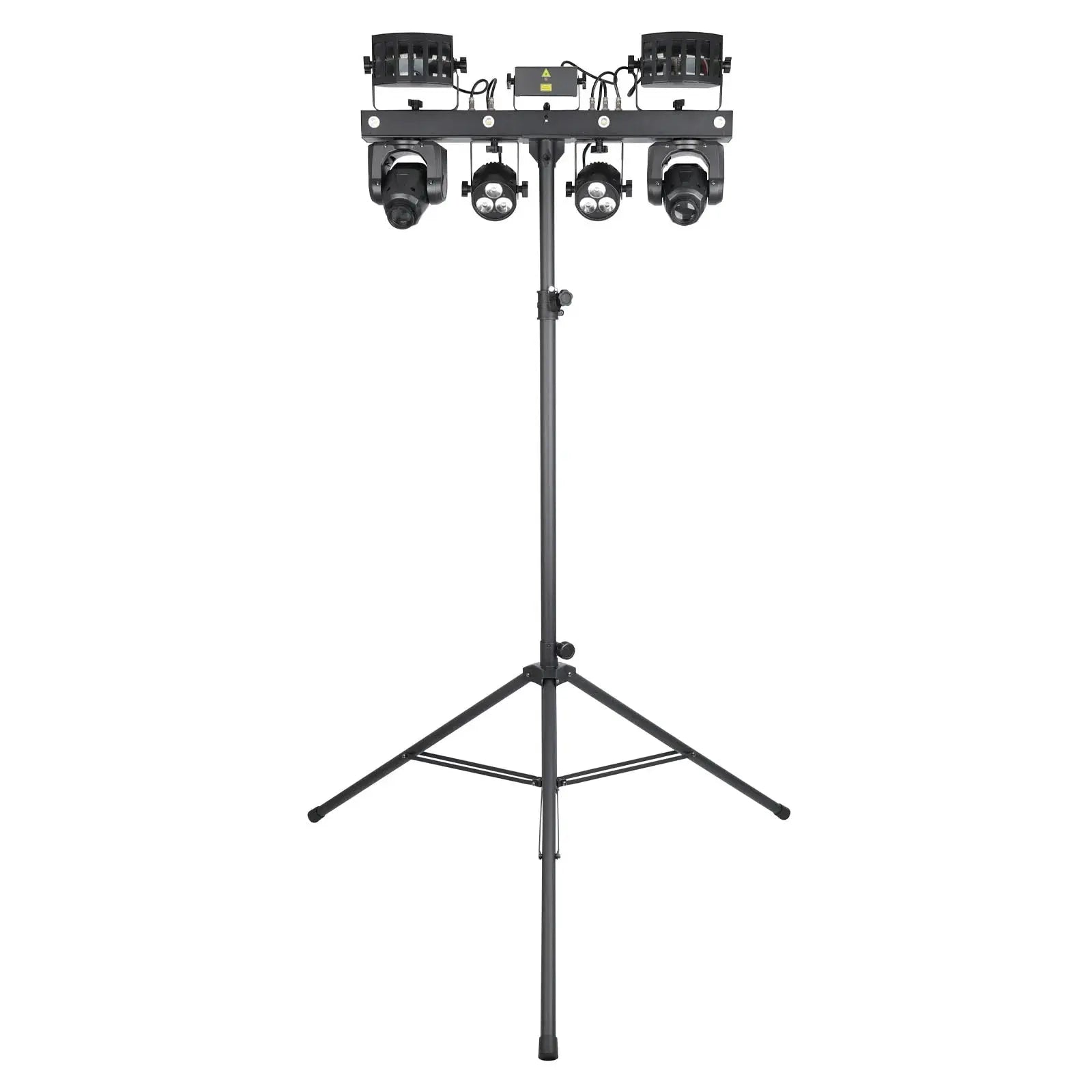

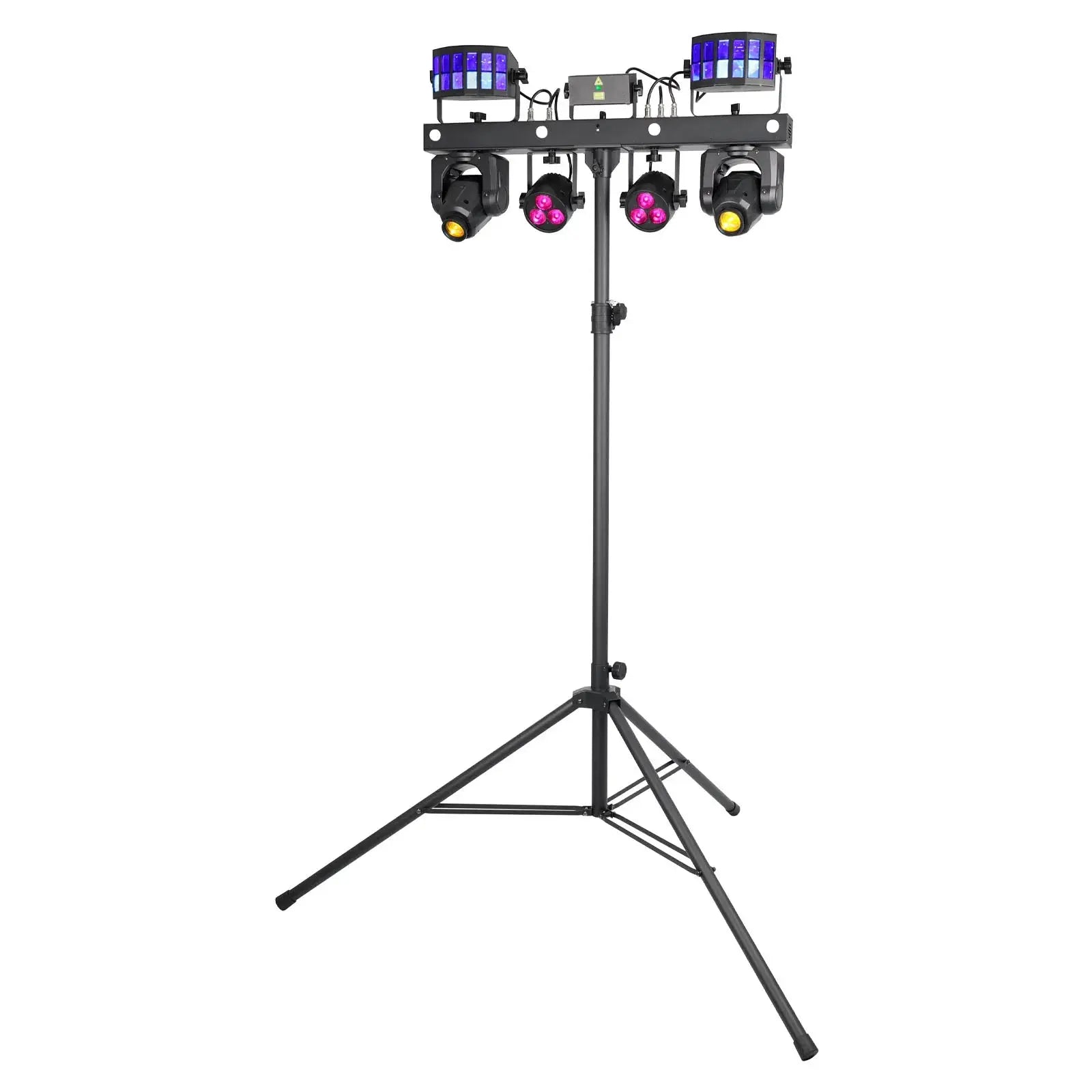

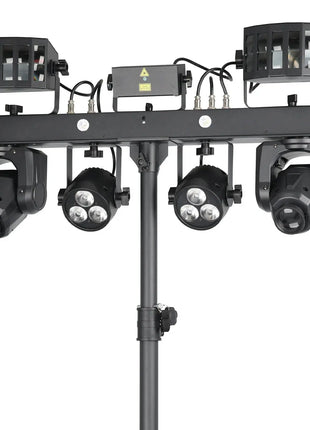

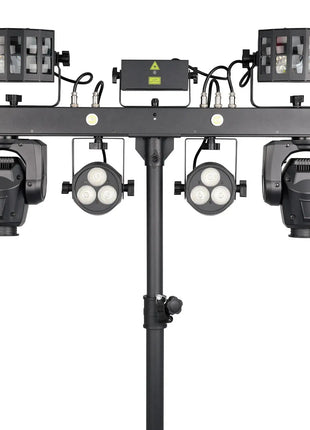

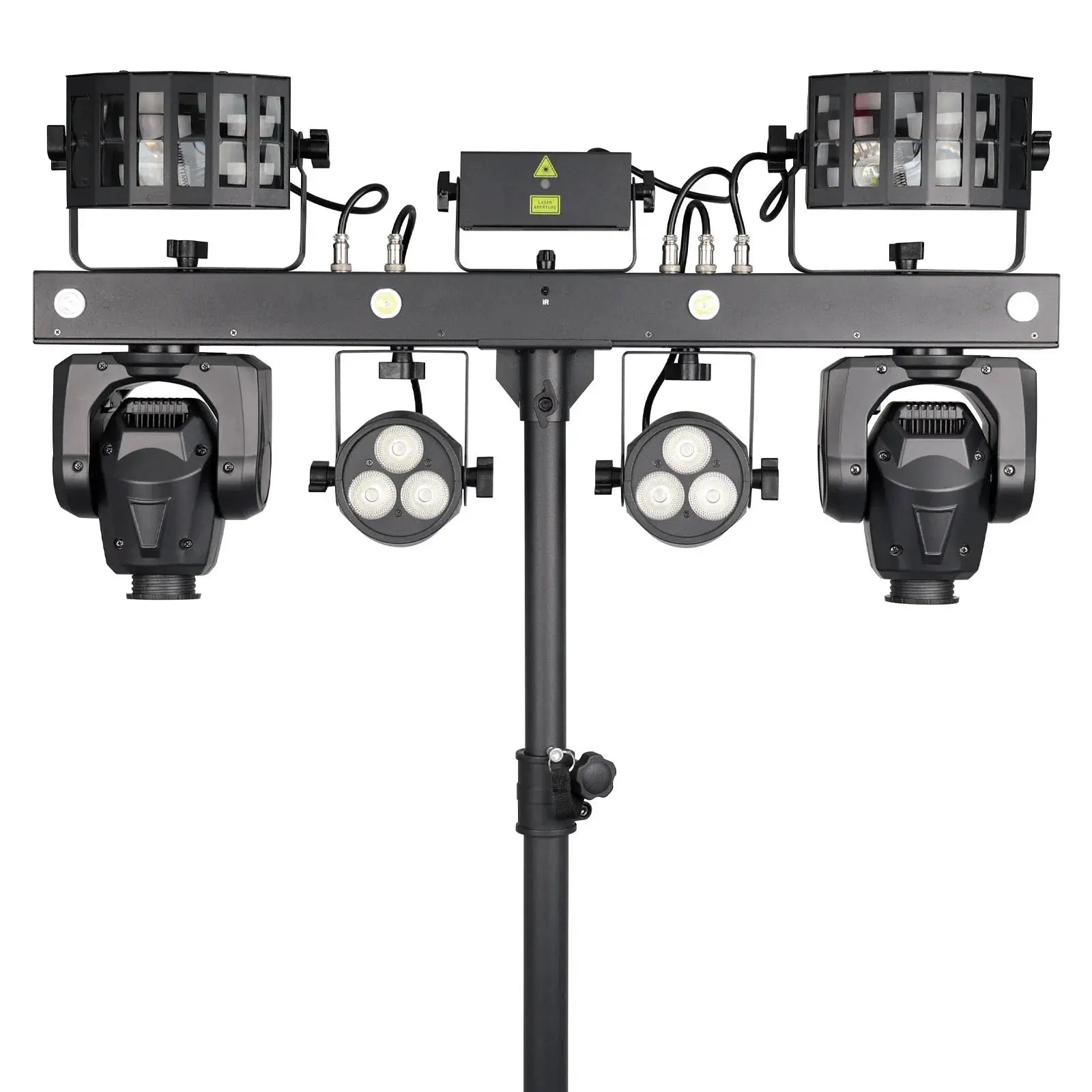

Equinox Gigabar FX1 - 5-in-1 LED Bar System

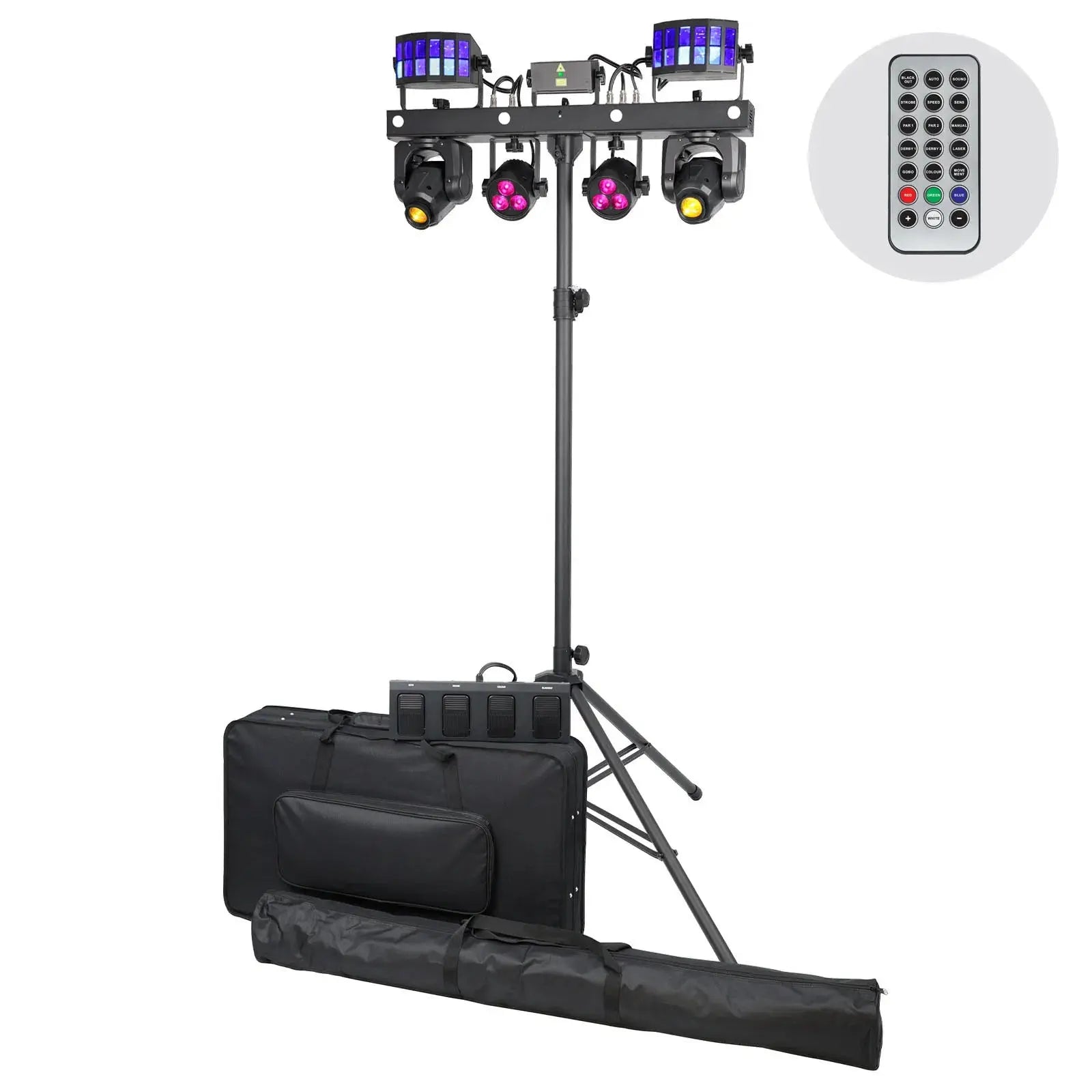

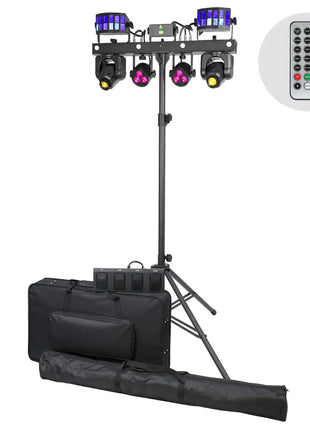

The Equinox Gigabar FX1 is a powerful and versatile 5-in-1 LED bar system that integrates a complete light show into one compact unit. Designed for DJs, entertainers, and events, this all-in-one solution combines par, moving head, derby, strobe, and laser effects to deliver vibrant, dynamic, and professional light shows. With multiple control options including DMX, auto, and sound-to-light modes, plus an included foot controller and IR remote, the Gigabar FX1 offers maximum creative flexibility. The system comes complete with a height-adjustable stand and two carry bags, protecting your investment from transportation damage.
Key Features
-

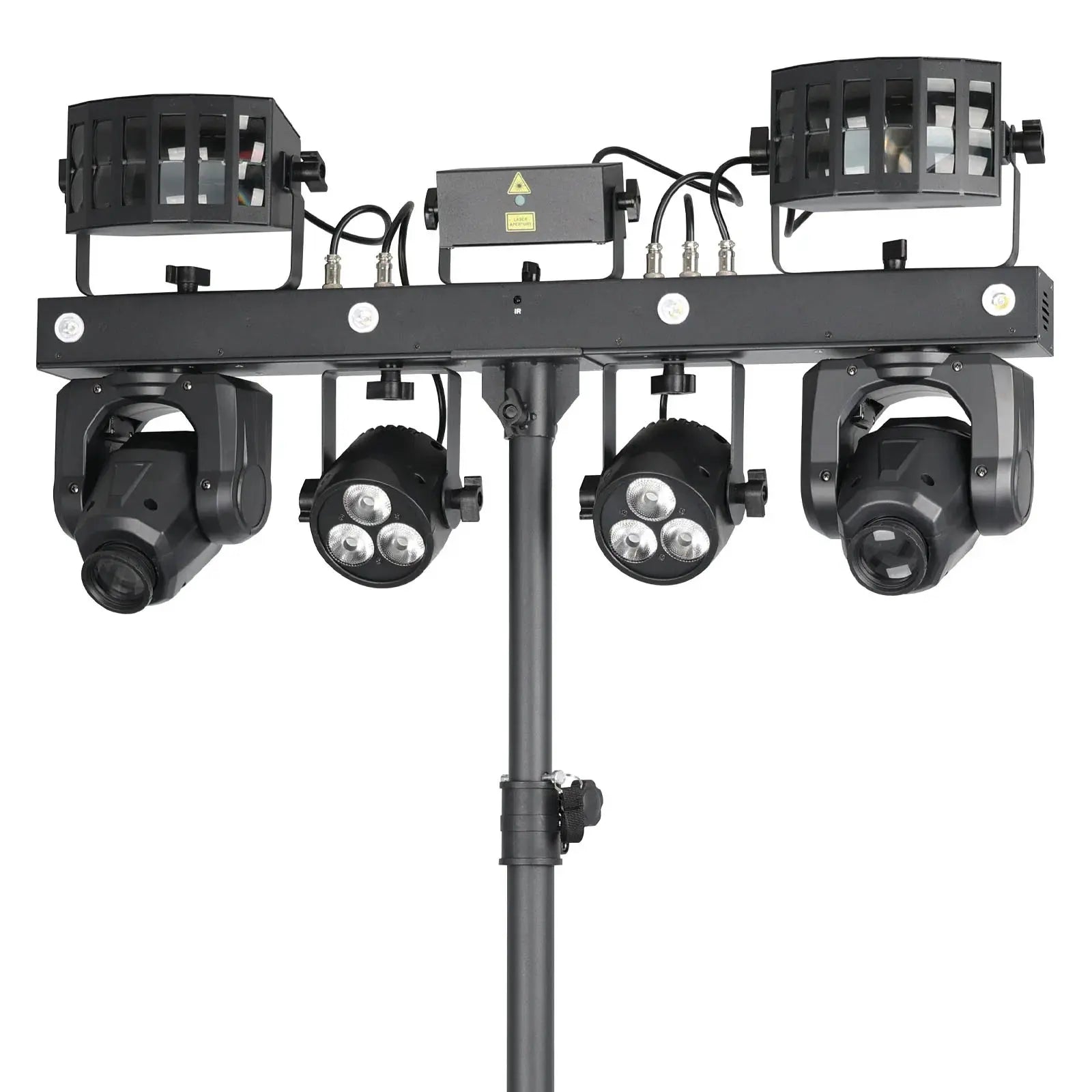

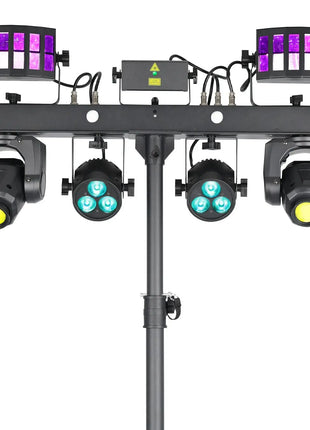

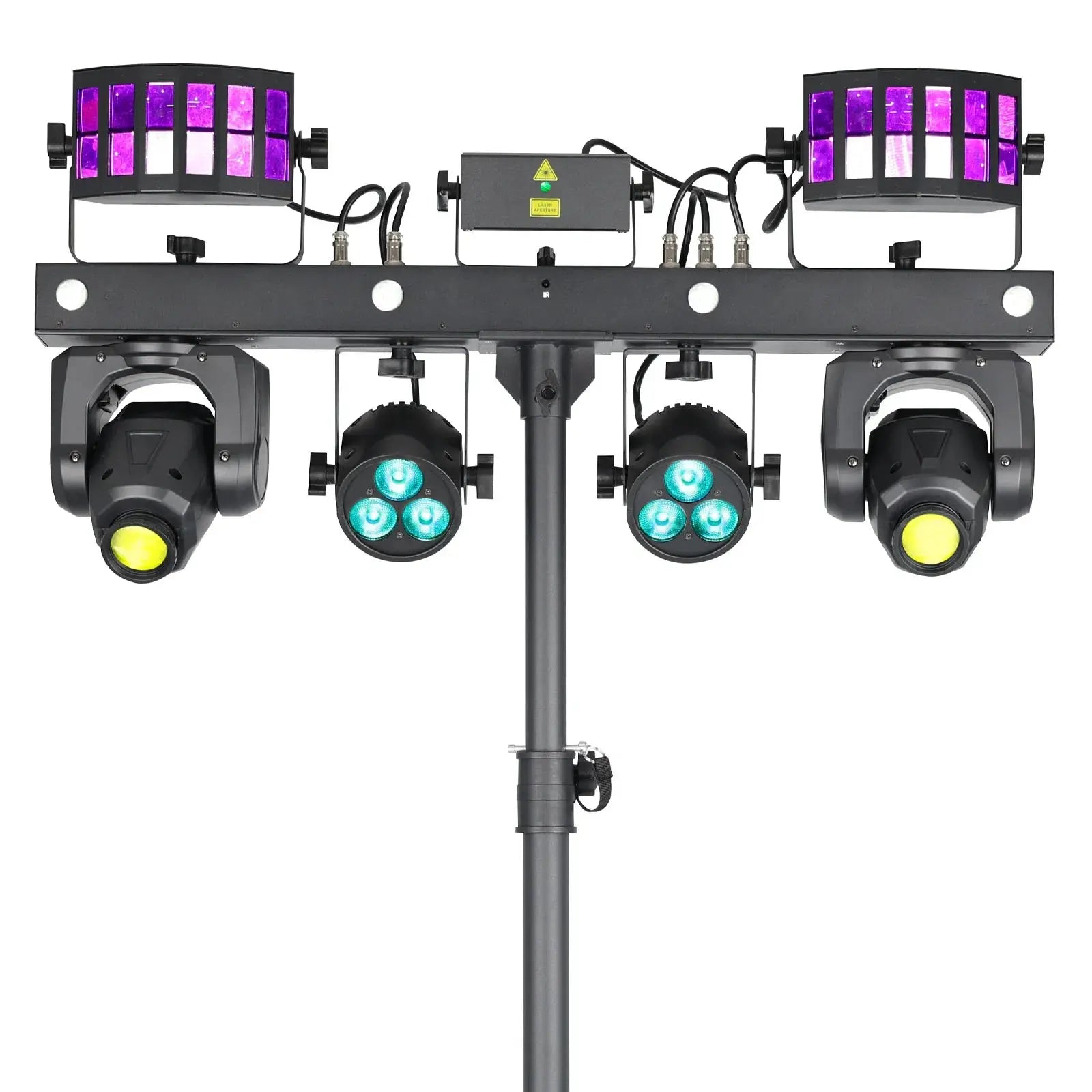

Multi-Function 5-in-1: Combines par, moving head, derby, strobe, and laser effects in a single, convenient unit.
-
Powerful LED Sources: Features 3 x 8W quad-colour (RGBW) COB LEDs for the par and derby effects, 4 x 1W white LEDs for the strobe, and a 30W white LED for the moving head.
-
Class 3R Laser: A built-in red/green laser with a key-lock for added safety and dynamic effects.
-
Flexible Control: Offers 3 selectable DMX channel modes (3, 19, or 34 channels), as well as auto, sound active, and primary/secondary modes for a wide range of control options.
-

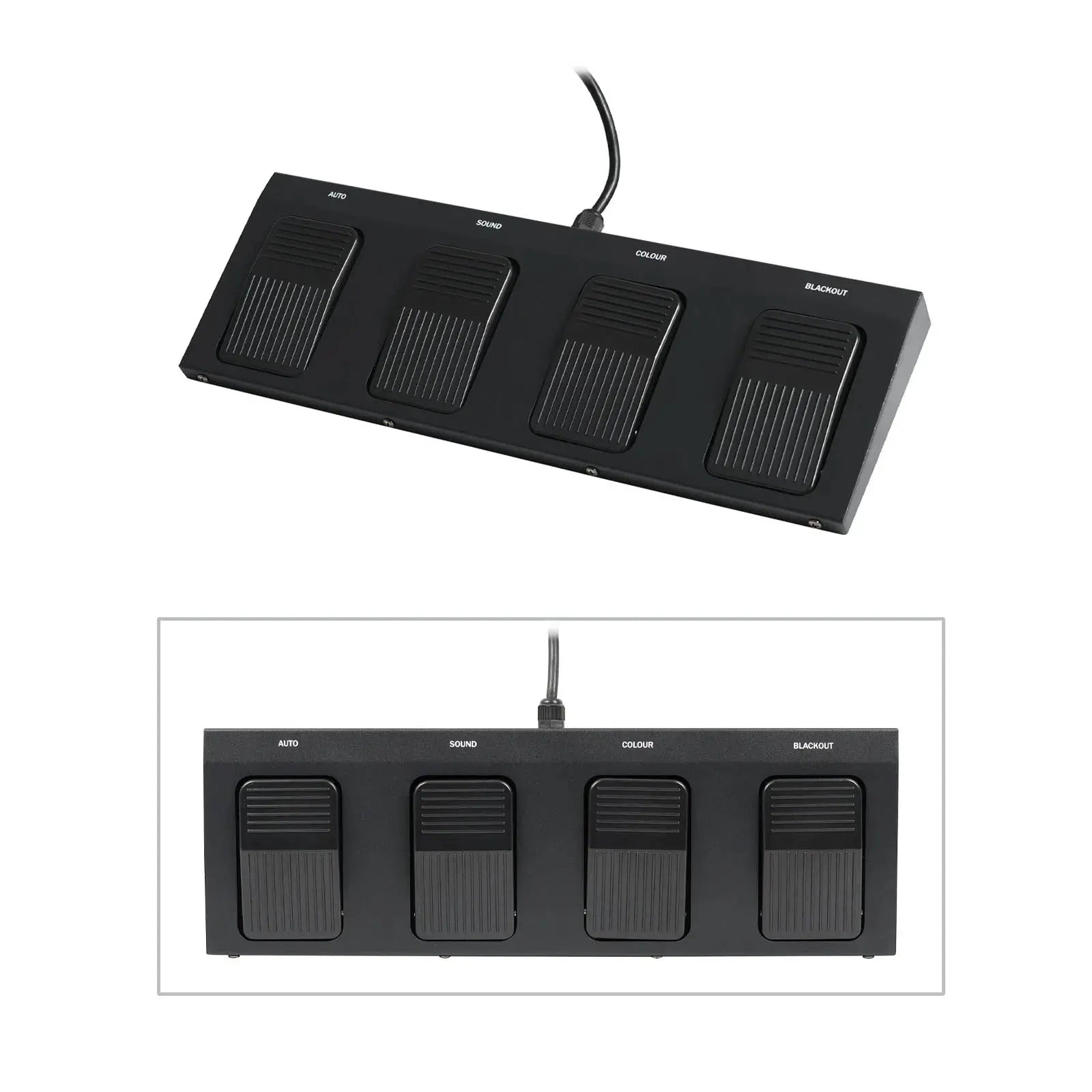

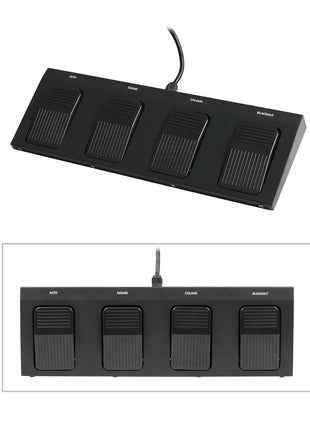

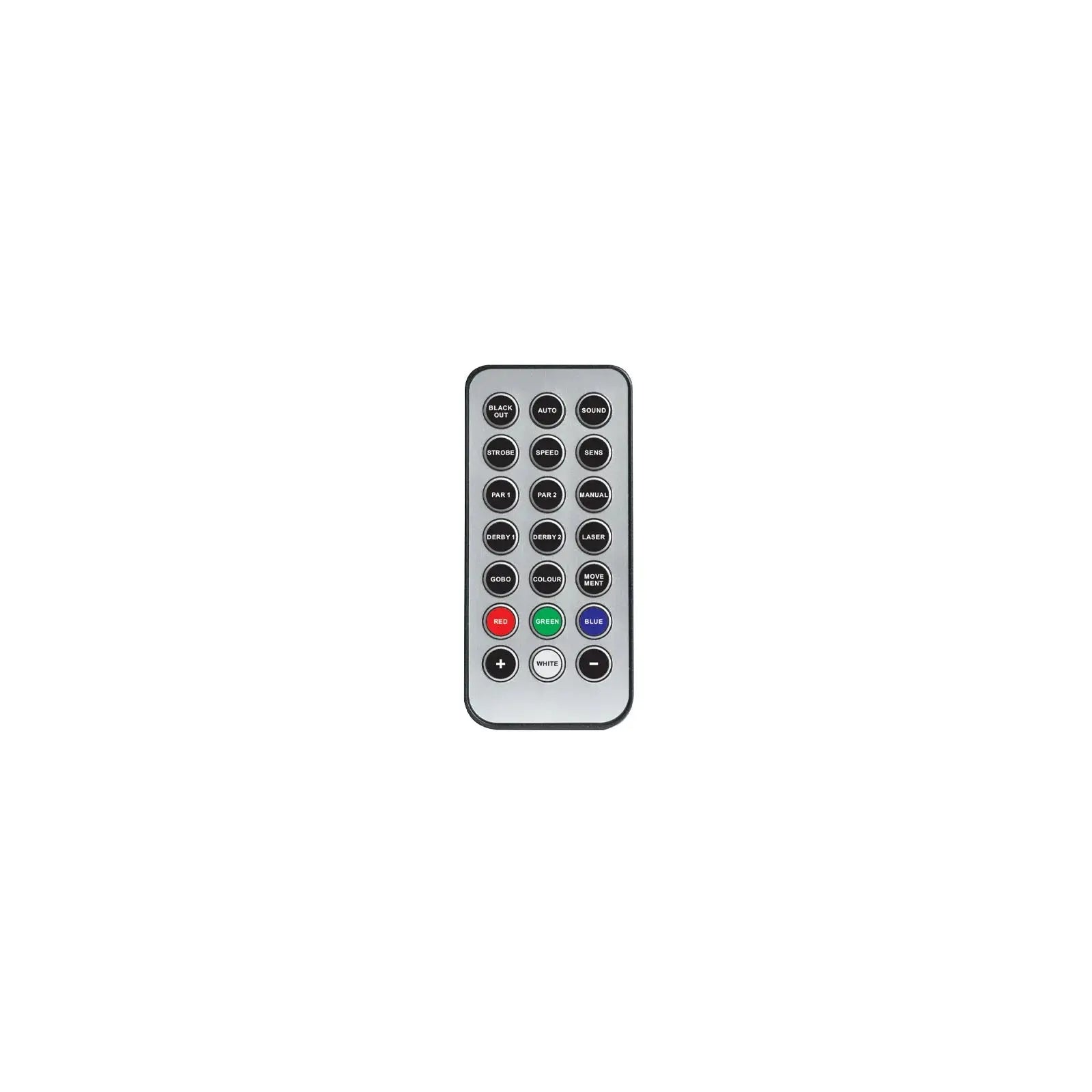

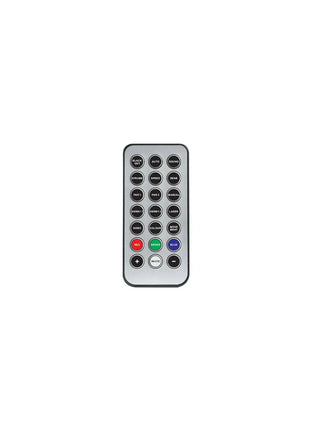

On-Stage & Remote Control: Includes a 5-pin foot controller for hands-free on-stage operation and an IR remote for convenient wireless control.
-

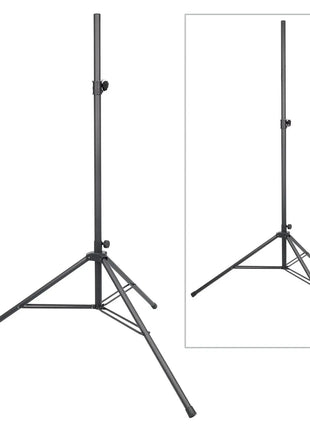

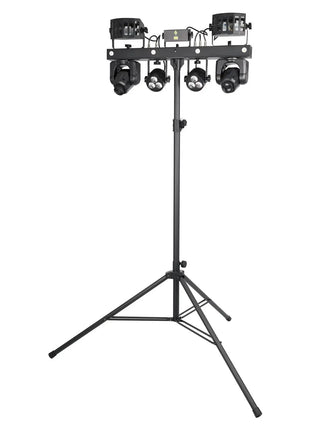

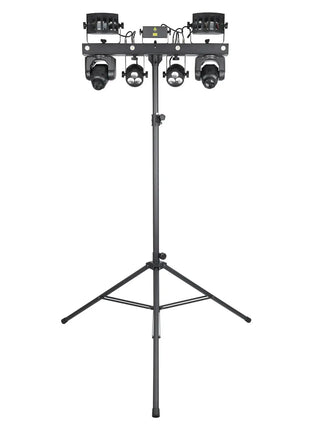

Easy Setup: Features a 4-button LED display for simple setup and a height-adjustable stand for flexible positioning.
-

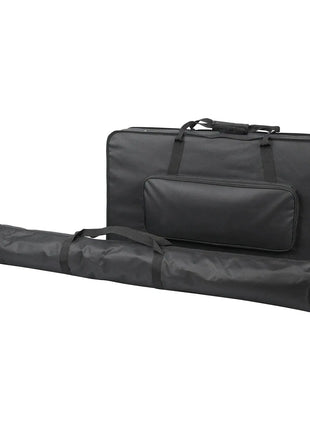

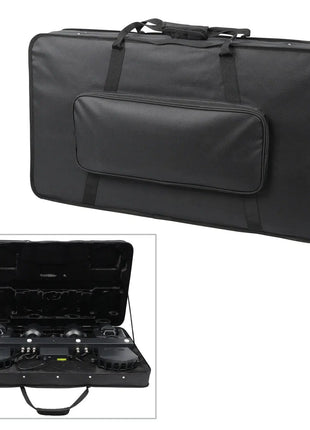

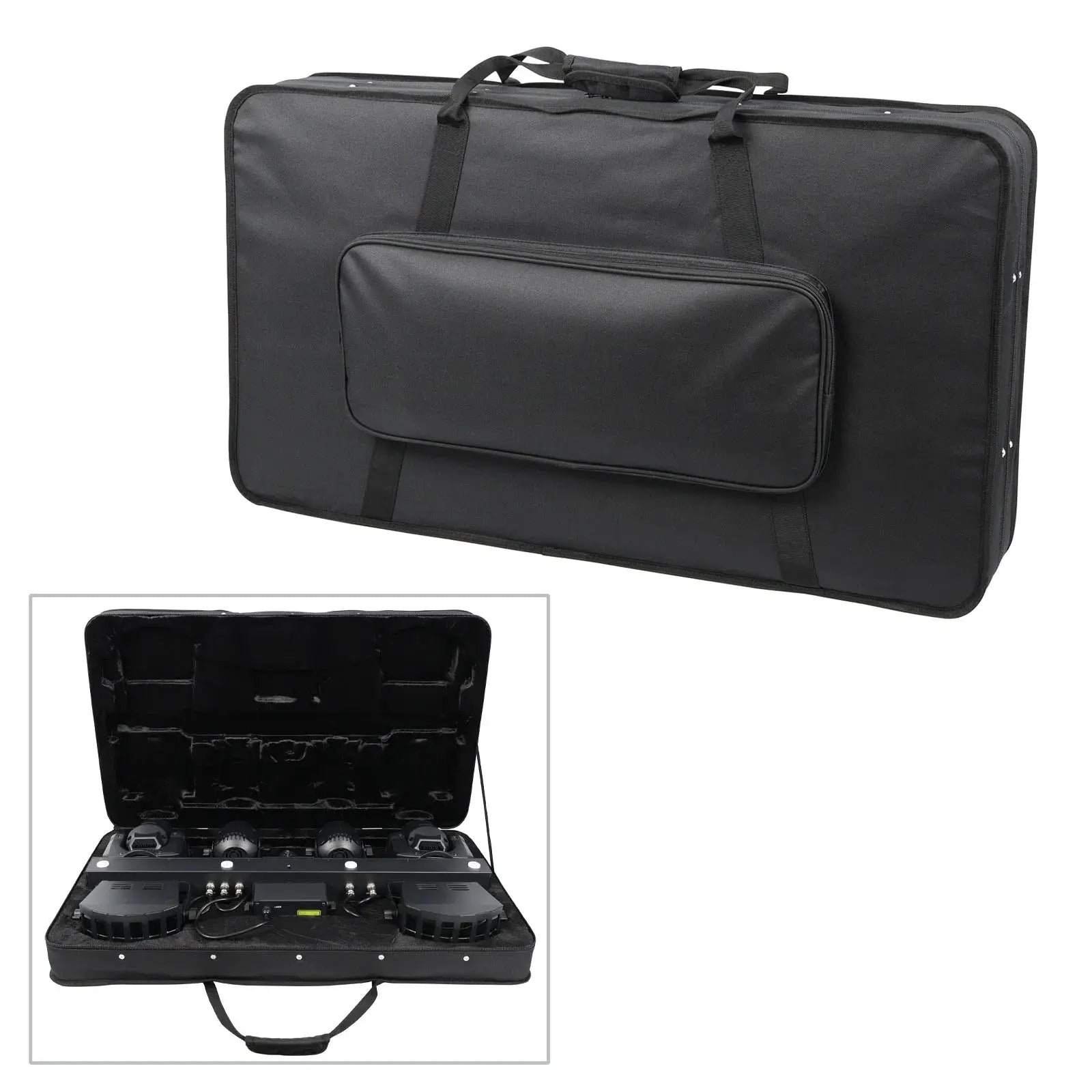

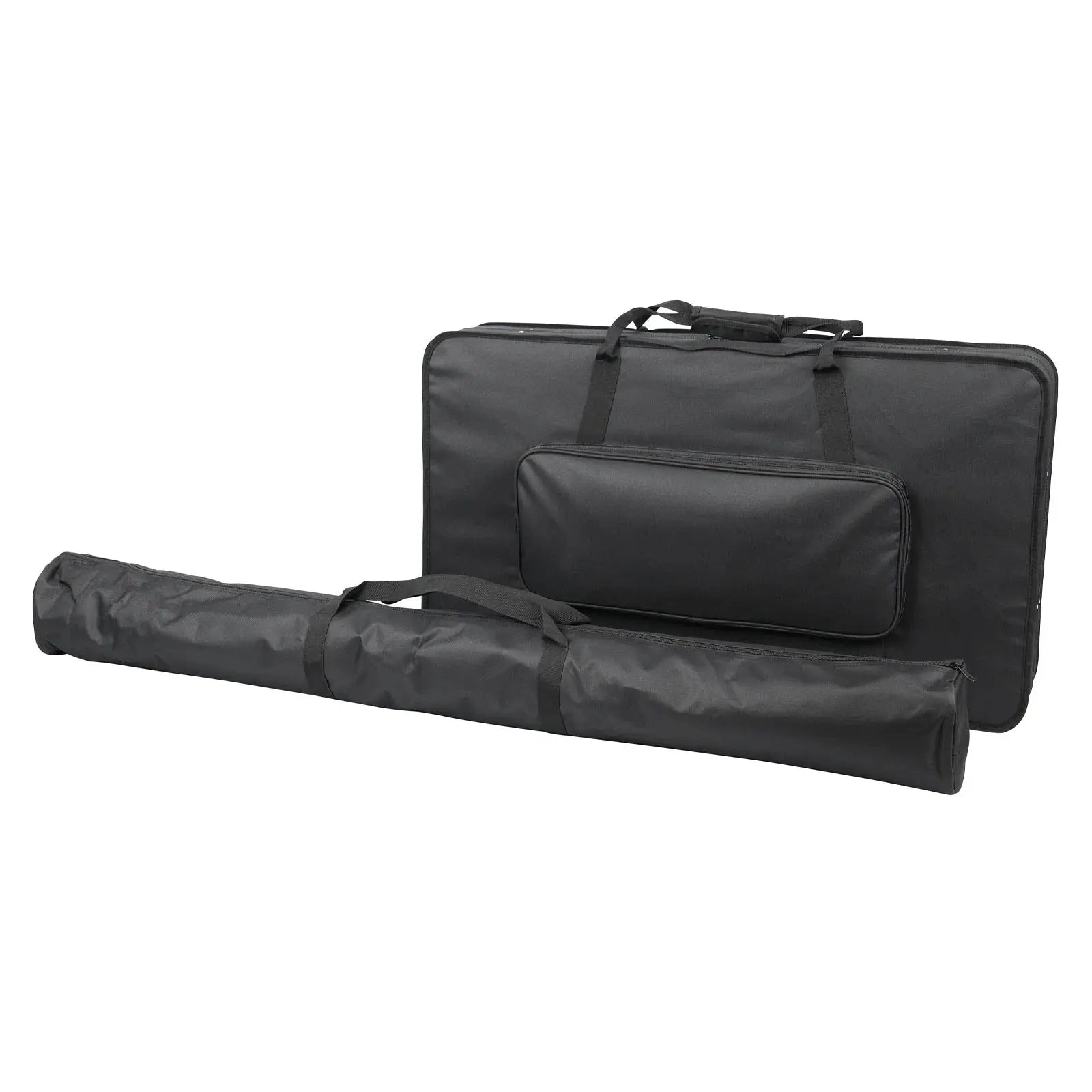

Portability & Protection: Comes with two carry bags to protect the system during transport.
-

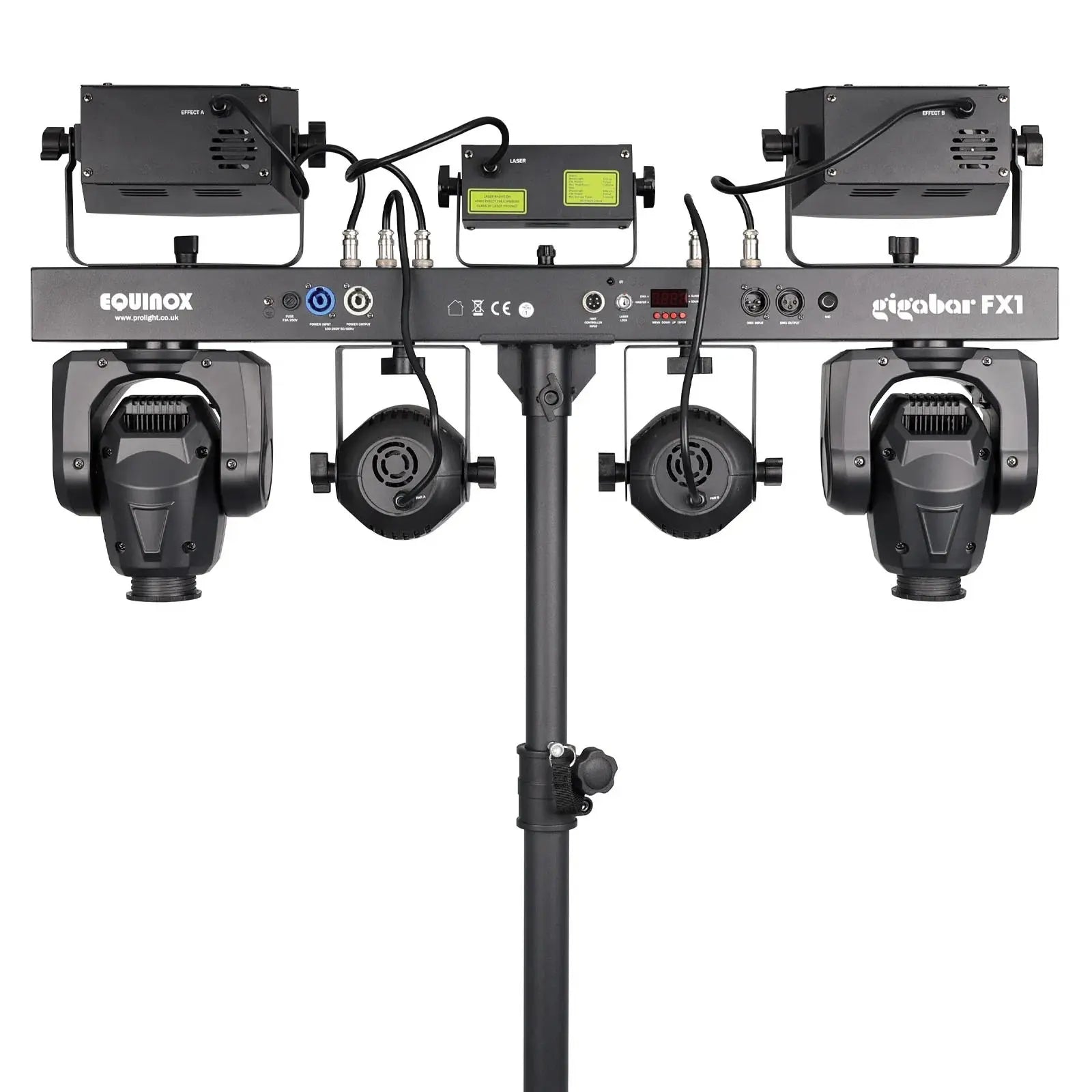

Connectivity: PowerTwist input/output for daisy-chaining multiple units, and 3-pin DMX for professional control.
-
Reliable Operation: Fan cooled for reliable performance during long shows.
Technical Specifications
-
Power Consumption: 170W
-
Power Supply: 100~240V AC, 50/60Hz
-
Par: 3 x 8W quad-colour COB LEDs (RGBW), 20° beam angle
-
Derby: 3 x 8W quad-colour COB LEDs (RGBW), 3° beam angle per beam
-
Strobe: 4 x 1W white LEDs, 50° beam angle
-
Moving Head: 1x 30W white LED, 11° beam angle, 7 static gobos + open, 7 colours + open, manual focus, 540° pan / 235° tilt
-
Laser: Class 3R red/green laser with key-lock
-
DMX Channels: 3, 19, or 34 selectable
-

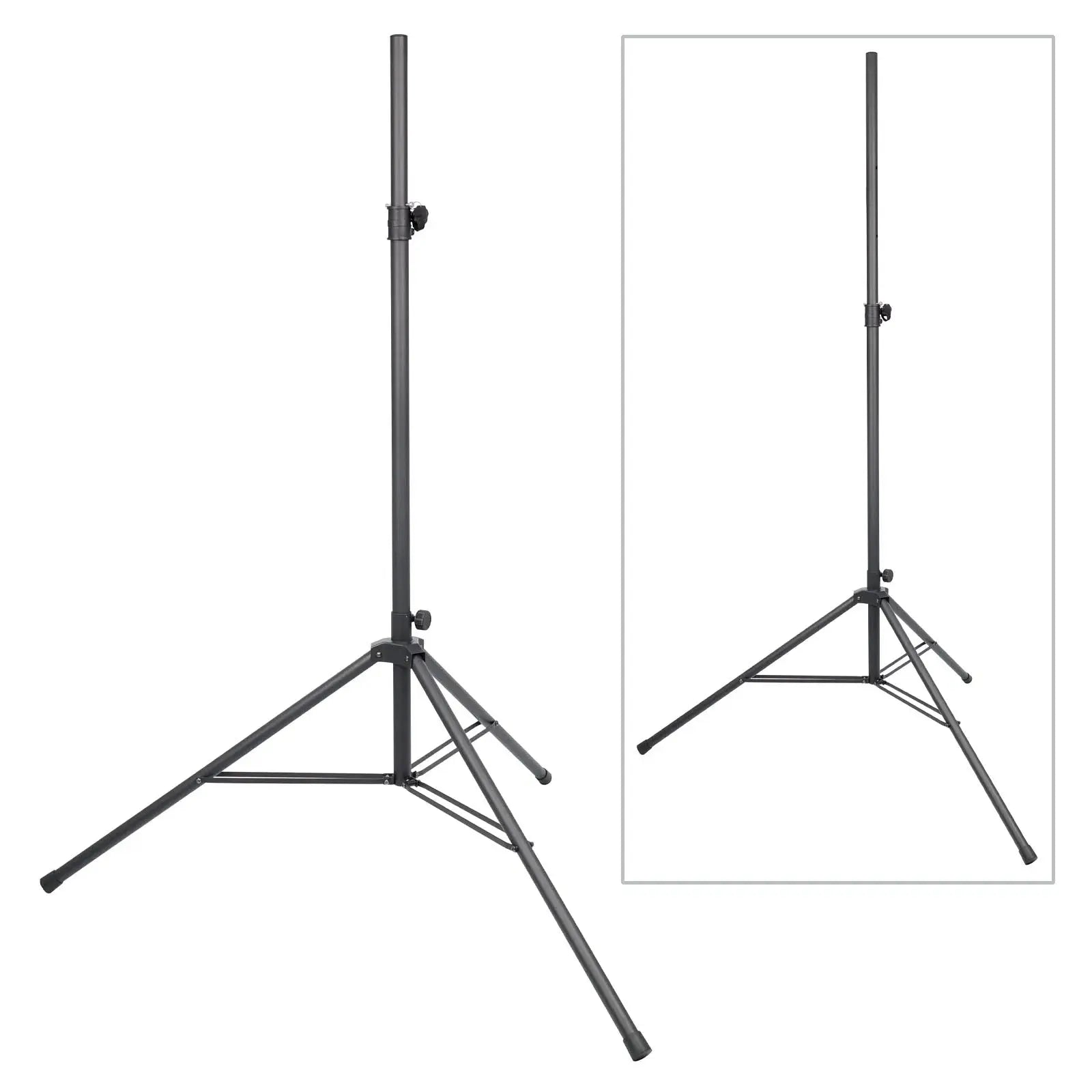

Dimensions: 395 x 840 x 171mm (bar only), 1820 - 2640mm (stand height)
-
Weight: 16.5kg
