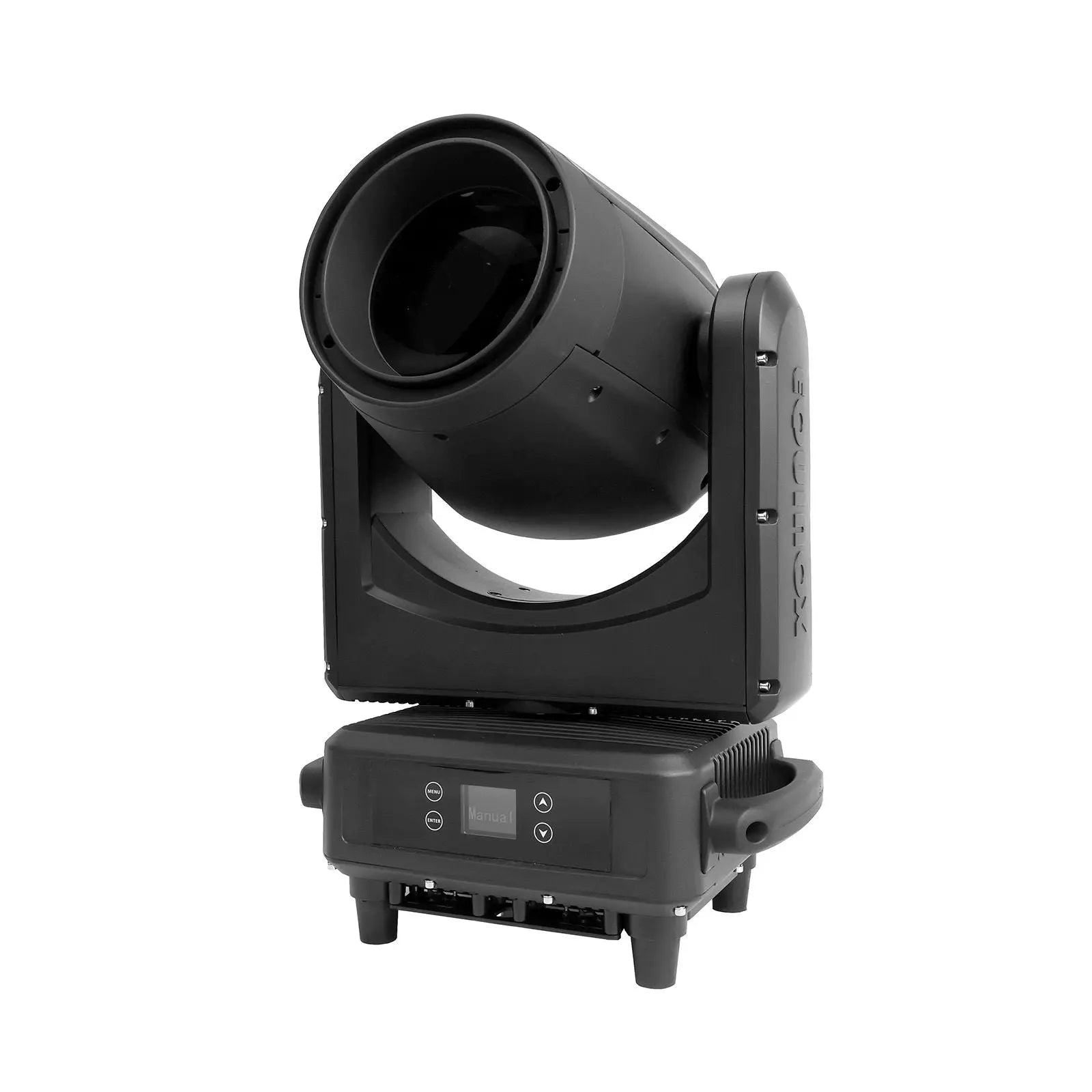

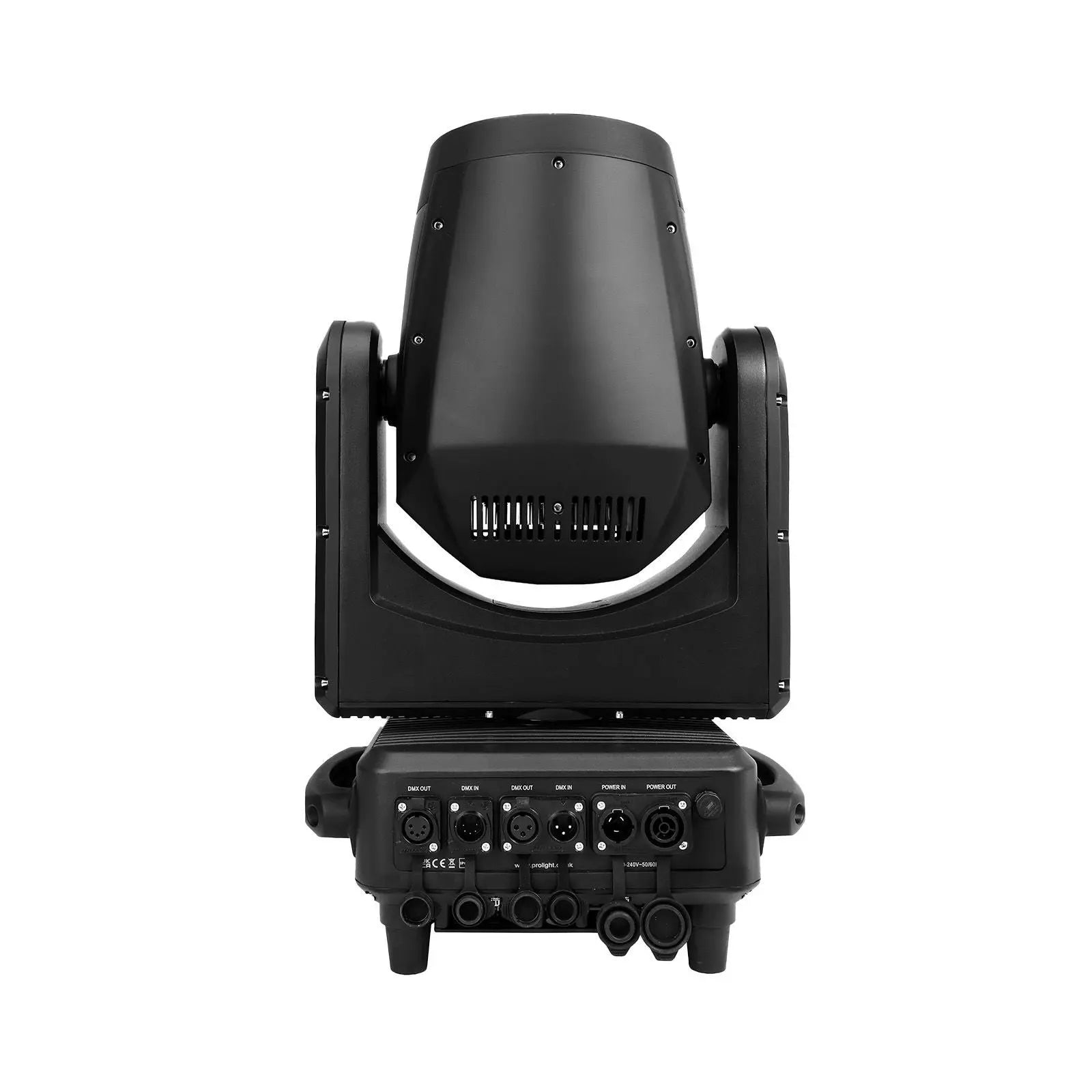

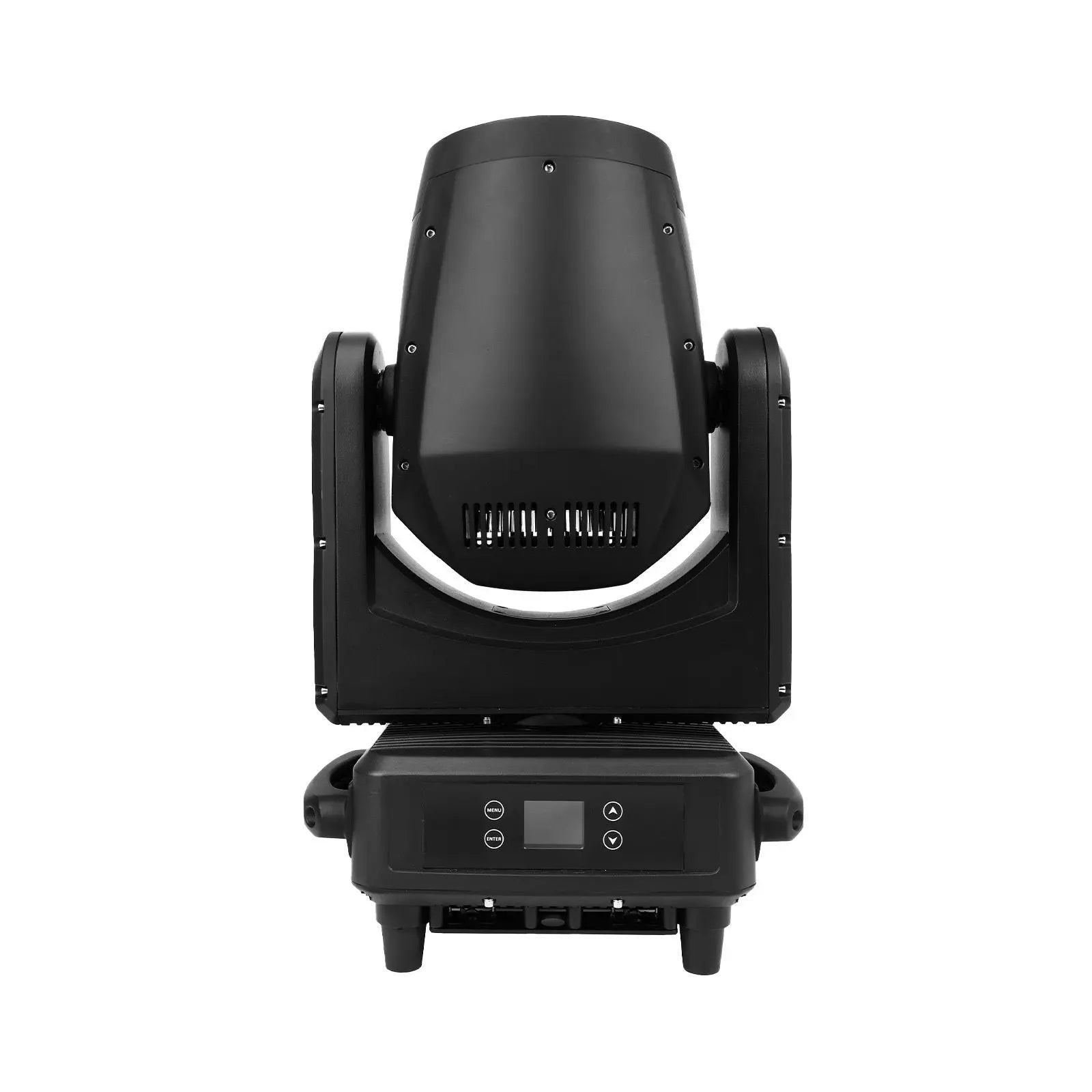

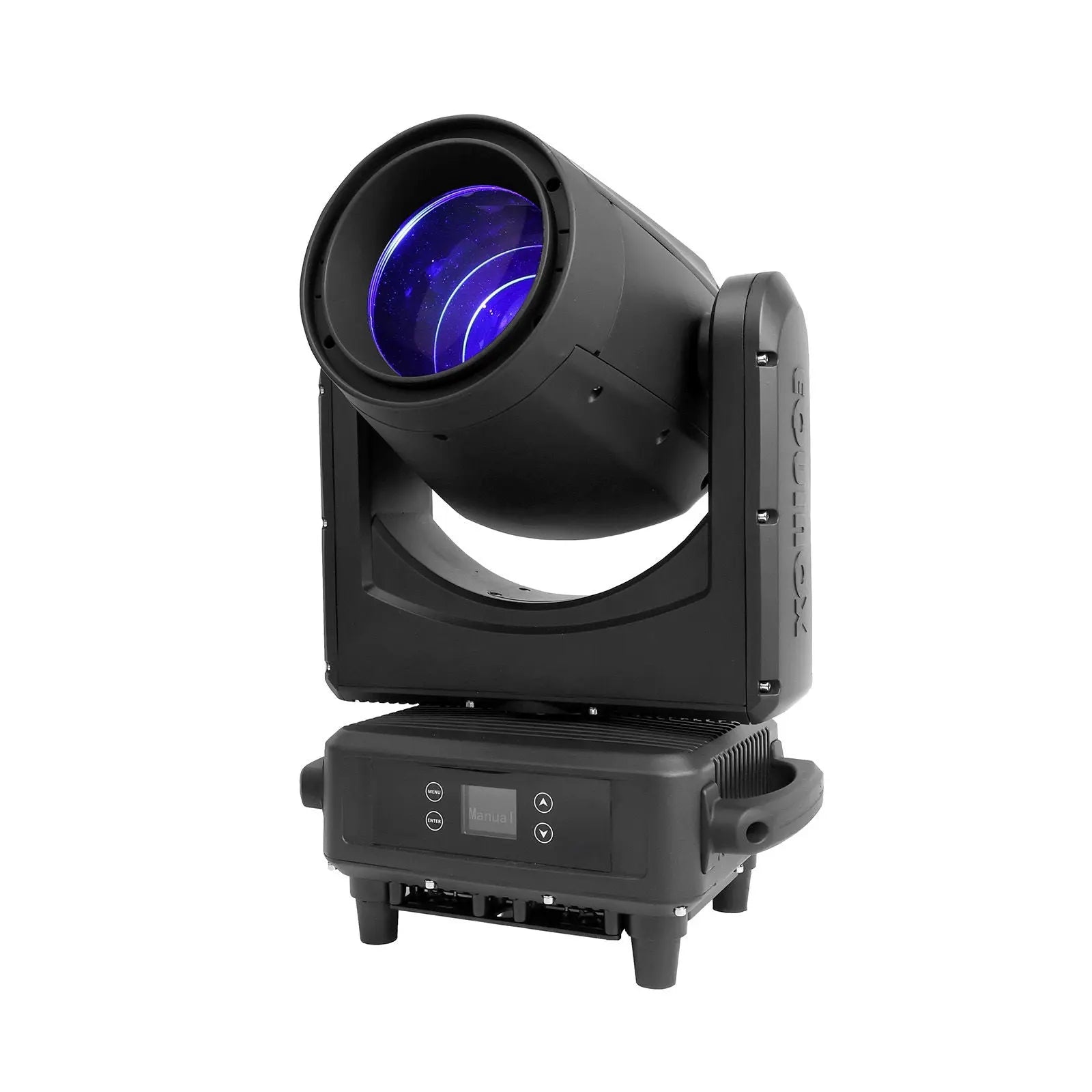

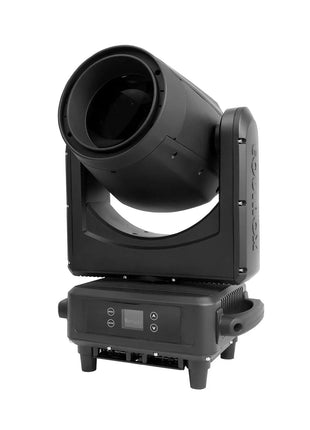

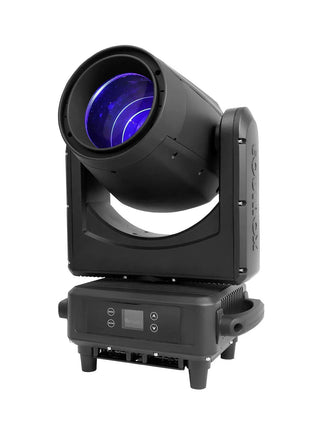

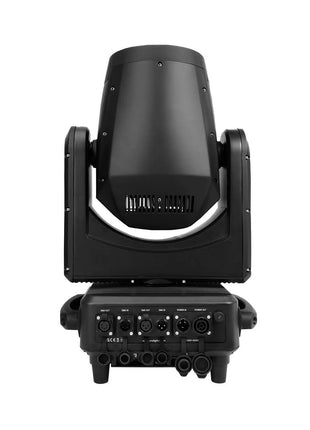

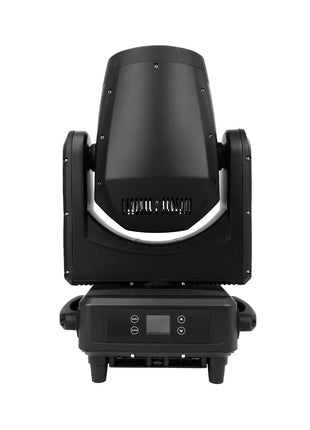

The Equinox Fusion Patriot 500 Beam is a compact yet powerful IP65-rated moving head beam designed to thrive in the toughest environments. Powered by a 50W white laser source (9200K) it delivers an intense 105000 Lux at 10 metres through a sharp 1° beam. Packed with creative tools including 19 static gobos a 12-colour wheel plus a rainbow effect and two rotating prism wheels for layered aerial visuals this fixture is ideal for professional stage and event applications. Additional features include motorised focus frost filter 16-bit pan/tilt with auto-correction and selectable 14 or 18-channel DMX control. With 3/5-pin DMX PowerTwist TR1 and quick-release omega clamps this versatile fixture integrates seamlessly into any rig. 1 x 50W white laser source (7500K) Light source rated life: up to 12000 hours Beam angle: 1° 105000 Lux @ 10m Refresh rate: 650Hz–25kHz (5 presets) Motorised focus 2 prism wheels with 4 rotating prisms Wheel 1: 8 facet circular prism Wheel 2: 8 facet circular 18 facet circular 5 facet linear Frost filter Gobo wheel: 19 static gobos + open Colour wheel: 12 colours + open 6 colour rainbow effect wheel DMX channels: 14 or 18 selectable Manual control & master/slave modes Pan/tilt auto correction 16-bit pan/tilt: Pan 540° Tilt 220° 0–100% dimming Variable strobe Quick release omega clamps included 4-button menu with 1.7” LCD display PowerTwist TR1 input/output 3-Pin & 5-Pin XLR input/output Fan cooled
