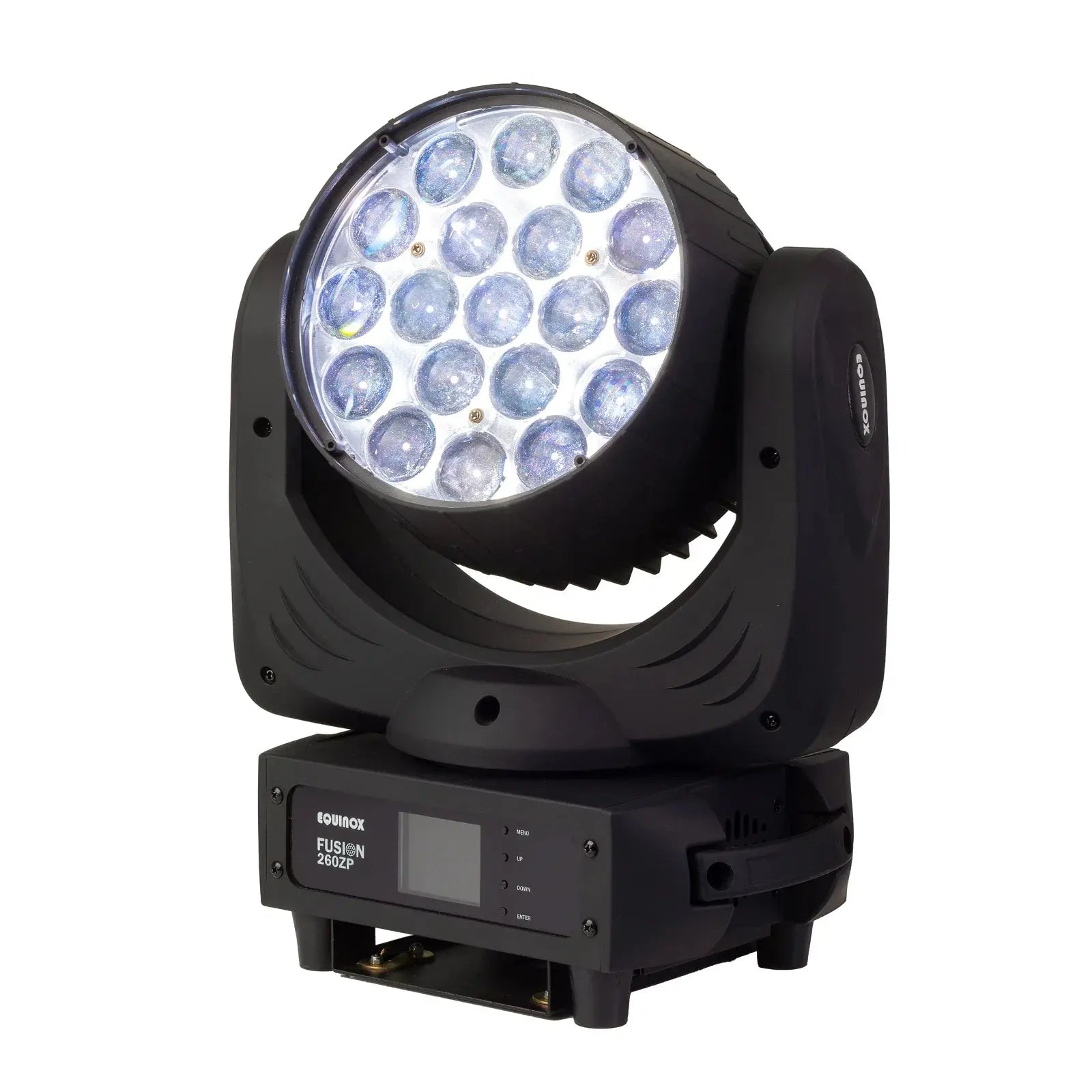

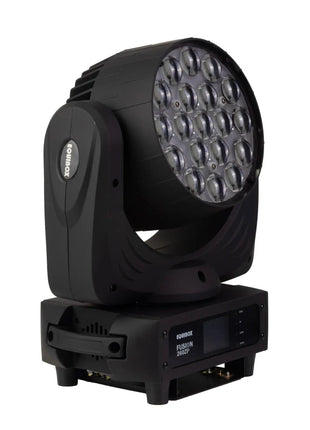

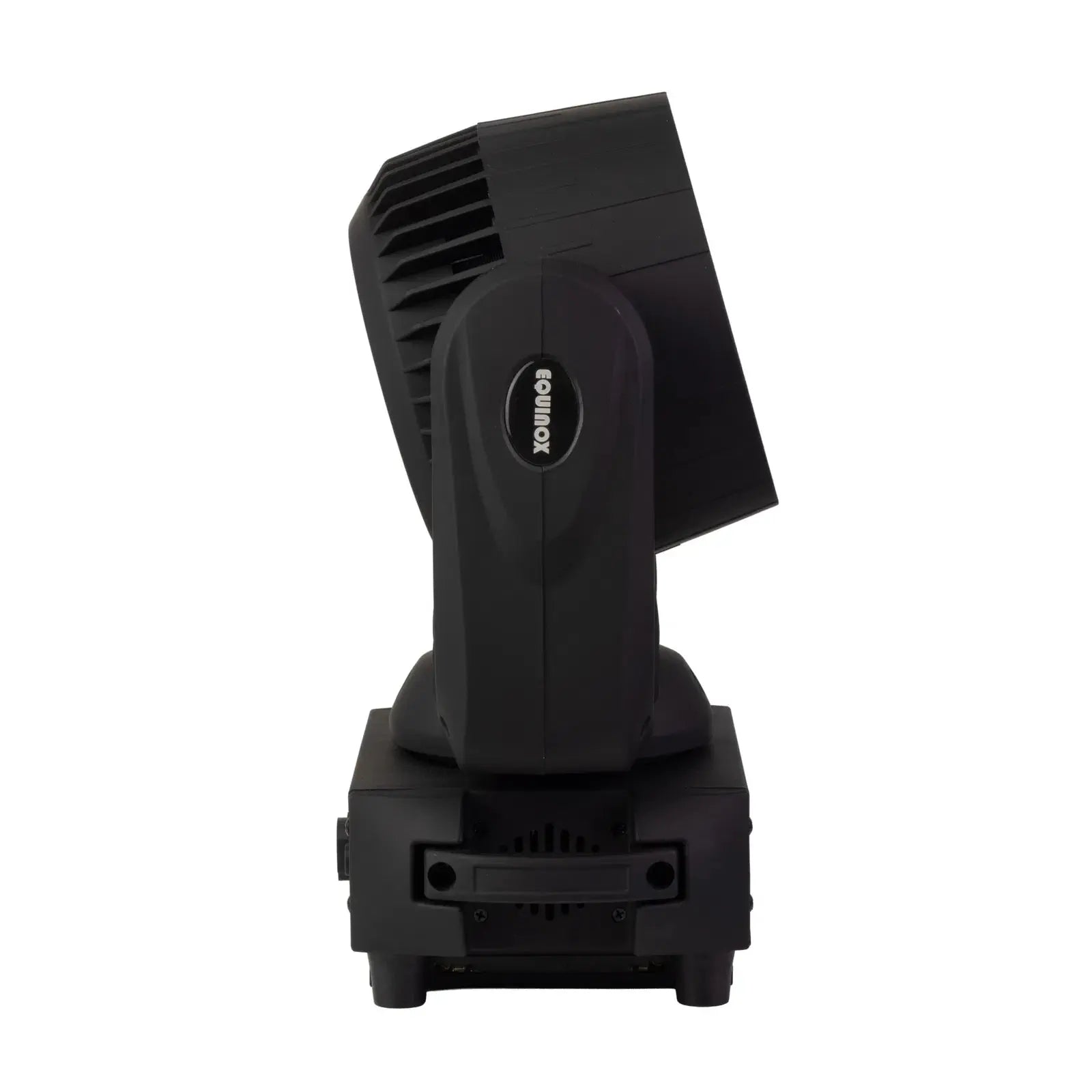

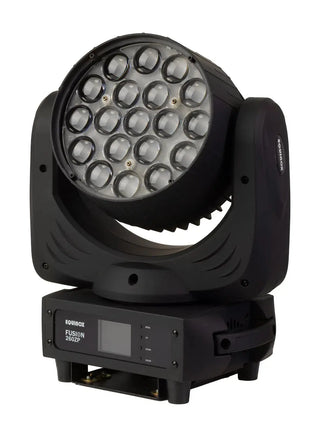

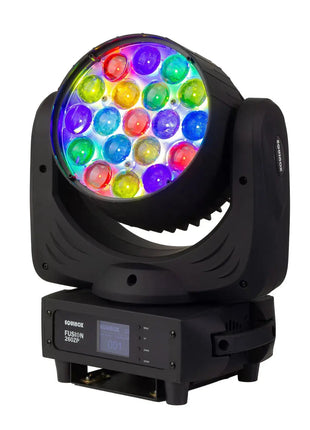

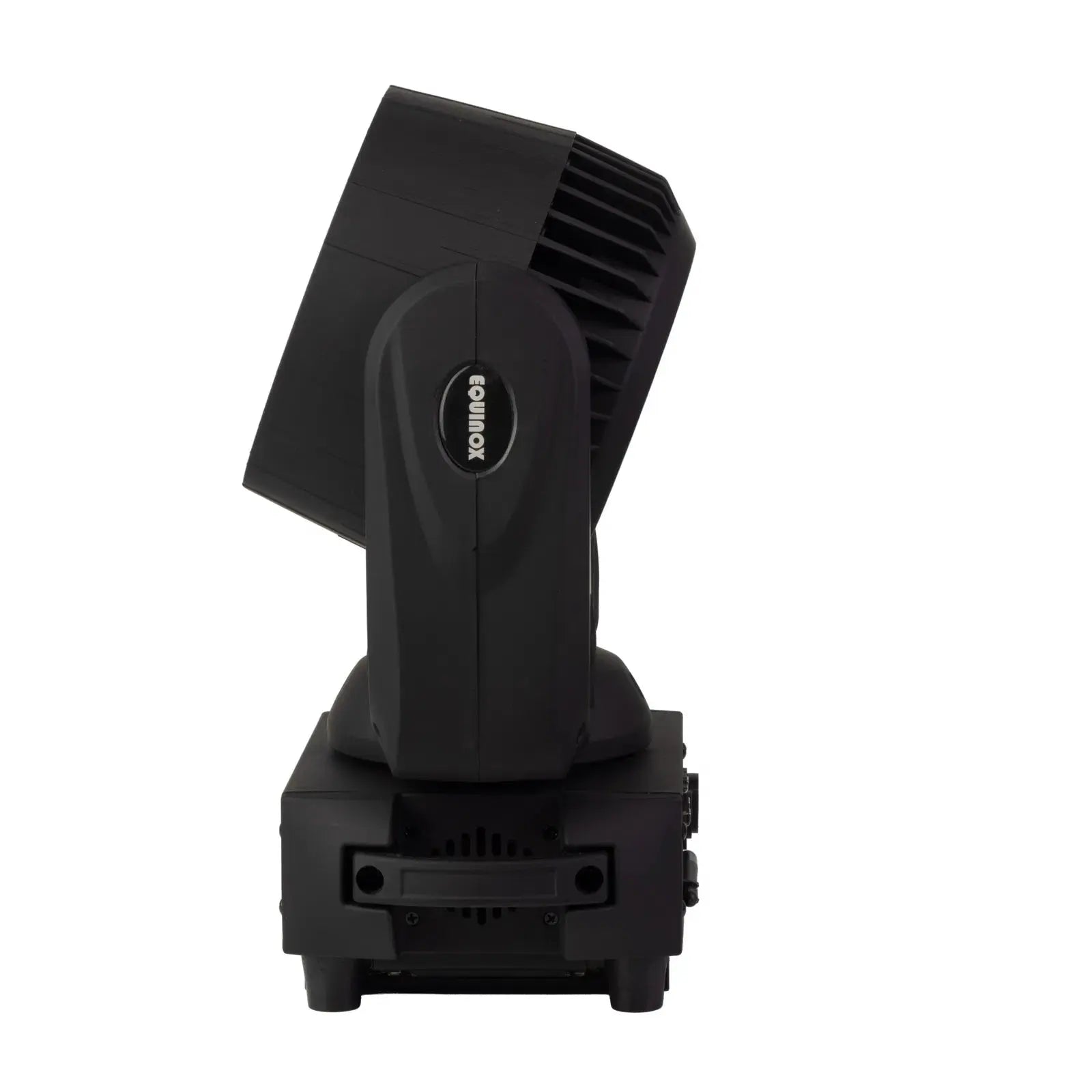

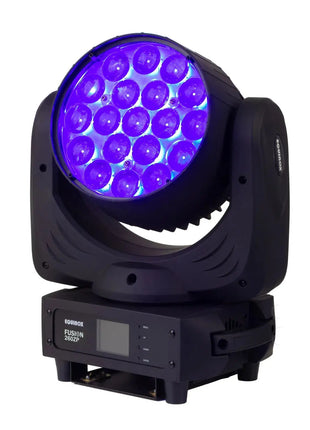

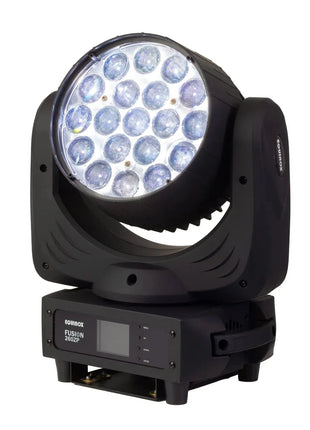

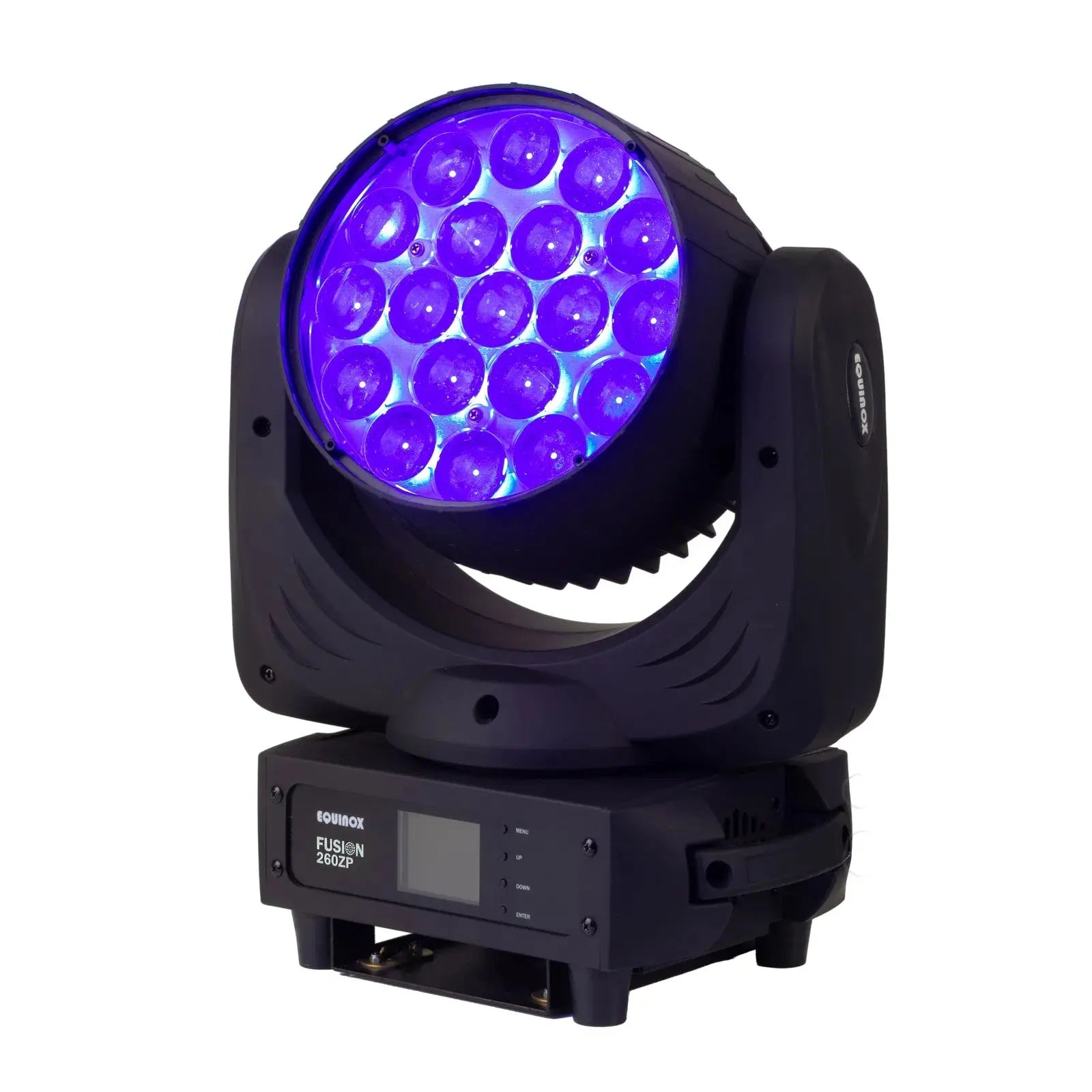

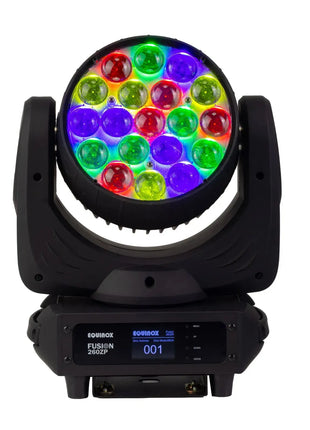

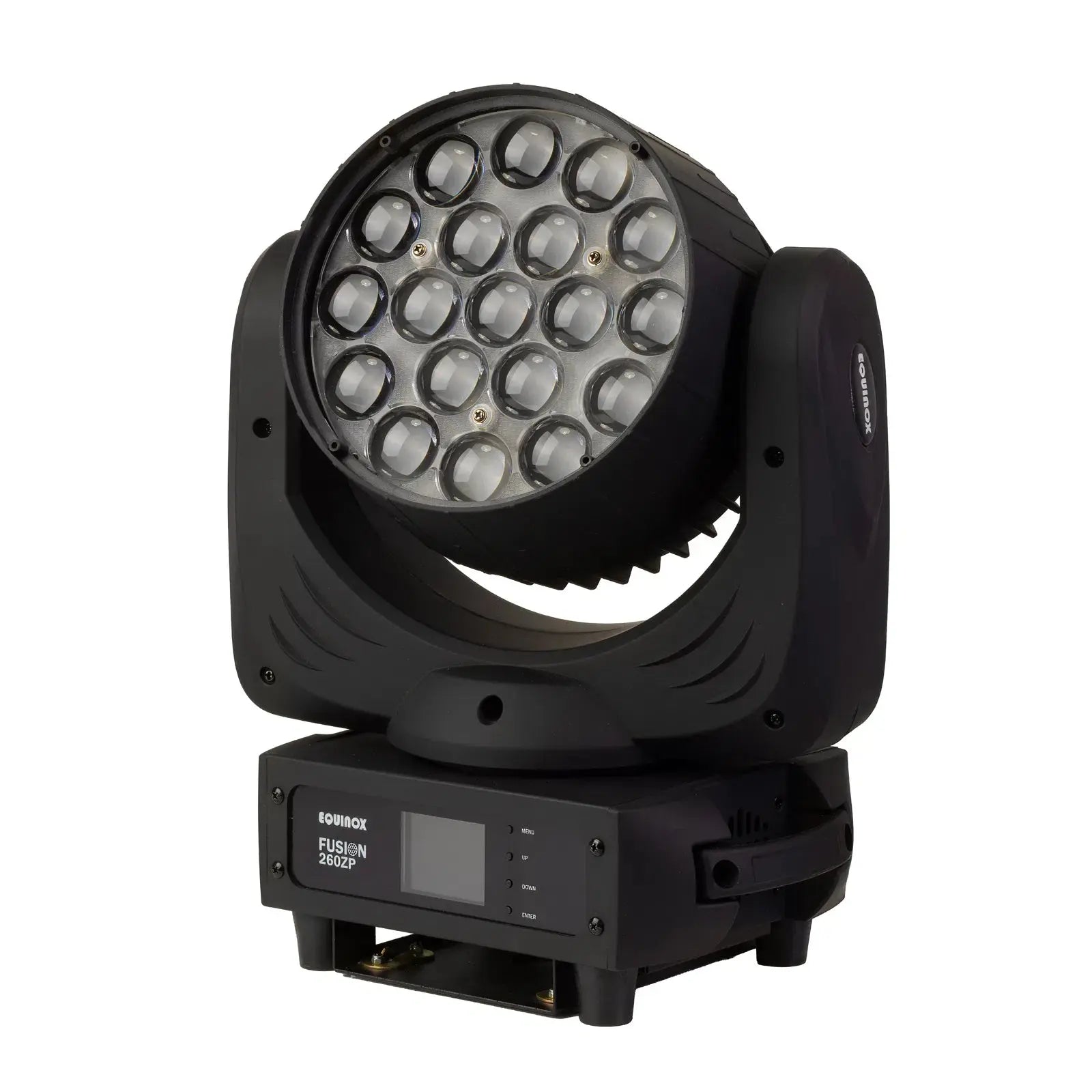

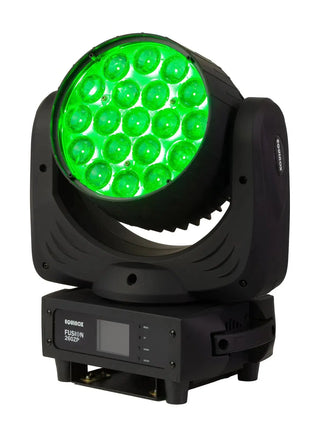

Equinox Fusion 260ZP | 7 x 30W RGBW Zoom Moving Head Wash

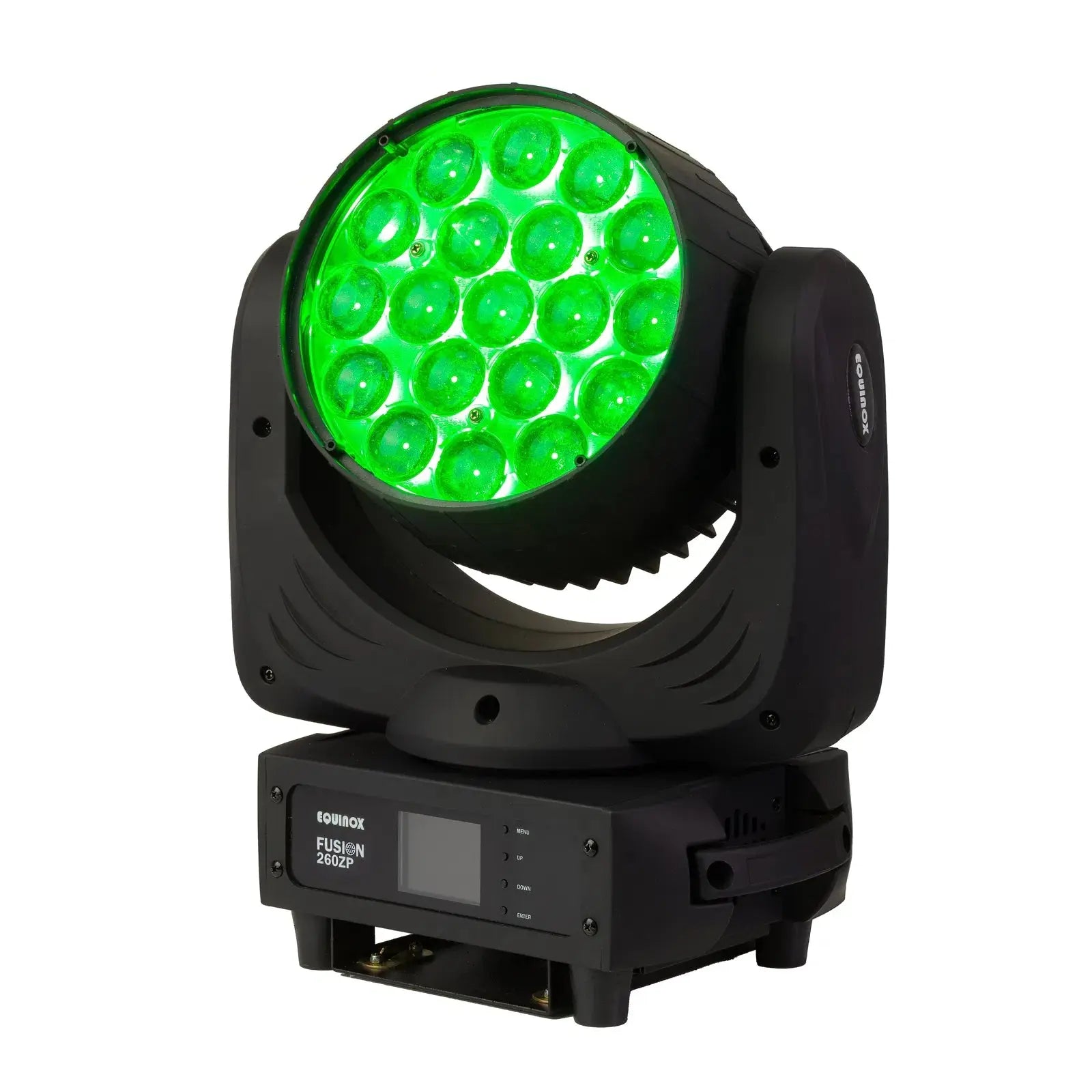

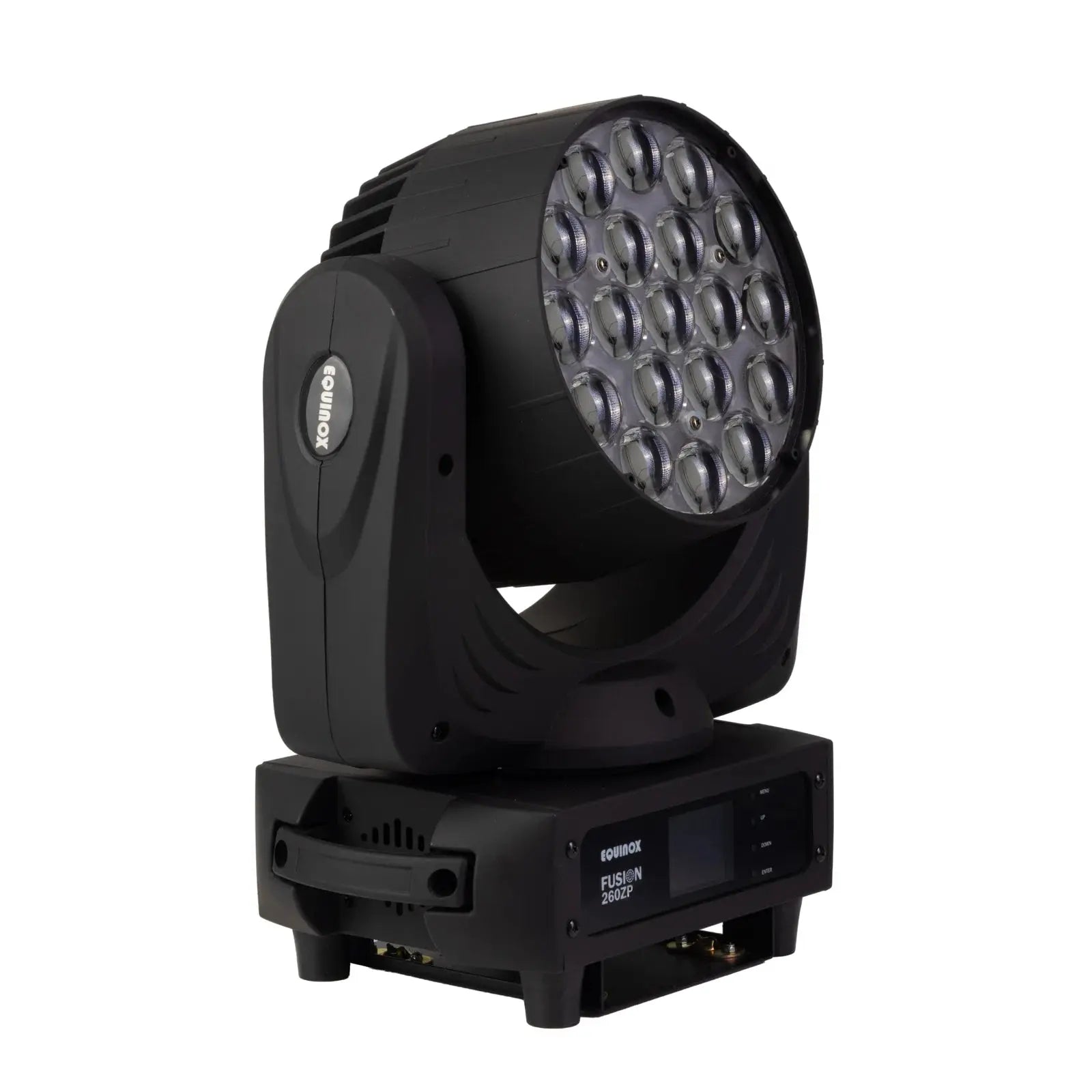

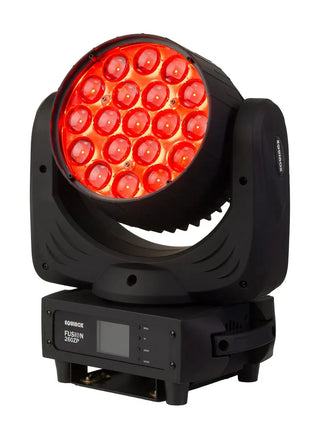

Powerful output with precision zoom control. The Fusion 260ZP is built around seven high-performance 30W quad-colour (RGBW) LEDs, providing a massive total output of 210W. Its standout feature is the linear motorized zoom, which allows the beam angle to be adjusted from a sharp 6 degrees for mid-air effects to a broad 45 degrees for uniform stage coverage. With smooth 16-bit dimming, high-speed pan and tilt motors, and an intuitive full-colour LCD display, the Fusion 260ZP offers the professional feature set required for high-impact visual displays and professional touring rigs.
Why Choose the Equinox Fusion 260ZP?
-

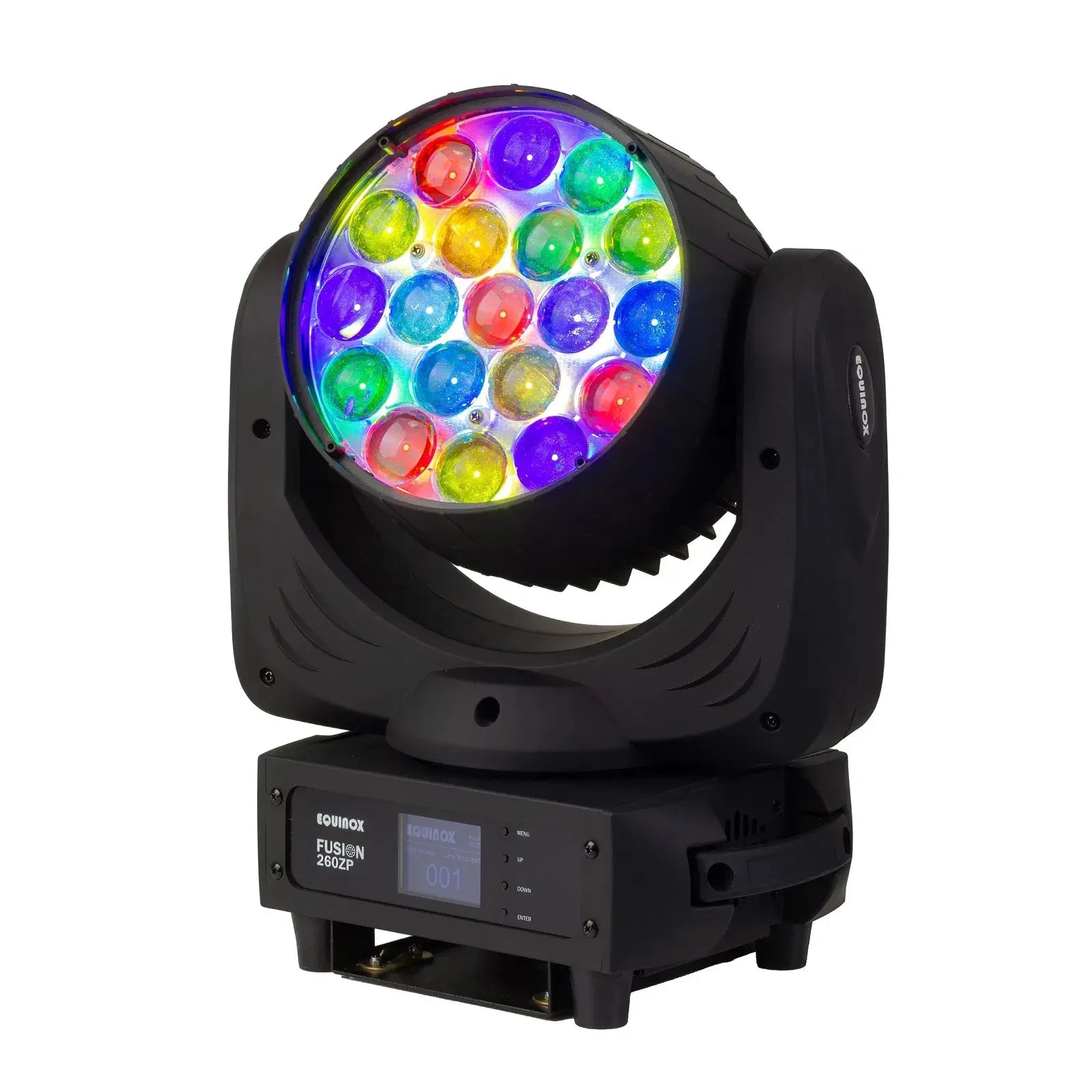

High-Intensity RGBW Performance: Seven 30W quad-colour LEDs deliver deep color saturation, vivid pastel tones, and crisp whites.
-
Motorized Linear Zoom: Effortlessly transition from a tight 6-degree beam to a wide 45-degree wash at the push of a button.
-
Advanced Motion Control: Fast and precise 540-degree pan and 270-degree tilt with 16-bit movement for smooth, accurate positioning.
-
Professional Dimming: Features 0–100% 16-bit dimming and variable strobe effects for dramatic crescendos and subtle fades.
-

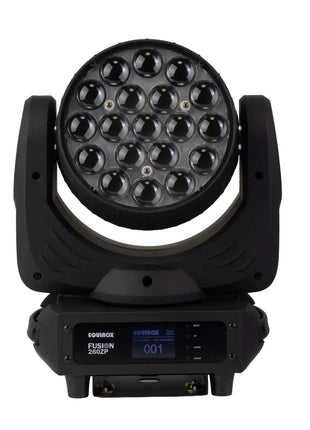

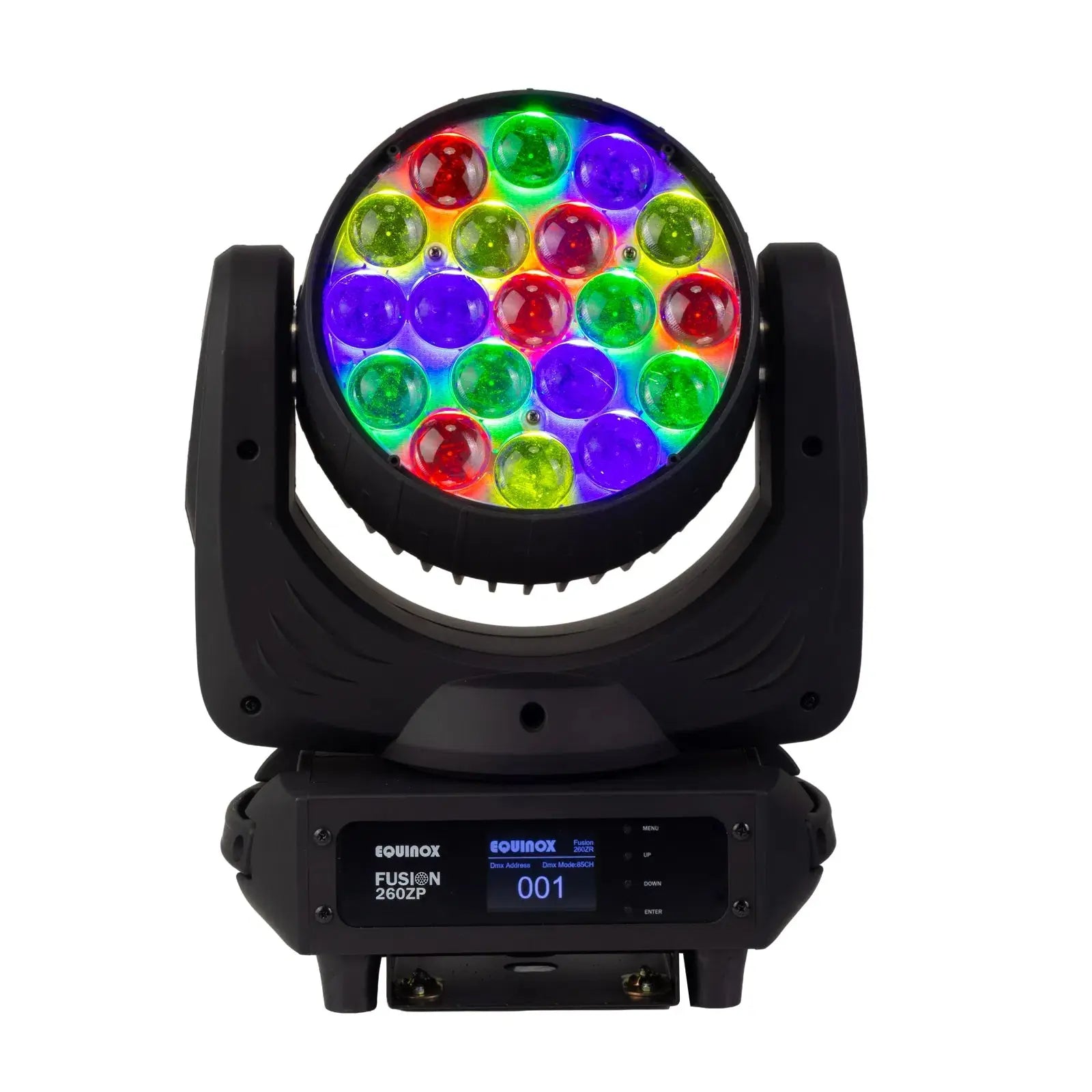

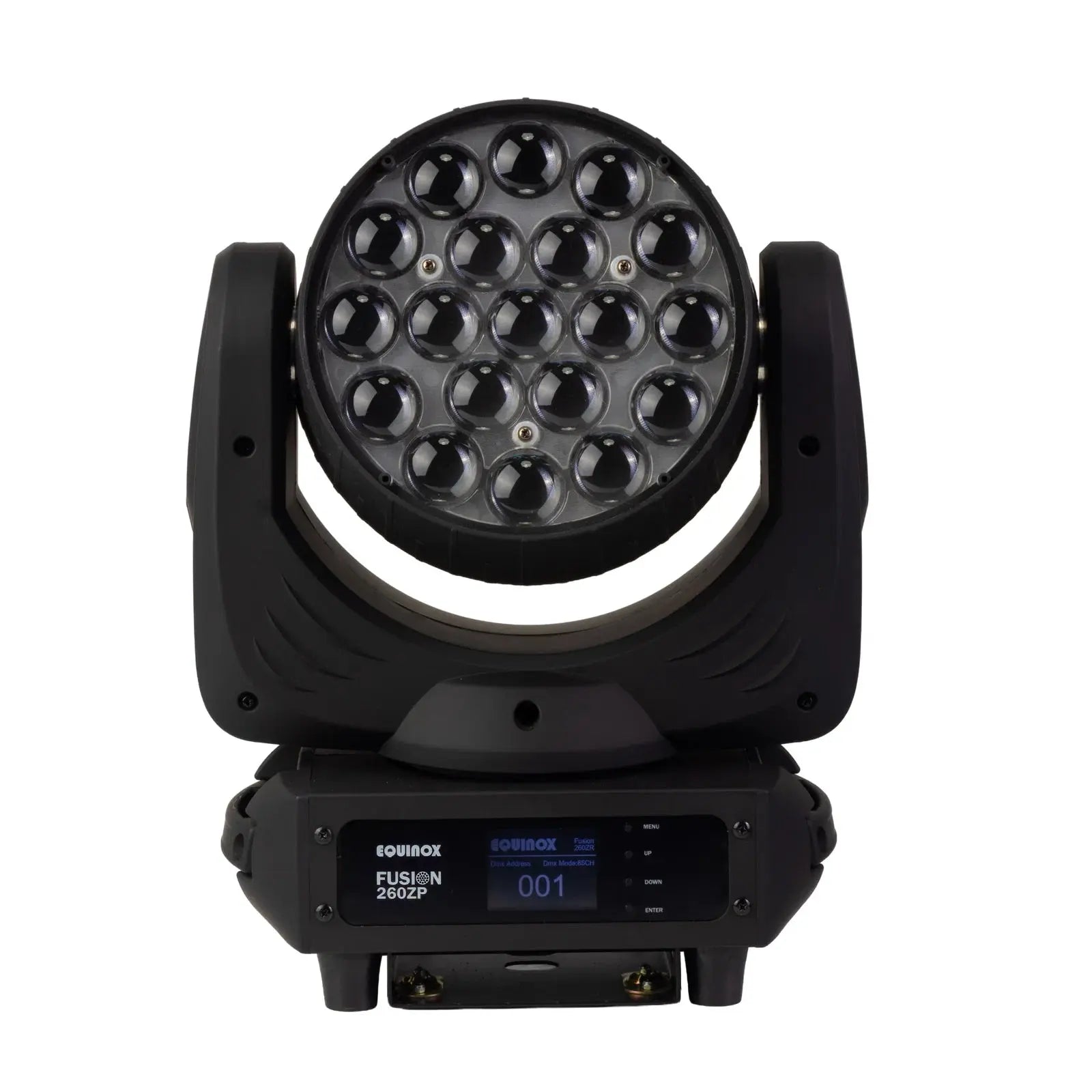

User-Friendly Interface: A full-colour LCD display with a 4-button menu makes manual configuration and DMX addressing simple and fast.
-
Flexible Control Modes: Supports DMX (8 or 15 channels), Sound Active, and Auto-run modes with built-in programs for instant impact.
-
Primary/Secondary Integration: Easily link multiple units to create synchronized, room-filling light shows without a dedicated controller.
-

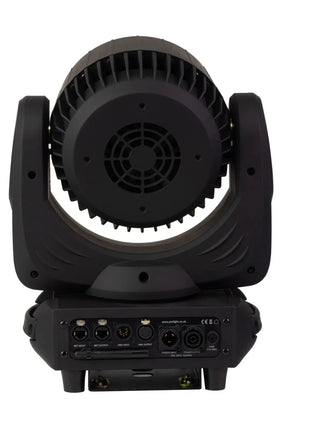

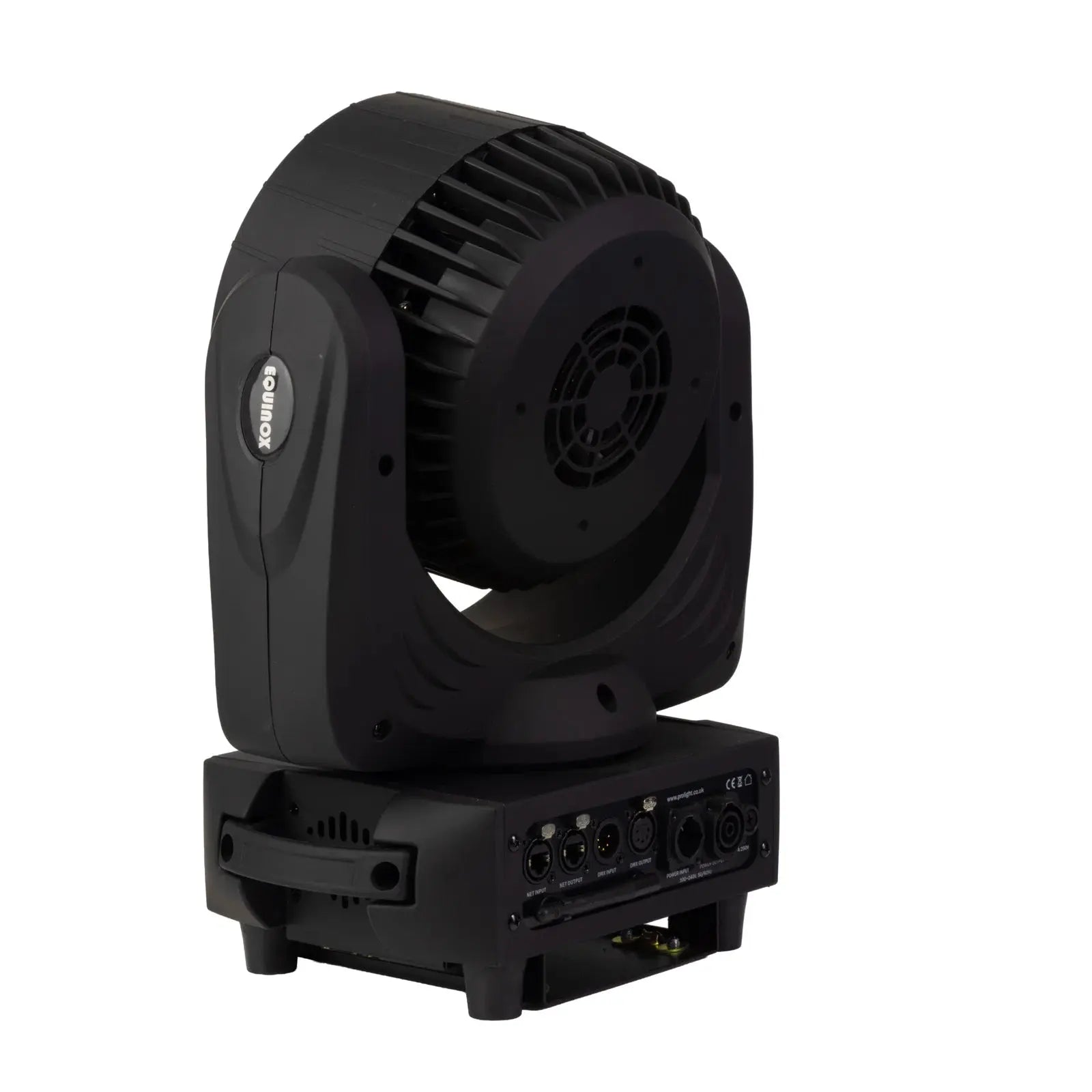

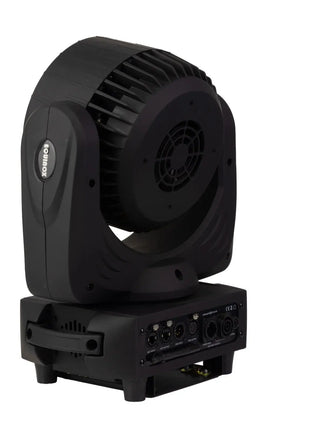

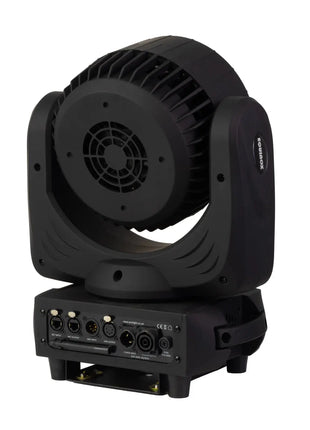

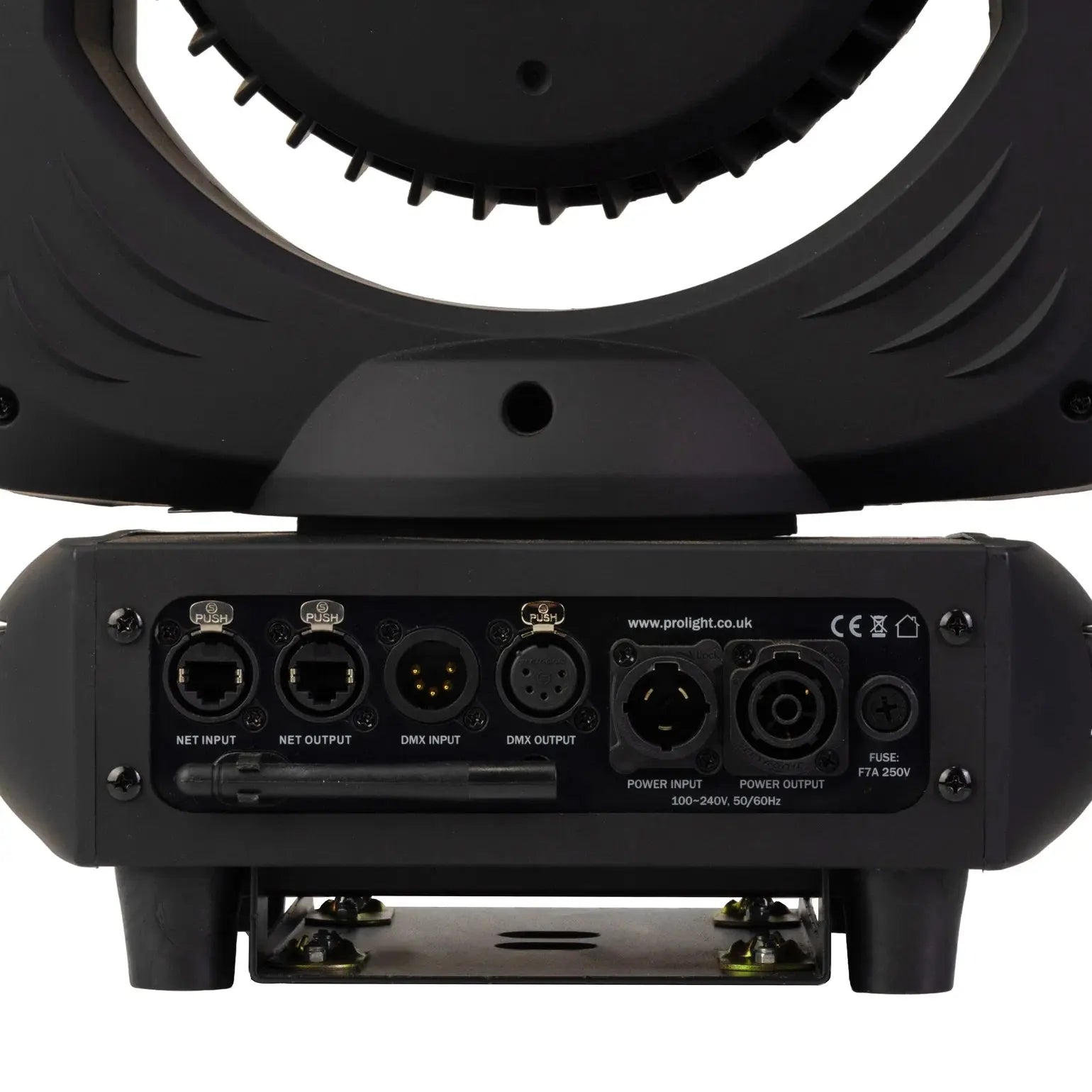

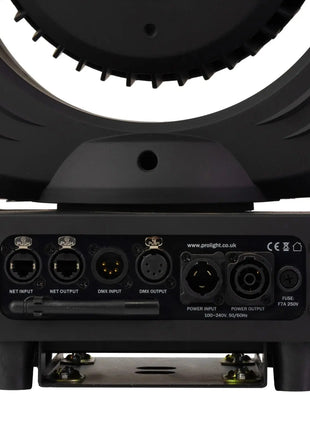

Tour-Ready Connectivity: Equipped with professional 3-pin XLR DMX inputs/outputs and PowerTwist-compatible power connections for secure daisy-chaining.
-

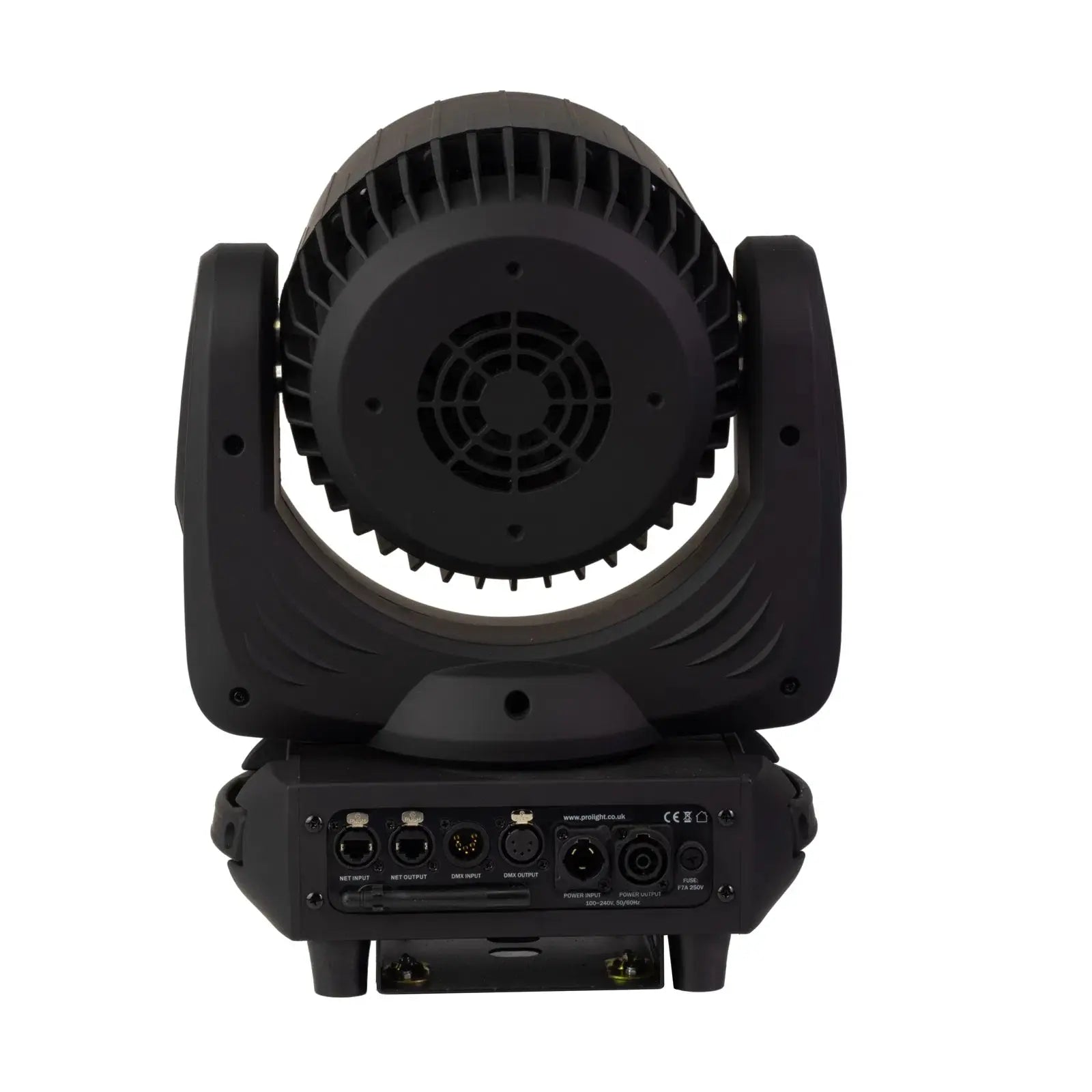

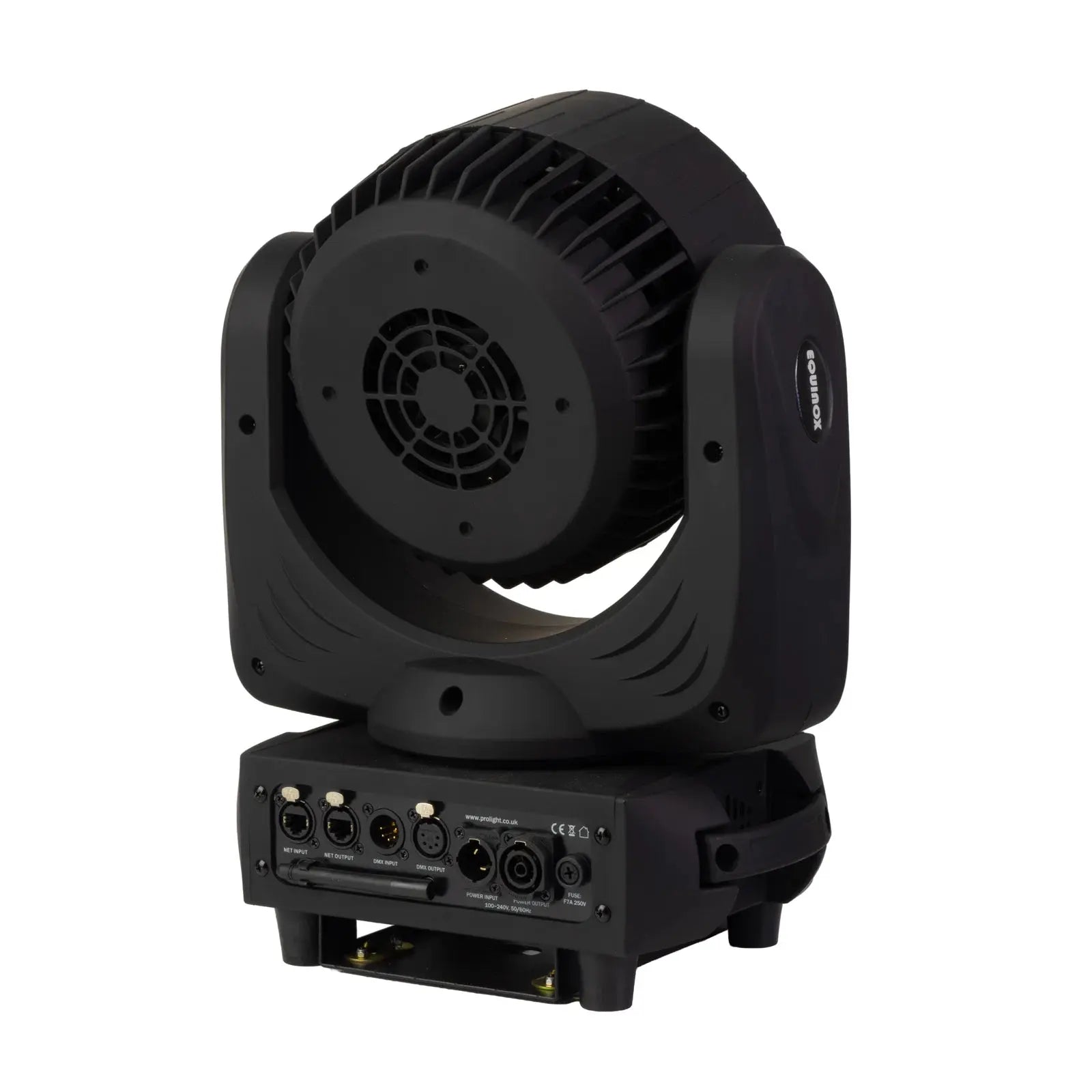

Rugged & Reliable: Fan-cooled housing designed for long-term performance in demanding professional environments.
Versatility and Stage Presence
From Sharp Beams to Wide Washes The Fusion 260ZP is the ultimate "workhorse" for any lighting rig. By utilizing the motorized zoom, you can use the same fixture to create razor-sharp mid-air "finger" beams for high-energy dance segments, and then instantly widen the output to bathe a whole band or stage in a perfectly mixed wash of color.

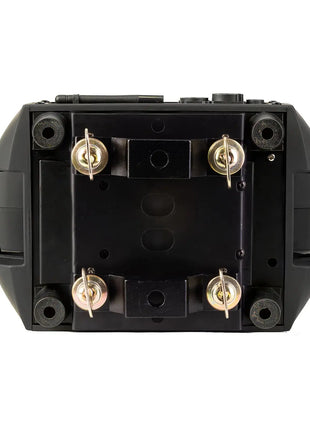

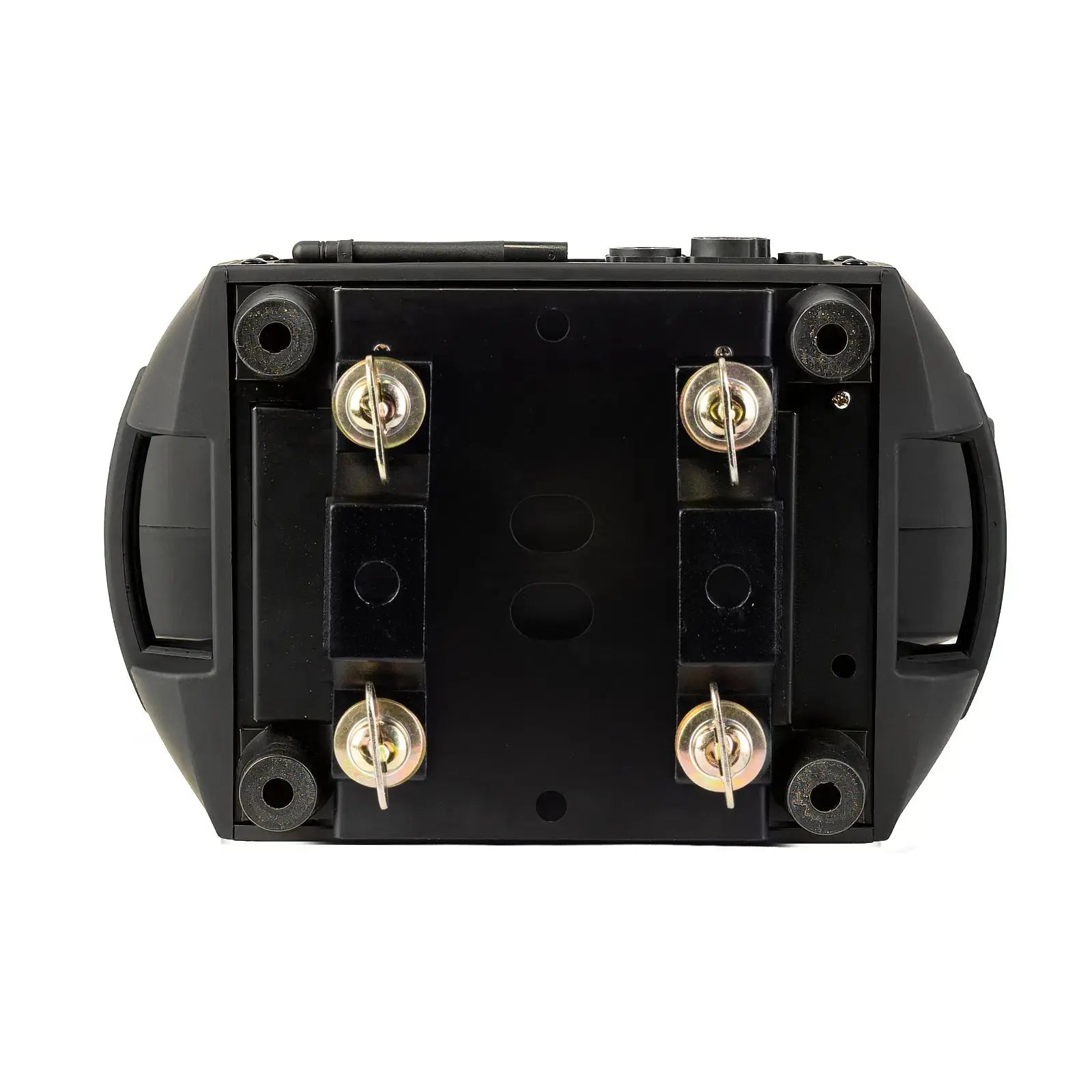

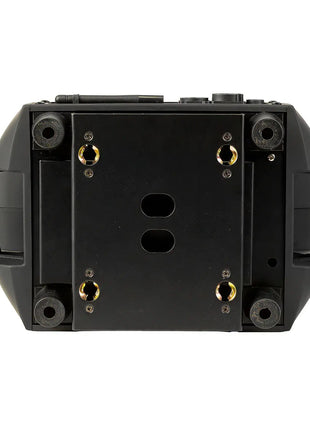

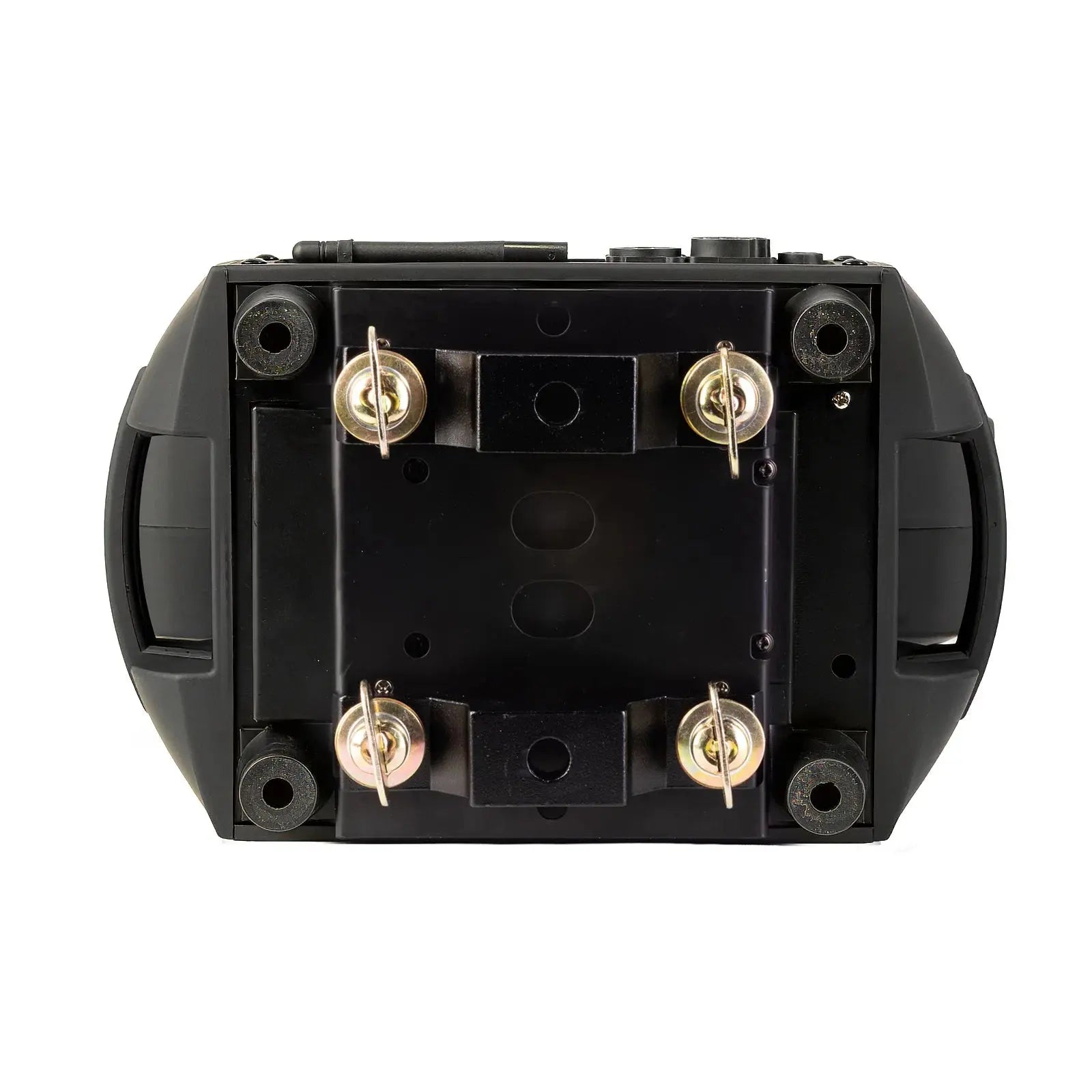

Clean and Reliable Integration Designed for the road, the Fusion 260ZP features professional-grade power and data connections that ensure your rig remains secure throughout the night. The compact footprint makes it easy to truss-mount for overhead coverage or place on the floor for dramatic uplighting and aerial effects.
Technical Specifications
-
Light Source: 7 x 30W quad-colour RGBW LEDs
-
Beam Angle: 6 to 45 degrees (Motorized Zoom)
-
Illuminance (6 degrees): 44,520 Lux at 2m
-
Illuminance (45 degrees): 3,360 Lux at 2m
-
Pan / Tilt: 540 degrees / 270 degrees
-
DMX Channels: 8 or 15 selectable
-
Power Consumption: 235W
-
Weight: 6 kg
-
Dimensions: 345 x 261 x 185 mm
What is In The Box?
Why Buy From djkit?
At djkit, we recommend the Equinox Fusion 260ZP for performers and venues that need a versatile, professional-grade wash light that doesn't compromise on power. Its motorized zoom makes it one of the most flexible fixtures in its price bracket. With our fast UK delivery and specialist support, we help you build a lighting rig that can adapt to any stage or event style.
