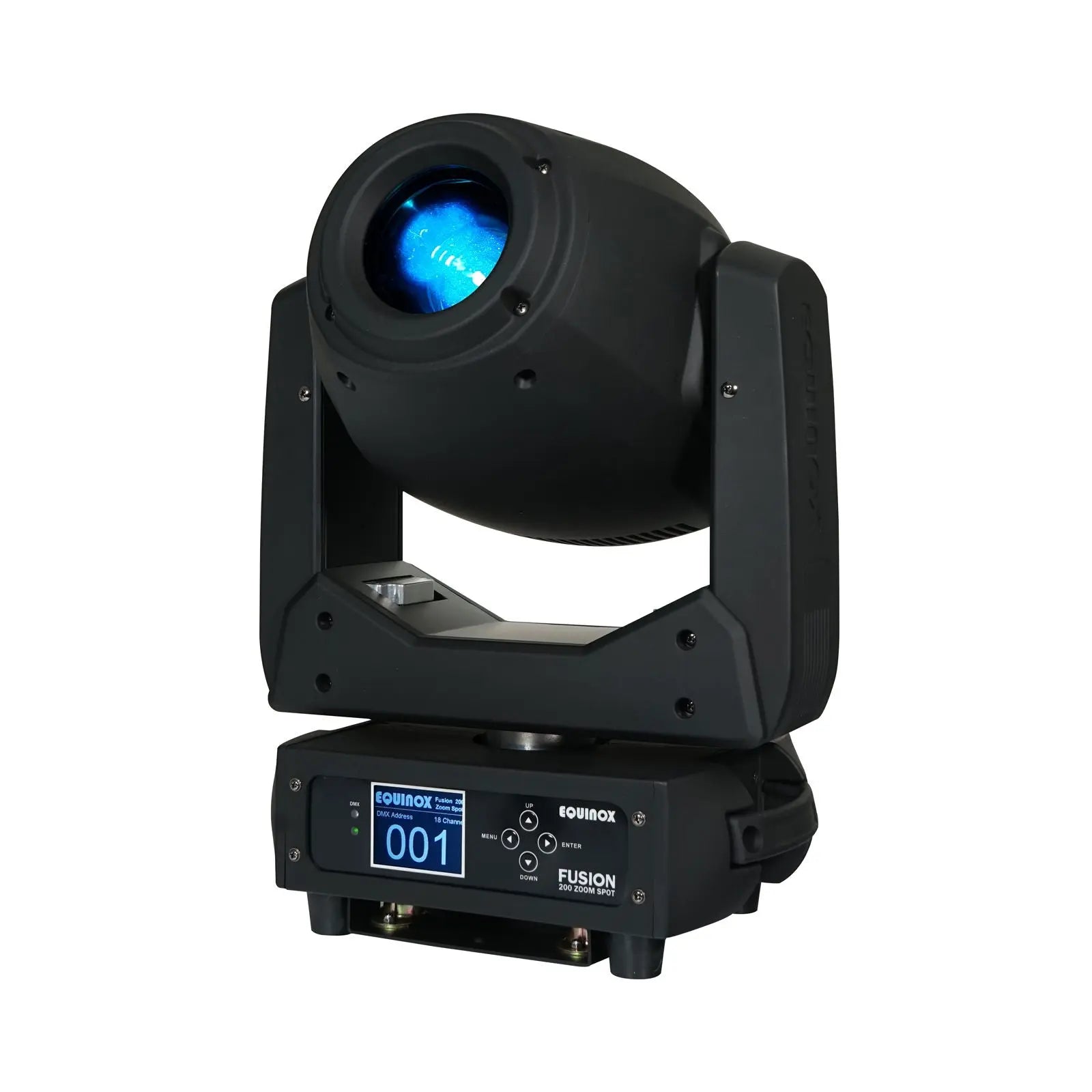

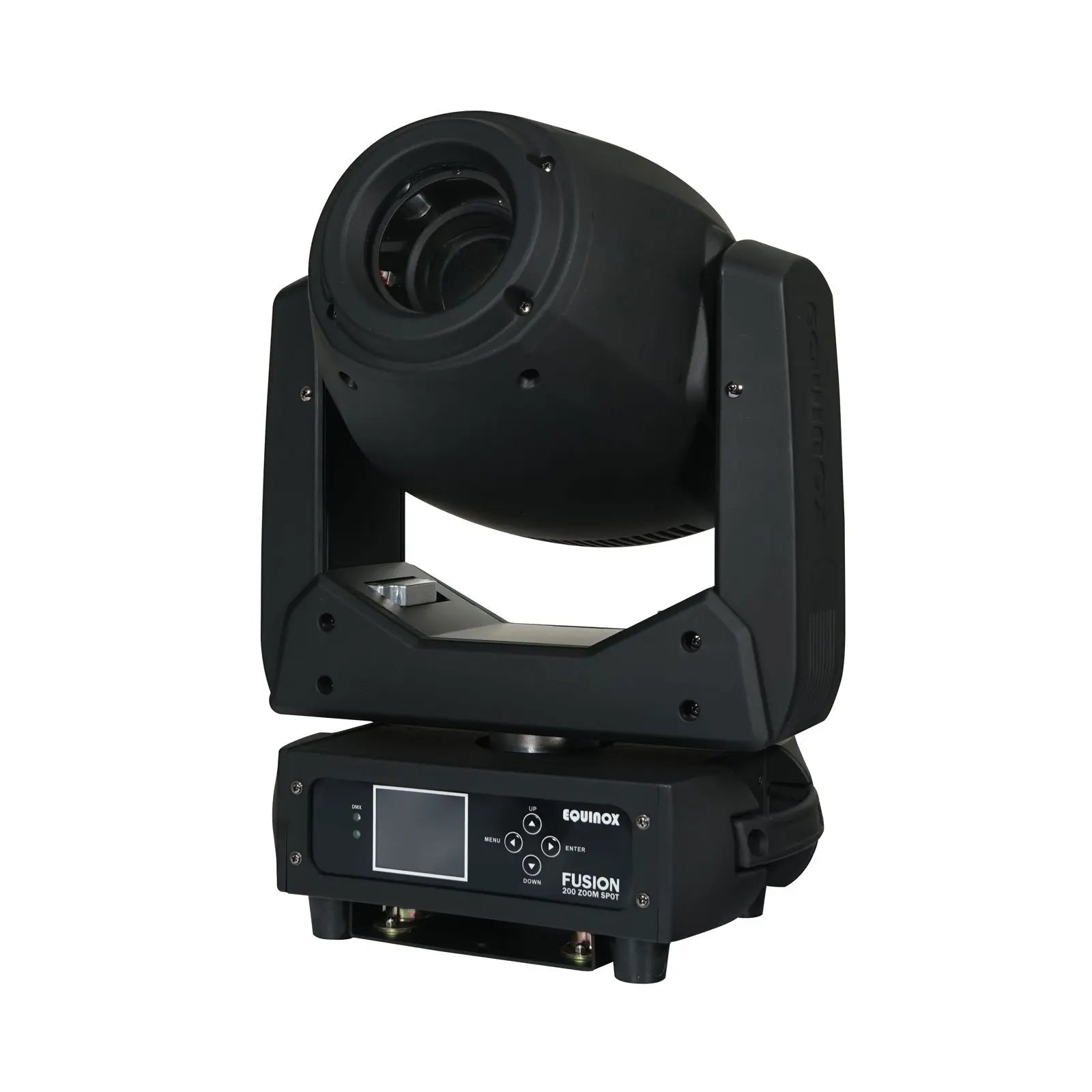

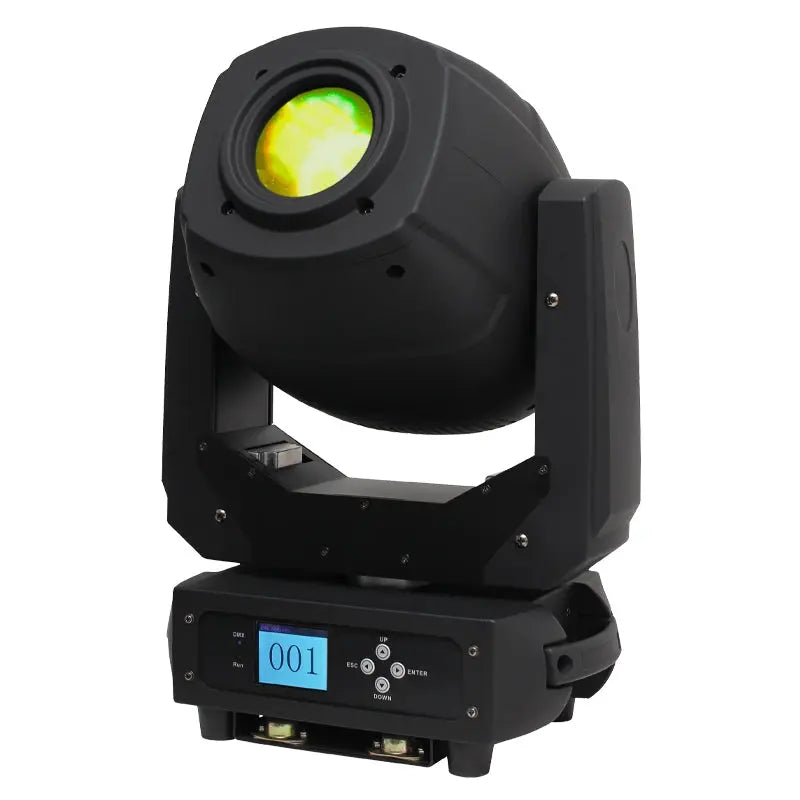

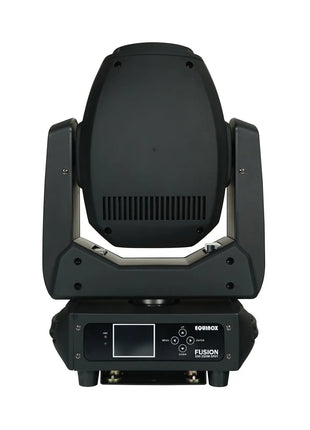

Equinox Fusion 200 Zoom Spot | 200W LED Moving Head | UK Stock & Expert Support | djkit®
Staff Take: The Expert Verdict
If you are stepped up from basic 50W or 100W fixtures and want that high-end, festival-style look without breaking the bank, the Fusion 200 Zoom Spot is a total game-changer. Most compact heads lose all their sharpness when you adjust the width, but the motorised zoom (11 to 25 degrees) and focus on this unit keep your custom gobo patterns crisp across the entire throw. We have rigged these in both low-ceiling bars and large marquee tents, and the 200W white LED engine completely slices through room ambient light. What really seals the deal for mobile setups is the dual-prism setup—stacking the 6-facet circular and 5-facet linear prisms gives you massive, fluid textures that fill a dance floor instantly from a single fixture.
Why Choose the Equinox Fusion 200 Zoom Spot?
-
High-Output 200W LED Engine: Emits a powerful, crisp 7500K daylight-white beam that punches through dense fog and ambient room lighting effortlessly.
-
Motorised Zoom and Focus: Seamlessly shift between a tight 11-degree structural beam and a wide 25-degree spot pattern while keeping your textures razor-sharp over variable distances.
-
Dual Multi-Facet Prisms: Outfitted with a 6-facet circular rotating prism and a 5-facet linear rotating prism, both offering bi-directional rotation for massive floor coverage.
-
Dual Dedicated Gobo Wheels: Ultimate mid-air design flexibility featuring one wheel with 7 rotating, replaceable gobos and a secondary wheel with 7 fixed static gobos.
-
Vibrant Colour Palette: A dedicated internal wheel holding 7 rich dichroic colours plus open white handles snappy transitions and smooth half-colour looks.
-
High-Speed PWM Refresh Rate: Operates with a clean 4.3kHz refresh rate to ensure complete flicker-free performance on high-speed cameras and modern live streams.
-

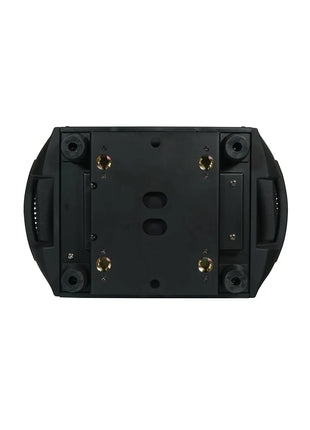

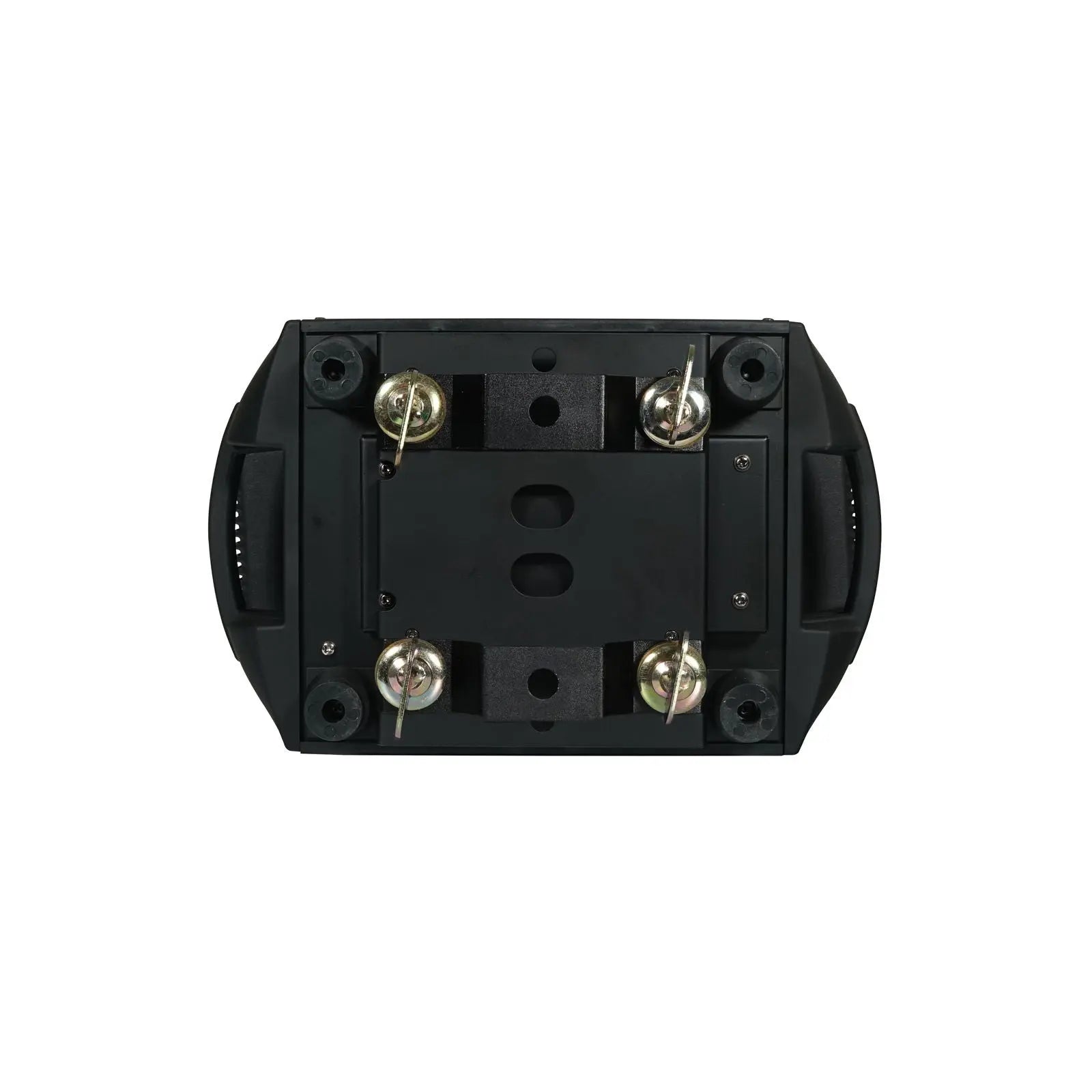

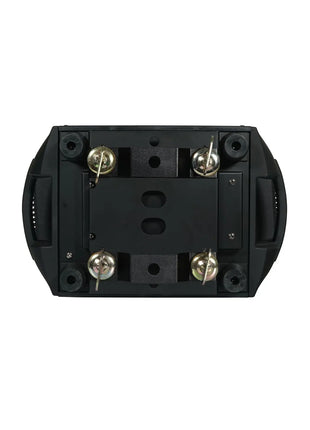

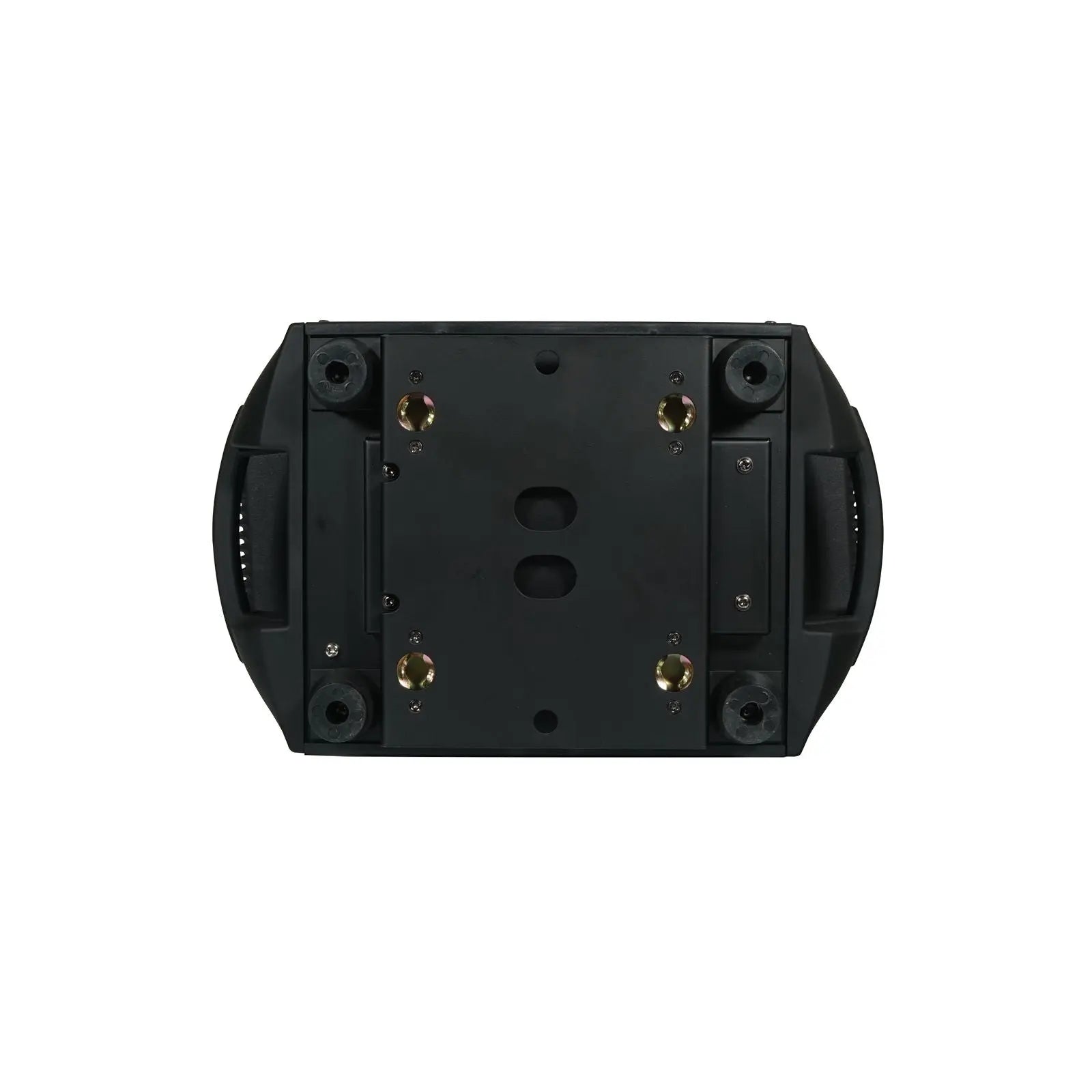

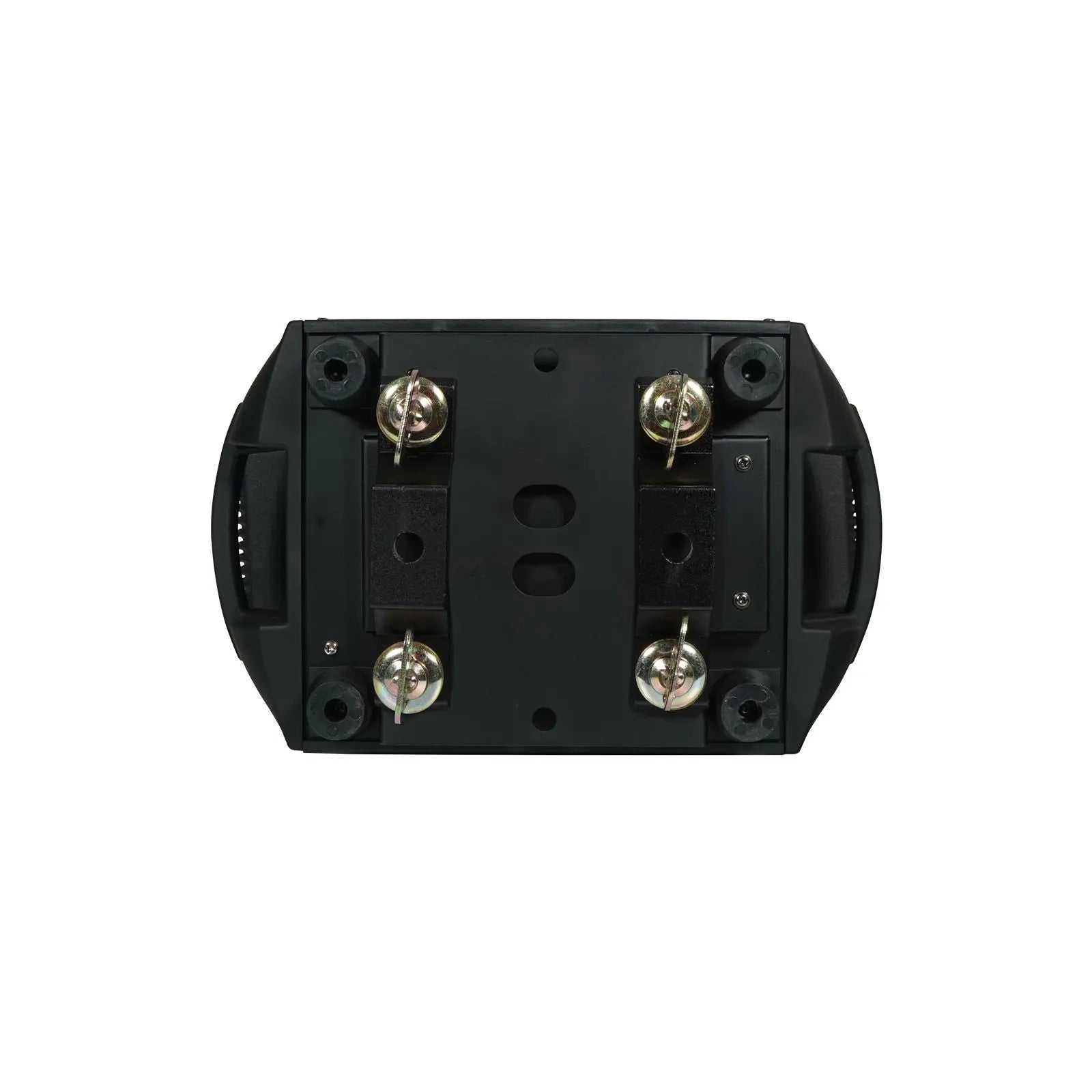

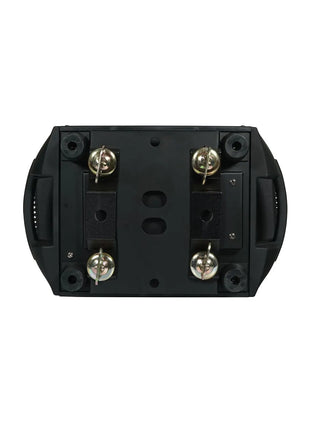

Flexible Quick-Rig Chassis: Supplied with quick-release omega clamps featuring square-hole spacing receivers, allowing you to mount the brackets in any orientation to suit your truss setup.
Technical Specifications
-
Light Source: 1 x 200W White LED (7500K)
-
Beam Angle Range: Motorised 11 degrees to 25 degrees
-
Luminous Intensity: 27,900 Lux @ 2m (11 degrees) | 9,855 Lux @ 2m (25 degrees)
-
Pan and Tilt Range: 540 degrees Pan / 270 degrees Tilt (16-Bit precision control)
-
Gobo Wheel 1: 7 rotating, replaceable gobos plus open
-
Gobo Wheel 2: 7 static gobos plus open
-
Colour Wheel: 7 colours plus open
-
DMX Profiles: 2, 14, or 18 selectable channel modes
-

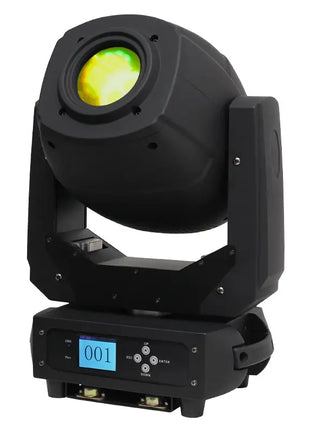

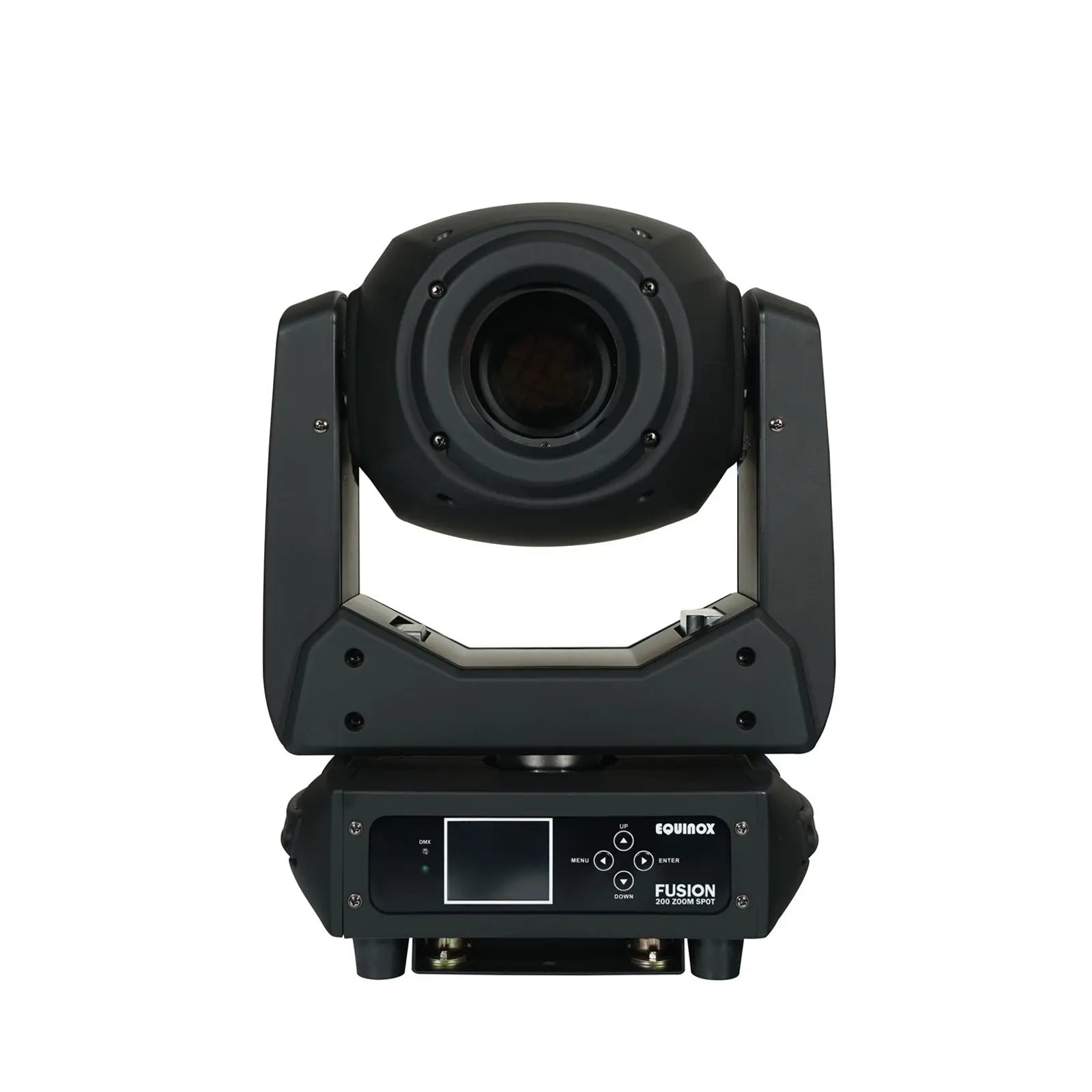

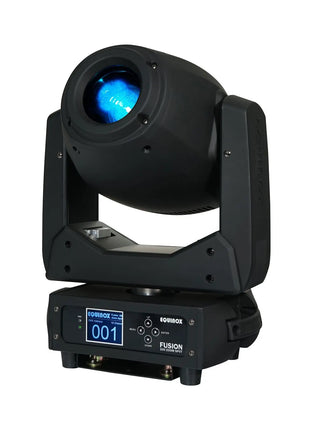

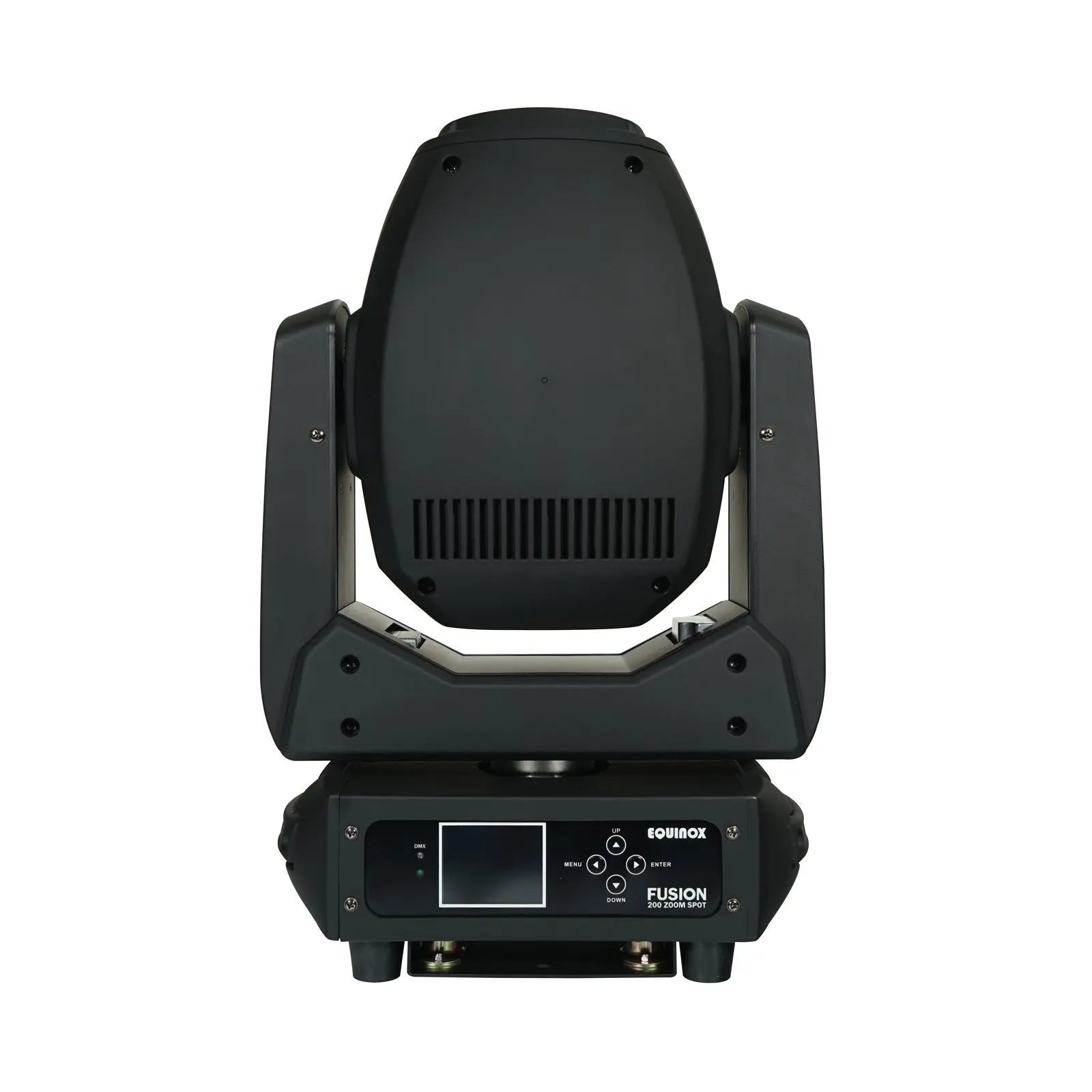

Menu Display: 2.6-inch full-colour LCD screen with 4 navigation buttons
-

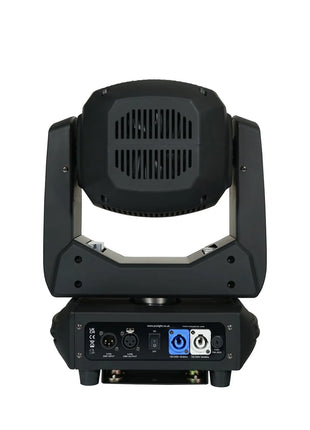

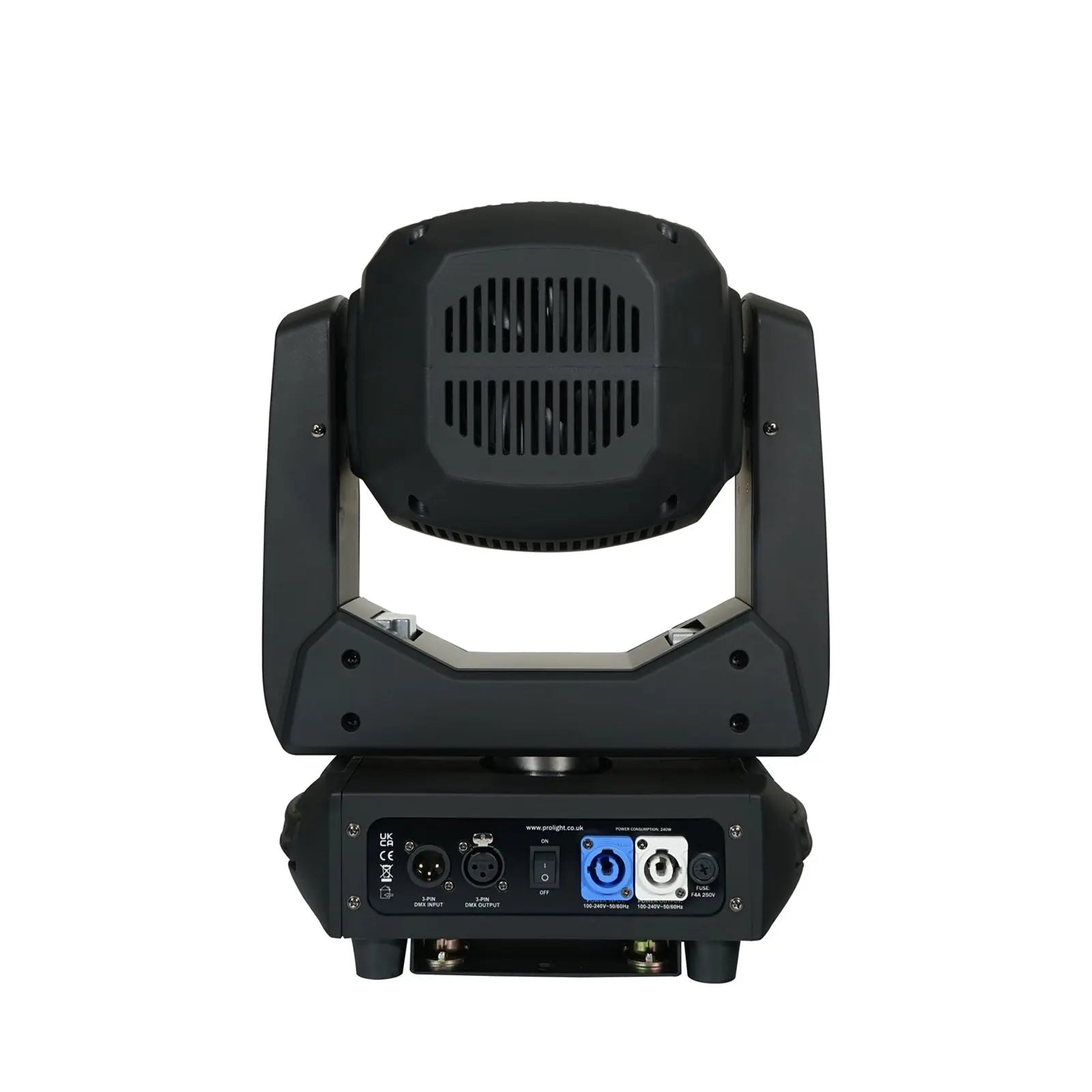

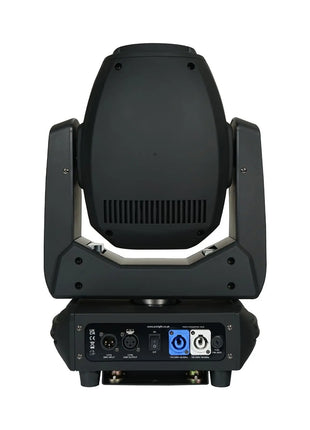

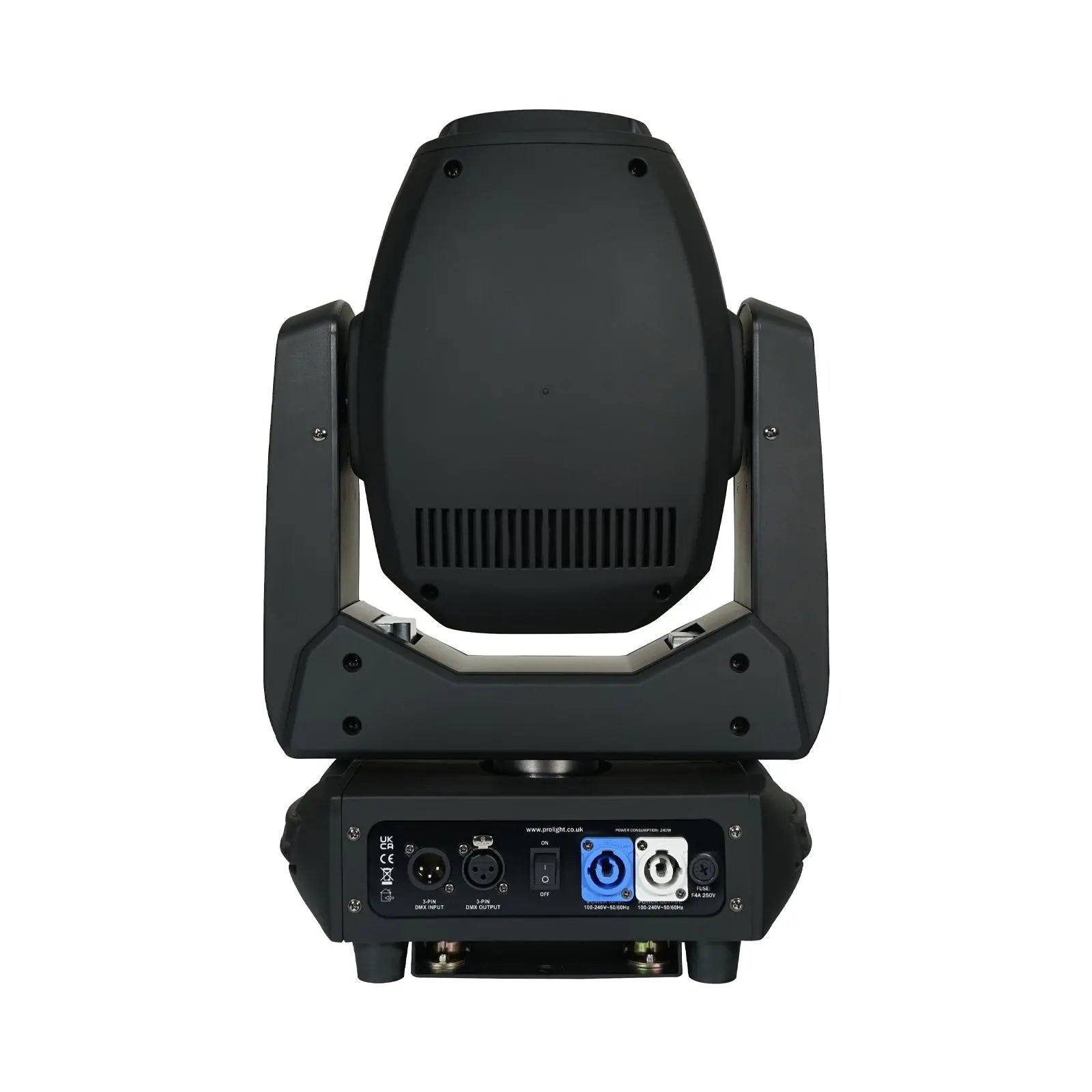

Mains I/O Connections: Locking powerCON input and output links
-
Data Connections: 3-Pin XLR DMX input and output ports
-
Cooling Matrix: High-velocity fan cooled system
-
Dimensions: 450mm x 302mm x 200mm
-
Net Weight: 12.5 kg
Specs/Box Contents
-

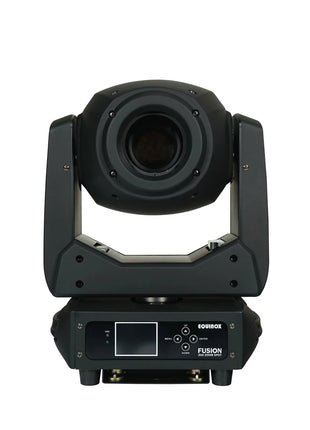

1 x Equinox Fusion 200 Zoom Spot Moving Head
-
2 x Quick-Release Omega Clamps
-
1 x Locking powerCON Mains Cable
-
1 x User Product Manual
