Description

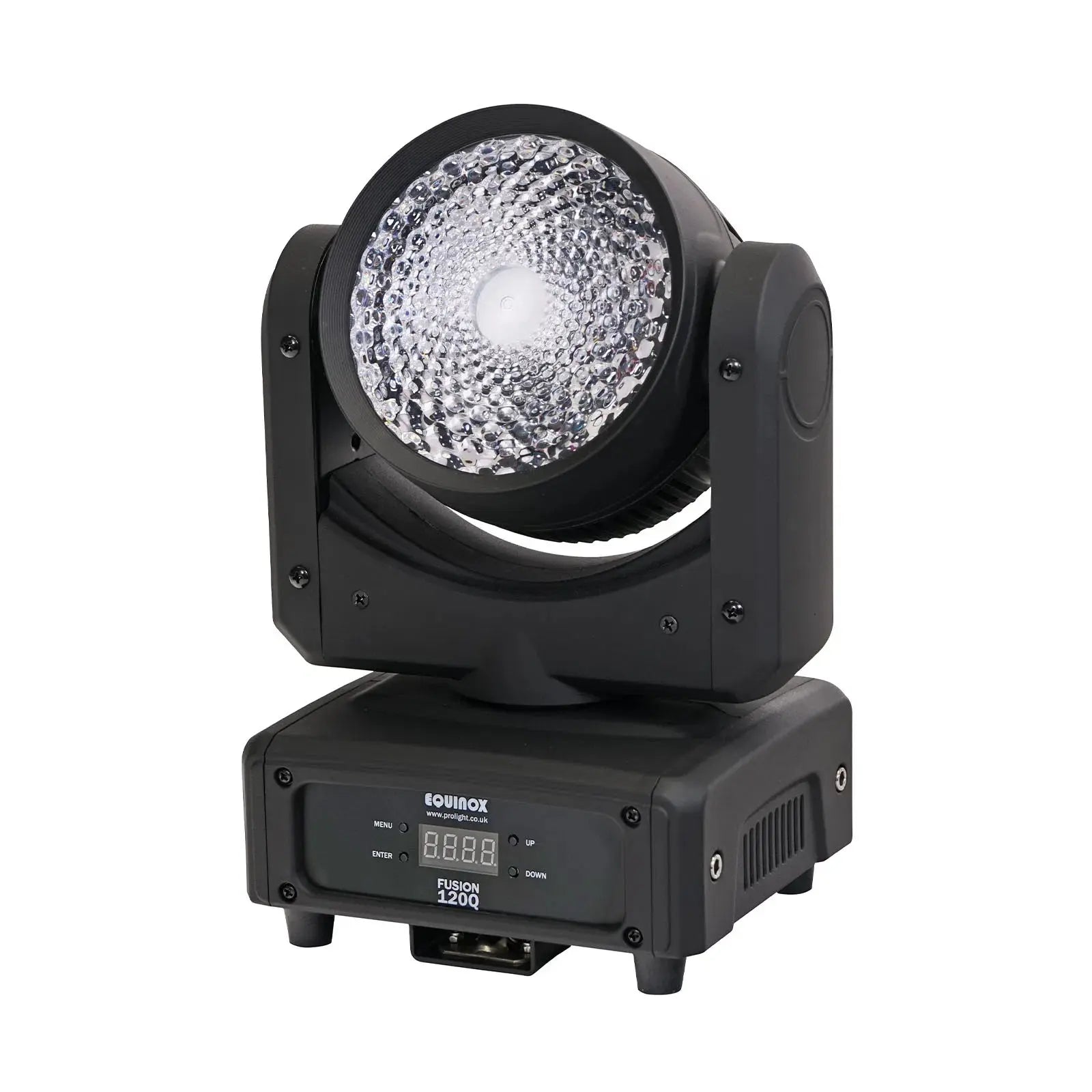

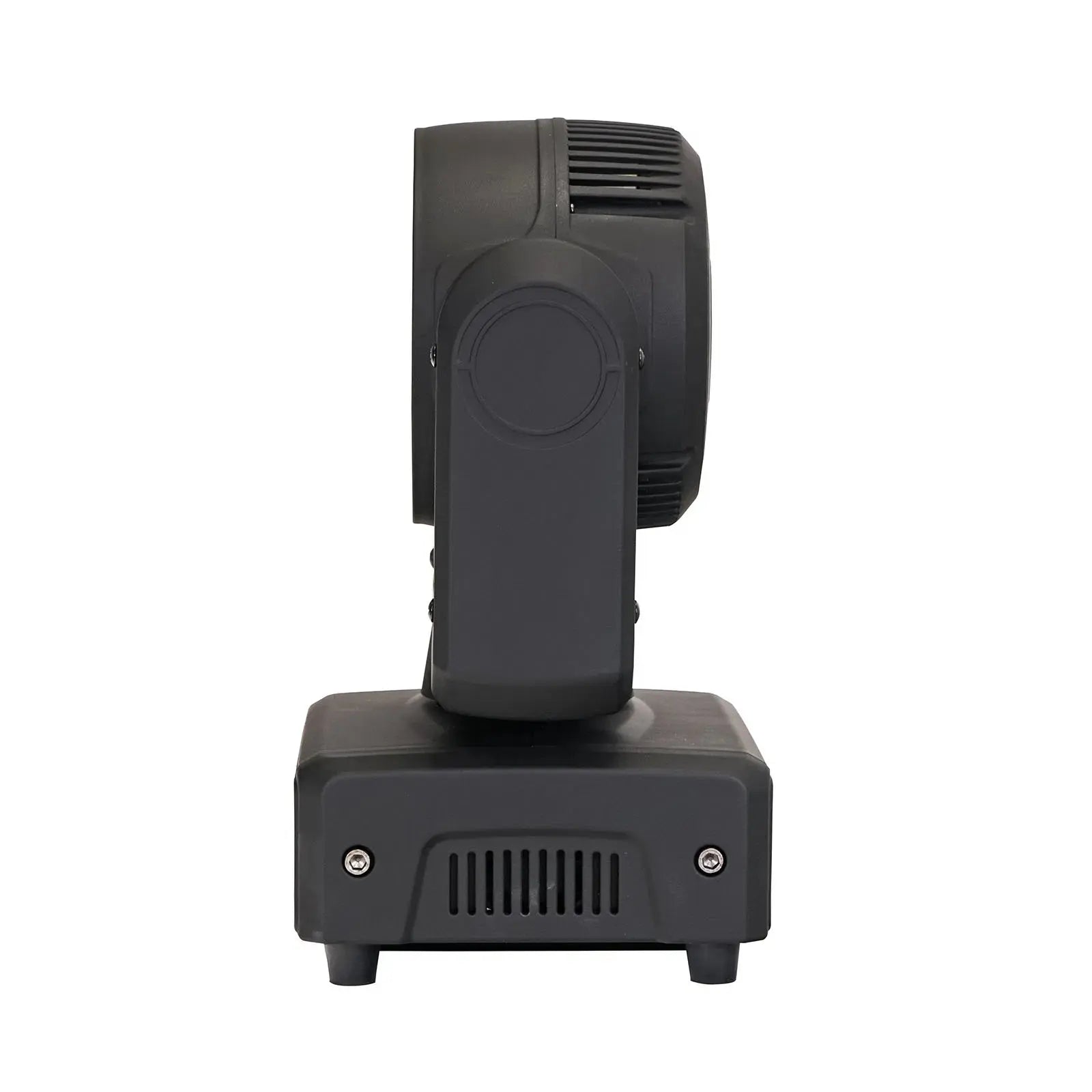

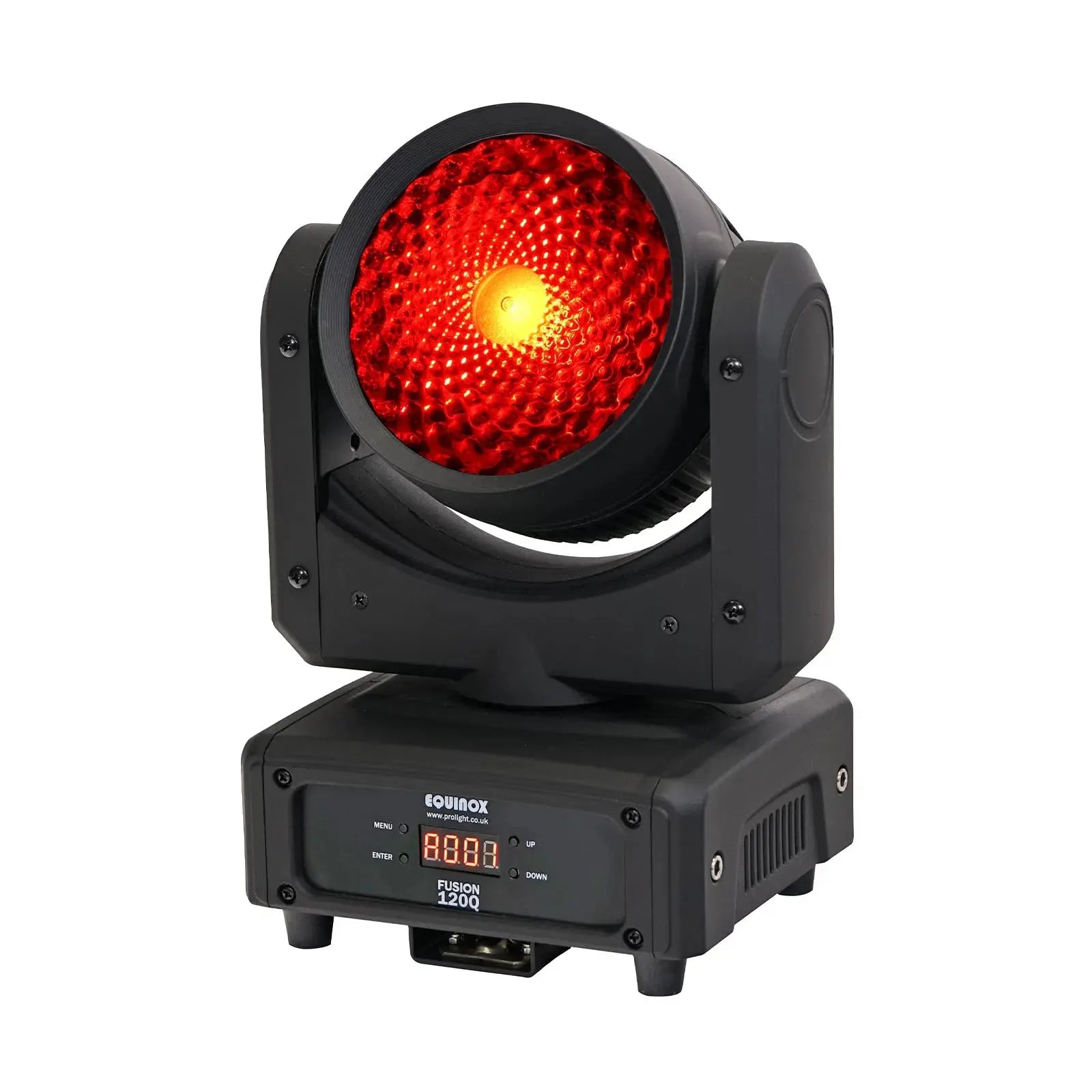

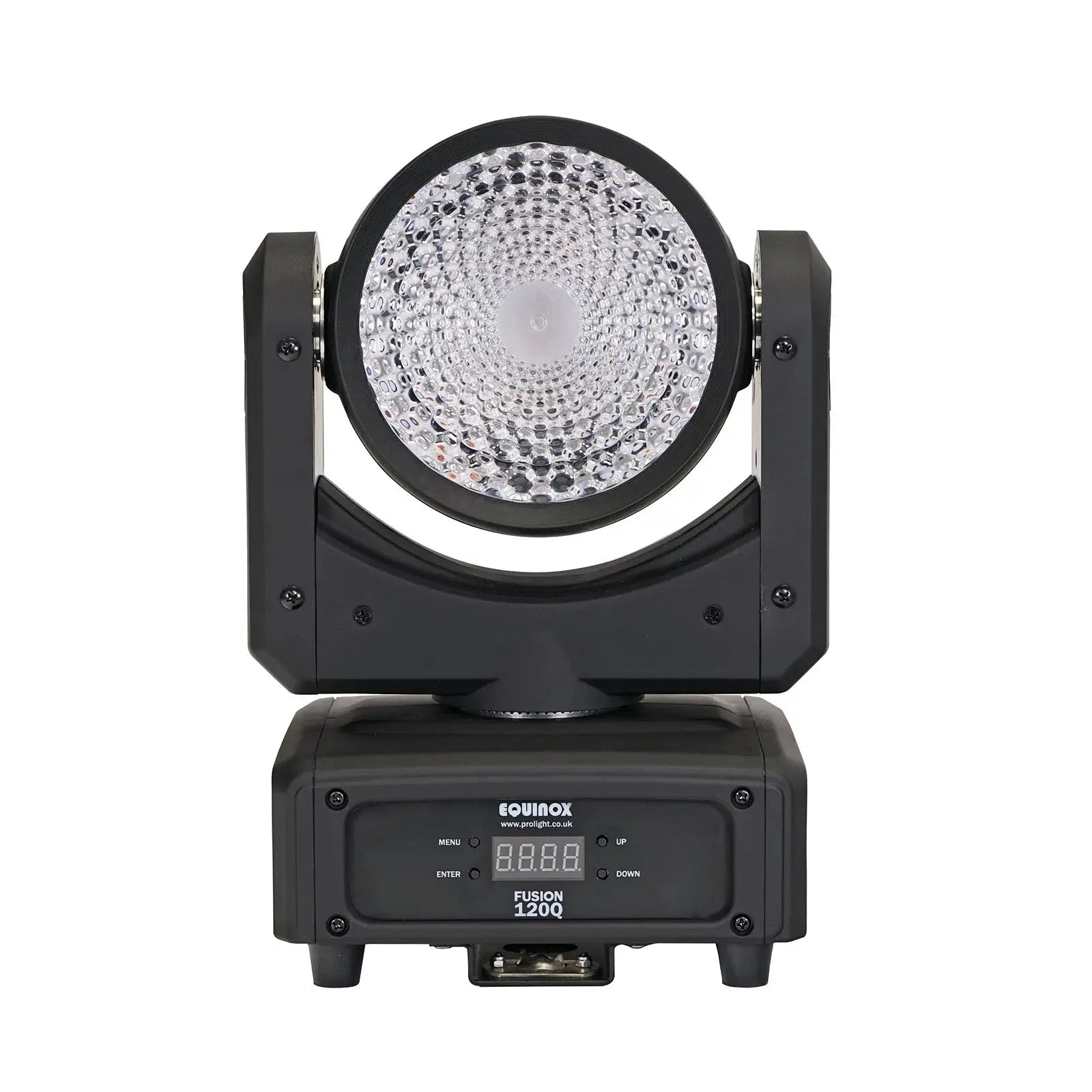

Equinox Fusion 120Q - LED Moving Head Wash
The Equinox Fusion 120Q is a compact yet powerful 120W LED moving head designed to deliver vibrant washes of color. Its features include a 120mm front lens, high CRI for excellent color rendering, and versatile control options, making it suitable for various applications.
Key Features
120W Quad-Colour COB LED (RGBW)
35° Beam Angle
High CRI (Color Rendering Index) for accurate color representation
Quick speed
Built-in light shows
6-zone control
Colour macros
Colour temperature presets
4 dimming curves
Auto, sound active, manual control and master/slave modes
16-Bit pan/tilt positioning
Technical Specifications
Source: 1 x 120W quad-colour COB LED (RGBW)
Beam angle: 35°
Lux: 3,801 Lux @ 2m (full on)
CRI: 90
Refresh rate: 20kHz
DMX channels: 2/9/12 or 16 selectable
Pan: 540°
Tilt: 220°
Dimming: 0 - 100%
Dimming curves: Linear, square law, inverse square law and S-curve
Strobe: Variable
Power consumption: 121W
Power supply: 100~240V, 50/60Hz
Fuse: F4A 250V
Dimensions (H x W x D): 292 x 204 x 162mm
Weight: 4kg
What's in the box
Equinox Fusion 120Q

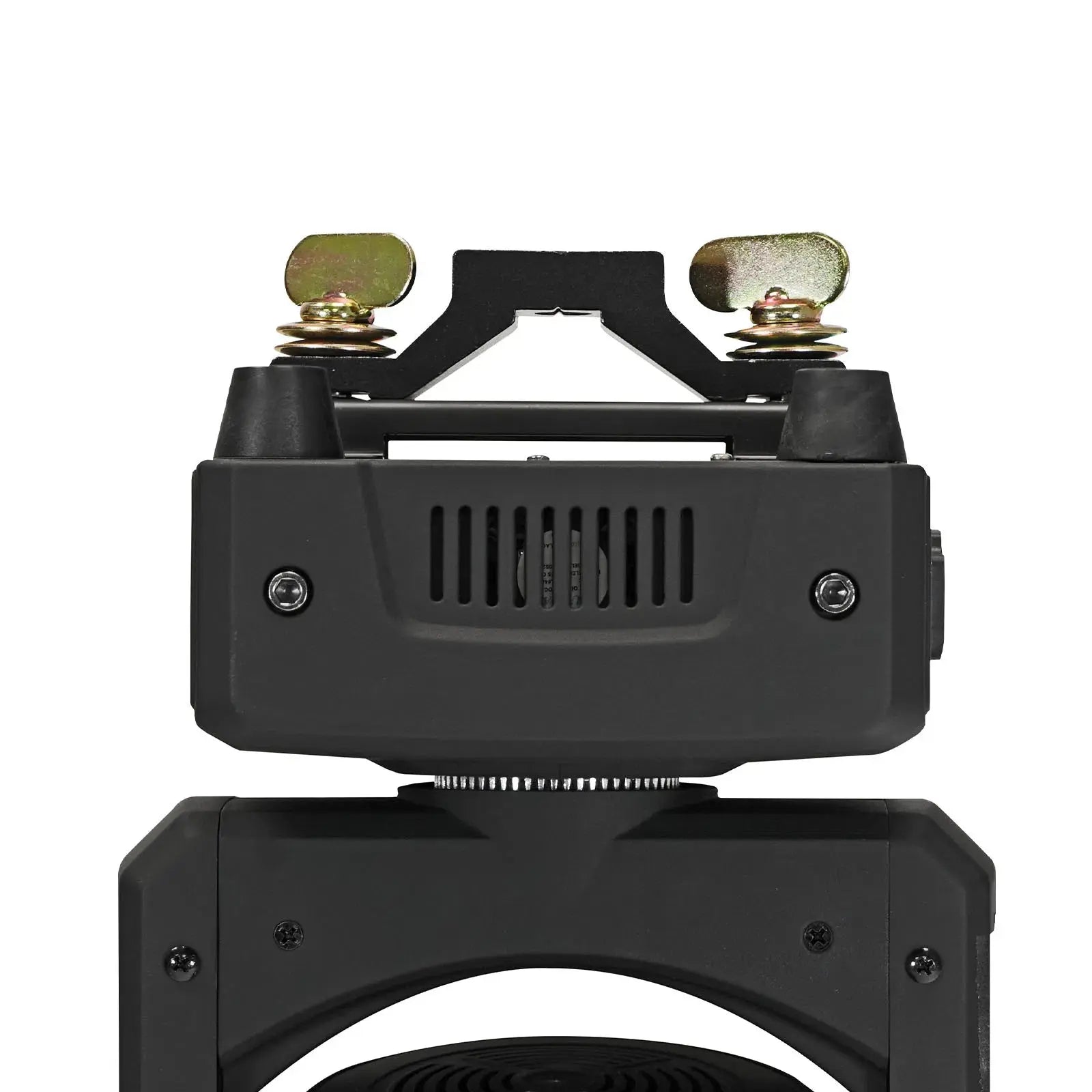

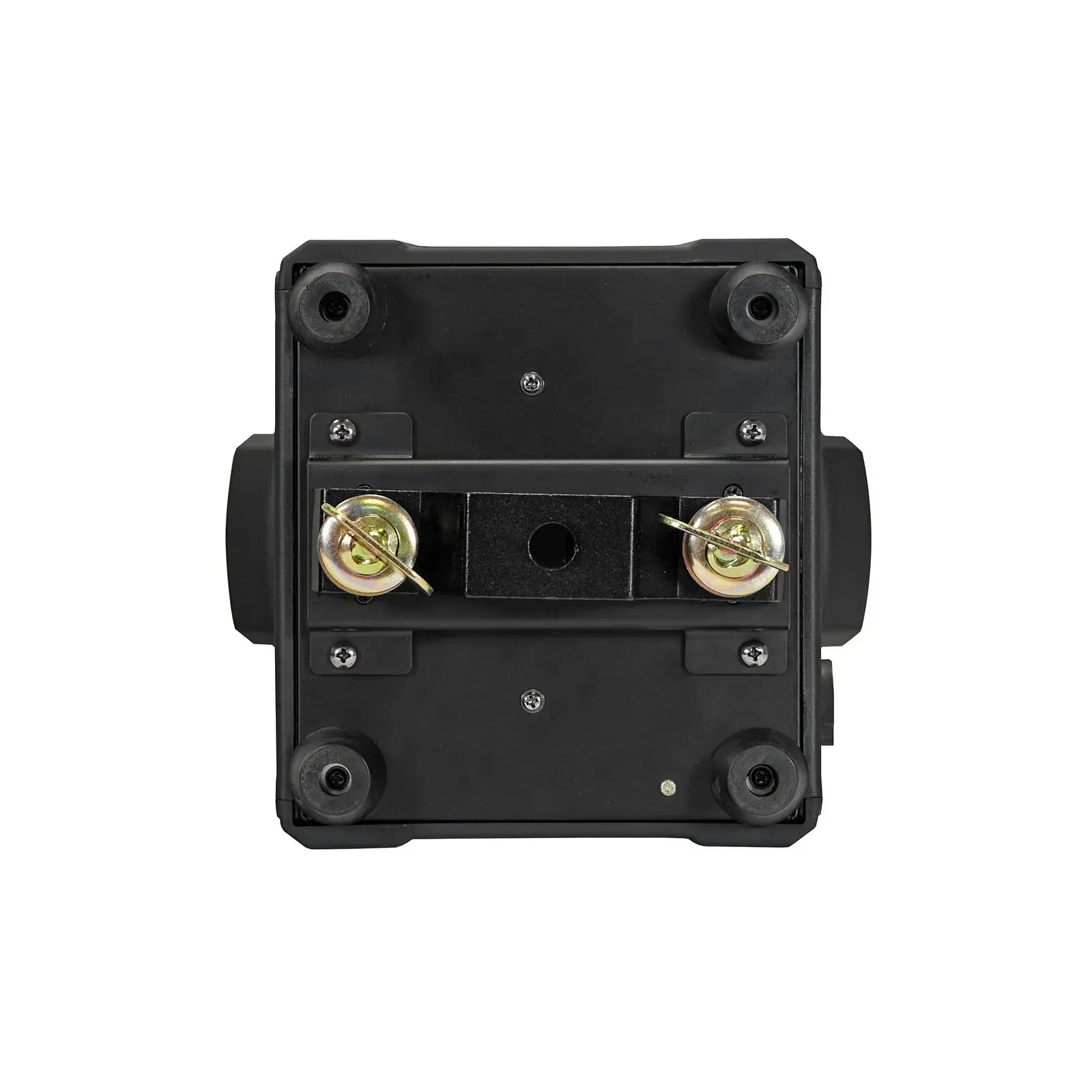

Quick release omega clamp

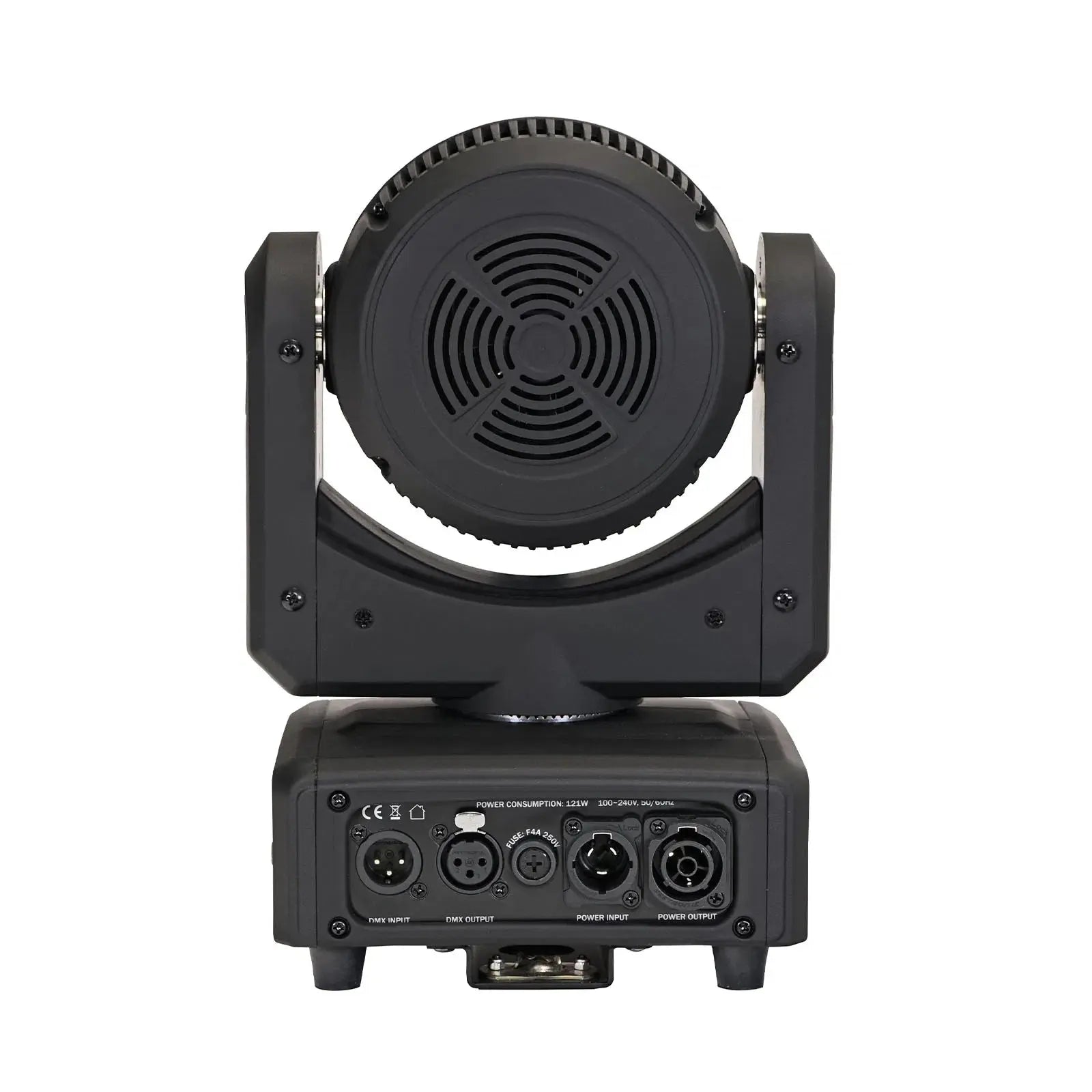

PowerTwist TR1 input/output
3-Pin XLR input/output
User manual
