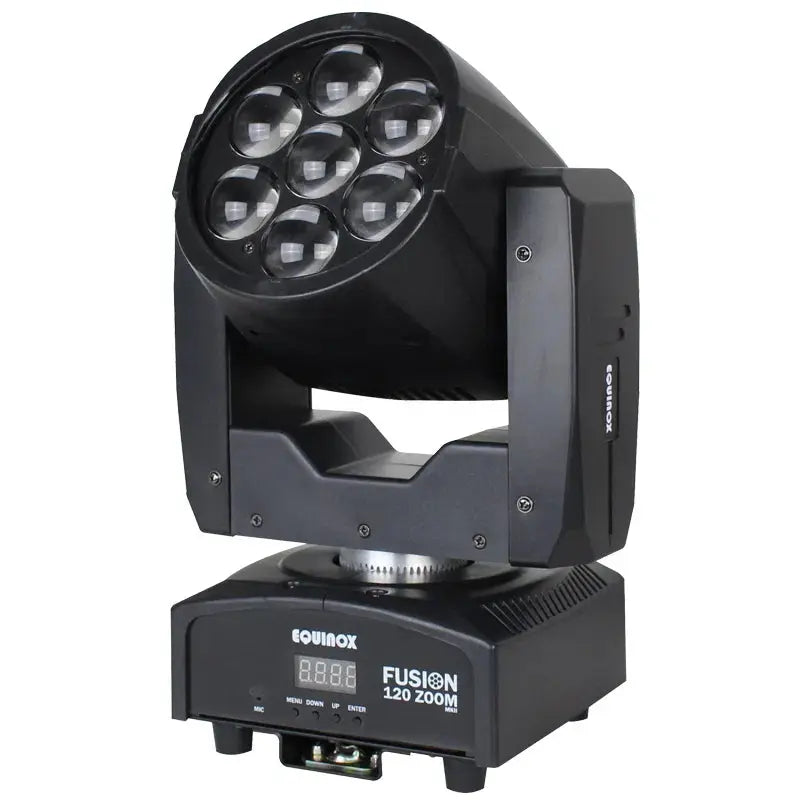

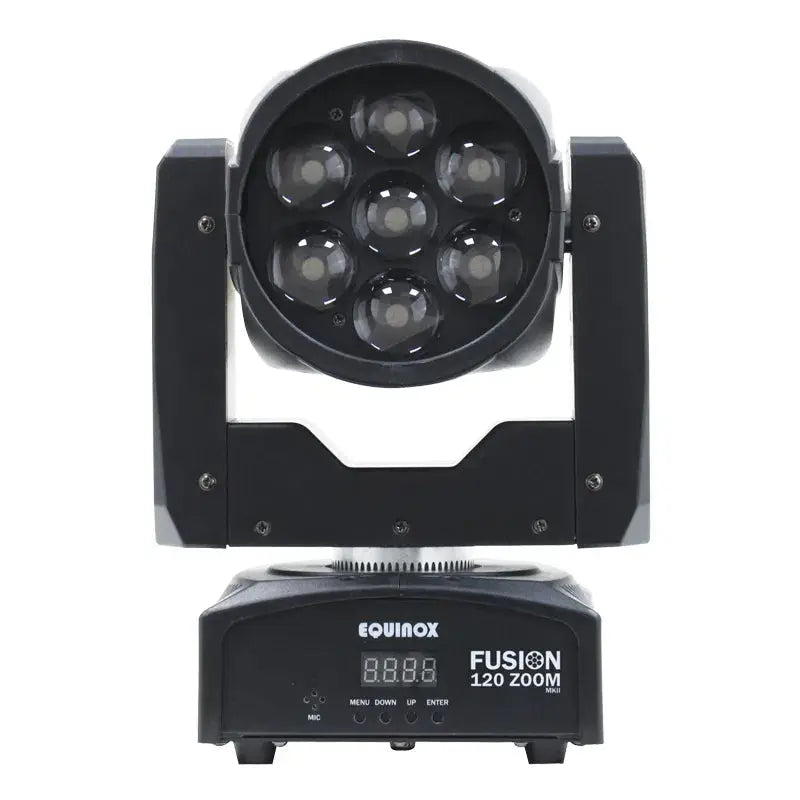

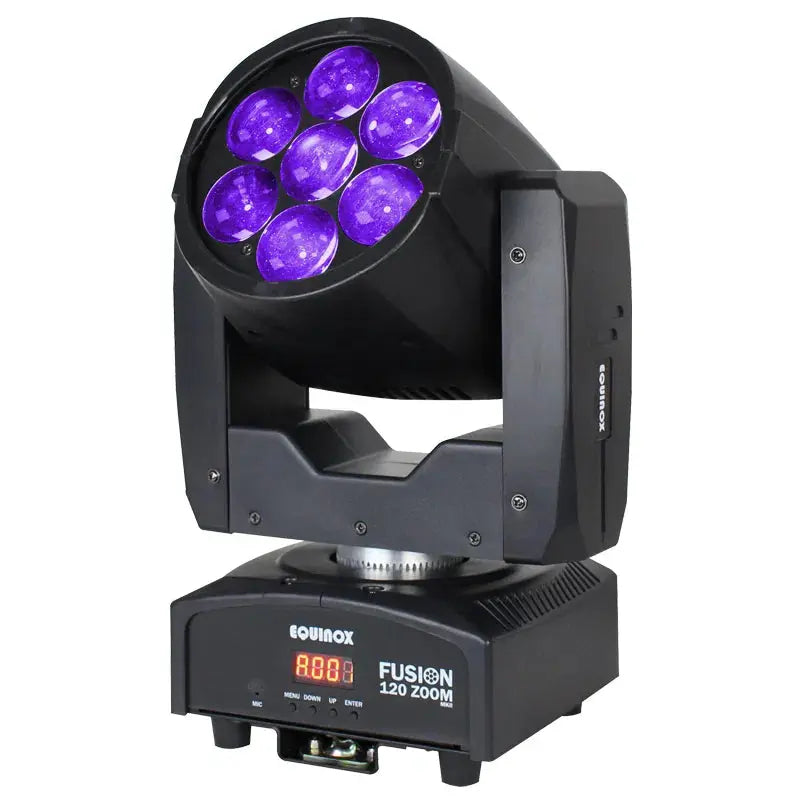

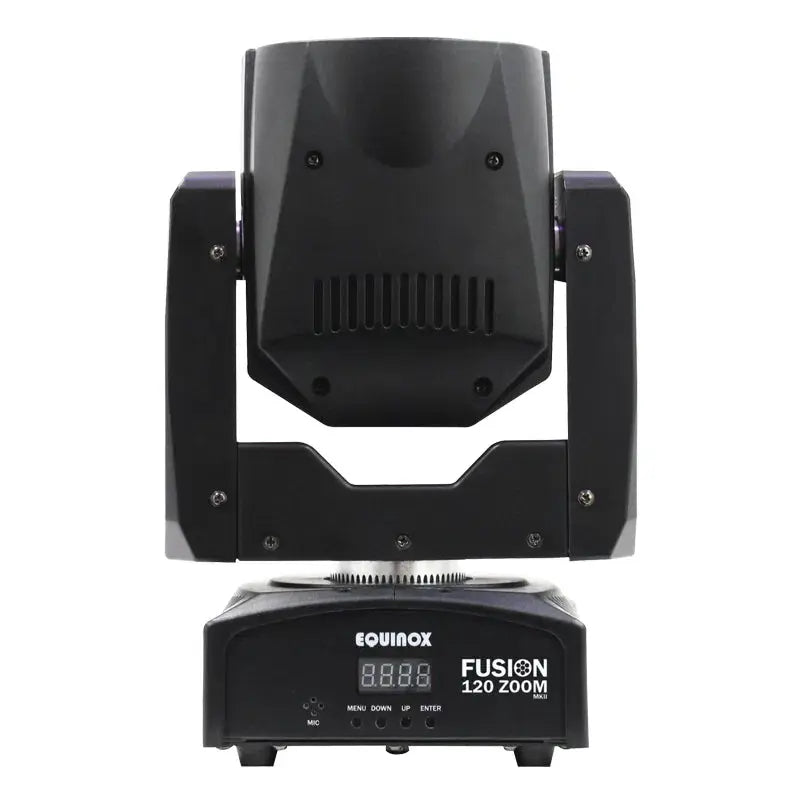

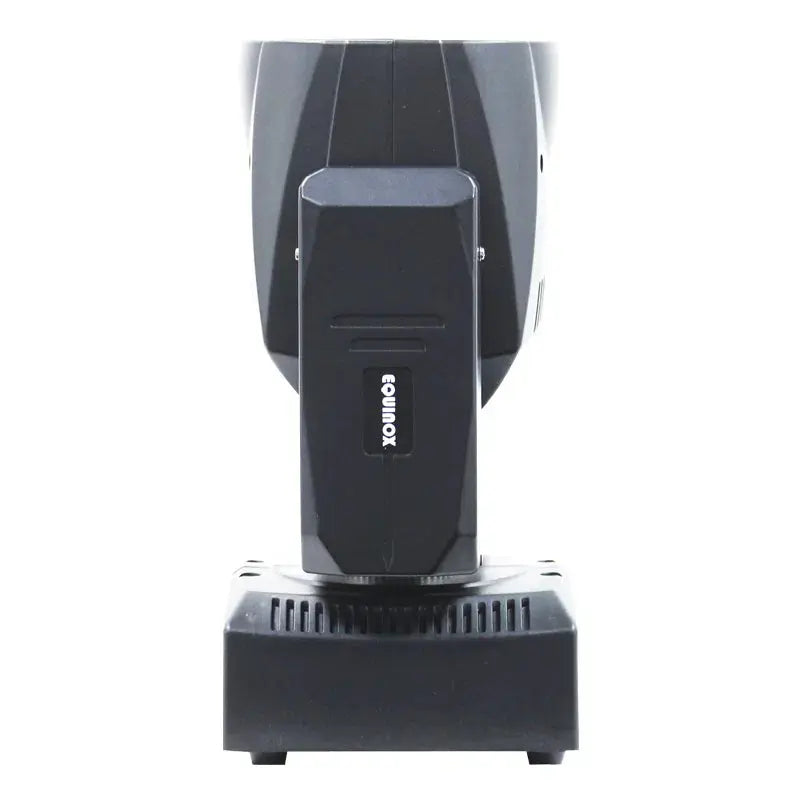

Equinox Fusion 120 Zoom - LED Moving Head
The Equinox Fusion 120 Zoom is a powerful and versatile LED moving head fixture, featuring a 7 x 12W LED light source and motorized zoom. This fixture is designed to bring dynamic lighting, stunning hues, and vibrant color washes to a wide range of venues.
Key Features
7 x 12W quad-colour LEDs (RGBW)
Adjustable beam angle: 6° – 45°
Motorized zoom
Quick speed
Built-in light shows
Forward facing show mode
Technical Specifications
LEDs: 7 x 12W quad-colour LEDs (RGBW)
Beam angle: 6° - 45°
Lux: 6°- 7,541 Lux @ 2m (full on), 45°- 1,121 Lux @ 2m (full on)
Pan: 540°
Tilt: 190°
DMX channels: 8 or 16 selectable
Modes: Auto, sound active and master/slave modes plus built-in programs
Dimming: 0 - 100%
Strobe: Variable
Power consumption: 90W
Power supply: 100~240V, 50/60Hz
Fuse: F2A 250V
Dimensions (H x W x D): 300 x 198 x 146mm
Weight: 4kg
What's in the box
Equinox Fusion 120 Zoom
Quick release omega clamp
PowerTwist input/output
3-Pin XLR input/output
User manual
