Exceptional LED Power & Versatility:
-

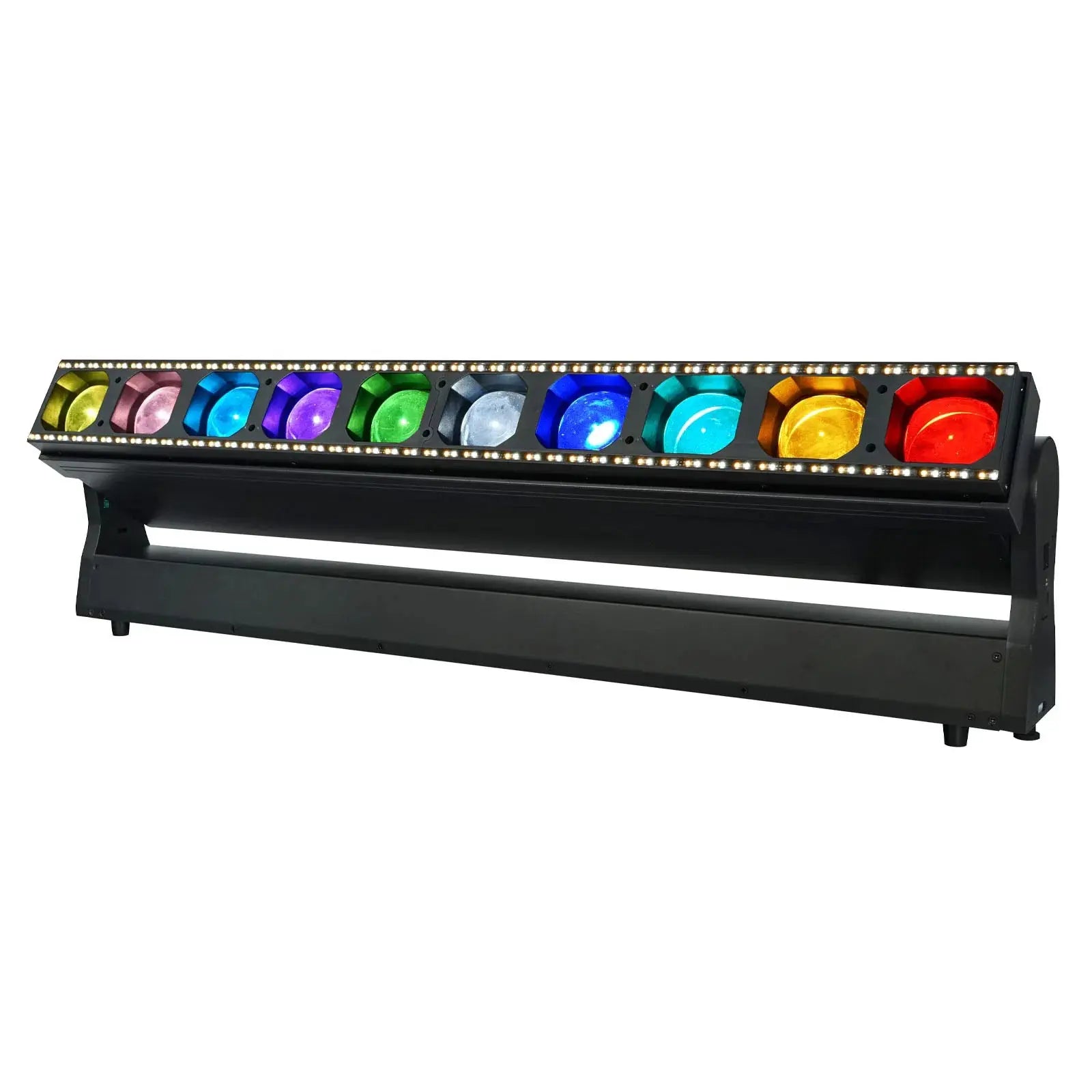

10 x 60W Quad-Colour LEDs (RGBW): Delivers intense, vibrant, and homogenized output across a broad palette of pastel and saturated colors, including pure white.
-
Additional Effect LEDs: Features 96 x 1W tri-colour SMD 5050 LEDs (RGB), 96 x 2W cool white SMD 5050 LEDs (CW), plus 96 x 2W warm white SMD 5050 LEDs (WW) for intricate layering and visual depth.
-
Full Pixel Mapping Capabilities: Each of the 10 main 60W LEDs, along with the additional effect LEDs, offers full pixel mapping capabilities, allowing for highly complex and dynamic visual sequences across the batten.
-

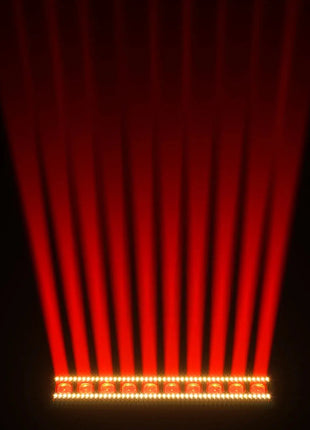

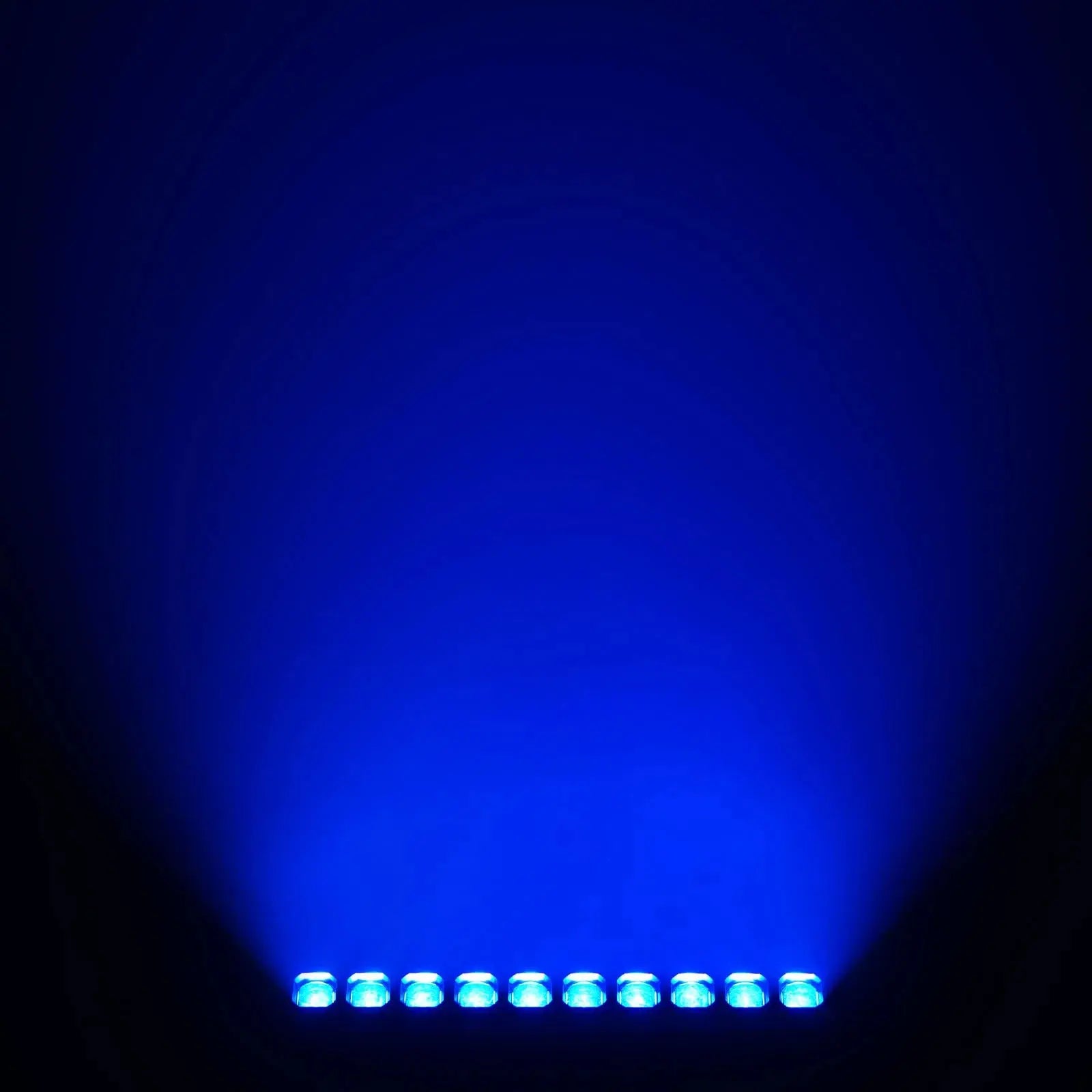

Motorized Zoom for Flexible Beam Angles: Features a motorized zoom with an adjustable beam angle ranging from a tight 3° to a wide 41°. This versatility allows for creation of sharp beams, expansive washes, and dynamic transitions within a single fixture.
-
High Lumen Output & Brightness: Delivers impressive luminosity with a Source Lumen output of 25,450 and an Output Lumen of 23,500. Achieves 109,375 Lux @ 2m (at 3° full on) and 10,125 Lux @ 2m (at 41° full on), ensuring powerful visibility.
-
Multiple Operating Modes & Effects: Create unique and captivating effects including focused beams, wide washes, and intense strobes. The fixture also offers convenient pre-programmed macros and patterns for quick setup.
-
Advanced Control Protocols: Supports a wide array of control protocols including DMX, Art-Net, and sACN, offering maximum flexibility for integration into professional lighting networks.
-
Versatile DMX Channel Options: Provides numerous selectable DMX channels modes: 17/27/99/108 or 168, allowing precise control tailored to your needs and console capabilities.
-
Professional Dimming & Strobe: Features 0 - 100% dimming with 4 selectable dimming curves (Linear, square law, inverse square law, and S-curve) for smooth intensity control. A variable strobe function allows for dynamic flashing effects.
-
Precise Movement & Auto Correction: Offers 16-Bit tilt positioning with a 200° tilt range and tilt auto correction, ensuring precise and repeatable fixture movement.
-

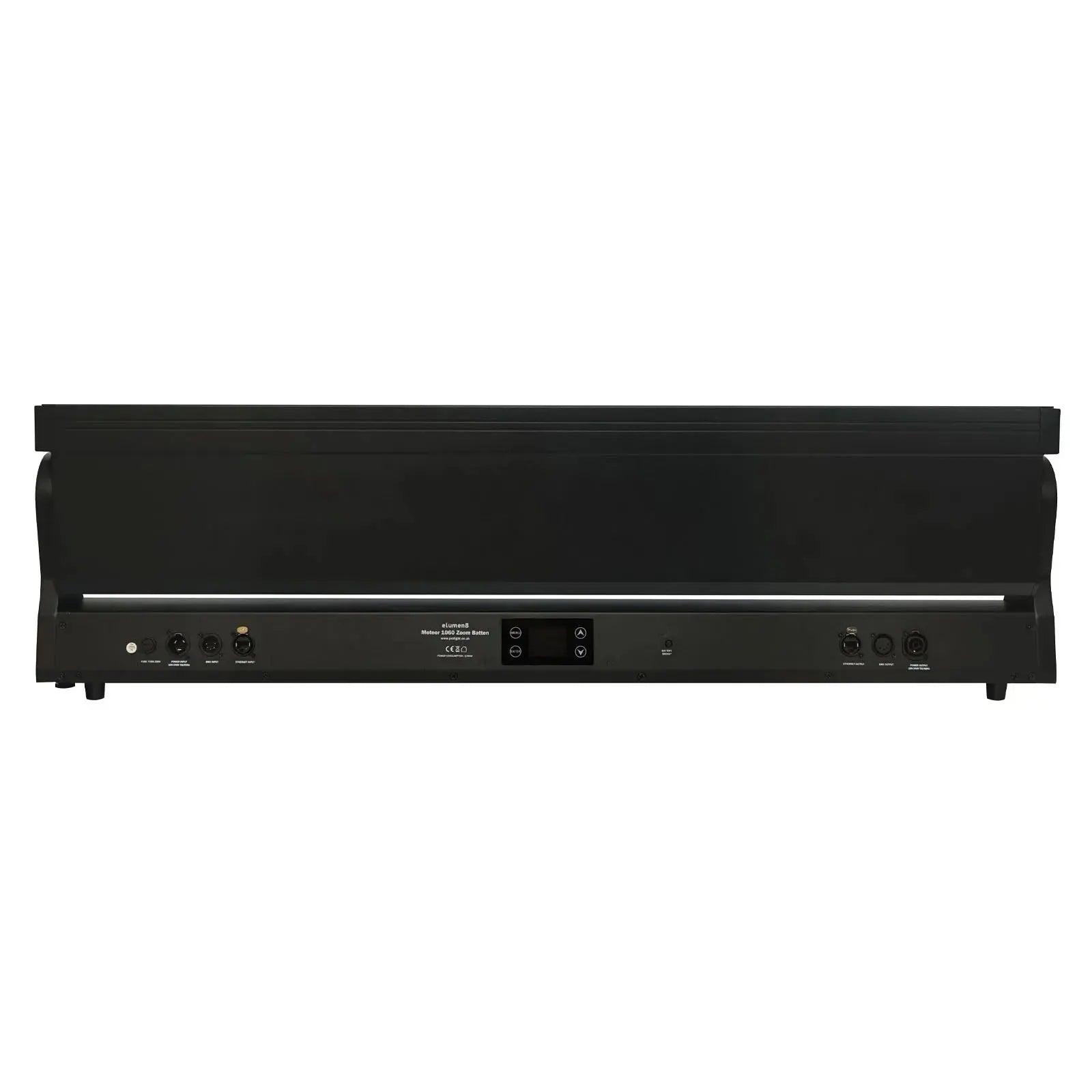

Robust & Rental-Ready Connectivity: Equipped with PowerTwist TR1, 5-Pin DMX, and Ethernet inputs and outputs. This robust connectivity allows for problem-free, rental-ready daisy-chaining and integration into complex setups.
-
Tool-Less Side-by-Side Connection: Features a tool-less connection system that allows multiple units to be connected side-by-side, creating seamless batten arrays.
-

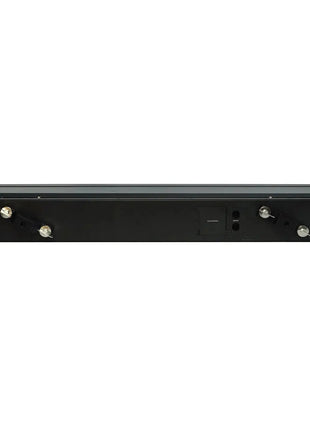

Flexible Mounting: Includes quick release omega clamps with two connection locations, accepting most hardware for versatile rigging.
-
Intuitive User Interface: Features a 4-button menu with a 1.8” TFT display for easy navigation and configuration. A display battery backup allows for offline configuration.
-
Temperature Controlled Fans: Ensures optimal operating temperature and extends component lifespan.
-
Remote Device Management (RDM): Supports RDM for bidirectional communication with compatible lighting consoles.
-
Warranty: Comes with a 2-year warranty.
-
LEDs:
-
10 x 60W quad-colour LEDs (RGBW)
-
96 x 1W tri-colour SMD 5050 LEDs (RGB)
-
96 x 2W cool white SMD 5050 LEDs (CW)
-
96 x 2W warm white SMD 5050 LEDs (WW)
-
Adjustable Beam Angle: 3°- 41°
-
Lumens – Source: 25,450 lm
-
Lumens – Output: 23,500 lm
-
Lux @ 2m: 3° - 109,375 Lux (full on), 41° - 10,125 Lux (full on)
-
CRI: 78
-
Refresh Rate: 15 selectable presets between 900Hz-25kHz
-
Zoom: Motorised
-
Control Protocols: DMX, Art-net, sACN
-
DMX Channels: 17/27/99/108 or 168 selectable
-
Tilt: 200° (16-Bit tilt positioning with auto correction)
-
Dimming: 0 - 100% (4 dimming curves)
-
Strobe: Variable
-
Power Consumption: 1090W
-
Power Supply: 100~240V, 50/60Hz
-
Fuse: T10A 250V
-
Dimensions (H x W x D): 291 x 1002 x 115mm
-
Weight: 18.7kg
