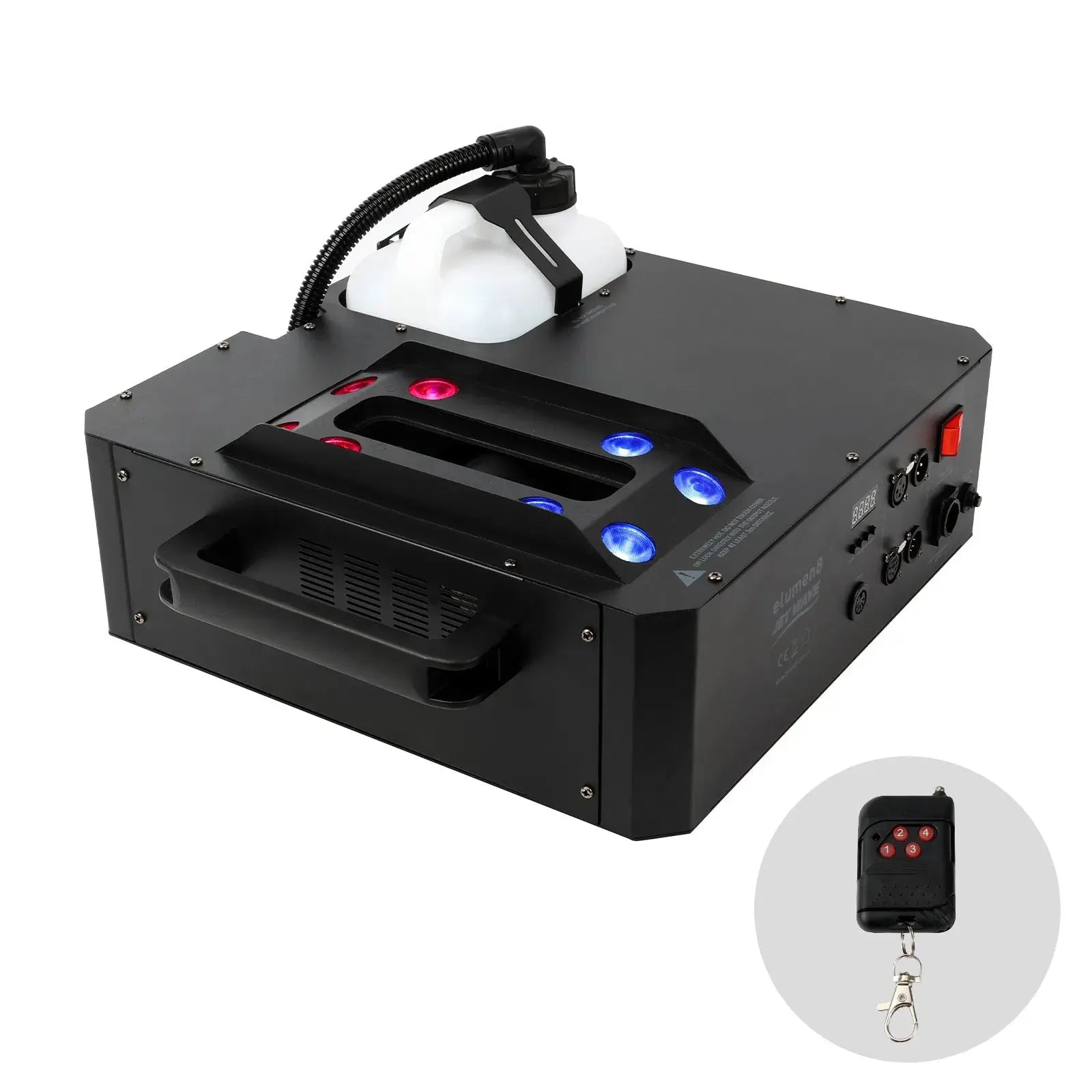

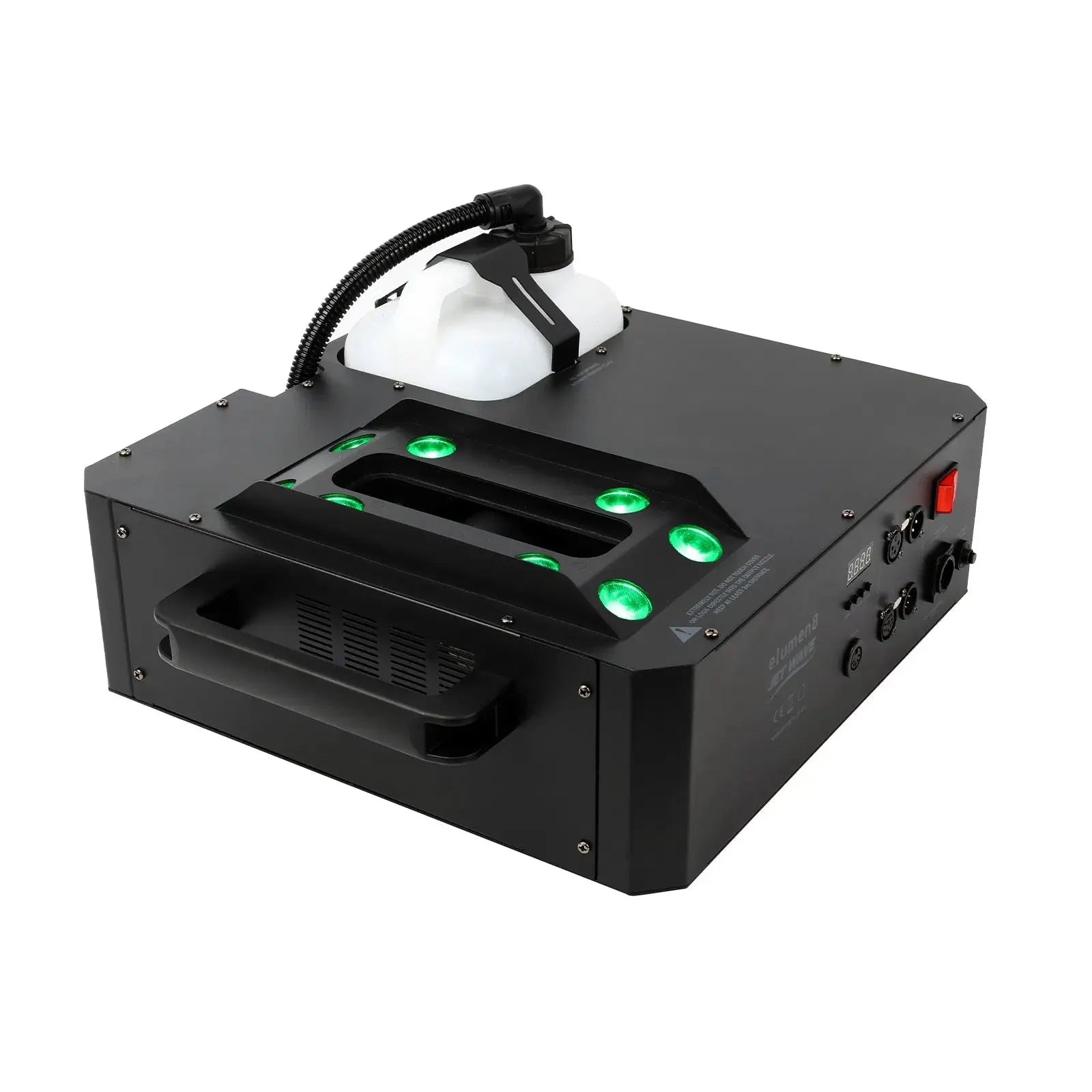

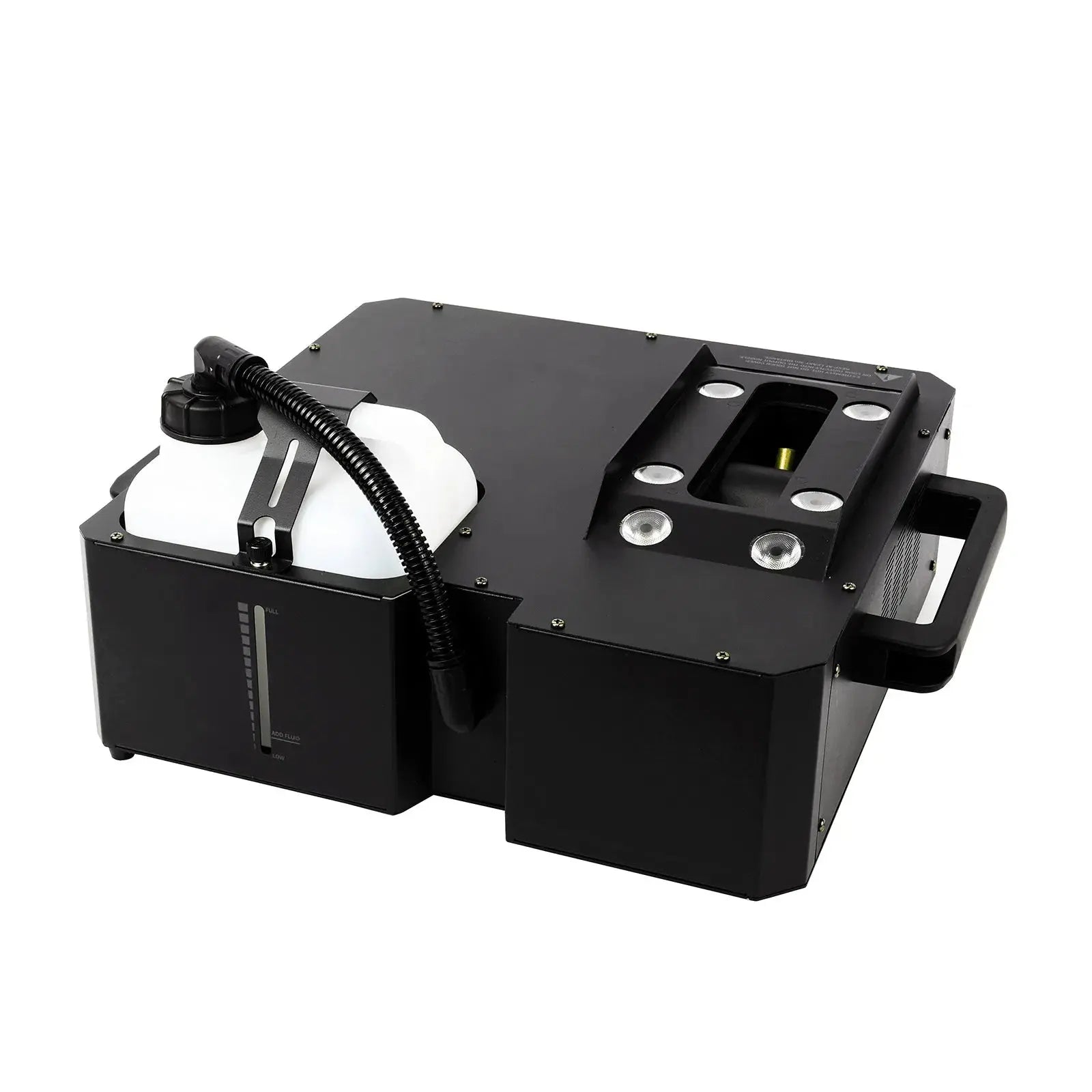

Elumen8 Jet Wave - Vertical Fog Machine with RGBAUV LEDs
The Elumen8 Jet Wave is a premium vertical fog machine designed to produce stunning pyrotechnic-style effects without the risks associated with fire or CO₂. It features eight powerful 10W RGBAUV LEDs to illuminate vibrant fog plumes, a motorized nozzle for sweeping movement, and versatile control options, making it a dynamic addition to professional lighting rigs.
Key Features
Pyrotechnic-Style Effects: Engineered to create dramatic vertical fog plumes.
8 x 10W RGBAUV LEDs: Produces vibrant, illuminated fog plumes.
High Output: Blasts fog plumes up to 7–8 metres high, delivering approximately 32,000 cu.ft per minute.
Motorized Nozzle: Provides smooth sweeping movement.
Creative Possibilities: Features a 45° tilt and 50° beam angle.
Professional Control: 16-channel DMX control, wireless remote included, and both 3/5-Pin DMX in/out.

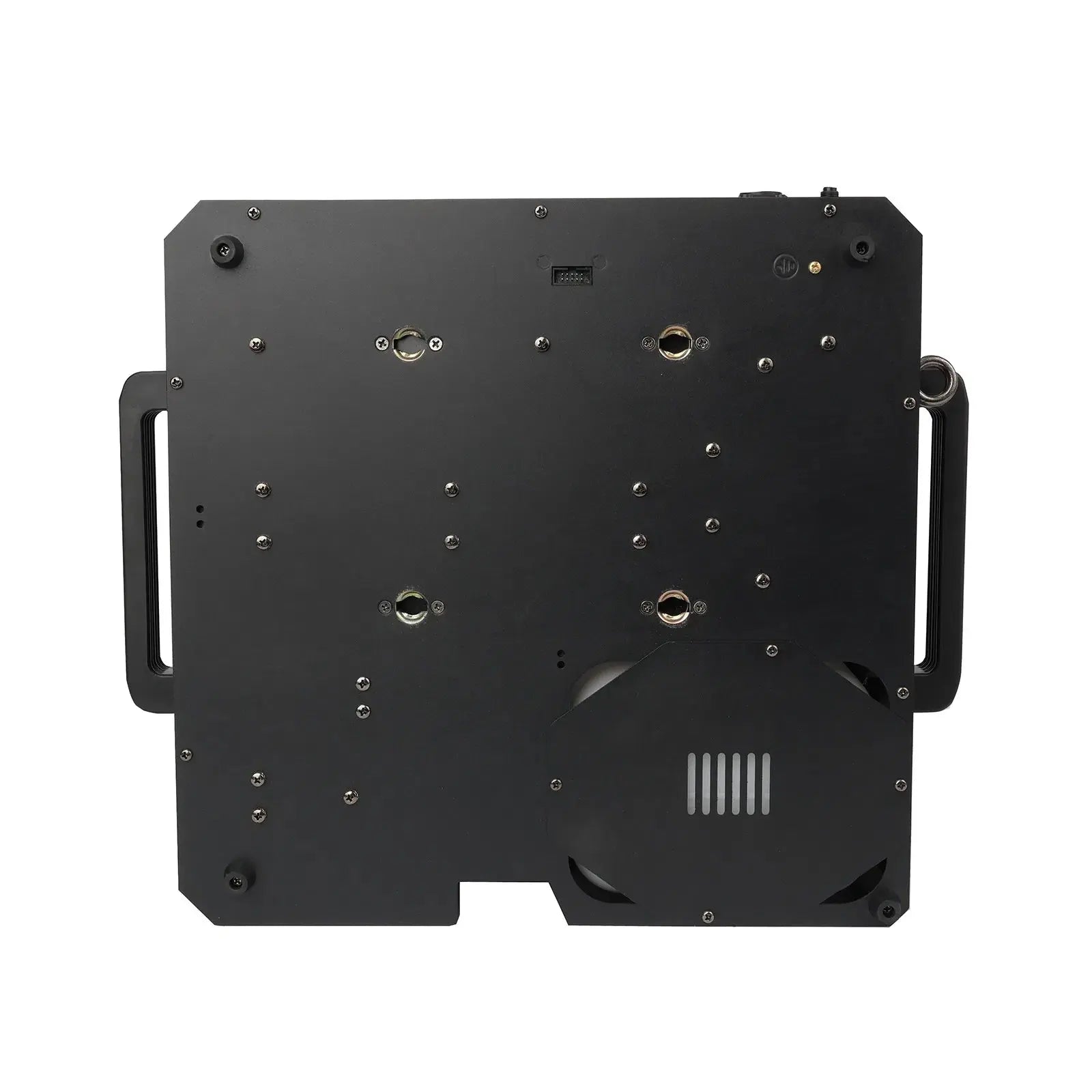

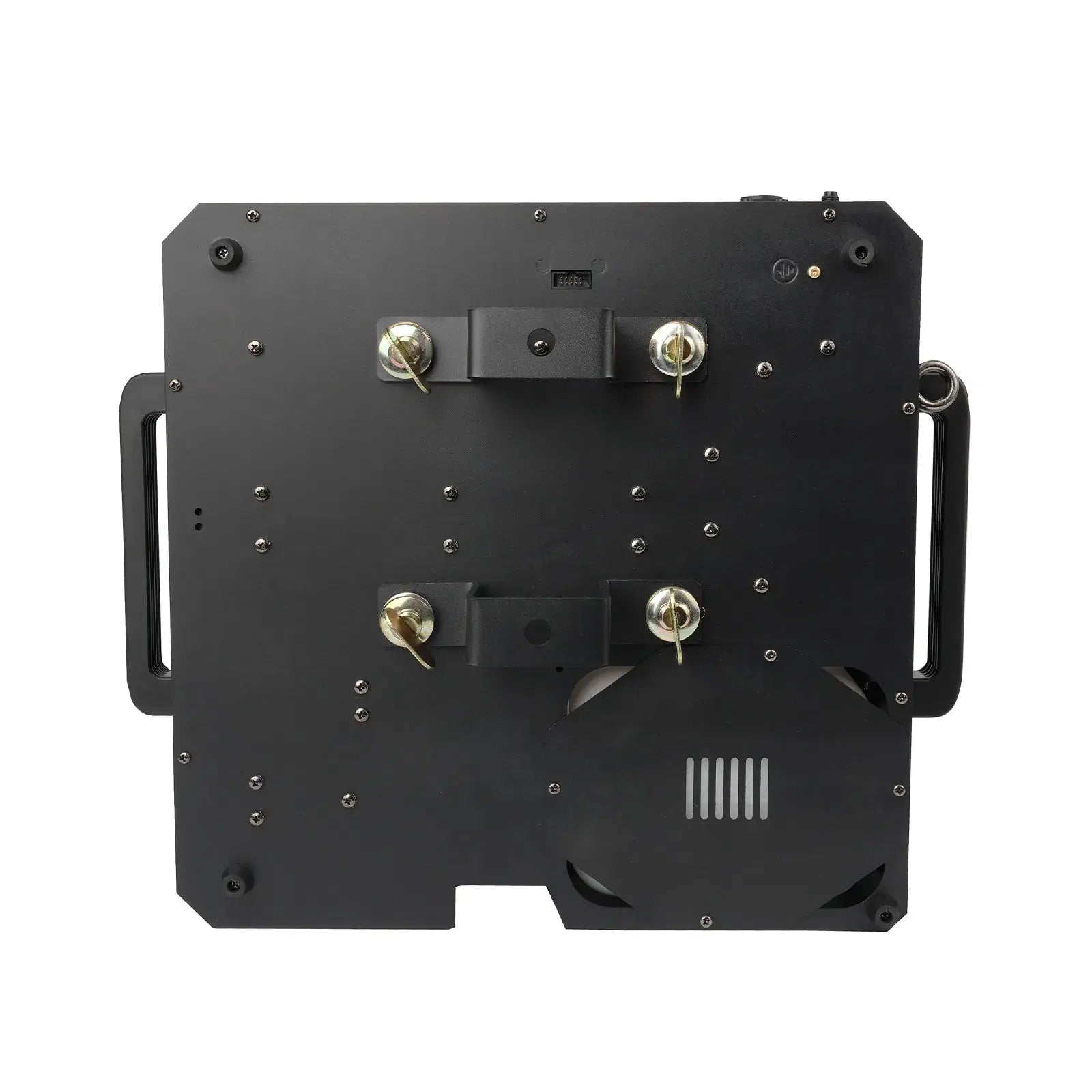

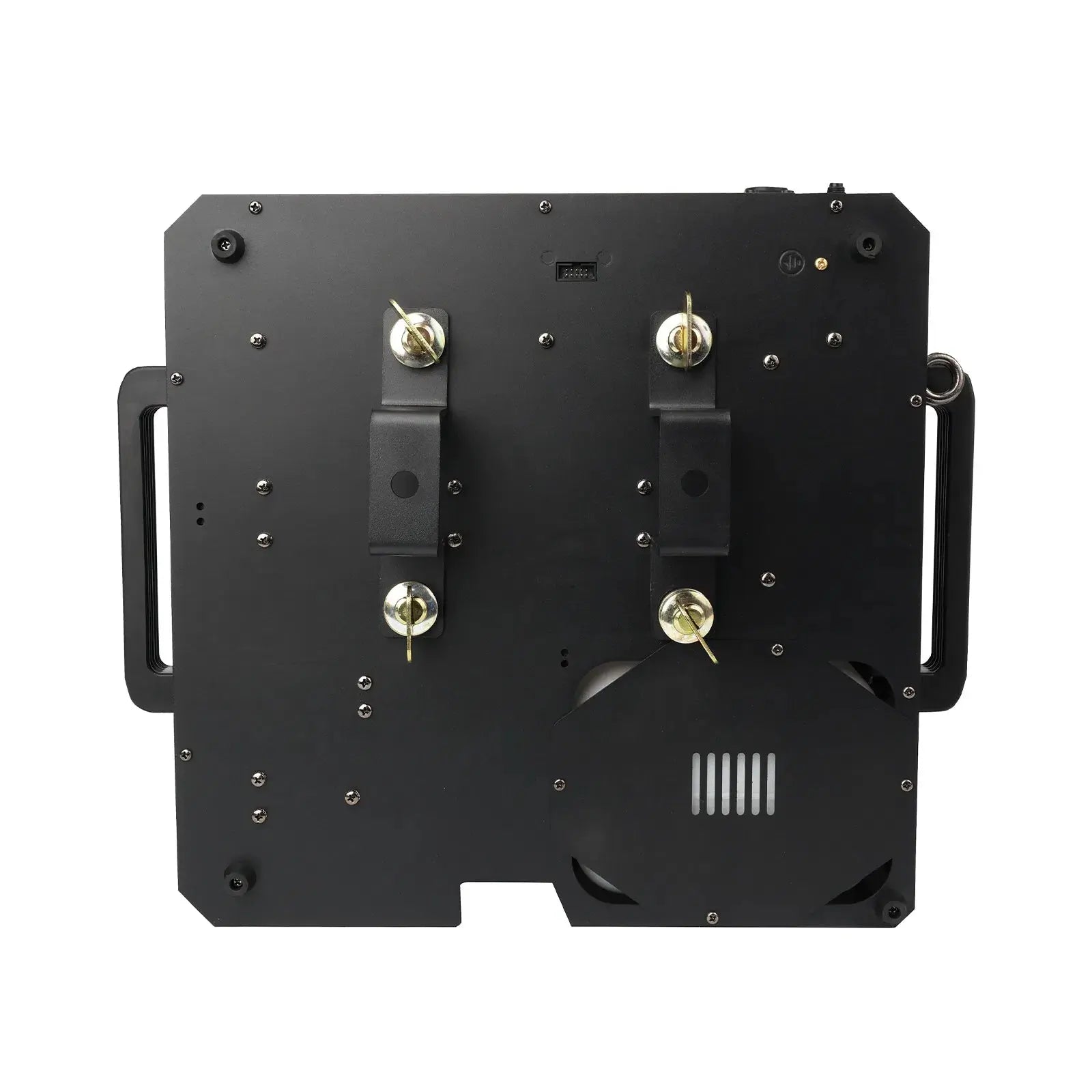

Quick Setup: Quick-release omega clamps ensure fast, secure mounting to truss systems.
Fast Warm-up: Approximately 4 minutes warm-up time.
Large Tank Capacity: 3L fluid tank for extended operation.
Immediate-Stop Technology: Allows for precise control of fog bursts.

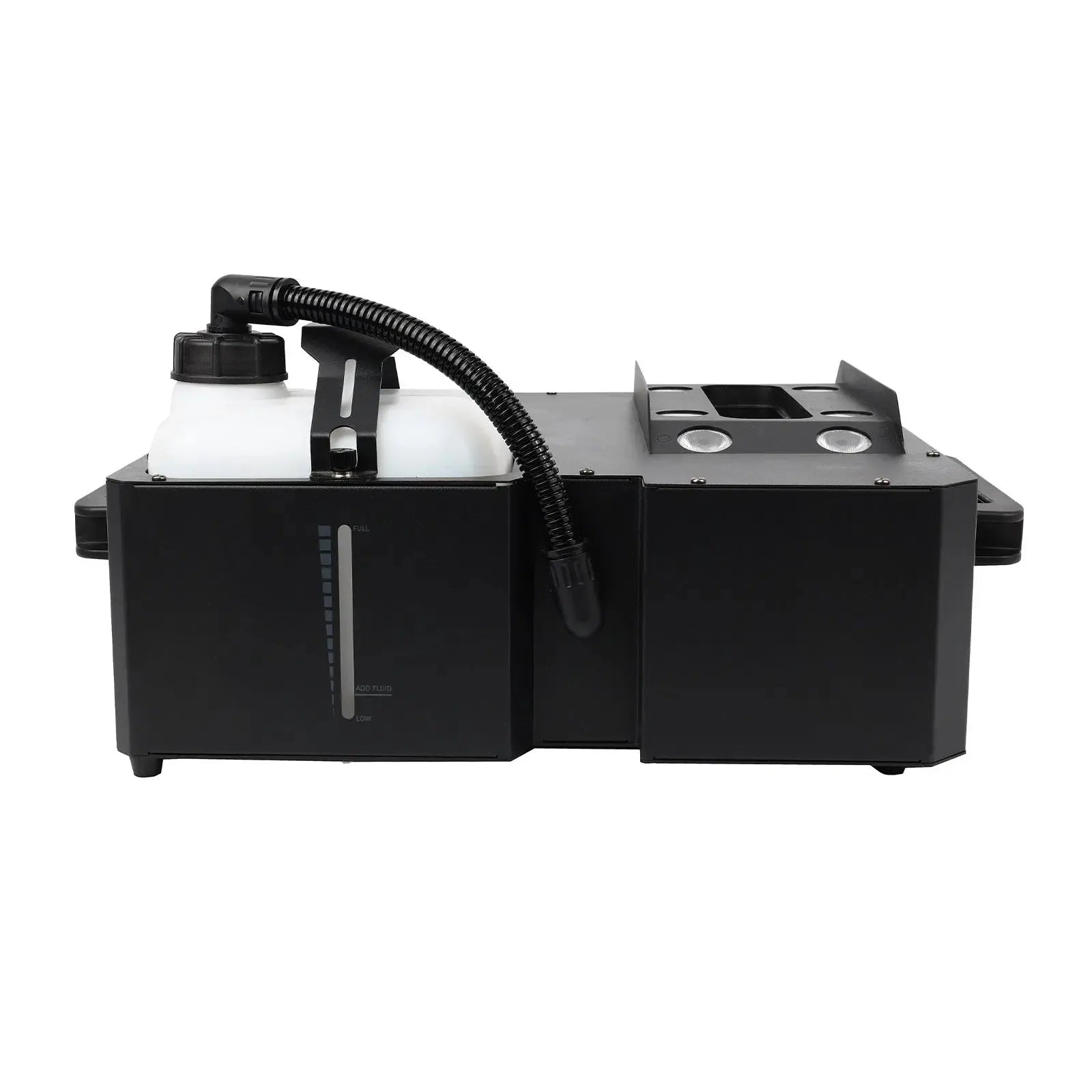

Dual Fluid Bottle Orientation: Designed for flexible floor or truss use.
Easy Control: 4-button menu with LED display.
Secure Power: PowerTwist TR1 input.
Compatible Fluid: Works with water-based fog fluid.
Technical Specifications
LEDs: 8 x 10W RGBAUV LEDs
Heater: 1600W
Output: Approx. 32,000 cu.ft/min
Max Height: Approx. 7–8m
Max Burst: Approx. 7s (100%)
Warm-up Time: Approx. 4 mins
Tank Capacity: 3L
Fluid Use: Approx. 133ml/min (100%)
DMX Channels: 16
Power Consumption: 1600W
Power Supply: 220~240V, 50/60Hz
Fuse: 8A 250V resettable breaker
Dimensions (H x W x D): 224 x 400 x 444mm
Weight: 11kg

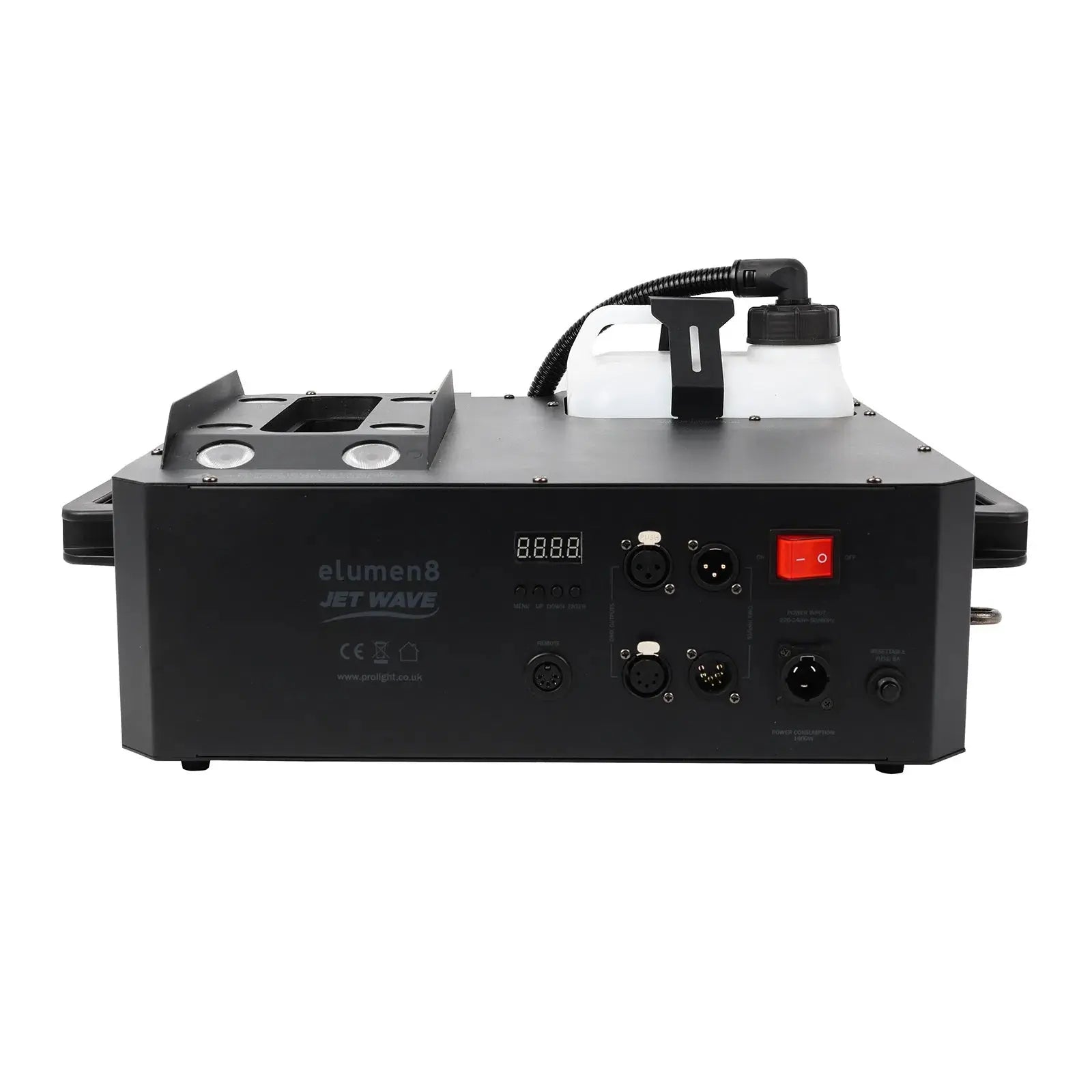

Connections: PowerTwist TR1 input, 3-Pin & 5-Pin XLR input/output
Suitable For
Theatre productions
Concert stages
Live events
What's in the box
Elumen8 Jet Wave Vertical Fog Machine
Quick release omega clamps

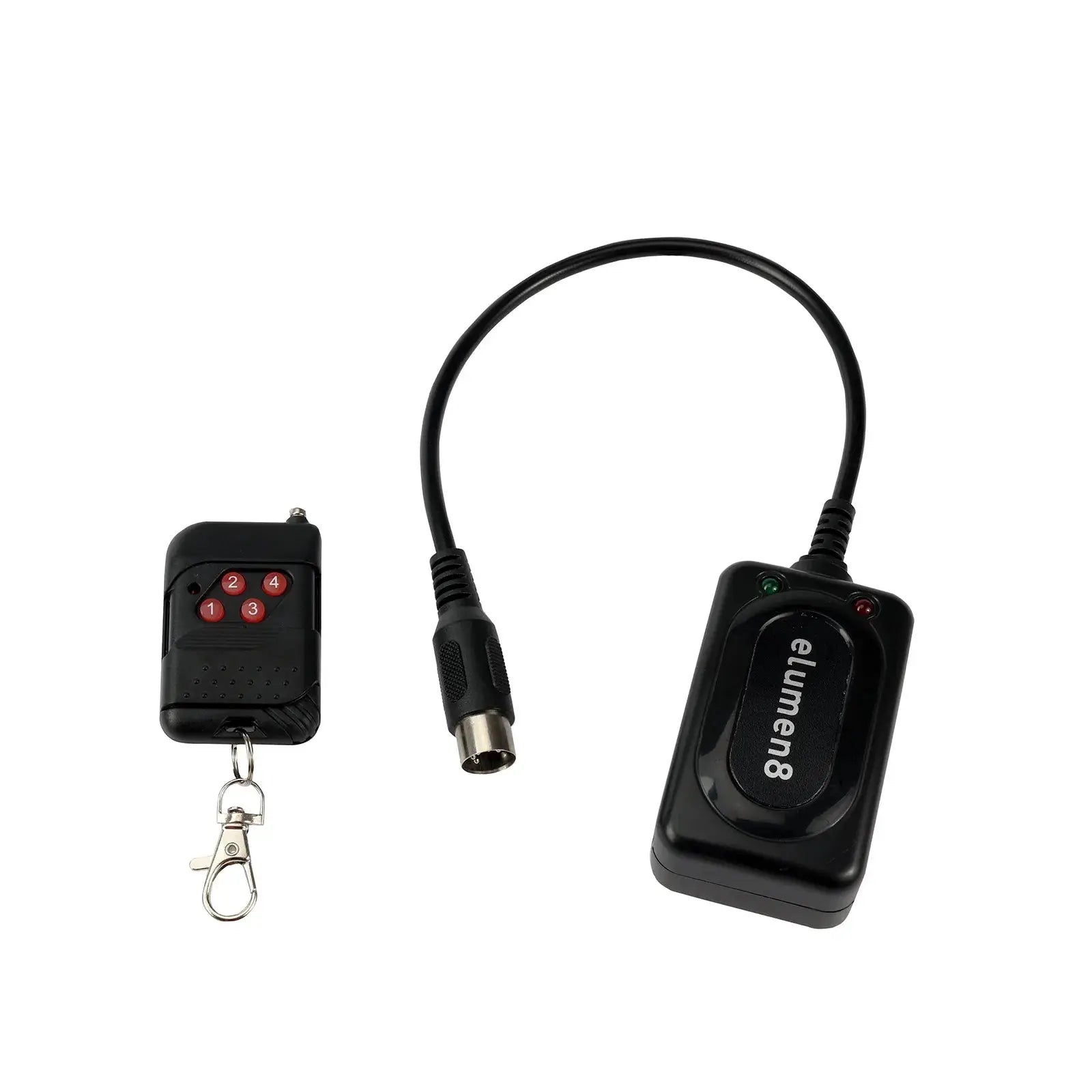

Wireless remote
Power cable (implied by PowerTwist TR1 input)
User manual (implied by standard product inclusions)
